Navidrome on GKE Autopilot

Navidrome is a free, open-source, self-hosted music streaming server written in Go. It exposes a Subsonic/OpenSubsonic-compatible API (so any Subsonic client — DSub, Symfonium, Sublime Music, play:Sub, etc. — can browse and stream your library) plus its own web UI, and stores its state in an embedded SQLite database rather than a managed SQL backend. This module deploys Navidrome on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Navidrome uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

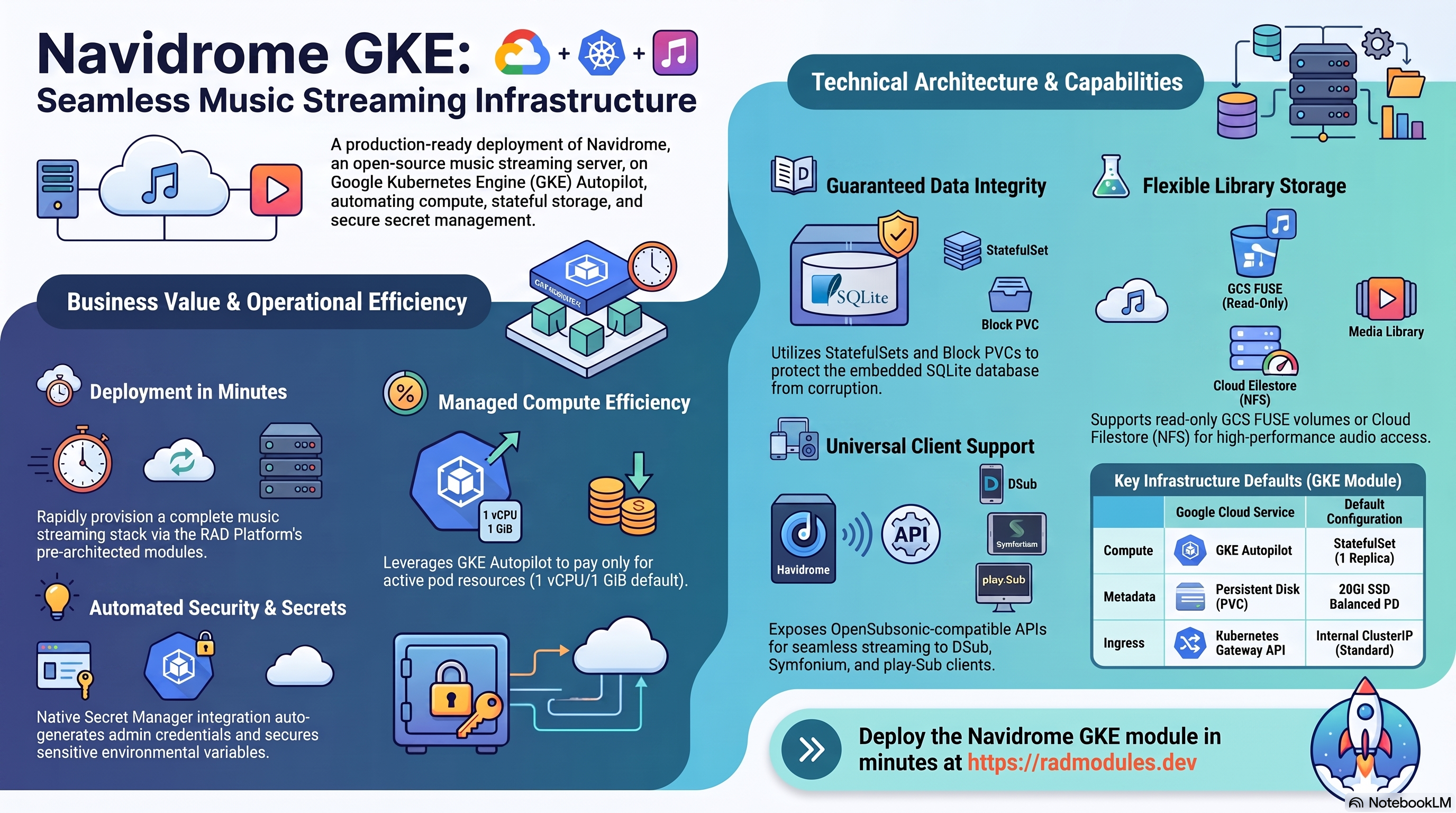

1. Overview

Navidrome runs as a single Go binary serving HTTP on one port. Because it has no external database, the deployment wires together a narrower set of Google Cloud services than a typical database-backed app:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	A StatefulSet pod on port 4533, 1 vCPU / 1 GiB by default
Application data	Block-storage PVC (Persistent Disk, via stateful_pvc_enabled)	Backs the embedded SQLite DB, artwork cache, and search index at /data — not Cloud SQL
Music library	Operator-supplied GCS FUSE volume or Cloud Filestore (NFS) at /music	Read-only source audio files; not provisioned automatically
Object storage	Cloud Storage	A storage bucket is always created but sits unmounted while the default block PVC handles /data
Secrets	Secret Manager	An auto-generated admin password (ND_DEVAUTOCREATEADMINPASSWORD), injected as a native Kubernetes Secret
Ingress	Kubernetes Gateway API / ClusterIP	No LoadBalancer by default — internal-only until a custom domain or service_type change is configured

Sensible defaults worth knowing up front:

• No SQL database. database_type is fixed to NONE by Navidrome_Common; every db_*/database_*/sql_instance_* variable in this module is forwarded to the foundation only for structural compatibility and has no effect.
• SQLite needs a real block PVC, not gcsfuse. Per this repository's storage convention, gcsfuse cannot safely back SQLite's write-locking model. GKE gives Navidrome a genuine advantage over the Cloud Run variant here: stateful_pvc_enabled defaults to true, provisioning a per-pod Persistent Disk mounted at /data (ND_DATAFOLDER) that holds the SQLite database, artwork cache, and search index. This auto-resolves the workload to a StatefulSet.
• The PVC storage class defaults to standard-rwo (SSD Balanced PD). This draws the tight SSD_TOTAL_GB regional quota documented in this repo's storage conventions. Navidrome's data directory is metadata/index-sized, not bulk-media-sized, so SSD is reasonable here — but on a quota-constrained project consider -var stateful_pvc_storage_class=standard (HDD pd-standard) if you hit Quota 'SSD_TOTAL_GB' exceeded across a wider campaign of stateful apps.
• The music library is not mounted automatically. ND_MUSICFOLDER=/music is set as an env var, but no volume is attached to /music out of the box — you must add a read-only GCS FUSE volume (gcs_volumes) or an NFS mount (enable_nfs = true, nfs_mount_path = "/music") pointing at your source audio files. Unlike /data, /music is read-only and holds no SQLite state, so gcsfuse is fine for it.
• Single replica by default. min_instance_count = 1, max_instance_count = 1. Navidrome serves one shared SQLite library from one PVC; there is no multi-writer/clustering mode, so do not scale beyond 1.
• No external ingress by default. service_type = "ClusterIP" and enable_custom_domain = true but with an empty application_domains list — so out of the box Navidrome is reachable only inside the cluster/VPC. Set application_domains (Gateway + managed cert) or switch service_type to LoadBalancer to expose it externally.
• Admin account is auto-created. enable_admin_password = true generates a random password, stores it in Secret Manager, and injects it as ND_DEVAUTOCREATEADMINPASSWORD so Navidrome creates the admin user on first boot. Set it to false to use the first-run web setup wizard instead.
• Health probes hit the public GET /ping endpoint (returns {"status":"ok"}, no auth required).

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region "$REGION" --project "$PROJECT" and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Navidrome StatefulSet

With the default stateful_pvc_enabled = true, Navidrome deploys as a StatefulSet (not a Deployment) so its single pod keeps a stable identity and a PVC that survives reschedules. Autopilot bills for the CPU/memory the pod actually requests.

• Console: Kubernetes Engine → Workloads → select the Navidrome workload for pods, revisions, and events. Confirm the workload type reads StatefulSet.
• CLI:

  kubectl get statefulset,pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot scheduling and the StatefulSet-vs-Deployment auto-resolution work in general.

B. Block-storage PVC — the SQLite data volume

The per-pod PersistentVolumeClaim at /data is the single source of truth for Navidrome: the SQLite database, the metadata/artwork cache, transcode temp files (if enabled), and the search index all live here. Losing this PVC loses your library metadata, playlists, ratings, and users (the source audio itself is unaffected, since /music is a separate, operator-supplied mount).

• Console: Kubernetes Engine → Storage → PersistentVolumeClaims and PersistentVolumes; Compute Engine → Disks to see the underlying Persistent Disk.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  kubectl describe pvc -n "$NAMESPACE" -l app=<service-name>
  gcloud compute disks list --project "$PROJECT" --filter="name~<service-name>"

See App_GKE Group 7 for the full stateful_pvc_* mechanics (storage class, pod management policy, update strategy).

C. Music library storage (GCS FUSE or NFS)

/music is where Navidrome scans for audio files. Nothing is mounted there by default — wire up either a read-only GCS FUSE volume (gcs_volumes, CSI driver-backed, fine here since /music holds no SQLite state) pointing at a bucket of uploaded audio, or a Cloud Filestore (NFS) share (enable_nfs = true, nfs_mount_path = "/music") if you need write access from another host to add files. A separate, always-created storage GCS bucket exists for compatibility with the Cloud Run variant but sits unmounted while the block PVC serves /data.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~<service-name>"
  gcloud filestore instances list --project "$PROJECT"
  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- ls /music

See App_GKE Groups 13–14 for NFS and GCS Fuse volume mechanics.

D. Secret Manager

One secret is generated automatically: the admin password, stored under secret-<prefix>-navidrome-admin-password and injected into the pod as a native Kubernetes Secret (not via the Secret Store CSI driver) for the env var ND_DEVAUTOCREATEADMINPASSWORD, which Navidrome reads on first boot to create the admin account.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~navidrome-admin-password"
  gcloud secrets versions access latest --secret=<admin-password-secret-name> --project "$PROJECT"

See App_GKE for the general Secret Manager / Secret Store CSI integration used by other apps' secrets.

E. Networking & ingress

By default service_type = "ClusterIP" and application_domains is empty, so Navidrome is reachable only from inside the VPC/cluster (http://<service>.<namespace>.svc.cluster.local). Set application_domains (with enable_custom_domain = true, already the module default) to provision a Kubernetes Gateway with a managed TLS certificate, or switch service_type to LoadBalancer for a plain external IP.

• Console: Kubernetes Engine → Services & Ingress; Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,gateway -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE Group 19 for the Gateway API, static IP, and default nip.io hostname mechanics.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime_check_config defaults to false).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Navidrome Application Behaviour

• No init/migration job. Navidrome has no external database, so there is no db-init or migration Job — the SQLite schema is created by the binary itself on first start against the empty /data PVC. initialization_jobs defaults to [] and is only for custom, operator-supplied tasks.
• Admin bootstrap. With enable_admin_password = true (default), the container starts with ND_DEVAUTOCREATEADMINPASSWORD set from the generated secret, and Navidrome auto-creates the admin user with that password on first boot. With enable_admin_password = false, the first person to open the web UI completes the setup wizard and chooses their own admin credentials — recommended only for cluster-internal, trusted-access deployments.
• Immutable-ish PVC identity. Because the pod is a StatefulSet, the PVC is bound to the pod's stable identity (<service-name>-0) and survives pod reschedules/restarts. Scaling max_instance_count beyond 1 is not supported — Navidrome has no multi-writer SQLite mode.
• Health path. Both the startup probe and the liveness probe are HTTP GET /ping, an unauthenticated endpoint returning {"status":"ok"}. Allow a few minutes on first boot while the library scan runs (large libraries take longer).
• Library scan. Navidrome scans /music on startup and on a periodic schedule thereafter; scan progress and results are visible in pod logs and the web UI.
• Verify the running config and library mount:

  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- env | grep ^ND_
  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- ls /music
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=50 | grep -i scan

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Navidrome are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	navidrome	Base name for resources. Do not change after first deploy.
application_version	latest	deluan/navidrome image tag used as the custom-build base; latest is pinned to a known-good tag (0.54.3) at build time.
application_display_name	Navidrome Music Server	Human-readable name shown in the platform UI.
enable_admin_password	true	Auto-generates the admin password and creates the admin user on first boot via ND_DEVAUTOCREATEADMINPASSWORD. Set false to use the first-run web wizard instead.

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit	1000m	1 vCPU; raise for on-the-fly transcoding, which is CPU-bound.
memory_limit	1Gi	Navidrome holds its search index in memory; size to library scale.
min_instance_count	1	Keep at 1 — avoids cold starts during index/library loading.
max_instance_count	1	Keep at 1. No multi-writer SQLite support.
enable_cloudsql_volume	false	Navidrome has no Cloud SQL database — keep false.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
workload_type	null → StatefulSet	Auto-resolves to StatefulSet because stateful_pvc_enabled = true.
service_type	ClusterIP	Internal-only by default; no external IP unless changed or a custom domain is configured.
session_affinity	None	No sticky routing needed with a single replica.

Group 7 — StatefulSet / PVC

Variable	Default	Description
stateful_pvc_enabled	true	Provisions a real block PVC at /data — required so gcsfuse never backs the embedded SQLite DB.
stateful_pvc_size	20Gi	Sized for the SQLite DB, metadata cache, and search index (not the music library, which mounts separately).
stateful_pvc_mount_path	/data	Must match Navidrome's ND_DATAFOLDER.
stateful_pvc_storage_class	standard-rwo	SSD Balanced PD by default; switch to standard (HDD) if SSD_TOTAL_GB quota is constrained.
stateful_fs_group	3000	Matches the Navidrome Helm chart's UID 1000/GID 2000 convention, ensuring the PVC is group-writable.

Group 13 — NFS Storage

Variable	Default	Description
enable_nfs	false	Enable and set nfs_mount_path = "/music" to mount a writable, shared music library via Cloud Filestore.
nfs_mount_path	/mnt/nfs	Not /music by default — must be overridden if using NFS for the library.

Group 14 — Cloud Storage

Variable	Default	Description
create_cloud_storage	true	Always creates the storage bucket; it stays unmounted while the default block PVC serves /data.
gcs_volumes	[]	Add a read-only entry with mount_path = "/music" to source your library from GCS instead of NFS.

Group 16 — Database Configuration

Variable	Default	Description
database_type	NONE	Fixed by Navidrome_Common — Navidrome has no SQL database; every other database_*/sql_* variable is inert.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provisions the Gateway resource, but has no effect until application_domains is non-empty.
application_domains	[]	Set to expose Navidrome externally via Gateway + managed certificate.
reserve_static_ip	true	Stable IP once external ingress (LoadBalancer or Gateway) is configured.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when service_type = LoadBalancer and a static IP is reserved).
service_url	URL to reach Navidrome.
navidrome_admin_password_secret_id	Secret Manager secret ID for the generated admin password (empty when enable_admin_password = false).
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
initialization_jobs	Names of any operator-supplied initialization jobs.
statefulset_name	Name of the StatefulSet.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
stateful_pvc_enabled	true	Critical	Disabling it (or otherwise backing /data with gcsfuse) risks corrupting SQLite's write-locking model — DB corruption, lost library metadata.
stateful_pvc_storage_class	standard-rwo (or standard under quota pressure)	High	SSD draws the tight SSD_TOTAL_GB regional quota; a wide campaign of stateful apps can exhaust it — switch to HDD standard if so.
max_instance_count	1	Critical	Navidrome has no multi-writer SQLite mode; scaling beyond 1 risks concurrent writes to the same PVC and DB corruption.
/music volume (gcs_volumes or enable_nfs)	Configure explicitly	High	Nothing is mounted at /music by default — the library scan finds no files and Navidrome serves an empty catalogue until a volume is added.
enable_admin_password	true for any externally reachable deployment	High	false leaves the first-run wizard exposed to whoever reaches the URL first — they become admin.
application_domains / service_type	Set one to expose externally	Medium	The default ClusterIP + empty application_domains leaves Navidrome reachable only inside the VPC — expected for internal use, surprising if you wanted public access.
stateful_pvc_size	20Gi (raise for very large libraries)	Medium	Undersizing risks the SQLite DB/cache/index filling the PVC on large libraries; the pod does not auto-expand storage.
quota_cpu_requests / quota_memory_requests / etc.	N/A	Low	These quota_* variables are declared but not forwarded to the foundation by this module — setting them has no effect; only enable_resource_quota is wired through (falling back to App_GKE's own quota defaults).
memory_limit	1Gi	Medium	Below ~512Mi the pod risks OOM while holding the search index in memory during a large library scan.
stateful_fs_group	3000	Medium	A mismatched fsGroup can leave the PVC unwritable by Navidrome's non-root UID, blocking DB writes at boot.
backup_retention_days	7 (raise for prod)	Low	Too short for compliance retention of /data backups.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Navidrome-specific application configuration shared with the Cloud Run variant is described in Navidrome_Common.
