Kavita on Google Cloud Run

Kavita is a fast, self-hosted digital library and reading server for comics, manga, and e-books — a clean web reading UI, OPDS feeds, collections, reading lists, and full-text search over your library, built on .NET with an internal SQLite database. This module deploys Kavita on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Kavita uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

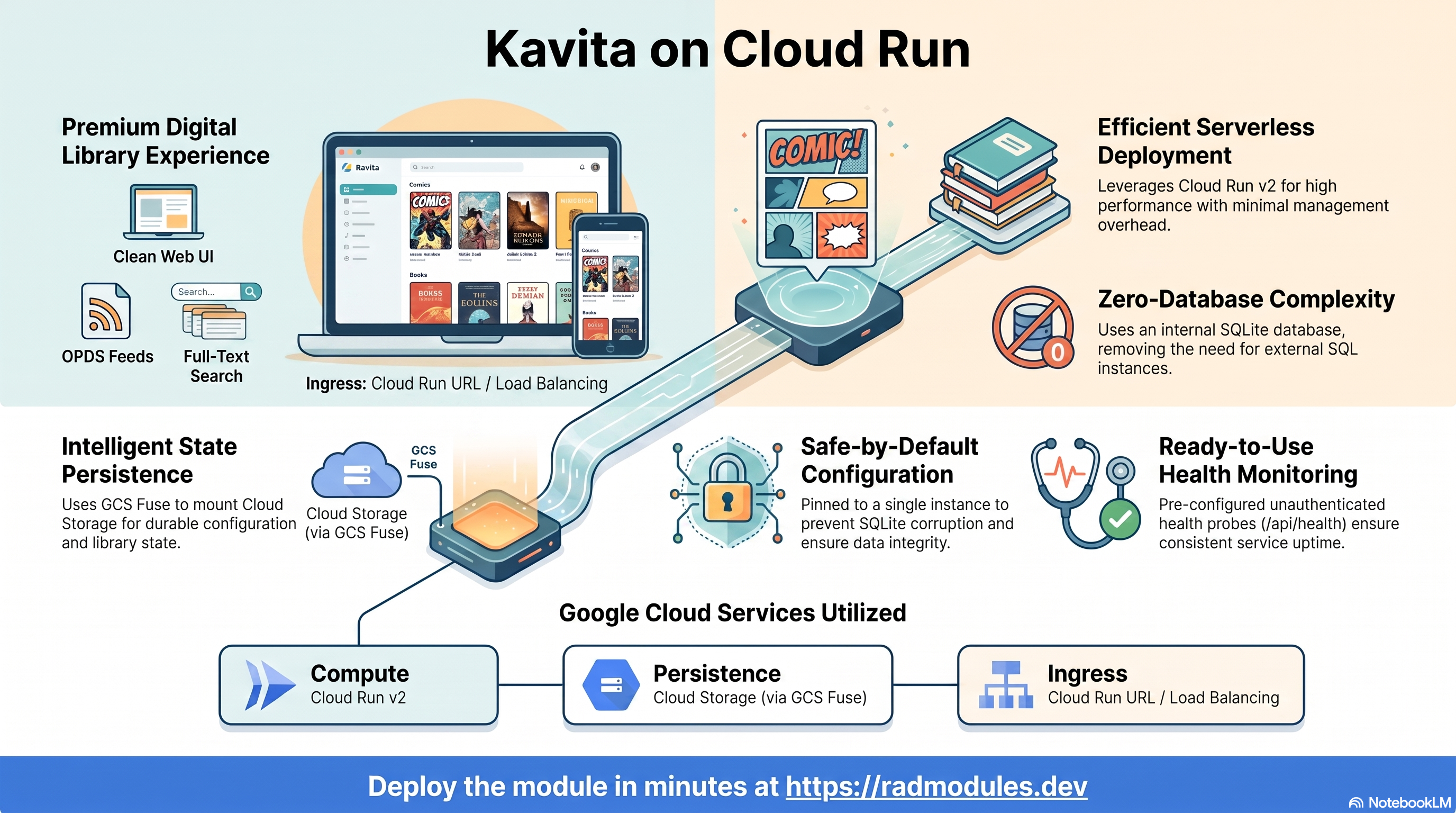

1. Overview

Kavita runs as a single .NET container on Cloud Run v2 with no external database or cache — everything it needs (settings, its internal SQLite database, and the library index) lives on disk under /kavita/config.

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	.NET web container on port 5000, 1000m CPU / 1Gi memory by default; min=1/max=1
Database	None — internal SQLite	database_type is fixed to NONE by Kavita_Common; no Cloud SQL instance is created
State persistence	Cloud Storage bucket mounted via GCS Fuse	/kavita/config holds the SQLite database (kavita.db), settings, covers, and logs — this is Cloud Run's only persistence option (no block PVC)
Object storage	Cloud Storage	A storage bucket is auto-provisioned and mounted at /kavita/config
Secrets	Secret Manager	None generated — the first-run setup wizard creates the admin account; secret_ids/secret_values are empty
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• SQLite has no choice but to live on GCS Fuse here. Cloud Run has no block Persistent Volume option, so /kavita/config (Kavita's SQLite database and settings) is always mounted through gcsfuse. This is the one place in this module where the repository's usual "gcsfuse corrupts SQLite" caution is unavoidable rather than a misconfiguration — the module's own description recommends Kavita_GKE for production libraries, where the same data instead lives on a real block PVC. Treat Kavita_CloudRun as best suited to light-to-medium libraries.
• min_instance_count defaults to 1, not 0. Unlike most Cloud Run application modules (which default to scale-to-zero), Kavita keeps one instance always warm by default, avoiding cold-start delays while it reloads its library index and re-mounts the gcsfuse volume.
• max_instance_count is pinned to 1. Kavita has no clustering or shared-write coordination; a second instance writing to the same gcsfuse-mounted SQLite file risks corrupting the library index.
• No database, no Redis. database_type is fixed to NONE, and Redis is forced off: main.tf hardcodes enable_redis = false regardless of the variable's own inherited foundation default (true) — Kavita has no use for a queue or cache.
• No auto-generated secrets. There is no admin password, API key, or signing key created in Secret Manager. The administrator account is created interactively through Kavita's first-run setup wizard the first time you open the service URL.
• Custom-built image, pinned version tag. The Dockerfile thin-wraps jvmilazz0/kavita:${KAVITA_VERSION}. application_version = "latest" resolves to a pinned KAVITA_VERSION = 0.8.7 build argument in Kavita_Common (not the generic APP_VERSION the Foundation injects) — bumping the version requires editing that pinned value and rebuilding, not just redeploying.
• Health path is /api/health, unauthenticated, for both probes. The startup probe allows a generous failure budget to tolerate first-boot library indexing.
• Only Kavita's state directory is persisted by this module. The actual library content (comics, manga, e-books) is not provisioned here — add your own gcs_volumes (or NFS) for the content and register it as a library inside the Kavita UI after deploy.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Kavita service

Kavita runs as a single Cloud Run v2 service. Because it is a single-writer SQLite app backed by a gcsfuse-mounted volume, do not raise max_instance_count above 1.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — the GCS Fuse–mounted config/library-state bucket

Kavita_Common provisions a single Cloud Storage bucket (suffix storage) and this module mounts it at /kavita/config via GCS Fuse. It holds Kavita's SQLite database (kavita.db), cover images, bookmarks, backups, and logs — effectively all of Kavita's durable state. Additional buckets can be declared via storage_buckets, and additional read-only content mounts via gcs_volumes.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~kavita"
  gcloud storage ls gs://<config-bucket>/        # bucket name is in the Outputs

See App_CloudRun for GCS Fuse mount options and CMEK.

C. Secret Manager

Kavita has no generated secrets — no admin password, API key, or signing key is created by this module. Kavita's own JWT signing key (TokenKey) is auto-generated by the application on first boot and persisted on the gcsfuse-mounted /kavita/config volume, not in Secret Manager. Any secrets you add yourself via secret_environment_variables flow through Secret Manager like any other application module.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~kavita"

See App_CloudRun for injection and rotation details.

D. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"), which allows browsers, mobile reader apps, and OPDS clients to reach it directly. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Kavita Application Behaviour

• No first-deploy database setup. Kavita has no db-init job — there is no external database to bootstrap. initialization_jobs defaults to an empty list; only custom jobs you supply are run.
• No migration step. Kavita creates and migrates its own internal SQLite schema on first boot; upgrading application_version (and rebuilding) applies schema changes automatically without a separate migration job.
• No immutable, auto-generated secrets. Unlike most application modules, there is no encryption key, admin token, or JWT secret minted into Secret Manager. Kavita's own JWT TokenKey is generated internally on first boot and persisted on the /kavita/config volume — nothing to rotate or lose track of at the Terraform layer.
• Health path. Both the startup and liveness probes target the public, unauthenticated /api/health endpoint. The startup probe uses a longer failure budget (initial_delay_seconds = 15, period_seconds = 10, failure_threshold = 10) to tolerate slower first-boot library indexing before the liveness probe (initial_delay_seconds = 30, period_seconds = 30, failure_threshold = 3) takes over.
• Sign-up / first-run behaviour. There is no seeded admin account or generated credential. Open the service URL — Kavita's first-run setup wizard walks through creating the initial administrator account and adding your first library. Complete this promptly after deploy: until it runs, the service is reachable but unclaimed.
• Redis is force-disabled. main.tf sets enable_redis = false unconditionally when calling App_CloudRun, overriding the foundation's own enable_redis = true default — no REDIS_HOST/REDIS_PORT are ever injected, and the redis_host/redis_port/redis_auth variables have no effect.
• enable_cloudsql_volume is fixed off. main.tf passes enable_cloudsql_volume = false directly to the foundation regardless of the variable (whose own default is also false) — Kavita has no Cloud SQL Auth Proxy sidecar.
• Custom image build. The container is built from a thin wrapper Dockerfile (FROM jvmilazz0/kavita:${KAVITA_VERSION}); application_version = "latest" resolves to the pinned KAVITA_VERSION = 0.8.7 build argument (a version bump requires editing the pinned value in Kavita_Common, then a rebuild — see the repository's "latest-tag base images" convention).
• Inspect the service and its mounted state:

  gcloud run services describe <service-name> \
    --region "$REGION" --project "$PROJECT" \
    --format='value(status.url)'
  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Kavita are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	kavita	Base name for resources. Do not change after first deploy.
application_display_name	Kavita	Human-readable name shown in the Console.
description	Kavita — self-hosted comics, manga and ebook server (.NET, SQLite)	Service description.
application_version	latest	Kavita image tag; latest resolves to the pinned KAVITA_VERSION = 0.8.7 build arg in Kavita_Common.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance; Kavita is a lightweight .NET server.
memory_limit	1Gi	Memory per instance; comfortable for large libraries.
min_instance_count	1	Kept at 1 by default to avoid cold starts during library index loading — most Cloud Run modules default to 0.
max_instance_count	1	Keep at 1. No clustering — a second instance writing the same gcsfuse-mounted SQLite file risks corruption.
container_port	5000	Kavita's fixed HTTP port.
execution_environment	gen2	Required for the GCS Fuse mount.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Kavita has no Cloud SQL; also hardcoded false in main.tf regardless of this value.
enable_image_mirroring	true	Mirror the Kavita image into Artifact Registry.
container_protocol	http1	HTTP/1.1 is sufficient; Kavita has no gRPC use for h2c.
traffic_split	[]	Split traffic across revisions for staged rollouts.
max_revisions_to_retain	7	Declared for convention parity; not referenced by this module's deployment.
service_annotations / service_labels	{}	Custom annotations/labels on the Cloud Run service resource.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Public access for the reading UI, OPDS feeds, and reader-app clients.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in. OPDS/mobile reader clients typically cannot complete IAP's auth flow.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings; Kavita needs none by default.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency — only relevant to secrets you add yourself; Kavita mints none.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore /kavita/config from a backup on deploy — Kavita has no separate database dump; its state is the config directory itself.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts & NFS Instance Discovery

Variable	Default	Description
enable_custom_sql_scripts	false	Not applicable — Kavita has no SQL database.
custom_sql_scripts_bucket / custom_sql_scripts_path / custom_sql_scripts_use_root	—	Not applicable.
nfs_instance_name / nfs_instance_base_name	"" / app-nfs	Only relevant if you add an NFS mount for separate library content; unused by default.

Group 10 — Cloud Armor, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Creates the auto-provisioned storage bucket (mounted at /kavita/config) plus any storage_buckets.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned config bucket.
enable_nfs	false	Off by default; enable only to mount separate library content over NFS.
nfs_mount_path	/mnt/nfs	Mount path for that NFS share (distinct from /kavita/config).
gcs_volumes	[]	Additional GCS Fuse volume mounts — e.g. a read-only bucket of library content.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
enable_redis / redis_host / redis_port / redis_auth	inert	Declared only for Foundation-variable mirroring — main.tf hardcodes enable_redis = false unconditionally; Kavita never uses Redis regardless of these values.

Group 12 — Database Backend (not applicable)

Variable	Default	Description
database_type	NONE	Fixed by Kavita_Common — Kavita stores everything in an internal SQLite file; no Cloud SQL instance is created.
database_password_length	32	Not referenced — Kavita has no SQL database.

All other database-related variables in this group (sql_instance_name, application_database_name/_user, enable_mysql_plugins, enable_postgres_extensions, the db_*_env_var_name set, enable_auto_password_rotation, etc.) are declared only for Foundation-variable mirroring and have no effect on a Kavita deployment.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty — Kavita has no db-init/migration job; it manages its own SQLite schema on first boot.
cron_jobs	[]	Not used by default; add custom scheduled tasks (e.g. collection snapshots) if needed.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /api/health, 15s delay	Startup probe; 10-attempt failure budget tolerates first-boot library indexing.
liveness_probe	HTTP /api/health, 30s delay	Liveness probe.
startup_probe_config / health_check_config	disabled alt / HTTP /api/health	Alternative structured probes (inactive by default; startup_probe/liveness_probe take effect).
uptime_check_config	{ enabled=false, path="/api/health" }	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Metric alert policies.

Group 15 — Networking

Variable	Default	Description
network_name	""	Declared for convention mirroring; not forwarded to App_CloudRun by this module — the VPC network is auto-discovered instead.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
kavita_url	Internal VPC URL for the Kavita service (port 5000); only reachable within the VPC when ingress_settings = "internal".
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets, including the storage bucket mounted at /kavita/config.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any custom initialization jobs you supplied (none by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

Note there are no database_* outputs — Kavita provisions no Cloud SQL instance.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, a gen1 runtime with a GCS Fuse mount, an out-of-range redis_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
/kavita/config on GCS Fuse	Accept for light/medium libraries only	Critical	GCS Fuse is Cloud Run's only persistence option; concurrent writes or heavy metadata scans against a gcsfuse-backed SQLite file risk corrupting the library index. For large libraries, use Kavita_GKE's block PVC instead.
max_instance_count	1	Critical	Kavita has no clustering; a second instance writing to the same gcsfuse-mounted SQLite file corrupts the library index and admin/user data.
Library content storage	Add gcs_volumes (or NFS) separate from /kavita/config	High	Kavita_Common only persists the config/SQLite state directory — without a separate mount for the actual comics/manga/e-book files, there is nowhere durable to store the library content itself.
enable_iap	false unless all clients support it	High	Kavita's OPDS feed and mobile reader-app clients typically cannot complete Google IAP's auth flow, so enabling IAP breaks e-reader access even though the browser UI still works via a browser challenge.
ingress_settings	all	High	internal blocks the reading UI and OPDS clients from reaching the service directly.
First-run admin account	Complete the setup wizard immediately after deploy	Medium	Until the wizard runs, the service is reachable but unclaimed — anyone who reaches the URL first can create the initial admin account.
application_version / KAVITA_VERSION	Pin explicitly for production	Medium	"latest" resolves to Kavita_Common's pinned KAVITA_VERSION = 0.8.7; bumping requires editing that pinned value and rebuilding, not just redeploying.
min_instance_count	1 (default)	Medium	Setting to 0 enables scale-to-zero but adds cold-start latency while gcsfuse re-mounts and Kavita reloads its library index.
enable_redis (inert)	leave as-is	Low	Setting this variable has no effect — main.tf hardcodes enable_redis = false regardless of the value passed.
enable_cloudsql_volume	false	Low	Kavita never uses Cloud SQL; the value is hardcoded false in main.tf regardless of this setting.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention; Kavita's entire state is the /kavita/config directory, so this is the only backup path.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Kavita's application-specific configuration shared with the GKE variant — including why it has no generated secrets, no database, and how the /kavita/config state directory is mounted differently on each platform (GCS Fuse here vs. a block PVC on GKE) — is described in Kavita_Common.
