Navidrome on Google Cloud Run

Navidrome is a free, open-source (GPLv3) self-hosted, Subsonic-compatible music streaming server written in Go. It scans a music library, serves it through a fast web UI, and speaks the Subsonic/OpenSubsonic API so any compatible mobile or desktop client can stream from it. This module deploys Navidrome on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Navidrome uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

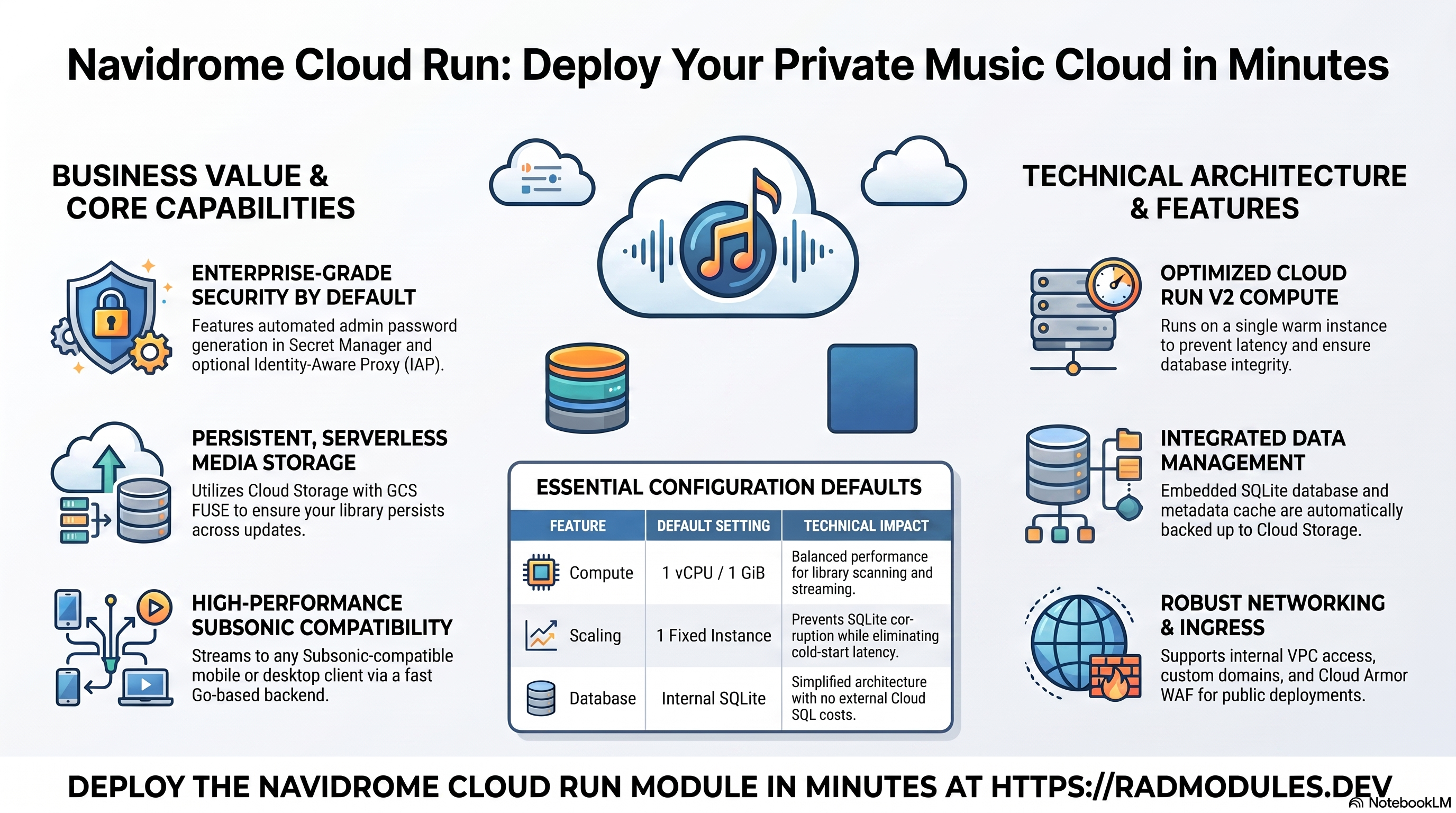

1. Overview

Navidrome runs as a single Go container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Go music server, 1 vCPU / 1 GiB by default, pinned to a single warm instance
Persistence	Cloud Storage + GCS FUSE	The /data directory (SQLite DB, metadata cache, search index) is backed by a GCS bucket
Database	Internal SQLite (embedded)	No Cloud SQL — Navidrome keeps all state in a SQLite file under /data
Secrets	Secret Manager	Generated admin password (ND_DEVAUTOCREATEADMINPASSWORD) when enable_admin_password = true
Ingress	Cloud Run URL / Cloud Load Balancing	internal by default; optional external HTTPS load balancer + custom domain
Image delivery	Artifact Registry	The deluan/navidrome image is mirrored in before deployment

Sensible defaults worth knowing up front:

• There is no external database. Navidrome stores its entire state — the SQLite database, metadata cache, and search index — under a single /data directory. No Cloud SQL instance, no db-init job, and no Redis are provisioned (database_type = NONE; enable_redis = false).
• /data must persist across revisions. On Cloud Run the /data path is backed by a Cloud Storage bucket mounted via GCS FUSE (enable_gcs_storage_volume = true, gen2 execution environment). Without a persistent /data, every new revision starts with an empty library and re-runs the first-boot scan and setup.
• The container listens on port 4533. Cloud Run routes HTTP traffic to Navidrome's default web/API port. GET /ping returns {"status":"ok"} (200, unauthenticated) once the server is up.
• A generated admin account by default. enable_admin_password = true generates a random 24-character password, stores it in Secret Manager, and injects it as ND_DEVAUTOCREATEADMINPASSWORD so the admin user is auto-created on first boot. Retrieve it from Secret Manager and change it after first login. Set enable_admin_password = false to create the first admin through the web wizard instead.
• A single warm instance is the default. min_instance_count = 1 keeps the server warm (avoiding cold-start latency mid-stream) and max_instance_count = 1 keeps a single shared SQLite library on a single volume. Do not run multiple replicas — Navidrome is a single-writer server; concurrent writers against one SQLite file corrupt the library.
• The music library is not auto-mounted. ND_MUSICFOLDER = /music is set, but the module does not mount anything there — supply the music collection via a gcs_volumes mount (or NFS) at /music.
• Public ingress requires the generated admin password. A plan-time guard rejects ingress_settings = "all" unless enable_admin_password = true — otherwise the first-run wizard is open to whoever reaches the URL first.

Cloud Run vs GKE — pick the right home for your library. Cloud Run (this module) mounts /data from a GCS bucket over FUSE. It is simple, scales to a single warm instance, and is ideal for a demo or a small personal library. FUSE I/O latency makes the SQLite-heavy /data directory slower than block storage. Navidrome_GKE runs as a StatefulSet with a real block PVC at /data, giving the correct filesystem semantics the embedded SQLite database needs — the recommended choice for a larger or busier library, with optional NFS for a large music collection.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Navidrome service

Navidrome runs as a Cloud Run v2 service. Because the library is a single SQLite store on a single volume, the service is pinned to one instance rather than autoscaled. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Persistent data store (SQLite on /data)

Navidrome has no external database. Its entire state — the SQLite database, the metadata cache, and the search index — lives under /data (ND_DATAFOLDER = /data). There is no Cloud SQL instance, no Auth Proxy, and no initialization Job to create a schema; Navidrome creates and migrates its own SQLite database on first start.

Because everything important is a file under /data, persisting that directory is persisting the whole server. On Cloud Run it is backed by a Cloud Storage bucket (see below).

• Inspect the mounted volume on the running revision:

  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].volumeMounts)'

C. Cloud Storage — the /data bucket (and music library)

A dedicated Cloud Storage bucket (name suffix storage) is provisioned automatically and mounted at /data via GCS FUSE (enable_gcs_storage_volume = true, gen2 execution environment). The bucket is STANDARD class, force_destroy = true, versioning off, with public_access_prevention = enforced. The music library at /music is not mounted automatically — declare an additional GCS FUSE volume via gcs_volumes (or enable NFS) pointing at your music collection.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<storage-bucket>/        # bucket name is in the Outputs

See App_CloudRun for GCS FUSE mount options and CMEK.

D. Secret Manager & the admin password

When enable_admin_password = true (the default), the Common layer generates a 24-character random password, stores it in Secret Manager as secret-<prefix>-navidrome-admin-password, and injects it as ND_DEVAUTOCREATEADMINPASSWORD so Navidrome auto-creates the admin user on first boot. There is no encryption key or JWT secret to manage.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~navidrome-admin-password"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

E. Networking & ingress

By default ingress_settings = "internal", so the service is reachable only from within the VPC — appropriate for a private music server. Set ingress_settings = "all" for a public run.app URL (requires enable_admin_password = true, enforced at plan time), or layer on an external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor. VPC egress control governs outbound connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Navidrome Application Behaviour

• No initialization Job. Navidrome needs no db-init step — it creates and migrates its own SQLite database under /data the first time it starts. Leave initialization_jobs empty unless you have custom data-loading tasks.
• Admin auto-creation on first boot. With enable_admin_password = true, ND_DEVAUTOCREATEADMINPASSWORD is injected and Navidrome creates the admin user with the generated password on first start. Log in as admin, retrieve the password from Secret Manager, and change it. With enable_admin_password = false, the first access serves a create-admin wizard instead — complete it immediately so nobody else can claim the admin account.
• Library scan runs on start. Navidrome scans ND_MUSICFOLDER (/music) on startup and periodically; a large collection takes time to index into the SQLite database and search index under /data.
• /data is the single source of truth — persist it. All library state is on the GCS-backed /data volume. Deleting or repointing that bucket wipes the database, users, playlists, and play counts. Because GCS FUSE is not a true POSIX filesystem, keep Cloud Run to light/personal use and move a larger library to the GKE block-PVC variant.
• Custom image is a thin wrapper. The Dockerfile is ARG NAVIDROME_VERSION=0.54.3 / FROM deluan/navidrome:${NAVIDROME_VERSION}, so image_source = "custom" and the Foundation mirrors it into Artifact Registry (enable_image_mirroring = true). application_version = "latest" resolves to the pinned 0.54.3 via the app-specific NAVIDROME_VERSION build arg — it is not overwritten by the Foundation's generic APP_VERSION injection.
• Health path. Startup and liveness probes target GET /ping, which returns {"status":"ok"} (200) without authentication once the server is ready. The startup probe allows a 15-second initial delay with a generous retry window; the liveness probe polls every 30 seconds.
• Inspect the running revision's image and env:

  gcloud run services describe <service-name> \
    --region "$REGION" --project "$PROJECT" \
    --format='value(spec.template.spec.containers[0].image)'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Navidrome are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	navidrome	Base name for resources. Do not change after first deploy.
application_display_name	Navidrome Music Server	Human-readable name shown in the Console.
description	Navidrome — self-hosted, Subsonic-compatible music streaming server	Service description.
application_version	latest	Navidrome image tag; latest pins to 0.54.3 via the NAVIDROME_VERSION build arg.
enable_admin_password	true	Generate a random admin password in Secret Manager and inject ND_DEVAUTOCREATEADMINPASSWORD. Required for public ingress.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance; raise for large-library scanning.
memory_limit	1Gi	Memory per instance; Navidrome holds its search index in memory — size to the library.
min_instance_count	1	Keep 1 to stay warm and avoid cold starts mid-stream.
max_instance_count	1	Keep at 1. One shared SQLite library on one volume — never run multiple replicas.
container_port	4533	Navidrome's web/API port.
execution_environment	gen2	Gen2 required for GCS FUSE and NFS mounts.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Navidrome has no Cloud SQL — leave false.
enable_image_mirroring	true	Mirror deluan/navidrome into Artifact Registry.
traffic_split	[]	Split traffic across revisions for staged rollouts.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	internal	internal keeps the server VPC-private; all (public) requires enable_admin_password = true.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in in front of Navidrome.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra ND_* settings; override ND_MUSICFOLDER / ND_DATAFOLDER here if you remap volumes.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC) of the /data bucket.
backup_retention_days	7	Retention; raise for production.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore a /data snapshot on deploy (tar default).

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom Initialization & SQL

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — not applicable to Navidrome (no SQL database); retained for foundation compatibility. Also hosts nfs_instance_name / nfs_instance_base_name for NFS discovery.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Provision the Navidrome /data bucket (created automatically) and any extras.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned storage bucket.
enable_nfs	false	Provision Cloud Filestore (NFS); enable to mount a large shared music library.
nfs_mount_path	/mnt/nfs	Mount path inside the container.
gcs_volumes	[]	Additional GCS FUSE mounts — use to mount the music library at /music.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed to NONE by Navidrome_Common — Navidrome uses embedded SQLite, no Cloud SQL.
database_password_length	32	Inert; forwarded for foundation compatibility.
enable_auto_password_rotation / rotation_propagation_delay_sec	off	Not applicable — no SQL database.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Navidrome needs no init job; provide only for custom data-loading tasks.
cron_jobs	[]	Optional Cloud Run jobs for maintenance tasks.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /ping 15s delay	Startup probe; /ping returns {"status":"ok"} (200) once ready.
liveness_probe	HTTP /ping 30s delay	Liveness probe.
startup_probe_config	HTTP /ping	Alternative structured startup probe.
health_check_config	HTTP /ping	Alternative structured liveness probe.
uptime_check_config	{ path="/ping" }	Cloud Monitoring uptime check.
alert_policies	[]	Metric alert policies.

Group 21 — Redis (forwarded for foundation compatibility)

enable_redis is set to false by this module and Navidrome uses no cache or queue; redis_host / redis_port / redis_auth are inert. Leave at defaults.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	[] / true	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
navidrome_url	Service URL for the Navidrome web UI / Subsonic API (VPC-internal when ingress_settings = internal).
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets (including the /data bucket).
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any setup jobs (empty for a default Navidrome deploy).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

The generated admin password is not returned as an output; retrieve it from Secret Manager (secret-<prefix>-navidrome-admin-password, see §2 / §4.D).

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a gen1 runtime with NFS/GCS mounts, IAP with no authorized identities, an out-of-range container_port/backup_retention_days/timeout_seconds. A Navidrome-specific guard additionally rejects ingress_settings = "all" unless enable_admin_password = true, and min_instance_count > max_instance_count. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
/data GCS bucket	Never delete/repoint	Critical	The /data bucket holds the SQLite database, users, and playlists; removing it wipes the entire server.
max_instance_count	1	Critical	Multiple replicas write to one SQLite file over FUSE and corrupt the library.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
ingress_settings = "all" without enable_admin_password	keep admin password on	Critical	Blocked at plan time — a public URL with an open first-run wizard lets a stranger claim the admin account.
execution_environment	gen2	High	Gen1 cannot mount GCS FUSE, so /data never persists.
min_instance_count	1	High	Scale-to-zero cold-starts interrupt in-progress streams and re-open the library.
memory_limit	1Gi (raise for large libraries)	High	Navidrome holds its search index in memory; too little OOM-kills the server while scanning.
ND_MUSICFOLDER mount	Provide music at /music	High	Without a gcs_volumes/NFS mount at /music, the library is empty — nothing to stream.
enable_admin_password	true	Medium	Off leaves an open create-admin wizard on first access; complete it immediately or restrict ingress.
ingress_settings	internal unless public	Medium	all exposes the music server to the internet — pair with IAP or Cloud Armor.
backup_retention_days	7 (raise for prod)	Medium	Too short to recover an older library snapshot.
Generated admin password	Change after first login	Medium	The bootstrap password sits in Secret Manager; rotate it in-app for real users.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Navidrome-specific application configuration shared with the GKE variant is described in Navidrome_Common.
