Jellyfin on Google Cloud Run

Jellyfin is a free, open-source (GPLv2) self-hosted media server for streaming your own movies, TV shows, music, photos, and live TV. Written in .NET/C# and maintained as a community fork of Emby, it has no tracking, no ads, and no premium tier. This module deploys Jellyfin on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Jellyfin uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

1. Overview

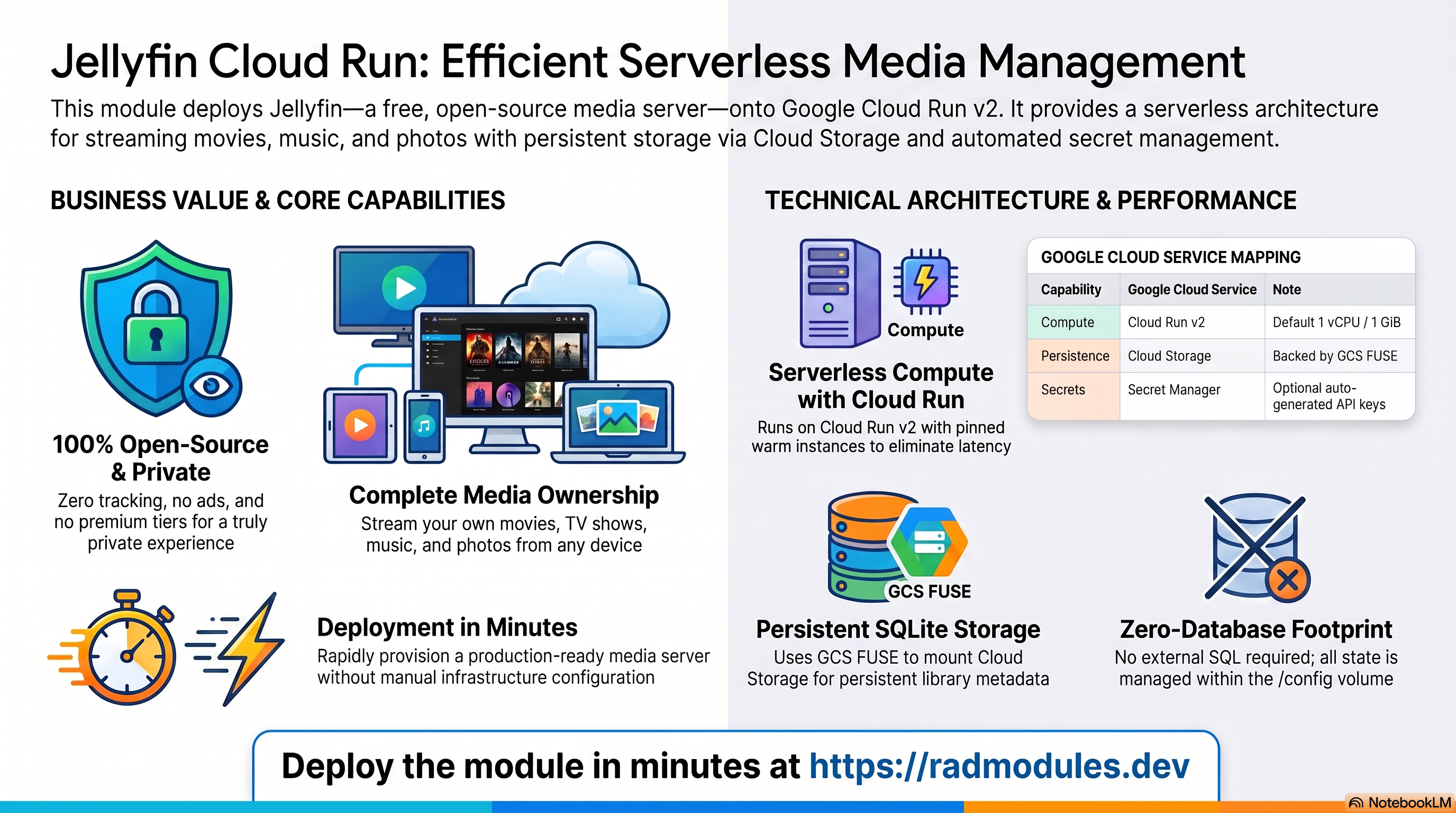

Jellyfin runs as a single .NET container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	.NET media server, 1 vCPU / 1 GiB by default, pinned to a single warm instance
Persistence	Cloud Storage + GCS FUSE	The /config directory (SQLite databases, metadata, plugins) is backed by a GCS bucket
Database	Internal SQLite (embedded)	No Cloud SQL — Jellyfin keeps all state in SQLite files under /config
Secrets	Secret Manager	Optional auto-generated API key; no mandatory cryptographic secrets
Ingress	Cloud Run URL / Cloud Load Balancing	internal by default; optional external HTTPS load balancer + custom domain
Image delivery	Artifact Registry	The jellyfin/jellyfin image is mirrored in before deployment

Sensible defaults worth knowing up front:

• There is no external database. Jellyfin stores its entire library — the SQLite databases, configuration XML, metadata, artwork, plugins, transcode cache, and logs — under a single /config directory. No Cloud SQL instance, no db-init job, and no Redis are provisioned (database_type = NONE).
• /config must persist across revisions. On Cloud Run the /config path is backed by a Cloud Storage bucket mounted via GCS FUSE (enable_gcs_storage_volume = true). Without a persistent /config, every new revision starts with an empty library and re-runs the first-run wizard.
• The container listens on port 8096. Cloud Run routes HTTP traffic to Jellyfin's default web/API port. The web UI and first-run setup wizard are served at /web (and /); GET /health returns Healthy (200, unauthenticated).
• There are no default credentials. On first access the setup wizard walks you through creating the administrator account and adding media libraries. Nothing is usable until that account exists.
• A single warm instance is the default. min_instance_count = 1 keeps the media server warm (avoiding cold-start latency mid-stream) and max_instance_count = 1 keeps a single shared SQLite library on a single volume. Do not run multiple replicas — concurrent writers against one SQLite file corrupt the library.
• Cloud Run is best for light/demo use. GCS FUSE latency plus Cloud Run's stateless, request-timeout execution model make this variant well-suited to evaluation and light personal use — but not heavy transcoding or many concurrent streams. For a real media library, deploy Jellyfin_GKE with a block PVC.
• API-key auth is optional and off by default. enable_api_key = false. Primary authentication is the wizard-created admin account; per-application API keys are created in-app under Dashboard → API Keys.

Cloud Run vs GKE — pick the right home for your library. Cloud Run (this module) mounts /config from a GCS bucket over FUSE. It is simple, scales to a single warm instance, and is ideal for a demo or a small personal library with occasional direct-play streaming. FUSE I/O latency and the per-request timeout model make it a poor fit for live transcoding or busy multi-user streaming. Jellyfin_GKE runs as a StatefulSet with a real block PVC at /config, giving correct filesystem semantics for SQLite and the transcode cache — the recommended choice for a production media server, with optional NFS for large media libraries.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Jellyfin service

Jellyfin runs as a Cloud Run v2 service. Because the library is a single SQLite store on a single volume, the service is pinned to one instance rather than autoscaled. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Persistent configuration store (SQLite on /config)

Jellyfin has no external database. Its entire state — the SQLite library and playback databases, configuration XML, cached metadata and artwork, installed plugins, the transcode cache, and logs — lives under /config (JELLYFIN_CONFIG_DIR = /config). There is no Cloud SQL instance, no Auth Proxy, and no initialization Job to create a schema; Jellyfin creates and migrates its own SQLite databases on first start.

Because everything important is a file under /config, persisting that directory is persisting the whole server. On Cloud Run it is backed by a Cloud Storage bucket (see below).

• Inspect the mounted config on the running revision:

  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].volumeMounts)'

C. Cloud Storage — the /config bucket

A dedicated Cloud Storage bucket (name suffix storage) is provisioned automatically and mounted at /config via GCS FUSE (enable_gcs_storage_volume = true, gen2 execution environment). The bucket is STANDARD class, force_destroy = true, versioning off, with public_access_prevention = enforced. Additional buckets can be declared via storage_buckets.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<storage-bucket>/        # bucket name is in the Outputs

See App_CloudRun for GCS FUSE mount options and CMEK.

D. First-run setup & the media library

On first access Jellyfin serves an interactive setup wizard at /web (and /) that creates the administrator account, sets the preferred language, and lets you add media libraries (Movies, TV, Music, Photos). Nothing is authenticated or usable until you complete the wizard — there are no default credentials.

Media libraries point at paths inside the container. On Cloud Run, media is served from the mounted /config volume or additional GCS FUSE mounts; for large media libraries prefer the GKE variant with block or NFS storage.

• Reach the wizard / web UI:

  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(status.url)'
  # open <url>/web in a browser (requires ingress=all or an LB/IAP path)

E. Secret Manager & the optional API key

Jellyfin requires no mandatory cryptographic secrets — there is no encryption key, JWT, or master password to manage. When enable_api_key = true, the module generates a 32-character random value, stores it in Secret Manager as secret-<prefix>-<app>-api-key, and injects it so external callers can authenticate programmatically. In day-to-day use, API keys are created and revoked in-app under Dashboard → API Keys; primary auth remains the wizard admin account.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

F. Networking & ingress

By default ingress_settings = "internal", so the service is reachable only from within the VPC — appropriate for a private media server. Set ingress_settings = "all" for a public run.app URL, or layer on an external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor. VPC egress control governs outbound connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Jellyfin Application Behaviour

• No initialization Job. Jellyfin needs no db-init step — it creates and migrates its own SQLite databases under /config the first time it starts. Leave initialization_jobs empty unless you have custom data-loading tasks.
• First-run wizard creates the admin. The /web setup wizard walks you through creating the administrator account and adding libraries. Until it is completed the server has no users and no content.
• /config is the single source of truth — persist it. All library state is on the GCS-backed /config volume. Deleting or repointing that bucket wipes the library, plugins, and users. Because GCS FUSE is not a true POSIX filesystem, keep Cloud Run to light/demo use and move a real library to the GKE block-PVC variant.
• Custom image is a thin wrapper. The Dockerfile is ARG JELLYFIN_VERSION=10.10.3 / FROM jellyfin/jellyfin:${JELLYFIN_VERSION}, so image_source = "custom" and the Foundation mirrors it into Artifact Registry (enable_image_mirroring = true). application_version = "latest" resolves to the pinned 10.10.3 via the app-specific JELLYFIN_VERSION build arg — it is not overwritten by the Foundation's generic APP_VERSION injection.
• Health path. Startup and liveness probes target GET /health, which returns Healthy (200) without authentication once the server is ready. The startup probe allows a 15-second initial delay with a generous retry window; the liveness probe polls every 30 seconds.
• Transcoding is CPU-heavy and GPU-less. Cloud Run has no GPU, so prefer direct-play clients. Size cpu_limit up for live transcoding and memory_limit up for large libraries.
• Inspect the running revision's image and mounts:

  gcloud run services describe <service-name> \
    --region "$REGION" --project "$PROJECT" \
    --format='value(spec.template.spec.containers[0].image)'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Jellyfin are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	jellyfin	Base name for resources. Do not change after first deploy.
application_display_name	Jellyfin Media Server	Human-readable name shown in the Console.
description	(set)	Service description.
application_version	latest	Jellyfin image tag; latest pins to 10.10.3 via the JELLYFIN_VERSION build arg.
enable_api_key	false	Generate a random API key in Secret Manager. Recommended for any deployment reachable outside the VPC.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance; raise for live transcoding.
memory_limit	1Gi	Memory per instance; raise for large libraries.
min_instance_count	1	Keep 1 to stay warm and avoid cold starts mid-stream.
max_instance_count	1	Keep at 1. One shared SQLite library on one volume — never run multiple replicas.
container_port	8096	Jellyfin's web/API port.
execution_environment	gen2	Gen2 required for GCS FUSE and NFS mounts.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Jellyfin has no Cloud SQL — leave false.
container_protocol	http1	HTTP/1.1; h2c only for HTTP/2 cleartext.
enable_image_mirroring	true	Mirror jellyfin/jellyfin into Artifact Registry.
traffic_split	[]	Split traffic across revisions for staged rollouts.
max_revisions_to_retain	7	Inert in this module; foundation manages revision retention.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	internal	internal keeps the server VPC-private; set all for a public URL.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in in front of Jellyfin.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings injected into the revision.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC) of the /config bucket.
backup_retention_days	7	Retention; raise for production.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore a /config snapshot on deploy (tar default).

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom Initialization & SQL

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — not applicable to Jellyfin (no SQL database); retained for foundation compatibility. Also hosts nfs_instance_name / nfs_instance_base_name for NFS discovery.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Provision the Jellyfin /config bucket (created automatically) and any extras.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned storage bucket.
enable_nfs	false	Provision Cloud Filestore (NFS); enable for large shared media libraries.
nfs_mount_path	/mnt/nfs	Mount path inside the container.
gcs_volumes	[]	Additional GCS FUSE volume mounts (the /config bucket is added automatically).
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed to NONE by Jellyfin_Common — Jellyfin uses embedded SQLite, no Cloud SQL.
database_password_length	32	Inert; forwarded for foundation compatibility.
enable_auto_password_rotation / rotation_propagation_delay_sec	off	Not applicable — no SQL database.
db_*_env_var_name / service_url_env_var_name	""	Optional extra env-var aliases; leave empty for Jellyfin.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Jellyfin needs no init job; provide only for custom data-loading tasks.
cron_jobs	[]	Optional Cloud Run jobs for maintenance tasks.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /health 15s delay	Startup probe; /health returns 200 once ready.
liveness_probe	HTTP /health 30s delay	Liveness probe.
startup_probe_config	HTTP /health	Alternative structured startup probe.
health_check_config	HTTP /health	Alternative structured liveness probe.
uptime_check_config	{ enabled=false, path="/health" }	Cloud Monitoring uptime check.
alert_policies	[]	Metric alert policies.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	[] / true	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
jellyfin_url	Service URL for the Jellyfin web UI / API (VPC-internal when ingress_settings = internal).
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets (including the /config bucket).
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any setup jobs (empty for a default Jellyfin deploy).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a gen1 runtime with NFS/GCS mounts, IAP with no authorized identities, an out-of-range container_port/backup_retention_days/timeout_seconds. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
/config GCS bucket	Never delete/repoint	Critical	The /config bucket holds the SQLite library, users, and metadata; removing it wipes the entire server.
max_instance_count	1	Critical	Multiple replicas write to one SQLite file over FUSE and corrupt the library.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
execution_environment	gen2	High	Gen1 cannot mount GCS FUSE, so /config never persists.
min_instance_count	1	High	Scale-to-zero cold-starts interrupt in-progress streams and re-load the library.
memory_limit	1Gi (raise for large libraries)	High	Too little memory OOM-kills the server while scanning or transcoding a large library.
cpu_limit	1000m (raise for transcoding)	High	Live transcoding on Cloud Run (no GPU) saturates CPU; prefer direct-play.
Heavy transcoding / many streams	Use Jellyfin_GKE	High	GCS FUSE latency and Cloud Run request timeouts make Cloud Run a poor fit for busy streaming.
enable_api_key	true when publicly reachable	Medium	Without it, the API surface relies solely on session auth once ingress is opened.
ingress_settings	internal unless public	Medium	all exposes the media server to the internet — pair with IAP or Cloud Armor.
backup_retention_days	7 (raise for prod)	Medium	Too short to recover an older library snapshot.
First-run wizard	Complete immediately	Medium	An un-configured server has no admin; anyone who reaches it can claim the admin account.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Jellyfin-specific application configuration shared with the GKE variant is described in Jellyfin_Common. For a guided walkthrough, see the Jellyfin_CloudRun lab.
