PhotoPrism on Google Cloud Run

PhotoPrism is a self-hosted, AI-powered photo and video management application: it browses, organizes, and shares a personal media library with automatic tagging, facial recognition, and full-text/visual search, all served from a single Go binary with an embedded SQLite database — no external database engine, no separate worker process. This module deploys PhotoPrism on Cloud Run v2 in embedded-SQLite, GCS-backed mode on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services PhotoPrism uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

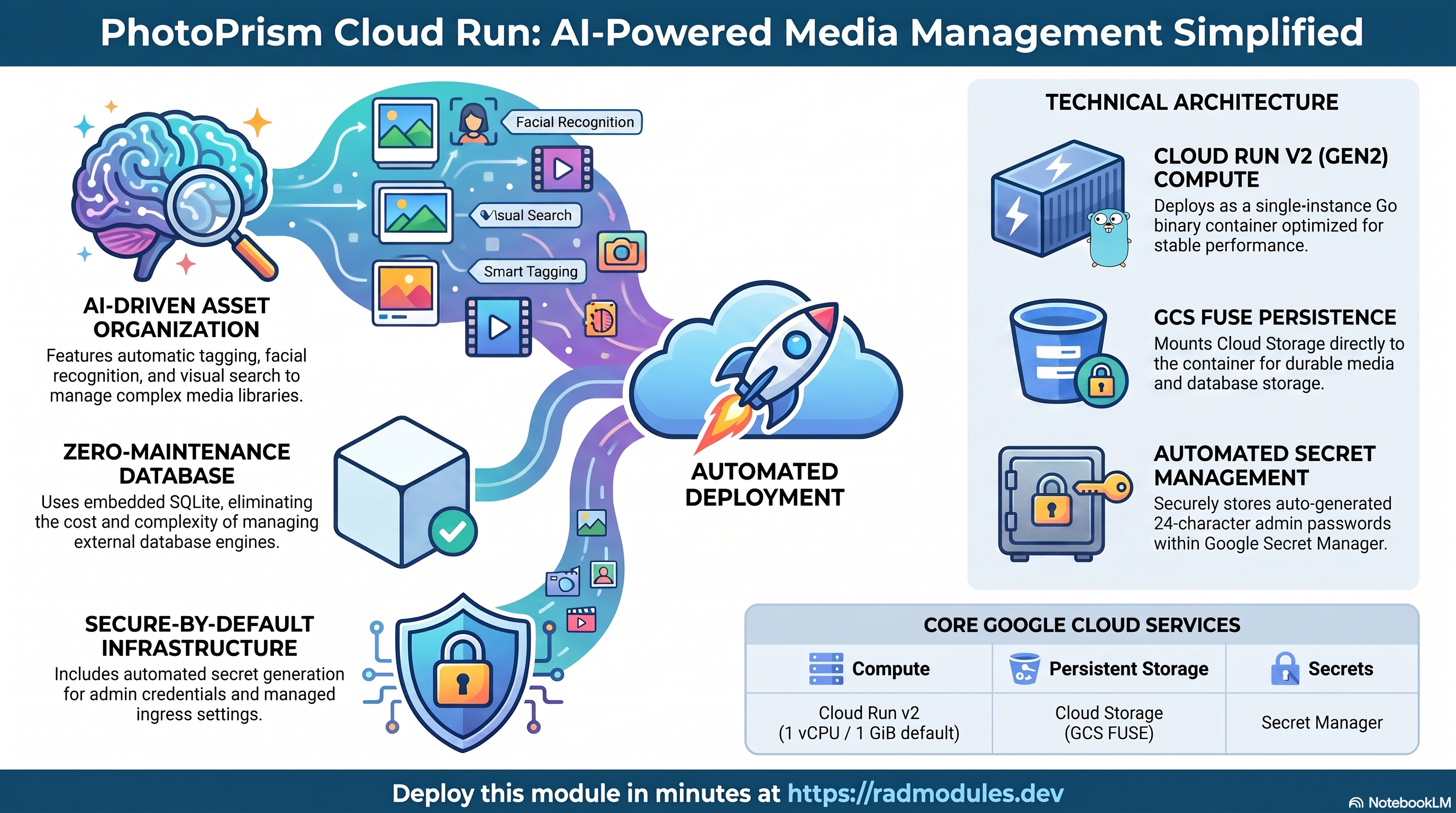

1. Overview

PhotoPrism runs as a single Go binary container on Cloud Run v2, pinned to exactly one instance. The deployment wires together a deliberately small set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Go binary container on port 2342, 1 vCPU / 1 GiB by default; single instance always (min=1, max=1) — no scale-to-zero, no horizontal scaling
Database	None	Embedded SQLite (PHOTOPRISM_DATABASE_DRIVER=sqlite) — no Cloud SQL instance is provisioned by default
Persistent storage	Cloud Storage (GCS FUSE)	The only persistence layer on this variant — the entire /photoprism data directory (SQLite DB, cache, originals, imports) is mounted from a single GCS bucket via GCS FUSE
Secrets	Secret Manager	Auto-generated PHOTOPRISM_ADMIN_PASSWORD
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL (ingress_settings = "all"); optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• No database is ever provisioned by default. database_type defaults to "NONE" and enable_cloudsql_volume is hardcoded false in main.tf — PhotoPrism manages its own SQLite file under /photoprism/storage. Unlike the GKE variant (which hardcodes database_type = "NONE" unconditionally), this Cloud Run module still forwards var.database_type to the foundation — see the pitfall in §6 if you change it away from NONE.
• GCS FUSE is the only persistence mechanism — there is no block-PVC option on Cloud Run. The module's own description states it plainly: "This module deploys PhotoPrism on Cloud Run in embedded SQLite mode with a GCS-backed data volume. For production media libraries requiring a durable block volume, use PhotoPrism_GKE (block PVC)." gcsfuse's write/consistency model is weaker than a real block device for SQLite's WAL/journal files; the single-instance pin (below) is what keeps this safe rather than any locking guarantee from gcsfuse itself.
• Single instance, always. min_instance_count = 1 and max_instance_count = 1 are both defaulted and described as fixed — PhotoPrism serves one shared SQLite library from one writable volume; running two instances against the same gcsfuse-mounted bucket risks database and index corruption.
• Redis is forced off, regardless of the variable. The App_CloudRun foundation default for enable_redis is true, but main.tf hardcodes enable_redis = false unconditionally — PhotoPrism has no Redis integration and no REDIS_HOST/REDIS_PORT is ever injected.
• Admin password is auto-generated. A 24-character password (no special characters) is created and stored in Secret Manager, then injected as the PHOTOPRISM_ADMIN_PASSWORD secret env var; the username is the plain admin_username variable (default admin).
• Custom image build is a thin mirror, not app logic. The build wraps the upstream photoprism/photoprism image (FROM photoprism/photoprism:${PHOTOPRISM_VERSION}) so the foundation can mirror it into Artifact Registry; the app-specific build ARG is PHOTOPRISM_VERSION (not the generic APP_VERSION), pinned to 240915 when application_version = "latest".
• gen2 execution environment is mandatory. GCS FUSE volumes require execution_environment = "gen2" (the default); switching to gen1 breaks the storage mount entirely.
• Health path. Both startup and liveness probes target the unauthenticated GET /api/v1/status endpoint.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the PhotoPrism service (single instance)

PhotoPrism runs as a Cloud Run v2 service pinned to exactly one instance (min_instance_count = max_instance_count = 1) — there is no autoscaling range to tune. Each deployment creates an immutable revision; traffic can still be split across revisions for staged rollouts, but running two revisions serving live traffic simultaneously risks two writers against the same gcsfuse-mounted SQLite file.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — the GCS FUSE persistent volume

A dedicated Cloud Storage bucket (storage_buckets name suffix storage) is provisioned automatically and mounted into the container as a GCS FUSE volume at /photoprism (gcs_volumes entry name = "storage", mount_path = "/photoprism", not read-only). This single mount covers everything PhotoPrism persists: /photoprism/storage (SQLite database + thumbnail cache), /photoprism/originals (imported/indexed media), and /photoprism/import (staged imports). Additional buckets can be declared via storage_buckets; additional GCS FUSE mounts via gcs_volumes.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~storage"
  gcloud storage ls gs://<storage-bucket>/photoprism/originals/   # bucket name is in the Outputs

See App_CloudRun for GCS Fuse mount options and CMEK.

C. Secret Manager

One secret is generated automatically: the PhotoPrism admin password (secret-<prefix>-photoprism-admin-password), a 24-character random string with no special characters, injected as PHOTOPRISM_ADMIN_PASSWORD. There is no database password to manage since no Cloud SQL instance exists by default.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~admin-password"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

D. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"), which allows direct access to the web UI. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with an optional uptime check (disabled by default) and custom alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. PhotoPrism Application Behaviour

• No init/db-create job by default. initialization_jobs defaults to [] — there is no external database to bootstrap. PhotoPrism creates and migrates its own SQLite schema on first boot, directly on the gcsfuse-mounted volume.
• Storage layout. All state lives under the single mounted directory /photoprism: PHOTOPRISM_STORAGE_PATH=/photoprism/storage (SQLite database + cache), PHOTOPRISM_ORIGINALS_PATH=/photoprism/originals (imported/indexed media), PHOTOPRISM_IMPORT_PATH=/photoprism/import (staged imports).
• Admin account. PHOTOPRISM_ADMIN_USER is the plain admin_username variable (default admin); PHOTOPRISM_ADMIN_PASSWORD is the auto-generated Secret Manager value, injected as a secret env var. PHOTOPRISM_AUTH_MODE = "password" is set explicitly. Retrieve the password from Secret Manager before first login.
• Site URL. PHOTOPRISM_SITE_URL is empty by default — PhotoPrism tolerates this and falls back to the request host, but set site_url to the deployed Cloud Run URL for correctly generated absolute links and thumbnail URLs.
• Health path. Startup and liveness probes both target GET /api/v1/status, an unauthenticated endpoint that returns 200 once the HTTP server is up and the SQLite index is ready. The startup probe allows roughly 15s + 10×10s (~1 minute 55 seconds) after the initial delay for first-boot schema creation and index warm-up; the liveness probe re-checks every 30 seconds with a 3-failure threshold.
• No horizontal scaling, no queue coordination. Because the entire application state — SQLite database, index, thumbnail cache, and originals — lives on one writable gcsfuse volume, PhotoPrism must run as a single instance (min_instance_count = max_instance_count = 1); there is no multi-writer support.
• Inspect the running configuration and storage:

  gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT" \
    --format='value(spec.template.spec.containers[0].env)' | tr ',' '\n' | grep PHOTOPRISM_
  gcloud run jobs list --project "$PROJECT" --region "$REGION"   # empty unless custom jobs were added

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for PhotoPrism are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	photoprism	Base name for resources. Do not change after first deploy.
application_display_name	PhotoPrism	Human-readable name shown in the Console.
description	PhotoPrism — AI-powered photo management app	Service description.
application_version	latest	photoprism/photoprism image tag used as the custom-build base; latest is pinned to a known-good tag (240915) at build time.
admin_username	admin	Initial admin account username (PHOTOPRISM_ADMIN_USER); the password is generated separately.
site_url	""	Public site URL (PHOTOPRISM_SITE_URL). Empty falls back to the request host; set once the Cloud Run URL is known for correct absolute links.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance.
memory_limit	1Gi	"PhotoPrism loads vector indexes into memory; size this based on your collections." PhotoPrism_Common's own baseline default is 4Gi for indexing/face-recognition workloads — raise for real libraries.
min_instance_count	1	Fixed at 1 to avoid cold starts during index loading.
max_instance_count	1	Keep at 1 — a single PhotoPrism instance for data consistency.
container_port	2342	PhotoPrism's HTTP server port.
execution_environment	gen2	Required — GCS FUSE volumes only work under gen2.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Also hardcoded false in main.tf regardless of this variable — PhotoPrism has no Cloud SQL.
container_protocol	http1	HTTP/1.1 is sufficient; PhotoPrism does not require h2c.
enable_image_mirroring	true	Mirror the built photoprism/photoprism-based image into Artifact Registry.
traffic_split	[]	Split traffic across revisions for staged rollouts.
max_revisions_to_retain	7	Declared for convention parity; not referenced by this module's deployment.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	all allows direct access to the web UI.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in in front of the UI.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings (e.g. additional PHOTOPRISM_* tuning). Do not set PHOTOPRISM_ADMIN_PASSWORD here.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import	false	Restore from a backup on deploy.
backup_source	gcs	gcs or gdrive.
backup_uri	""	Backup location; only used when enable_backup_import = true.
backup_format	tar	Since PhotoPrism has no SQL database, a backup restore is a filesystem archive of the media/library bucket, not a DB dump — keep this file-archive-oriented (tar/zip/etc.), not sql.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — NFS Instance & Custom SQL

Variable	Default	Description
enable_custom_sql_scripts	false	Not applicable — PhotoPrism has no SQL database.
custom_sql_scripts_bucket / custom_sql_scripts_path / custom_sql_scripts_use_root	(empty)	Not applicable to PhotoPrism.
nfs_instance_name / nfs_instance_base_name	"" / app-nfs	Optional pre-existing/inline NFS VM discovery. Forwarded but unused by default — PhotoPrism relies on the GCS FUSE volume, not NFS, for persistence (enable_nfs = false).

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend — caution with cached photo/media responses if enabled.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 11 — Storage, Filesystem & Redis

Variable	Default	Description
create_cloud_storage	true	Creates the auto-provisioned storage bucket plus any in storage_buckets.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned PhotoPrism data bucket.
enable_nfs	false	Off by default and not needed — the GCS FUSE volume is PhotoPrism's primary store on this variant.
nfs_mount_path	/mnt/nfs	Inert unless enable_nfs = true.
gcs_volumes	[]	Additional GCS FUSE mounts; the PhotoPrism storage volume at /photoprism is auto-added by PhotoPrism_Common.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
enable_redis	true (variable default) → forced false	main.tf hardcodes enable_redis = false regardless of this value — PhotoPrism has no Redis integration.
redis_host / redis_port / redis_auth	"" / 6379 / ""	Inert — never injected since Redis is forced off.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	No SQL database is used by PhotoPrism. Unlike the GKE variant, this value is still forwarded to the foundation — see the pitfall in §6 before changing it.
database_password_length	32	Inert — no database password is ever generated while database_type = NONE.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	No built-in init job — PhotoPrism bootstraps its own SQLite schema. Add custom jobs only for bespoke data-loading/maintenance tasks.
cron_jobs	[]	No platform-scheduled recurring tasks by default (e.g. could add one for periodic library snapshots).

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /api/v1/status, 15s delay, 10s period, 10-failure threshold	Primary startup probe (~1m55s window after the delay).
liveness_probe	HTTP /api/v1/status, 30s delay, 30s period, 3-failure threshold	Primary liveness probe.
startup_probe_config	enabled = true, path /api/v1/status	Alternative structured startup probe surface.
health_check_config	enabled = true, path /api/v1/status	Alternative structured liveness probe surface (same precedence caveat as above).
uptime_check_config	{ enabled = false, path = "/api/v1/status" }	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Metric alert policies.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
organization_id	""	Override for folder-nested projects.
enable_audit_logging	false	Detailed Cloud Audit Logs.

All other inputs follow standard App_CloudRun behaviour.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
photoprism_url	The Cloud Run service URL. The output's own description calls it an "internal VPC URL … only reachable within the same VPC when ingress_settings is 'internal'" — but ingress_settings defaults to all (public); verify the deployed service's actual reachability against your own ingress_settings value rather than assuming from the output name.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets, including the PhotoPrism storage GCS FUSE bucket.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
initialization_jobs	Names of any custom initialization jobs (empty by default).
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

Note there are no database_* outputs — no Cloud SQL instance is provisioned by default (unlike Activepieces/BookStack-style modules).

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — IAP with no authorized identities, a gen1 runtime with GCS Fuse mounts, an out-of-range container_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
max_instance_count / min_instance_count	1 / 1	Critical	Scaling beyond 1 gives two instances a single writable gcsfuse-mounted SQLite database — corruption/lock contention risk, worse than a block PVC since gcsfuse's consistency model is weaker.
execution_environment	gen2	Critical	gen1 cannot mount GCS FUSE volumes — the entire /photoprism data directory (DB, media) fails to attach and the app cannot start.
database_type	NONE	Medium	Unlike PhotoPrism_GKE (which hardcodes NONE), this module still forwards the variable to the foundation. Setting it to MYSQL/POSTGRES provisions a real, billed Cloud SQL instance that PhotoPrism_Common never wires into the app (no DB_HOST/DB_USER are consumed) — wasted cost with no functional benefit.
enable_redis	Forced false in main.tf	Low	No action needed — the override is intentional and cannot be defeated by setting the variable true.
enable_cloudsql_volume	false (default and hardcoded)	Low	Cannot be enabled even by setting the variable — informational only.
memory_limit	1Gi default — raise for real libraries	High	PhotoPrism_Common's own baseline is 4Gi for indexing/face-recognition workloads; 1Gi risks OOM kills once a library has meaningful photo/video volume.
PHOTOPRISM_ADMIN_PASSWORD (auto-generated)	Retrieve before first login	Medium	Not knowing it locks you out of the first admin account until reset via the database.
site_url	Set to the deployed Cloud Run URL once known	Medium	Left empty, PhotoPrism falls back to the request host; absolute links/thumbnail URLs can be wrong behind a load balancer or custom domain.
ingress_settings	all for direct web-UI access	Medium	Setting to internal blocks browser access to the UI unless reached through a VPC-connected client or an internal load balancer.
backup_format	A file-archive format (tar, zip, …), not sql	Medium	PhotoPrism has no SQL database — a backup_uri pointing at a DB dump is meaningless for this app; backups should target the media/library bucket contents.
enable_nfs	false	Low	Correct default — PhotoPrism does not need NFS since the GCS FUSE volume is its primary store; enabling it adds cost with no benefit unless custom jobs need shared filesystem access.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.
enable_cloud_armor	enable for production	Medium	The public web UI and admin login are reachable without WAF protection by default.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. PhotoPrism-specific application configuration shared with the GKE variant — the admin credential, the embedded-SQLite database engine, the storage layout, the container build, and the default health probes — is described in PhotoPrism_Common.
