Appsmith on GKE Autopilot

Appsmith is an open-source low-code platform for building internal tools, admin panels, and dashboards — a self-hosted alternative to Retool. The Community Edition ships as a single "fat" container that bundles an embedded MongoDB, Redis, the Java backend, and the React client behind nginx, persisting all application state under /appsmith-stacks. This module deploys Appsmith on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Appsmith uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

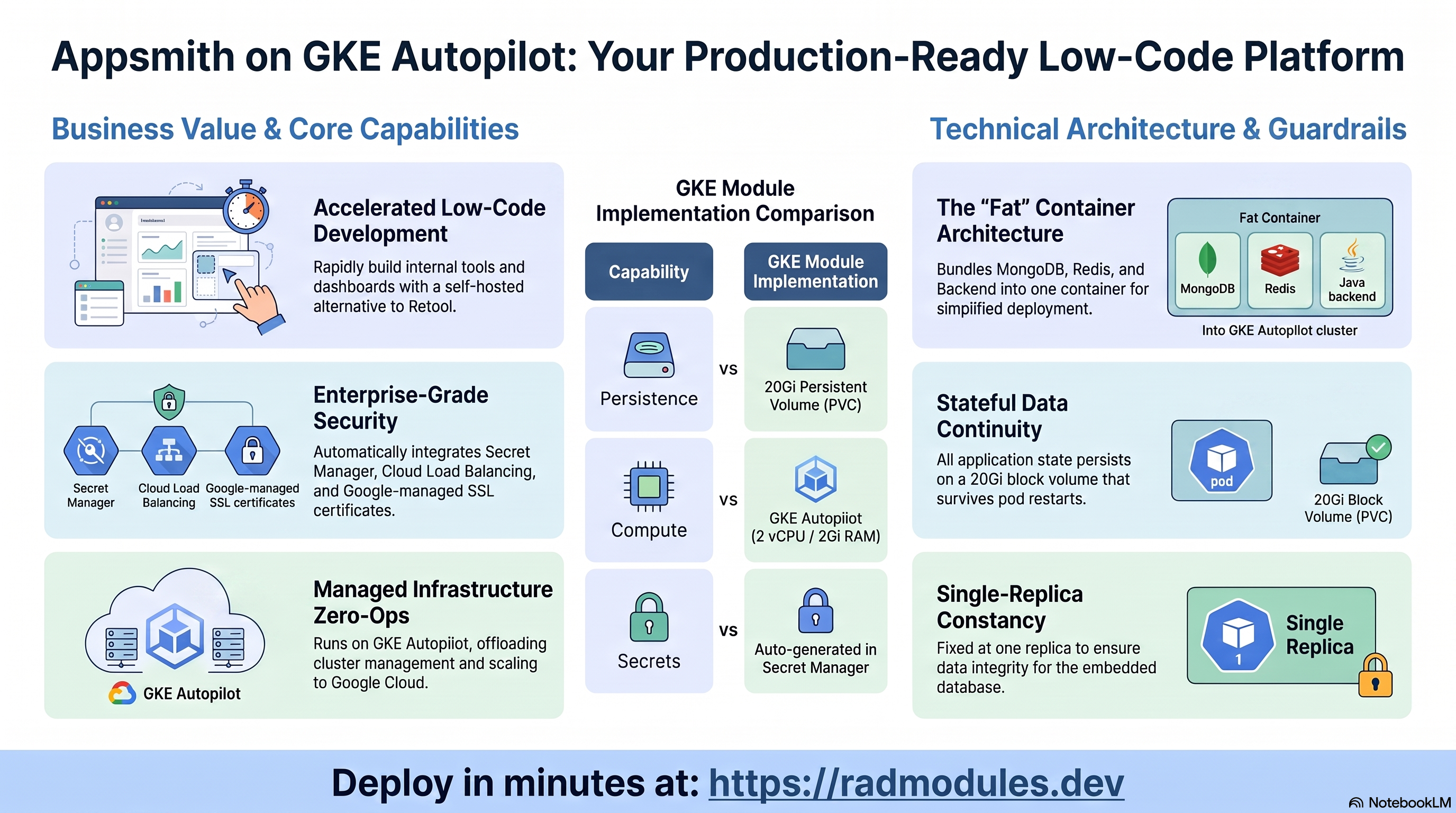

1. Overview

Appsmith runs as a single "fat" container workload with all state — the embedded MongoDB, Redis, uploaded assets, and configuration — on one persistent volume. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Single-container StatefulSet pod on port 80, 2 vCPU / 2Gi by default
Persistent state	PersistentVolumeClaim (stateful_pvc_enabled)	20Gi PVC mounted at /appsmith-stacks, backing the embedded MongoDB, Redis, uploads, and config
Container image	Docker Hub (prebuilt)	appsmith/appsmith-ce, mirrored into Artifact Registry by default
Secrets	Secret Manager	Auto-generated APPSMITH_ENCRYPTION_PASSWORD, APPSMITH_ENCRYPTION_SALT, APPSMITH_SUPERVISOR_PASSWORD
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; custom domain with Google-managed certificate enabled by default

Sensible defaults worth knowing up front:

• No external database. Appsmith CE runs its own embedded MongoDB inside the fat container; database_type is fixed at NONE and enable_cloudsql_volume defaults to false. There is no Cloud SQL Auth Proxy sidecar for this module — everything persists on the pod's own PVC instead.
• Persistence is a per-pod PVC, not NFS. stateful_pvc_enabled = true by default, which auto-resolves workload_type to StatefulSet and mounts a 20Gi PVC at /appsmith-stacks. enable_nfs defaults to false — NFS is offered only for callers who prefer a shared Filestore volume instead of the block PVC, but the embedded MongoDB does its own file locking, so the PVC is the natural fit (and NFS is more prone to write-locking issues for embedded databases; see the repository's general NFS/SQLite guidance).
• Single replica, hard constraint. min_instance_count = 1, max_instance_count = 1. Multiple replicas would each get an empty PVC (StatefulSet PVCs are per-pod, not shared) and run independent, diverging embedded MongoDB instances — there is no clustering. max_instance_count is not blocked above 1 at plan time (only min ≤ max is enforced), so raising it is a real footgun.
• The fat image is pulled prebuilt from Docker Hub. container_image_source defaults to "prebuilt" (appsmith/appsmith-ce), correctly forwarded to the App_GKE foundation — there is no Dockerfile or custom build for this module. enable_image_mirroring = true copies the image into Artifact Registry to avoid Docker Hub rate limits.
• Three secrets are auto-generated and required for data continuity. APPSMITH_ENCRYPTION_PASSWORD / APPSMITH_ENCRYPTION_SALT secure the AES-256 encryption of datasource credentials and Git SSH keys at rest — changing either after first boot makes previously-encrypted data unreadable. APPSMITH_SUPERVISOR_PASSWORD gates the container's internal /supervisor process-control panel.
• enable_redis and database_type are decoys for this app. Appsmith CE bundles its own Redis and Mongo internally; it does not read the generic REDIS_HOST/REDIS_URL env vars the App_GKE foundation would inject if enable_redis were turned on, and database_type is fixed to NONE. Leave both at their defaults.
• Custom domain routing is enabled by default. Unlike most modules, enable_custom_domain = true out of the box (though application_domains is empty until you add a hostname).
• First-boot install is self-contained. The fat image initialises its own embedded MongoDB and Redis on first start; there is no separate db-init or migration job for this module (initialization_jobs defaults to []).

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Appsmith workload

Appsmith runs as a StatefulSet (auto-selected because stateful_pvc_enabled = true), giving the single pod a stable identity and its own PVC across reschedules. The fat container is slow to boot (embedded Mongo + Redis + Java backend), so allow several minutes before it reports Ready.

• Console: Kubernetes Engine → Workloads → select the Appsmith workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get statefulset,pods,svc -n "$NAMESPACE" --selector="app.kubernetes.io/name~appsmith" 2>/dev/null || \
    kubectl get statefulset,pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the StatefulSet vs Deployment workload type are managed.

B. Persistent storage — PersistentVolumeClaim

All Appsmith state — the embedded MongoDB data files, Redis dump, uploaded assets, plugin data, and Git-connected application config — lives on a single 20Gi block PVC mounted at /appsmith-stacks. Because it is a per-pod StatefulSet PVC (not a shared NFS mount), it survives pod restarts/reschedules but is not shared across replicas.

• Console: Kubernetes Engine → Storage → PersistentVolumeClaims / PersistentVolumes.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  kubectl describe pvc -n "$NAMESPACE" -l app=<service-name>
  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- du -sh /appsmith-stacks

See App_GKE Group 7 for StorageClass selection (SSD standard-rwo by default; override to HDD standard if regional SSD quota is tight).

C. Container image & Artifact Registry

The deployed image is the official appsmith/appsmith-ce fat image from Docker Hub — no Dockerfile or Cloud Build step builds it. With enable_image_mirroring = true (default) it is copied into Artifact Registry first so the cluster pulls from Google's network rather than Docker Hub directly.

• Console: Artifact Registry → Repositories.
• CLI:

  gcloud artifacts repositories list --project "$PROJECT" --filter="name~appsmith"
  gcloud artifacts docker images list "$REGION-docker.pkg.dev/$PROJECT/<repo-name>" --project "$PROJECT"

D. Secret Manager

Three Appsmith secrets are generated automatically and stored in Secret Manager: APPSMITH_ENCRYPTION_PASSWORD, APPSMITH_ENCRYPTION_SALT (both secure at-rest encryption of datasource credentials and Git SSH keys), and APPSMITH_SUPERVISOR_PASSWORD (gates the container's internal supervisor panel). On GKE, secrets are projected into the pod via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~appsmith"
  gcloud secrets versions access latest --secret=<encryption-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). enable_custom_domain = true by default — add a hostname to application_domains to provision a Google-managed certificate.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime_check_config, alert_policies).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Appsmith Application Behaviour

• Self-contained first boot — no init job. The fat image initialises its embedded MongoDB and Redis, and creates the initial application data on first start. initialization_jobs defaults to []; only caller-supplied jobs are honoured.
• Persistent state lives entirely on the PVC. /appsmith-stacks holds the Mongo data directory, Redis dump, uploaded/plugin assets, and Git-connected app data. Losing the PVC loses everything — there is no separate database to fall back on.
• Encryption keys must not change after first boot. APPSMITH_ENCRYPTION_PASSWORD and APPSMITH_ENCRYPTION_SALT are generated once and stored in Secret Manager; rotating them independently of a full data reset makes previously saved datasource credentials and Git SSH keys undecryptable. APPSMITH_DISABLE_TELEMETRY = "true" is set by default to disable anonymous usage telemetry.
• Do not set APPSMITH_DB_URL / APPSMITH_REDIS_URL. The Common module's own configuration deliberately avoids injecting these — the fat container's internal Mongo/Redis default to localhost, and pointing them at an external datastore breaks boot.
• Health path. Startup probe is HTTP GET /api/v1/health on port 80, with a generous window (~10 minutes: initial_delay_seconds = 120, period_seconds = 15, failure_threshold = 40) to accommodate the slow boot of the bundled MongoDB + Redis + Java backend. Liveness probe is the same path with tighter thresholds (initial_delay_seconds = 60, period_seconds = 30, failure_threshold = 3) once the app is up.
• Single-replica StatefulSet, RollingUpdate strategy. With max_instance_count = 1 there is only ever one pod, so the default stateful_update_strategy = "RollingUpdate" simply recreates that one pod on template changes — there is no surge/deadlock risk at replica count 1, but raising max_instance_count above 1 is unsupported (see Overview).
• Inspect the running pod and its persisted data:

  kubectl get statefulset -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=200
  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- env | grep APPSMITH

---

4. Configuration Variables

Variables are grouped by their {{UIMeta group=N}} tag as declared in this module's variables.tf (this drives the deployment platform's UI form layout). Only settings specific to or notable for Appsmith are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	appsmith	Base name for the Kubernetes workload, Artifact Registry repository, and Secret Manager secrets.
application_version	latest	Tag applied to the pulled appsmith/appsmith-ce image; since the image is prebuilt (not a custom Dockerfile build), latest resolves directly to Docker Hub's latest tag — no version-pin ARG trap applies here.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	prebuilt	Pulls the official appsmith/appsmith-ce fat image from Docker Hub. Correctly forwarded to the App_GKE foundation.
container_port	80	Appsmith CE serves on port 80 via its internal nginx.
container_resources	cpu_limit=2000m, memory_limit=2Gi	The fat image bundles MongoDB, Redis, and a Java backend in one container, so 2Gi+ is recommended.
min_instance_count / max_instance_count	1 / 1	Keep both at 1. The embedded MongoDB and per-pod PVC are not multi-replica safe; max_instance_count is not blocked above 1 at plan time.
enable_cloudsql_volume	false	Always false — Appsmith CE has no external Cloud SQL database.
enable_image_mirroring	true	Mirrors the Docker Hub image into Artifact Registry before deployment.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Appsmith UI.
workload_type	null → StatefulSet	Auto-resolved to StatefulSet because stateful_pvc_enabled = true.
session_affinity	None	Round-robin routing; moot at a single replica, but leave unchanged since max_instance_count must stay at 1.

Group 13 — Filesystem (NFS) & Scheduled Jobs

Variable	Default	Description
enable_nfs	false	Off by default — persistence uses the StatefulSet PVC instead. Enable only if a shared Filestore volume is preferred over the per-pod PVC.
nfs_mount_path	/appsmith-stacks	Mount path used if NFS is enabled instead of the PVC.
initialization_jobs / cron_jobs	[]	No default jobs — Appsmith CE self-initialises.

Group 15 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed — Appsmith CE uses an embedded MongoDB; no Cloud SQL instance is provisioned.
application_database_name / application_database_user	appsmith	Not used by Appsmith CE; retained only for wrapper compatibility.

Group 16 — Stateful Workload (PVC)

Variable	Default	Description
stateful_pvc_enabled	true	Provisions the per-pod PVC that backs /appsmith-stacks (embedded Mongo, Redis, uploads, config). Auto-selects StatefulSet.
stateful_pvc_size	20Gi	Size of the PVC. Raise for larger datasource/app libraries.
stateful_pvc_mount_path	/appsmith-stacks	Where all Appsmith state is persisted.
stateful_pvc_storage_class	"" → cluster default (SSD standard-rwo)	Override to standard (HDD) if regional SSD quota is constrained.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Enabled by default (unlike most modules) — add a hostname to application_domains to route it.
application_domains	[]	Custom hostnames + managed certificate.
reserve_static_ip	true	Stable external IP across redeploys.

Group 21 — Cloud Armor & Redis

Variable	Default	Description
enable_redis	false	Leave off — Appsmith CE bundles its own Redis internally and does not read the generic REDIS_HOST/REDIS_URL env vars this would inject.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Appsmith.
database_instance_name / database_name / database_user / database_password_secret / database_host / database_port	Empty/not applicable — Appsmith CE has no external Cloud SQL database (database_type = NONE).
storage_buckets	Created Cloud Storage buckets (empty unless storage_buckets is populated by the caller).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of any caller-supplied setup/import jobs (empty by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — an invalid container_port, a StatefulSet/Deployment conflict, IAP enabled with no OAuth credentials, quota_memory_* given as bare integers. This module also declares its own guard (validation.tf): min_instance_count ≤ max_instance_count, IAP requiring both OAuth credentials, enable_cloudsql_volume rejected when database_type = "NONE", and enable_redis requiring a non-empty redis_host. Invalid configuration fails the plan with a clear, named error before any resource is created — but note max_instance_count > 1 is not one of the guarded combinations (see below).

Setting	Sensible value	Risk	Consequence if wrong
max_instance_count	1	Critical	Not blocked at plan time above 1, but each StatefulSet pod gets its own empty PVC — a second replica runs a diverging, unsynchronised embedded MongoDB with no clustering, corrupting the assumption of a single source of truth.
stateful_pvc_enabled	true	Critical	Disabling it removes the PVC — all state (embedded Mongo, Redis, uploads, Git-connected app config) becomes ephemeral and is lost on pod restart/reschedule.
APPSMITH_ENCRYPTION_PASSWORD / APPSMITH_ENCRYPTION_SALT (auto-generated)	Never change after first boot	Critical	Rotating either independently of a full data reset makes previously-encrypted datasource credentials and Git SSH keys permanently unreadable.
database_type	NONE	Critical	Appsmith CE has no external database integration; setting a Cloud SQL engine provisions an unused instance and does nothing for the app.
enable_cloudsql_volume	false	High	Blocked at plan time when database_type = "NONE" — there is no Cloud SQL instance to proxy to.
enable_redis	false	Medium	Appsmith CE bundles Redis internally and does not read the generic REDIS_HOST/REDIS_URL env vars this injects — turning it on adds inert environment variables and, if misread as a real dependency, false confidence in an external cache that isn't used.
stateful_pvc_size	20Gi (raise as needed)	Medium	Undersizing forces manual PVC expansion later; the embedded Mongo and uploaded assets share this one volume.
startup_probe_config timing	initial_delay_seconds=120, failure_threshold=40	Medium	The fat container (Mongo + Redis + Java) boots slowly; a shorter window can flag a healthy-but-still-booting pod as failed and trigger a restart loop.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and any configured custom domain.
stateful_pvc_storage_class	"" (SSD) or standard (HDD)	Low–Medium	SSD (standard-rwo) draws the tighter regional SSD_TOTAL_GB quota; override to HDD standard on quota-constrained projects — a single-pod app has no IOPS requirement that demands SSD.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Appsmith-specific application configuration (secrets, environment defaults, probe wiring) shared with the Cloud Run variant lives in the Appsmith_Common module.
