Beszel on Google Cloud Run
Beszel is a lightweight, open-source server-monitoring hub — historical resource metrics, Docker container stats, and configurable alerts, built on PocketBase (Go plus an embedded SQLite database). This module deploys the Beszel hub on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Beszel uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

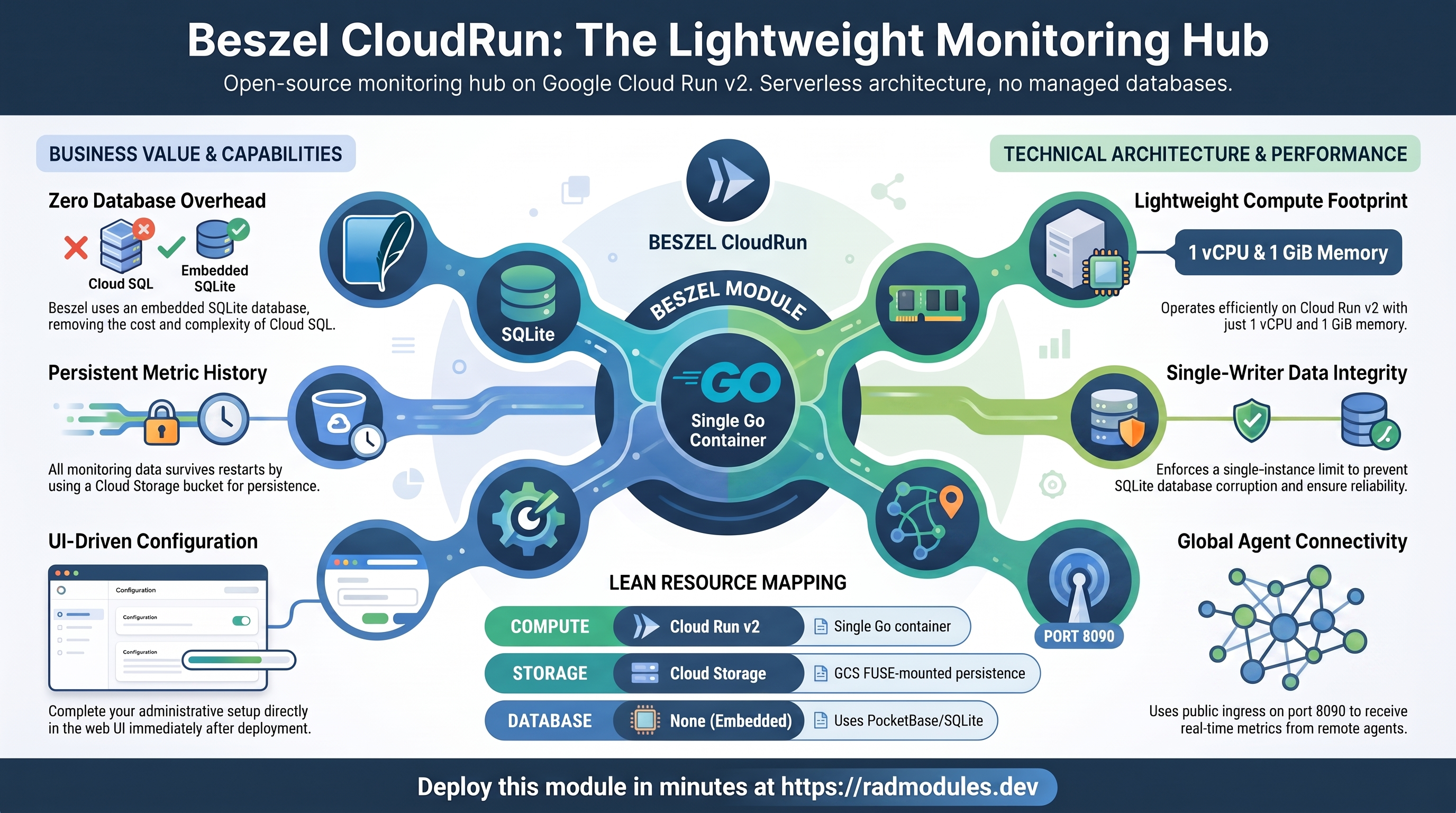

1. Overview
Beszel runs as a single Go container on Cloud Run v2, serving its web UI and REST
API on port 8090. It keeps all state in an embedded SQLite database under
/beszel_data, which is FUSE-mounted from a Cloud Storage bucket. The deployment
wires together a deliberately small set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | Single Go container, 1 vCPU / 1 GiB by default, port 8090 |
| Database | None | Beszel embeds its own PocketBase/SQLite DB — no Cloud SQL is provisioned |
| Object storage | Cloud Storage | One data bucket, GCS FUSE-mounted at /beszel_data for all persistence |
| Cache & queue | None | Beszel does not use Redis; enable_redis is forced off |
| Secrets | Secret Manager | No app secrets injected — the first admin is created in the UI |
| Ingress | Cloud Run URL / Cloud Load Balancing | Default run.app URL (ingress_settings = "all"); optional external HTTPS LB + custom domain |
Sensible defaults worth knowing up front:
- No database, no Redis. Beszel is self-contained —
database_type = "NONE",enable_cloudsql_volume = false, andenable_redis = false. All state is the embedded SQLite database under/beszel_data. - Persistence is a GCS FUSE bucket. The Cloud Storage data bucket is mounted at
/beszel_data, so the SQLite database and historical metrics survive revision replacement and scale events. Deleting the bucket destroys all monitoring history. - Single instance is deliberate.
min_instance_count = max_instance_count = 1. Beszel is a single-writer app (one SQLite file); running more than one instance against the same FUSE-mounted database risks lock contention and corruption. Do not raisemax_instance_count. min_instance_count = 1(no scale-to-zero). The hub is kept warm so the SQLite database stays open and agents can report continuously; this is a monitoring backend, not a bursty request/response app.- Port 8090. Beszel's hub listens on 8090; the container port and probes are set accordingly.
- Public ingress by default.
ingress_settings = "all"exposes therun.appURL so remote agents and browsers can reach the hub. Enabling IAP will block agent reporting from machines that cannot present a Google identity. - Health path
/api/health. Startup and liveness probes hit the hub's public, unauthenticated health endpoint (200 when ready). - The initial admin is created in the UI. No admin password is stored in Secret Manager; open the hub after deploy and complete PocketBase's first-run superuser setup.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Beszel service
Beszel runs as a Cloud Run v2 service. Each deployment creates an immutable revision; because the app is single-writer, the service is pinned to exactly one instance rather than autoscaling.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION" \
--filter="metadata.name~beszel"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Cloud Storage — the /beszel_data volume
A single Cloud Storage bucket holds Beszel's entire state (the SQLite database,
uploaded config, and historical metrics). The foundation grants the workload
service account access and mounts the bucket as a GCS FUSE volume at
/beszel_data (requires the gen2 execution environment, which is the default).
- Console: Cloud Storage → Buckets.
- CLI:
gcloud storage buckets list --project "$PROJECT" --filter="name~beszel"
gcloud storage ls gs://<data-bucket>/ # bucket name is in the Outputs
Caution: This bucket is the database. Do not delete it or clear its objects — doing so erases all monitoring history and the admin account. See App_CloudRun for GCS FUSE and CMEK options.
C. Secret Manager
Beszel injects no application secrets — there is no encryption key, JWT secret, or database password to manage (the DB is embedded SQLite, and the admin is created in the UI). A secret listing shows only whatever the foundation itself creates.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~beszel"
See App_CloudRun for how secret env vars would be injected if you
add any via secret_environment_variables.
D. Networking & ingress
The service is reachable at its run.app URL by default (ingress_settings = "all"),
which allows the remote agents to POST their metrics to the hub. An external HTTPS
load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
E. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies. (Note that Beszel itself is a monitoring product — the GCP monitoring here observes the hub, not the machines Beszel watches.)
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Beszel Application Behaviour
- No init job; schema is self-managed. Beszel creates and migrates its embedded
PocketBase/SQLite database automatically on first boot (and on every version
upgrade). There is no
db-initjob because there is no external database. - State lives in the FUSE bucket. Everything under
/beszel_data— the SQLite database, config, and historical metrics — is persisted to the Cloud Storage data bucket. Revisions and restarts reuse the same bucket, so history survives. - First-run setup is in the UI. Open the service URL and complete PocketBase's first-run superuser (admin) account creation. There is no auto-generated admin credential in Secret Manager. After creating the admin, add the systems you want to monitor and install the Beszel agent on each (the hub shows the agent install command and public key).
- Single writer — do not scale out. With one SQLite file behind a GCS FUSE
mount, only one instance may write.
min = max = 1is enforced by intent; a plan-time guard also rejectsmin_instance_count > max_instance_count. - Health path. Startup and liveness probes target
/api/health, which returns200once the hub is ready. Inspect the running revision and its env/mounts:gcloud run services describe <service-name> \
--region "$REGION" --project "$PROJECT" \
--format='value(status.url)' - Kept warm.
min_instance_count = 1avoids cold starts so agents report continuously and the SQLite database stays open.
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Beszel are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | beszel | Base name for resources. Do not change after first deploy. |
application_version | latest | Beszel image tag. latest resolves the base image to the pinned 0.9.1; set an explicit tag (e.g. 0.9.1) to control upgrades. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
cpu_limit | 1000m | CPU per instance; Beszel is lightweight, 1 vCPU is ample. |
memory_limit | 1Gi | Memory per instance; 512 Mi–1 Gi is typical (gen2 floor is 512 Mi). |
min_instance_count | 1 | Kept at 1 — one SQLite writer, no scale-to-zero. |
max_instance_count | 1 | Do not increase. More than one instance corrupts the shared SQLite database. |
container_port | 8090 | Beszel's hub listens on 8090. |
execution_environment | gen2 | Required for the GCS FUSE /beszel_data mount. |
enable_image_mirroring | true | Mirror the Beszel image into Artifact Registry. |
Group 5 — Access & Ingress Control
| Variable | Default | Description |
|---|---|---|
ingress_settings | all | all lets remote agents reach the hub. internal blocks off-VPC agent reporting. |
enable_iap | false | Require Google sign-in. Blocks agents that cannot present a Google identity. |
Group — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
enable_nfs | false | NFS is off; Beszel persists to the GCS FUSE data bucket, not NFS. |
gcs_volumes | [] | Extra GCS Fuse mounts beyond the /beszel_data data bucket (requires gen2). |
create_cloud_storage | true | Provision the declared storage bucket(s). |
Group — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | NONE | Beszel has no external database — leave as NONE. |
enable_cloudsql_volume | false | No Cloud SQL Auth Proxy; Beszel uses embedded SQLite. |
Group — Redis Cache & Queue
Beszel does not use Redis. enable_redis is not exposed as a variable on this module — the
wrapper's main.tf hardcodes enable_redis = false in its call to App_CloudRun (whose
own default is true), so there is nothing to configure here.
Group — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP /api/health 15s delay | Startup probe; 10-retry window for first-boot schema creation. |
liveness_probe | HTTP /api/health 30s delay | Liveness probe. |
uptime_check_config | { enabled=false, path="/api/health" } | Optional Cloud Monitoring uptime check against the hub. |
All other inputs follow standard App_CloudRun behaviour.
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
beszel_url | Service URL for the Beszel hub UI/API. |
service_location | Region the service runs in. |
stage_services | Stage-specific service URLs (Cloud Deploy). |
load_balancer_ip / load_balancer_url | External HTTPS load balancer IP / URL (when enabled). |
storage_buckets | Created Cloud Storage buckets (the /beszel_data data bucket). |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels / uptime_check_names | Monitoring status, channels, uptime checks. |
initialization_jobs | Names of any setup jobs (none by default). |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration | CI/CD status and details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — IAP with no authorized identities, a
gen1runtime with GCS mounts, an out-of-rangebackup_retention_days,min_instance_count > max_instance_count. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
| Storage data bucket | Never delete or clear | Critical | The bucket is the SQLite database — deleting it erases all monitoring history and the admin account. |
max_instance_count | 1 | Critical | Running >1 instance against the shared FUSE-mounted SQLite database causes lock contention and database corruption. |
enable_cloudsql_volume / database_type | false / NONE | High | Beszel has no external DB; enabling Cloud SQL provisions an unused instance and misconfigures startup. |
execution_environment | gen2 | High | gen1 cannot mount the GCS FUSE /beszel_data volume, so state is not persisted. |
ingress_settings | all | High | internal blocks agents outside the VPC from reporting to the hub. |
enable_iap | only for the UI, never with off-Google agents | High | IAP blocks all unauthenticated requests, including agent metric reporting. |
min_instance_count | 1 | Medium | Scale-to-zero (0) drops the warm SQLite writer and interrupts continuous agent reporting; also blocked by the min/max guard when set above max. |
container_port | 8090 | Medium | The hub listens only on 8090; changing it without matching the image breaks the probes and ingress. |
application_version | pin explicitly | Medium | latest resolves the base image to the pinned 0.9.1; pin a real tag to control upgrades and avoid surprise schema migrations. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Beszel-specific application configuration shared with the GKE variant is described in Beszel_Common.
