Komga on Google Cloud Run
Komga is a free, open-source, self-hosted media server for comics, manga, and digital book collections (Kotlin/Java, Spring Boot). It provides a clean web reading UI, OPDS feeds, collections, read lists, and full-text search over your library. This module deploys Komga on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Komga uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

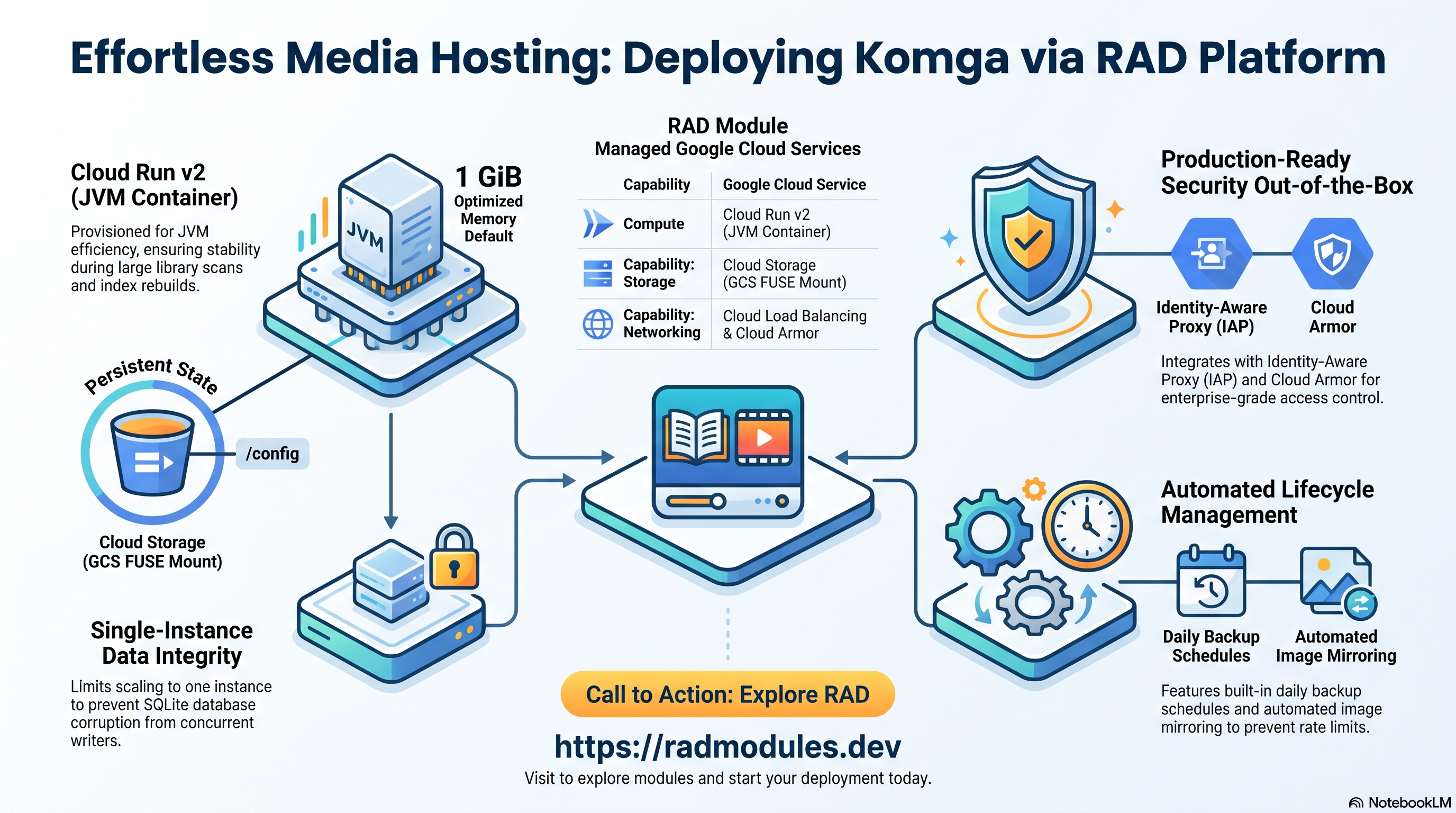

1. Overview
Komga runs as a single JVM container on Cloud Run v2. The deployment wires together a minimal set of Google Cloud services — there is no external database:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | JVM (Spring Boot) container, 1 vCPU / 1 GiB by default; single instance |
| Database | None | Komga uses an embedded SQLite database under /config — no Cloud SQL instance is created |
| Object storage | Cloud Storage | A dedicated storage bucket mounted at /config via GCS FUSE |
| Secrets | Secret Manager | None generated — Komga has no injectable service secret |
| Ingress | Cloud Run URL / Cloud Load Balancing | Default run.app URL; optional external HTTPS load balancer + custom domain |
Sensible defaults worth knowing up front:
- No external database. Komga stores its library index, users, reading
progress, and settings in an embedded SQLite database — confirmed via upstream
issue #1327 (open, unimplemented feature request for external DB support).
database_type = "NONE". - Official prebuilt image.
container_image_source = "prebuilt"deploysgotson/komgadirectly — no Cloud Build step.enable_image_mirroring = truemirrors it into Artifact Registry (digest-aware copy) to avoid Docker Hub rate limits. - Single instance only.
min_instance_count = 1andmax_instance_count = 1— Komga serves one shared SQLite library from one volume; do not scale beyond 1. /configis the single source of truth. The SQLite database (database.sqlite, WAL mode), Lucene search index, thumbnail cache, and task queue all live under/config(set via the image'sKOMGA_CONFIGDIR), backed by a GCS-FUSE-mounted Cloud Storage bucket on Cloud Run.- No generated secrets. The admin account is created interactively through
Komga's first-run setup wizard at
/— there is no master key or JWT secret to seed ahead of time. - Health endpoint is
/actuator/health. Confirmed via local container testing to return200 {"status":"UP"}unauthenticated. The versioned/api/v1/actuator/healthpath is auth-gated (401) — do not point probes at it. - JVM heap sizing is optional.
jvm_heap_max(blank by default) sets-XmxviaJAVA_TOOL_OPTIONS; leave blank to let JVM ergonomics size the heap relative tomemory_limit. - GCS FUSE has real latency for SQLite. For heavier or production libraries,
prefer
Komga_GKE, which can mount a real block PVC instead.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Komga service
Komga runs as a Cloud Run v2 service. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Cloud Storage — Komga's persistent state
A dedicated Cloud Storage bucket is mounted at /config via GCS FUSE. It holds
the embedded SQLite database, Lucene search index, thumbnail cache, and logs —
everything Komga persists.
- Console: Cloud Storage → Buckets.
- CLI:
gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<storage-bucket>/ # bucket name is in the Outputs
See App_CloudRun for GCS Fuse and CMEK options.
C. Secret Manager
Komga has no generated service secret — the admin account is created through the
web setup wizard. Secret Manager only holds entries you add yourself via
secret_environment_variables.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~komga"
D. Networking & ingress
The service is reachable at its run.app URL by default. An external HTTPS load
balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
E. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Komga Application Behaviour
- No first-deploy database setup. There is no
db-initjob — Komga runs its own Flyway schema migrations against the embedded SQLite database on first boot (confirmed via local container logs:org.flywaydb.core.FlywayExecutor,Successfully validated 90 migrations). - First-run setup wizard. Open the service URL and complete the setup wizard at
/to create the initial admin user — there is no seeded credential and no API/CLI path to create one non-interactively. - Add a library after first login. Once logged in, add a "library" pointing at
a mounted media path (see
gcs_volumesfor additional read-mostly comic/book storage) and trigger a scan. This is a manual operator step; no init job seeds it. - Health path. Startup and liveness probes target
/actuator/health(unauthenticated,200 {"status":"UP"}once ready). Do not use/api/v1/actuator/health— confirmed via local testing to return401 Unauthorizedeven when the app is fully healthy. - Single shared library, single instance. Komga's SQLite database is a single
file on one mounted volume — running more than one instance risks concurrent
writers corrupting it. Keep
max_instance_count = 1. - JVM heap sizing. No official memory floor is documented upstream; the module
defaults
memory_limit = 1Giconservatively. For very large libraries (heavy Lucene index + thumbnail cache), raisememory_limitand optionally setjvm_heap_maxto explicitly bound the JVM's-Xmx.
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Komga are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the service and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|---|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | komga | Base name for resources. Do not change after first deploy. |
application_display_name | Komga | Human-readable name shown in the Console. |
description | (set) | Service description. |
application_version | latest | Image tag, passed straight through as the gotson/komga tag. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
container_image_source | prebuilt | Deploys the official gotson/komga image directly — no build step. |
cpu_limit | 1000m | CPU per instance. |
memory_limit | 1Gi | Memory per instance; raise for very large libraries. |
min_instance_count | 1 | Keep at 1 to avoid cold starts during the Lucene index rebuild on boot. |
max_instance_count | 1 | Do not increase — Komga serves one shared SQLite library. |
container_port | 25600 | Komga's default HTTP port. |
execution_environment | gen2 | Gen2 required for GCS Fuse mounts. |
timeout_seconds | 300 | Maximum request duration (0–3600 seconds). |
enable_cloudsql_volume | false | Komga has no Cloud SQL — keep false. |
enable_image_mirroring | true | Mirror the Komga image into Artifact Registry. |
jvm_heap_max | "" | Optional JVM -Xmx via JAVA_TOOL_OPTIONS (e.g. "512m", "1g"). |
traffic_split | [] | Split traffic across revisions for staged rollouts. |
max_revisions_to_retain | 7 | Declared for convention parity; not referenced by this module's deployment. |
Group 5 — Access & Ingress Control
| Variable | Default | Description |
|---|---|---|
ingress_settings | all | Public access to the reading UI. |
vpc_egress_setting | PRIVATE_RANGES_ONLY | Route only RFC 1918 traffic via VPC. |
enable_iap | false | Require Google sign-in in front of Komga's own auth. |
iap_authorized_users / iap_authorized_groups | [] | Who may access through IAP. |
Group 6 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Extra non-secret settings. |
secret_environment_variables | {} | Map of env var → Secret Manager secret name. |
secret_propagation_delay | 30 | Seconds to wait after secret creation before proceeding. |
secret_rotation_period | 2592000s | Secret Manager rotation notification frequency. |
Group 7 — Backup & Restore
| Variable | Default | Description |
|---|---|---|
backup_schedule | 0 2 * * * | Automated backup cron (UTC). |
backup_retention_days | 7 | Retention; raise for production/compliance. |
enable_backup_import / backup_source / backup_uri / backup_format | restore options | Restore from a backup on deploy. |
Group 8 — CI/CD & Binary Authorization
Standard App_CloudRun Cloud Build / Cloud Deploy integration — see
App_CloudRun. Key inputs: enable_cicd_trigger,
github_repository_url, github_token, enable_cloud_deploy,
enable_binary_authorization.
Group 9 — Custom SQL Scripts
Not applicable — Komga has no SQL database. enable_custom_sql_scripts and related
variables are declared for convention parity only.
Group 10 — Load Balancer, CDN & Image Retention
| Variable | Default | Description |
|---|---|---|
enable_cloud_armor | false | Provision Global HTTPS LB + Cloud Armor WAF. |
admin_ip_ranges | [] | CIDR ranges exempted from WAF rules. |
application_domains | [] | Custom domain names for the HTTPS LB. |
enable_cdn | false | Enable Cloud CDN on the HTTPS LB backend. |
max_images_to_retain / delete_untagged_images / image_retention_days | (set) | Artifact Registry cleanup policy. |
Group 11 — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
create_cloud_storage | true | Create GCS buckets defined in storage_buckets. |
storage_buckets | [] | Additional GCS buckets beyond the auto-provisioned storage bucket. |
enable_nfs | false | NFS is off by default. |
gcs_volumes | [] | Additional GCS Fuse volume mounts — e.g. a separate read-mostly comics/books library bucket, mounted read-only. The storage bucket is added automatically at /config. |
manage_storage_kms_iam / enable_artifact_registry_cmek | false | CMEK options. |
Group 12 — Database Backend
Not applicable — database_type is fixed to NONE. All database-related variables
are declared for convention parity and forwarded to the foundation with no effect.
Group 13 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | Komga needs no default init job. |
cron_jobs | [] | Scheduled Cloud Scheduler + Cloud Run Jobs, e.g. for library-maintenance tasks. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP /actuator/health, 15s delay | Startup probe. |
liveness_probe | HTTP /actuator/health, 30s delay | Liveness probe. |
startup_probe_config | HTTP /actuator/health | Alternative structured probe. |
health_check_config | HTTP /actuator/health | Alternative structured liveness probe. |
uptime_check_config | { enabled=false, path="/actuator/health" } | Cloud Monitoring uptime check; disabled by default. |
alert_policies | [] | Metric alert policies. |
Group 23 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|---|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
komga_url | Internal VPC URL for the service (only reachable inside the VPC when ingress_settings = "internal"). |
service_location | Region the service runs in. |
stage_services | Stage-specific service URLs (Cloud Deploy). |
load_balancer_ip / load_balancer_url | External HTTPS load balancer IP / URL (when enabled). |
storage_buckets | Created Cloud Storage buckets. |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels / uptime_check_names | Monitoring status, channels, uptime checks. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
initialization_jobs | Names of the setup jobs (empty by default). |
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration | CI/CD status and details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. Most mistakes below are caught up front rather than at apply or runtime.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
max_instance_count | 1 (never increase) | Critical | Multiple instances writing the same SQLite file concurrently risks database corruption. |
| Health probe path | /actuator/health | Critical | /api/v1/actuator/health is auth-gated (401) — using it as the probe path means the revision/pod never becomes Ready even though Komga is fully healthy. |
enable_gcs_storage_volume (Common-level) | true on Cloud Run | Critical | Disabling it with no replacement mount means /config is not persisted — all library state is lost on every cold start. |
| First-run setup wizard | Complete promptly after deploy | High | An unclaimed setup wizard leaves the instance without an admin account; anyone who reaches the URL first can claim it. |
min_instance_count | 1 | Medium | Scale-to-zero adds cold-start latency including a Lucene index rebuild on every cold boot. |
memory_limit | 1Gi, raise for large libraries | Medium | Undersized memory can OOM-kill during a large library scan (Lucene index + thumbnail cache held in the JVM heap). |
container_image_source | prebuilt | Medium | Switching to custom with no Dockerfile in Komga_Common/scripts fails the build — Komga needs no custom build. |
GCS FUSE for /config | Fine for light use; prefer GKE PVC for production | Low | SQLite WAL files under gcsfuse have higher latency and weaker consistency than block storage. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Komga-specific application configuration shared with the GKE variant is described in Komga_Common.
