Cloudreve on Google Cloud Run

Cloudreve is a popular open-source, self-hosted cloud storage and file-sharing platform written in Go. It provides a web UI for uploading, organising, previewing and sharing files, with pluggable storage back-ends. This module deploys Cloudreve on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Cloudreve uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

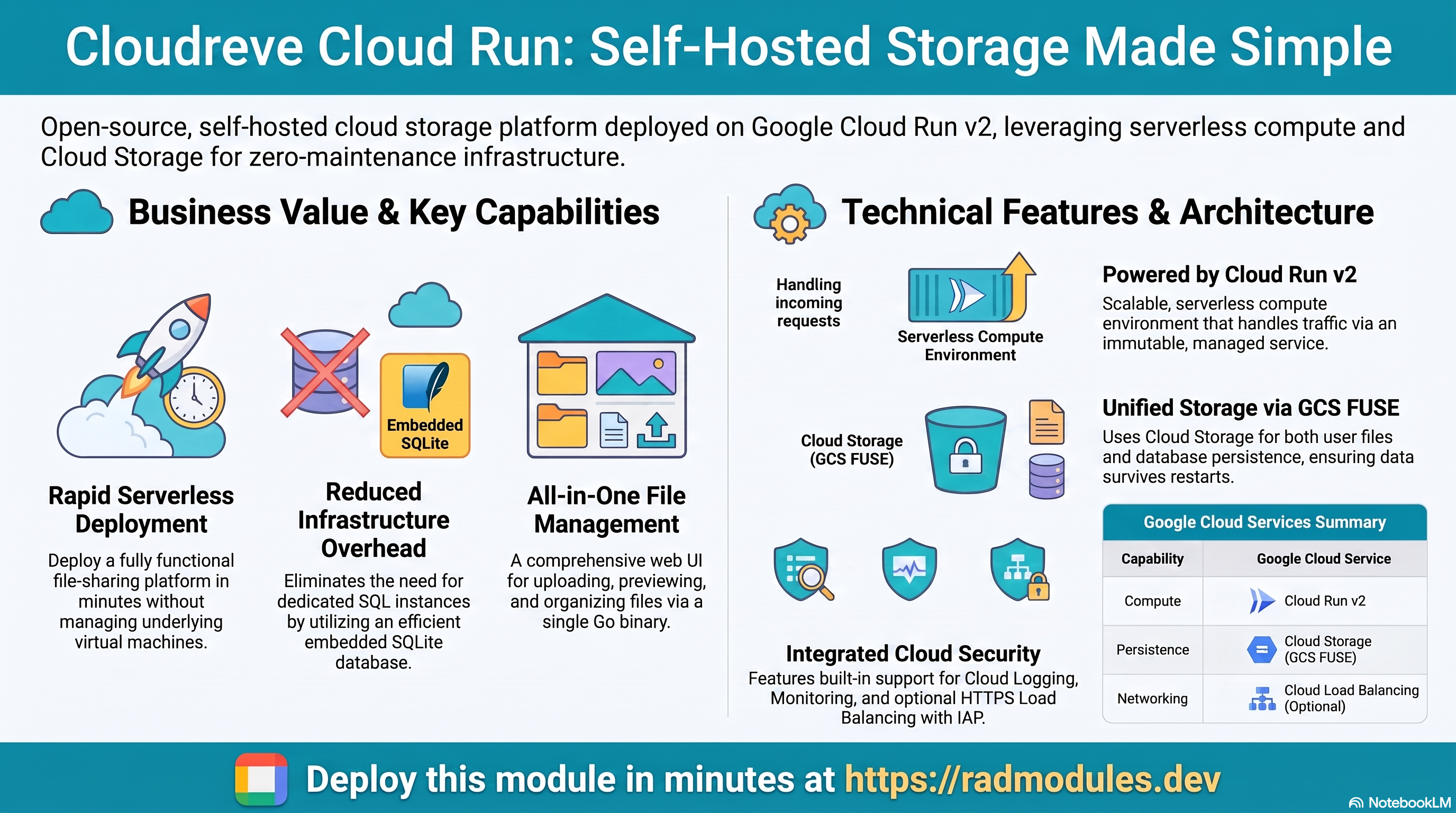

1. Overview

Cloudreve runs as a single Go binary serving both the web UI and file storage API. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Go binary on port 5212, single instance by default (min = max = 1)
Persistence	Cloud Storage, mounted via GCS FUSE	Mounted at /cloudreve; holds the embedded SQLite DB, generated conf.ini, and uploaded files. This is the only persistence option on Cloud Run — there is no block-volume equivalent to GKE's PVC
Object storage	Cloud Storage	The same storage bucket doubles as the GCS FUSE-mounted data volume
Database	None	Cloudreve uses an embedded SQLite database on the mounted volume — no Cloud SQL instance is created
Secrets	Secret Manager	None created — the first-run admin password is generated by Cloudreve itself and printed to container logs
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• No SQL database. database_type is fixed to NONE by Cloudreve_Common; every Cloud SQL-related variable is forwarded to the foundation only for interface compatibility and has no effect.
• GCS FUSE is the persistence mechanism by necessity, not by choice. Cloud Run has no block-volume option, so the auto-created storage bucket is always mounted via GCS FUSE at /cloudreve (enable_gcs_storage_volume = true inside Cloudreve_Common; this is not exposed as a Cloudreve_CloudRun variable). The module's own module_description explicitly flags this trade-off: "Cloudreve is a stateful single-writer datastore — for production use prefer Cloudreve_GKE, which mounts a block Persistent Volume (gcsfuse corrupts the embedded SQLite DB)."
• Binary/data co-location is handled in the image build. Upstream's cloudreve/cloudreve image keeps both the cloudreve binary and its data in /cloudreve. This module's Dockerfile relocates the binary to /usr/local/bin/cloudreve in a multi-stage build (ENTRYPOINT ["/usr/local/bin/cloudreve"], WORKDIR /cloudreve), so mounting the GCS FUSE volume at /cloudreve only shadows data files, never the binary. See Section 3.
• No Cloud SQL, no Redis. enable_cloudsql_volume defaults false and enable_redis is explicitly overridden to false in main.tf, regardless of the variable's own value.
• No injectable admin secret. Cloudreve generates its own initial admin password on first boot and prints it to container logs — no Secret Manager secret is created; secret_ids/secret_values from Cloudreve_Common are empty maps.
• Single instance by default. min_instance_count = max_instance_count = 1, matching Cloudreve's lack of distributed/multi-node clustering support and avoiding concurrent writers against the single mounted SQLite file.
• container_port defaults to 5212 and is actually forwarded to the effective per-app config (unlike some other pass-through variables in this module) — but changing it does not change what the Cloudreve binary itself listens on internally, since there is no env var or CLI flag wiring that port into the container. Leave it at the default.
• Public ingress is on by default (ingress_settings = "all") so the web UI is reachable directly at the Cloud Run URL.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Cloudreve service

Cloudreve runs as a Cloud Run v2 service. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts. With the default min_instance_count = max_instance_count = 1, exactly one instance serves all traffic at any time.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage (GCS FUSE persistence)

Cloudreve's embedded SQLite database (cloudreve.db), generated conf.ini, and uploaded files all live under /cloudreve, the container's working directory. A dedicated storage Cloud Storage bucket is created automatically by Cloudreve_Common and mounted into the container as a GCS FUSE volume at that path — Cloud Run has no block-volume equivalent to a GKE PVC, so this is the only way to persist state across revisions and scale-to-zero.

• Console: Cloud Storage → Buckets → filter for the deployment's storage suffix.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~storage"
  gcloud storage ls gs://<data-bucket>/

Because gcsfuse's consistency model is weaker than a real block device, running more than one instance (max_instance_count > 1) risks corrupting the embedded SQLite file — see Section 6. See App_CloudRun for GCS Fuse and CMEK options.

C. Secret Manager

Cloudreve_Common creates no Secret Manager secrets for Cloudreve itself — the first-run admin password is generated internally by Cloudreve and printed to container logs on first boot, not stored in Secret Manager. Any secrets configured via secret_environment_variables are still injected through the standard Secret Manager mechanism.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~cloudreve"
  gcloud logging read 'resource.type="cloud_run_revision"' --project "$PROJECT" --limit 200 | grep -i "admin\|password"

See App_CloudRun for injection and rotation details (rotation has no effect here since no service secret exists).

D. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"). An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on via enable_cloud_armor; ingress settings and VPC egress control connectivity otherwise.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Container logs flow to Cloud Logging — this is also where the generated first-run admin password appears (see Section 3). Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Cloudreve Application Behaviour

• No database initialisation job. Cloudreve_Common does not inject a default db-init/db-create job — Cloudreve has no SQL database to provision. initialization_jobs only runs jobs you explicitly supply.
• First-boot self-setup, admin password in logs. On first start Cloudreve creates its SQLite schema on the GCS FUSE-mounted volume and generates the initial admin account, printing the generated password to container logs. There is no separate migration step and no Secret Manager secret to retrieve it from — capture it with gcloud run services logs read (or gcloud logging read) before the log buffer rotates, then change it via the web UI.
• Volume-shadowing is pre-fixed in the Dockerfile. Without the relocation described in Section 1, the GCS FUSE mount at /cloudreve would shadow the co-located binary, producing exec ./cloudreve: no such file or directory (crash loop). This is a custom-build module (container_image_source = "custom", image_source = "custom" in Cloudreve_Common) precisely so this fix (modules/Cloudreve_Common/scripts/Dockerfile) can be baked in — it is not a bare pass-through of the upstream image. Editing the Dockerfile requires a rebuild (tofu taint 'module.app_cloudrun.module.app_build.null_resource.build_and_push_application_image[0]' if a content-hash trigger misses the change).
• Version pinning uses an app-specific build ARG. The Dockerfile reads CLOUDREVE_VERSION (pinned to 3.8.3 when application_version = "latest"), not the generic APP_VERSION the Foundation injects and would otherwise force to the unresolvable tag latest.
• Health probe paths. Startup probe is HTTP GET / (initial_delay_seconds = 15, failure_threshold = 10, i.e. up to ~100s to become ready); liveness probe is HTTP GET / as well (initial_delay_seconds = 30, period_seconds = 30). Cloudreve has no dedicated health endpoint distinct from its web UI — / returns 200 once the server is serving.
• Single-instance semantics. With min_instance_count = max_instance_count = 1, only one instance serves traffic; do not raise max_instance_count without verifying Cloudreve's own multi-node/clustering support (not managed by this module) — the shared GCS FUSE-mounted SQLite file has no built-in protection against concurrent writers.
• container_port is forwarded but not wired into the app. The Cloudreve binary listens on its own default port (5212) with no env var or CLI flag in this module's Dockerfile to change it; changing container_port only changes what Cloud Run routes to, so it should stay at the default.
• Inspect the running service and job execution:

  gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT"
  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform (per their {{UIMeta group=N}} tags). Only settings specific to or notable for Cloudreve are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	cloudreve	Base name for resources. Do not change after first deploy.
application_display_name	Cloudreve	Human-readable name shown in the Console.
description	Cloudreve — self-hosted cloud storage / file-sharing system	Service description.
application_version	latest	cloudreve/cloudreve image tag; latest is pinned to 3.8.3 at build time via the CLOUDREVE_VERSION build ARG.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance.
memory_limit	1Gi	Memory per instance; size for file-serving and concurrent transfers.
min_instance_count	1	Kept at 1 to avoid cold starts during Cloudreve's index loading.
max_instance_count	1	Keep at 1 — no verified multi-node/clustering support, and a shared GCS FUSE-mounted SQLite file has no concurrent-writer protection.
container_port	5212	Cloudreve's default HTTP port. Forwarded through to the effective per-app config, but not wired to the binary's own listen port — leave at default.
execution_environment	gen2	Required for the GCS Fuse mount.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Cloudreve has no Cloud SQL database — always false.
enable_image_mirroring	true	Mirror the Cloudreve image into Artifact Registry.
traffic_split	[]	Split traffic across revisions for staged rollouts.
container_protocol	http1	HTTP/1.1; h2c available but not required by Cloudreve.
service_annotations / service_labels	{}	Custom annotations/labels on the Cloud Run service resource.
container_image / container_image_source / container_build_config / container_resources / cloudsql_volume_mount_path / max_revisions_to_retain	(various)	Declared for Foundation-variable mirroring only — not forwarded in main.tf. The actual image, build config (Dockerfile path, CLOUDREVE_VERSION build arg), and resource shape are fixed inside Cloudreve_Common.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Public access to reach the web UI directly.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in in front of Cloudreve's own login.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings passed straight through to the container.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency (no service secret exists to rotate by default).

Group 7 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy (backup_uri is forwarded to the foundation's backup_file input).
additional_containers / additional_services	[]	Declared for Foundation mirroring only; Cloudreve does not use sidecar containers or supplementary services.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, github_app_installation_id, cicd_trigger_config, enable_cloud_deploy, cloud_deploy_stages, enable_binary_authorization, binauthz_evaluation_mode.

Group 9 — Custom SQL Scripts & NFS Instance Selection

Variable	Default	Description
enable_custom_sql_scripts / custom_sql_scripts_bucket / custom_sql_scripts_path / custom_sql_scripts_use_root	off	Not applicable — Cloudreve has no SQL database.
nfs_instance_name / nfs_instance_base_name / nfs_volume_name	auto-discover / app-nfs / nfs-data-volume	Only relevant if enable_nfs = true is separately enabled (off by default; Cloudreve does not require NFS).

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 11 — Storage, Filesystem & Redis

Variable	Default	Description
create_cloud_storage	true	Create GCS buckets defined in storage_buckets; also gates the auto-provisioned storage bucket.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned data bucket.
enable_nfs	false	Off by default — Cloudreve stores its state on the GCS FUSE volume, not NFS.
nfs_mount_path	/mnt/nfs	Mount path if NFS is separately enabled.
gcs_volumes	[]	Additional GCS Fuse volume mounts. The storage bucket is always mounted at /cloudreve in addition to any entries here (enable_gcs_storage_volume = true, fixed inside Cloudreve_Common and not exposed as a variable here).
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
enable_redis	App_CloudRun default true, but forced false in main.tf	Cloudreve does not use Redis; the variable's value has no effect regardless of setting.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed by Cloudreve_Common — Cloudreve has no SQL database.
database_password_length / enable_auto_password_rotation / rotation_propagation_delay_sec / db_host_env_var_name / db_user_env_var_name / db_name_env_var_name / db_port_env_var_name / db_password_env_var_name / service_url_env_var_name / application_database_name / application_database_user / enable_mysql_plugins / mysql_plugins / enable_postgres_extensions / postgres_extensions / sql_instance_name / sql_instance_base_name	(various)	All declared for Foundation-variable mirroring only and not forwarded in main.tf — Cloudreve has no database to which any of these could apply.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	No default job is injected — Cloudreve needs no database setup. Only supply jobs for custom data loading or maintenance tasks.
cron_jobs	[]	No platform-scheduled recurring tasks by default.
backup_file	backup.sql	Declared for Foundation mirroring only; the real restore filename comes from backup_uri (group 7) via backup_source/backup_format.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP GET /, initial_delay=15s, failure_threshold=10	No dedicated health endpoint — Cloudreve serves / once ready.
liveness_probe	HTTP GET /, initial_delay=30s, period=30s	Same endpoint as the startup probe.
startup_probe_config	HTTP /, enabled	Alternative structured probe; the per-app startup_probe above is the one actually wired through Cloudreve_Common.
health_check_config	HTTP /, enabled	Alternative structured liveness probe.
uptime_check_config	{ enabled=false, path="/" }	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Metric alert policies.

Group 15 — Networking

Variable	Default	Description
network_name	"" (auto-discover)	Declared for Foundation mirroring only; not forwarded in main.tf — the module always auto-discovers the single Services_GCP-managed VPC.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
organization_id	""	Override for folder-nested projects.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
cloudreve_url	URL for the Cloudreve web UI (port 5212). Reachability depends on ingress_settings; internal restricts it to the same VPC.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets, including the GCS FUSE-mounted storage bucket.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any user-supplied initialization jobs (Cloudreve injects none by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

Note that, unlike most application modules, there are no database_* outputs — Cloudreve has no Cloud SQL instance to describe.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — IAP with no authorized identities, a gen1 runtime with the required GCS Fuse mount, an out-of-range container_port/backup_retention_days/secret_propagation_delay. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
Persistence mechanism (GCS FUSE at /cloudreve)	Accept as the Cloud Run trade-off; use Cloudreve_GKE for production	Critical	gcsfuse's consistency model is weaker than a block device; the embedded SQLite DB is at risk of corruption under concurrent access. This is a documented, architectural limitation of the CloudRun variant, not a bug to fix here.
Dockerfile binary relocation (/usr/local/bin/cloudreve)	Keep as shipped	Critical	Reverting to ENTRYPOINT ["./cloudreve"] inside /cloudreve re-introduces volume-shadowing: the GCS FUSE mount hides the binary and the container crash-loops with exec ./cloudreve: no such file or directory.
max_instance_count	1	Critical	Cloudreve has no verified multi-node/clustering mode in this module; scaling beyond 1 risks concurrent writers against the same GCS FUSE-mounted SQLite file with no locking guarantees.
Admin password retrieval	Capture from gcloud run services logs read immediately after first boot	High	The generated admin password is only printed to container logs once; missing it locks you out of the first-run super-admin account until you find another recovery path.
container_port	5212	High	Cloudreve's binary listens on a fixed default port with no env/CLI wiring to change it in this module; changing the variable only changes Cloud Run's routing target, breaking connectivity.
min_instance_count	1	Medium	Scale-to-zero (0) adds cold-start latency while Cloudreve reloads its index from the GCS FUSE volume, and increases the chance of overlapping cold/warm instances momentarily touching the same SQLite file during a rollout.
ingress_settings	all	Medium	Setting to internal blocks direct access to the web UI unless fronted by a Load Balancer or accessed from within the VPC.
enable_iap	Optional	Low–Medium	IAP adds a Google-identity gate in front of Cloudreve's own login; without it, Cloudreve's own auth is the only barrier to the public internet.
database_type / other db_* / sql_* variables	Leave at defaults	Low	Cloudreve has no SQL database — any value here is a no-op, since database_type is fixed to NONE by Cloudreve_Common.
enable_redis	Leave at default	Low	Forced to false in main.tf regardless of the variable's value — Cloudreve does not use Redis.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Cloudreve-specific application configuration shared with the GKE variant lives in the Cloudreve_Common module (modules/Cloudreve_Common); a dedicated Cloudreve_Common.md guide does not yet exist in this documentation set — see also Cloudreve_GKE for the block-PVC-backed production alternative.
