Activepieces on Google Cloud Run

This document provides a comprehensive reference for the modules/Activepieces_CloudRun Terraform module. It covers architecture, IAM, configuration variables, Activepieces-specific behaviours, and operational patterns for deploying Activepieces on Google Cloud Run (v2).

---

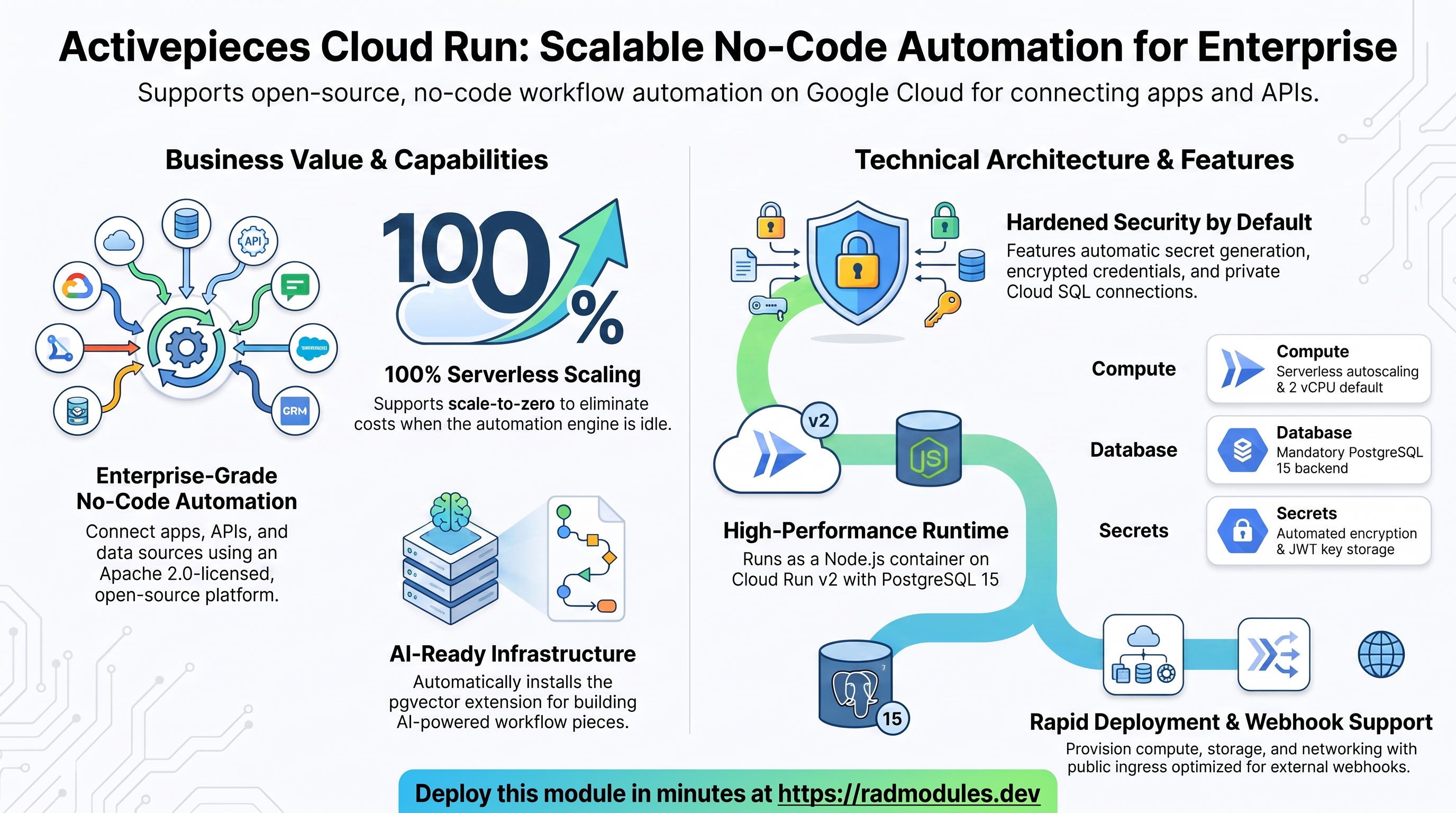

1. Module Overview

Activepieces is an open-source, Apache 2.0-licensed no-code workflow automation platform for connecting apps, APIs, and data sources. Activepieces CloudRun is a wrapper module built on top of App CloudRun. It uses App CloudRun for all GCP infrastructure provisioning and injects Activepieces-specific application configuration, secrets, database initialisation, and queue configuration via Activepieces Common.

Key Capabilities:

• Compute: Cloud Run v2 (Gen2), Node.js container, scale-to-zero supported (min_instance_count = 0 by default). Custom image build via Cloud Build wraps the upstream activepieces/activepieces image.
• Data Persistence: Cloud SQL PostgreSQL 15 with Cloud SQL Auth Proxy sidecar (enable_cloudsql_volume = true by default). The db-init.sh script handles socket detection and the pgvector extension for AI features. GCS data bucket provisioned automatically by Activepieces Common.
• Security: AP_ENCRYPTION_KEY and AP_JWT_SECRET auto-generated and stored in Secret Manager. Inherits Cloud Armor WAF, IAP, Binary Authorization, and VPC Service Controls from App CloudRun.
• Queue Mode: Memory-based queue by default (AP_QUEUE_MODE = MEMORY). Set enable_redis = true to switch to Redis queue mode (AP_QUEUE_MODE = REDIS), required for horizontal scaling.
• Webhooks: ingress_settings = 'all' is the default so external systems can POST to Activepieces webhook endpoints. Enabling IAP will block public webhooks.
• CI/CD: Cloud Build custom image pipeline by default; Cloud Deploy progressive delivery optional.

Project & Application Identity

Variable	Group	Type	Default	Description
project_id	1	string	—	GCP project ID. Required.
tenant_deployment_id	1	string	'demo'	Short suffix appended to all resource names.
support_users	1	list(string)	[]	Email recipients for monitoring alerts.
resource_labels	1	map(string)	{}	Labels applied to all provisioned resources.
application_name	2	string	'activepieces'	Base resource name. Do not change after initial deployment.
display_name	2	string	'Activepieces Workflow Automation'	Human-readable name shown in the GCP Console. Note: uses display_name alias, not application_display_name.
description	2	string	'Activepieces - Open source workflow automation platform'	Cloud Run service description. Note: uses description alias, not application_description.
application_version	2	string	'latest'	Container image version tag. Increment to deploy a new release.

Wrapper architecture: Activepieces CloudRun calls Activepieces Common to build an application_config object containing Activepieces environment variables, the AP_ENCRYPTION_KEY and AP_JWT_SECRET secrets, database initialisation job configuration, probe settings, and the data GCS bucket definition. module_env_vars is empty (all env vars are set inside Activepieces Common). module_secret_env_vars carries Activepieces Common-generated secret IDs. module_storage_buckets carries the data bucket provisioned by Activepieces Common. scripts_dir is resolved to ${module.activepieces_app.path}/scripts.

Naming note: Unlike Django, which uses application_display_name and application_description, Activepieces CloudRun uses display_name and description aliases. These are mapped to the App CloudRun display name and description fields inside Activepieces Common's config output.

---

2. IAM & Access Control

Activepieces_CloudRun delegates all IAM provisioning to App_CloudRun. The Cloud Run SA, Cloud Build SA, IAP service agent, and password rotation role sets are identical to those in App_CloudRun §2.

Activepieces auto-generated secrets and IAM: Activepieces Common creates two Secret Manager secrets during provisioning: AP_ENCRYPTION_KEY and AP_JWT_SECRET. These are injected into the Cloud Run revision via module_secret_env_vars. The Cloud Run SA requires roles/secretmanager.secretAccessor, which is already granted by App CloudRun. The DB_PASSWORD and ROOT_PASSWORD secrets are provisioned automatically by App CloudRun.

Database initialisation identity: The db-init Cloud Run Job runs under the Cloud Run SA. It connects to Cloud SQL via the Auth Proxy sidecar (since enable_cloudsql_volume = true by default). The db-init.sh script auto-detects the socket path at runtime.

GCS data bucket IAM: Activepieces Common provisions a GCS data bucket and the application SA is granted storage access by App CloudRun.

120-second IAM propagation delay: Inherited from App CloudRun — the Activepieces service is not deployed until the delay completes, preventing secret-read failures on the first revision start.

Webhook access: Public access is required for Activepieces webhook endpoints. ingress_settings = 'all' is the default. Enabling IAP (enable_iap = true) will require Google identity authentication and will block unauthenticated webhook calls from external systems.

---

3. Core Service Configuration

A. Compute (Cloud Run)

Activepieces is a Node.js application with significant memory requirements. The default resource limits (cpu_limit = "2000m", memory_limit = "2Gi") reflect the minimum recommended for production use. Unlike Django (which uses a container_resources object), Activepieces CloudRun exposes cpu_limit and memory_limit as individual top-level variables.

Scale-to-zero is enabled by default (min_instance_count = 0). Note: when running in memory queue mode, cold starts cause any in-flight workflow execution data held in memory to be lost. Set min_instance_count = 1 for production deployments or when using memory queue mode with long-running workflows.

Container image: container_image_source is hardcoded to 'custom' inside Activepieces Common. Cloud Build wraps the official activepieces/activepieces image with the entrypoint.sh script. The application_version tag controls which upstream image version is pulled.

Cloud SQL Auth Proxy: enable_cloudsql_volume defaults to true. The Cloud SQL Auth Proxy sidecar is injected. db-init.sh detects the socket automatically.

Variable	Group	Default	Description
deploy_application	3	true	Set false for infrastructure-only deployment (SQL, storage, secrets).
cpu_limit	3	'2000m'	CPU limit per instance (2 vCPUs). Minimum 1 vCPU required; 2 vCPUs recommended for production.
memory_limit	3	'2Gi'	Memory limit per instance. Minimum 512Mi; 2Gi recommended for production.
min_instance_count	3	0	0 enables scale-to-zero. Set ≥1 to eliminate cold starts and maintain webhook availability.
max_instance_count	3	1	Increase for high-traffic deployments. Requires Redis queue mode for safe horizontal scaling.
container_port	3	8080	Activepieces default port.
execution_environment	3	'gen2'	Gen2 required for NFS mounts and GCS Fuse.
timeout_seconds	3	300	Max request duration.
enable_cloudsql_volume	3	true	Injects Cloud SQL Auth Proxy sidecar. db-init.sh auto-detects the socket path.
cloudsql_volume_mount_path	3	'/cloudsql'	Base path for the Auth Proxy Unix socket mount.
enable_image_mirroring	3	true	Mirrors the container image into Artifact Registry.
max_revisions_to_retain	3	7	Maximum number of Cloud Run revisions to keep. Set to 0 to disable pruning.
traffic_split	3	[]	Percentage-based canary/blue-green traffic allocation.
container_protocol	3	'http1'	'http1' or 'h2c'.
service_annotations	3	{}	Advanced Cloud Run annotations.
service_labels	3	{}	Labels applied to the Cloud Run service.

Differences from App CloudRun defaults:

Variable	App CloudRun	Activepieces CloudRun	Reason
cpu_limit (via container_resources)	"1000m"	"2000m"	Activepieces requires more CPU for workflow execution
memory_limit (via container_resources)	"512Mi"	"2Gi"	Activepieces Node.js runtime requires significant memory
enable_cloudsql_volume	true	true	Same default

B. Database (Cloud SQL — PostgreSQL)

Activepieces requires PostgreSQL 15 — Activepieces Common hardcodes database_type = "POSTGRES_15". The db-init.sh script installs the pgvector extension (required for AI-powered workflow features).

Activepieces CloudRun uses db_name and db_user — aliases that differ from App CloudRun's application_database_name / application_database_user. These are wired into Activepieces Common's config output and forwarded correctly.

pgvector extension: The db-init.sh script installs CREATE EXTENSION IF NOT EXISTS vector as a PostgreSQL superuser during the db-init job. This is required for Activepieces AI piece integrations that use vector similarity search.

Variable	Group	Default	Description
db_name	11	'activepieces_db'	PostgreSQL database name. Do not change after initial deployment.
db_user	11	'ap_user'	PostgreSQL application user. Password auto-generated and stored in Secret Manager.
database_password_length	11	32	Auto-generated password length. Range: 16–64.
enable_auto_password_rotation	11	false	Automated zero-downtime password rotation.
rotation_propagation_delay_sec	11	90	Seconds to wait after rotation before restarting the service.

C. Storage (NFS & GCS)

NFS is disabled by default (enable_nfs = false). Unlike Django, Activepieces does not require shared NFS storage by default — workflow execution state is stored in PostgreSQL. Enable NFS if co-locating Redis with an NFS server VM, or if the deployment requires shared file access.

GCS data bucket: Activepieces Common automatically provisions a dedicated data bucket (suffix ap-data). Additional GCS buckets can be defined via storage_buckets.

Variable	Group	Default	Description
enable_nfs	10	false	Provisions an NFS volume. Required only if co-locating Redis with the NFS server.
nfs_mount_path	10	'/mnt/nfs'	Container path where the NFS share is mounted.
nfs_instance_name	8	""	Name of an existing NFS GCE VM to use.
nfs_instance_base_name	8	'app-nfs'	Base name for the inline NFS GCE VM.
create_cloud_storage	10	true	Set false to skip additional bucket creation. The ap-data bucket from Activepieces Common is always provisioned.
storage_buckets	10	[{ name_suffix = "data" }]	Additional GCS buckets beyond the auto-provisioned data bucket.
gcs_volumes	10	[]	GCS buckets to mount via GCS Fuse (requires gen2).
manage_storage_kms_iam	10	false	Creates CMEK KMS keyring and enables CMEK encryption on storage buckets.
enable_artifact_registry_cmek	10	false	Enables CMEK encryption for container images in Artifact Registry.

D. Networking

Public ingress is required for Activepieces webhook endpoints. The default ingress_settings = 'all' allows external systems to POST to webhook URLs.

Variable	Group	Default	Description
ingress_settings	4	'all'	'all' — required for webhook endpoints; 'internal' — VPC only (disables webhooks); 'internal-and-cloud-load-balancing' — forces traffic through the HTTPS LB.
vpc_egress_setting	4	'PRIVATE_RANGES_ONLY'	'PRIVATE_RANGES_ONLY' routes only RFC 1918 traffic via VPC. 'ALL_TRAFFIC' routes all egress via VPC.

E. Initialization & Bootstrap

When initialization_jobs = [] (the default), Activepieces Common substitutes a single default db-init job (execute_on_apply = true). This creates the PostgreSQL database and user, grants privileges, and installs the pgvector extension.

Unlike Django, there is no separate db-migrate job — Activepieces runs its own database migrations automatically on application startup.

The db-init job uses postgres:15-alpine and executes Activepieces_Common/scripts/db-init.sh.

Variable	Group	Default	Description
initialization_jobs	12	[]	One-shot Cloud Run Jobs. Empty list triggers the default db-init job with execute_on_apply = true. Custom jobs can be provided to override.
cron_jobs	12	[]	Not referenced — this variable is defined for UI consistency but is not forwarded to App CloudRun in the current module version. Setting it has no effect on the deployed Cloud Run service. Use initialization_jobs for one-off tasks.

---

4. Advanced Security

A. Cloud Armor WAF

When enable_cloud_armor = true, a Global HTTPS Load Balancer with a Cloud Armor WAF policy is provisioned in front of Cloud Run.

Activepieces consideration: Webhook endpoints receive unauthenticated POST requests from external services. Ensure that Cloud Armor WAF rules do not block valid webhook traffic. Add webhook source IPs to admin_ip_ranges if needed, or configure WAF rules to allow traffic from trusted sources.

Variable	Group	Default	Description
enable_cloud_armor	9	false	Provisions Global HTTPS LB + Cloud Armor WAF. Required for custom domains, CDN, and DDoS protection.
admin_ip_ranges	9	[]	CIDR ranges exempted from WAF rules.

B. Identity-Aware Proxy (IAP)

Warning: Enabling IAP (enable_iap = true) will require Google identity authentication for all requests, including webhook endpoints. This will block external webhook triggers from third-party services. Only enable IAP if Activepieces is used in an internal-only context where webhook endpoints are not needed.

Variable	Group	Default	Description
enable_iap	4	false	Enables IAP natively on the Cloud Run service. Will block public webhook endpoints.
iap_authorized_users	4	[]	Users/service accounts granted access. Format: 'user:email' or 'serviceAccount:sa@...'.
iap_authorized_groups	4	[]	Google Groups granted access. Format: 'group:name@example.com'.

C. Binary Authorization

Variable	Group	Default	Description
enable_binary_authorization	7	false	Enforces image attestation. Requires a Binary Authorization policy and attestor pre-configured in the project.

D. VPC Service Controls

Variable	Group	Default	Description
enable_vpc_sc	21	false	Registers module API calls within the project's VPC-SC perimeter. A perimeter must already exist before enabling.
vpc_cidr_ranges	21	[]	VPC subnet CIDR ranges for the VPC-SC network access level.
vpc_sc_dry_run	21	true	When true, VPC-SC violations are logged but not blocked.
organization_id	21	""	GCP Organization ID for the VPC-SC Access Context Manager policy.
enable_audit_logging	21	false	Enables detailed Cloud Audit Logs for all supported services.

E. Secret Manager Integration

Activepieces Common auto-generates two secrets: AP_ENCRYPTION_KEY (32-character hex string for credential encryption) and AP_JWT_SECRET (32-character random string for JWT signing). These are injected via module_secret_env_vars.

Variable	Group	Default	Description
secret_environment_variables	5	{}	Map of env var name → Secret Manager secret ID. Resolved at runtime by Cloud Run.
secret_rotation_period	5	'2592000s'	Frequency at which Secret Manager emits rotation notifications. Default: 30 days.
secret_propagation_delay	5	30	Seconds to wait after secret creation before dependent resources proceed.

---

5. Traffic & Ingress

A. HTTPS Load Balancer

When enable_cloud_armor = true, a Global HTTPS Load Balancer backed by a Serverless NEG is provisioned. Traffic flows: Internet → Cloud Armor → Global HTTPS LB → Serverless NEG → Cloud Run.

Setting ingress_settings = 'internal-and-cloud-load-balancing' forces all Activepieces traffic through the LB, preventing direct *.run.app URL access.

B. Cloud CDN

When enable_cdn = true (requires enable_cloud_armor = true), Cloud CDN is attached to the HTTPS Load Balancer backend.

Activepieces consideration: Cloud CDN is most useful for the Activepieces frontend (static assets). API endpoints and webhooks must not be cached — ensure that Activepieces API responses include appropriate Cache-Control: no-store headers before enabling CDN.

Variable	Group	Default	Description
enable_cdn	9	false	Enables Cloud CDN on the HTTPS LB backend. Only effective when enable_cloud_armor = true.

C. Custom Domains

Variable	Group	Default	Description
application_domains	9	[]	Custom domain names for the HTTPS LB. Google-managed SSL certificates provisioned per domain. DNS must point to the LB IP.

After the first apply, retrieve the LB IP from the Terraform output load_balancer_ip and create an A record. Then update AP_FRONTEND_URL and AP_WEBHOOK_URL_PREFIX environment variables to use the custom domain for correct OAuth redirect and webhook URL generation.

---

6. CI/CD & Delivery

A. Cloud Build Triggers

When enable_cicd_trigger = true, a Cloud Build GitHub connection and push trigger are provisioned.

Variable	Group	Default	Description
enable_cicd_trigger	7	false	Provisions a Cloud Build GitHub trigger.
github_repository_url	7	""	Full HTTPS URL of the GitHub repository.
github_token	7	""	GitHub PAT (repo, admin:repo_hook scopes). Sensitive.
github_app_installation_id	7	""	GitHub App installation ID.
cicd_trigger_config	7	{ branch_pattern = "^main$" }	Advanced trigger config.

B. Cloud Deploy Pipeline

Variable	Group	Default	Description
enable_cloud_deploy	7	false	Provisions a Cloud Deploy progressive delivery pipeline. Requires enable_cicd_trigger = true.
cloud_deploy_stages	7	[dev, staging, prod(approval)]	Ordered promotion stages.

---

7. Reliability & Scheduling

A. Scaling & Concurrency

Important: In the default memory queue mode (AP_QUEUE_MODE = MEMORY), workflow execution state is held in memory. Scaling to max_instance_count > 1 in memory mode will cause workflows to be split across instances and may produce inconsistent execution. Enable Redis queue mode before scaling horizontally.

Variable	Group	Default	Description
min_instance_count	3	0	0 enables scale-to-zero. Set ≥1 to prevent cold starts on webhook triggers.
max_instance_count	3	1	Increase only when enable_redis = true for consistent queue management.

B. Health Probes

Activepieces CloudRun exposes a dual probe system, consistent with other application modules.

startup_probe / liveness_probe — passed to Activepieces Common to configure how the application container assesses readiness. These target /api/v1/flags — the Activepieces flags API endpoint that responds when the server is ready.

startup_probe_config / health_check_config — passed directly to App CloudRun and configure the Cloud Run infrastructure-level probes.

Activepieces connects to PostgreSQL and applies database migrations on first boot — allow at least 7 minutes on the initial deployment. The default startup_probe settings (initial_delay_seconds = 120, failure_threshold = 10, period_seconds = 30) provide a total startup window of ~5 minutes after the initial delay (120 + 10×30 = 420 seconds).

Variable	Group	Default	Description
startup_probe	13	{ enabled=true, type="HTTP", path="/api/v1/flags", initial_delay_seconds=120, timeout_seconds=10, period_seconds=30, failure_threshold=10 }	Startup probe used by Activepieces Common. Targets /api/v1/flags. Allow 7+ minutes on first boot.
liveness_probe	13	{ enabled=true, type="HTTP", path="/api/v1/flags", initial_delay_seconds=30, timeout_seconds=10, period_seconds=30, failure_threshold=3 }	Liveness probe used by Activepieces Common.
startup_probe_config	13	{ enabled=false }	Cloud Run infrastructure startup probe. Disabled by default — startup_probe above takes effect instead.
health_check_config	13	{ enabled=true }	Cloud Run infrastructure liveness probe.
uptime_check_config	13	{ enabled=true, path="/" }	Cloud Monitoring uptime check.
alert_policies	13	[]	Cloud Monitoring metric alert policies.

C. Auto Password Rotation

Variable	Group	Default	Description
enable_auto_password_rotation	11	false	Enables automated password rotation.
rotation_propagation_delay_sec	11	90	Seconds to wait after writing the new secret before restarting the service.
secret_rotation_period	5	'2592000s'	Rotation frequency. Default: 30 days.

---

8. Integrations

A. Redis Queue Mode

Redis is disabled by default (enable_redis = false). In the default configuration, AP_QUEUE_MODE = "MEMORY" — workflow jobs are executed in-process. This is suitable for single-instance, low-traffic deployments.

When enable_redis = true:

• AP_QUEUE_MODE is set to "REDIS"
• QUEUE_BULL_REDIS_HOST, QUEUE_BULL_REDIS_PORT, and optionally QUEUE_BULL_REDIS_PASSWORD are injected
• entrypoint.sh constructs and exports AP_REDIS_URL at runtime

If redis_host is left empty and enable_nfs = true, the NFS server VM's IP is used as the Redis host (via the $(NFS_SERVER_IP) platform placeholder). This enables a simple single-VM deployment where Redis is co-located on the NFS server. For production, provision a dedicated Cloud Memorystore instance and set redis_host explicitly.

Variable	Group	Default	Description
enable_redis	20	false	Switches to Redis queue mode. Requires redis_host or enable_nfs = true.
redis_host	20	""	Redis hostname or IP. Empty defaults to NFS server IP when enable_nfs = true.
redis_port	20	'6379'	Redis TCP port. Note: type is string, not number.
redis_auth	20	""	Redis AUTH password. Sensitive — never stored in state in plaintext.

Validation: A precondition in Activepieces GKE's validation.tf enforces that when enable_redis = true, either redis_host must be set or enable_nfs must be true. The same logic applies logically for the CloudRun variant.

B. Backup Import & Recovery

Activepieces CloudRun uses backup_uri (not backup_file as in Django). backup_uri is mapped to App CloudRun's backup_file parameter internally.

Variable	Group	Default	Description
backup_schedule	6	'0 2 * * *'	Cron expression (UTC) for automated daily backups.
backup_retention_days	6	7	Days to retain backup files in GCS.
enable_backup_import	6	false	Triggers a one-time restore on apply.
backup_source	6	'gcs'	'gcs' (full GCS URI) or 'gdrive' (Google Drive file ID).
backup_uri	6	""	Full GCS URI (e.g., gs://my-bucket/backup.sql) or Google Drive file ID. Maps to backup_file in App CloudRun.
backup_format	6	'sql'	Backup file format. Options: sql, tar, gz, tgz, tar.gz, zip.

C. Custom SQL Scripts

Variable	Group	Default	Description
enable_custom_sql_scripts	8	false	Runs custom SQL scripts from GCS after provisioning.
custom_sql_scripts_bucket	8	""	GCS bucket containing SQL scripts.
custom_sql_scripts_path	8	""	Path prefix within the bucket.
custom_sql_scripts_use_root	8	false	Run scripts as the root DB user.

D. Observability & Alerting

Variable	Group	Default	Description
uptime_check_config	13	{ enabled=true, path="/" }	Cloud Monitoring uptime check.
alert_policies	13	[]	Metric alert policies.
support_users	1	[]	Email addresses notified by uptime and alert policy triggers.

---

9. Platform-Managed Behaviours

Behaviour	Implementation	Detail
PostgreSQL 15 required	database_type = "POSTGRES_15" hardcoded by Activepieces Common	Only PostgreSQL 15 is supported. database_type is not exposed as a variable.
pgvector extension	Installed by db-init job via Activepieces_Common/scripts/db-init.sh	CREATE EXTENSION IF NOT EXISTS vector is run as the postgres superuser. Required for AI-powered workflow pieces. The script is idempotent.
AP_ENCRYPTION_KEY	Auto-generated 32-char hex string stored in Secret Manager by Activepieces Common	Injected via module_secret_env_vars. Do not set in environment_variables.
AP_JWT_SECRET	Auto-generated 32-char random string stored in Secret Manager by Activepieces Common	Injected via module_secret_env_vars. Do not set in environment_variables.
AP_POSTGRES_ mapping*	entrypoint.sh in Activepieces Common	Platform-standard DB_HOST, DB_NAME, DB_USER, DB_PASSWORD are mapped to Activepieces-specific AP_POSTGRES_HOST, AP_POSTGRES_DATABASE, AP_POSTGRES_USERNAME, AP_POSTGRES_PASSWORD at runtime.
AP_FRONTEND_URL / AP_WEBHOOK_URL_PREFIX	Set to predicted service URL at plan time; corrected at runtime by entrypoint.sh from CLOUDRUN_SERVICE_URL	Ensures webhook URLs and OAuth redirects always use the actual service URL, not a stale predicted URL.
Memory queue mode by default	AP_QUEUE_MODE = "MEMORY" unless enable_redis = true	Single-instance operation. Do not scale max_instance_count > 1 in memory mode.
GCS data bucket	Provisioned by Activepieces Common, injected via module_storage_buckets	A dedicated GCS bucket (suffix ap-data) is provisioned for Activepieces data.
NFS disabled by default	enable_nfs = false	Unlike Django, NFS is opt-in. Enable only if co-locating Redis or requiring shared filesystem access.
module_env_vars is empty	module_env_vars = {}	All Activepieces environment variables are set inside Activepieces Common's config.environment_variables. No additional env vars are injected via module_env_vars.
scripts_dir resolution	abspath("${module.activepieces_app.path}/scripts")	Points to Activepieces_Common/scripts/. Initialization scripts are sourced from there.

---

10. Variable Reference

All user-configurable variables exposed by Activepieces CloudRun, sorted by UI group then order. Group 0 variables are reserved for platform metadata.

Variable	Group	Default	Description
module_description	0	(Activepieces Cloud Run platform text)	Platform metadata: module description.
module_documentation	0	https://docs.radmodules.dev/docs/modules/Activepieces_CloudRun	Platform metadata: documentation URL.
module_dependency	0	['Services GCP']	Platform metadata: required modules.
module_services	0	(GCP service list)	Platform metadata: GCP services consumed.
credit_cost	0	50	Platform metadata: deployment credit cost.
require_credit_purchases	0	false	Platform metadata: enforces credit balance check.
enable_purge	0	true	Permits full deletion of module resources on destroy.
public_access	0	true	Platform catalogue visibility.
deployment_id	0	""	Deployment ID suffix. Auto-generated if empty.
resource_creator_identity	0	(platform SA)	Service account used by Terraform to manage resources.
project_id	1	—	GCP project ID. Required.
tenant_deployment_id	1	'demo'	Short suffix appended to all resource names.
support_users	1	[]	Email addresses for monitoring alerts.
resource_labels	1	{}	Labels applied to all provisioned resources.
application_name	2	'activepieces'	Base resource name. Do not change after initial deployment.
display_name	2	'Activepieces Workflow Automation'	Human-readable name. Alias for application_display_name.
description	2	'Activepieces - Open source workflow automation platform'	Service description. Alias for application_description.
application_version	2	'latest'	Container image version tag.
deploy_application	3	true	Set false for infrastructure-only deployment.
cpu_limit	3	'2000m'	CPU limit per instance.
memory_limit	3	'2Gi'	Memory limit per instance.
min_instance_count	3	0	0 = scale-to-zero. Set ≥1 to eliminate cold starts.
max_instance_count	3	1	Set >1 only when enable_redis = true.
container_port	3	8080	TCP port Activepieces listens on.
execution_environment	3	'gen2'	Gen2 required for NFS and GCS Fuse.
timeout_seconds	3	300	Max request duration (0–3600).
enable_cloudsql_volume	3	true	Injects Cloud SQL Auth Proxy sidecar.
cloudsql_volume_mount_path	3	'/cloudsql'	Base path for Auth Proxy Unix socket.
enable_image_mirroring	3	true	Mirrors container image into Artifact Registry.
max_revisions_to_retain	3	7	Maximum Cloud Run revisions to retain.
traffic_split	3	[]	Canary/blue-green traffic allocation.
container_protocol	3	'http1'	'http1' or 'h2c'.
service_annotations	3	{}	Advanced Cloud Run annotations.
service_labels	3	{}	Labels applied to the Cloud Run service.
ingress_settings	4	'all'	'all' required for webhooks; 'internal' disables public access.
vpc_egress_setting	4	'PRIVATE_RANGES_ONLY'	'PRIVATE_RANGES_ONLY' or 'ALL_TRAFFIC'.
enable_iap	4	false	Enables IAP. Will block webhook endpoints.
iap_authorized_users	4	[]	Users/SAs granted IAP access.
iap_authorized_groups	4	[]	Google Groups granted IAP access.
environment_variables	5	{}	Additional plain-text env vars. Do not set AP_ENCRYPTION_KEY, AP_JWT_SECRET, or AP_POSTGRES_* here.
secret_environment_variables	5	{}	Secret Manager references injected as env vars.
secret_propagation_delay	5	30	Seconds to wait after secret creation.
secret_rotation_period	5	'2592000s'	Secret Manager rotation notification frequency.
backup_schedule	6	'0 2 * * *'	Cron expression (UTC) for automated backups.
backup_retention_days	6	7	Days to retain backup files in GCS.
enable_backup_import	6	false	Triggers a one-time restore on apply.
backup_source	6	'gcs'	'gcs' (full GCS URI) or 'gdrive' (file ID).
backup_uri	6	""	GCS URI or Google Drive file ID. Maps to backup_file in App CloudRun.
backup_format	6	'sql'	Backup format: sql, tar, gz, tgz, tar.gz, zip.
enable_cicd_trigger	7	false	Provisions a Cloud Build GitHub trigger.
github_repository_url	7	""	Full HTTPS URL of the GitHub repository.
github_token	7	""	GitHub PAT. Sensitive.
github_app_installation_id	7	""	GitHub App installation ID.
cicd_trigger_config	7	{ branch_pattern = "^main$" }	Advanced Cloud Build trigger config.
enable_cloud_deploy	7	false	Provisions a Cloud Deploy progressive delivery pipeline.
cloud_deploy_stages	7	[dev, staging, prod(approval)]	Ordered Cloud Deploy promotion stages.
enable_binary_authorization	7	false	Enforces image attestation on deployment.
enable_custom_sql_scripts	8	false	Runs SQL scripts from GCS after provisioning.
custom_sql_scripts_bucket	8	""	GCS bucket containing SQL scripts.
custom_sql_scripts_path	8	""	Path prefix within the bucket.
custom_sql_scripts_use_root	8	false	Run scripts as the root DB user.
nfs_instance_name	8	""	Name of an existing NFS GCE VM to use.
nfs_instance_base_name	8	'app-nfs'	Base name for the inline NFS GCE VM.
enable_cloud_armor	9	false	Provisions Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	9	[]	CIDR ranges exempted from WAF rules.
application_domains	9	[]	Custom domains with Google-managed SSL certificates.
enable_cdn	9	false	Enables Cloud CDN on the HTTPS LB backend.
max_images_to_retain	9	7	Maximum container images to keep in Artifact Registry.
delete_untagged_images	9	true	Automatically deletes untagged container images.
image_retention_days	9	30	Days after which images are eligible for deletion.
create_cloud_storage	10	true	Set false to skip GCS bucket creation.
storage_buckets	10	[{ name_suffix = "data" }]	Additional GCS buckets to provision.
enable_nfs	10	false	Provisions NFS shared storage. Off by default (unlike Django).
nfs_mount_path	10	'/mnt/nfs'	Container path where NFS is mounted.
gcs_volumes	10	[]	GCS buckets to mount via GCS Fuse.
manage_storage_kms_iam	10	false	Creates CMEK KMS keyring and enables CMEK encryption.
enable_artifact_registry_cmek	10	false	Enables CMEK encryption for container images.
db_name	11	'activepieces_db'	PostgreSQL database name. Do not change after initial deployment.
db_user	11	'ap_user'	PostgreSQL application user.
database_password_length	11	32	Auto-generated password length (16–64).
enable_auto_password_rotation	11	false	Automated zero-downtime password rotation.
rotation_propagation_delay_sec	11	90	Seconds to wait after rotation before restarting the service.
initialization_jobs	12	[]	One-shot Cloud Run Jobs. Empty list triggers the default db-init job (execute_on_apply=true).
cron_jobs	12	[]	Not referenced — not forwarded to App CloudRun. Has no effect in this module version.
startup_probe	13	{ path="/api/v1/flags", initial_delay_seconds=120, failure_threshold=10, ... }	Activepieces Common startup probe. Allow 7+ minutes on first boot.
liveness_probe	13	{ path="/api/v1/flags", initial_delay_seconds=30, failure_threshold=3, ... }	Activepieces Common liveness probe.
startup_probe_config	13	{ enabled=false }	Cloud Run infrastructure startup probe. Disabled — startup_probe takes effect.
health_check_config	13	{ enabled=true }	Cloud Run infrastructure liveness probe.
uptime_check_config	13	{ enabled=true, path="/" }	Cloud Monitoring uptime check.
alert_policies	13	[]	Cloud Monitoring metric alert policies.
enable_redis	20	false	Switches to Redis queue mode. Required for max_instance_count > 1.
redis_host	20	""	Redis hostname/IP. Empty defaults to NFS server IP when enable_nfs = true.
redis_port	20	'6379'	Redis TCP port (string type).
redis_auth	20	""	Redis AUTH password. Sensitive.
enable_vpc_sc	21	false	Registers API calls within the project's VPC-SC perimeter.
vpc_cidr_ranges	21	[]	VPC subnet CIDR ranges for the VPC-SC network access level.
vpc_sc_dry_run	21	true	When true, VPC-SC violations are logged but not blocked.
organization_id	21	""	GCP Organization ID for the VPC-SC policy.
enable_audit_logging	21	false	Enables detailed Cloud Audit Logs for all supported services.

Configuration Pitfalls & Sensible Defaults

Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).

Variable	Sensible Default	Risk	Consequence of Incorrect Value
AP_ENCRYPTION_KEY (auto-generated 32-char hex secret)	Auto-generated and stored in Secret Manager	Critical	The encryption key is used to encrypt all connection credentials and flow step secrets. Changing it after first run permanently corrupts all stored credentials — they cannot be decrypted and must be re-entered. The key must be exactly 32 hex characters (16 random bytes).
AP_JWT_SECRET (auto-generated secret)	Auto-generated and stored in Secret Manager	Critical	Used to sign all user session tokens. Rotating it immediately invalidates all active user sessions, forcing all users to log out and re-authenticate. Do not rotate without a maintenance window.
application_name	"activepieces"	Critical	Immutable after first deploy. Changing it renames all GCP resources, triggering full recreation and data loss.
db_name	"activepieces"	Critical	Immutable after first deploy. Changing it causes Activepieces to connect to a new empty database, losing all flows, connections, and execution history.
AP_FRONTEND_URL / AP_WEBHOOK_URL_PREFIX (injected from service_url)	Predicted Cloud Run service URL	Critical	Both must match the actual public service URL. Incorrect values break webhook triggers from external systems and OAuth callbacks. After deployment, verify the predicted URL matches the Cloud Run service URL.
enable_redis	true	High	Activepieces defaults to REDIS queue mode when Redis is enabled (AP_QUEUE_MODE = "REDIS"). Without Redis and with max_instance_count > 1, the queue mode falls back to MEMORY, meaning each instance maintains its own in-memory queue — causing duplicate flow executions and lost runs.
redis_host	"" (uses NFS server IP when enable_nfs = true)	High	When enable_redis = true and redis_host is empty and enable_nfs = false, the Redis connection string is blank and Activepieces fails to connect to Redis at startup.
AP_EXECUTION_MODE (injected as "UNSANDBOXED")	"UNSANDBOXED"	Medium	Activepieces is deployed in unsandboxed mode by default because Cloud Run does not support sandboxed execution (which requires privileged containers). Changing to "SANDBOXED" via environment_variables will cause container startup failures.
memory_limit	"2Gi"	High	Activepieces runs flow steps in-process. Values below 1Gi cause OOM kills during concurrent flow executions with multiple active steps.
cpu_limit	"1000m"	Medium	Low CPU limits cause execution throttling, especially for flows that process large payloads or run JavaScript/TypeScript code steps. Increase to 2000m for production workloads.
min_instance_count	0	Medium	Scale-to-zero causes cold-start delays of 5–15 seconds for incoming webhook triggers after idle. Set to 1 for time-sensitive webhook flows in production.
max_instance_count	1	High	Increasing above 1 without Redis changes the queue mode to MEMORY per-instance, causing duplicate executions. Only increase with enable_redis = true.
enable_nfs	true	High	Activepieces stores flow artifacts and binary data at the NFS mount path. Without NFS, any file-handling steps lose their data on container restart.
AP_SIGN_UP_ENABLED (injected as "true")	"true"	High	Leaving sign-up enabled in production allows anyone with the service URL to create an account. Override via environment_variables = { AP_SIGN_UP_ENABLED = "false" } after creating the initial admin user.
enable_iap	false	High	Enabling IAP without valid iap_authorized_users or iap_authorized_groups causes all requests to return 403.
ingress_settings	"all"	Medium	Setting to "internal" blocks all webhook callbacks from external services. Use "internal-and-cloud-load-balancing" with Cloud Armor for production.
vpc_egress_setting	"PRIVATE_RANGES_ONLY"	Medium	Setting to "all-traffic" routes all outbound calls through the VPC connector. If VPC firewall rules block egress to external APIs, all flow steps that call external services will fail.
backup_schedule	"0 2 * * *" (daily at 02:00)	Medium	Ensure the backup schedule is aligned with your RPO. Activepieces execution history and connections are stored in PostgreSQL and are only recoverable from backups.
enable_binary_authorization	false	Medium	Enabling with "REQUIRE_ATTESTATION" blocks all deployments unless the Activepieces image has a valid attestation. Use "ALWAYS_ALLOW" initially.
enable_cloud_armor	false	Medium	Activepieces webhooks are publicly accessible by default. Enable Cloud Armor to enforce IP allowlists for the admin UI and restrict webhook ingress in production.
enable_vpc_sc	false	Medium	Requires organization_id to be set. If empty, VPC-SC is silently skipped regardless of enable_vpc_sc.
secret_propagation_delay	30 seconds	Low	Too short a delay may cause the application to start before Secret Manager has propagated new secret versions, resulting in startup failures on first deploy.
enable_auto_password_rotation	false	Medium	Enabling without tuning rotation_propagation_delay_sec can cause brief authentication failures during the propagation window between database password rotation and application restart.

Destroying Resources

Known Deletion Issue: Serverless IPv4 Address Release

When destroying a Cloud Run deployment, you may encounter an error similar to:

Error: Error waiting for Subnetwork to be deleted: The following serverless IPv4 address(es) on subnet ... are still in use.

Cause: GCP holds serverless IPv4 addresses on the VPC subnet asynchronously after a Cloud Run service is deleted. These addresses are released by GCP approximately 20–30 minutes after the Cloud Run service is removed. Terraform/OpenTofu cannot complete the subnet or VPC deletion until they are fully released.

Resolution: Wait 20–30 minutes after the initial destroy attempt, then re-run the destroy command:

tofu destroy

The second run will succeed once GCP has released the reserved addresses.
