Gokapi on Google Cloud Run
Gokapi is a lightweight, self-hosted file-sharing server written in Go — a self-hosted alternative to WeTransfer. Users upload files and generate shareable download links with optional expiry dates, download-count limits, and password protection, all backed by an internal SQLite database (no external database required). This module deploys Gokapi on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Gokapi uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

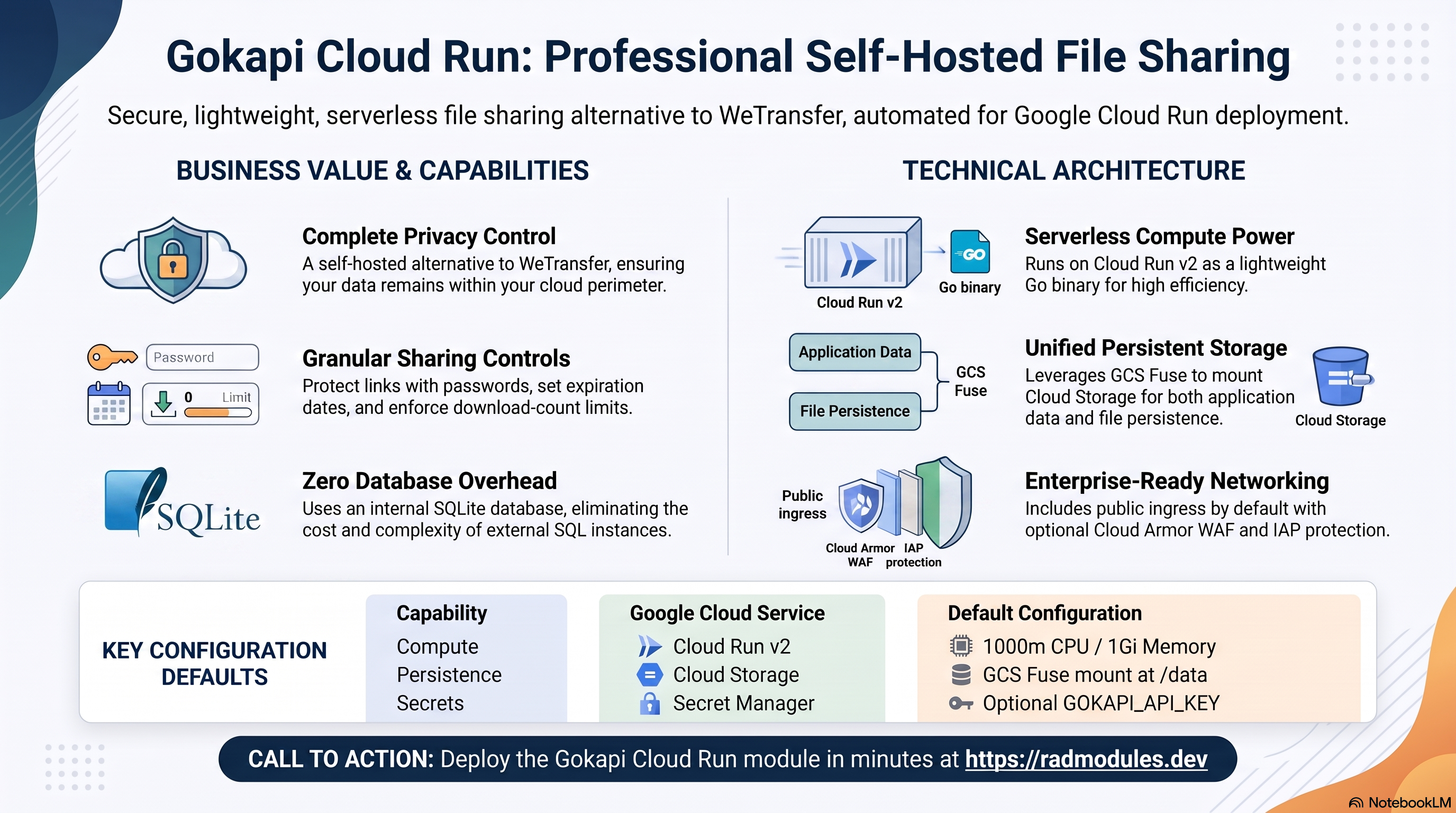

1. Overview
Gokapi runs as a single Go binary container on Cloud Run v2, with no external database. The deployment wires together a small, focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | Go binary container on port 53842, 1000m CPU / 1Gi memory by default; single revision, min_instance_count = 1 / max_instance_count = 1 |
| Database | None (SQLite, on mounted storage) | No Cloud SQL — database_type is fixed to NONE by Gokapi_Common; Gokapi writes its own SQLite DB under GOKAPI_CONFIG_DIR |
| File & DB persistence | Cloud Storage bucket mounted via GCS Fuse at /data | The only persistence path available on Cloud Run — there is no PVC/block-storage concept here, unlike the StatefulSet PVC used by Gokapi_GKE |
| Object storage | Cloud Storage | The storage-suffixed bucket is auto-provisioned and, on Cloud Run, is always mounted (not idle, unlike the GKE variant) |
| Secrets | Secret Manager | Only an optional operator API key (GOKAPI_API_KEY); no mandatory generated secret |
| Ingress | Cloud Run URL / Cloud Load Balancing | ingress_settings = "all" by default, so the service is publicly reachable out of the box |
Sensible defaults worth knowing up front:
- No Cloud SQL, ever.
database_typeis hard-fixed toNONEbyGokapi_Common— the generic database variables in this module (sql_instance_name,application_database_name,db_*_env_var_name, etc.) are forwarded to the foundation only for variable-mirroring compatibility and have no effect. - SQLite + uploaded files persist via a GCS Fuse mount, not a real block
volume. Cloud Run has no PVC/StatefulSet equivalent, so
Gokapi_Commonmounts the auto-provisionedstoragebucket at/datausing GCS Fuse (enable_gcs_storage_volumedefaultstrueinsideGokapi_Common, and this Cloud Run variant exposes no variable to turn it off — that toggle only exists onGokapi_GKE, tied tostateful_pvc_enabled).GOKAPI_CONFIG_DIR = /data/config(config + the SQLite database) andGOKAPI_DATA_DIR = /data/data(uploaded files) both live on this mount. GCS Fuse does not provide real POSIX file locking, which is exactly the semantics a SQLite-backed app depends on — see Section 6 for the risk this carries. - The
storageGCS bucket is essential here, not decorative. UnlikeGokapi_GKE(where the bucket sits unused behind a default StatefulSet PVC), on Cloud Run this bucket is the persistence layer for both the SQLite database and every uploaded file. - Single instance by design.
min_instance_count = 1,max_instance_count = 1. Gokapi's SQLite database is single-writer with no clustering/replication story, so do not scale beyond 1 instance. - No admin password is auto-generated. Gokapi has no mandatory secret — the administrator account is created interactively through Gokapi's own first-run setup wizard, the first time anyone opens the service in a browser.
- Optional operator API key.
enable_api_key(defaultfalse) generates a 32-character random token, stores it in Secret Manager, and injects it asGOKAPI_API_KEYvia the module'smodule_secret_env_varsmechanism. This is a convenience token only — Gokapi's own upload/download API keys are normally minted from the admin UI after setup. - Redis is force-disabled.
main.tfhardcodesenable_redis = falseto the foundation regardless of any variable value — Gokapi has no use for Redis. - Public ingress is on by default.
ingress_settings = "all"matches Gokapi's purpose of generating shareable download links reachable from outside the VPC — but it also means the unauthenticated first-run setup wizard is publicly reachable until an administrator account is claimed. - Built as a thin custom image, pinned against the
latest-tag trap. The image is a one-lineFROM f0rc3/gokapi:${GOKAPI_VERSION}wrapper so the foundation can mirror it into Artifact Registry.GOKAPI_VERSION(an app-specific build arg the Foundation's genericAPP_VERSIONinjection does not touch) resolves to a pinnedv1.9.6whenapplication_version = "latest".
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Gokapi service
Gokapi runs as a single Cloud Run v2 service/revision. min_instance_count = 1
keeps one instance warm at all times (avoiding cold starts and preserving the
single SQLite writer); max_instance_count = 1 must not be raised.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Persistent storage — the GCS Fuse mount at /data
There is no Cloud SQL instance and no PVC. Instead, the auto-provisioned storage
Cloud Storage bucket is mounted into the container as a GCS Fuse volume at /data,
and both GOKAPI_CONFIG_DIR=/data/config (SQLite metadata DB + app config) and
GOKAPI_DATA_DIR=/data/data (uploaded files) live under that single mount. This
mount is unconditional on this module — there is no variable here to disable it
(compare Gokapi_GKE, which turns the equivalent GCS volume off whenever its
StatefulSet PVC is enabled).
- Console: Cloud Storage → Buckets, for the bucket contents; Cloud Run → service → Revisions → Volumes, to confirm the mount.
- CLI:
gcloud storage buckets list --project "$PROJECT" --filter="name~storage"
gcloud storage ls gs://<storage-bucket>/config gs://<storage-bucket>/data
See App_CloudRun for GCS Fuse mount semantics and its stated performance caveat for database-like workloads, and Section 6 below for why this matters specifically for Gokapi's SQLite database.
C. Secret Manager — the optional API key
Gokapi creates no mandatory secret. The only secret this module can create is
the optional GOKAPI_API_KEY operator convenience token, gated by enable_api_key
(default false). This secret is not surfaced in this module's
Outputs — look it up directly by name.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~api-key"
gcloud secrets versions access latest --secret=<api-key-secret-name> --project "$PROJECT"
See App_CloudRun for secret injection and rotation details.
D. Networking & ingress
The service is reachable at its run.app URL by default (ingress_settings = "all"), matching Gokapi's purpose of generating externally shareable download
links. An external HTTPS load balancer with Cloud Armor, a custom domain, and Cloud
CDN can be layered on via the Group 10 variables.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
E. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies (both disabled by default).
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Gokapi Application Behaviour
- No initialization job runs by default.
Gokapi_Commonsupplies no defaultinitialization_jobsentry — Gokapi manages its own storage and needs no database to bootstrap. Only user-supplied jobs (custom data loading or migration) appear under Cloud Run Jobs. - First-boot setup is entirely interactive. There is no auto-install flag and no generated admin password. The first time anyone opens the service's public URL, Gokapi's own setup wizard creates the administrator account — whoever gets there first.
- Where data physically persists.
GOKAPI_CONFIG_DIR=/data/config(the SQLite metadata DB and app config) andGOKAPI_DATA_DIR=/data/data(uploaded files) both sit on the GCS Fuse mount of thestoragebucket at/data. There is no built-in switch to move this to NFS or a different backend; doing so would require manually overridingenvironment_variablesand enablingenable_nfs. - Single-writer, single instance.
min_instance_count = 1/max_instance_count = 1by default. Gokapi's SQLite database has no clustering/replication story, so do not raisemax_instance_countabove 1. - Health probes hit the public root, no auth required. Both the startup probe
and the liveness probe are HTTP GET
/(Gokapi's login/setup page, 200, unauthenticated) — startup:initial_delay=15s, timeout=5s, period=10s, failure_threshold=10; liveness:initial_delay=30s, timeout=5s, period=30s, failure_threshold=3. - Container port is functionally fixed at
53842, even though the variable is forwarded. UnlikeGokapi_GKE(where the equivalentcontainer_portvariable is declared but never forwarded), this Cloud Run variant'sgokapi.tfmergescontainer_port = var.container_portinto the per-app configuration that reaches the foundation — so the value is technically live here. However, Gokapi's own listen port is separately hardcoded asGOKAPI_PORT = "53842"inGokapi_Common'senvironment_variables, so changingcontainer_portaway from53842would route Cloud Run traffic to a port the container isn't actually listening on. Leave it at the default. - Inspect the deployed service and its persistent state:
gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT" --format='value(status.url)'
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
gcloud storage ls gs://<storage-bucket>/config gs://<storage-bucket>/data
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Gokapi are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the service and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|---|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | gokapi | Base name for resources. Do not change after first deploy. |
application_display_name | Gokapi File Sharing | Human-readable name shown in the Console. |
description | Gokapi self-hosted file sharing | Service description. |
application_version | latest | Gokapi image tag; resolves to a pinned v1.9.6 when latest via the app-specific GOKAPI_VERSION build arg. |
enable_api_key | false | Generates a random operator API key in Secret Manager, injected as GOKAPI_API_KEY. A convenience token only — Gokapi mints its own real API keys from the admin UI. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
cpu_limit | 1000m | CPU per instance. Gokapi is a lightweight Go binary and needs little. |
memory_limit | 1Gi | Memory per instance. |
min_instance_count | 1 | Kept at 1 to avoid cold starts and keep a single warm SQLite writer. |
max_instance_count | 1 | Keep at 1 — Gokapi's SQLite DB is single-writer with no distributed mode. |
container_port | 53842 | Forwarded into the module's per-app config (unlike Gokapi_GKE, where it's inert) — but must match GOKAPI_PORT, which is hardcoded 53842 in Gokapi_Common. Do not change. |
execution_environment | gen2 | Gen2 required for the GCS Fuse mount. |
timeout_seconds | 300 | Maximum request duration (0–3600 seconds). |
enable_cloudsql_volume | false | Must remain false — Gokapi has no Cloud SQL database; main.tf hardcodes this regardless of the variable's value. |
enable_image_mirroring | true | Mirror the Gokapi image into Artifact Registry. |
container_protocol | http1 | Standard HTTP/1.1; Gokapi has no gRPC/HTTP2 requirement. |
traffic_split | [] | Split traffic across revisions for staged rollouts. |
max_revisions_to_retain | 7 | Declared for convention parity; not referenced by this module's deployment. |
Group 5 — Access & Ingress Control
| Variable | Default | Description |
|---|---|---|
ingress_settings | all | Public by default, matching Gokapi's purpose of generating shareable download links. |
vpc_egress_setting | PRIVATE_RANGES_ONLY | Route only RFC 1918 traffic via VPC. |
enable_iap | false | Require Google sign-in. Blocks anonymous recipients from following shared download links. |
iap_authorized_users / iap_authorized_groups | [] | Who may access through IAP. |
Group 6 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Extra non-secret settings. GOKAPI_CONFIG_DIR, GOKAPI_DATA_DIR, and GOKAPI_PORT are set automatically — do not override these. |
secret_environment_variables | {} | Map of env var → Secret Manager secret name. |
secret_propagation_delay | 30 | Seconds to wait after secret creation before proceeding. |
secret_rotation_period | 2592000s | Secret Manager rotation notification frequency. |
Group 7 — Backup & Restore
Standard App_CloudRun backup/import job variables (backup_schedule,
backup_retention_days, enable_backup_import, backup_source, backup_uri,
backup_format) are declared and forwarded, but inert for Gokapi — the
foundation's backup and import machinery only operates when database_type is
not NONE, and Gokapi's is fixed to NONE. There is no automated backup of the
SQLite DB or uploaded files; back up the storage GCS bucket directly if needed.
Group 8 — CI/CD & Binary Authorization
Standard App_CloudRun Cloud Build / Cloud Deploy integration — see
App_CloudRun. Key inputs: enable_cicd_trigger,
github_repository_url, github_token, enable_cloud_deploy,
enable_binary_authorization.
Group 9 — Custom SQL Scripts (inert) & NFS Instance Discovery
| Variable | Default | Description |
|---|---|---|
enable_custom_sql_scripts / custom_sql_scripts_bucket / custom_sql_scripts_path / custom_sql_scripts_use_root | off / "" | Inert — Gokapi has no SQL database to run scripts against. |
nfs_instance_name | "" | Name of an existing NFS GCE VM to use instead of auto-discovery. Only relevant if you manually re-point Gokapi's storage at NFS (see Group 11). |
nfs_instance_base_name | app-nfs | Base name for an inline NFS GCE VM, if one is created. |
nfs_volume_name | nfs-data-volume | Cloud Run volume name for the NFS mount. |
Group 10 — Load Balancer, CDN & Image Retention
| Variable | Default | Description |
|---|---|---|
enable_cloud_armor | false | Provision Global HTTPS LB + Cloud Armor WAF. |
admin_ip_ranges | [] | CIDR ranges exempted from WAF rules. |
application_domains | [] | Custom domain names for the HTTPS LB. |
enable_cdn | false | Enable Cloud CDN on the HTTPS LB backend. |
max_images_to_retain / delete_untagged_images / image_retention_days | 7 / true / 30 | Artifact Registry cleanup policy. |
Group 11 — Storage, Filesystem & Redis
| Variable | Default | Description |
|---|---|---|
create_cloud_storage | true | Provisions the storage bucket that backs /data. Leaving this false would break Gokapi's only persistence path. |
storage_buckets | [] | Additional GCS buckets beyond the auto-provisioned storage bucket. |
enable_nfs | false | Off by default. Enabling it provisions Filestore/an NFS VM but does not automatically move Gokapi's data there — GOKAPI_CONFIG_DIR/GOKAPI_DATA_DIR still point at /data (the GCS Fuse mount) unless you override them yourself. |
nfs_mount_path | /mnt/nfs | Mount path inside the container if NFS is enabled — distinct from /data. |
gcs_volumes | [] | Additional GCS Fuse volume mounts; the storage bucket's /data mount is always added on top of this list. |
manage_storage_kms_iam / enable_artifact_registry_cmek | false | CMEK options. |
enable_redis | true (variable default) | Inert — main.tf hardcodes enable_redis = false to the foundation regardless of this variable's value. Gokapi has no use for Redis. |
redis_host / redis_port / redis_auth | — | Declared for convention mirroring only; never forwarded to the foundation. |
Group 12 — Database Backend
All Group 12 variables (database_type, sql_instance_name,
application_database_name, application_database_user,
db_*_env_var_name, enable_postgres_extensions, enable_mysql_plugins, etc.)
are declared for convention-mirroring compatibility only. database_type is
fixed to NONE inside Gokapi_Common, and none of the sibling database
variables are forwarded to the foundation by main.tf — Gokapi has no SQL
database.
Group 13 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | No default job is injected; only use this for custom data-loading or migration jobs. |
cron_jobs | [] | Recurring Cloud Run Jobs; Gokapi has no built-in scheduled maintenance task. |
backup_file | backup.sql | Inert — see Group 7; no database to restore into. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP / , 15s delay, 10 retries | Startup probe — Gokapi's public login/setup page, no auth. |
liveness_probe | HTTP / , 30s delay, 3 retries | Liveness probe. |
startup_probe_config | HTTP / (alternative form) | Alternative structured probe. |
health_check_config | HTTP / (alternative form) | Alternative structured liveness probe. |
uptime_check_config | { enabled=false, path="/" } | Cloud Monitoring uptime check; disabled by default. |
alert_policies | [] | Metric alert policies. |
Group 15 — Networking
| Variable | Default | Description |
|---|---|---|
network_name | "" | Declared for convention mirroring; not forwarded by main.tf — the VPC network is always auto-discovered. |
Group 23 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|---|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
gokapi_url | The Cloud Run service URL (named gokapi_url, not the generic service_url used by other modules). |
service_location | Region the service runs in. |
stage_services | Stage-specific service URLs (Cloud Deploy). |
load_balancer_ip / load_balancer_url | External HTTPS load balancer IP / URL (when enabled). |
storage_buckets | Created Cloud Storage buckets — includes the storage bucket mounted at /data. |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels / uptime_check_names | Monitoring status, channels, uptime checks. |
initialization_jobs | Names of any user-supplied setup jobs (none by default). |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration | CI/CD status and details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
Note the absence of any database_* output (there is no database) and of a
secret-id output for the optional API key — retrieve that one directly with
gcloud secrets list --filter="name~api-key" (see Section 2C).
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, a
gen1runtime with GCS Fuse mounts, an out-of-rangeredis_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
GCS Fuse mount at /data (unconditional, no toggle on this module) | Accept it for light use; move to Gokapi_GKE for heavier workloads | Critical | GCS Fuse does not provide real POSIX file locking, which SQLite depends on for safe concurrent access. There is no way to swap this module to a genuine block volume — the toggle only exists on Gokapi_GKE's StatefulSet PVC. |
ingress_settings | all (default) with prompt admin claim | High | Because the admin account is created via an open, unauthenticated first-run wizard, a public URL means anyone who reaches it first claims the administrator account. Claim it immediately after deploy, or set enable_iap = true until you have. |
max_instance_count | 1 | Critical | Gokapi's SQLite database is single-writer with no clustering; running >1 instance risks database corruption and inconsistent uploads. |
container_port | 53842 (leave default) | High | GOKAPI_PORT is hardcoded to 53842 in Gokapi_Common's environment variables independently of this variable; changing container_port routes Cloud Run traffic to a port the container isn't listening on. |
create_cloud_storage | true | Critical | Setting false removes Gokapi's only persistence bucket — the SQLite DB and every upload live there. |
enable_api_key (auto-generated secret) | Leave false unless you need a pre-provisioned key | Low | The token is a convenience only; Gokapi's real upload/download API keys are minted from the admin UI regardless of this setting. |
enable_nfs | false unless you also repoint GOKAPI_CONFIG_DIR/GOKAPI_DATA_DIR | Medium | Enabling NFS alone provisions an unused Filestore/NFS VM — Gokapi's data still lives at /data on GCS Fuse unless you manually override the environment variables to use the NFS mount path instead. |
enable_backup_import / backup_schedule / etc. | Leave at defaults | Low | These variables are inert for Gokapi (database_type = NONE); no automated backup of the SQLite DB or uploads exists. Back up the storage bucket directly if you need one. |
min_instance_count | 1 (default) | Low | Keeping 1 instance warm avoids cold starts on shared download links; this is cheap for a lightweight Go binary. |
enable_cloud_armor | enable for production | Medium | A publicly reachable file-sharing app with unauthenticated upload/admin surfaces benefits from WAF protection. |
For the foundation behaviour referenced throughout — service identity, scaling and
concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary
Authorization, VPC-SC, backups, and image mirroring — see
App_CloudRun. The Gokapi-specific application configuration
shared with the GKE variant (image, storage bucket, optional API key, health
probes) lives in the Gokapi_Common module (modules/Gokapi_Common), which has
no standalone platform doc yet — see its main.tf/variables.tf/README.md for
the underlying wiring.
