Shlink on Google Cloud Run

Shlink is a self-hosted, open-source URL shortener with detailed visit analytics, QR code generation, and a full REST API. This module deploys Shlink on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Shlink uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

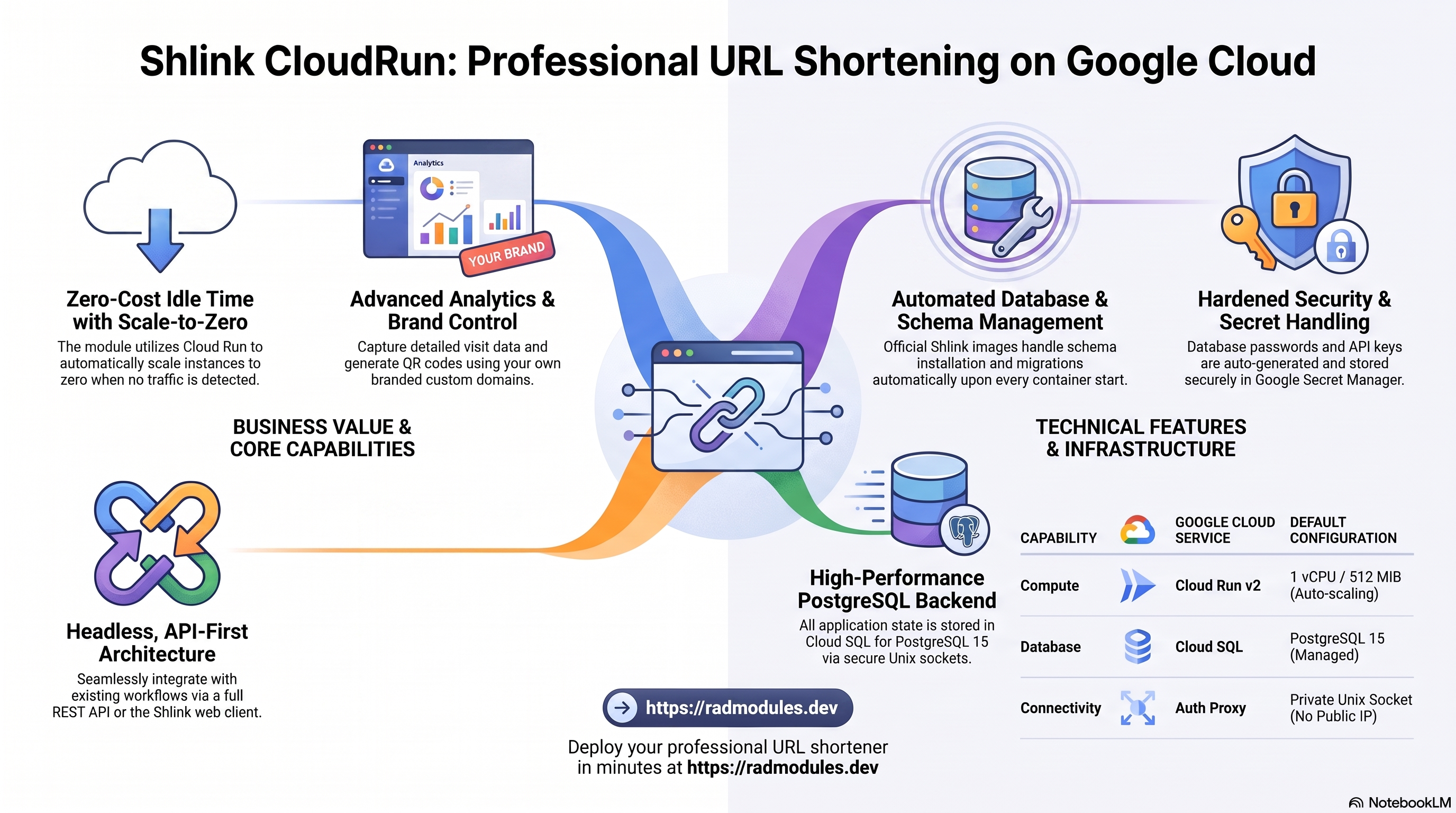

1. Overview

Shlink runs as a PHP (RoadRunner) container on Cloud Run v2. The deployment wires together a deliberately small set of Google Cloud services — Shlink keeps all of its state in PostgreSQL, so there is no NFS share or object-storage bucket to manage:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	1 vCPU / 512 MiB by default, scale-to-zero (`min_instance_count = 0`)
Database	Cloud SQL for PostgreSQL 15	Required — holds short URLs, visits, tags, and API keys
DB connectivity	Cloud SQL Auth Proxy (Unix socket)	`enable_cloudsql_volume = true`; libpq-friendly socket, no public IP
Secrets	Secret Manager	Database password + auto-generated `INITIAL_API_KEY`
Cache / locks	Redis (optional)	Disabled by default; only useful for multi-instance caching/locking
Ingress	Cloud Run URL / Cloud Load Balancing	Default `run.app` URL, optional external HTTPS LB + custom domain

Sensible defaults worth knowing up front:

PostgreSQL 15 is the supported engine (database_type = "POSTGRES_15", DB_DRIVER = "postgres"). Shlink connects through the Cloud SQL Auth Proxy Unix socket — libpq accepts the socket directory as its host, so no TCP/SSL configuration is needed.
DB_USER / DB_NAME are injected by the foundation with tenant-scoped names and deliberately not set by the module — the db-init job creates that same user and database, so everything lines up automatically.
INITIAL_API_KEY is auto-generated (32 characters), stored in Secret Manager, and injected as a secret env var. Shlink reads it on first start to bootstrap its first REST API key — you never create a key by hand.
Migrations run automatically on container start. The official image handles schema install and upgrades; no separate migrate step exists.
Scale-to-zero by default. Shlink is a stateless request/response app (redirects + REST API); it costs nothing when idle. The trade-off is a ~5–15 s cold start on the first request after idling.
Health probes target /rest/health — a public, unauthenticated endpoint that returns HTTP 200 with {"status":"pass"}. Shlink has no web homepage; / returns 404 by design.
DEFAULT_DOMAIN is left empty because the run.app URL is not known until after deploy — set it post-deploy so generated short URLs use the right host. IS_HTTPS_ENABLED=true is pre-set.
The database password is generated automatically and stored in Secret Manager, injected as DB_PASSWORD.

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Shlink service

Shlink runs as a Cloud Run v2 service that autoscales by request load between the minimum (0) and maximum (3) instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.

CLI:

gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for PostgreSQL 15

Shlink stores everything — short URLs, visit records, tags, domains, and API keys — in a managed Cloud SQL for PostgreSQL 15 instance. The service connects privately through the Cloud SQL Auth Proxy over a Unix socket (no public IP). On first deploy a db-init Job creates the application database and user.

Console: SQL → select the instance for connections, backups, flags, metrics.

CLI:

gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Secret Manager

Two secrets are managed automatically: the database password (created by the foundation, injected as DB_PASSWORD) and the initial API key (created by Shlink_Common, injected as INITIAL_API_KEY). Plaintext never appears in configuration.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~shlink"
gcloud secrets versions access latest \
  --secret="$(gcloud secrets list --project "$PROJECT" \
    --filter='name~shlink AND name~initial-api-key' --format='value(name)' --limit=1)" \
  --project "$PROJECT"

See App_CloudRun for injection and rotation details.

D. Redis (optional)

Shlink can use Redis for caching and distributed locks — worthwhile only when running several instances concurrently. It is disabled by default (enable_redis = false); a single-digit max_instance_count deployment works fine without it.

Console: Memorystore → Redis (if using a managed instance).
CLI:
```
redis-cli -h <redis-host> ping
```

E. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain (the natural fit for a branded short domain such as s.example.com), Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

Console: Cloud Run (service URL); Network services → Load balancing.

CLI:

gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring. An uptime check against /rest/health is provisioned by default, with a check-failure alert wired to support_users.

Console: Logging → Logs Explorer; Monitoring → Uptime checks / Alerting.

CLI:

gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

3. Shlink Application Behaviour

First-deploy database setup. A db-init Job (image postgres:15-alpine) connects to Cloud SQL via the Auth Proxy socket and idempotently creates the application user and database, grants privileges (including GRANT <user> TO postgres so ownership can be set), and signals the proxy sidecar to shut down so the Job completes. The job runs on every apply and is safe to re-run.
Migrations on start. Shlink's official image runs its database migrations automatically on every container start — first boot installs the schema, upgrades apply schema changes with no manual step. The startup probe allows up to ~300 s (failure_threshold = 30 × 10 s) for first-boot migrations.
API-first — no homepage. Shlink is a headless server: / returns 404 by design. Everything is driven through the REST API (/rest/v3/...) using the X-Api-Key header, or through a separately hosted shlink-web-client UI pointed at this server.

First-run access. Retrieve the bootstrap API key from Secret Manager (see §2C) and use it immediately:

API_KEY=$(gcloud secrets versions access latest --secret=<initial-api-key-secret> --project "$PROJECT")
curl -s -X POST "<service-url>/rest/v3/short-urls" \
  -H "X-Api-Key: $API_KEY" -H "Content-Type: application/json" \
  -d '{"longUrl": "https://cloud.google.com/run"}'

DEFAULT_DOMAIN after deploy. Shlink embeds its public host into every generated short URL. The service URL is unknown at plan time, so DEFAULT_DOMAIN ships empty — set it (via the environment_variables input on an Update) to the run.app hostname or your custom short domain once known.
Geolocation is opt-in. Visit geolocation needs a MaxMind GeoLite2 license: set GEOLITE_LICENSE_KEY in environment_variables. Without it, visits are still recorded — just not geolocated.
Scaling constraints. Instances are stateless (all state in PostgreSQL), so scale-out is safe. If you raise max_instance_count well beyond the default 3 and rely on Shlink's cached counters/locks, enable Redis (enable_redis = true).

Health verification:

curl -s "<service-url>/rest/health"
# {"status":"pass","version":"...","links":{...}}

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Shlink are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
`project_id`	(required)	Target Google Cloud project.
`region`	`us-central1`	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
`tenant_deployment_id`	`demo`	Short suffix that makes resource names unique per environment.
`support_users`	`[]`	Emails granted project access and monitoring alerts.
`resource_labels`	`{}`	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
`application_name`	`shlink`	Base name for resources. Do not change after first deploy.
`display_name`	`Shlink`	Friendly name shown in the Console.
`application_version`	`stable`	Shlink image version tag (e.g. `4.4.0`); increment to trigger a new build.
`admin_username`	`shlink`	Not used by Shlink (it authenticates with API keys, not admin accounts). Retained for interface parity.

Group 4 — Runtime & Scaling

Variable	Default	Description
`deploy_application`	`true`	Set `false` to provision infrastructure only.
`cpu_limit`	`1000m`	CPU per instance — 1 vCPU comfortably serves redirects and API calls.
`memory_limit`	`512Mi`	Memory per instance (gen2 minimum).
`min_instance_count`	`0`	Scale-to-zero. Costs nothing idle; first request after idle takes a ~5–15 s cold start. Set `1` for latency-sensitive links.
`max_instance_count`	`3`	Maximum instances. Enable Redis before raising this significantly.
`container_port`	`8080`	Shlink's native HTTP port.
`enable_cloudsql_volume`	`true`	Cloud SQL Auth Proxy Unix socket — the libpq-friendly connection Shlink expects.
`enable_image_mirroring`	`true`	Mirrors the image into Artifact Registry to avoid Docker Hub rate limits.
`execution_environment`	`gen2`	Cloud Run gen2 (recommended).

All other inputs follow standard App_CloudRun behaviour.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
`environment_variables`	`{}`	Plain-text env vars. Notable Shlink options: `DEFAULT_DOMAIN` (public short-URL host — set post-deploy), `GEOLITE_LICENSE_KEY` (MaxMind key for visit geolocation). `DB_DRIVER=postgres`, `DB_PORT=5432`, `IS_HTTPS_ENABLED=true` are injected automatically.
`secret_environment_variables`	`{}`	Extra Secret Manager references. `DB_PASSWORD` and `INITIAL_API_KEY` are wired automatically.

All other inputs follow standard App_CloudRun behaviour.

Group 6 — Access & Ingress Control

Standard IAP / ingress / VPC egress inputs (enable_iap, ingress_settings, vpc_egress_setting). Note that a shortener's redirect endpoints must stay publicly reachable — IAP in front of Shlink also gates every short link. All other inputs follow standard App_CloudRun behaviour.

Groups 7–10 — Backup, CI/CD, Custom SQL, Domain & CDN

Standard App_CloudRun behaviour (backup_schedule, enable_cicd_trigger, enable_binary_authorization, enable_custom_sql_scripts, application_domains, enable_cdn, enable_cloud_armor, image-retention inputs). application_domains is where a branded short domain is attached. All inputs follow standard App_CloudRun behaviour.

Group 11 — Storage & Filesystem

Variable	Default	Description
`enable_nfs`	`false`	Shlink stores all data in PostgreSQL — no shared filesystem is needed.
`create_cloud_storage` / `gcs_volumes`	off / `[]`	No buckets are provisioned; Shlink needs none.

All other inputs follow standard App_CloudRun behaviour.

Group 12 — Database Backend

Variable	Default	Description
`database_type`	`POSTGRES_15`	Shlink's supported Cloud SQL engine here — do not change.
`db_name`	`shlink`	Base database name (tenant-prefixed by the foundation). Immutable after first deploy.
`db_user`	`shlink`	Base application user (tenant-prefixed). Immutable after first deploy.
`database_password_length`	`32`	Generated password length (16–64).
`db_password_env_var_name`	`DB_PASSWORD`	Pre-set — Shlink reads `DB_PASSWORD` directly.

All other inputs follow standard App_CloudRun behaviour.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
`initialization_jobs`	`[]`	Leave empty to use the built-in `db-init` job (`postgres:15-alpine`).
`cron_jobs`	`[]`	Recurring jobs triggered by Cloud Scheduler.

Group 14 — Observability & Health

Variable	Default	Description
`startup_probe`	HTTP `/rest/health`, 30 s initial delay, `failure_threshold = 30`	Allows up to ~300 s for first-boot migrations.
`liveness_probe`	HTTP `/rest/health`, 30 s delay, period 30 s	`/rest/health` is unauthenticated, so liveness stays enabled.
`uptime_check_config`	disabled, path `/rest/health`	Cloud Monitoring uptime check + failure alert.

All other inputs follow standard App_CloudRun behaviour.

Group 21 — Redis Cache

Variable	Default	Description
`enable_redis`	`false`	Optional caching/locking for multi-instance setups; unnecessary at the default scale.
`redis_host` / `redis_port` / `redis_auth`	`""` / `6379` / `""`	Redis endpoint details when enabled.

Group 22 — VPC Service Controls & Audit Logging

Standard App_CloudRun behaviour (enable_vpc_sc, vpc_cidr_ranges, vpc_sc_dry_run, organization_id, enable_audit_logging).

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
`service_name`	Cloud Run service name.
`service_url`	Default `run.app` URL of the service.
`health_check_url`	`<service_url>/rest/health` — curl it to confirm the deployment is live (Shlink has no homepage; `/` 404s).
`service_location`	Region the service runs in.
`stage_services`	Stage-specific service URLs (Cloud Deploy).
`load_balancer_ip` / `load_balancer_url`	External HTTPS load balancer IP / URL (when enabled).
`database_instance_name`	Cloud SQL instance name.
`database_name` / `database_user`	Application database name / user (tenant-scoped).
`database_password_secret`	Secret Manager secret holding the DB password.
`database_host` / `database_port`	DB endpoint / port.
`storage_buckets`	Created Cloud Storage buckets (empty — Shlink needs none).
`network_name` / `network_exists` / `regions`	VPC network, presence, regions.
`container_image` / `container_registry`	Deployed image and Artifact Registry repo.
`monitoring_enabled` / `monitoring_notification_channels` / `uptime_check_names`	Monitoring status, channels, uptime checks.
`initialization_jobs`	Names of the setup jobs (`db-init`).
`deployment_id` / `tenant_id` / `resource_prefix`	Naming identifiers.
`project_id` / `project_number`	Project identifiers.
`cicd_enabled` / `github_repository_url` / `github_repository_owner` / `github_repository_name` / `cicd_configuration`	CI/CD status and details.
`artifact_registry_repository` / `cloudbuild_trigger_name` / `cloudbuild_trigger_id`	Registry and build trigger.
`vpc_sc_enabled` / `vpc_sc_perimeter_name` / `vpc_sc_dry_run_mode`	VPC-SC status.
`audit_logging_enabled` / `artifact_registry_cmek_enabled`	Audit logging and CMEK status.

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
`database_type`	`POSTGRES_15`	Critical	Shlink is wired for PostgreSQL here (`DB_DRIVER=postgres`); another engine breaks startup.
`db_name` / `db_user`	set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all short URLs and visit data.
`environment_variables` `DB_USER` / `DB_NAME`	never set manually	Critical	Overrides the foundation's tenant-scoped names → `password authentication failed for user "shlink"`. Leave them unset.
`container_port`	`8080`	Critical	Shlink's native port; mismatching it fails all health probes.
`enable_cloudsql_volume`	`true`	Critical	Shlink expects the Auth Proxy Unix socket; disabling it breaks the DB connection path.
probe / uptime `path`	`/rest/health`	High	`/` returns 404 by design — probing it kills healthy revisions.
`startup_probe` failure_threshold	`30`	High	Reducing it can kill the container before first-boot migrations complete.
`DEFAULT_DOMAIN`	set post-deploy	High	Left empty, generated short URLs may carry the wrong host; set it to the `run.app` or custom domain.
`enable_iap`	`false` for public links	High	IAP in front of Shlink gates every short-link redirect behind Google sign-in.
`max_instance_count` w/o Redis	`3`	Medium	Many instances without Redis lose shared caching/locking; enable `enable_redis` before scaling wide.
`min_instance_count`	`0` (default) or `1`	Medium	`0` is near-free but adds a ~5–15 s cold start to the first redirect after idle.
`GEOLITE_LICENSE_KEY`	set if analytics matter	Low	Without it visits are recorded but not geolocated.
`enable_nfs` / `create_cloud_storage`	`false` / off	Low	Wasted cost — Shlink keeps all state in PostgreSQL.

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Shlink-specific application configuration shared with the GKE variant is described in Shlink_Common.

By Dr Shiyghan Emmanuel Navti · Google Cloud certified: ACE · PCA · PCD · PDE · PSE · CDL

1. Overview​

2. Google Cloud Services & How to Explore Them​

A. Cloud Run — the Shlink service​

B. Cloud SQL for PostgreSQL 15​

C. Secret Manager​

D. Redis (optional)​

E. Networking & ingress​

F. Cloud Logging & Monitoring​

3. Shlink Application Behaviour​

4. Configuration Variables​

Group 1 — Project & Identity​

Group 2 — Deployment Environment​

Group 3 — Application Identity​

Group 4 — Runtime & Scaling​

Group 5 — Environment Variables & Secrets​

Group 6 — Access & Ingress Control​

Groups 7–10 — Backup, CI/CD, Custom SQL, Domain & CDN​

Group 11 — Storage & Filesystem​

Group 12 — Database Backend​

Group 13 — Jobs & Scheduled Tasks​

Group 14 — Observability & Health​

Group 21 — Redis Cache​

Group 22 — VPC Service Controls & Audit Logging​

5. Outputs​

6. Configuration Pitfalls & Sensible Defaults​

1. Overview

2. Google Cloud Services & How to Explore Them

A. Cloud Run — the Shlink service

B. Cloud SQL for PostgreSQL 15

C. Secret Manager

D. Redis (optional)

E. Networking & ingress

F. Cloud Logging & Monitoring

3. Shlink Application Behaviour

4. Configuration Variables

Group 1 — Project & Identity

Group 2 — Deployment Environment

Group 3 — Application Identity

Group 4 — Runtime & Scaling

Group 5 — Environment Variables & Secrets

Group 6 — Access & Ingress Control

Groups 7–10 — Backup, CI/CD, Custom SQL, Domain & CDN

Group 11 — Storage & Filesystem

Group 12 — Database Backend

Group 13 — Jobs & Scheduled Tasks

Group 14 — Observability & Health

Group 21 — Redis Cache

Group 22 — VPC Service Controls & Audit Logging

5. Outputs

6. Configuration Pitfalls & Sensible Defaults
