Chibisafe on Google Cloud Run

Chibisafe is a self-hosted file and image uploader with a modern dashboard, drag-and-drop uploads, albums, and a public API. This module deploys the chibisafe-server backend only (port 8000) on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure. Chibisafe's upstream project also ships a separate SvelteKit front-end and a Caddy reverse proxy; those are not deployed by this module.

This guide focuses on the cloud services Chibisafe uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

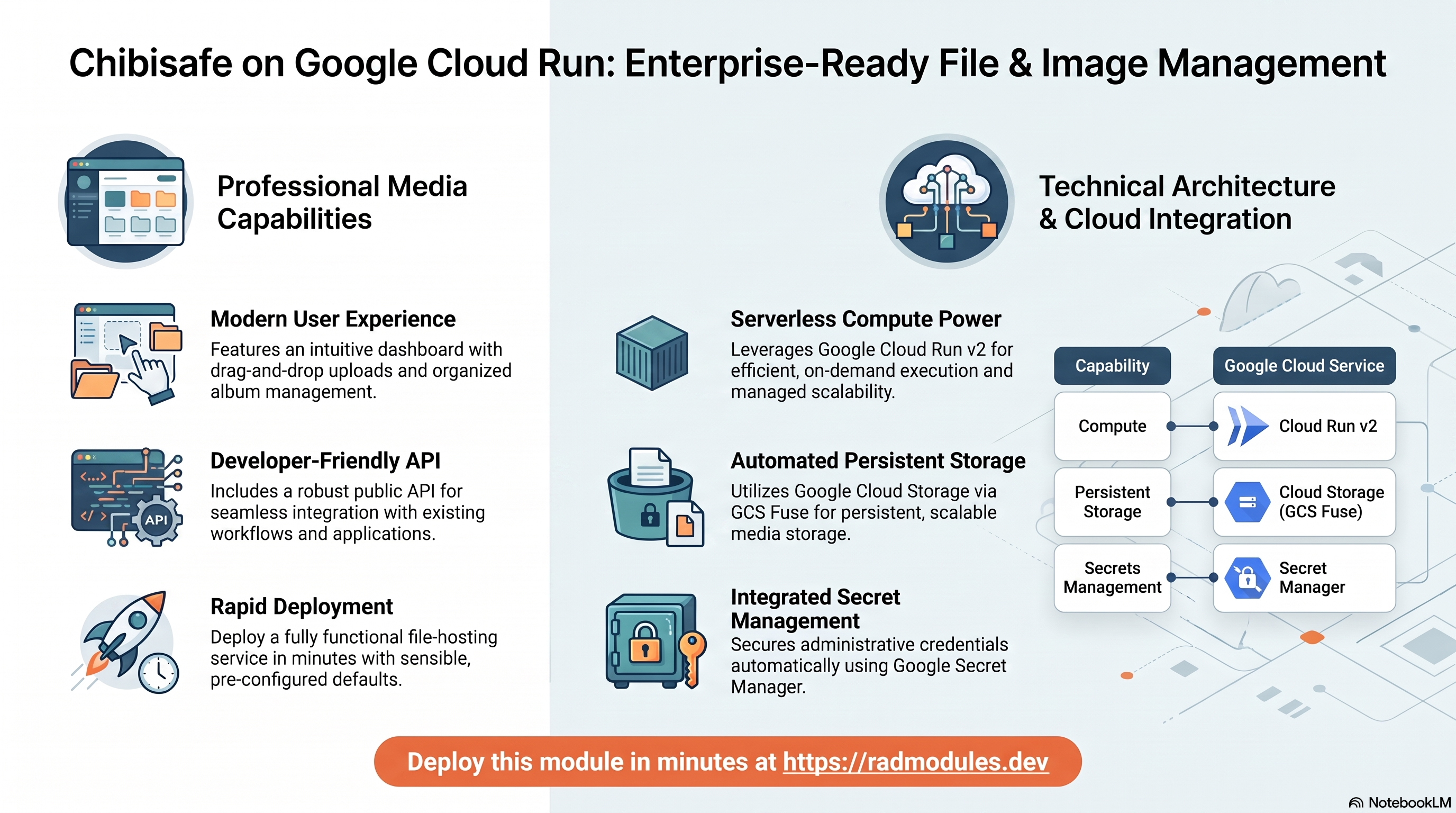

1. Overview

Chibisafe runs as a single, custom-built Node.js container on Cloud Run v2 with no external database. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	chibisafe-server, custom-built image, port 8000; 1 vCPU / 1 GiB by default; min=max=1 (single instance)
Database	None	Chibisafe keeps its SQLite database, uploads, and logs on the mounted volume — no Cloud SQL instance is created
Persistent storage	Cloud Storage (GCS Fuse)	A storage bucket is always provisioned and mounted at /data via GCS Fuse (requires gen2); not a durable block device
Secrets	Secret Manager	Optional ADMIN_PASSWORD (gated by enable_api_key, off by default)
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL, public by default (ingress_settings = "all")

Sensible defaults worth knowing up front:

• SQLite is the only "database." database_type is fixed to NONE by Chibisafe_Common; the many database_*/db_*/sql_instance_* variables mirrored in variables.tf exist purely for Foundation-convention parity and have no effect.
• Persistence is GCS Fuse, not a block device — and the module says so. Cloud Run has no PVC/block-storage option, so the single storage bucket is mounted at /data via GCS Fuse. This module's own module_description explicitly warns: "Consider Chibisafe_GKE with a block PVC for durable SQLite storage in production." GCS Fuse's POSIX file-locking semantics are weaker than a real filesystem, which is a real risk for a single-writer SQLite app under sustained write load.
• Single instance, single writer. min_instance_count = max_instance_count = 1 by default — do not scale beyond 1 without redesigning storage.
• Custom-build image with an app-specific version pin. The Dockerfile wraps chibisafe/chibisafe-server and reads its own CHIBISAFE_VERSION build arg (not the generic APP_VERSION the Foundation injects); application_version = "latest" is pinned to v6.5.5 at build time.
• No Redis, ever. The module mirrors an enable_redis variable (default true) for Foundation-convention parity, but main.tf always forwards enable_redis = false to App_CloudRun regardless of its value — Chibisafe has no Redis dependency.
• enable_cloudsql_volume is inert. Its declared default is already false, and main.tf additionally hardcodes enable_cloudsql_volume = false in the call to App_CloudRun — the variable's value is ignored either way.
• Public ingress by default. ingress_settings = "all" — Chibisafe is a public file-upload/hosting UI browsed directly. (This module was previously swept up in a fleet-wide bug where copy-pasted "database workload" boilerplate defaulted ingress_settings to "internal"; the current source confirms the default here is correctly "all".)
• No mandatory secrets. enable_api_key = false by default — Chibisafe creates and manages its own admin account through its first-run setup wizard and Dashboard UI. Flip enable_api_key to true only to pre-seed a random ADMIN_PASSWORD from Secret Manager instead of the well-known upstream default.
• Health path is /api/health, not /. This module's own startup_probe / liveness_probe variables override Chibisafe_Common's generic / default with an explicit comment: the chibisafe-server backend serves all routes under /api and has no root route (GET / 404s). The separate startup_probe_config / health_check_config variables (which still default to path /) are effectively inert for this module — see §6.
• All state lives under one mount. The entrypoint symlinks the image's /app/database, /app/uploads, and /app/logs directories into subdirectories of the single GCS Fuse volume (/data), migrating any image-seeded contents on first boot.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Chibisafe service

Chibisafe runs as a single Cloud Run v2 service. Each deployment creates an immutable revision; with min=max=1 there is normally exactly one active container instance.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — the persistent state volume

Chibisafe has no database service to inspect — its entire state (SQLite database, uploaded files, and logs) lives on the single Cloud Storage bucket mounted via GCS Fuse at /data (requires execution_environment = "gen2"). Chibisafe_Common always provisions this storage bucket; additional buckets can be declared via storage_buckets, and additional GCS Fuse mounts via gcs_volumes.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~chibisafe"
  gcloud storage ls gs://<data-bucket>/database gs://<data-bucket>/uploads gs://<data-bucket>/logs

See App_CloudRun for GCS Fuse mount mechanics and CMEK options.

C. Secret Manager

Chibisafe generates no secrets by default. The only optional secret is a random admin password, gated by enable_api_key (default false): when enabled, a 24-character random value is stored in Secret Manager (name suffix api-key) and injected as the ADMIN_PASSWORD environment variable through the standard Cloud Run Secret Manager reference path — Chibisafe's backend seeds its first-run admin account from this value instead of the well-known upstream default.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~chibisafe"
  gcloud secrets versions access latest --secret=<api-key-secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details. Note that (unlike the GKE variant) this module's outputs.tf does not surface the generated secret's name as an output — locate it with the gcloud secrets list filter above.

D. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"), appropriate for a public file-upload/hosting UI. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on via enable_cloud_armor.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are disabled by default (uptime_check_config.enabled = false).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Chibisafe Application Behaviour

• No init or migration job. Chibisafe manages its own SQLite storage; Chibisafe_Common injects no db-init/migration job (database_type = NONE). The initialization_jobs variable is forwarded to the foundation but only useful for custom data-loading tasks.
• First-boot state relocation. The image keeps mutable state under three sibling directories in its WORKDIR — /app/database (SQLite), /app/uploads (files/thumbnails), and /app/logs. The entrypoint (entrypoint.sh) symlinks each of these into a subdirectory of the single GCS Fuse mount (/data), migrating any image-seeded contents into the empty volume on first boot. This is idempotent across restarts — already-symlinked directories are left alone. The same entrypoint script is shared with the GKE variant, which mounts a block PVC at the same path instead.
• Admin account. Chibisafe creates its administrator account through its own first-run setup wizard in the web UI (no generated username/password is baked in by default). If enable_api_key = true, a random value is generated and injected as ADMIN_PASSWORD, which the backend uses to seed the first-run admin credential instead of the well-known upstream default.
• No DB env-var aliasing. database_type = NONE — there is no DB_HOST/DB_USER injection or aliasing to worry about; SQLite lives entirely on the /data GCS Fuse volume.
• Container environment. The backend listens on 0.0.0.0:8000 (HOST=0.0.0.0, NODE_ENV=production). PORT is deliberately not injected by Chibisafe_Common because Cloud Run reserves that env var name and auto-sets it from container_port — injecting it explicitly would 400 the service create call.
• container_port is live here (unlike the GKE variant). chibisafe.tf merges container_port = var.container_port into the module config that the Foundation reads, so changing this variable actually changes the port Cloud Run routes to and the PORT value it injects. The chibisafe-server binary itself defaults to :8000; only change this together with a matching Dockerfile/entrypoint change.
• Health path. Both the startup and liveness probes are HTTP GET /api/health (this module's startup_probe/liveness_probe variables, default initial_delay_seconds = 15 / 30) — the backend returns 200 once serving, with no authentication required. Do not point either probe at /; the backend has no root route and 404s there, which would restart-loop the container. See §6 for why the separate startup_probe_config / health_check_config variables (still defaulting to /) don't actually matter here.
• Inspect the running config:

  gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT" \
    --format='value(status.url)'
  gcloud run revisions describe <revision-name> --region "$REGION" --project "$PROJECT" \
    --format='value(spec.containers[0].env)'
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Chibisafe are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	chibisafe	Base name for resources. Do not change after first deploy.
application_display_name	Chibisafe	Human-readable name shown in the Console.
description	(set)	Service description.
application_version	latest	chibisafe/chibisafe-server image tag; latest is pinned to v6.5.5 at build time via the app-specific CHIBISAFE_VERSION build arg.
enable_api_key	false	Generates a random 24-char value in Secret Manager, injected as ADMIN_PASSWORD, seeding the first-run admin credential instead of the upstream default.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	1 vCPU default.
memory_limit	1Gi	1 GiB default. Description text mentions "vector indexes"/"collections" — a copy-paste artifact from a vector-DB module; ignore the wording, the default is fine.
min_instance_count / max_instance_count	1 / 1	Keep at 1 — Chibisafe is a single-writer SQLite app on one GCS Fuse mount.
container_port	8000	Live (see §3) — changes both the Cloud Run route and the injected PORT env var.
execution_environment	gen2	Required for the GCS Fuse /data mount.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Inert — main.tf hardcodes false to the Foundation regardless of this variable's value. Chibisafe has no Cloud SQL database.
container_protocol	http1	Description mentions "required for Chibisafe gRPC" — another copy-paste artifact; Chibisafe has no gRPC interface. Leave at http1.
service_annotations / service_labels	{}	Custom Cloud Run service annotations/labels.
enable_image_mirroring	true	Mirror the built image into Artifact Registry.
traffic_split	[]	Split traffic across revisions for staged rollouts.
max_revisions_to_retain	7	Declared for convention parity; not forwarded by this module's main.tf.
container_image_source / container_image / container_build_config / container_resources	custom / "" / {enabled=true} / {1000m,512Mi}	Foundation-mirrored, inert placeholders — the actual build (Dockerfile, CHIBISAFE_VERSION build arg) comes from Chibisafe_Common's fixed config, not these variables.

Group 5 — Access & Networking

Variable	Default	Description
ingress_settings	all	Public by default — Chibisafe is a directly browsed file-upload UI.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings. NODE_ENV=production and HOST=0.0.0.0 are set automatically.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root are forwarded to the Foundation but are a no-op — Chibisafe has no SQL database (database_type = NONE).

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage, Filesystem & Redis (inert)

Variable	Default	Description
create_cloud_storage	true	Provisions the always-present storage bucket.
storage_buckets	[]	Additional GCS buckets beyond the auto-provisioned data bucket.
enable_nfs	false	NFS is off by default; not used by Chibisafe's storage model.
nfs_mount_path	/mnt/nfs	Mount path inside the container (only relevant if enable_nfs is set).
gcs_volumes	[]	Additional GCS Fuse volume mounts. The Chibisafe storage bucket is auto-added at /data.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
enable_redis	true (mirrored, inert)	Declared only for Foundation-convention parity — main.tf always forwards enable_redis = false to App_CloudRun regardless of this value. Chibisafe has no Redis dependency.

Group 12 — Database Backend (not applicable)

database_type is fixed to NONE by Chibisafe_Common. All other Group-12 variables — sql_instance_name, sql_instance_base_name, database_password_length, application_database_name, application_database_user, db_password_env_var_name, db_host_env_var_name, db_user_env_var_name, db_name_env_var_name, db_port_env_var_name, service_url_env_var_name, enable_mysql_plugins/mysql_plugins, enable_postgres_extensions/postgres_extensions, enable_auto_password_rotation/rotation_propagation_delay_sec — are declared purely for Foundation-convention mirroring and have no effect on this module.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	No default job is injected; use only for custom data-loading tasks.
cron_jobs	[]	Recurring scheduled Cloud Run jobs; none by default.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /api/health, 15s initial delay	The live, effective startup probe (see §3).
liveness_probe	HTTP /api/health, 30s initial delay	The live, effective liveness probe.
startup_probe_config	HTTP /, enabled	Inert for this module — App_CloudRun's foundation always prefers the app-specific startup_probe supplied via application_config over this standalone variable, so changing it has no effect on the deployed probe.
health_check_config	HTTP /, enabled	Same inertness as startup_probe_config — liveness_probe (Group 14, above) is what's actually deployed.
uptime_check_config	{ enabled=false, path="/" }	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Metric alert policies.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
organization_id	""	Override for folder-nested projects.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
chibisafe_url	Cloud Run service URL for the REST API (port 8000). Its description says "internal VPC URL... only reachable when ingress_settings is internal" — stale wording, since the default is all (public); treat it as simply the service URL.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enable_cloud_armor is enabled).
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
initialization_jobs	Names of any custom initialization jobs.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

Note the absence of an output for the optional enable_api_key secret — unlike Chibisafe_GKE (which exposes chibisafe_api_key_secret_id), this module does not surface the generated secret's name; find it via gcloud secrets list --filter="name~chibisafe".

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — an out-of-range container_port/timeout_seconds/backup_retention_days, a gen1 runtime combined with gcs_volumes, an invalid traffic_split. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
Persistence model	GCS Fuse /data (this module's only option)	Critical	SQLite over GCS Fuse's POSIX file-locking semantics is not fully safe under sustained/concurrent writes. The module's own metadata explicitly recommends Chibisafe_GKE (block PVC) for durable production storage; use this Cloud Run variant for light/low-traffic uploaders only.
max_instance_count	1	Critical	Chibisafe is a single-writer SQLite app; scaling beyond 1 instance risks concurrent writers corrupting the SQLite DB on the shared GCS Fuse mount.
startup_probe / liveness_probe path	/api/health	High	The backend has no root route — GET / 404s. Overriding either probe to / (matching the Common module's own generic default, or the GKE variant's documented default) restart-loops the container.
enable_api_key	true for any deployment outside a trusted network	High	With ingress_settings = all (the default) and enable_api_key = false, the service is public and relies entirely on completing the first-run setup wizard immediately; leaving it unconfigured longer widens the window for a stranger to claim the admin account.
ingress_settings	all	Medium	Confirm your working copy of this module has not regressed to internal — a historical fleet-wide copy-paste bug defaulted several modules' ingress_settings to internal, which would make this public file uploader completely unreachable despite passing health checks.
startup_probe_config / health_check_config	leave as-is; understand they're inert	Low	App_CloudRun's foundation always prefers the app-specific startup_probe/liveness_probe supplied via application_config over these standalone variables when both are present, so editing these two has no effect on the deployed probe.
enable_cloudsql_volume	false (only value that matters)	Low	main.tf hardcodes false to the Foundation regardless of what this variable is set to; Chibisafe has no Cloud SQL database.
enable_redis	any value (inert)	Low	main.tf always forwards enable_redis = false — changing this variable has no effect; do not rely on it to add Redis connectivity.
memory_limit / min_instance_count / container_protocol descriptions	ignore the wording	Low	These variables' description text references "vector indexes," "collections," "index loading," and "gRPC" — leftover copy-paste from a vector-database module template. Chibisafe is a file uploader with none of these; the numeric/string defaults themselves (1Gi, 1, http1) are correct and unaffected.
database_type / db_* / sql_instance_* variables	NONE / inert	Low	Chibisafe has no SQL database; these exist only for Foundation-variable mirroring and are silently ignored.
enable_api_key secret discoverability	use gcloud secrets list --filter="name~chibisafe"	Low	This module's outputs.tf does not expose the generated secret's name as an output (unlike Chibisafe_GKE's chibisafe_api_key_secret_id).

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Chibisafe-specific application configuration shared with the GKE variant lives in the Chibisafe_Common module (modules/Chibisafe_Common/README.md); the GKE variant itself is documented in Chibisafe_GKE.
