Karakeep on Google Cloud Run
Karakeep is an open-source, self-hostable bookmark-everything app (links, notes, and images) with AI-based automatic tagging and full-text/semantic search. This module deploys Karakeep on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Karakeep uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

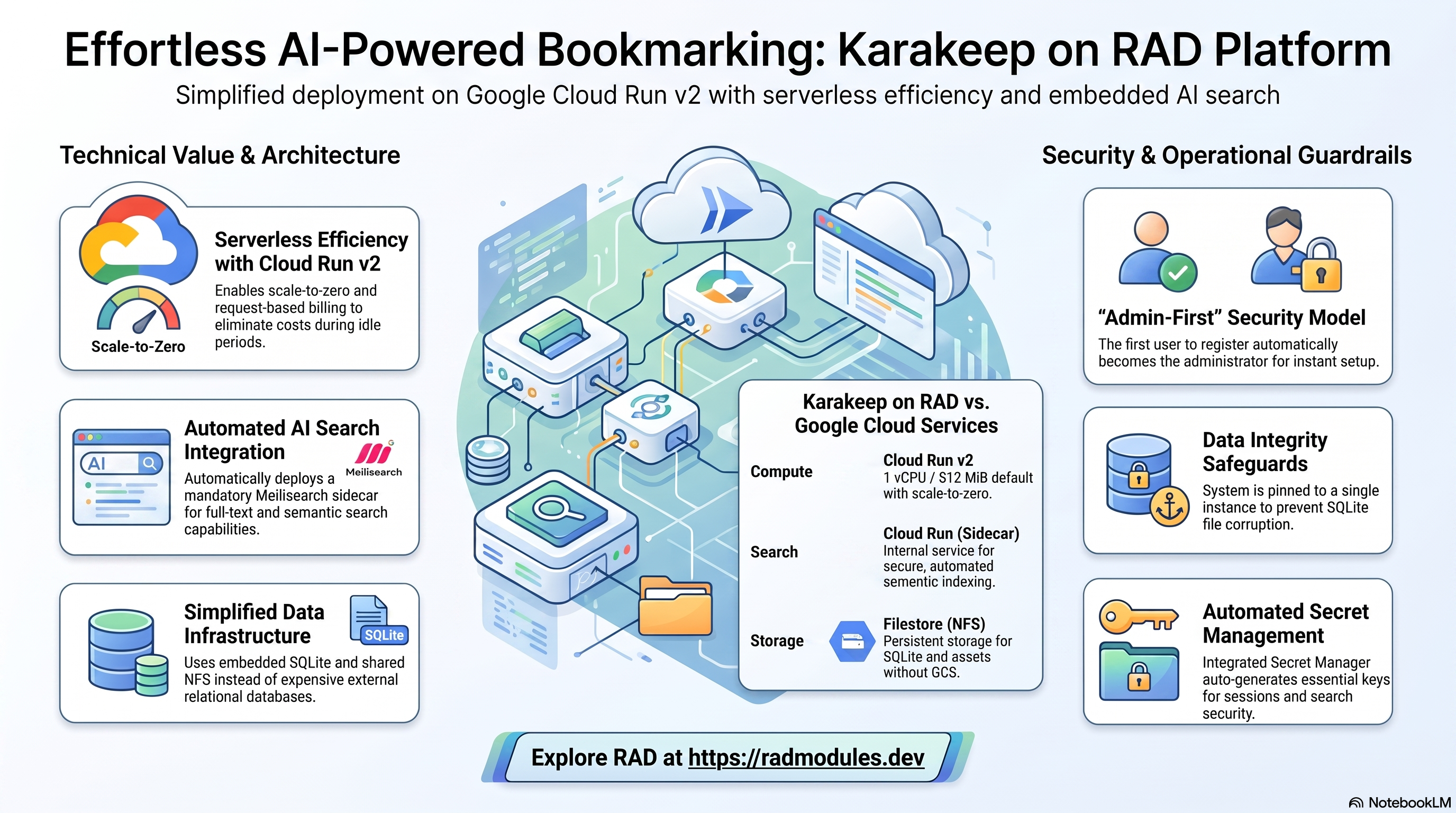

1. Overview
Karakeep runs as a Next.js container on Cloud Run v2, paired with a mandatory Meilisearch sidecar for search. Unlike most apps in this catalogue it uses no external relational database — all state lives in an embedded SQLite database plus uploaded assets on the platform's shared NFS volume:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | Next.js service, 1 vCPU / 512 MiB by default, scale-to-zero, pinned to a single instance |
| Search | Cloud Run v2 (internal service) | A required Meilisearch sidecar, deployed automatically — not optional |
| Database | none | State lives in an embedded SQLite database, not Cloud SQL |
| Object storage | none (NFS instead) | Uploaded assets persist on the platform's shared NFS volume, not GCS |
| Secrets | Secret Manager | Auto-generated NEXTAUTH_SECRET and MEILI_MASTER_KEY |
| Ingress | Cloud Run URL | Default run.app URL; optional external HTTPS load balancer + custom domain |
Sensible defaults worth knowing up front:
- No Cloud SQL.
database_type = "NONE"— Karakeep's embedded SQLite database and uploaded assets both live on the platform's shared NFS volume (enable_nfs = trueby default). - Single instance only.
max_instance_count = 1— multiple Cloud Run instances writing the same SQLite file over NFS risks corruption even with WAL mode disabled (which this module keeps off by default). - Meilisearch is mandatory, not optional. Deployed automatically as an
internal-only additional Cloud Run service. Without it, Karakeep's
MEILI_ADDRis unset and search is silently disabled (bookmarking itself still works). - No custom container build. Karakeep's SQLite journal mode already defaults
to the NFS-safe
DELETEmode — the official prebuilt image is deployed as-is. - No admin-bootstrap credential. The first account created through the web UI's sign-up form becomes the admin.
NEXTAUTH_SECRETis immutable after first boot. Rotating it invalidates every active session.- Request-based billing by default.
cpu_always_allocated = false,min_instance_count = 0— Karakeep's core save/search path needs no background CPU; async link-crawling/AI-tagging may pause while scaled to zero.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Karakeep service
Karakeep runs as a Cloud Run v2 service. Each deployment creates an immutable revision.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Meilisearch (required sidecar)
Karakeep's full-text and semantic search is powered entirely by a Meilisearch
instance, deployed automatically as a separate, internal-only Cloud Run service.
Its URL is auto-injected into the main app's MEILI_ADDR environment variable.
Its index lives on the sidecar's own ephemeral storage — additional services
don't share the main app's NFS volume — and rebuilds from scratch on every
restart. This affects search availability only, not data safety; bookmarks
persist on the main app's NFS-mounted /data.
- Console: Cloud Run → the
<service>-meilisearchservice (internal ingress only — not reachable from a browser directly). - CLI:
gcloud run services list --project "$PROJECT" --region "$REGION" --filter="metadata.name~meilisearch"
gcloud run services logs read <service>-meilisearch --project "$PROJECT" --region "$REGION" --limit=50
C. NFS (Cloud Filestore or the self-managed NFS+Redis VM)
Both Karakeep's embedded SQLite database and its uploaded assets (bookmarked
page screenshots would go here too, though this module does not enable headless
Chrome screenshot capture) live on the platform's shared NFS volume, mounted at
/data.
- Console: Filestore → instances (if
Services_GCPcreated a managed Filestore instance) — or Compute Engine → the self-managed NFS VM. - CLI:
gcloud filestore instances list --project "$PROJECT" 2>/dev/null
gcloud compute instances list --project "$PROJECT" --filter="name~nfs"
See App_CloudRun for the NFS discovery and mounting model.
D. Secret Manager
Two secrets are generated automatically: NEXTAUTH_SECRET (session JWT signing)
and MEILI_MASTER_KEY (shared between the app and its Meilisearch sidecar).
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~karakeep"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
E. Networking & ingress
The service is reachable at its run.app URL by default. An external HTTPS load
balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
F. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Karakeep Application Behaviour
- No first-deploy database setup job. Karakeep manages its own SQLite schema
and migrations internally at startup — there is no separate
db-initjob to inspect. - No admin-bootstrap credential to retrieve. The first account created through the web UI's sign-up form becomes the admin. There is nothing in Secret Manager to fetch before first login.
- Search depends on the sidecar being reachable. If the Meilisearch service fails to start, search silently stops working — bookmarking, tagging, and browsing all continue to function, but nothing is findable via search.
- Health path. Startup and liveness probes target
/— Karakeep's public login/landing page. - Async work (link crawling, AI tagging) runs in-process. With
cpu_always_allocated = false(the default), this work may pause while the instance is scaled to zero between requests and resume on the next request.
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Karakeep are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the service and regional resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | karakeep | Base name for resources. Do not change after first deploy. |
application_version | latest | Deployment-tracking tag. Karakeep_Common maps "latest" to Karakeep's own rolling "release" tag. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
container_image_source | prebuilt | No custom build needed — Karakeep's default SQLite journal mode is already NFS-safe. |
min_instance_count | 0 | Scale-to-zero. |
max_instance_count | 1 | Pinned — SQLite-over-NFS multi-writer safety. Do not raise. |
container_port | 3000 | Karakeep's native default port. |
cpu_always_allocated | false | Request-based billing. |
Group 11 — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
enable_nfs | true | Required — Karakeep's SQLite database and assets live here. |
nfs_mount_path | /data | Karakeep's DATA_DIR default. |
storage_buckets | [] | No GCS bucket provisioned — Karakeep uses NFS, not object storage. |
Group 12 — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | NONE | Fixed — no Cloud SQL instance is provisioned. |
Group 13 — Jobs & Sidecars
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | Not used — Karakeep migrates its own schema at startup. |
additional_services | [] | User-configurable extra services beyond Karakeep's own — the required Meilisearch sidecar is deployed automatically and is not represented here. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe / liveness_probe | HTTP / 30s delay | Probes target the public login page. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
service_url | Default run.app URL of the service. |
database_instance_name / database_name / database_user / database_host / database_port | Empty — not applicable (database_type = "NONE"). |
storage_buckets | Empty — Karakeep persists via NFS, not GCS. |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
max_instance_count | 1 (pinned default) | Critical | Raising this risks SQLite corruption from concurrent NFS writers — Karakeep has no other database backend to fall back to. |
| First account created via sign-up | Create it immediately after deploy | Critical | The first account to register becomes admin — if left open, any visitor who reaches the URL first claims that role. |
enable_nfs | true (default) | Critical | Disabling it removes all durable storage — the SQLite database and assets would live on Cloud Run's ephemeral filesystem and vanish on every revision restart. |
container_image_source | prebuilt (default) | High | "custom" triggers an unnecessary Cloud Build with no Dockerfile configured in this module — the build will fail. |
| Meilisearch sidecar reachability | Verify MEILI_ADDR resolved after deploy | Medium | If the sidecar fails to start, search silently stops working while the rest of the app continues functioning normally — an easy-to-miss degraded state. |
NEXTAUTH_SECRET (auto-generated) | Never rotate after first boot | Critical | Rotating it invalidates every active user session. |
DATA_DIR env var | Set explicitly (this module always sets it to nfs_mount_path) | Critical | Karakeep's own default is an empty string, not /data (that default only exists in the upstream docker-compose template). Left unset, migrations and the SQLite file silently resolve to ephemeral storage instead of the NFS mount — confirmed live: signup 500s with SqliteError: no such table: user until fixed. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Karakeep-specific application configuration shared with the GKE variant is described in Karakeep_Common.
