Wallabag on GKE Autopilot
Wallabag is a free, open-source, self-hosted "read it later" article archiving app — a Pocket alternative. Save articles from a browser extension, bookmarklet, mobile app, or the REST API, then read them later in a clean, distraction-free view with full-text search, tagging, annotations, and RSS feeds of your saved items. This module deploys Wallabag on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.
This guide focuses on the cloud services Wallabag uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

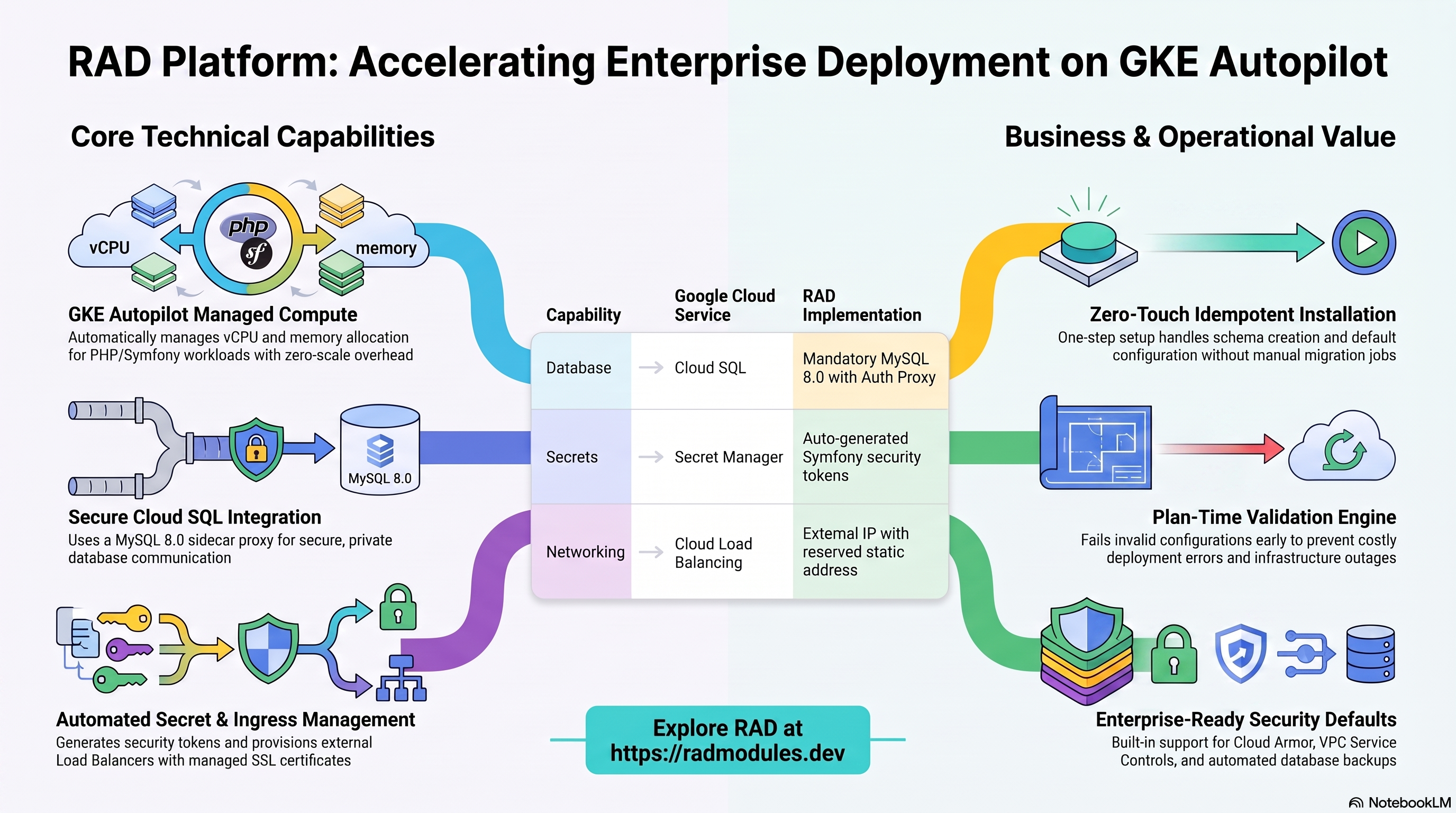

1. Overview
Wallabag runs as a PHP/Symfony pod (nginx + php-fpm under s6-overlay) on GKE Autopilot. The deployment wires together a focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | GKE Autopilot | PHP/Symfony pod, 1 vCPU / 2 GiB by default; single replica by default (GKE has no scale-to-zero) |
| Database | Cloud SQL for MySQL 8.0 | Required — Wallabag_Common fixes the engine; PostgreSQL is not supported |
| Object storage | Cloud Storage | A generic data bucket is provisioned, but Wallabag does not read or write it — all content lives in MySQL |
| Secrets | Secret Manager | Auto-generated APP_SECRET (Symfony security token); database password |
| Ingress | Cloud Load Balancing | External LoadBalancer, custom domain + managed certificate enabled by default |
Sensible defaults worth knowing up front:
- MySQL 8.0 is mandatory. The database engine is fixed by
Wallabag_Common; selecting any other engine breaks the deployment. enable_cloudsql_volume = true. A Cloud SQL Auth Proxy sidecar listens on127.0.0.1:3306;wallabag.tfadditionally pinsDB_HOST = "127.0.0.1"so the wrapper entrypoint always dials the sidecar. The Cloud Run variant instead connects over the instance private IP.- Single Secret Manager secret.
APP_SECRET(a Symfony security token) is generated automatically, overriding Wallabag's publicly-known baked-in default. There is no separate generated admin-password secret. min_instance_count = 1,max_instance_count = 1by default. GKE has no scale-to-zero; keep replicas at 1 unless Wallabag's session/cache behaviour under multiple pods has been verified.service_type = LoadBalancerwithsession_affinity = "ClientIP";enable_custom_domain = trueandreserve_static_ip = trueby default.enable_nfsdefaultstruebut is functionally unused. It mounts Cloud Filestore NFS at/var/lib/wallabag, but Wallabag's imageWORKDIRis/var/www/wallabag— nothing writes to the mounted path. Safe to disable.- No separate migration job. Wallabag's own
bin/console wallabag:installhandles both schema creation and first-run setup in one idempotent step.
2. Google Cloud Services & How to Explore Them
All commands assume you have run
gcloud container clusters get-credentials <cluster> --region <region> --project <project>
and that PROJECT, REGION, and NAMESPACE are set. The namespace and other
identifiers are reported in the deployment Outputs.
A. GKE Autopilot — the Wallabag workload
Wallabag runs as a single-replica Deployment by default. Autopilot bills for the CPU/memory the pod actually requests.
- Console: Kubernetes Engine → Workloads → select the Wallabag workload for pods, events, and logs. Kubernetes Engine → Services & Ingress shows the external IP.
- CLI:
kubectl get pods,svc -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.
B. Cloud SQL for MySQL 8.0
Wallabag stores all application data (saved articles, tags, users, annotations)
in a managed Cloud SQL for MySQL 8.0 instance. The pod reaches it privately
through a Cloud SQL Auth Proxy sidecar listening on 127.0.0.1:3306. On
first deploy, a db-init job creates the application database and user,
followed by wallabag-install, which runs Wallabag's own installer to create
the schema.
- Console: SQL → select the instance for connections, backups, flags, and metrics.
- CLI:
gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"
The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.
C. Cloud Storage
A generic data bucket is provisioned by default (via the Foundation's
storage_buckets input), but Wallabag itself never reads or writes it — all
content lives in MySQL, and gcs_volumes (which would fuse-mount a bucket into
the pod) is empty by default.
- Console: Cloud Storage → Buckets.
- CLI:
gcloud storage buckets list --project "$PROJECT"
See App_GKE for CMEK options and GCS Fuse mounts.
D. Secret Manager
One secret is generated automatically and stored in Secret Manager: APP_SECRET
(materialised under that simple key — GKE's SecretSync CRD rejects targetKey
values containing __, so the real SYMFONY__ENV__SECRET name is aliased at
container start by the wrapper entrypoint rather than being the synced key
itself). The database password is managed separately by the foundation.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~app-secret"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
See App_GKE for the Secret Store CSI integration and rotation.
E. Networking & ingress
By default the workload is exposed through an external Cloud Load Balancing IP with a reserved static IP and a Kubernetes Ingress for custom domains.
- Console: Network services → Load balancing; VPC network → IP addresses.
- CLI:
kubectl get ingress,svc -n "$NAMESPACE"
gcloud compute addresses list --project "$PROJECT"
See App_GKE for custom domains, Cloud CDN, and static IP details.
F. Cloud Logging & Monitoring
Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
--project "$PROJECT" --limit 50
3. Wallabag Application Behaviour
- Two-stage init chain, not a Laravel-style separate migrate step.
db-init(mysql:8.0-debian) creates the empty application database and user and grants privileges.wallabag-installthen depends ondb-initand reuses the same custom app image (so the wrapper entrypoint's env aliasing still runs) with its command overridden tobin/console wallabag:install --env=prod -n. This single command performs both schema creation and first-run setup (including seeding the default administrator account) — there is no separate migration job to run on upgrades; re-runningwallabag:installagainst an already-installed database is safe and idempotent. - Health check behaviour. The startup probe is TCP on port 80 — it only
needs nginx to bind, independent of installer progress. The liveness probe is
HTTP
GET /: an unauthenticated request to the root path returns an HTTP 302 redirect to/login, which Kubernetes' probe semantics treat as a passing response (any 2xx–3xx). Do not expect a bare 200 from/— a 302 to/loginis the expected, healthy result.EXTERNAL_IP=$(kubectl get svc -n "$NAMESPACE" -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')
curl -s -o /dev/null -w "%{http_code}\n" "http://${EXTERNAL_IP}/" # expect 302 - First-run administrator account.
wallabag:install --env=prod -ncreates Wallabag's own default administrator account using Wallabag's documented installation defaults (username and password bothwallabag) — there is no Secret Manager secret holding a generated admin password. Change this password immediately after first login. New accounts cannot self-register (SYMFONY__ENV__FOSUSER_REGISTRATION = "false") — create additional users from the admin UI or withkubectl exec ... -- bin/console fos:user:create. - Inspect job execution:
kubectl get jobs -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" job/<db-init-or-wallabag-install-job-name>
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Wallabag are listed; every other input is inherited from App_GKE with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the cluster and regional resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | wallabag | Base name for resources. Do not change after first deploy. |
application_version | latest | Base image tag for wallabag/wallabag. "latest" maps to a pinned tag (2.6.14) at build time. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
container_image_source | custom | Builds the wrapper image via Cloud Build. "prebuilt" skips the DB/secret-aliasing wrapper entirely. |
min_instance_count / max_instance_count | 1 / 1 | GKE has no scale-to-zero; single replica by default. |
container_port | 80 | Wallabag's nginx listens on port 80. |
cpu_limit / memory_limit | 1000m / 2Gi | Per-pod resource limits. |
enable_cloudsql_volume | true | Cloud SQL Auth Proxy sidecar on 127.0.0.1. Keep true on GKE. |
Group 6 — GKE Backend & Cluster
| Variable | Default | Description |
|---|---|---|
service_type | LoadBalancer | External IP by default. |
session_affinity | ClientIP | Routes a client's requests to the same pod. |
workload_type | null | Auto-resolves to Deployment (Wallabag needs no per-pod PVC identity). |
Group 11 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | Leave empty to use the built-in db-init → wallabag-install chain. |
Group 13 — Filesystem (NFS)
| Variable | Default | Description |
|---|---|---|
enable_nfs | true | Functionally unused — mounted at /var/lib/wallabag, but Wallabag's image writes nothing there. Safe to disable. |
Group 14 — Cloud Storage & Artifact Registry
| Variable | Default | Description |
|---|---|---|
storage_buckets | [{ name_suffix = "data" }] | Generic bucket. Not read or written by Wallabag. |
gcs_volumes | [] | Nothing fuse-mounted into the pod by default. |
Group 16 — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | resolves to MYSQL_8_0 | Fixed by Wallabag_Common. |
application_database_name / application_database_user | wallabag | Tenant-prefixed at deploy time. Immutable after first deploy. |
db_host_env_var_name / db_user_env_var_name / db_name_env_var_name / db_port_env_var_name / db_password_env_var_name | "" (all empty) | Unused by Wallabag — the wrapper entrypoint reads the standard DB_* vars directly and aliases them onto SYMFONY__ENV__DATABASE_* itself. |
Group 19 — Custom Domain, Static IP & Networking
| Variable | Default | Description |
|---|---|---|
enable_custom_domain | true | Kubernetes Ingress with application_domains. |
reserve_static_ip | true | A stable IP that survives redeploys. |
network_tags | ["nfsserver"] | Firewall targeting; required for NFS connectivity when enable_nfs = true. |
Group 15 — Redis
| Variable | Default | Description |
|---|---|---|
enable_redis | false | Purely optional — only used by Wallabag's asynchronous bulk-import feature. |
Every other input (Group 0 metadata, Group 2 environment, Group 5 secrets, Group 7 StatefulSet, Group 8 resource quota, Group 9 reliability, Group 10 observability, Group 12 CI/CD, Group 17 backup, Group 18 custom SQL, Group 20 IAP, Group 21 Cloud Armor, Group 22 VPC-SC) behaves exactly as documented in App_GKE.
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Kubernetes Service name. |
namespace | Kubernetes namespace. |
service_cluster_ip / service_external_ip | Internal / external IP. |
service_url | Service URL. |
database_instance_name | Cloud SQL instance name. |
database_name / database_user | Application database name / user. |
database_password_secret | Secret Manager secret holding the DB password. |
database_host | 127.0.0.1 via the Cloud SQL Auth Proxy sidecar. |
storage_buckets | Created Cloud Storage buckets. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
initialization_jobs | Names of the setup jobs (db-init, wallabag-install). |
kubernetes_ready | Whether the cluster endpoint is available and all K8s resources are deployed. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time. Invalid configuration fails the plan with a clear, named error before any resource is created.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
DB driver env var (SYMFONY__ENV__DATABASE_DRIVER, hardcoded in entrypoint.sh) | must be set explicitly (pdo_mysql here) | Critical | Wallabag's shipped parameters.yml defaults database_driver to pdo_sqlite. Setting only SYMFONY__ENV__DATABASE_HOST/_PORT/_NAME/_USER/_PASSWORD with no explicit driver var still silently installs against a throwaway local SQLite file — the install "succeeds," the pod reports Ready, but all data lives in an ephemeral file wiped on every pod restart or redeploy, and MySQL is never touched. No error is raised. If this module is ever cloned as a template for another Symfony-based application, verify the DB driver env var is set explicitly — this class of failure is undetectable from the outside; use kubectl exec into the pod and check the boot logs ("Configuring the SQLite database..." vs. a MySQL connection line) to confirm. See App_GKE and App_CloudRun for how the Foundation injects DB env vars generically — the app-specific translation and any missing pieces are always the calling module's responsibility. |
application_database_name / application_database_user | Set once | Critical | Immutable after first deploy; renaming recreates the DB/user and destroys all saved articles. |
APP_SECRET (auto-generated) | Never hand-edit in Secret Manager after first boot | High | Wallabag uses this as a Symfony security-signing key; changing it invalidates CSRF tokens and any signed URLs already issued. |
Default administrator credentials (wallabag / wallabag, seeded by wallabag:install) | Change immediately after first login | High | The installer seeds Wallabag's own well-known default credentials — anyone who knows the service URL and the public default can log in until the password is changed. |
container_image_source | custom | Critical | Switching to prebuilt deploys the stock wallabag/wallabag image with no wrapper entrypoint — the DB and secret env-var aliasing never runs, so the pod cannot reach MySQL at all. |
enable_cloudsql_volume | true on GKE | Critical | Setting false removes the Auth Proxy sidecar the wrapper entrypoint's DB_HOST = "127.0.0.1" pin depends on — the pod cannot reach Cloud SQL. |
max_instance_count | 1 unless verified otherwise | High | Scaling beyond 1 pod without verifying Wallabag's session/cache behaviour risks inconsistent user sessions across pods. |
enable_nfs | false unless needed for another purpose | Low / cost | Defaults true and provisions a Filestore share that Wallabag never uses — a needless recurring cost. |
enable_cloud_armor | enable for production | Medium | The service is publicly reachable without WAF protection by default. |
For the foundation behaviour referenced throughout — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Wallabag-specific application configuration shared with the Cloud Run variant is described in Wallabag_Common.
