SparkyFitness on GKE Autopilot

SparkyFitness is a self-hosted, AI-assisted family food, fitness, water, and health tracker built as a Node.js/Express backend (codewithcj/sparkyfitness_server) with a separate React frontend served by nginx (codewithcj/sparkyfitness). This module deploys SparkyFitness on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services SparkyFitness uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — namespace/Service model, scaling, CI/CD, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

What SparkyFitness costs on RAD, and how that compares

Running SparkyFitness in your own GCP project costs about $142.62/month in Google Cloud charges; RAD's module fee is a one-time 300 credits (or 270 credits in a RAD-managed project), covering setup and support -- not the ongoing cloud bill, which Google bills you directly in your own project or RAD meters hourly in credits in a RAD-managed one. If a lower running cost matters more than the deployment target, see the Cloud Run guide for the lower-cost option; otherwise, if you deploy into a RAD-managed project you can pause the whole thing for free when you are not using it -- see Pause it for free below.

What you pay on RAD

	Your own project	RAD-managed project
Module fee	300 credits, once	270 credits, once (10% lower)
Build time	metered in credits as the build runs (a few credits, typically)	same
Google Cloud running cost	~$142.62/month, billed to your own billing account at Google's list price	~113 credits/day, metered hourly by RAD at list price plus margin

Default running cost in your own project

Resource	US$/month (Google list price, us-central1)
GKE Autopilot pod, 2x vCPU / 2 GiB	$72.16
Cloud SQL for PostgreSQL, 1 vCPU / 3.75 GB, zonal, 10 GB SSD	$51.02
NFS/cache file server (small VM)	$13.43
Cloud NAT and networking	$5.00
Cloud Storage (add-ons, backups)	$1.00
GKE cluster management fee	shared across every GKE app in the project; $0 if this is your only cluster, else ~$73
Total	$142.62

How it compares

• Running it yourself on a bare VPS is still the cheapest cash option -- Hetzner CPX22 (2 vCPU/4GB) runs about $24/month, a DigitalOcean 2 vCPU/4GB Droplet is also $24/month, and a GCP Compute Engine e2-standard-2 (2 vCPU/8GB) is about $49/month -- plus the admin's own time for backups, security patches and upgrades, which RAD's managed Cloud SQL, Secret Manager and monitoring cover for you -- but RAD's price is never meant to beat a VPS, only to replace the admin time a VPS still needs.
• SparkyFitness is used by a handful of people a few times a day, not a continuously-loaded service, so the running cost below is what actually drives the bill -- not the module fee.

Pause it for free: delete a RAD-managed project, restore it when you need it

This is the headline for a RAD-managed project. Deleting a RAD-managed project first unlinks its billing, then asks Google to delete the project outright -- Google's own 30-day recoverable soft delete. Unlike deleting one module, this does not tear down Cloud SQL, any VM or the compute resource one by one: the whole project simply stops, and nothing is charged while it waits, because billing is already unlinked.

Restoring, within 30 days and only by the project's owner, asks Google to undelete the project and reattaches its billing account, then asks you to run Update on each deployment to confirm everything came back. Because nothing was individually destroyed, that Update finds the same resources already there -- it is a check, not a rebuild, and an Update never charges the module fee again. This costs only a handful of credits (under US$1) in total for a typical 2-3-deployment chain.

What this needs: you must own the project (not one RAD only manages billing for), you must restore it yourself within 30 days -- after that Google deletes it for good -- and restoring is admitted like creating a new project, so your purchased credit balance must still clear the tier's floor (100 credits for the sandbox tier most study/demo use fits). Google says most services are fully working again within 36 hours of a restore.

One real gap: nightly backups are written to a bucket inside the project, and that bucket has Cloud Storage's soft-delete explicitly turned off, so it is very likely gone as soon as you delete the project -- even though the project itself is recoverable for 30 days. If you have customised the app and want to keep that work, copy a backup out (to Google Drive, or a bucket outside the project) before deleting. For a default install with nothing irreplaceable in it, this does not matter.

Pay only while you use it, the other way: delete and redeploy

In your own project (or once you are past the 30-day restore window above), the alternative is to delete SparkyFitness outright and redeploy it later. A redeploy costs the module fee again, plus the builds -- roughly 300 + 3-6 credits of build time.

Deleting saves money only once SparkyFitness would otherwise sit unused long enough to clear that redeploy cost against its own daily running cost -- against the own-project total above, that works out to about 6 days or more. Most of the running cost here is usually the database and the NFS/cache VM; they stop only when nothing else in the project uses them, so deleting this app while something else shares the project saves only this app's own compute part.

Keep data first: nightly backups go to a bucket inside the deployment and are deleted with it, so copy the latest backup out before deleting if you want to keep it.

Lab sessions and Managed Environments

• Lab sessions, for training: a trainer runs a session for a class. Each participant gets the app in their own Google Cloud project for 15 minutes to 24 hours, within an allowance the trainer sets. Either the trainer funds every place, or each participant pays for their own. Everything is deleted when the session ends and unused credits go back to the trainer.
• Managed Environments, for consultancies: a partner runs the app for a client from a ring-fenced wallet it funds, and settles with the client directly. If the wallet runs low, billing pauses and the data is kept, so nobody receives an unexpected charge. At the end the partner hands the project over and the deployments become the client's own.
• Credits can be bought in more than 20 currencies, including XAF, XOF, NGN, GHS, KES and ZAR, by card, bank transfer or mobile money.

Sources (8 October 2026): Google Cloud Billing Catalog API list prices; radmodules.dev/pricing for RAD's own fees and daily-credit estimates; https://cloud.google.com/resource-manager/docs/delete-restore-projects for the pause/restore mechanics.

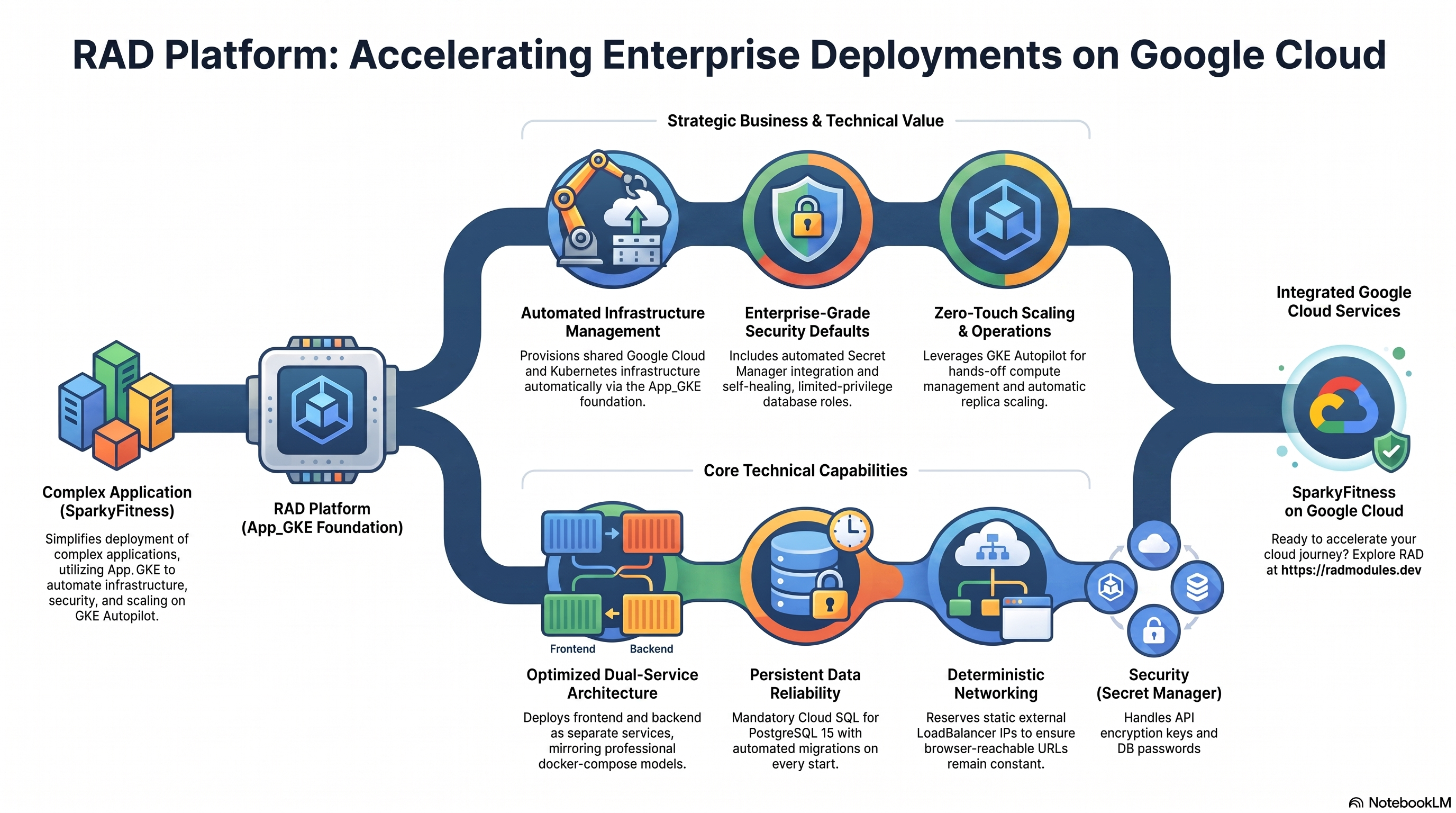

1. Overview

Unlike the Cloud Run variant (which must run both containers in one multi-container service due to a Cloud Run platform constraint — see SparkyFitness_CloudRun), GKE has no HTTPS-only requirement between in-cluster Services, so SparkyFitness deploys as two separate Deployments/Services, exactly matching the vendor's own docker-compose model:

• The backend (codewithcj/sparkyfitness_server, port 3010) is the main app — the Foundation's standard Deployment/Service/init-job wiring.
• The frontend (codewithcj/sparkyfitness, port 80) is an additional_services entry: its own Deployment+Service, with a reserved static external LoadBalancer IP, reaching the backend at its cluster-internal DNS name over plain HTTP.

Capability	Google Cloud service	Notes
Compute	GKE Autopilot (2 Deployments)	Backend (main, 2 vCPU/2Gi default) + frontend (additional_services, 0.5 vCPU/512Mi)
Database	Cloud SQL for PostgreSQL 15	Required — no other engine is supported
Secrets	Secret Manager → K8s Secret	Auto-generated SPARKY_FITNESS_API_ENCRYPTION_KEY, BETTER_AUTH_SECRET, SPARKY_FITNESS_APP_DB_PASSWORD; database password
Ingress	Reserved external LoadBalancer IP (frontend)	Deterministic across redeploys — known at plan time

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. No other engine is supported.
• Two database roles, one Terraform-managed. db_user (default sparky) is the admin/migration role created by the db-init job; app_db_user (default sparky_app) is a limited-privilege role the backend creates and maintains itself at every boot.
• No separate migrate job. The backend runs its own database migrations on every container start.
• The backend's Service is always exposed on port 80, regardless of container_port (3010) — this is a general App_GKE convention (Service port is fixed, targetPort maps to the real container port). The frontend's nginx is therefore wired to proxy to :80, not :3010.
• A static IP is always reserved for the frontend LoadBalancer so the browser-reachable URL (used for SPARKY_FITNESS_FRONTEND_URL CORS checks) is known at plan time and never changes across redeploys.
• The frontend image is prebuilt; the backend is a thin custom build. The backend inherits SparkyFitness_Common's image_source = "custom" (a Dockerfile patching its pg.Pool constructors for Cloud SQL SSL), so a Cloud Build step runs for it; container_image_source is deliberately left unset here so that config flows through.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT, REGION, and NAMESPACE are set (namespace name is in the deployment Outputs).

A. GKE Autopilot — the SparkyFitness workloads

Two Deployments run in the same namespace: the backend (main app) and the frontend (additional_services).

• Console: Kubernetes Engine → Workloads → filter by namespace.
• CLI:

  kubectl get deployments -n "$NAMESPACE"
  kubectl get pods -n "$NAMESPACE"
  kubectl get services -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deployment/<backend-deployment> --tail=100
  kubectl logs -n "$NAMESPACE" deployment/<frontend-deployment> --tail=100

See App_GKE for scaling, resource quotas, and rollout behaviour.

B. Cloud SQL for PostgreSQL 15

SparkyFitness stores all application data in a managed Cloud SQL for PostgreSQL 15 instance. The backend (main app) connects through the Cloud SQL Auth Proxy sidecar over 127.0.0.1 when enable_cloudsql_volume = true (the default).

gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_GKE for the connection model, backups, and password rotation.

C. Secret Manager / Kubernetes Secrets

Three cryptographic secrets are generated in Secret Manager and materialised as a Kubernetes Secret for the backend pod: SPARKY_FITNESS_API_ENCRYPTION_KEY, BETTER_AUTH_SECRET, SPARKY_FITNESS_APP_DB_PASSWORD.

gcloud secrets list --project "$PROJECT" --filter="name~sparkyfitness"
kubectl get secret -n "$NAMESPACE"

D. Networking & the frontend LoadBalancer

The frontend's Service is a LoadBalancer pinned to a reserved static external IP.

kubectl get service <frontend-service> -n "$NAMESPACE" -o wide
gcloud compute addresses list --project "$PROJECT" --filter="name~frontend-ip"

E. Cloud Logging & Monitoring

gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
  --project "$PROJECT" --limit 50

---

3. SparkyFitness Application Behaviour

• First-deploy database setup. A single db-init initialization Job creates the admin role (db_user) and database (db_name) only.
• Migrations run on every boot. The backend applies its own schema migrations at startup using the admin db_user credentials.
• app_db_user is self-healing. The backend creates or updates this limited-privilege role at every start.
• First-run account creation. Sign up via the frontend URL to create the first user account, then set admin_email and redeploy to grant admin privileges.
• Disable signup after first use. Set disable_signup = true once the admin account exists.
• Health path. GET /api/health on port 3010 (backend) — confirmed via the upstream Dockerfile's own HEALTHCHECK directive.
• Reserved frontend LB IP. public_uri overrides the auto-derived http://<reserved-ip> URL with a custom domain — set both this variable and the domain's DNS record, then redeploy.
• Inspect job execution:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/db-init

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for SparkyFitness are listed; every other input is inherited from App_GKE with its standard behaviour.

Group 3 — Application Identity

Variable	Default	Description
application_name	sparkyfitness	Base name for resources. Do not change after first deploy.
application_version	latest	Tags BOTH images identically. Use latest or a v-prefixed tag exactly as published upstream (e.g. v0.17.3).

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit / memory_limit	2000m / 2Gi	Resource limits for the backend (main app).
min_instance_count / max_instance_count	1 / 3	Replica scaling bounds.
container_port	3010	Backend's listening port.

Group 5 — SparkyFitness Application Config

Variable	Default	Description
public_uri	""	Custom-domain override for the frontend URL. Leave empty to use the reserved static LB IP automatically.
app_db_user	sparky_app	Limited-privilege runtime role, self-created by the backend.
disable_signup	false	Disable new self-registration.
admin_email	""	Grants admin to an EXISTING user on startup.
log_level / timezone	ERROR / Etc/UTC	Backend log verbosity / TZ.

Group 7 — SMTP (optional)

Variable	Default	Description
smtp_enabled	false	Enable password-reset/notification email; set all smtp_* fields together.

Group 11 — Jobs & Services

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init job.
additional_services	[]	The frontend is already included automatically; use this for any EXTRA services.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe / liveness_probe	HTTP /api/health, port 3010	Targets the backend (main app).

Group 16 — Database

Variable	Default	Description
db_name	sparkyfitness_db	Database name. Immutable after first deploy.
db_user	sparky	Admin/migration role.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar — resolves to 127.0.0.1 loopback (no TLS needed).

Group 21 — Redis (not used natively)

Variable	Default	Description
enable_redis	true	SparkyFitness does not natively use Redis; the Foundation's generic Redis wiring is deliberately left enabled as a capability for future backend versions. Set it to false to avoid provisioning a cache nothing reads.

---

5. Outputs

Output	Description
service_name	Backend Kubernetes Service name.
namespace	Kubernetes namespace.
frontend_url	Browser-reachable URL of the frontend — open this to access the application.
backend_cluster_url	Cluster-internal URL of the backend API.
database_instance_name / database_name / database_user	Cloud SQL identifiers.
database_password_secret	Secret Manager secret holding the admin DB password.
storage_buckets	Created Cloud Storage buckets (none by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
BETTER_AUTH_SECRET (auto-generated)	Never rotate after users enable 2FA	Critical	Rotating it locks out every user with 2FA enabled.
SPARKY_FITNESS_API_ENCRYPTION_KEY (auto-generated)	Never rotate after first connection	Critical	Rotating it invalidates all stored external-data-source credentials.
db_name / db_user	Set once	Critical	Immutable after first deploy; changing recreates the DB and destroys all data.
Frontend proxy target port	80 (fixed by App_GKE), not container_port	High	Pointing the frontend's SPARKY_FITNESS_SERVER_PORT at 3010 hits a nonexistent Service listener — every /api call hangs.
application_version	Use upstream's exact tag (v0.17.3)	High	A bare 0.17.3 (no v prefix) does not exist upstream — pull fails.
admin_email	Set only after the account exists	Medium	Setting it before signup has no effect.
disable_signup	true after first admin	Medium	Leaving signup open lets anyone with the URL create an account.
public_uri	Set together with real DNS when using a custom domain	Medium	An unreachable/mismatched public_uri breaks CORS/session-origin checks.

---

For the foundation behaviour referenced throughout — namespace model, scaling, ingress, CI/CD, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. SparkyFitness-specific application configuration shared with the Cloud Run variant is described in SparkyFitness_Common.
