Planka on Google Cloud Run
Planka is an open-source, self-hosted, Trello-like kanban board application with a Node.js (Sails.js) backend and a React frontend, used for team and personal project management — boards, lists, cards, due dates, labels, and file attachments. This module deploys Planka on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Planka uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.
1. Overview

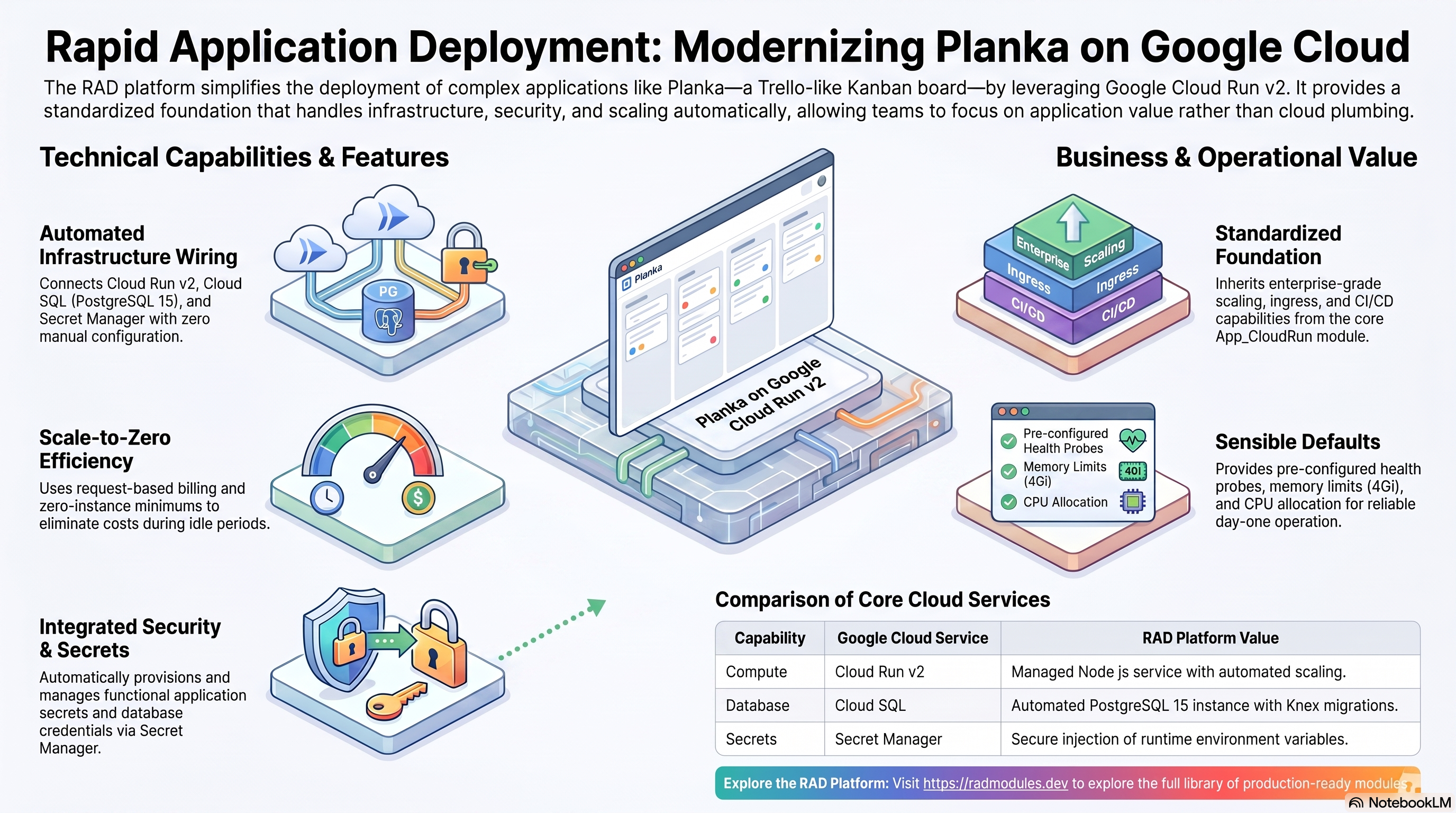

Planka runs as a single Node.js container on Cloud Run v2, serving both its API and its React frontend from one port. The deployment wires together a small, focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | Node.js service, 2 vCPU / 4 GiB by default, scale-to-zero |
| Database | Cloud SQL for PostgreSQL 15 | Planka's Knex query builder supports no other engine |
| Object storage | Cloud Storage | A storage bucket is created for attachments, but not auto-mounted |
| Cache & queue | none | Planka has no Redis or queue dependency — real-time updates ride Socket.io in-process |
| Secrets | Secret Manager | SECRET_KEY and DEFAULT_ADMIN_PASSWORD — both real, functional secrets — plus the database password |
| Ingress | Cloud Run URL | Default run.app URL; optional external HTTPS load balancer + custom domain |
Sensible defaults worth knowing up front:
- PostgreSQL 15 is the only supported engine.
Planka_Commonfixesdatabase_type = "POSTGRES_15"— Knex has no other backend for Planka. - A thin custom build, not the prebuilt image. Planka needs a cloud
entrypoint to compose
DATABASE_URLfrom the Foundation-injectedDB_*values at runtime (the password is a Secret Manager value, unavailable at plan time) and to deriveBASE_URLfrom the service URL, socontainer_image_source = "custom"buildsFROM ghcr.io/plankanban/planka:<version>via Cloud Build. DATABASE_URLis a URL-authority connection string, but SSL is set via separate env vars — not a?sslmode=query parameter. Unlike some Node/Postgres apps in this catalogue (e.g. Logto), Planka's own.env.samplestates Knex does not parse query parameters from the connection string at all. TLS mode is controlled instead by the plainPGSSLMODEandKNEX_REJECT_UNAUTHORIZED_SSL_CERTIFICATEenvironment variables, which node-postgres reads natively — see the Common guide for the full socket/loopback/private-IP branching logic.- Two real, functional application secrets.
SECRET_KEY(session/token signing, required at boot) andDEFAULT_ADMIN_PASSWORD(seeds the initial admin account on first, empty-database boot) are both genuinely consumed by Planka — confirmed against its own source (server/.env.sample,server/db/seeds/default.js). Planka has no forced password-reset prompt, so change the seeded password immediately after first deploy. - Attachments are not persisted by default. A GCS bucket is created but
not auto-mounted at Planka's
/app/datapath — add agcs_volumesentry if uploaded attachments/avatars/backgrounds need to survive a revision restart. Board/card/list data is unaffected — it's stored in PostgreSQL. - Request-based billing by default.
cpu_always_allocated = false,min_instance_count = 0— Planka's real-time updates ride Socket.io in-process on the request-serving process, so it needs no background CPU. - No Redis. Planka has no cache or queue dependency;
enable_redisdefaults tofalse. - No NFS.
enable_nfsdefaults tofalse— Planka needs no POSIX filesystem sharing; the optional GCS bucket viagcs_volumescovers file storage.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names
are reported in the deployment Outputs.
A. Cloud Run — the Planka service
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
# Confirm the injected DB_HOST / DB_IP / BASE_URL on the running revision:
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION" \
--format='value(spec.template.spec.containers[0].env)'
See App_CloudRun for scaling, concurrency, and traffic splitting.
B. Cloud SQL for PostgreSQL 15
Planka stores all boards, lists, cards, and user data in a managed Cloud SQL
for PostgreSQL 15 instance. On first deploy, an initialization Job creates the
application database and role; Planka then runs its own Knex migrations and
seed on every boot via the official image's start.sh.
- Console: SQL → select the instance for connections, backups, flags, metrics.
- CLI:
gcloud sql instances list --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"
C. Cloud Storage
A storage bucket is provisioned automatically for item attachments, avatars,
and backgrounds, but is not mounted into the container by default — see
the Pitfalls table.
- CLI:
gcloud storage buckets list --project "$PROJECT" --filter="name~planka"
D. Secret Manager
Two application secrets — SECRET_KEY and DEFAULT_ADMIN_PASSWORD — plus the
database password are stored here.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~planka"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
E. Networking & ingress
Planka builds all absolute URLs (attachment links, email notifications, and
the optional OIDC redirect URI if SSO is configured) from BASE_URL, which the
cloud entrypoint derives from the service URL.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
F. Cloud Logging & Monitoring
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Planka Application Behaviour
- First-deploy database setup. An initialization Job runs
db-init.shusingpostgres:15-alpine, idempotently creating the application role and database (noCREATEROLE/CREATEDBneeded — Planka's own roles are app-level RBAC rows, not Postgres roles). - Schema migrations and seed on every boot. The official image's own
start.shrunsnode db/init.js(migrations + seed) before starting the server — idempotent, so no separate migration job runs at the platform layer. - Real admin bootstrap credential — no forced reset. Planka seeds
admin@example.comwith the generatedDEFAULT_ADMIN_PASSWORDon first (empty-database) boot. Unlike apps that force a password reset on first login, Planka does not — log in and change the password via Planka's own UI promptly after deploy. DATABASE_URLcomposed by the cloud entrypoint. Because the database password is only available as a runtime Secret Manager value, the cloud entrypoint buildsDATABASE_URLat container startup rather than at plan time, branching on the resolvedDB_HOST(socket directory → private IP; loopback → plain TCP; private IP → encrypted, no cert verification). See Planka_Common for the full detail.- Health path. Startup and liveness probes are configured via the
startup_probe/liveness_probevariables. Planka's ownserver/healthcheck.jstargets the root path/with no auth, and this module'sstartup_probe/liveness_probevariables now correctly default topath = "/"to match. - Inspect job execution:
gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Planka are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | planka | Base name for resources. |
application_version | latest | Used as the PLANKA_VERSION build ARG for the thin custom image. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
container_image_source | custom | Planka needs the cloud-entrypoint wrapper — keep custom. |
container_port | 1337 | Planka's native default port — a single port serves the API and frontend. |
cpu_always_allocated | false | Request-based billing. |
min_instance_count / max_instance_count | 0 / 5 | Scale-to-zero default. |
memory_limit | 4Gi | Planka requires at least 2Gi for reliable operation. |
Group 11 — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
storage_buckets | one storage bucket | Created but not auto-mounted — add gcs_volumes to persist attachments. |
gcs_volumes | [] | Add an entry mounted at /app/data for persistent attachment storage. |
enable_nfs | false | Not needed — Planka has no POSIX filesystem requirement. |
Group 12 — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | POSTGRES_15 | Fixed — Knex supports no other engine. |
db_name / db_user | planka / planka | PostgreSQL database name and application username. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe / liveness_probe | HTTP /, 60s delay | Fixed to Planka's real, unauthenticated health target (per server/healthcheck.js), which plainly GETs / with no path and checks for HTTP 200. |
startup_probe_config / health_check_config | HTTP /, 60s delay | Foundation-level defaults; superseded by startup_probe/liveness_probe above whenever application_config supplies one (it always does here) — effectively inert. |
Group 21 — Redis
| Variable | Default | Description |
|---|---|---|
enable_redis | false | Planka has no cache/queue dependency. |
5. Outputs
| Output | Description |
|---|---|
service_name / service_url | Cloud Run service name and default run.app URL. |
database_instance_name / database_name / database_user / database_host / database_port | Cloud SQL connection details. |
storage_buckets | The storage bucket for attachments. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
db_name / db_user | Set once | Critical | Immutable after first deploy; renaming recreates the DB/user and destroys all data. |
container_image_source | custom (default) | High | "prebuilt" deploys the official image directly, skipping the cloud entrypoint — Planka boots with no DATABASE_URL and cannot reach the database. |
DEFAULT_ADMIN_PASSWORD (generated secret) | Log in and change it immediately after first deploy | Critical | Unlike apps with a forced password-reset prompt, Planka does not force a reset — anyone who obtains the seeded password (e.g. via Secret Manager access) can log in as admin indefinitely until it's changed. |
DATABASE_URL / SSL config | Never hand-edit — controlled by the cloud entrypoint via PGSSLMODE/KNEX_REJECT_UNAUTHORIZED_SSL_CERTIFICATE env vars, NOT a ?sslmode= query param | Critical | Planka has two independent DB connection paths with different SSL mechanisms, confirmed by tracing the actual dependency chain (not just Planka's .env.sample): (1) the migration CLI (server/db/knexfile.js) reads KNEX_REJECT_UNAUTHORIZED_SSL_CERTIFICATE; (2) the running server's Sails ORM (sails-postgresql → machinepack-postgresql) parses DATABASE_URL with Node's legacy url.parse(), which silently drops every query parameter including ?sslmode= — so a URL-embedded sslmode does nothing for the runtime path. With no explicit ssl config, raw pg falls back to the PGSSLMODE environment variable, where require means "encrypt AND verify" (not "encrypt only" like classic libpq) — only PGSSLMODE=no-verify skips certificate verification. Cloud SQL's self-signed cert isn't in Node's CA bundle, so anything but no-verify fails at boot with UNABLE_TO_VERIFY_LEAF_SIGNATURE and the Sails orm hook never loads (confirmed live: two earlier attempts using ?sslmode=no-verify in the URL and PGSSLMODE=require both failed this way before the correct PGSSLMODE=no-verify env var was identified). |
gcs_volumes for attachments | Add explicitly if needed | Medium | Without it, uploaded attachments/avatars/backgrounds live on Cloud Run's ephemeral filesystem and do not survive a revision restart — board/card/list text data is unaffected. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Planka-specific application configuration shared with the GKE variant is described in Planka_Common.
