OnlyOffice on Google Cloud Run

ONLYOFFICE Document Server is an open-source collaborative online office suite for real-time co-editing of text documents, spreadsheets, presentations, PDFs, and forms — a self-hosted alternative to Google Docs / Microsoft Office Online. It is not usually opened directly by end users; instead it is embedded by a host application (Nextcloud, ownCloud, Seafile, or a custom integration) via its API and a shared JWT secret. This module deploys ONLYOFFICE Document Server on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services OnlyOffice uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

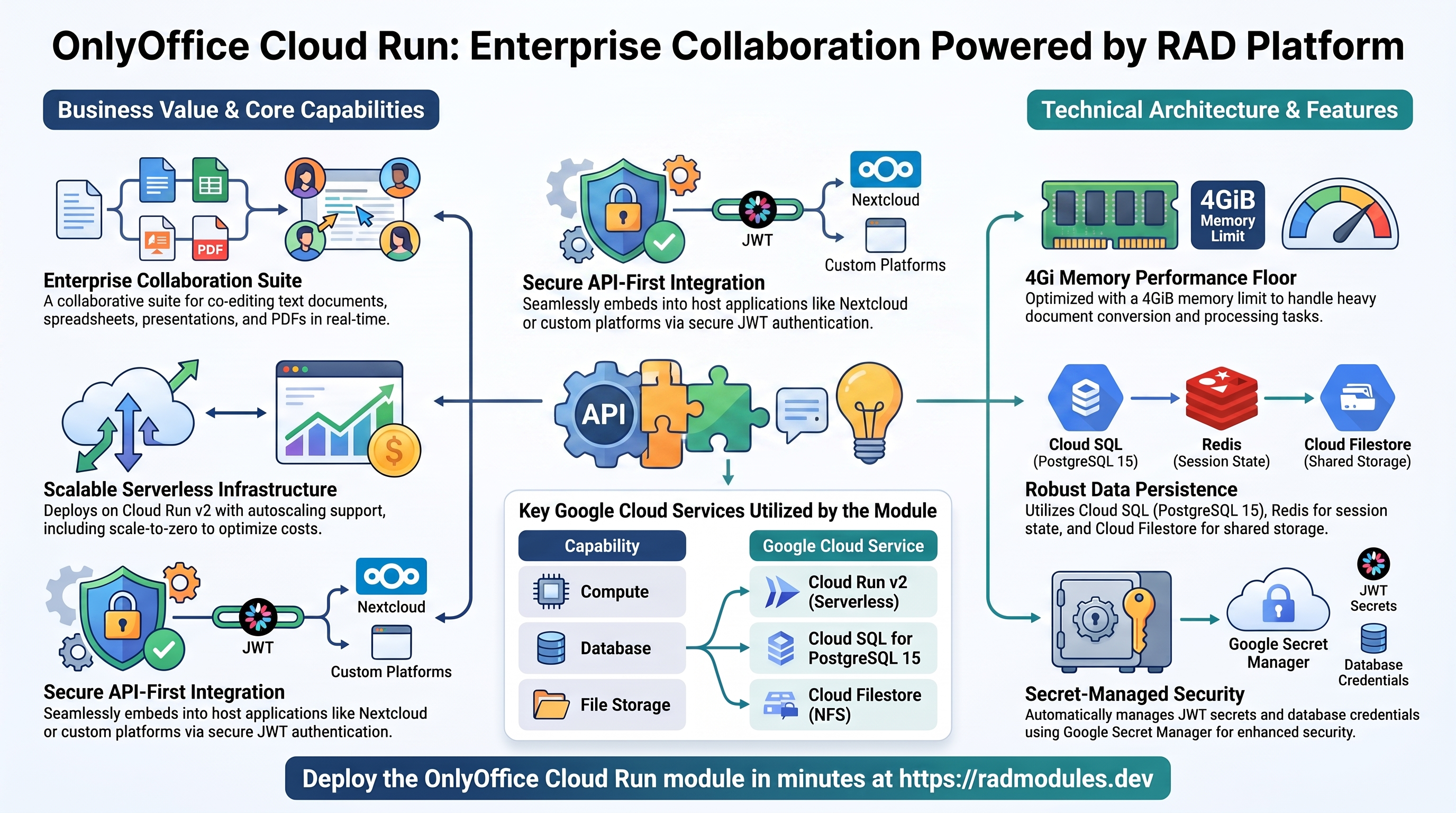

1. Overview

The onlyoffice/documentserver image is "batteries included": it bundles its own converters, nginx, and RabbitMQ (AMQP) under supervisord. This module builds a thin custom wrapper around it and externalizes PostgreSQL (Cloud SQL) and Redis; the bundled RabbitMQ stays internal on localhost.

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Custom-built container, 2 vCPU / 4 GiB by default, serverless autoscaling; scale-to-zero supported
Database	Cloud SQL for PostgreSQL 15	Required — a plan-time guard rejects MySQL and every other engine
Cache / editing state	External Redis	Mandatory — a plan-time guard rejects enable_redis = false; defaults to the co-located NFS-VM Redis when redis_host is blank
File persistence	Cloud Filestore (NFS)	Enabled by default; shared attachment/document storage across instances, mounted at /opt/onlyoffice/storage
Object storage	Cloud Storage	Two buckets by default: a storage bucket declared by OnlyOffice_Common, plus a data bucket via storage_buckets (both gated by create_cloud_storage, which defaults true here since Cloud Run has no block-PVC option)
Secrets	Secret Manager	Auto-generated 48-character JWT_SECRET; database password managed separately
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. A cross-variable plan-time guard in this module's validation.tf rejects any database_type other than POSTGRES_13/14/15/NONE — MySQL and SQL Server are not supported by Document Server.
• Redis is mandatory, not optional. A plan-time precondition fails the deployment if enable_redis = false. With redis_host left blank, enable_nfs must stay true so the co-located NFS-VM IP can serve as the default Redis host.
• NFS is enabled by default (enable_nfs = true, unlike most other Cloud Run modules), because it doubles as shared attachment storage and the default Redis endpoint source.
• JWT_SECRET is generated once and must never be rotated after any host application (Nextcloud, ownCloud, a custom integration) has been configured to embed the editor — rotating it breaks the trust between Document Server and every integration until all of them are updated with the new value.
• Memory floor is 4Gi, not the platform's usual 512Mi–2Gi. The bundled Postgres-client/Redis-client/RabbitMQ/nginx/converter stack under supervisord is heavy and needs the headroom.
• cpu_always_allocated defaults to false (cost-first, request-based billing). The core editing/conversion work runs in-request, so a cold start is survivable, but the bundled document-cache warmth and internal RabbitMQ conversion queue reset on every cold start. Set true (with min_instance_count >= 1) for an always-warm editor.
• The image is custom-built, not prebuilt. container_image_source = "custom" wraps the Docker Hub onlyoffice/documentserver image with a cloud-entrypoint.sh that maps the Foundation's DB_*/REDIS_HOST variables onto Document Server's own convention. application_version = "latest" is pinned to 8.3.3 at build time via an app-specific ONLYOFFICE_VERSION build ARG (the Foundation's injected APP_VERSION is deliberately not used, since it would otherwise win the merge).
• Health checks target /healthcheck, unauthenticated, with a generous first-boot budget (90s initial delay, up to 40 failures) because the bundled stack is slow to become ready.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the OnlyOffice service

OnlyOffice Document Server runs as a single Cloud Run v2 service (the custom-built wrapper image) that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for PostgreSQL 15

OnlyOffice stores document metadata, versions, and application state in a managed Cloud SQL for PostgreSQL 15 instance. The service connects privately through the Cloud SQL Auth Proxy over a Unix socket; no public IP is exposed. On first deploy the built-in db-init job creates the application role, database, and grants — the Document Server then installs its own schema on first boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. External Redis & Cloud Filestore (NFS)

Redis holds session/editing state that must be shared across every OnlyOffice instance — the bundled RabbitMQ stays internal, but Redis is externalized and mandatory (a plan-time guard fails the deployment if enable_redis = false). With redis_host left blank, the Foundation injects the co-located NFS-VM Redis IP (enable_nfs must stay true in that case); set redis_host explicitly to point at a different Redis instance. Cloud Filestore (NFS) is enabled by default and mounted at /opt/onlyoffice/storage for shared attachment/document storage across instances — unlike the GKE variant there is no block PVC option, since Cloud Run instances are stateless and ephemeral.

• Console: Compute Engine → VM instances (the NFS/Redis co-located VM); Filestore → Instances.
• CLI:

  redis-cli -h <redis-host> ping
  # Confirm the resolved Redis/DB env vars in the running revision:
  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].env)'

See App_CloudRun for the NFS-VM discovery model and the Redis-host-falls-back-to-NFS-IP convention.

D. Cloud Storage

Two buckets are provisioned by default: a storage bucket declared by OnlyOffice_Common (for the app's own storage needs) and a data bucket from this module's own storage_buckets default — both gated by create_cloud_storage, which defaults true here (unlike the GKE variant, which defaults it false because persistence there lives on a block PVC + NFS instead).

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~onlyoffice"

See App_CloudRun for GCS Fuse and CMEK options.

E. Secret Manager

One OnlyOffice-specific secret is generated automatically and stored in Secret Manager: JWT_SECRET (48 characters, no special characters), which signs every internal Document Server API request and must be presented by any host application that embeds the editor. The database password is managed separately by the foundation.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~onlyoffice-jwt-secret"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

F. Networking & ingress

The service is reachable at its run.app URL by default. Because Document Server is typically called by a host application's own backend (not directly by end users), keep ingress_settings = "all" unless every caller is inside the VPC. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. OnlyOffice Application Behaviour

• First-deploy database setup, no separate migration job. The built-in db-init job runs using postgres:15-alpine. It resolves the Cloud SQL host (the Auth Proxy Unix-socket directory, falling back to the instance private IP), waits for PostgreSQL to be reachable, creates/updates the application role with the generated password, creates the application database, and grants full privileges — it only provisions the role/database/grants. The Document Server installs its own schema on first boot, so there is no separate migration step. The job is safe to re-run (execute_on_apply = true).
• JWT_SECRET is immutable after integrations are wired up. Generated once (48 characters) and written to Secret Manager. JWT_ENABLED = "true", JWT_HEADER = "Authorization", JWT_IN_BODY = "true" are set automatically by OnlyOffice_Common. Rotating the secret invalidates trust with every host application embedding the editor until each is reconfigured with the new value.
• DB and Redis env-var mapping happens in the baked cloud-entrypoint.sh. It sets DB_TYPE = "postgres" and DB_PWD from the injected DB_PASSWORD (DB_HOST/DB_PORT/DB_NAME/DB_USER already match Document Server's own names), and maps REDIS_HOST/REDIS_PORT/REDIS_AUTH onto REDIS_SERVER_HOST/REDIS_SERVER_PORT/REDIS_SERVER_PASS before exec-ing the upstream /app/ds/run-document-server.sh. Because this logic is baked into the custom image, an edit to cloud-entrypoint.sh needs a rebuild to take effect.
• No traditional sign-up flow. Document Server is not usually opened directly by end users — it is embedded via API calls from a host application (Nextcloud, ownCloud, a custom integration) using the shared JWT secret. There is no admin account to create on first boot; readiness is confirmed via /healthcheck and by the host application successfully opening a document for co-editing.
• Health path. Startup and liveness probes target /healthcheck — the Document Server endpoint that returns true only once nginx and the document services are up and the database is reachable, served unauthenticated. Allow several minutes on first boot (90-second initial delay, 15-second period, up to 40 failures — roughly 10 minutes of headroom while the bundled stack comes up and the schema installs).
• WOPI is off by default. WOPI_ENABLED = "false"; enable it via environment_variables only when integrating with a WOPI host (e.g. SharePoint).
• Inspect job execution and running config:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].env)'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for OnlyOffice are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	onlyoffice	Base name for resources. Do not change after first deploy.
display_name	ONLYOFFICE Document Server	Human-readable name shown in the Console.
description	(set)	Service description.
application_version	latest	Document Server image tag; latest is pinned to 8.3.3 at build time via the ONLYOFFICE_VERSION build ARG.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	custom	Always custom — wraps the Docker Hub onlyoffice/documentserver image with the cloud entrypoint.
container_image	""	Leave blank to use the built custom image.
cpu_limit	2000m	CPU per instance.
memory_limit	4Gi	Memory per instance; the bundled stack needs at least 4Gi.
cpu_always_allocated	false	Cost-first, request-based billing. Trade-off: document-cache warmth and the internal RabbitMQ conversion queue reset on cold start. Set true (+ min_instance_count >= 1) for an always-warm editor.
min_instance_count / max_instance_count	0 / 5	Pod/instance replica bounds.
container_port	80	Document Server's bundled nginx listens on port 80.
execution_environment	gen2	Gen2 required for NFS and GCS Fuse mounts.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	true	Cloud SQL Auth Proxy for socket connections.
enable_image_mirroring	true	Always true — mirrors the Docker Hub base image into Artifact Registry before the custom build.
container_build_config	build the wrapper image	Dockerfile/build-arg configuration; build_args sets ONLYOFFICE_VERSION (see Overview).
traffic_split	[]	Split traffic across revisions for staged rollouts.
container_protocol	http1	HTTP protocol version.
cloudsql_volume_mount_path	/cloudsql	Auth Proxy socket directory.
additional_services / additional_containers	[]	Not used by this module — inert unless explicitly configured.
max_revisions_to_retain	7	Declared for convention parity; not referenced by this module's deployment.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Keep all unless every caller of the Document Server API is inside the VPC.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in. Blocks host-application API calls if enabled.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.
network_name	""	VPC network to use; auto-discovers a single Services_GCP-managed network.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings. DB_TYPE, JWT_ENABLED, JWT_HEADER, JWT_IN_BODY, WOPI_ENABLED are set automatically — do not override JWT_ENABLED/JWT_HEADER/JWT_IN_BODY here.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
explicit_secret_values	{}	Raw sensitive values written directly to Secret Manager at plan time.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.
module_writable_secret_ids	{}	Not used by this module (no post-install hook writes secrets back).

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_file / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. Not used by the default OnlyOffice deployment (schema installation is handled by the Document Server itself). See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Gates both the Common-declared storage bucket and this module's own storage_buckets list. Defaults true here (unlike GKE's false) since Cloud Run has no block-PVC persistence option.
storage_buckets	[{ name_suffix = "data" }]	Additional GCS bucket(s) beyond the auto-provisioned storage bucket.
enable_nfs	true	Enabled by default — shared attachment storage and the fallback Redis host source.
nfs_mount_path	/opt/onlyoffice/storage	Mount path inside the container.
nfs_instance_name / nfs_instance_base_name	"" / app-nfs	Existing NFS VM to use, or the base name for an inline one.
gcs_volumes	[]	GCS Fuse volume mounts (requires gen2).
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Required — a plan-time guard (validation.tf) rejects anything but POSTGRES_13/14/15/NONE. MySQL is not supported.
db_name	onlyoffice	PostgreSQL database name. Immutable after first deploy.
db_user	onlyoffice	Application database user. Password auto-generated in Secret Manager.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation / rotation_propagation_delay_sec	off	DB password rotation.
application_database_name / application_database_user	crappdb / crappuser	Foundation-parity mirror only — this module wires the database through db_name/db_user above, not these; inert unless the module is rewired.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init job (creates the role/database/grants; the Document Server installs its own schema).
cron_jobs	[]	Not used — OnlyOffice has no platform-scheduled recurring tasks.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /healthcheck, 90s delay, 15s period, 40 failures	Generous first-boot budget for the heavy bundled stack.
liveness_probe	HTTP /healthcheck, 120s delay, 30s period, 3 failures	Liveness probe.
startup_probe_config / health_check_config	same path, structured form	Alternative service-level probe definitions; startup_probe/liveness_probe take effect by default.
uptime_check_config	{ enabled=false, path="/healthcheck" }	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Metric alert policies.

Group 21 — Redis Cache & Queue

Variable	Default	Description
enable_redis	true	Required — a plan-time guard rejects false.
redis_host	""	Leave blank to use the co-located NFS-VM Redis IP (requires enable_nfs = true).
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs (db-init).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. OnlyOffice additionally layers its own cross-variable guards in validation.tf: PostgreSQL-only database_type, mandatory enable_redis, redis_host/enable_nfs coupling, min_instance_count <= max_instance_count, and enable_cloudsql_volume vs database_type = "NONE" consistency. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15 (or 13/14)	Critical	Any other engine is rejected at plan time — MySQL is not supported by Document Server.
enable_redis	true	Critical	A plan-time guard rejects false — without shared Redis, session/editing state cannot be coordinated across instances.
redis_host / enable_nfs	Leave redis_host blank only with enable_nfs = true	Critical	Blank redis_host with enable_nfs = false fails at plan time — there is no Redis host to resolve.
JWT_SECRET (auto-generated)	Never change after integrations exist	Critical	Rotating it breaks every host application (Nextcloud/ownCloud/etc.) embedding the editor until all are updated with the new value.
db_name / db_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all data.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup fails the import job.
memory_limit	4Gi	High	The bundled Postgres-client/Redis-client/RabbitMQ/nginx/converter stack under supervisord is heavy; undersizing risks OOM during startup or document conversion.
ingress_settings	all (unless all callers are in-VPC)	High	Document Server's API is normally called by a host application's backend; blocking that traffic breaks every embedded-editor integration.
enable_iap	only when no external host application calls the API	High	IAP blocks all unauthenticated requests, including the host application's Document Server API calls.
enable_cloudsql_volume	true unless database_type = "NONE"	High	A plan-time guard rejects the combination enable_cloudsql_volume = true with database_type = "NONE" — the Auth Proxy sidecar would have no instance to connect to.
cpu_always_allocated	false (cost-first) or true for an always-warm editor	Medium	With false + scale-to-zero, the document-cache and internal RabbitMQ conversion queue reset on every cold start, adding latency to the next editing session.
min_instance_count	1 to avoid cold starts on active editing sessions	Medium	Scale-to-zero (0) adds startup-probe-scale first-request latency after idle, felt by every collaborator opening a document.
create_cloud_storage / storage_buckets	leave defaults unless persistence needs adjusting	Medium	Setting create_cloud_storage = false also removes the Common-declared storage bucket, since both are gated by the same flag.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.
enable_cloud_armor	enable for production	Medium	The Document Server API is publicly reachable without WAF protection.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. OnlyOffice-specific application configuration shared with the GKE variant — the JWT secret, database bootstrap, container image and entrypoint, core application settings, and health probe behaviour — is described in OnlyOffice_Common.
