Wallos on GKE Autopilot

Wallos is an open-source, self-hosted subscription and recurring-expense tracker built on plain PHP 8.3 + php-fpm (no MVC framework). It tracks recurring subscriptions, converts prices across currencies, sends renewal notifications, and supports a household multi-user mode. This module deploys Wallos on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Wallos uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

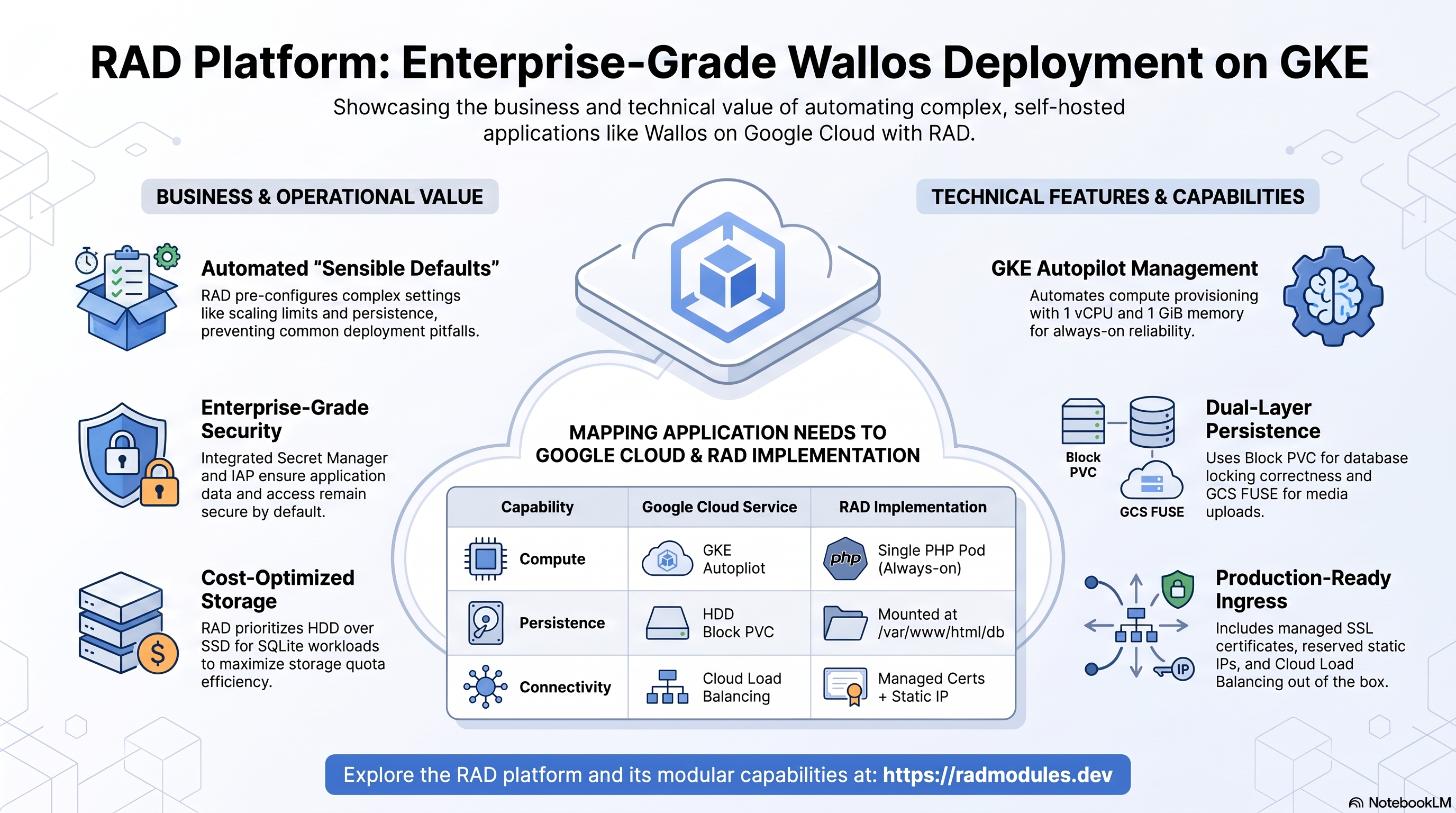

1. Overview

Wallos runs as a single PHP/php-fpm web workload. It is deliberately minimal — no SQL database, no cache, no queue — but it DOES run a real, always-on cron daemon, which drives several of the defaults below:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Single PHP pod, 1 vCPU / 1 GiB by default; min = max = 1 (always-on, never scale to zero)
Persistent state (database)	HDD block PVC (default) or Cloud Storage (GCS FUSE)	Mounted at /var/www/html/db; holds the SQLite database file
Persistent state (uploads)	Cloud Storage (GCS FUSE), always	Mounted at /var/www/html/images/uploads/logos; a StatefulSet PVC only supports one mount_path, spent on the database
Database	None (embedded SQLite)	database_type = NONE; no Cloud SQL is provisioned; confirmed no MySQL/Postgres support exists anywhere in the app
Cache & queue	None	Wallos uses no Redis
Secrets	Secret Manager	No app secrets generated; users live in the SQLite DB
Ingress	Cloud Load Balancing	LoadBalancer Service by default (Wallos is a browser-driven web UI); custom domain + managed certificate available
Background jobs	In-container cron daemon	8 baked-in scheduled tasks (exchange-rate refresh, renewal notifications, an email-verification poll every 2 minutes, etc.) — runs continuously inside the main pod, not as a separate CronJob

Sensible defaults worth knowing up front:

• Two independent persistent paths, no relocation env var for either. Wallos has no Cloud SQL database. Its SQLite database lives at /var/www/html/db/wallos.db; user-uploaded custom provider logos live separately at /var/www/html/images/uploads/logos. Neither path can be relocated via an environment variable.
• HDD block PVC by default for the database. stateful_pvc_enabled = true (default) runs the workload as a StatefulSet with a per-pod PVC (default 10Gi, StorageClass standard — HDD pd-standard, not SSD) mounted at /var/www/html/db; the GCS FUSE volume for that same path is automatically disabled to avoid a double-mount. HDD is deliberate: SQLite needs write-locking correctness, not IOPS, and HDD draws from the much larger DISKS_TOTAL_GB quota instead of the tight SSD_TOTAL_GB quota. The uploads path always uses GCS FUSE regardless, since only one PVC mount_path is available.
• CRITICAL — single always-on replica, not just cold-start tuning. min_instance_count = max_instance_count = 1. Wallos's SQLite database has no multi-writer support (so max = 1 is required), and its baked-in cron daemon only fires scheduled tasks while a pod is actually running (so min = 1 is required). Scaling to zero silently stops every scheduled task with no error.
• Default login is admin / admin. Wallos seeds this on first boot; change it in the web UI immediately after deploy.
• No Redis, no init job. enable_redis = false and no db-init job runs; the pod is ready as soon as the container starts.
• Container port 80. Wallos serves plain HTTP/1.1 on port 80.
• Public-facing by default. service_type = "LoadBalancer" — Wallos is a browser-driven web UI, not an internal service. enable_custom_domain = true and reserve_static_ip = true let you serve a custom hostname with a Google-managed certificate.
• Prebuilt image. bellamy/wallos is a genuine, third-party-maintained "latest"-tagged image (there is no official Wallos-project image); no Dockerfile or Cloud Build step is used. container_image_source = "prebuilt" is explicitly forwarded to the foundation.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Wallos workload

Wallos runs as a single-replica StatefulSet (the default, since stateful_pvc_enabled = true) or a Deployment (if the PVC is disabled) scheduled on Autopilot, which bills for the CPU/memory the pod actually requests.

• Console: Kubernetes Engine → Workloads → select the Wallos workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the Service and any external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl get statefulset,pvc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud Storage & block PVC — persistent state

Wallos has no Cloud SQL database. Its two persistent paths are backed differently:

• Database (/var/www/html/db/wallos.db): by default a block PersistentVolumeClaim (stateful_pvc_enabled = true, 10Gi, StorageClass standard / HDD); if the PVC is disabled, a dedicated Cloud Storage bucket mounted via GCS FUSE through the CSI driver instead.

• Uploads (/var/www/html/images/uploads/logos): always a dedicated Cloud Storage bucket mounted via GCS FUSE, regardless of the PVC setting.

• Console: Cloud Storage → Buckets; or Kubernetes Engine → Storage → PVCs.

• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~wallos"
  kubectl get pvc -n "$NAMESPACE"                              # database PVC (default layout)
  gcloud storage ls gs://<uploads-bucket>/                      # uploaded logo files

See App_GKE for CMEK options, GCS FUSE, and StatefulSet PVCs.

C. Secret Manager

Wallos generates no application secrets — there is no encryption key or JWT secret to manage, because all identity state lives in the SQLite database. Secret Manager is still used by the foundation for platform-managed secrets (e.g. CI/CD tokens if configured).

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~wallos"

See App_GKE for the Secret Store CSI integration and rotation.

D. Networking & ingress

By default the Service is LoadBalancer, with enable_custom_domain = true and reserve_static_ip = true so an Ingress with a Google-managed certificate can serve a supplied hostname on a stable IP.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

E. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available. Wallos's cron daemon runs in-process, so its scheduled-task activity (or failures) is visible only in the pod's own logs — there is no separate CronJob to inspect.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Wallos Application Behaviour

• No first-deploy database setup. There is no db-init job and no Cloud SQL instance. On first start Wallos creates its SQLite database at /var/www/html/db/wallos.db if it does not already exist and seeds the default admin/admin user.
• State persistence. Subscriptions, categories, settings, and users live entirely in /var/www/html/db/wallos.db on the database mount (PVC by default, or GCS FUSE bucket), surviving restarts and redeploys. Custom provider logos persist separately on the always-GCS-FUSE uploads mount.
• Default credentials must be changed. The seeded admin/admin login is well-known. Log in and change the password (and ideally the username) in the web UI immediately after the first deploy.
• Single-writer constraint. The embedded SQLite database does not support concurrent writers. Keep min_instance_count = max_instance_count = 1; the StatefulSet block PVC gives proper file locking but is still single-replica.
• Always-on cron daemon — not request-triggered. Wallos's 8 baked-in scheduled tasks (exchange-rate refresh, renewal notifications, an email-verification poll every 2 minutes, etc.) run inside the same pod continuously. This is why min_instance_count = 1 is required — scaling to zero would stop these tasks entirely.
• Health path. Startup and liveness probes target / — Wallos's unauthenticated login page. bellamy/wallos documents no dedicated /health endpoint, so this is a coarse readiness signal (verify at first deploy):

  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- wget -qO- -S http://localhost:80/ 2>&1 | head -1

• No Redis. enable_redis = false; Wallos is a self-contained app with no queue or cache beyond its own cron daemon. The App_GKE default of enable_redis = true is explicitly overridden.
• stateful_fs_group may need adjusting. bellamy/wallos's exact runtime UID/GID was not confirmed during research; the default leaves fsGroup unset (0). If the pod hits a permission error writing to the database PVC, inspect the running container to find the actual UID/GID.
• Prebuilt image needs imagePullPolicy = Always only if mirrored. Since enable_image_mirroring = true re-hosts the same upstream digest into Artifact Registry, App_GKE still sets imagePullPolicy = Always for mirrored images so a version bump is never served stale from node cache.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Wallos are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	wallos	Base name for resources. Do not change after first deploy.
application_version	latest	Wallos image tag — bellamy/wallos:latest is a genuine "latest" release.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per pod.
memory_limit	1Gi	Memory per pod; covers php-fpm workers plus the always-running cron daemon.
min_instance_count	1	CRITICAL — must stay 1. The cron daemon only fires while a pod is running.
max_instance_count	1	CRITICAL — must stay 1. SQLite has no multi-writer support.
container_port	80	Wallos's HTTP/1.1 listener.
enable_cloudsql_volume	false	Wallos has no Cloud SQL; leave false.
enable_image_mirroring	true	Mirror the Wallos image into Artifact Registry.
container_image_source	prebuilt	Forwarded to the foundation — App_GKE's own default (custom) would otherwise silently win and trigger a from-source build with no Dockerfile.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	Wallos is a browser-driven web UI, so this defaults to external access.
workload_type	null	Auto-resolves to StatefulSet when stateful_pvc_enabled = true (the default), else Deployment.
session_affinity	None	Single replica, so sticky routing is unnecessary.

Group 7 — StatefulSet

Variable	Default	Description
stateful_pvc_enabled	true	Recommended default — stores the database on a block PVC instead of GCS FUSE (SQLite file-locking correctness).
stateful_pvc_size	10Gi	Per-pod PVC storage size — Wallos's SQLite database is small.
stateful_pvc_mount_path	/var/www/html/db	Fixed — the directory holding Wallos's SQLite database file.
stateful_pvc_storage_class	standard	HDD pd-standard — SQLite needs write-locking correctness, not SSD IOPS; avoids the tight SSD_TOTAL_GB quota.
stateful_fs_group	0 (unset)	bellamy/wallos's runtime UID/GID was not confirmed during research; adjust if the pod hits a PVC permission error.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	true	Protect availability during node upgrades.
pdb_min_available	1	Minimum pods available during voluntary disruptions.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	HTTP / 15s delay	Startup probe; no dedicated /health endpoint is documented for this image.
liveness_probe	HTTP / 30s delay	Liveness probe on the unauthenticated login page.
uptime_check_config	{enabled=false, path="/health"}	Cloud Monitoring uptime check; disabled by default.
alert_policies	[]	Optional metric alert policies.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	NFS is off by default; not needed for Wallos.
nfs_mount_path	/mnt/nfs	Mount path inside the container.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	Create the Wallos db and uploads buckets (and any extra storage_buckets).
storage_buckets	[]	Additional buckets to provision.
gcs_volumes	[]	Extra GCS FUSE mounts. The db (only when the PVC is disabled) and uploads (always) volumes are added automatically.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 15 — Redis Cache & Queue

Variable	Default	Description
enable_redis	false	Wallos uses no Redis; the App_GKE default of true is overridden to false.

Group 16 — Database Backend

Not applicable — Wallos has no SQL database. database_password_length and db_name / db_user are forwarded to the foundation only for compatibility; database_type is fixed to NONE by Wallos_Common.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision Ingress for custom hostnames + managed certificate.
application_domains	[]	Hostnames to serve.
reserve_static_ip	true	Stable external IP across redeploys.

Group 20 — Identity-Aware Proxy (IAP)

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of Wallos.
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Wallos.
storage_buckets	Created Cloud Storage buckets (db and uploads).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs	Names of any init jobs (empty by default).
statefulset_name	Name of the StatefulSet (default layout).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — IAP with no OAuth credentials, min_instance_count > max_instance_count, workload_type = Deployment alongside stateful_pvc_enabled = true, ResourceQuota memory values without binary unit suffixes. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
min_instance_count	1	Critical	Scaling to zero silently stops Wallos's cron daemon — renewal notifications and every other scheduled task stop firing, with no error anywhere.
max_instance_count	1	Critical	>1 puts concurrent writers on the single SQLite database, corrupting it.
db / uploads volumes (PVC/bucket)	Never delete	Critical	The embedded SQLite DB and custom logos live here; deleting either destroys that state permanently.
admin / admin (seeded login)	Change on first login	Critical	Leaving the default credential lets anyone who can reach the service take full control.
stateful_pvc_mount_path	/var/www/html/db	High	Must match the SQLite file's fixed directory; a mismatch stores the DB on ephemeral disk and loses state on restart.
stateful_pvc_storage_class	standard (HDD)	Medium	standard-rwo (SSD) draws from the tight, quota-constrained SSD_TOTAL_GB pool for no IOPS benefit SQLite actually needs.
stateful_pvc_enabled + GCS FUSE for the database	Let Common disable GCS FUSE	High	Both mounted at the same database path double-mount; Common auto-sets enable_gcs_db_volume = false when the PVC is on — do not force both.
container_port	80	High	Wallos listens on 80; a different port makes the startup probe fail and the pod never becomes Ready.
startup_probe / liveness_probe path	/	Medium	No dedicated /health endpoint is documented for bellamy/wallos — if the app ever gates its root path behind auth, the probe path needs adjusting.
container_image_source	prebuilt (forwarded)	High	If not forwarded, App_GKE's own default (custom) silently wins and triggers a from-source Kaniko build against an image with no Dockerfile — the build fails.
enable_cloudsql_volume	false	Medium	Wallos has no Cloud SQL; enabling adds a useless Auth Proxy sidecar.
enable_redis	false	Medium	Wallos has no Redis; the App_GKE default true is overridden — leaving it on wires an unused dependency.
enable_iap	credentials required	High	Enabling IAP without iap_oauth_client_id/secret silently exposes the service unauthenticated (blocked by a plan-time guard).
stateful_fs_group	Verify at first deploy	Medium	Runtime UID/GID for bellamy/wallos was not confirmed during research; a permission-denied writing to the database PVC means this needs setting explicitly.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Wallos-specific application configuration shared with the Cloud Run variant is described in Wallos_Common.
