Cal.diy on Google Cloud Run

Cal.diy is the MIT-licensed, self-hostable fork of Cal.com — the open-source scheduling platform used by millions worldwide to eliminate back-and-forth meeting coordination. This module deploys Cal.diy on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Cal.diy uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

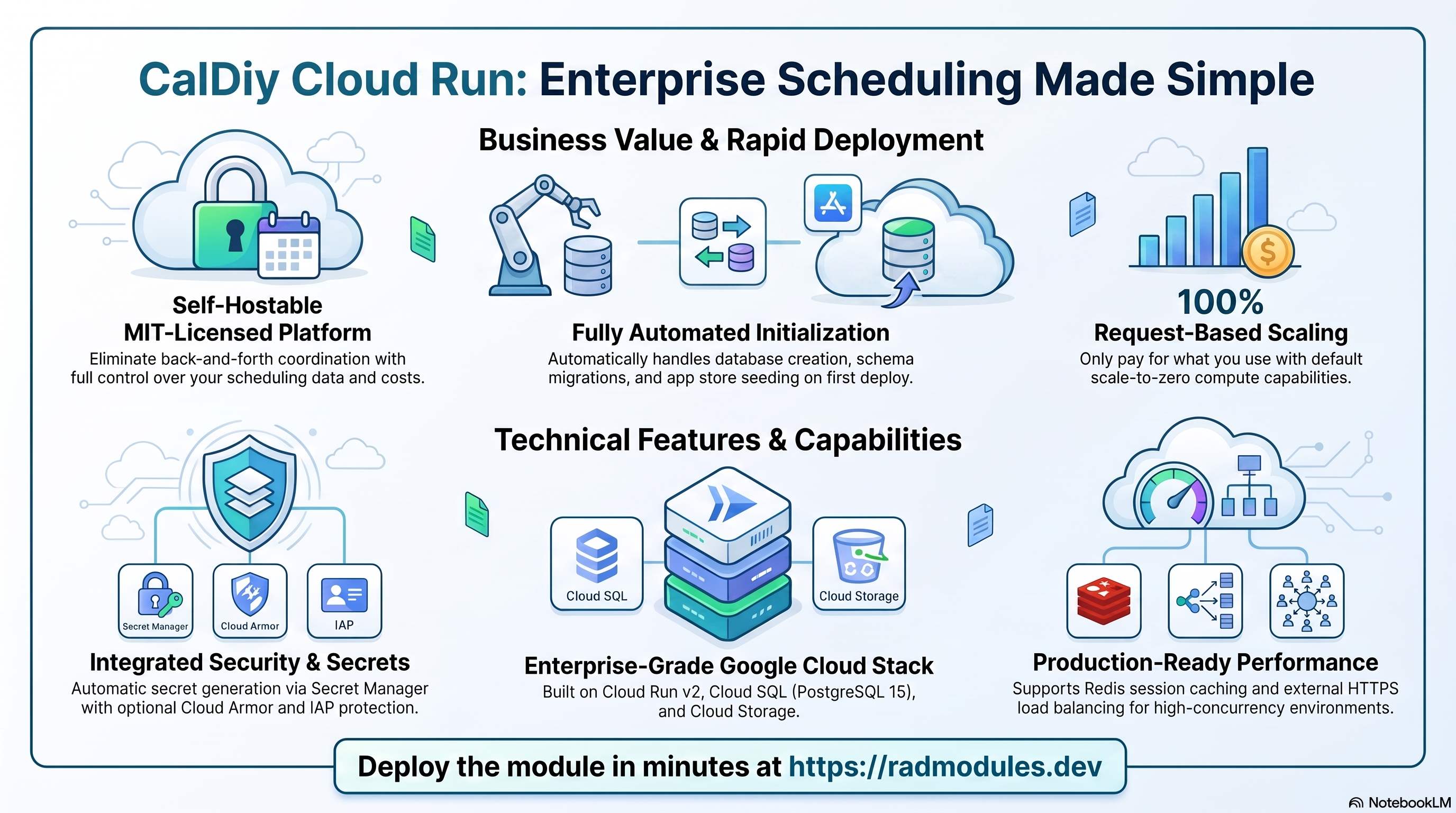

1. Overview

Cal.diy runs as a Next.js (Node.js) container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Next.js service, 2 vCPU / 2 GiB by default, request-based autoscaling
Database	Cloud SQL for PostgreSQL 15	Required — Cal.diy uses Prisma ORM targeting PostgreSQL
Object storage	Cloud Storage	A data bucket provisioned by default
Secrets	Secret Manager	Auto-generated NEXTAUTH_SECRET and CALENDSO_ENCRYPTION_KEY
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL, optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. Selecting MySQL or NONE breaks startup.
• Scale-to-zero is the default (min_instance_count = 0). Cal.diy's first-boot startup takes 4–5 minutes; set min_instance_count = 1 for production to avoid cold-start latency.
• A custom wrapper image is built by default. CalDiy_Common always sets image_source = "custom" and provides a Dockerfile. The entrypoint assembles DATABASE_URL from the DB_* environment variables injected by the platform, making the connection robust regardless of which image version is deployed.
• Three initialization jobs run on first deploy: db-init (PostgreSQL setup), db-migrate (Prisma schema migrations), and seed-app-store (seeds the Cal.diy app store table). All are idempotent.
• NEXTAUTH_SECRET and CALENDSO_ENCRYPTION_KEY are generated automatically and stored in Secret Manager; you never set them in plain text.
• NEXT_PUBLIC_WEBAPP_URL and NEXTAUTH_URL are auto-computed from the predicted Cloud Run service URL. Override via environment_variables when using a custom domain.
• calcom/cal.diy has no latest tag — always pin application_version to a versioned release (e.g., v6.2.0).
• Redis is disabled by default. NextAuth.js sessions are stored in PostgreSQL. Enable Redis for high-concurrency multi-instance deployments.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Cal.diy service

Cal.diy runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for PostgreSQL 15

Cal.diy stores all application data (bookings, users, schedules, integrations) in a managed Cloud SQL for PostgreSQL 15 instance. The service connects privately through the Cloud SQL Auth Proxy over a Unix socket (no public IP). On first deploy a sequence of Cloud Run Jobs creates the database and user, runs Prisma schema migrations, and seeds the app store.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Cloud Storage

A default Cloud Storage bucket (suffix data) is provisioned and the service account is granted access automatically. Cal.diy does not require shared NFS storage by default — the database stores all booking state.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<data-bucket>/          # bucket name is in the Outputs

See App_CloudRun for GCS Fuse, NFS, and CMEK options.

D. Secret Manager

NEXTAUTH_SECRET (NextAuth.js session signing) and CALENDSO_ENCRYPTION_KEY (Cal.diy data encryption) are generated automatically and stored as Secret Manager secrets. The database password is also managed here. Secrets are injected into the service at runtime; plaintext never appears in configuration.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

E. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Cal.diy Application Behaviour

• First-deploy initialization sequence. Three Cloud Run Jobs execute in order before the service serves traffic:

  Job	Image	Purpose
  db-init	postgres:15-alpine	Creates the PostgreSQL database and user, grants privileges
  db-migrate	Cal.diy app image	Runs prisma migrate deploy to apply the full schema
  seed-app-store	Cal.diy app image	Seeds the App table with available integrations

  All three are idempotent and safe to re-run. Inspect their executions:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

• DATABASE_URL assembly. The entrypoint script assembles DATABASE_URL and DATABASE_DIRECT_URL from DB_* environment variables at container start, then launches the Next.js server. This makes database connectivity independent of which image variant is deployed.

• Startup probe. Health probes target /api/auth/session (HTTP 200 when NextAuth is ready). CalDiy_Common sets a 6-minute total startup window (initial_delay=180s, failure_threshold=18, period=10s) to accommodate replace-placeholder.sh (~2.5 min), db-migrate (~60s), and seed-app-store (~30s) that run on the first boot inside the container's start.sh.

• Public URL wiring. NEXT_PUBLIC_WEBAPP_URL and NEXTAUTH_URL are auto-computed from the predicted Cloud Run service URL. Override both in environment_variables when using a custom domain so OAuth callbacks and booking links point to the correct host.

• Email (SMTP). Cal.diy uses SMTP for booking confirmations, cancellation notices, reminders, and password resets. Configure SMTP_HOST, SMTP_PORT, SMTP_USER, EMAIL_FROM in environment_variables and store SMTP_PASSWORD as a secret_environment_variables reference before going live.

• No scheduled tasks required. Cal.diy does not require separately scheduled background jobs — bookings and reminders are handled by Next.js API routes.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Cal.diy are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	caldiy	Base name for resources. Do not change after first deploy.
display_name	Cal.com Scheduling	Friendly name shown in the Console.
description	(set)	Service description.
application_version	v6.2.0	Cal.diy image version tag — no latest tag exists, always pin to a versioned release.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	custom	custom builds the wrapper image via Cloud Build (required for Cloud Run — assembles DATABASE_URL); prebuilt deploys the official image directly.
container_image	""	Override container image URI. Leave empty to use default.
cpu_limit	2000m	CPU per instance.
memory_limit	2Gi	Memory per instance; raise to 4Gi for production multi-user load.
container_port	3000	Cal.diy's native Next.js port. Do not change.
execution_environment	gen2	Gen2 recommended; required for NFS and GCS Fuse mounts.
timeout_seconds	300	Maximum duration per request.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy for socket connections.
enable_image_mirroring	true	Mirror the Cal.diy image into Artifact Registry.
min_instance_count	0	Minimum instances (0 = scale-to-zero). Set to 1 to avoid cold-start latency in production.
max_instance_count	5	Maximum instances.
traffic_split	[]	Split traffic across revisions for staged rollouts. All entries must sum to 100.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Which networks may reach the service: all, internal, or internal-and-cloud-load-balancing.
vpc_egress_setting	PRIVATE_RANGES_ONLY	How outbound traffic is routed through the VPC connector.
enable_iap	false	Require Google sign-in via Identity-Aware Proxy.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	SMTP skeleton	Plain-text settings. Set SMTP_HOST, SMTP_PORT, SMTP_USER, EMAIL_FROM here. Also set NEXT_PUBLIC_WEBAPP_URL once a custom domain is known.
secret_environment_variables	{}	Map of env var → Secret Manager secret name. Use for SMTP_PASSWORD.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification period.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy. Set false after a successful import.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB with Cloud Armor WAF. Required for custom domains and DDoS protection.
admin_ip_ranges	[]	CIDRs exempted from WAF rules.
application_domains	[]	Custom hostnames for the external load balancer. When set, also update NEXT_PUBLIC_WEBAPP_URL and NEXTAUTH_URL.
enable_cdn	false	Enable Cloud CDN on the LB backend. Requires enable_cloud_armor.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Provision the default data bucket.
storage_buckets	[{ name_suffix = "data" }]	Additional buckets to provision.
enable_nfs	false	NFS is not required for Cal.diy. Enable only if custom shared storage is needed (requires gen2).
gcs_volumes	[]	GCS Fuse mounts.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Fixed — do not change. Cal.diy requires PostgreSQL.
db_name	calcom	Database name. Immutable after first deploy.
db_user	calcom	Application user. Immutable after first deploy.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation / rotation_propagation_delay_sec	off	DB password rotation.
db_host_env_var_name / db_name_env_var_name / db_user_env_var_name / db_port_env_var_name / service_url_env_var_name	""	Alias env var names alongside the standard DB_* variables.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init, db-migrate, and seed-app-store jobs.
cron_jobs	[]	Recurring Cloud Run Jobs triggered by Cloud Scheduler. Cal.diy does not require scheduled tasks by default.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /api/auth/session, initial_delay=180s, failure_threshold=18	Generous window for first-boot start.sh (URL rewrite + migrations + seed).
liveness_probe	HTTP /api/auth/session, initial_delay=60s	Liveness probe after startup.
uptime_check_config	disabled, path /api/auth/session	Cloud Monitoring uptime check.
alert_policies	[]	Metric alert policies.

Group 21 — Redis Cache

Variable	Default	Description
enable_redis	false	Use Redis for session caching. Recommended when max_instance_count > 1.
redis_host	""	Redis endpoint. Required when enable_redis = true.
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15	Critical	Cal.diy requires PostgreSQL with Prisma; MySQL or NONE breaks schema migrations and startup.
container_port	3000	Critical	Cal.diy's Next.js server listens on 3000; any other value misdirects Cloud Run health checks and traffic routing.
enable_cloudsql_volume	true	Critical	Cal.diy connects via Unix socket; disabling removes the socket and all DB connections fail.
db_name / db_user	set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans existing data.
application_version	pinned release	Critical	calcom/cal.diy has no latest tag; an invalid version fails the image pull.
NEXT_PUBLIC_WEBAPP_URL	match public URL	Critical	Cal.diy embeds this in Next.js static chunks via replace-placeholder.sh; a mismatch breaks OAuth callbacks and booking links.
NEXTAUTH_URL	match public URL	Critical	NextAuth validates OAuth redirect URIs against this; a mismatch blocks all logins.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job and may overwrite live data on subsequent applies.
startup_probe.initial_delay_seconds	180 (via CalDiy_Common)	High	Cal.diy start.sh runs URL rewrite (~2.5 min) + Prisma migrations + seed before serving requests; too short a window causes a restart loop.
startup_probe.failure_threshold	18 at period=10s	High	Gives ~6 minutes total; reducing below 12 kills the container before initialization completes.
container_image_source	custom	High	Cloud Run requires the wrapper image that assembles DATABASE_URL; using prebuilt without the wrapper entrypoint leaves DATABASE_URL unset and all DB queries fail.
memory_limit	2Gi minimum	High	Cal.diy startup (URL rewrite + migrations) requires ≥ 2 GiB; OOM kills before the app is ready.
enable_redis	true for multi-instance	High	Without Redis, sessions are per-instance; users are logged out when scale-to-zero or instance rotation occurs.
redis_host	required when enable_redis=true	High	Empty redis_host with Redis enabled injects a malformed URL; session operations fail at runtime.
min_instance_count	1 for production	Medium	Scale-to-zero is the default; Cal.diy's 4–5 minute cold start adds unacceptable latency for production scheduling.
SMTP_HOST / EMAIL_FROM	real SMTP config	Medium	Without valid SMTP, booking confirmations, reminders, and password resets are never delivered.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Medium	If using Memorystore Redis, its private IP may not be in default VPC ranges; change to ALL_TRAFFIC or ensure correct VPC routing.
organization_id	set explicitly for VPC-SC	Medium	VPC-SC perimeter is only activated when organization_id is set; enable_vpc_sc = true alone has no effect.
execution_environment	gen2	Medium	gen1 does not support NFS mounts; if enable_nfs = true, gen2 is required.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Cal.diy-specific application configuration shared with the GKE variant is described in CalDiy_Common.
