Plane on Google Cloud Run

Plane is an open-source project-management platform — a Jira / Linear alternative for issues, cycles, modules, and roadmaps. This module deploys Plane on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Plane uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

1. Overview

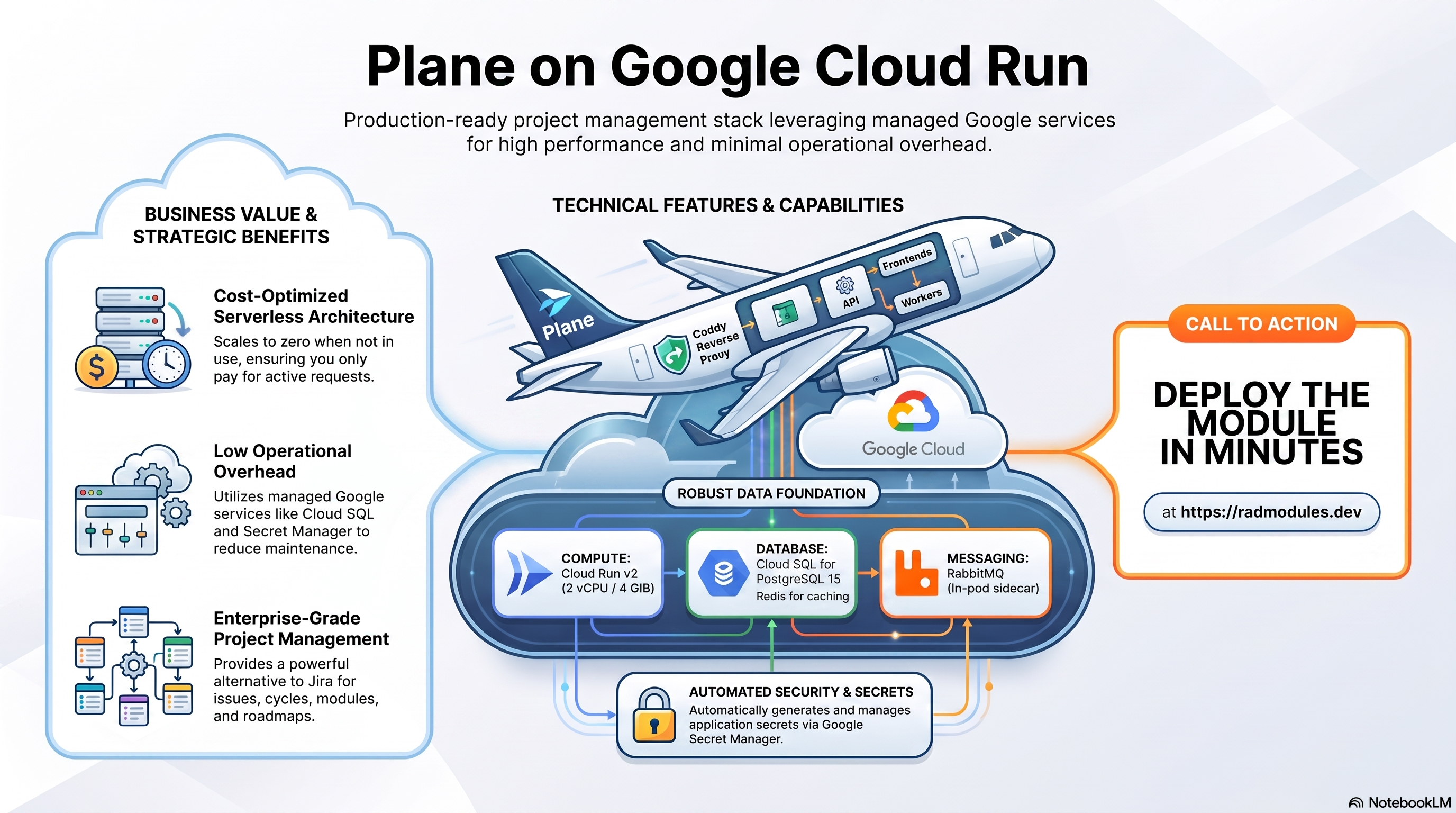

Plane's upstream self-host stack is multi-service: web / space / admin (frontends), api (Django/gunicorn), worker + beat (Celery), live (real-time collaboration), and a migrator job, plus PostgreSQL, Redis, RabbitMQ, and S3-compatible object storage. This module deploys Plane's published all-in-one community image (makeplane/plane-aio-community), which bundles every sub-service behind an internal Caddy reverse proxy on port 80 via supervisord — so one Cloud Run service exposes the whole app. The deployment wires together:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	All-in-one container (api + workers + frontends + migrator), 2 vCPU / 4 GiB by default
Message broker	RabbitMQ in-pod sidecar	`rabbitmq:3.13-management-alpine` at `127.0.0.1:5672` — mandatory for Celery
Database	Cloud SQL for PostgreSQL 15	Plain PostgreSQL, no extensions required
Cache / task queue backend	Redis	Enabled by default; co-hosted on the NFS server VM when no external host is given
Shared files	Filestore / self-managed NFS	Required for the Redis co-location (gen2 execution environment)
Object storage	Cloud Storage	A dedicated `storage` bucket is provisioned — S3 upload wiring is a documented TODO
Secrets	Secret Manager	`SECRET_KEY`, `LIVE_SERVER_SECRET_KEY`, and the DB password managed automatically
Ingress	Cloud Run URL / Cloud Load Balancing	Default `run.app` URL, optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

PostgreSQL 15 is the fixed engine. Plane is a Django application; database_type = "POSTGRES_15" and no other engine works.
RabbitMQ is mandatory and runs as an in-pod sidecar. Plane's start.sh exits non-zero if AMQP_URL is empty. AMQP (TCP 5672) is a non-HTTP protocol that Cloud Run service-to-service networking cannot carry, so the broker shares the pod at 127.0.0.1:5672. Broker state is ephemeral (queue durability is a documented TODO).
Custom build. A thin wrapper Dockerfile layers a platform entrypoint on the AIO image; the entrypoint composes the DATABASE_URL / REDIS_URL / AMQP_URL connection strings Plane expects from the discrete DB_* / REDIS_* / RABBITMQ_* values the foundation injects.
application_version defaults to stable. The upstream image has no latest tag — a latest input is automatically mapped to stable at build time.
Cold-start by default. cpu_always_allocated = false and min_instance_count = 0 (request-based billing, scale-to-zero). Celery notifications, webhooks, and exports defer until the next request wakes an instance — set cpu_always_allocated = true and min_instance_count = 1 for continuous background processing.
Two application secrets are auto-generated in Secret Manager: Django SECRET_KEY (50 chars) and LIVE_SERVER_SECRET_KEY (40 chars, real-time collaboration auth).
A db-init job runs on every apply to idempotently create the Plane database and user; schema migrations are run by the AIO image's own migrator step on startup.
File uploads are a TODO. Plane needs an S3-compatible endpoint; the GCS storage bucket exists but GCS S3-interop HMAC keys are not yet wired. Issues, projects, and cycles work without it — attachments and avatars do not.
Health probes target /health through the internal Caddy proxy on port 80.

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Plane service (with the RabbitMQ sidecar)

Plane runs as a single Cloud Run v2 service. The main container is the all-in-one image (supervisord runs migrator → api / frontends / live + Celery worker/beat behind Caddy on :80); a second mq sidecar container runs RabbitMQ. The main container's startup waits on the sidecar's TCP 5672 probe.

Console: Cloud Run → select the service for revisions, traffic, logs, and metrics. The sidecar appears under the revision's Containers tab.

CLI:

gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for PostgreSQL 15

Plane stores workspaces, projects, issues, cycles, and users in a managed Cloud SQL for PostgreSQL 15 instance. On first deploy a db-init Job creates the application database and user; the AIO image's migrator step then applies Django migrations on every container start. The platform entrypoint connects over the private TCP IP with sslmode=require (the Cloud SQL socket volume is mounted, but Plane's Django/psycopg uses the composed DATABASE_URL).

Console: SQL → select the instance for connections, backups, flags, metrics.

CLI:

gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Redis (Celery backend and cache)

Redis backs Plane's cache and Celery result store. When no external redis_host is configured, the NFS server VM co-hosts Redis and its IP is resolved at runtime (the entrypoint substitutes the $(NFS_SERVER_IP) placeholder before composing REDIS_URL).

Console: Memorystore → Redis (if using a managed instance); Compute Engine → VM instances (NFS/Redis VM).

CLI:

redis-cli -h <redis-host> ping
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50 | grep "Composed REDIS_URL"

D. Cloud Storage

A dedicated storage bucket (gcs-<service-name>-storage) is provisioned for Plane file uploads. Upload wiring is a TODO: Plane requires an S3-compatible endpoint, and while AWS_S3_ENDPOINT_URL points at https://storage.googleapis.com, the GCS S3-interoperability HMAC keys are not provisioned — supply AWS_ACCESS_KEY_ID / AWS_SECRET_ACCESS_KEY via environment_variables (or use an external S3 bucket) to enable attachments.

Console: Cloud Storage → Buckets.

CLI:

gcloud storage buckets list --project "$PROJECT" --filter="name~plane"
gcloud storage ls gs://<storage-bucket>/

E. Secret Manager

Three secrets are managed automatically: the Django SECRET_KEY, the LIVE_SERVER_SECRET_KEY (real-time collaboration auth), and the Cloud SQL password. All are injected at runtime; plaintext never appears in configuration.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~plane"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

F. Networking & ingress

The service is reachable at its run.app URL by default; the predicted URL is injected as WEB_URL / DOMAIN_NAME / CORS_ALLOWED_ORIGINS so OAuth redirects, CORS, and email links work out of the box. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on — if you do, the domain must match those URL variables.

Console: Cloud Run (service URL); Network services → Load balancing.

CLI:

gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs (including supervisord output from every bundled sub-service and the mq sidecar) flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with an optional uptime check against /health (disabled by default) and optional alert policies.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Uptime checks.

CLI:

gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

3. Plane Application Behaviour

First-deploy database setup. A db-init Job (postgres:15-alpine) idempotently creates the Plane database and user, grants privileges (including GRANT <user> TO postgres so ownership can be set), and shuts down its Cloud SQL Proxy sidecar cleanly. It runs on every apply and is safe to re-run.
Migrations run on startup, not in an init job. The AIO image's supervisord runs a migrator program (manage.py migrate) before the api and frontends come up. The startup probe allows up to ~5 minutes (30 s initial delay + 30 × 10 s failures) for a cold first boot.
Connection URLs are composed by the entrypoint. The platform entrypoint builds DATABASE_URL (private-IP TCP, sslmode=require; loopback with sslmode=disable on GKE), REDIS_URL (resolving $(NFS_SERVER_IP)), and AMQP_URL (from the sidecar's injected host), then execs Plane's bundled /app/start.sh. Look for the Composed DATABASE_URL / REDIS_URL / AMQP_URL log lines when debugging.
RabbitMQ is mandatory. Plane's start.sh validates AMQP_URL and exits if it is empty. The sidecar's broker state is ephemeral — queued Celery tasks are lost on instance recycle (documented hardening TODO).
First-run setup — God Mode. Open <web_url>/god-mode/ to create the instance admin and configure the instance (the entrypoint patches the internal Caddyfile with a 308 redirect from /god-mode to /god-mode/, working around a Remix SPA basename issue). Then sign up at the root URL and create your first workspace.
File uploads fail until S3 storage is wired. Everything else (issues, projects, cycles, modules) works; attachments and avatars need real S3 credentials (see §2D).
Cold-start trade-off. Under the default cpu_always_allocated = false + min = 0, background Celery work (notifications, webhooks, exports) runs only while an instance is awake. For teams relying on timely notifications, flip to cpu_always_allocated = true + min_instance_count = 1.
Health path. Startup and liveness probes and the uptime check target /health on port 80 (the internal Caddy proxy).

Verification:

curl -s -o /dev/null -w "%{http_code}\n" "$SERVICE_URL/health"
gcloud run services logs read <service-name> --region "$REGION" --limit 100 | grep -E "Composed|Starting Plane"

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Plane are listed; every other input is inherited from App_CloudRun with its standard behaviour.
