Stirling-PDF on Google Cloud Run
Stirling-PDF is an open-source (MIT-licensed core), locally-hosted web PDF toolkit — merge, split, convert, OCR, compress, watermark, sign, redact, and 50+ other PDF operations, all processed on your own infrastructure so documents never touch a third-party service. This module deploys Stirling-PDF on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Stirling-PDF uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

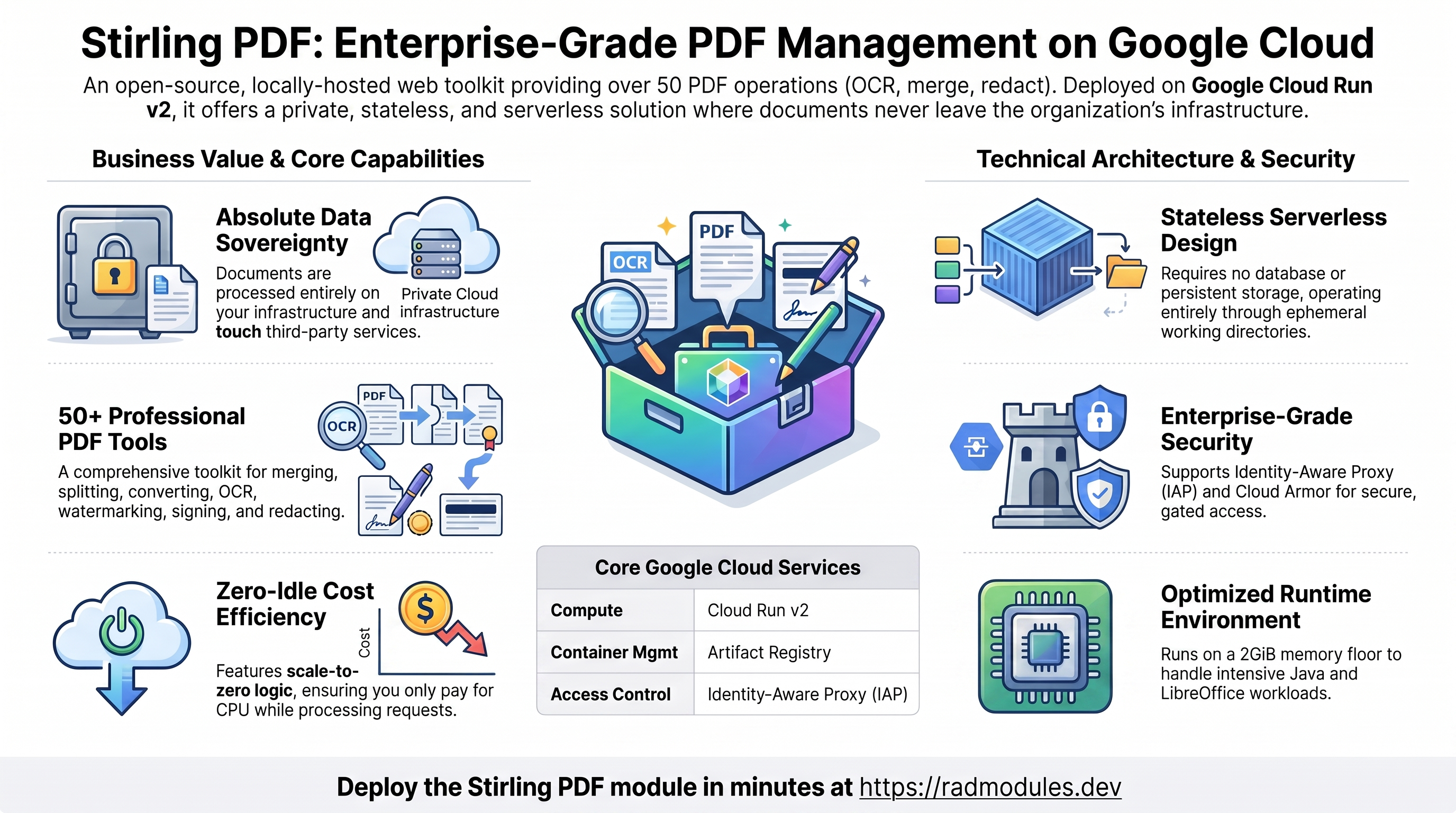

1. Overview
Stirling-PDF runs as a Java / Spring Boot container (with a bundled LibreOffice for document conversions) on Cloud Run v2. The deployment wires together a deliberately small set of Google Cloud services — Stirling-PDF is stateless, so there is no database, no persistent storage, and no secrets to manage:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | Java service, 1 vCPU / 2 GiB by default, serverless autoscaling; scale-to-zero enabled |
| Container image | Artifact Registry | Official stirlingtools/stirling-pdf image, mirrored in by default |
| Ingress | Cloud Run URL / Cloud Load Balancing | Default run.app URL; optional external HTTPS load balancer + custom domain |
| Rate limiting (optional) | Redis | Off by default; enable only to throttle abuse on a public instance |
| Observability | Cloud Logging / Cloud Monitoring | Container logs, metrics, optional uptime check and alerts |
Sensible defaults worth knowing up front:
- Stateless — no database, no storage, no secrets.
database_type = "NONE", no GCS buckets, no NFS, and an empty secret map. Every PDF operation runs in a per-request ephemeral working directory that is discarded on completion. - Prebuilt image.
container_image_source = "prebuilt"deploys the officialstirlingtools/stirling-pdfimage directly;enable_image_mirroring = truemirrors it into Artifact Registry to avoid Docker Hub rate limits. - Login is disabled by default.
enable_login = false(SECURITY_ENABLELOGIN=false) ships an open instance. Enable it and front the service with IAP or Cloud Armor for a private deployment. - Request-based billing + scale-to-zero.
cpu_always_allocated = falseandmin_instance_count = 0— CPU is billed only while serving a request, and the service scales to zero when idle. A cold start adds a few seconds of JVM warm-up. - 2 GiB memory floor. The JVM plus LibreOffice needs at least
2Gi; raisememory_limitfor heavy OCR / conversion workloads. - Public ingress by default.
ingress_settings = "all"so the toolkit is reachable at itsrun.appURL. Combine with IAP for identity-gated access. - Health probes hit
/api/v1/info/status— a public, unauthenticated endpoint that returns 200 once the JVM and LibreOffice have initialised (~70s first-boot window).
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Stirling-PDF service
Stirling-PDF runs as a Cloud Run v2 service that autoscales by request load between the minimum (0) and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Artifact Registry — the container image
The official stirlingtools/stirling-pdf image is mirrored into Artifact Registry
(enable_image_mirroring = true) and Cloud Run pulls it from there. No Cloud Build
step runs — the image is prebuilt upstream.
- Console: Artifact Registry → Repositories.
- CLI:
gcloud artifacts repositories list --project "$PROJECT" --location "$REGION"
gcloud artifacts docker images list <repo-path> --project "$PROJECT"
See App_CloudRun for the mirroring mechanism and image retention.
C. Networking & ingress
The service is reachable at its run.app URL by default (ingress_settings = "all").
An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can
be layered on; ingress settings and VPC egress control connectivity.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
D. Redis (optional rate limiting)
Redis is disabled by default. Stirling-PDF uses it only for rate limiting and
bot detection on public-facing instances (enable_redis = true). When redis_host
is left empty and enable_nfs is true, the NFS server VM's IP is used as the Redis
endpoint.
- Console: Memorystore → Redis (if using a managed instance).
- CLI:
redis-cli -h <redis-host> ping
# Confirm the env injected into the running revision:
gcloud run services describe <service-name> --region "$REGION" \
--format='value(spec.template.spec.containers[0].env)'
E. Identity-Aware Proxy (optional)
Because Stirling-PDF processes potentially sensitive documents, a private deployment
should gate access with IAP. Enabling enable_iap requires an authenticated,
authorized Google identity before any request reaches the service — no VPN or
Stirling-PDF login configuration needed.
- Console: Security → Identity-Aware Proxy.
- CLI:
gcloud iap web get-iam-policy --resource-type=backend-services --project "$PROJECT"
See App_CloudRun for the IAP wiring.
F. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Stirling-PDF Application Behaviour
- Nothing is persisted. Uploads are written to a per-request ephemeral working directory and deleted when the response is returned. There is no database and no bucket — a redeploy or scale event loses nothing because there is nothing to lose.
- Slow first boot. Spring Boot plus LibreOffice initialisation takes tens of
seconds. The startup probe targets
/api/v1/info/statusand allows up to ~70 seconds (10s initial delay + 6 × 10s) before the revision is marked unhealthy. - Login is optional and off by default.
enable_login = falseships an open instance. Setenable_login = trueto require Stirling-PDF's built-in authentication; combine with IAP for defence in depth. - Version upgrades are image-tag bumps. Because the image is unmodified upstream
and there is no schema, changing
application_versionrolls out a new revision with no migration step. - Large files and long conversions. Raise
memory_limitandtimeout_secondsfor large documents or heavy OCR; setSYSTEM_MAXFILESIZEviaenvironment_variablesto cap upload size. - Confirm the running configuration:
gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT" \
--format='value(spec.template.spec.containers[0].env)'
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Stirling-PDF are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the service and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|---|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | stirlingpdf | Base name for resources. Do not change after first deploy. |
display_name | Stirling-PDF | Human-readable name shown in the Console. |
application_version | latest | Stirling-PDF image tag; pin to a specific release in production. |
enable_login | false | Enable Stirling-PDF's built-in auth (SECURITY_ENABLELOGIN). |
default_locale | en-US | Default UI locale (SYSTEM_DEFAULTLOCALE). |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
container_image_source | prebuilt | Deploy the official image (prebuilt) or build a custom one. |
cpu_limit | 1000m | CPU per instance. |
memory_limit | 2Gi | Memory per instance; 2Gi floor for JVM + LibreOffice. |
cpu_always_allocated | false | Request-based billing — Stirling-PDF has no background work. |
min_instance_count | 0 | Fixed at 0 (scale-to-zero) — the module hardcodes this value; the variable is not forwarded to the Foundation and cannot be changed. |
max_instance_count | 3 | Autoscaling upper bound (safe to raise — no shared state). |
container_port | 8080 | Stirling-PDF listens on port 8080. |
execution_environment | gen2 | Gen2 recommended. |
timeout_seconds | 60 | Maximum request duration; raise for large conversions. |
enable_cloudsql_volume | false | Not used — Stirling-PDF has no database. |
enable_image_mirroring | true | Mirror the image into Artifact Registry. |
traffic_split | [] | Split traffic across revisions for staged rollouts. |
Group 5 — Access & Ingress Control
| Variable | Default | Description |
|---|---|---|
ingress_settings | all | all for public access; internal-and-cloud-load-balancing behind an LB. |
vpc_egress_setting | PRIVATE_RANGES_ONLY | Route only RFC 1918 traffic via VPC. |
enable_iap | false | Require Google sign-in. Recommended for private/sensitive-document instances. |
iap_authorized_users / iap_authorized_groups | [] | Who may access through IAP. |
Group 6 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Extra Stirling-PDF settings (e.g. SYSTEM_MAXFILESIZE). Login and locale are set via enable_login / default_locale. |
secret_environment_variables | {} | Secret Manager references. Stirling-PDF needs none by default. |
secret_propagation_delay | 30 | Seconds to wait after secret creation before proceeding. |
secret_rotation_period | 2592000s | Secret Manager rotation notification frequency. |
Group 7 — Backup & Restore
Stirling-PDF is stateless, so backup inputs (backup_schedule,
backup_retention_days, enable_backup_import, backup_source, backup_uri,
backup_format) have no application data to protect. Left at defaults.
Group 8 — CI/CD & Binary Authorization
Standard App_CloudRun Cloud Build / Cloud Deploy integration — see
App_CloudRun. Key inputs: enable_cicd_trigger,
github_repository_url, github_token, enable_cloud_deploy,
enable_binary_authorization.
Group 10 — Load Balancer, CDN & Image Retention
| Variable | Default | Description |
|---|---|---|
enable_cloud_armor | false | Provision Global HTTPS LB + Cloud Armor WAF. Recommended for public instances. |
admin_ip_ranges | [] | CIDR ranges exempted from WAF rules. |
application_domains | [] | Custom domain names for the HTTPS LB. |
enable_cdn | false | Enable Cloud CDN on the HTTPS LB backend. |
max_images_to_retain / delete_untagged_images / image_retention_days | (set) | Artifact Registry cleanup policy. |
Group 11 — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
create_cloud_storage | false | Stirling-PDF is stateless — no bucket by default. |
storage_buckets | [] | Optional additional GCS buckets. |
enable_nfs | false | NFS off by default; enable only if co-locating Redis on the NFS server. |
gcs_volumes | [] | GCS Fuse volume mounts (requires gen2). |
manage_storage_kms_iam / enable_artifact_registry_cmek | false | CMEK options. |
Group 12 — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | NONE | Fixed — Stirling-PDF uses no database. |
database_password_length | 32 | Not used. |
enable_auto_password_rotation / rotation_propagation_delay_sec | off | Not applicable. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP /api/v1/info/status, 10s delay, 6 retries | Startup probe. ~70s first-boot window for JVM + LibreOffice. |
liveness_probe | HTTP /api/v1/info/status, 15s delay | Liveness probe. |
uptime_check_config | { enabled=false, path="/api/v1/info/status" } | Cloud Monitoring uptime check. |
alert_policies | [] | Metric alert policies. |
Group 21 — Redis (optional rate limiting)
| Variable | Default | Description |
|---|---|---|
enable_redis | false | Enable Redis-backed rate limiting / bot detection for public instances. |
redis_host | "" | Redis endpoint. Leave empty to use the NFS server IP (requires enable_nfs = true). |
redis_port | 6379 | Redis port. |
redis_auth | "" | Optional Redis auth password (sensitive). |
Group 22 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|---|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
service_url | Default run.app URL of the service. |
service_location | Region the service runs in. |
stage_services | Stage-specific service URLs (Cloud Deploy). |
load_balancer_ip / load_balancer_url | External HTTPS load balancer IP / URL (when enabled). |
storage_buckets | Created Cloud Storage buckets (empty — Stirling-PDF is stateless). |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels / uptime_check_names | Monitoring status, channels, uptime checks. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / github_repository_url / cicd_configuration | CI/CD status and details. |
artifact_registry_repository / cloudbuild_trigger_name | Registry and build trigger. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — IAP with no authorized identities, a
gen1runtime with NFS/GCS mounts, an out-of-rangeredis_port/timeout_seconds, a memory below the gen2 floor. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
enable_login + ingress | enable_login = true or IAP for private use | High | Default enable_login = false + public ingress leaves an open PDF toolkit anyone with the URL can use. |
enable_iap | Enable for sensitive-document instances | High | Without IAP (and with login off) the service is unauthenticated; users can upload confidential documents to an open endpoint. |
memory_limit | 2Gi | High | Below ~2Gi the JVM + LibreOffice OOM-kills during conversions; gen2 also rejects < 512Mi at plan time. |
timeout_seconds | 60, raise for big files | High | Large OCR/conversion jobs exceeding the timeout return 504 mid-operation. |
startup_probe window | Keep the ~70s default | Medium | Shortening the initial delay / failure threshold marks the revision unhealthy before LibreOffice finishes warming up. |
enable_cloud_armor | Enable for public instances | Medium | A public toolkit without a WAF is exposed to abuse and automated scanning. |
enable_redis | Enable on public instances | Medium | Without it there is no rate limiting / bot detection to throttle abusive traffic. |
min_instance_count | 0 (fixed) | Low | Scale-to-zero adds a few seconds of JVM warm-up on the first request after idle. The module hardcodes min_instance_count = 0 — the variable is not forwarded, so it cannot be raised to 1 to eliminate cold starts. |
SYSTEM_MAXFILESIZE (via environment_variables) | Set a sane cap | Low | Unbounded uploads let a single large file consume the instance's memory. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, and image mirroring — see App_CloudRun. Stirling-PDF-specific application configuration shared with the GKE variant is described in StirlingPDF_Common.
