Mautic on Google Cloud Run

Mautic is an open-source marketing-automation platform for email campaigns, contact management, landing pages, and lead scoring. This module deploys Mautic on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Mautic uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

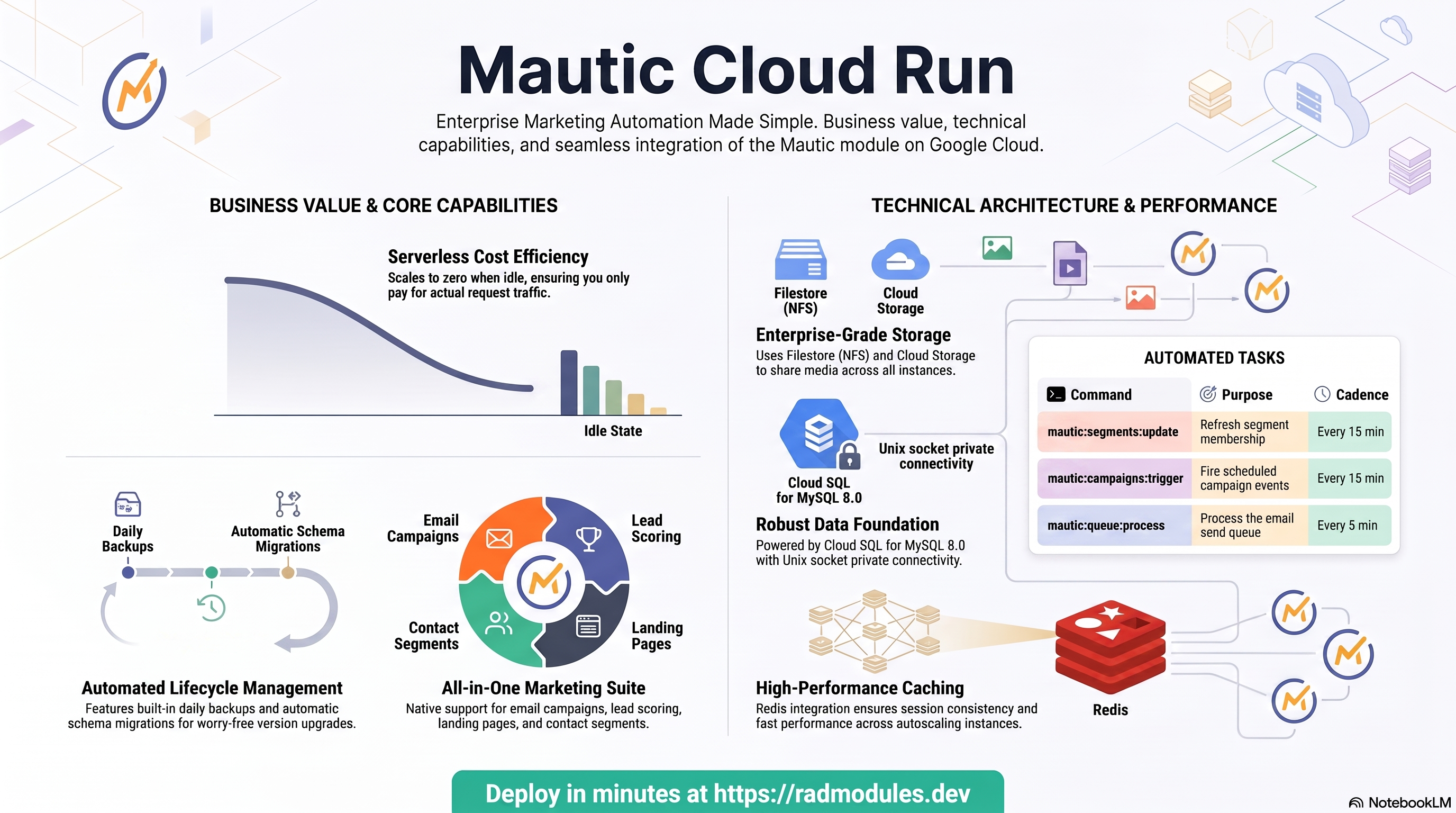

1. Overview

Mautic runs as a PHP/Apache container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	PHP/Apache service, 2 vCPU / 4 GiB by default, request-based autoscaling (scale-to-zero)
Database	Cloud SQL for MySQL 8.0	Required — Mautic does not support PostgreSQL
Shared files	Filestore (NFS)	Uploaded media shared across all instances (mounted into the service)
Object storage	Cloud Storage	A dedicated media bucket
Cache & sessions	Redis	Enabled by default
Secrets	Secret Manager	Auto-generated admin password and database password
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL, optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• MySQL 8.0 is mandatory. Selecting PostgreSQL or NONE breaks startup.
• Probes are HTTP against the public login page. The startup and liveness probes target /index.php/s/login with generous initial delays (90s / 120s) to allow database migrations and PHP initialisation on first boot.
• HTTPS=on and a predicted service URL are injected so Mautic generates correct absolute links and avoids the HTTP→HTTPS redirect loops (which would 301 the HTTP probes) behind the Cloud Run front end.
• Cold-start by default. min_instance_count = 0 and cpu_always_allocated = false (request-based billing): the UI and contact tracking work on-request; the marketing cron is externalised as scheduled Cloud Run Jobs (§3). Set cpu_always_allocated = true and min_instance_count >= 1 to restore continuous in-process operation.
• Database migrations run on each instance start (idempotent), so version upgrades apply automatically.
• The Mautic admin password is generated and stored in Secret Manager.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Mautic service

Mautic runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for MySQL 8.0

Mautic stores all application data in a managed Cloud SQL for MySQL 8.0 instance. The service connects privately through the Cloud SQL Auth Proxy over a Unix socket (no public IP). On first deploy an initialization Job creates the application database and user.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Filestore (NFS) and Cloud Storage

Uploaded media is written to a Filestore (NFS) share mounted into the service so all instances share the same files. A dedicated Cloud Storage bucket is also provisioned for media.

• Console: Filestore → Instances; Cloud Storage → Buckets.
• CLI:

  gcloud filestore instances list --project "$PROJECT"
  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<media-bucket>/        # bucket name is in the Outputs

See App_CloudRun for the NFS mount, GCS Fuse, and CMEK.

D. Redis cache

Redis backs Mautic's caching and session consistency across instances.

• Console: Memorystore → Redis (if using a managed instance).
• CLI:

  redis-cli -h <redis-host> ping
  redis-cli -h <redis-host> info keyspace

E. Secret Manager

The Mautic admin password and the database password are stored in Secret Manager and injected into the service at runtime.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

F. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Mautic Application Behaviour

• First-deploy database setup. An initialization Job creates the Mautic database and user before the service starts. It is idempotent.

• Migrations on start. Each instance runs Mautic's migrations on startup, so upgrading the version applies schema changes automatically.

• Scheduled commands (essential). Mautic's campaigns, email queue, and segment updates are driven by scheduled commands; without them campaigns never fire and no email is sent. They run as Cloud Run Jobs invoked on a schedule. The commands:

  Command	Purpose	Typical cadence
  mautic:segments:update	Refresh segment membership	every 15 min
  mautic:campaigns:trigger	Fire scheduled campaign events	every 15 min
  mautic:campaigns:messages	Send queued campaign messages	every 15 min
  mautic:queue:process	Process the email send queue	every 5 min
  mautic:maintenance:cleanup	Purge old data	weekly

  Inspect the jobs and their executions:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

• HTTPS handling. HTTPS=on and the predicted service URL are set so Mautic produces correct absolute URLs and avoids redirect loops behind Cloud Run.

• Admin login. The initial admin user name and email are configurable; the password is retrieved from Secret Manager (see §2.E).

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Mautic are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	mautic	Base name for resources. Do not change after first deploy.
application_display_name	Mautic	Friendly name shown in the Console.
application_description	Mautic - Open-source marketing automation platform	Service description.
application_version	5	Mautic image version tag.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	2000m	CPU per instance.
memory_limit	4Gi	Memory per instance.
min_instance_count	0	Minimum instances. Scale-to-zero by default; set ≥ 1 (with cpu_always_allocated = true) for continuous in-process work.
max_instance_count	3	Maximum instances.
cpu_always_allocated	false	Request-based billing (cold-start). Set true + min_instance_count >= 1 to run Mautic's in-process cron continuously.
container_port	80	Mautic/Apache listens on port 80.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy for socket connections.
execution_environment	gen2	Cloud Run execution generation.
max_revisions_to_retain	7	How many old revisions to keep.
traffic_split	[]	Split traffic across revisions for staged rollouts.

Group 5 — Access & Ingress Control

Variable	Default	Description
enable_iap	false	Require Google sign-in via Identity-Aware Proxy.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.
ingress_settings	all	Which networks may reach the service (all / internal / LB-only).
vpc_egress_setting	PRIVATE_RANGES_ONLY	How outbound traffic is routed through the VPC connector.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings. Core MAUTIC_* values are set automatically.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
explicit_secret_values	{}	Sensitive values to store and inject as secrets.
secret_propagation_delay / secret_rotation_period	(set)	Replication wait / rotation cadence.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization, binauthz_evaluation_mode.

Group 9 — NFS Instance & Custom SQL

Variable	Default	Description
nfs_instance_name / nfs_instance_base_name	(set)	Existing NFS instance / base name for an inline one.
enable_custom_sql_scripts / custom_sql_scripts_bucket / custom_sql_scripts_path / custom_sql_scripts_use_root	off	Run SQL from a GCS bucket after provisioning.

Group 10 — Domain, CDN, Cloud Armor & Image Retention

Variable	Default	Description
application_domains	[]	Custom hostnames for the external load balancer.
enable_cdn	false	Enable Cloud CDN on the LB backend.
enable_cloud_armor / admin_ip_ranges	off	Attach a WAF policy / restrict privileged access.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
enable_nfs	true	Shared Filestore volume for Mautic media.
nfs_mount_path	/mnt/nfs	Mount path inside the container.
create_cloud_storage / storage_buckets / gcs_volumes	(set)	Media bucket / additional buckets / GCS Fuse mounts.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	MYSQL_8_0	Fixed — do not change.
application_database_name	mautic	Database name. Immutable after first deploy.
application_database_user	mautic	Application user. Immutable after first deploy.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation / rotation_propagation_delay_sec	off	DB password rotation.
db_host_env_var_name / db_name_env_var_name / db_user_env_var_name / db_port_env_var_name / service_url_env_var_name	(set)	Names under which connection details are injected.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in database setup job.
cron_jobs	[]	Configure the Mautic scheduled commands in §3 — required for campaigns/email.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe / startup_probe_config	HTTP /index.php/s/login, 90s initial delay	Startup probe — generous budget for first-boot migrations and PHP init.
liveness_probe / health_check_config	HTTP /index.php/s/login, 120s initial delay	Liveness probe.
uptime_check_config	disabled (enabled = false, path /)	Cloud Monitoring uptime check.
alert_policies	[]	Metric alert policies.

Group 21 — Redis Cache

Variable	Default	Description
enable_redis	true	Use Redis for caching/sessions.
redis_host	""	Redis endpoint.
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

Group 23 — Mautic Application Settings

Variable	Default	Description
mautic_admin_username	admin	Initial administrator login.
mautic_admin_email	admin@example.com	Admin email — set to a real address.
mailer_from_name	Mautic	Display name on outbound campaign email.
mailer_from_email	mautic@example.com	From address — use a domain with valid SPF/DKIM.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
database_type	MYSQL_8_0	Critical	Mautic requires MySQL; PostgreSQL/NONE breaks startup.
cron_jobs	configured (§3)	Critical	No campaigns fire and no email is sent without the scheduled commands.
enable_nfs	true	Critical	Without shared storage, uploads are lost between instances/restarts.
application_database_name / _user	set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys data.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
startup_probe	HTTP /index.php/s/login (default)	High	Without the injected HTTPS=on, Apache 301-redirects Cloud Run's plain-HTTP health checks and the probe never sees a 200.
enable_redis	true	High	Multiple instances with isolated caches cause inconsistency.
memory_limit	≥ 2Gi	High	Too little memory causes PHP OOM during imports/sends.
mautic_admin_email / mailer_from_email	real addresses	High	Placeholders send to nowhere and get rejected/spam-filed.
min_instance_count	0 (default) or 1 for always-on	Medium	0 adds cold-start latency on the first request after idle; the scheduled commands run as separate Cloud Run Jobs and are unaffected.
enable_iap / enable_cloud_armor	enable for admin-facing	Medium	The admin UI is otherwise publicly reachable.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Mautic-specific application configuration shared with the GKE variant is described in Mautic_Common.
