Linkwarden on GKE Autopilot
Linkwarden is an open-source, self-hosted bookmark manager that goes beyond simple link-saving: every bookmark can be automatically archived as a full-page screenshot, PDF, and single-file "monolith" snapshot using a bundled headless Chrome, so your links keep working even after the source page changes or disappears. This module deploys Linkwarden on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.
This guide focuses on the cloud services Linkwarden uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

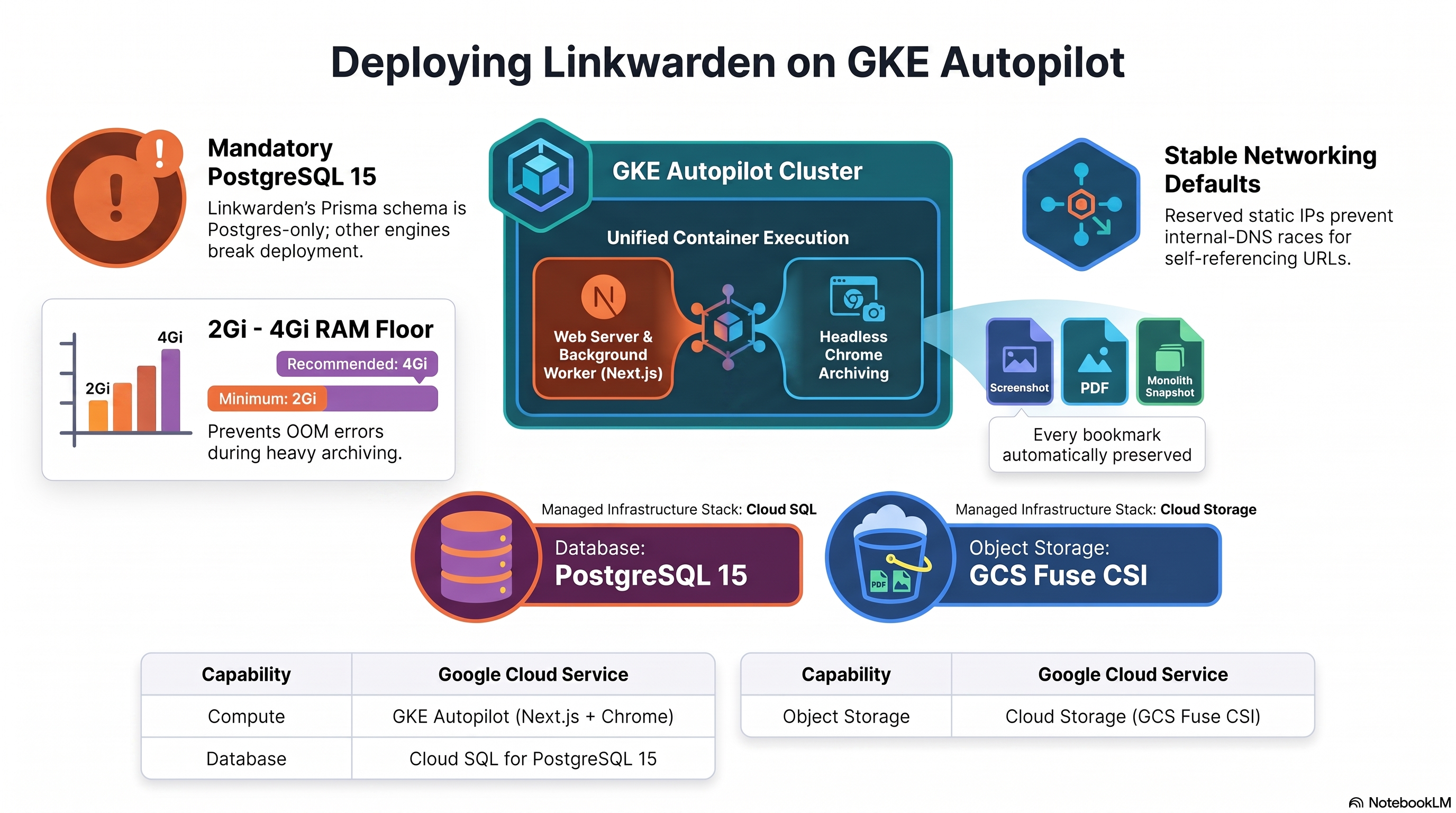

1. Overview
Linkwarden runs as a single Next.js pod. The web server and a background
archiving worker run side by side in the SAME container (via concurrently) —
there is no separate worker Deployment. The deployment wires together a
focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | GKE Autopilot | Next.js + headless Chrome pod, 2 vCPU / 2 GiB by default, min_instance_count = 1 |
| Database | Cloud SQL for PostgreSQL 15 | Required — Linkwarden's Prisma schema is Postgres-only |
| Object storage | Cloud Storage (GCS Fuse CSI volume) | Mounted at /data/data by default for archived screenshots/PDFs/monoliths |
| Cache & queue | None | The archiving worker polls PostgreSQL directly; no Redis/BullMQ dependency |
| Secrets | Secret Manager | Auto-generated NEXTAUTH_SECRET; database password |
| Ingress | Cloud Load Balancing | External LoadBalancer, optional custom domain + managed certificate, reserve_static_ip = true |
Sensible defaults worth knowing up front:
- PostgreSQL 15 is mandatory. Linkwarden's Prisma schema hardcodes the
postgresqlprovider; selecting any other engine breaks the first-boot migration. DATABASE_URLconnects over the cloud-sql-proxy loopback.enable_cloudsql_volume = trueis required — it launches the proxy sidecar that answers on127.0.0.1, which the cloud entrypoint uses withsslmode=disable(the proxy already terminates TLS). This differs from the Cloud Run variant, which connects over the raw private IP withsslmode=require.NEXTAUTH_URLis derived automatically, appending the required/api/v1/authsuffix to the computed service URL.reserve_static_ip = trueby default. Linkwarden'sNEXTAUTH_URLbakes in the service URL at container boot, so a stable external IP avoids the internal-DNS-fallback race documented for other self-referencing-URL apps in this catalogue.- Minimum 1 replica is maintained (GKE does not support scale-to-zero) so the in-container background archiving worker keeps processing the queue.
- Headless Chrome runs in-process with the web server. Size
container_resourcesfor the whole container's peak (2 vCPU / 2Gi default; bump memory to 4Gi for heavy archiving loads). - A GCS volume is mounted automatically at
/data/data. This is the absolute path Linkwarden's storage code resolvesSTORAGE_FOLDERto. The image's whole container runs as root, so no gcsfuse uid/gid mount-option override is needed (unlike some other GKE modules in this catalogue). - No seeded superuser. The first user to register through the standard NextAuth registration flow becomes the instance owner.
2. Google Cloud Services & How to Explore Them
All commands assume you have run
gcloud container clusters get-credentials <cluster> --region <region> --project <project>
and that PROJECT, REGION, and NAMESPACE are set. The namespace and other
identifiers are reported in the deployment Outputs.
A. GKE Autopilot — the Linkwarden workload
Linkwarden pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request.
- Console: Kubernetes Engine → Workloads → select the Linkwarden workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
- CLI:
kubectl get pods,svc -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
kubectl describe pod -n "$NAMESPACE" -l app=<service-name>
See App_GKE for how Autopilot, scaling, and the workload lifecycle work.
B. Cloud SQL for PostgreSQL 15
Linkwarden stores all application data (bookmarks, collections, tags, users,
archive metadata) in a managed Cloud SQL for PostgreSQL 15 instance. The
cloud-sql-proxy sidecar (enabled via enable_cloudsql_volume = true) listens
on 127.0.0.1; the cloud entrypoint connects DATABASE_URL there with
sslmode=disable. On first deploy an initialization Job creates the
application database and user; Linkwarden then runs its own
prisma migrate deploy on every container start.
- Console: SQL → select the instance for connections, backups, flags, metrics.
- CLI:
gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"
The instance name, database, user, and password secret are in the Outputs. See App_GKE for the connection model, backups, and password rotation.
C. Cloud Storage (archived content)
A dedicated Cloud Storage bucket is provisioned automatically and mounted
via the GCS Fuse CSI driver at /data/data by default — the absolute path
Linkwarden's storage code resolves STORAGE_FOLDER to at runtime.
- Console: Cloud Storage → Buckets.
- CLI:
gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<data-bucket>/ # bucket name is in the Outputs
See App_GKE for GCS Fuse CSI driver options.
D. Secret Manager
One secret is generated automatically and stored in Secret Manager:
NEXTAUTH_SECRET (signs NextAuth session JWTs). It is materialised into the
namespace and injected as a pod env var. The database password is managed
separately by the foundation.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
See App_GKE for injection and rotation details.
E. Networking & ingress
The service is exposed via a LoadBalancer Kubernetes Service with a reserved
static IP by default (reserve_static_ip = true). An Ingress with a custom
domain and managed certificate, Cloud CDN, and Cloud Armor can be layered on.
- Console: Kubernetes Engine → Services & Ingress; Network services → Load balancing.
- CLI:
kubectl get svc -n "$NAMESPACE" -o wide
gcloud compute addresses list --project "$PROJECT"
See App_GKE.
F. Cloud Logging & Monitoring
Container logs flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100 -f
3. Linkwarden Application Behaviour
- First-deploy database setup. An initialization Job runs
db-init.shusingpostgres:15-alpine. It connects through the cloud-sql-proxy sidecar and idempotently creates the application database and user and grants privileges. The job is safe to re-run. - Schema migrations run on every boot. Linkwarden's base image
CMDrunsprisma migrate deploybefore starting the web and worker processes, so upgrading the application version applies schema changes automatically. NEXTAUTH_SECRETis immutable after first boot. Generated once and written to Secret Manager. Rotating it invalidates every active session.- No pre-seeded admin account. The first user to register through the standard NextAuth registration flow becomes the instance owner.
- Background archiving worker. A separate process (
worker.ts, run viaconcurrentlyalongside the web server in the same container) polls PostgreSQL directly and processes queued links in batches (ARCHIVE_TAKE_COUNT, default5). Each batch launches headless Chrome instances for screenshot/PDF/monolith capture. - Health path. Startup and liveness probes default to
/— Linkwarden has no confirmed dedicated health endpoint. The startup probe allows a generous window for Next.js cold start plus headless Chrome/Playwright initialization. - Inspect job execution:
kubectl get jobs -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" job/<job-name>
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Linkwarden are listed; every other input is inherited from App_GKE with its standard behaviour.
Group 1 / 2 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for regional resources. |
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | linkwarden | Base name for resources. Do not change after first deploy. |
application_display_name | Linkwarden | Human-readable name shown in the Console. |
application_version | latest | Linkwarden publishes a genuine latest tag upstream. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
container_resources | { cpu_limit="2000m", memory_limit="2Gi" } | Headless Chrome archiving runs in-process; bump memory to 4Gi for heavy workloads. |
min_instance_count | 1 | GKE has no scale-to-zero; keeps the archiving worker alive. |
max_instance_count | 5 | HPA upper bound. |
container_port | 3000 | Linkwarden (Next.js) listens on port 3000. |
enable_cloudsql_volume | true | Required — launches the cloud-sql-proxy sidecar the entrypoint connects to. |
enable_image_mirroring | true | Mirror the Linkwarden image into Artifact Registry. |
Group 5 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Static env vars. DATABASE_URL, NEXTAUTH_URL are set automatically — do not set them here. |
disable_browser | false | Sets DISABLE_BROWSER — skips all headless-Chrome archiving tasks. |
archive_take_count | 5 | Links processed per background-worker batch (ARCHIVE_TAKE_COUNT). |
Group 6 — GKE Backend & Cluster
| Variable | Default | Description |
|---|---|---|
service_type | LoadBalancer | Public-facing web UI needs external exposure. |
session_affinity | ClientIP | Sticky routing for NextAuth session cookies. |
namespace_name | "" | Leave empty to auto-generate. |
Group 13 — Filesystem (NFS)
| Variable | Default | Description |
|---|---|---|
enable_nfs | false | Off by default — Linkwarden uses a GCS volume instead for simplicity. |
nfs_mount_path | /data/data | Only used when enable_nfs = true. |
Group 14 — Cloud Storage & Artifact Registry
| Variable | Default | Description |
|---|---|---|
gcs_volumes | [] (falls back to a built-in default) | A default "storage" volume mounted at /data/data is wired automatically unless you supply your own list, which fully replaces it. |
Group 16 — Database Backend
| Variable | Default | Description |
|---|---|---|
database_type | POSTGRES_15 | Fixed — Linkwarden's Prisma schema is Postgres-only. |
application_database_name | linkwarden | PostgreSQL database name. Immutable after first deploy. |
application_database_user | linkwarden | Application database user. |
Group 19 — Custom Domain, Static IP & Networking
| Variable | Default | Description |
|---|---|---|
reserve_static_ip | true | Linkwarden's NEXTAUTH_URL bakes in the service URL at boot — a stable IP avoids an internal-DNS fallback race. |
enable_custom_domain | true | Provision Ingress + managed certificate for custom hostnames. |
Group 15 — Redis
| Variable | Default | Description |
|---|---|---|
enable_redis | false | Not used by Linkwarden — its archiving worker polls PostgreSQL directly. Kept for Foundation-variable parity. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Kubernetes Service name. |
namespace | Namespace the workload runs in. |
service_cluster_ip / service_external_ip | In-cluster / external IP. |
service_url | URL to reach Linkwarden. |
database_instance_name | Cloud SQL instance name. |
database_name / database_user | Application database name / user. |
database_password_secret | Secret Manager secret holding the DB password. |
database_host / database_port | DB endpoint (127.0.0.1 via the Auth Proxy) / port. |
storage_buckets | Created Cloud Storage buckets. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
initialization_jobs | Names of the setup jobs. |
kubernetes_ready | Whether the cluster/workload is ready. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time. Most mistakes below are caught up front rather than at apply or runtime.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
NEXTAUTH_SECRET (auto-generated) | Never rotate after first boot | Critical | Rotating it invalidates every active session, forcing all users to log in again. |
application_database_name / application_database_user | Set once | Critical | Immutable after first deploy; renaming recreates the DB/user and destroys all data. |
database_type | POSTGRES_15 (fixed) | Critical | Any other engine breaks the first-boot Prisma migration entirely. |
enable_cloudsql_volume | true (required) | Critical | Disabling it removes the cloud-sql-proxy sidecar the entrypoint depends on — DATABASE_URL connects to nothing. |
min_instance_count | 1 | High | Scaling to 0 (not supported by default on GKE) would stop the background archiving worker. |
container_resources.memory_limit | 2Gi minimum | High | Headless Chrome archiving OOMs below this floor; the web server may still respond while archiving silently fails. |
service_type | LoadBalancer | High | Setting ClusterIP on a public-facing bookmark UI makes it unreachable from a browser (a known copy-paste bug pattern elsewhere in this catalogue). |
reserve_static_ip | true | Medium | false risks Linkwarden's baked-in NEXTAUTH_URL resolving to unreachable internal DNS if the ephemeral IP isn't known at apply time. |
disable_browser | false unless Chrome misbehaves | Medium | Leaving it true unnecessarily disables all screenshot/PDF/monolith archiving. |
gcs_volumes | Use the built-in default | Medium | Supplying a custom list without matching the /data/data mount path leaves archived content unwritable or split across storage backends. |
For the foundation behaviour referenced throughout — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Linkwarden-specific application configuration shared with the Cloud Run variant is described in Linkwarden_Common.
