Plane on GKE Autopilot

Plane is an open-source project-management and issue-tracking tool (a Jira / Linear / Asana alternative) covering issues, sprints, cycles, modules, and product roadmaps behind a modern web UI. This module deploys Plane on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Plane uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

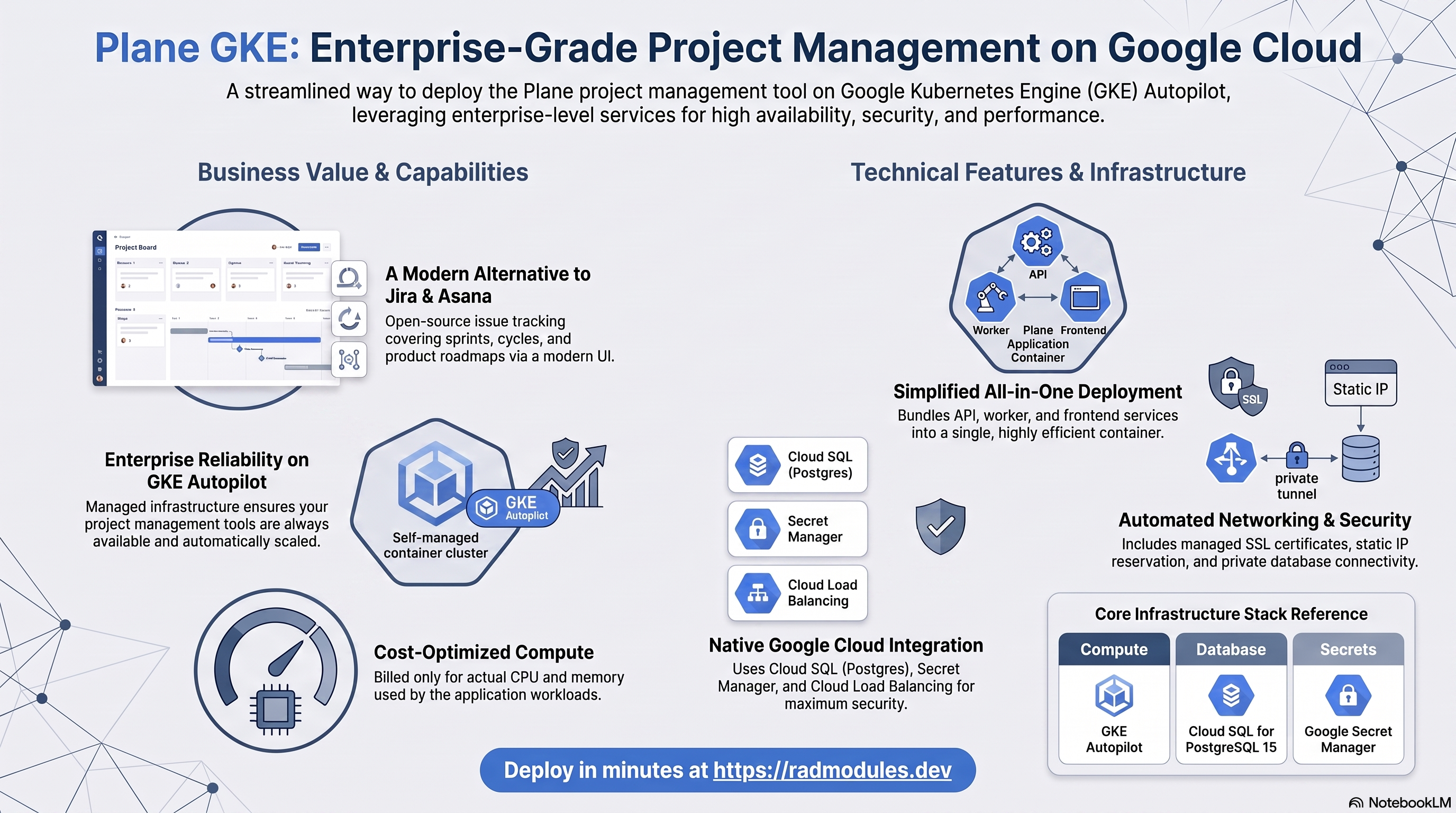

1. Overview

Upstream Plane's self-host stack is multi-service (web / space / admin frontends, api, worker + beat Celery workers, a live real-time server, and a migrator job). This module does not wire those services separately. Instead it deploys Plane's published all-in-one community image (makeplane/plane-aio-community), which bundles api + worker + beat

• space + admin + live + migrator behind an internal Caddy reverse proxy on port 80, run under supervisord — so a single GKE Deployment exposes the whole application. A thin wrapper Dockerfile/entrypoint layers on top of that image to compose the connection strings Plane expects (DATABASE_URL, REDIS_URL, AMQP_URL) from the discrete values the platform injects.

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Single Deployment running the plane-aio-community image (custom build), port 80, 2 vCPU / 4 GiB by default
Database	Cloud SQL for PostgreSQL 15	Fixed at POSTGRES_15 by Plane_Common; reached via the Cloud SQL Auth Proxy sidecar on loopback
Message broker	RabbitMQ (rabbitmq:3.13-management-alpine)	Deployed as an in-cluster additional_services Deployment (INGRESS_TRAFFIC_INTERNAL_ONLY), required by Plane's Celery worker/beat
Cache / queue backend	Redis	enable_redis = true by default; resolves to the shared NFS VM's IP when no explicit redis_host is set
File persistence	Cloud Filestore (NFS)	Enabled by default primarily to host the shared Redis instance, not Plane application data
Object storage	Cloud Storage	A storage bucket is provisioned automatically, but file-upload wiring is an open TODO — see below
Secrets	Secret Manager	Auto-generated Django SECRET_KEY and LIVE_SERVER_SECRET_KEY; database password
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain (enabled by default) with a managed certificate

Sensible defaults worth knowing up front:

• The all-in-one image is a custom build, not prebuilt. Plane_Common sets image_source = "custom" and builds a thin wrapper Dockerfile FROM makeplane/plane-aio-community:<version>; the entrypoint composes DATABASE_URL/REDIS_URL/AMQP_URL before handing off to Plane's own /app/start.sh.
• application_version defaults to "stable", not "latest". The upstream plane-aio-community image publishes no latest tag, so Plane_GKE's own variable default is already pinned; if latest is supplied anyway, the build-arg mapping in Plane_Common substitutes "stable" so the base-image pull does not 404.
• RabbitMQ is mandatory, not optional. Plane's bundled start.sh validates AMQP_URL and exits non-zero if it is empty, so the mq additional service is always appended in Plane_GKE/plane.tf's additional_services list — it cannot be disabled via a variable.
• RabbitMQ credentials are static, in-code defaults (plane / plane / vhost plane), not Secret-Manager-backed, and RabbitMQ storage is ephemeral (no PVC/NFS attached) — a pod restart drops queued jobs.
• Redis is NFS-VM-hosted by default, exactly like other RAD apps that set enable_redis = true with no redis_host — the NFS server co-hosts Redis and its IP is injected via the $(NFS_SERVER_IP) runtime placeholder, resolved by the wrapper entrypoint.
• Object storage (S3-compatible) is an unfinished TODO. A GCS bucket is created and AWS_S3_ENDPOINT_URL points at storage.googleapis.com, but GCS's S3-interop layer requires HMAC keys that are not provisioned by this module. File uploads will fail until real S3-compatible credentials are supplied via the environment_variables override (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, AWS_REGION, AWS_S3_BUCKET_NAME, AWS_S3_ENDPOINT_URL). Everything else in Plane (issues, projects, cycles) works without it.
• RabbitMQ's DNS name is computed at plan time, not injected at apply time. Unlike the Cloud Run variant (which injects a $(PLANE_MQ_HOST) placeholder via the additional-service mechanism), Plane_GKE overrides RABBITMQ_HOST directly to the predictable in-cluster DNS name <application_name><resource_prefix>-mq.<namespace>.svc.cluster.local before it ever reaches the entrypoint.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Plane all-in-one workload

The plane-aio-community pods run on Autopilot, billed for the CPU/memory the pod actually requests. All of Plane's sub-services (api, worker, beat, web, space, admin, live) run inside this single container under supervisord, fronted by Caddy on port 80.

• Console: Kubernetes Engine → Workloads → select the Plane workload for pods, revisions, and events.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE" --field-selector=status.phase=Running
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- supervisorctl status

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

Plane stores all application data (workspaces, projects, issues, cycles, modules, users) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar; the wrapper entrypoint composes DATABASE_URL from the injected DB_* values, using sslmode=disable against the loopback proxy. On first deploy the db-init job creates the application role and database; Plane's own bundled migrator step (inside the AIO image's supervisord) then applies the Django schema migrations on container start.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

See App_GKE for the connection model, automated backups, and password rotation.

C. Redis (NFS-VM-hosted)

Plane uses a single REDIS_URL for both the Django cache and the Celery result backend. With enable_redis = true and no explicit redis_host, the Foundation resolves Redis to the shared NFS VM's IP (co-located service), injected at runtime via $(NFS_SERVER_IP) and resolved by the wrapper entrypoint before it composes REDIS_URL.

• Console: Compute Engine → VM instances (the NFS/Redis VM); Filestore → Instances.
• CLI:

  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E 'REDIS_HOST|REDIS_URL'
  gcloud compute instances list --project "$PROJECT" --filter="name~nfs"

See App_GKE for how enable_redis/redis_host resolution and the shared NFS/Redis VM are managed.

D. RabbitMQ broker (in-cluster additional service)

Plane's Celery worker and beat processes require an AMQP broker. This module deploys RabbitMQ as a separate in-cluster Deployment (via additional_services, name mq, image rabbitmq:3.13-management-alpine), reachable only inside the cluster (INGRESS_TRAFFIC_INTERNAL_ONLY) on port 5672. App_GKE names the Kubernetes Service <service_name>-mq; the wrapper entrypoint composes AMQP_URL from the static plane/plane/vhost-plane credentials and this DNS name.

• Console: Kubernetes Engine → Workloads / Services & Ingress → filter for the -mq suffix.
• CLI:

  kubectl get deploy,svc -n "$NAMESPACE" -l app~mq 2>/dev/null || kubectl get deploy,svc -n "$NAMESPACE" | grep -- '-mq'
  kubectl logs -n "$NAMESPACE" deploy/<service-name>-mq --tail=50
  kubectl exec -n "$NAMESPACE" deploy/<service-name>-mq -- rabbitmqctl list_queues

See App_GKE for how additional_services provisions sidecar Deployments and Services.

E. Cloud Storage & object storage (TODO)

A dedicated Cloud Storage bucket (suffix storage) is provisioned automatically, and AWS_S3_* environment variables point Plane at storage.googleapis.com. However, GCS's S3-interoperability layer needs HMAC keys that this module does not provision, so file uploads do not work out of the box — see the Overview section above for the fix.

• Console: Cloud Storage → Buckets → filter for -storage.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~storage"
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep AWS_S3

See App_GKE for CMEK options and GCS Fuse mounts.

F. Secret Manager

Two Plane secrets are generated automatically and stored in Secret Manager: SECRET_KEY (Django, 50-char) and LIVE_SERVER_SECRET_KEY (real-time live server auth, 40-char). The database password is managed separately by the foundation. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~plane"
  gcloud secrets versions access latest --secret=<secret-key-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

G. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true), and a custom domain with a Google-managed certificate is enabled by default (enable_custom_domain = true) once application_domains is populated.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

H. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Plane Application Behaviour

• First-deploy database setup. The db-init job runs db-init.sh (postgres:15-alpine). It waits for Cloud SQL to accept connections, idempotently creates the application role and database (GRANTs the role to postgres so ownership can be set), grants schema privileges, then signals the Cloud SQL Auth Proxy sidecar to shut down (quitquitquit).
• Schema migration happens inside the AIO image on every start, not as a separate job. Plane's own bundled migrator step runs under supervisord before api/worker/beat/web start — there is no dedicated plane-migrate Kubernetes Job.
• Connection-string composition happens in the wrapper entrypoint, not Django itself. The AIO image's start.sh expects single URLs (DATABASE_URL, REDIS_URL, AMQP_URL); the platform instead injects discrete DB_*/REDIS_*/RABBITMQ_* values, so scripts/entrypoint.sh composes all three URLs (handling the Cloud SQL socket-vs-TCP remap and the $(NFS_SERVER_IP)/$(PLANE_MQ_HOST) placeholder cases) before exec-ing /app/start.sh.
• /god-mode admin route requires a Caddyfile patch. The bundled admin ("god-mode") SPA's router basename is /god-mode/ (with a trailing slash); the entrypoint idempotently inserts a 308 redirect from the slash-less /god-mode into /app/proxy/Caddyfile so the "Get started" link in the web app doesn't render a blank loading spinner.
• No separate first-run admin bootstrap job. Plane's own signup/login flow creates the first workspace owner interactively through the web UI on first visit; there is no auto-generated admin credential documented in source.
• Health path. Both startup and liveness probes default to HTTP GET /health (startup: 30s initial delay, 10s timeout, 10s period, 30 failures allowed — i.e. up to 5 minutes for first boot; liveness: 30s initial delay, 10s timeout, 30s period, 3 failures), configured via the startup_probe/liveness_probe variables consumed by Plane_Common.
• Scaling. min_instance_count = 1, max_instance_count = 3 by default — HPA can add replicas, but since Celery worker/beat run in-process inside every pod, scaling beyond 1 also multiplies scheduled Celery beat ticks.
• Inspect the init job and composed connection strings:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E 'DATABASE_URL|REDIS_URL|AMQP_URL'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform (UIMeta group=N). Only settings specific to or notable for Plane are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	plane	Base name for resources. Do not change after first deploy.
application_version	stable	makeplane/plane-aio-community image tag; the upstream image has no latest tag, so the default is pinned. latest is remapped to stable at build time if supplied.
display_name / description	Plane - Project Management / Plane - Open-source project management tool ...	Platform display metadata.

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit	2000m	2 vCPU — the AIO image runs api + worker + beat + web + space + admin + live in one pod.
memory_limit	4Gi	4 GiB minimum recommended given the bundled process count.
min_instance_count / max_instance_count	1 / 3	HPA range; see the Celery-beat scaling caveat in Section 3.
container_port	80	The internal Caddy reverse proxy's listen port — the only port to expose.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar (loopback) — required on GKE.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Plane UI.
workload_type	null → Deployment	Deployment (no StatefulSet PVC by default).
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.

Group 11 — Workload Automation

Variable	Default	Description
additional_services	[] (user-supplied)	Merged with the module-injected RabbitMQ mq service — the RabbitMQ entry itself is not user-configurable through this variable; it is always appended in plane.tf.
initialization_jobs	[] → the built-in db-init job	Plane runs its own migrations on container start; use this variable only for additional tasks.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Required when enable_redis = true with no explicit redis_host — the NFS VM co-hosts Redis. Not used for Plane application file storage.
nfs_mount_path	/mnt/nfs	Only relevant if you mount NFS for another purpose; Plane itself does not read/write here.

Group 14 — Cloud Storage

Variable	Default	Description
storage_buckets	one storage-suffixed bucket	Created automatically for future file-upload wiring; not currently mounted or authenticated (see Overview TODO).
gcs_volumes	[]	No GCS Fuse volumes are mounted by default.

Group 16 — Database Backend

Variable	Default	Description
database_type	fixed at POSTGRES_15 by Plane_Common	Not user-selectable; database_type on this module is an inert mirrored Foundation variable.
db_name	plane_db	Database name, passed to Plane_Common and on to the Foundation.
db_user	plane_user	Application database user; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Enabled by default (unlike most modules); takes effect once application_domains is populated.
application_domains	[]	Custom hostnames + managed certificate.
reserve_static_ip	true	Stable external IP across redeploys.
network_tags	["nfsserver"]	Required for NFS/Redis-VM connectivity — do not remove.

Group 21 — Redis Cache

Variable	Default	Description
enable_redis	true	Required for Plane's Celery task queue and cache; cannot be effectively disabled (the entrypoint always builds a REDIS_URL).
redis_host	"" → NFS server IP	Leave blank to use the shared NFS/Redis VM.
redis_port	6379	Standard Redis port.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
web_url	URL for the Plane web UI — external LoadBalancer IP if available, otherwise the internal cluster URL.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
RabbitMQ presence	Never remove the mq additional service	Critical	Plane's start.sh refuses to start with an empty AMQP_URL; the whole app crash-loops.
enable_redis	true	Critical	Plane's Celery cache/queue backend has no connection without a Redis URL — worker/beat and cache fail.
db_name / db_user	Set once	Critical	Renaming after first deploy points Plane at a nonexistent (or different) database and orphans all data.
SECRET_KEY / LIVE_SERVER_SECRET_KEY (auto-generated)	Never change	Critical	Changing them after first boot invalidates signed sessions and live-server auth tokens.
File uploads / AWS_S3_*	Supply real S3-compatible HMAC credentials	High	Without real credentials, uploads (attachments, avatars, cover images) silently fail — the placeholder wiring is not production-ready.
RabbitMQ storage	Attach a PVC/NFS if durability matters	High	The default mq service uses ephemeral pod storage; a pod restart or node preemption drops queued Celery jobs.
max_instance_count	3 (verify Celery beat behaviour before raising further)	Medium	Because beat runs inside every pod, scaling out may duplicate scheduled task ticks.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar is required for DB connectivity on GKE; disabling it breaks DATABASE_URL composition.
network_tags	keep nfsserver	High	Removing it breaks connectivity to the NFS/Redis VM, silently reverting Redis to an unreachable host.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and WEB_URL/DOMAIN_NAME.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Plane-specific application configuration shared with the Cloud Run variant (all-in-one image wiring, secrets, RabbitMQ credentials, storage TODO) is described in Plane_Common.
