Monica on GKE Autopilot

Monica is an open-source personal relationship management (PRM) application — a "personal CRM" for organising how you stay in touch with friends, family, and contacts. This module deploys Monica on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Monica uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

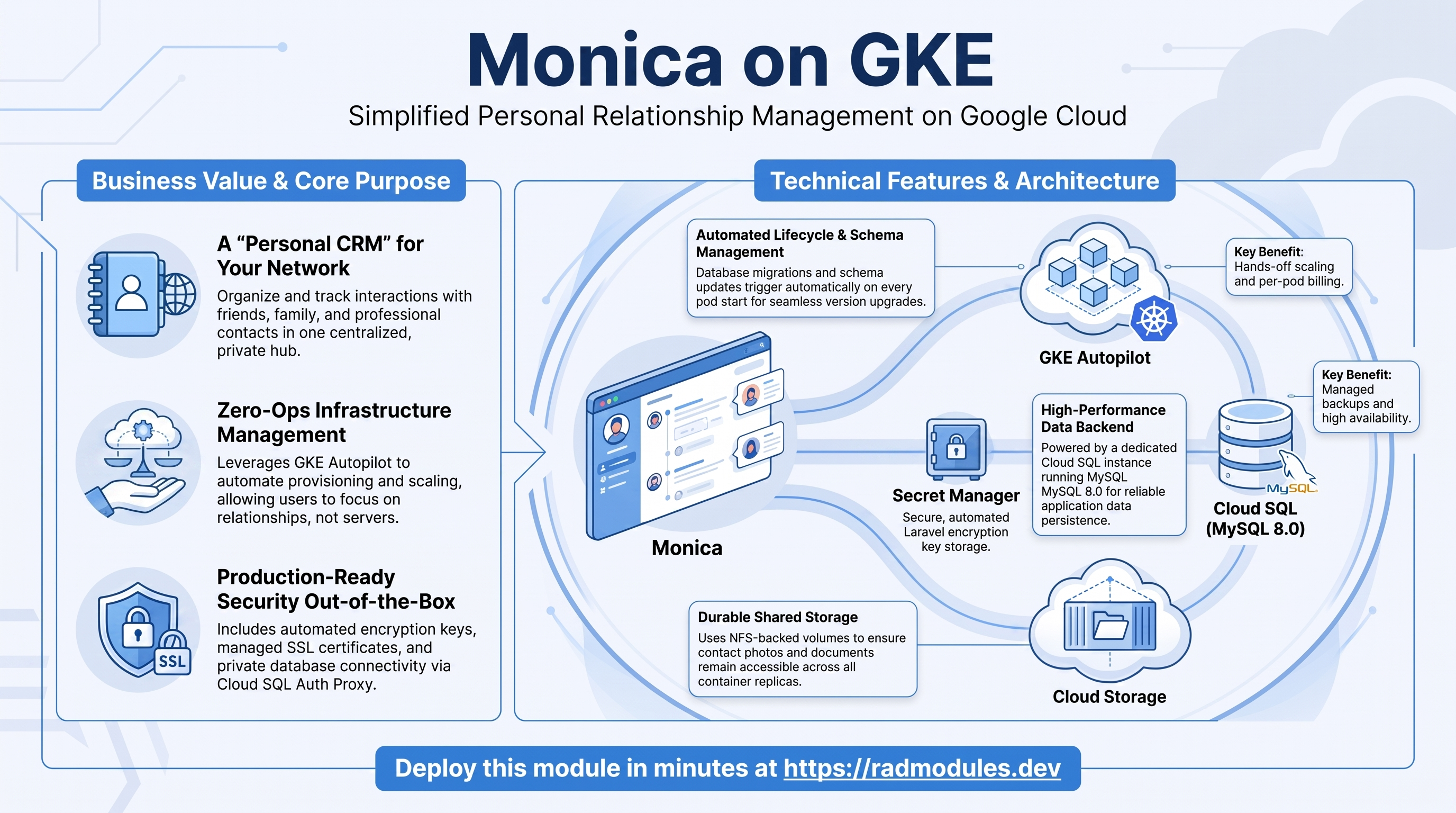

1. Overview

Monica runs as a PHP/Laravel web workload (official Apache image). The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Apache/PHP pods, 1 vCPU / 2 GiB by default, horizontally autoscaled
Database	Cloud SQL for MySQL 8.0	Required — Monica is fixed to MySQL
Object storage	Cloud Storage	A dedicated monica-uploads bucket for contact photos/documents, plus a default data bucket from storage_buckets
Persistence	NFS (enabled by default)	Shared volume for Laravel's storage/ uploads across pods
Cache	Redis (optional)	Off by default; used for cache/session when enabled
Secrets	Secret Manager	Auto-generated Laravel APP_KEY; database password
Ingress	Cloud Load Balancing	External LoadBalancer, optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• MySQL 8.0 is the fixed engine. The database engine comes from the shared application layer (MYSQL_8_0); Monica does not run on PostgreSQL here.
• The image is the official prebuilt monica:<version>. No Cloud Build step — container_image_source = "prebuilt" pulls the Apache variant from Docker Hub, which serves on port 80.
• APP_KEY is generated automatically and stored in Secret Manager. It is a Laravel encryption key and must never be rotated after first boot — rotating it permanently corrupts every encrypted database field and invalidates all sessions.
• Migrations run automatically on start. The image entrypoint runs php artisan migrate --force on every pod start, so the schema is created and upgraded on boot (after the db-init job provisions the database and user).
• Cloud SQL Auth Proxy sidecar on 127.0.0.1. enable_cloudsql_volume = true on GKE — the Auth Proxy runs as a sidecar bound to loopback, so Monica_GKE overrides DB_HOST = 127.0.0.1.
• NFS is enabled by default (enable_nfs = true) so uploaded files in Laravel's storage/ directory are shared and durable across pods.
• Minimum 1 replica is maintained (min_instance_count = 1, max = 1) — GKE does not support scale-to-zero, and a single replica suits a personal CRM.
• APP_URL is set from the predicted service URL so Laravel builds correct absolute links; update it to the external LoadBalancer/custom-domain URL after the IP is known.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Monica workload

Monica pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. The deployment runs a single replica by default.

• Console: Kubernetes Engine → Workloads → select the Monica workload to see pods and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe deploy -n "$NAMESPACE" <service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed. Note that when the app is NFS-backed the foundation uses a Recreate update strategy to avoid two pods contending on the shared volume/DB during rollouts.

B. Cloud SQL for MySQL 8.0

Monica stores all application data (contacts, activities, reminders, journal entries, users) in a managed Cloud SQL for MySQL 8.0 instance. Pods reach it privately through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:3306; no public IP is exposed. On first deploy the db-init Job creates the application database and user and grants privileges; the container entrypoint then runs the Laravel migrations.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  # Open an interactive shell to inspect schema/data:
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Cloud Storage

A dedicated Cloud Storage bucket (suffix monica-uploads) is provisioned automatically for Monica's uploaded files (contact photos, documents). A second bucket (suffix data) is also created by default via the storage_buckets variable's own default entry. The workload service account is granted access. Additional buckets can be declared via storage_buckets.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<uploads-bucket>/          # bucket name is in the Outputs

See App_GKE for CMEK options and GCS Fuse mounts.

D. Redis (optional cache)

Redis is disabled by default (enable_redis = false). When enabled, the foundation injects REDIS_HOST/REDIS_PORT; leaving redis_host empty while NFS is enabled uses the NFS server VM's IP as the Redis endpoint (the NFS VM co-hosts Redis).

• Console: Memorystore → Redis (if using a managed instance).
• CLI:

  redis-cli -h <redis-host> ping
  # Confirm the injected Redis env in the running pod:
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep REDIS_HOST

E. Secret Manager

One cryptographic secret is generated automatically and stored in Secret Manager: the Laravel APP_KEY (used for AES-256-CBC encryption of encrypted columns and for signing sessions/cookies). It is delivered into the pod via the Secret Store CSI driver. The database password is managed separately by the foundation.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~monica-app-key"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

The database password secret name is in the Outputs. See App_GKE for the Secret Store CSI integration and rotation.

F. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer). A custom domain with a Google-managed certificate can be enabled, and a static IP can be reserved so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

G. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Monica Application Behaviour

• First-deploy database setup. An initialization Job runs db-init.sh using mysql:8.0-debian. It connects through the Cloud SQL Auth Proxy and idempotently creates the application database and user, grants privileges, and verifies the app user can connect (also warming the MySQL 8 caching_sha2_password auth cache). The job is safe to re-run.
• Migrations run automatically on start. The official Monica image's entrypoint runs php artisan migrate --force on every pod start — there is no separate migration job. The schema is created on first boot (after db-init) and upgraded automatically when you bump application_version.
• APP_KEY is immutable after first boot. It is generated once and written to Secret Manager. Changing it permanently corrupts all encrypted database fields and invalidates every session — only rotate during a planned maintenance window with a full data re-encryption plan.
• First-run setup in the UI. Monica has no default credentials. Reach the external LoadBalancer URL: an unauthenticated visitor is redirected to the registration/setup page. The first account you create becomes the administrator. Register with admin@techequity.cloud for RAD deployments.
• File uploads are shared across pods. Uploaded photos/documents live under Laravel's storage/. NFS is enabled by default so the volume is shared and durable; the monica-uploads GCS bucket is also provisioned. NFS-backed rollouts use the Recreate strategy to avoid two pods contending on the same volume.
• Health path. The startup probe is TCP on / (passes as soon as Apache binds the port) and the liveness probe is HTTP GET / (Monica's home page returns 200). Allow a generous first-boot window for Apache startup plus the initial php artisan migrate --force.
• Update APP_URL after the IP is known. The predicted URL is injected at plan time; set APP_URL to the external LoadBalancer or custom-domain URL via environment_variables so absolute links and redirects resolve correctly.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Monica are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	monica	Base name for resources. Do not change after first deploy.
application_version	latest	Monica image tag; pin to a specific release in production.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	prebuilt	Pulls the official monica image directly — do not change to custom.
container_port	80	Monica's Apache image listens on port 80.
cpu_limit	1000m	CPU per pod (1 vCPU).
memory_limit	2Gi	Memory per pod.
min_instance_count	1	GKE has no scale-to-zero; keep at 1 for a personal CRM.
max_instance_count	1	Single replica is sufficient.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar; DB_HOST is overridden to 127.0.0.1.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	On by default — shared, durable volume for Laravel storage/ uploads across pods.
nfs_mount_path	/var/www/html/storage	Mount path inside the container — Monica persists uploads and runtime data under Laravel's storage/ directory.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	Provision the monica-uploads bucket (from the Common module) plus the buckets in storage_buckets. Set false to skip all bucket creation.
storage_buckets	[{ name_suffix = "data" }]	Additional buckets to provision — the default creates a second data bucket alongside monica-uploads.
gcs_volumes	[]	Optional GCS Fuse volume mounts via the CSI driver.

Group 16 — Database Backend

Variable	Default	Description
database_type	MYSQL_8_0 (from Common)	Fixed to MySQL 8.0.
application_database_name	monica	Database base name (tenant-prefixed). Immutable after first deploy.
application_database_user	monica	Application database user base name. Immutable after first deploy.

Group 15 — Redis Cache

Variable	Default	Description
enable_redis	false	Enable to add cache/session backing; injects REDIS_HOST/REDIS_PORT.
redis_host	""	Redis endpoint. Leave empty to use the NFS server IP (requires enable_nfs = true).
redis_port	6379	Redis port.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Monica.
database_instance_name	Cloud SQL instance name.
database_name	Application database name.
database_user	Application database user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets (monica-uploads and data by default).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a gen1 runtime with NFS/GCS mounts, an out-of-range redis_port/backup_retention_days, bare-integer quota_memory_* values, a Deployment workload_type alongside stateful_pvc_enabled. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
APP_KEY (auto-generated)	Never rotate after first boot	Critical	Rotating it permanently corrupts every encrypted database field and invalidates all sessions.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all data.
database_type	MYSQL_8_0	Critical	Monica is a MySQL app; a non-MySQL engine breaks the driver and migrations.
enable_nfs	true	High	Disabling loses the shared storage/ volume — uploaded photos/documents are not shared across pods and are lost on pod recreation.
container_image_source	prebuilt	High	Setting custom makes App_GKE attempt a build with no Dockerfile.
container_port	80	High	The Apache image listens on 80; a mismatched port fails the startup probe.
enable_cloudsql_volume	true (GKE)	High	The Auth Proxy sidecar provides 127.0.0.1:3306; disabling it breaks MySQL connectivity.
DB_HOST (auto-set 127.0.0.1)	leave as injected	High	On GKE the proxy sidecar is on loopback; a different host cannot reach MySQL.
APP_URL	External LoadBalancer/domain URL	High	A wrong URL breaks absolute links and the / → setup/registration redirect.
min_instance_count	1	Medium	GKE requires min ≥ 1; a single replica suits a personal CRM.
memory_limit	2Gi	Medium	Trimming too far risks PHP OOM during first-boot migrations and heavy pages.
enable_redis	off unless needed	Low	Optional cache/session backing; when enabled without a host and NFS off, the Redis endpoint is blank.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Monica-specific application configuration shared with the Cloud Run variant is described in Monica_Common.
