Focalboard on GKE Autopilot

Focalboard is an open-source, self-hosted project-management and Kanban board tool from Mattermost — a Trello/Asana/Notion-boards alternative with multiple board views (kanban, table, gallery, calendar) for organizing tasks with boards and cards. This module deploys Focalboard on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Focalboard uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

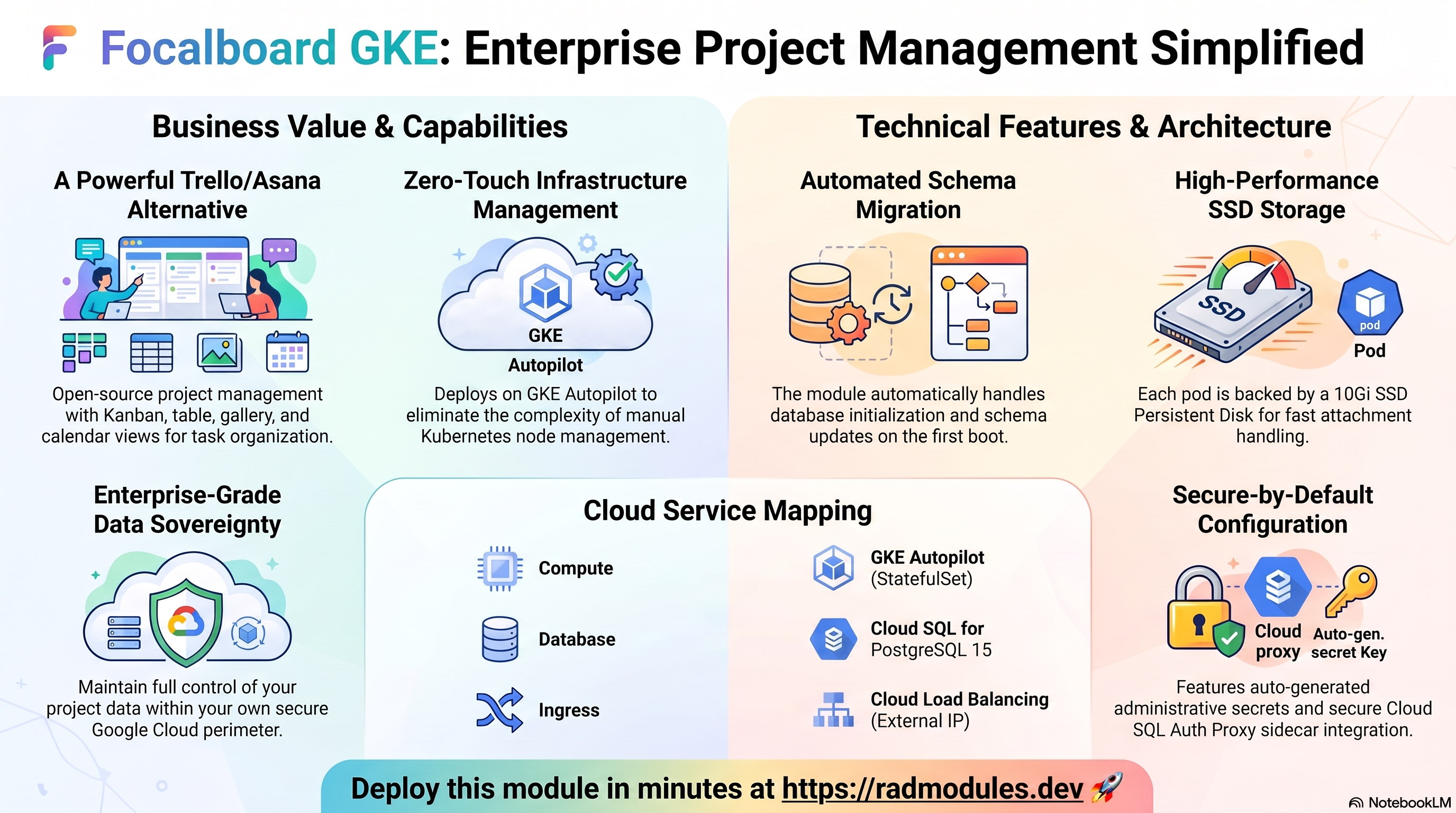

1. Overview

Focalboard runs as a single Go/React web workload. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Defaults to a StatefulSet (see below), Focalboard server on port 8000, 2 vCPU / 4 GiB by default
Database	Cloud SQL for PostgreSQL 15	Required — engine locked to PostgreSQL 13/14/15 (or NONE); MySQL is rejected at plan time
Block storage	Persistent Disk (per-pod PVC)	10Gi standard-rwo (SSD) PVC mounted at /data, backing Focalboard's attachment storage (FOCALBOARD_FILESPATH)
File persistence	Cloud Filestore (NFS)	Provisioned by default (enable_nfs = true) at /opt/focalboard/storage, but not the path Focalboard actually writes attachments to — see pitfalls
Object storage	Cloud Storage	A storage-suffixed bucket is always provisioned; only gcsfuse-mounted at the data dir when the block PVC is disabled
Secrets	Secret Manager	Auto-generated FOCALBOARD_ADMIN_PASSWORD; database password
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; custom domain routing enabled by default

Sensible defaults worth knowing up front:

• PostgreSQL only. database_type defaults to POSTGRES_15; a plan-time precondition in validation.tf rejects anything other than POSTGRES_13, POSTGRES_14, POSTGRES_15, or NONE — MySQL is not supported.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. On GKE, DB_HOST resolves to 127.0.0.1 (the cloud-sql-proxy sidecar), and the entrypoint builds a plaintext (sslmode=disable) libpq DSN for that case.
• The workload defaults to a StatefulSet, not a Deployment. stateful_pvc_enabled = true by default, which auto-resolves workload_type to StatefulSet (per the repo-wide convention — see App_GKE Group 7). Each pod replica gets its own isolated 10Gi standard-rwo PVC mounted at /data — attachments are not shared across replicas.
• min_instance_count = 1, max_instance_count = 5 by default — but because storage is a per-pod PVC (not a shared filesystem), scaling to more than one replica splits uploaded board attachments across isolated volumes; see the pitfalls table before raising max_instance_count.
• NFS is provisioned by default but not used by Focalboard's own storage path. enable_nfs = true mounts Filestore at nfs_mount_path (/opt/focalboard/storage), a different path from the block-PVC-backed FOCALBOARD_FILESPATH (/data) that the entrypoint actually configures.
• Session affinity is ClientIP so a client's requests reach the same pod.
• No separate migration job. Focalboard runs its own schema migrations on boot as the application database user (see Focalboard_Common/main.tf); the db-init job only creates the database, role, and grants.
• FOCALBOARD_ADMIN_PASSWORD is generated automatically and stored in Secret Manager, injected as a container secret env var — see the caveat in Section 3 about whether the Focalboard server itself consumes it.
• The service URL is filled in automatically. The entrypoint's serverRoot falls back through FOCALBOARD_SERVER_ROOT → CLOUDRUN_SERVICE_URL → GKE_SERVICE_URL → http://localhost:8000; App_GKE injects GKE_SERVICE_URL for every GKE workload, so no manual post-deploy URL step is required.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Focalboard workload

By default Focalboard runs as a StatefulSet (because stateful_pvc_enabled = true is the module default), giving the single pod a stable identity and its own PVC. If you disable the block PVC, the workload resolves to a Deployment instead.

• Console: Kubernetes Engine → Workloads → select the Focalboard workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl get statefulset -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" -l app=focalboard --tail=100

See App_GKE Group 6 (Backend Config) and Group 7 (StatefulSet/PVC) for how workload type and Autopilot scaling are resolved.

B. Cloud SQL for PostgreSQL 15

Focalboard stores all application data (boards, cards, blocks, users) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:5432; no public IP is exposed. On first deploy, the db-init job (postgres:15-alpine) idempotently creates the application database, role, and grants — Focalboard's own binary then runs schema migrations on boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Block storage (PVC) & Cloud Storage

Uploaded board attachments persist under FOCALBOARD_FILESPATH (default /data), backed by a 10Gi standard-rwo (SSD-class Balanced Persistent Disk) PVC created per pod by the StatefulSet. A separate Cloud Storage bucket is always provisioned but only gcsfuse-mounted at the data dir when the block PVC is disabled (avoiding a double-mount, since gcsfuse can corrupt Focalboard's index/media files).

• Console: Kubernetes Engine → Storage → PersistentVolumeClaims; Cloud Storage → Buckets.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  kubectl describe pvc -n "$NAMESPACE" <pvc-name>
  gcloud storage buckets list --project "$PROJECT" --filter="name~focalboard"
  gcloud filestore instances list --project "$PROJECT"

See App_GKE Group 7 (StatefulSet/PVC), Group 13 (NFS), and Group 14 (Cloud Storage/GCS Fuse) for the general mechanics and CMEK options.

D. Secret Manager

One Focalboard-specific secret is generated automatically and stored in Secret Manager: FOCALBOARD_ADMIN_PASSWORD (a random 24-character password). The database password is managed separately by the foundation. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~focalboard"
  gcloud secrets versions access latest --secret=<admin-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys) with a Kubernetes Ingress for custom domain routing enabled (enable_custom_domain = true).

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime_check_config.enabled defaults to false).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Focalboard Application Behaviour

• First-deploy database setup. The db-init job runs db-init.sh using postgres:15-alpine. It waits for Cloud SQL to accept connections, idempotently creates the application role (CREATEDB privilege) and database, grants all privileges on the database, grants/reassigns the public schema to the app user (the schema-owner reassignment is non-fatal if it fails), and then signals the Cloud SQL Auth Proxy sidecar to shut down (quitquitquit) so the Job pod completes. The job is safe to re-run (execute_on_apply = true).
• No separate migration job — Focalboard migrates itself on boot. The Focalboard_Common module's own comment states this explicitly: "Focalboard runs its own schema migrations on boot; no Postgres extensions are required." The application user needs full ownership of the public schema for this to work, which db-init.sh grants.
• Admin account — TODO: not fully confirmed from source. A FOCALBOARD_ADMIN_ PASSWORD secret is generated and injected as a container secret env var, but the entrypoint.sh script does not reference it when writing config.json (authMode is set to "native"). It could not be confirmed from this module's source whether the upstream Focalboard binary itself consumes FOCALBOARD_ADMIN_PASSWORD to bootstrap an admin account, or whether (as is common for Focalboard's native auth) the first user to register through the UI simply becomes the workspace admin. Retrieve the secret and try it against the first login; if it doesn't apply, register the first account through the UI.
• DB env-var wiring. entrypoint.sh builds a single libpq keyword DSN (dbconfig in config.json) from the Foundation-injected DB_HOST/DB_IP/ DB_PORT/DB_NAME/DB_USER/DB_PASSWORD, branching on the resolved host: a Cloud Run Unix-socket directory prefers DB_IP with sslmode=require; a loopback host (the GKE proxy sidecar, 127.0.0.1) uses sslmode=disable; any other real IP uses sslmode=require. On GKE this always resolves to the loopback, plaintext-to-the-sidecar case.
• Attachment storage path. FOCALBOARD_FILESPATH is set to data_dir, which the GKE variant wires to stateful_pvc_mount_path (default /data) — the same path the per-pod block PVC is mounted at. The Dockerfile pre-creates /data with chmod 0777 so a fresh PVC mount is writable at boot regardless of the pod running as a non-root UID.
• Health probes. Startup probe: HTTP GET /, initial_delay_seconds=60, timeout_seconds=10, period_seconds=15, failure_threshold=30 (up to ~8.5 minutes of startup grace). Liveness probe: HTTP GET /, initial_delay_seconds=60, timeout_seconds=5, period_seconds=30, failure_threshold=3. A readiness probe (HTTP GET /, initial_delay=30s, period=10s, failure_threshold=3) is also hardcoded in Focalboard_Common and is not exposed as a variable.
• Service URL resolves automatically. serverRoot in config.json falls back to GKE_SERVICE_URL, which App_GKE injects for every GKE workload — unlike some other modules, no manual environment_variables patch is required post-deploy unless you want a specific custom-domain URL instead.
• Inspect the init job and running config:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- cat /opt/focalboard/config.json

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Focalboard are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	focalboard	Base name for resources. Do not change after first deploy.
application_version	7.11.4	mattermost/focalboard image tag used as the custom-build base. Increment to trigger a rebuild; latest is pinned to 7.11.4 at build time (not a published upstream tag).

Group 4 — Runtime & Scaling

Variable	Default	Description
container_port	8000	Focalboard's native listen port.
container_resources	2000m CPU / 4Gi memory	Default limits; no explicit request set.
enable_cloudsql_volume	true	Auth Proxy sidecar (loopback 127.0.0.1:5432) — required on GKE.
container_image_source	custom	Built FROM mattermost/focalboard as a thin wrapper adding the cloud entrypoint.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Focalboard UI.
workload_type	null → StatefulSet	Auto-resolves to StatefulSet because stateful_pvc_enabled = true by default.
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.

Group 7 — StatefulSet / PVC

Variable	Default	Description
stateful_pvc_enabled	true	Gives each pod its own block PVC for /data (attachments), avoiding gcsfuse corruption of index/media files. Auto-resolves workload_type to StatefulSet.
stateful_pvc_size	10Gi	Per-pod PVC size.
stateful_pvc_mount_path	/data	Must match Focalboard's filespath; also passed as data_dir to Focalboard_Common, which sets FOCALBOARD_FILESPATH.
stateful_pvc_storage_class	standard-rwo	SSD-backed Balanced PD; draws the tighter SSD_TOTAL_GB quota (see App_GKE / repo conventions on switching to HDD).

Group 10 — Observability

Variable	Default	Description
startup_probe	HTTP /, 60s delay, 30 retries @ 15s	Governs the actual container startup probe (wired via Focalboard_Common, not the generic startup_probe_config).
liveness_probe	HTTP /, 60s delay, 3 retries @ 30s	Governs the actual container liveness probe.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Provisions Filestore, but Focalboard's own attachment path (FOCALBOARD_FILESPATH) is the block PVC at stateful_pvc_mount_path, not the NFS mount — see Section 1.
nfs_mount_path	/opt/focalboard/storage	Where the (currently unused by Focalboard) NFS volume is mounted.

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Locked to PostgreSQL 13/14/15 (or NONE) by a plan-time precondition — MySQL is rejected.
application_database_name	focalboard	Database name. Effectively immutable after first deploy (renaming orphans existing data).
application_database_user	focalboard	Application database user; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Ingress for custom domain routing is on by default (differs from many other modules, which default this off).
reserve_static_ip	true	Stable external IP across redeploys.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Focalboard.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15 (or 13/14)	Critical	A validation.tf precondition rejects MySQL and other non-Postgres engines at plan time.
application_database_name / application_database_user	Set once	Critical	Effectively immutable after first deploy; renaming recreates the DB/user and orphans all boards/cards.
max_instance_count	1 unless you re-architect storage	Critical	With the default stateful_pvc_enabled = true, each replica gets its own isolated PVC — attachments uploaded to one pod are invisible from another. Scaling beyond 1 silently splits data, it does not error.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar on 127.0.0.1:5432 is required for DB connectivity on GKE.
stateful_pvc_enabled	true	High	Disabling it (and relying on gcsfuse instead) risks corrupting Focalboard's index/media files under concurrent writes — this is exactly why the Common module skips the gcsfuse mount when the block PVC is enabled.
stateful_pvc_mount_path	/data (must equal Focalboard's filespath)	High	Changing it without also updating FOCALBOARD_FILESPATH wiring mounts the PVC somewhere Focalboard never writes to, making it effectively ephemeral.
session_affinity	ClientIP	Medium	Without stickiness, requests bounce between pods, which matters more once multiple replicas exist.
enable_nfs	true (but consider false)	Medium	Provisions a Filestore instance that Focalboard's own attachment path does not use — an avoidable cost unless something else in your deployment needs it.
stateful_pvc_storage_class	standard-rwo (SSD)	Medium	Draws the tight SSD_TOTAL_GB quota (Qwiklabs ≈ 500 GB); a campaign of stateful modules can exhaust it. Override to standard (HDD pd-standard) if IOPS aren't needed.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
FOCALBOARD_ADMIN_PASSWORD (auto-generated)	Retrieve before first login	Medium	Not confirmed to bootstrap a login on its own (see Section 3) — the practical first-run step may instead be registering the first user through the UI.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and any bookmarked URL.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Focalboard-specific application configuration shared with the Cloud Run variant is described in Focalboard_Common.
