AFFiNE on GKE Autopilot

AFFiNE is an open-source, privacy-first knowledge base that unifies docs, whiteboards, and databases in one workspace — a self-hostable alternative to Notion and Miro. This module deploys AFFiNE on GKE Autopilot as a thin wrapper on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services AFFiNE uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

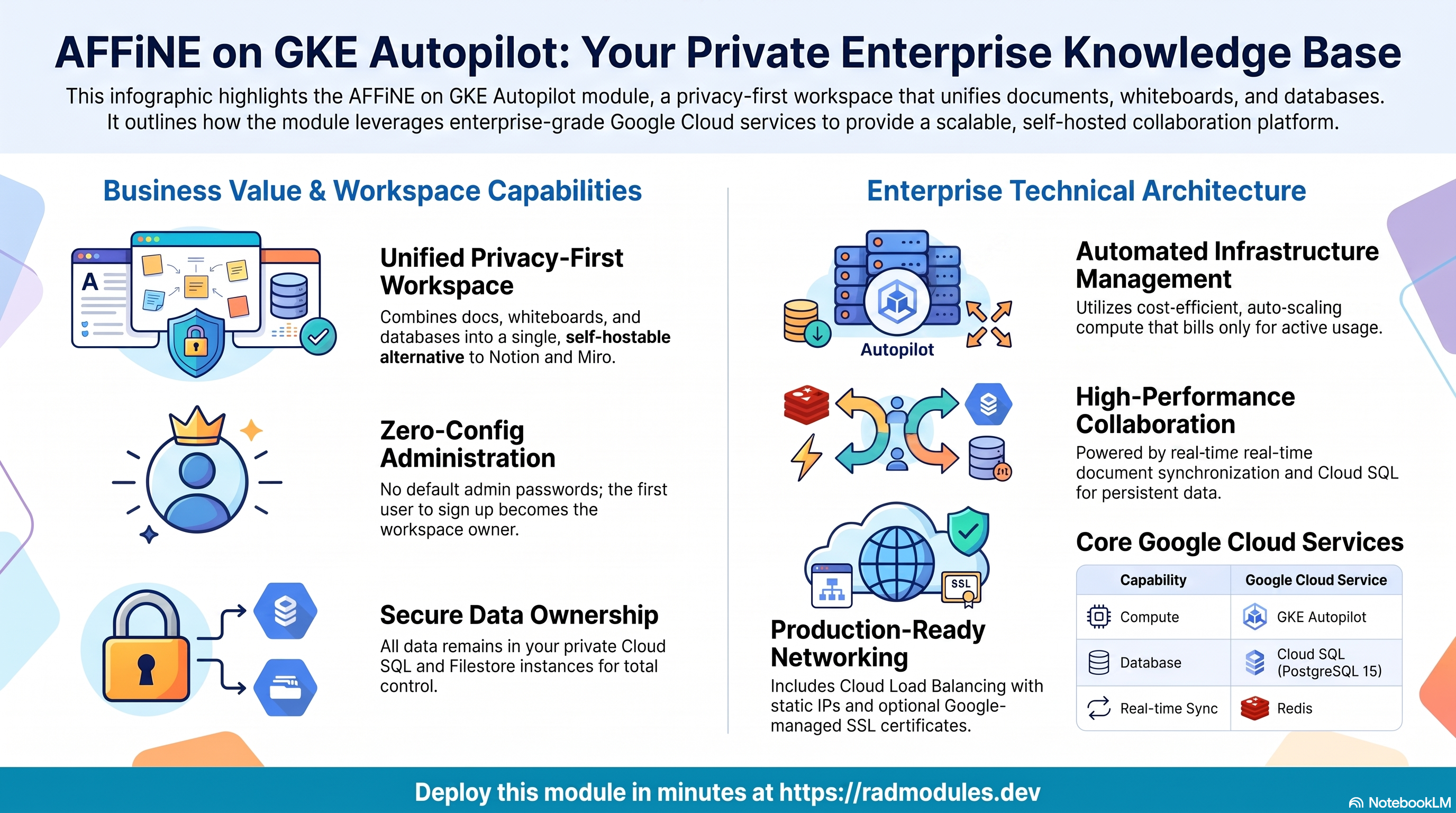

1. Overview

AFFiNE runs as a single Node.js self-host server. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Node.js server pod on port 3010, 2 vCPU / 4 GiB by default
Database	Cloud SQL for PostgreSQL 15	Required — the engine is fixed at POSTGRES_15
Real-time collaboration	Redis (co-hosted on the shared NFS VM)	Yjs document-sync pub/sub and the background job queue
File persistence	Cloud Filestore (NFS)	Uploaded blobs persist under /root/.affine/storage, shared across pods
Object storage	Cloud Storage	A storage bucket provisioned automatically (backups/auxiliary storage)
Secrets	Secret Manager	Only the auto-generated database password — AFFiNE's own signing key lives in PostgreSQL
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. database_type defaults to POSTGRES_15 and Affine_Common fixes the engine regardless — other engines are not supported.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback, not a socket. enable_cloudsql_volume = true runs a cloud-sql-proxy sidecar listening on 127.0.0.1:5432 (the GKE pattern) — this is different from the Cloud Run variant, which mounts a Unix socket. The cloud entrypoint resolves the loopback host and sets sslmode=disable for it; a real private IP (Cloud Run) gets sslmode=require instead.
• Redis is required, not optional. enable_redis = true by default; the shared NFS VM also co-hosts Redis, so the description explicitly says to keep enable_nfs = true unless an external redis_host is supplied. Without Redis, real-time document sync and the job queue do not work.
• NFS is enabled by default (enable_nfs = true, mounted at /root/.affine/storage) so uploaded blobs persist and can be shared across pods — and because it hosts the Redis instance the app depends on.
• Session affinity is ClientIP so a client's requests reach the same pod.
• No admin account / password to retrieve. AFFiNE has no forced first-run admin credential; the first user to sign up on the deployed URL becomes the workspace owner.
• Signing key lives in the database, not Secret Manager. AFFiNE generates its signing/private key during the affine-migrate job's self-host-predeploy step and persists it in PostgreSQL — secret_ids is intentionally empty; the database password is the only secret Secret Manager holds for this app.
• Schema creation happens in an init job, not at boot. The affine-migrate job runs node ./scripts/self-host-predeploy (idempotent migration + key generation) before the server container starts, so there is no first-boot installer step to wait through at runtime.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the AFFiNE workload

AFFiNE pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. The workload type resolves via the shared workload_type/stateful_pvc_enabled logic (see App_GKE); by default AFFiNE runs as a Deployment.

• Console: Kubernetes Engine → Workloads → select the AFFiNE workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE" --selector app~affine 2>/dev/null || kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

AFFiNE stores all workspace data (documents, whiteboards, databases, users) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:5432; no public IP is exposed. On first deploy, the db-init job creates the application role and database and grants privileges (plus a best-effort cloudsqlsuperuser grant so migrations can CREATE EXTENSION); the affine-migrate job then runs AFFiNE's own schema migration.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Redis — real-time collaboration

AFFiNE's Yjs document-sync pub/sub and background job queue require Redis. enable_redis = true by default; when redis_host is left blank the Foundation injects the shared NFS server's IP (the NFS VM co-hosts Redis). The cloud entrypoint maps the injected REDIS_HOST/REDIS_PORT/REDIS_AUTH onto AFFiNE's REDIS_SERVER_HOST/REDIS_SERVER_PORT/REDIS_SERVER_PASSWORD.

• Console: Compute Engine → VM instances (the shared NFS/Redis VM).
• CLI:

  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -i REDIS
  gcloud compute instances list --project "$PROJECT" --filter="name~nfs"

See App_GKE for how the shared NFS/Redis VM is discovered and provisioned.

D. Cloud Storage & file persistence

A dedicated Cloud Storage bucket (suffix storage) is provisioned automatically and the workload service account is granted access; it serves backups and auxiliary storage. Separately, AFFiNE's uploaded blobs live on NFS (Cloud Filestore) at /root/.affine/storage, shared across pods.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~affine"
  gcloud filestore instances list --project "$PROJECT"
  kubectl get pvc -n "$NAMESPACE"

See App_GKE for CMEK options and GCS Fuse mounts.

E. Secret Manager

Only the database password secret is generated automatically for AFFiNE — there is no application-level secret because AFFiNE persists its own signing key in PostgreSQL. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~affine"
  gcloud secrets versions access latest --secret=<database-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

F. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). A custom domain with a Google-managed certificate can be enabled.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

G. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. AFFiNE Application Behaviour

• First-deploy database setup. The db-init job (postgres:15-alpine, timeout 600 s) idempotently creates the application role and database, grants privileges on the database and public schema, and best-effort grants cloudsqlsuperuser so later migrations can CREATE EXTENSION. It then signals the Cloud SQL Auth Proxy sidecar (POST /quitquitquit) so the Job pod exits cleanly.
• Schema migration in a dedicated init job, not on boot. The affine-migrate job (the built AFFiNE app image, 2Gi memory, timeout 1200 s, max_retries = 3) runs after db-init and executes AFFiNE's own node ./scripts/self-host-predeploy, which performs idempotent schema migration and generates the signing/private key, persisting it in PostgreSQL. The runtime container never migrates inline — by the time the server starts, the schema and key already exist.
• No forced admin account. AFFiNE has no image-mandated superadmin credential; the first user to visit the deployed URL and sign up becomes the initial workspace owner.
• DB connection is TCP-over-loopback via the Auth Proxy sidecar, not a socket. The cloud entrypoint (cloud-entrypoint.sh) assembles DATABASE_URL from the injected DB_* vars; on GKE the resolved host is 127.0.0.1 (the proxy sidecar) so it uses sslmode=disable. It also maps REDIS_HOST/REDIS_PORT/REDIS_AUTH onto AFFiNE's REDIS_SERVER_HOST/REDIS_SERVER_PORT/REDIS_SERVER_PASSWORD, and defaults AFFINE_SERVER_EXTERNAL_URL to the platform-injected service URL so invite/share links resolve correctly.
• Health path. Startup, liveness, and readiness probes are all HTTP GET /, which returns 200 once the server is ready and requires no authentication. Startup probe: 60 s initial delay, 15 s period, 30 failure threshold (up to ~510 s from container start). Liveness: 60 s initial delay, 30 s period, 3 failure threshold. Because migration runs in the separate affine-migrate job, the startup window mostly covers Node.js bundle load and Redis/PostgreSQL connection setup, not schema creation.
• Full-text indexer is disabled. AFFINE_INDEXER_ENABLED = "false" because the indexer requires a pgvector-backed search backend that is not provisioned by this module; the server boots on plain PostgreSQL + Redis.
• Inspect the init jobs and running config:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<affine-migrate-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E 'DATABASE_URL|REDIS_SERVER|AFFINE_SERVER'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for AFFiNE are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	affine	Base name for resources. Do not change after first deploy.
application_version	stable	Image tag for ghcr.io/toeverything/affine. latest maps to stable (AFFiNE publishes no latest tag). Increment to trigger a new image build.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	custom	AFFiNE is always a thin custom build over the upstream image so the cloud entrypoint can run.
container_port	3010	AFFiNE's self-host server port.
container_resources.cpu_limit	2000m	2 vCPU default.
container_resources.memory_limit	4Gi	4Gi default.
min_instance_count	1	Minimum pod replicas.
max_instance_count	5	Maximum pod replicas.
enable_cloudsql_volume	true	Auth Proxy sidecar on loopback (127.0.0.1:5432) — required on GKE.
cloudsql_volume_mount_path	/cloudsql	Path for the Auth Proxy Unix socket (used for the metadata/quitquitquit endpoint, not the DB connection itself).
enable_image_mirroring	true	Always true — the base image is mirrored from Docker Hub/GHCR into Artifact Registry.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the AFFiNE UI.
workload_type	null → Deployment	Deployment by default.
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.
network_tags	["nfsserver"]	Applied to nodes/pods; matches the shared NFS/Redis VM's firewall tag.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Keep true — the shared NFS VM also co-hosts the Redis instance AFFiNE requires; disabling it removes both blob persistence and Redis unless an external redis_host is supplied.
nfs_mount_path	/root/.affine/storage	Where AFFiNE stores uploaded blobs.

Group 15 — Redis

Variable	Default	Description
enable_redis	true	Required for production — Yjs real-time sync and the job queue run through Redis.
redis_host	""	Leave blank to use the shared NFS server's IP.
redis_port	6379	Redis TCP port.
redis_auth	""	Redis auth password, if required.

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	AFFiNE requires PostgreSQL 15+; other engines are rejected by the Common layer.
application_database_name	affine	Database name. Immutable after first deploy.
application_database_user	affine	Application database user; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
reserve_static_ip	true	Stable external IP across redeploys.
application_domains	[]	Custom hostnames + managed certificate.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach AFFiNE.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init, affine-migrate) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15	Critical	Selecting a non-PostgreSQL engine breaks self-host-predeploy and every query.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all data.
enable_redis	true	Critical	AFFiNE's real-time document sync and job queue depend on Redis; disabling it without an alternative breaks collaboration and background jobs.
enable_nfs	true (unless an external redis_host is supplied)	Critical	The shared NFS VM also co-hosts Redis — disabling NFS with no external Redis silently removes AFFiNE's Redis connection too, not just blob persistence.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar on 127.0.0.1:5432 is required for DB connectivity on GKE.
container_resources.memory_limit	4Gi	High	The affine-migrate init job alone requests 2Gi; under-provisioning the server container risks OOM under real-time collaboration load.
session_affinity	ClientIP	High	Without stickiness, requests bounce between pods and disrupt WebSocket-based real-time sessions.
AFFINE_SERVER_EXTERNAL_URL (auto-defaulted)	Platform service URL	Medium	If overridden incorrectly via environment_variables, invite and share links resolve to the wrong host.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
AFFINE_INDEXER_ENABLED (fixed false)	Leave as-is unless a vector DB is wired	Low	Enabling it without a pgvector-backed backend breaks the full-text indexer.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and AFFINE_SERVER_EXTERNAL_URL.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. AFFiNE-specific application configuration shared with the Cloud Run variant is described in Affine_Common.
