RAGFlow GKE Module — Configuration Guide

RAGFlow is an open-source document intelligence and Retrieval-Augmented Generation (RAG) platform. It ingests PDFs, Word documents, HTML pages, and other formats, chunks and embeds them, stores vectors in Elasticsearch, exposes a REST API for question-answering, and provides a web UI for knowledge base management and enterprise search.

RAGFlow GKE is a wrapper module built on top of App GKE. It uses App GKE for all GCP infrastructure provisioning (GKE Autopilot cluster, networking, Cloud SQL Auth Proxy, GCS, secrets, CI/CD) and RAGFlow Common to supply the RAGFlow-specific application configuration, database initialization job, and document storage bucket.

Deployment prerequisite: RAGFlow GKE requires Elasticsearch GKE to be deployed first. The elasticsearch_hosts variable is mandatory — Terraform will reject the configuration if it is empty.

---

§1 · Module Overview

What RAGFlow GKE provides

• A RAGFlow Kubernetes Deployment (custom image built from infiniflow/ragflow via Cloud Build) running on GKE Autopilot with a LoadBalancer service on port 80.
• Cloud SQL MySQL 8.0 instance connected via the Cloud SQL Auth Proxy sidecar at 127.0.0.1:3306 inside the pod.
• Redis integration for the RAGFlow task queue (document processing workers). When enable_redis = true (default), REDIS_HOST and REDIS_PORT are injected automatically.
• Elasticsearch integration — ELASTICSEARCH_HOSTS and ELASTICSEARCH_USERNAME are injected automatically from the elasticsearch_hosts and elasticsearch_username variables.
• A GCS bucket (<prefix>-ragflow-documents) for document ingestion storage.
• A MySQL db-init Kubernetes Job that creates the rag_flow database and ragflow user before the application pod starts.
• NFS mount enabled by default (enable_nfs = true) for shared document processing.
• ClientIP session affinity by default, ensuring that browser uploads and multi-step document processing requests consistently reach the same pod.

Key differences from App GKE defaults

Feature	App GKE default	RAGFlow GKE default
container_port	8080	80 (set by RAGFlow Common)
image_source	varies	"custom" (always builds via Dockerfile)
database_type	varies	"MYSQL_8_0"
service_type	varies	"LoadBalancer"
session_affinity	"None"	"ClientIP"
enable_nfs	false	true
enable_redis	varies	true
termination_grace_period_seconds	60	60
deployment_timeout	600	1800
reserve_static_ip	false	true
network_tags	[]	["nfsserver"]
module_dependency	varies	["Services GCP", "Elasticsearch GKE"]
credit_cost	varies	150

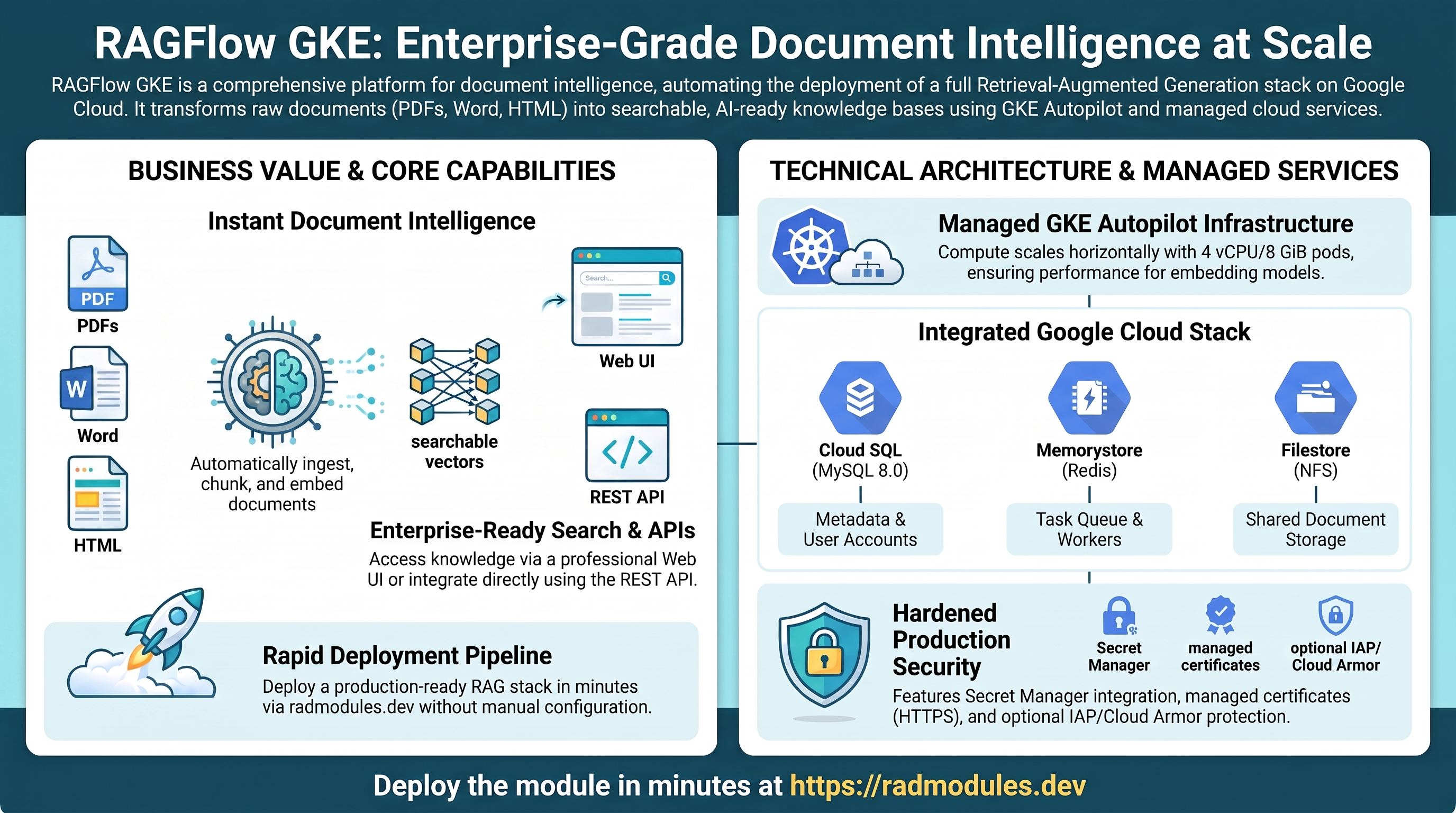

Architecture

RAGFlow_GKE
├── RAGFlow_Common (sub-module)
│   ├── config output → application_config
│   ├── storage_buckets output → module_storage_buckets
│   └── path output → scripts_dir
└── App_GKE (foundation module)
    ├── GKE Autopilot cluster
    ├── Cloud SQL MySQL 8.0
    ├── Cloud SQL Auth Proxy sidecar
    ├── Redis (Memorystore or NFS-hosted)
    ├── NFS mount
    ├── GCS bucket (ragflow-documents)
    └── Kubernetes resources (Deployment, Service, Jobs, HPA)

Platform-managed behaviours

Behaviour	Detail
Elasticsearch endpoint injected	ELASTICSEARCH_HOSTS is always set from var.elasticsearch_hosts. Terraform rejects empty values — deploy Elasticsearch GKE first.
MySQL connection injected	MYSQL_HOST=127.0.0.1, MYSQL_PORT=3306, MYSQL_DATABASE, and MYSQL_USER are always injected. The Cloud SQL Auth Proxy runs as a sidecar.
Redis queue injected	When enable_redis = true, REDIS_HOST and REDIS_PORT are injected automatically.
Custom image build	RAGFlow always builds a custom image via RAGFlow_Common/scripts/Dockerfile using Cloud Build. The APP_VERSION build arg is set from application_version.
db-init job auto-generated	A MySQL initialization Job (mysql:8.0-debian) runs scripts/db-init.sh on first deploy. It creates the database and user with mysql_native_password auth.
service_conf.yaml generated at startup	The custom entrypoint (scripts/entrypoint.sh) writes /ragflow/conf/service_conf.yaml from environment variables before starting the RAGFlow processes.
Network discovery	The module uses App_Common/modules/app_networking to discover the VPC region from existing subnets. Falls back to var.region when no subnets are found.
min_instance_count hard-capped at 1	RAGFlow GKE hard-codes min_instance_count = 1 in the locals merge, regardless of var.min_instance_count.

---

§2 · IAM & Project Identity (Group 0 & 1)

Variable	Type	Default	Description
module_description	string	(RAGFlow GKE description)	Platform UI description. {{UIMeta group=0 order=1}}
module_documentation	string	"https://docs.radmodules.dev/docs/modules/RAGFlow_GKE"	Documentation URL. {{UIMeta group=0 order=2}}
module_dependency	list(string)	["Services GCP", "Elasticsearch GKE"]	Modules that must be deployed first. {{UIMeta group=0 order=3}}
module_services	list(string)	(GKE, MySQL, Elasticsearch, Redis, etc.)	GCP services consumed. {{UIMeta group=0 order=4}}
credit_cost	number	150	Platform credits consumed on deployment. {{UIMeta group=0 order=5}}
require_credit_purchases	bool	false	Enforce credit balance check. {{UIMeta group=0 order=6}}
enable_purge	bool	true	Permit full deletion on destroy. {{UIMeta group=0 order=7}}
public_access	bool	true	Platform UI visibility. {{UIMeta group=0 order=8}}
deployment_id	string	""	Fixed deployment ID; auto-generated when blank. {{UIMeta group=0 order=9}}
resource_creator_identity	string	"rad-module-creator@tec-rad-ui-2b65.iam.gserviceaccount.com"	Terraform service account. {{UIMeta group=0 order=10}}
project_id	string	required	GCP project ID. {{UIMeta group=1 order=1}}
tenant_deployment_id	string	"demo"	1–20 lowercase letters, numbers, hyphens. {{UIMeta group=1 order=2}}
support_users	list(string)	[]	Email addresses granted IAM access and monitoring alerts. {{UIMeta group=1 order=3}}
resource_labels	map(string)	{}	Labels applied to all resources. {{UIMeta group=1 order=4}}
region	string	"us-central1"	GCP region fallback. {{UIMeta group=1 order=5}}

---

§3 · Application Identity (Group 2)

Variable	Type	Default	Description
application_name	string	"ragflow"	Base name for Kubernetes resources. Do not change after deployment. {{UIMeta group=2 order=1}}
application_display_name	string	"RAGFlow"	Human-readable name in the UI. {{UIMeta group=2 order=2}}
application_description	string	"RAGFlow Document Intelligence and RAG Engine on GKE Autopilot"	Description in Kubernetes annotations. {{UIMeta group=2 order=3}}
application_version	string	"v0.13.0"	RAGFlow image tag. Increment to trigger a new Cloud Build and rollout. {{UIMeta group=2 order=4}}
display_name	string	"RAGFlow"	Alternative display name field. {{UIMeta group=2 order=11}}
description	string	"RAGFlow Document Intelligence and RAG Engine on GKE Autopilot"	Used in Kubernetes annotations and the db-init job description. {{UIMeta group=2 order=3}}

---

§4 · Runtime & Scaling (Group 3)

Variable	Type	Default	Description
deploy_application	bool	true	Set false to provision infrastructure without deploying the Kubernetes workload. {{UIMeta group=3 order=0}}
container_image_source	string	"custom"	"custom" builds from RAGFlow_Common/scripts/Dockerfile; "prebuilt" deploys an existing image. Options: prebuilt, custom. {{UIMeta group=3 order=1}}
container_image	string	""	Override image URI. Leave empty to use the Cloud Build result. {{UIMeta group=3 order=2}}
container_build_config	object	{ enabled=true }	Cloud Build configuration. {{UIMeta group=3 order=3}}
enable_image_mirroring	bool	true	Mirror the source image to Artifact Registry. {{UIMeta group=3 order=4}}
min_instance_count	number	1	Minimum pod replicas. Hard-capped at 1 internally. {{UIMeta group=3 order=5}}
max_instance_count	number	5	Maximum pod replicas. {{UIMeta group=3 order=6}}
enable_vertical_pod_autoscaling	bool	false	Enable VPA. {{UIMeta group=3 order=7}}
container_port	number	80	TCP port the RAGFlow container listens on. {{UIMeta group=3 order=8}}
container_protocol	string	"http1"	HTTP protocol version. Options: http1, h2c. {{UIMeta group=3 order=9}}
container_resources	object	{ cpu_limit="1000m", memory_limit="512Mi" }	Full container resource override. When set, takes precedence over cpu_limit and memory_limit. {{UIMeta group=3 order=10}}
timeout_seconds	number	300	Load balancer backend timeout. Valid range: 0–3600. {{UIMeta group=3 order=11}}
enable_cloudsql_volume	bool	true	Injects Cloud SQL Auth Proxy sidecar. Must remain true when database_type != "NONE". {{UIMeta group=3 order=12}}
cloudsql_volume_mount_path	string	"/cloudsql"	Cloud SQL Auth Proxy socket path. {{UIMeta group=3 order=13}}
service_annotations	map(string)	{}	Custom annotations on the Kubernetes Service. {{UIMeta group=3 order=14}}
service_labels	map(string)	{}	Custom labels on the Kubernetes Service. {{UIMeta group=3 order=15}}
cpu_limit	string	"4000m"	CPU limit (used when container_resources is not set). RAGFlow document parsing is CPU-intensive. {{UIMeta group=3 order=20}}
memory_limit	string	"8Gi"	Memory limit (used when container_resources is not set). Embedding models require significant RAM. {{UIMeta group=3 order=21}}
ingress_settings	string	"all"	Ingress traffic setting. Options: all, internal, internal-and-cloud-load-balancing. {{UIMeta group=3 order=17}}

---

§5 · GKE Backend Configuration (Group 5)

Variable	Type	Default	Description
gke_cluster_name	string	""	GKE cluster name. Auto-discovered when empty. {{UIMeta group=5 order=1}}
gke_cluster_selection_mode	string	"primary"	Cluster selection strategy. Options: explicit, round-robin, primary. {{UIMeta group=5 order=2}}
namespace_name	string	""	Kubernetes namespace. Auto-generated from application name when empty. {{UIMeta group=5 order=3}}
workload_type	string	"Deployment"	Kubernetes workload type. Options: Deployment, StatefulSet. {{UIMeta group=5 order=4}}
service_type	string	"LoadBalancer"	Kubernetes Service type. "LoadBalancer" is required for external access. Options: ClusterIP, LoadBalancer, NodePort. {{UIMeta group=5 order=5}}
session_affinity	string	"ClientIP"	"ClientIP" ensures upload sessions and multi-step document processing reach the same pod. {{UIMeta group=5 order=6}}
enable_multi_cluster_service	bool	false	Enable Multi-Cluster Services (MCS). {{UIMeta group=5 order=7}}
configure_service_mesh	bool	false	Enable Istio service mesh. {{UIMeta group=5 order=8}}
enable_network_segmentation	bool	false	Apply Kubernetes NetworkPolicies. {{UIMeta group=5 order=9}}
termination_grace_period_seconds	number	60	Seconds to wait after SIGTERM. Increase for in-flight document processing. Valid range: 0–3600. {{UIMeta group=5 order=10}}
deployment_timeout	number	1800	Seconds Terraform waits for Deployment rollout. RAGFlow startup includes model loading. {{UIMeta group=5 order=11}}

---

§6 · RAGFlow-Specific Variables

§6.A · Database (Group 15)

Variable	Type	Default	Description
db_name	string	"rag_flow"	MySQL database name. Do not change after deployment. {{UIMeta group=15 order=20}}
db_user	string	"ragflow"	MySQL database username. {{UIMeta group=15 order=21}}
database_type	string	"MYSQL_8_0"	RAGFlow requires MySQL 8.0. {{UIMeta group=15 order=1}}
application_database_name	string	"gkeappdb"	Foundation-level database name variable (used for interface compatibility). Set db_name instead. {{UIMeta group=15 order=4}}
application_database_user	string	"gkeappuser"	Foundation-level database user variable (used for interface compatibility). Set db_user instead. {{UIMeta group=15 order=5}}
database_password_length	number	32	Length of the auto-generated database password. Valid range: 16–64. {{UIMeta group=15 order=6}}
enable_postgres_extensions	bool	false	Not applicable for RAGFlow. {{UIMeta group=15 order=7}}
postgres_extensions	list(string)	[]	Not applicable for RAGFlow. {{UIMeta group=15 order=8}}
enable_mysql_plugins	bool	false	MySQL plugins flag. {{UIMeta group=15 order=9}}
mysql_plugins	list(string)	[]	MySQL plugins list. {{UIMeta group=15 order=10}}
enable_auto_password_rotation	bool	false	Automatic database password rotation. {{UIMeta group=15 order=11}}
rotation_propagation_delay_sec	number	90	Seconds to wait after rotation before restarting pods. {{UIMeta group=15 order=12}}

§6.B · Elasticsearch & Redis (Group 14)

Variable	Type	Default	Description
elasticsearch_hosts	string	""	Required. Elasticsearch HTTP endpoint for RAGFlow document indexing and vector search. Set to the elasticsearch_endpoint output from Elasticsearch_GKE (e.g. "http://10.0.0.5:9200"). Terraform validation rejects empty values. {{UIMeta group=14 order=5}}
elasticsearch_username	string	""	Username for Elasticsearch authentication. Leave empty when xpack.security.enabled = false. {{UIMeta group=14 order=6}}
enable_redis	bool	true	Enable Redis as the RAGFlow task queue backend. Required for document processing workers. {{UIMeta group=14 order=1}}
redis_host	string	""	Hostname or IP of the Redis server. Auto-discovered from the NFS VM when enable_nfs = true. Set explicitly for Memorystore. {{UIMeta group=14 order=2}}
redis_port	string	"6379"	TCP port of the Redis server. {{UIMeta group=14 order=3}}
redis_auth	string	""	Redis authentication password. Sensitive. {{UIMeta group=14 order=4}}

---

§7 · Environment Variables & Secrets (Group 4)

Variable	Type	Default	Description
environment_variables	map(string)	{}	Additional plain-text env vars injected into the RAGFlow container. Do not set MYSQL_HOST, MYSQL_PORT, MYSQL_DATABASE, MYSQL_USER, ELASTICSEARCH_HOSTS, ELASTICSEARCH_USERNAME, REDIS_HOST, or REDIS_PORT — these are injected automatically. {{UIMeta group=4 order=1}}
secret_environment_variables	map(string)	{}	Secret Manager references injected as environment variables. {{UIMeta group=4 order=2}}
secret_rotation_period	string	"2592000s"	Rotation notification period (30 days). Must be a duration in seconds followed by s. {{UIMeta group=4 order=3}}
secret_propagation_delay	number	30	Seconds to wait after secret creation before proceeding. {{UIMeta group=4 order=4}}

Automatically Injected Environment Variables

The following variables are always injected by RAGFlow GKE and must not be set in environment_variables:

Variable	Value	Source
MYSQL_HOST	"127.0.0.1"	Cloud SQL Auth Proxy sidecar address
MYSQL_PORT	"3306"	MySQL standard port
MYSQL_DATABASE	var.db_name	RAGFlow database name
MYSQL_USER	var.db_user	RAGFlow database user
ELASTICSEARCH_HOSTS	var.elasticsearch_hosts	Elasticsearch HTTP endpoint
ELASTICSEARCH_USERNAME	var.elasticsearch_username	Elasticsearch username
REDIS_HOST	var.redis_host	Redis server host
REDIS_PORT	var.redis_port	Redis server port

---

§8 · Access & Networking (Groups 18–21)

Variable	Type	Default	Description
enable_iap	bool	false	Enable Identity-Aware Proxy. {{UIMeta group=19 order=1}}
iap_authorized_users	list(string)	[]	IAP user allowlist. {{UIMeta group=19 order=2}}
iap_authorized_groups	list(string)	[]	IAP group allowlist. {{UIMeta group=19 order=3}}
iap_oauth_client_id	string	""	OAuth 2.0 client ID for IAP. Sensitive. {{UIMeta group=19 order=4}}
iap_oauth_client_secret	string	""	OAuth 2.0 client secret for IAP. Sensitive. {{UIMeta group=19 order=5}}
iap_support_email	string	""	Support email on the OAuth consent screen. {{UIMeta group=19 order=6}}
enable_custom_domain	bool	false	Provision a Kubernetes Ingress for custom domain routing. {{UIMeta group=18 order=1}}
application_domains	list(string)	[]	Custom domain names for the Ingress. {{UIMeta group=18 order=2}}
reserve_static_ip	bool	true	Reserve a global static external IP. {{UIMeta group=18 order=3}}
static_ip_name	string	""	Name for the static IP. Auto-generated when empty. {{UIMeta group=18 order=4}}
network_tags	list(string)	["nfsserver"]	GCP network tags applied to GKE pods. {{UIMeta group=18 order=5}}
network_name	string	""	VPC network name. Auto-discovered when empty. {{UIMeta group=18 order=6}}
enable_cloud_armor	bool	false	Attach Cloud Armor WAF policy. {{UIMeta group=20 order=1}}
admin_ip_ranges	list(string)	[]	Admin CIDR ranges for privileged access. {{UIMeta group=20 order=2}}
cloud_armor_policy_name	string	"default-waf-policy"	Cloud Armor security policy name. {{UIMeta group=20 order=3}}
enable_cdn	bool	false	Enable Cloud CDN. {{UIMeta group=20 order=4}}
enable_vpc_sc	bool	false	Enable VPC Service Controls perimeter. {{UIMeta group=21 order=1}}
vpc_cidr_ranges	list(string)	[]	VPC subnet CIDRs for VPC-SC. {{UIMeta group=21 order=2}}
vpc_sc_dry_run	bool	true	Log VPC-SC violations without blocking. {{UIMeta group=21 order=3}}
organization_id	string	""	GCP Organization ID for VPC-SC policy. {{UIMeta group=21 order=4}}
enable_audit_logging	bool	false	Enable detailed Cloud Audit Logs. {{UIMeta group=21 order=5}}

---

§9 · Storage & Filesystem (Groups 12 & 13)

Variable	Type	Default	Description
enable_nfs	bool	true	Provision and mount Cloud Filestore NFS. Required when redis_host is empty — the NFS server IP is used as the Redis host. {{UIMeta group=12 order=1}}
nfs_mount_path	string	"/mnt/nfs"	NFS volume mount path inside the container. {{UIMeta group=12 order=2}}
nfs_instance_name	string	""	Name of an existing NFS GCE VM. Auto-discovered when empty. {{UIMeta group=12 order=3}}
nfs_instance_base_name	string	"app-nfs"	Base name for the inline NFS GCE VM. {{UIMeta group=12 order=4}}
create_cloud_storage	bool	true	Provision GCS buckets. The ragflow-documents bucket is always created by RAGFlow Common. {{UIMeta group=13 order=1}}
storage_buckets	list(object)	[{ name_suffix="data" }]	Additional GCS bucket configurations. {{UIMeta group=13 order=2}}
gcs_volumes	list(object)	[]	GCS Fuse volumes mounted into the RAGFlow container. {{UIMeta group=13 order=3}}
manage_storage_kms_iam	bool	false	Create CMEK KMS keyring for storage encryption. {{UIMeta group=13 order=4}}
enable_artifact_registry_cmek	bool	false	Enable CMEK for Artifact Registry. {{UIMeta group=13 order=5}}

---

§10 · Backup & Maintenance (Group 16)

Variable	Type	Default	Description
backup_schedule	string	"0 2 * * *"	Backup cron schedule (UTC). {{UIMeta group=16 order=1}}
backup_retention_days	number	7	Days to retain backup files. {{UIMeta group=16 order=2}}
enable_backup_import	bool	false	Trigger a one-time database import job during deployment. {{UIMeta group=16 order=3}}
backup_source	string	"gcs"	Backup import source. Options: gcs, gdrive. {{UIMeta group=16 order=4}}
backup_uri	string	""	Backup file URI for import. {{UIMeta group=6 order=7}}
backup_format	string	"sql"	Backup file format. Options: sql, tar, gz, tgz, tar.gz, zip, auto. {{UIMeta group=16 order=6}}

---

§11 · CI/CD Integration (Group 11)

Variable	Type	Default	Description
enable_cicd_trigger	bool	false	Create a Cloud Build trigger on GitHub pushes. {{UIMeta group=11 order=1}}
github_repository_url	string	""	Full HTTPS URL of the GitHub repository. {{UIMeta group=11 order=2}}
github_token	string	""	GitHub Personal Access Token. Sensitive. {{UIMeta group=11 order=3}}
github_app_installation_id	string	""	Cloud Build GitHub App installation ID. {{UIMeta group=11 order=4}}
cicd_trigger_config	object	{ branch_pattern="^main$" }	Branch filter, trigger name, and build substitutions. {{UIMeta group=11 order=5}}
enable_cloud_deploy	bool	false	Switch to a Cloud Deploy pipeline. {{UIMeta group=11 order=6}}
cloud_deploy_stages	list(object)	[dev, staging, prod(approval)]	Ordered promotion stages. {{UIMeta group=11 order=7}}
enable_binary_authorization	bool	false	Enforce Binary Authorization policy. {{UIMeta group=11 order=8}}

---

§12 · Custom Initialization & Jobs (Group 10 & 17)

Variable	Type	Default	Description
initialization_jobs	list(object)	[]	Kubernetes Jobs executed before the application starts. When empty, the auto-generated MySQL db-init job from RAGFlow Common runs. Each job must have at least one of command, args, or script_path. {{UIMeta group=10 order=1}}
cron_jobs	list(object)	[]	Recurring Kubernetes CronJobs. {{UIMeta group=10 order=2}}
additional_services	list(object)	[]	Additional containers deployed as separate Kubernetes Deployments. {{UIMeta group=10 order=3}}
enable_custom_sql_scripts	bool	false	Run custom SQL scripts from a GCS bucket after provisioning. {{UIMeta group=17 order=1}}
custom_sql_scripts_bucket	string	""	GCS bucket containing SQL scripts. {{UIMeta group=17 order=2}}
custom_sql_scripts_path	string	""	Path prefix within the bucket. {{UIMeta group=17 order=3}}
custom_sql_scripts_use_root	bool	false	Execute custom SQL as root database user. {{UIMeta group=17 order=4}}

---

§13 · Reliability Policies (Group 8)

Variable	Type	Default	Description
enable_pod_disruption_budget	bool	true	Create a Kubernetes PodDisruptionBudget. {{UIMeta group=8 order=1}}
pdb_min_available	string	"1"	Minimum pods available during voluntary disruptions. Integer or percentage string. {{UIMeta group=8 order=2}}
enable_topology_spread	bool	false	Add TopologySpreadConstraints. {{UIMeta group=8 order=3}}
topology_spread_strict	bool	false	DoNotSchedule (strict) vs ScheduleAnyway. {{UIMeta group=8 order=4}}

---

§14 · Resource Quota (Group 7)

Variable	Type	Default	Description
enable_resource_quota	bool	false	Create a Kubernetes ResourceQuota. {{UIMeta group=7 order=1}}
quota_cpu_requests	string	""	Total CPU requests allowed in the namespace. {{UIMeta group=7 order=2}}
quota_cpu_limits	string	""	Total CPU limits allowed. {{UIMeta group=7 order=3}}
quota_memory_requests	string	""	Total memory requests allowed. {{UIMeta group=7 order=4}}
quota_memory_limits	string	""	Total memory limits allowed. {{UIMeta group=7 order=5}}

---

§15 · StatefulSet Settings (Group 6)

These settings apply only when workload_type = "StatefulSet".

Variable	Type	Default	Description
stateful_pvc_enabled	bool	false	Provision a PVC for local storage. {{UIMeta group=6 order=1}}
stateful_pvc_size	string	"10Gi"	PVC size. {{UIMeta group=6 order=2}}
stateful_pvc_mount_path	string	"/data"	Container mount path for the PVC. {{UIMeta group=6 order=3}}
stateful_pvc_storage_class	string	"standard-rwo"	Kubernetes StorageClass for the PVC. {{UIMeta group=6 order=4}}
stateful_headless_service	bool	true	Create a headless service for stable pod DNS. {{UIMeta group=6 order=5}}
stateful_pod_management_policy	string	"OrderedReady"	"OrderedReady" or "Parallel". {{UIMeta group=6 order=6}}
stateful_update_strategy	string	"RollingUpdate"	"RollingUpdate" or "OnDelete". {{UIMeta group=6 order=7}}

---

§16 · Observability & Health (Group 9)

Variable	Type	Default	Description
startup_probe_config	object	{ enabled=true, path="/v1/health", initial_delay_seconds=60, period_seconds=10, failure_threshold=18 }	App GKE-standard startup probe. {{UIMeta group=9 order=1}}
health_check_config	object	{ enabled=true, path="/v1/health", initial_delay_seconds=120, period_seconds=30 }	App GKE-standard liveness probe. {{UIMeta group=9 order=2}}
uptime_check_config	object	{ enabled=false, path="/v1/health", check_interval="60s", timeout="10s" }	Cloud Monitoring uptime check. {{UIMeta group=9 order=3}}
alert_policies	list(object)	[]	Cloud Monitoring alert policies. {{UIMeta group=9 order=4}}
startup_probe	object	{ enabled=true, type="HTTP", path="/v1/health", initial_delay_seconds=60, timeout_seconds=10, period_seconds=10, failure_threshold=18 }	Container startup probe forwarded to RAGFlow Common. {{UIMeta group=9 order=5}}
liveness_probe	object	{ enabled=true, type="HTTP", path="/v1/health", initial_delay_seconds=120, timeout_seconds=10, period_seconds=30, failure_threshold=3 }	Container liveness probe forwarded to RAGFlow Common. {{UIMeta group=9 order=6}}

---

§17 · Validation Guards

validation.tf enforces the following preconditions at plan time:

Guard	Error Message
min_instance_count <= max_instance_count	Minimum cannot exceed maximum.
elasticsearch_hosts != ""	elasticsearch_hosts must be set — deploy Elasticsearch GKE first and use its elasticsearch_endpoint output.
enable_redis = true requires redis_host != "" OR enable_nfs = true	Without a Redis host source, the task queue will fail to connect.
enable_iap = true requires both OAuth credentials	IAP on GKE requires iap_oauth_client_id and iap_oauth_client_secret.
enable_cloudsql_volume = true requires database_type != "NONE"	The Auth Proxy sidecar should not be enabled without a database.

---

§18 · Outputs

Output	Description
service_name	Kubernetes service name.
service_url	Service URL (LoadBalancer or ClusterIP).
service_external_ip	External LoadBalancer IP.
project_id	GCP project ID.
deployment_id	Unique deployment identifier.
namespace	Kubernetes namespace.
database_instance_name	Cloud SQL instance name.
database_name	Application database name.
database_user	Application database username.
database_password_secret	Secret Manager secret name for the database password.
storage_buckets	All provisioned GCS buckets.
nfs_server_ip	NFS server internal IP (sensitive).
nfs_mount_path	NFS mount path in containers.
container_image	Container image URI.
cicd_enabled	Whether CI/CD pipeline is enabled.
github_repository_url	Connected GitHub repository URL.
kubernetes_ready	true when the GKE cluster endpoint is available and all workload resources have been deployed. false on first apply of a new cluster — the CI/CD pipeline must re-run apply to complete deployment.

---

§19 · Configuration Examples

Basic Deployment

# config/basic.tfvars
resource_creator_identity = ""
project_id                = "my-gcp-project-id"
tenant_deployment_id      = "basic"

application_version = "v0.13.0"

# Required — from: tofu output elasticsearch_endpoint (Elasticsearch_GKE)
elasticsearch_hosts = "http://ELASTICSEARCH_EXTERNAL_IP:9200"

db_name = "rag_flow"
db_user = "ragflow"

enable_redis = true
redis_host   = "REDIS_IP_FROM_SERVICES_GCP"
redis_port   = "6379"

cpu_limit    = "4000m"
memory_limit = "8Gi"

Advanced Deployment

# config/advanced.tfvars
resource_creator_identity = ""
project_id                = "my-gcp-project-id"
tenant_deployment_id      = "prod"

application_version      = "v0.13.0"
application_display_name = "RAGFlow Enterprise Search"

# Elasticsearch — required
elasticsearch_hosts    = "http://10.0.0.5:9200"
elasticsearch_username = ""

# Database
db_name = "rag_flow"
db_user = "ragflow"

# Redis for document processing queue
enable_redis = true
redis_host   = "10.0.0.6"
redis_port   = "6379"

# Resources
cpu_limit    = "8000m"
memory_limit = "16Gi"
max_instance_count = 5

# Reliability
enable_pod_disruption_budget = true
pdb_min_available            = "1"

# Networking
service_type      = "LoadBalancer"
session_affinity  = "ClientIP"
reserve_static_ip = true

# Observability
uptime_check_config = {
  enabled        = true
  path           = "/v1/health"
  check_interval = "60s"
  timeout        = "10s"
}

support_users = ["ops@example.com"]
resource_labels = {
  env     = "production"
  service = "ragflow"
}

Configuration Pitfalls & Sensible Defaults

Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).

Variable	Sensible Default	Risk	Consequence of Incorrect Value
elasticsearch_hosts	(required — no default)	Critical	RAGFlow cannot index or search documents without a reachable Elasticsearch endpoint. Must be set to the elasticsearch_endpoint output from a deployed Elasticsearch_GKE instance (e.g. http://10.0.0.5:9200). Leaving blank causes a plan-time error; RAGFlow will not deploy.
enable_redis	true	Critical	Redis is required for RAGFlow's document processing task queue. Setting to false disables the task queue backend; document parsing jobs are never executed and uploaded files remain unprocessed indefinitely.
redis_host	""	High	When enable_redis = true and redis_host is empty, the module falls back to a default address. Pointing to a wrong or unreachable Memorystore Redis host causes all async document workers to fail silently. Use the Redis IP from Services GCP.
database_type	"MYSQL_8_0"	Critical	RAGFlow only supports MySQL 8.0. Changing to POSTGRES or NONE removes the required database backend; RAGFlow cannot store user accounts, knowledge bases, or task state.
min_instance_count	1	High	RAGFlow loads embedding models during pod startup, which takes 2–3 minutes. Setting to 0 enables scale-to-zero on GKE; requests during cold-start periods will time out. Keep at 1 or more in production.
stateful_pvc_enabled	null	High	RAGFlow on GKE stores model artifacts and temporary processing files on disk. Without a PVC (null defaults to no PVC), pod restarts lose all in-progress processing state. Set stateful_pvc_enabled = true for production deployments.
stateful_pvc_size	"20Gi" (when enabled)	High	Undersized PVCs fill up when large document batches are processed. Once full, the pod enters CrashLoopBackOff. Provision at least 50Gi for production. PVC size cannot be reduced after creation.
workload_type	null	High	null resolves to Deployment (stateless). Combined with stateful_pvc_enabled = true, the module automatically selects StatefulSet. Explicitly setting workload_type = "Deployment" alongside stateful_pvc_enabled = true fails at plan time.
quota_memory_requests	""	Critical	If enable_resource_quota = true and quota_memory_requests is a bare integer (e.g. "4") rather than a binary suffix string (e.g. "4Gi"), Kubernetes treats it as bytes — blocking all pod scheduling. Always use Gi or Mi suffixes.
enable_cloudsql_volume	true	Critical	RAGFlow connects to Cloud SQL MySQL via Unix socket. Disabling this sidecar removes the socket path; RAGFlow crashes on startup with a database connection error.
container_resources.memory_limit	"4Gi"	High	RAGFlow loads embedding models plus the application server. Values below 4Gi cause OOM kills during document processing. Scale to 8Gi–16Gi for production.
container_resources.cpu_limit	"2000m"	Medium	Document parsing (OCR, chunking) is CPU-intensive. Under 1000m, processing throughput degrades noticeably. Recommend 4000m+ for production ingestion workloads.
max_instance_count	5	Medium	GKE HPA scales pods based on CPU/memory. Multiple RAGFlow replicas sharing a MySQL database must have sufficient connection pool headroom (max_connections in Cloud SQL). Scaling aggressively without increasing Cloud SQL tier causes connection exhaustion.
elasticsearch_username	""	High	If the Elasticsearch GKE instance has enable_xpack_security = true, RAGFlow must authenticate. Leaving this blank causes HTTP 401 from Elasticsearch, breaking all index and search operations.
backup_schedule	"0 2 * * *"	Medium	Daily MySQL backups protect against data loss. Setting too-infrequent or omitting a schedule increases RPO.
backup_retention_days	7	Low	Short retention limits point-in-time recovery. Consider 30 days for production.
enable_iap	false	High	Without IAP, the GKE Ingress (when using external load balancer) is accessible to any caller. Enable IAP with iap_authorized_users/iap_authorized_groups for production. Requires iap_oauth_client_id and iap_oauth_client_secret.
application_version	"v0.13.0"	Medium	Incrementing triggers an image rebuild and rolling pod restart. Ensure the new RAGFlow version is compatible with the existing MySQL schema — migrations run automatically but major version jumps may be irreversible.
secret_propagation_delay	30	Medium	If set too low in large or multi-region projects, the Kubernetes job may attempt to read a secret before it propagates. Increase to 60 for cross-region deployments.
enable_auto_password_rotation	false	Low	Without rotation, a compromised database credential remains valid indefinitely. Enable in production with rotation_propagation_delay_sec >= 90.
