LibreChat on Google Cloud Run
This document provides a comprehensive reference for the modules/LibreChat_CloudRun Terraform module. It covers architecture, IAM, configuration variables, LibreChat-specific behaviours, and operational patterns for deploying LibreChat on Google Cloud Run (v2).

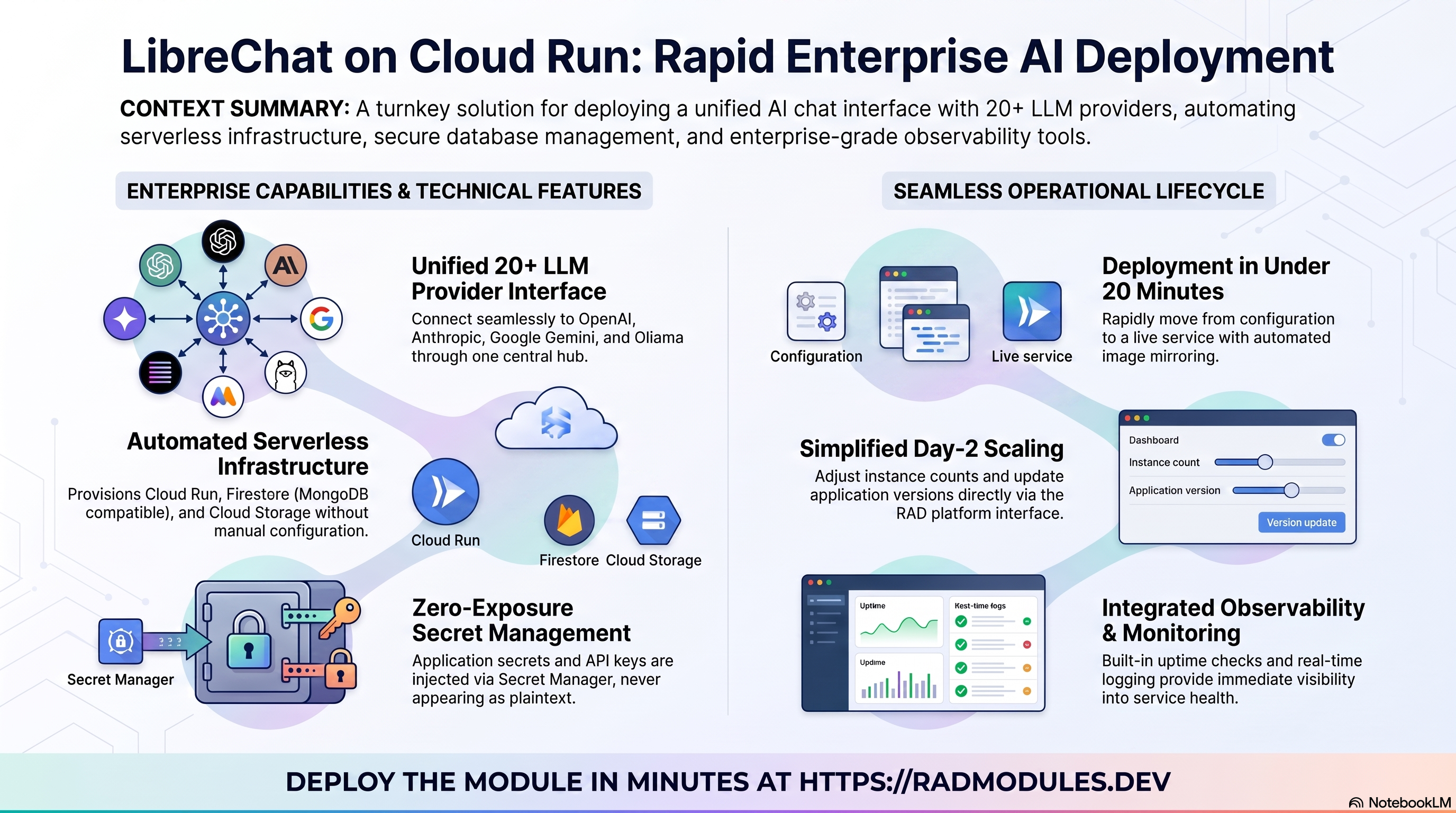

1. Module Overview
LibreChat is an open-source AI chat interface with 20,000+ GitHub stars that replicates and extends the ChatGPT experience across 20+ LLM providers (OpenAI, Anthropic, Google Gemini, Mistral, Groq, Ollama, and many more). LibreChat CloudRun is a wrapper module built on top of App CloudRun. It uses App CloudRun for all GCP infrastructure provisioning and injects LibreChat-specific application configuration, secrets, and storage via LibreChat Common.
Key Capabilities:
- Compute: Cloud Run v2 (Gen2), Node.js container, 2 vCPU / 2 Gi by default. Configurable min/max instances;
min_instance_count = 1by default to eliminate cold starts for a chat application. - Database: MongoDB — either MongoDB Atlas, self-hosted, or GCP Firestore with MongoDB compatibility (auto-provisioned when no
mongodb_uriis supplied). No Cloud SQL is provisioned. - Security: Auto-generated JWT secrets (
JWT_SECRET,JWT_REFRESH_SECRET), credential encryption keys (CREDS_KEY,CREDS_IV), and MongoDB URI all stored in Secret Manager. Inherits Cloud Armor WAF, IAP, Binary Authorization, and VPC Service Controls fromApp CloudRun. - Storage: GCS bucket for file uploads (
librechat-uploads); optional GCS Fuse mounts and NFS. - Redis: Optional Redis session management and message queuing. Required for multi-instance deployments to avoid session inconsistency.
- CI/CD: Defaults to
prebuiltimage from GHCR (ghcr.io/danny-avila/librechat), mirrored to Artifact Registry. Cloud Build custom image pipeline and Cloud Deploy optional. - Reliability: Health probes target
/(LibreChat's root path) with generous initial delay to allow MongoDB connection and asset compilation on first boot.
Project & Application Identity
| Variable | Group | Type | Default | Description |
|---|---|---|---|---|
project_id | 1 | string | — | GCP project ID. Required. |
tenant_deployment_id | 2 | string | 'demo' | Short suffix appended to all resource names. |
support_users | 2 | list(string) | [] | Email recipients for monitoring alerts. |
resource_labels | 2 | map(string) | {} | Labels applied to all provisioned resources. |
application_name | 3 | string | 'librechat' | Base resource name. Do not change after initial deployment. |
application_display_name | 3 | string | 'LibreChat AI Chat' | Human-readable name shown in the GCP Console. |
application_description | 3 | string | 'LibreChat - Open-source AI Chat Interface...' | Cloud Run service description. |
application_version | 3 | string | 'latest' | LibreChat image version tag. Increment to deploy a new release. |
Wrapper architecture: LibreChat CloudRun calls LibreChat Common to build an application_config object containing LibreChat-specific environment variables, probe configuration, MongoDB secret references, and the librechat-uploads GCS bucket. module_secret_env_vars carries the auto-generated JWT and credential secrets. module_env_vars carries USE_REDIS and REDIS_URI when Redis is enabled. scripts_dir is resolved to abspath("${module.librechat_app.path}/scripts") at apply time.
MongoDB note: LibreChat uses MongoDB, not Cloud SQL. database_type = "NONE" is fixed and no Cloud SQL instance is provisioned. LibreChat Common auto-provisions a Firestore database with MongoDB compatibility if neither mongodb_uri nor firestore_mongodb_host is supplied.
2. IAM & Access Control
LibreChat CloudRun delegates all IAM provisioning to App CloudRun. The Cloud Run SA, Cloud Build SA, IAP service agent, and password rotation role sets are identical to those in App CloudRun.
Application-level secrets: LibreChat Common auto-generates four application secrets at deploy time:
CREDS_KEY— 32-byte hex key for AES-GCM encryption of saved AI provider credentials.CREDS_IV— 16-byte hex IV paired withCREDS_KEY.JWT_SECRET— Signs user access tokens. Rotating invalidates all active sessions.JWT_REFRESH_SECRET— Signs long-lived refresh tokens.MONGO_URI— MongoDB connection string (explicit or Firestore-constructed). Stored as a secret and injected via Secret Manager.
All secrets are injected natively by Cloud Run at revision start. Plaintext is never written to Terraform state.
Firestore SCRAM user job: When Firestore MongoDB compatibility is used (auto-provisioned path), LibreChat Common injects a init-firestore-scram-user Cloud Run Job that creates or updates the SCRAM user using mongosh with GCP Workload Identity OIDC authentication against the Firestore admin database.
Additional Cloud Run SA role: roles/datastore.owner is granted to the Cloud Run service account to allow the application to read and write Firestore data (for session or optional Firestore-backed features).
30-second secret propagation delay: After secrets are created, a time_sleep resource waits 30 seconds for Secret Manager global replication to complete before the Cloud Run service is deployed.
3. Core Service Configuration
A. Compute (Cloud Run)
LibreChat is a Node.js application that loads AI provider configurations, connects to MongoDB, and optionally connects to Redis on startup. The module exposes all scaling and resource variables with production-ready defaults.
Scale-to-zero is disabled by default (min_instance_count = 1). LibreChat cold starts can take 15–30 seconds due to MongoDB connection establishment and asset loading. Set min_instance_count = 0 to enable scale-to-zero if cost savings outweigh cold start latency.
| Variable | Group | Default | Description |
|---|---|---|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment (secrets, storage, IAM). |
container_image_source | 4 | 'prebuilt' | 'prebuilt' deploys official LibreChat from GHCR. 'custom' builds via Cloud Build. |
container_image | 4 | 'ghcr.io/danny-avila/librechat' | Override image URI. |
container_resources | 4 | { cpu_limit = "2000m", memory_limit = "2Gi" } | CPU and memory per instance. 2 vCPU / 2 Gi minimum. |
container_port | 4 | 3080 | LibreChat's native port. |
execution_environment | 4 | 'gen2' | Gen2 required for NFS mounts and GCS Fuse. |
timeout_seconds | 4 | 600 | Max request duration. Increase for long-running AI responses or file processing. |
enable_cloudsql_volume | 4 | false | Must remain false — LibreChat does not use Cloud SQL. |
min_instance_count | 4 | 1 | Minimum instances. Set to 0 for scale-to-zero. |
max_instance_count | 4 | 5 | Maximum instances. |
traffic_split | 4 | [] | Canary/blue-green traffic allocation across revisions. |
service_annotations | 4 | {} | Advanced Cloud Run annotations. |
service_labels | 4 | {} | Labels applied to the Cloud Run service. |
enable_image_mirroring | 4 | true | Mirrors the LibreChat image to Artifact Registry. Recommended. |
container_build_config | 4 | { enabled = false } | Cloud Build config when container_image_source = 'custom'. |
B. MongoDB Database
LibreChat requires MongoDB. The module supports three connection modes:
- Explicit URI — Provide
mongodb_uridirectly (MongoDB Atlas, self-hosted, etc.). - Firestore manual — Provide
firestore_mongodb_host,firestore_mongodb_username, andfirestore_mongodb_password; the MONGO_URI is constructed automatically. - Firestore auto — Leave all three empty;
LibreChat Commondiscovers or creates a Firestore database with MongoDB compatibility in the GCP project.
| Variable | Group | Default | Description |
|---|---|---|---|
mongodb_uri | 3 | "" | MongoDB connection URI. Stored in Secret Manager. Leave empty to use Firestore auto-discovery. |
firestore_mongodb_host | 1 | "" | Firestore MongoDB compatibility endpoint host. Obtain from GCP Console → Firestore → Connect. |
firestore_mongodb_database | 12 | 'LibreChat' | Firestore database ID / MongoDB database name. |
firestore_mongodb_username | 12 | "" | SCRAM username for Firestore MongoDB authentication. Defaults to 'librechat'. |
firestore_mongodb_password | 12 | "" | SCRAM password. Auto-generated and stored in Secret Manager when not set. Sensitive. |
database_type | 12 | 'NONE' | Fixed. Must remain 'NONE' — no Cloud SQL is provisioned. |
Warning: A plan-time
preconditioninLibreChat Commonfails if no MongoDB source is reachable at apply time, preventing deployment with a clear error message rather than a cryptic runtime failure.
C. LibreChat Application Settings
| Variable | Group | Default | Description |
|---|---|---|---|
app_title | 3 | 'LibreChat' | Title shown in the UI header and browser tab. White-label with your brand. |
allow_registration | 3 | true | Allow new users to self-register. Set to false after creating the initial admin account. |
allow_social_login | 3 | false | Enable OAuth social login (Google, GitHub, Discord). Requires additional librechat.yaml configuration. |
D. Storage (GCS & NFS)
LibreChat Common automatically provisions a dedicated librechat-uploads GCS bucket for user file uploads. This bucket is separate from any buckets in storage_buckets.
| Variable | Group | Default | Description |
|---|---|---|---|
create_cloud_storage | 11 | true | Set false to skip additional bucket creation. |
storage_buckets | 11 | [{ name_suffix = "data" }] | Additional GCS buckets beyond the auto-provisioned uploads bucket. |
enable_nfs | 11 | false | Provisions a Cloud Filestore NFS instance and mounts it. Requires gen2. |
nfs_mount_path | 11 | '/mnt/nfs' | Container path where the NFS share is mounted. |
gcs_volumes | 11 | [] | GCS buckets to mount via GCS Fuse (requires gen2). |
manage_storage_kms_iam | 11 | false | Creates CMEK KMS key and enables CMEK on all storage buckets. |
enable_artifact_registry_cmek | 11 | false | Creates Artifact Registry KMS key for at-rest image encryption. |
E. Networking
| Variable | Group | Default | Description |
|---|---|---|---|
ingress_settings | 5 | 'all' | 'all' — public internet; 'internal' — VPC only; 'internal-and-cloud-load-balancing' — forces traffic through the HTTPS LB. |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | 'PRIVATE_RANGES_ONLY' routes only RFC 1918 traffic via VPC. |
region | 1 | 'us-central1' | GCP region. Auto-discovered from the VPC subnet when Services GCP is present. |
F. Initialization Jobs
The Firestore SCRAM init job is auto-injected by LibreChat Common when Firestore is in use. Additional custom initialization jobs can be appended:
| Variable | Group | Default | Description |
|---|---|---|---|
initialization_jobs | 12 | [] | One-shot Cloud Run Jobs appended after the auto-injected Firestore SCRAM job. LibreChat auto-migrates its MongoDB schema on first start. |
cron_jobs | 13 | [] | Recurring jobs triggered by Cloud Scheduler. |
additional_services | 13 | [] | Additional Cloud Run services deployed alongside LibreChat. |
4. Advanced Security
A. AI Provider API Keys
API keys for AI providers are not managed by this module. Inject them via secret_environment_variables referencing pre-existing Secret Manager secrets:
secret_environment_variables = {
OPENAI_API_KEY = "openai-api-key" # Secret Manager secret name
ANTHROPIC_API_KEY = "anthropic-api-key"
GOOGLE_API_KEY = "google-ai-api-key"
}
Create secrets before deploying:
echo -n "sk-..." | gcloud secrets create openai-api-key --data-file=-
| Variable | Group | Default | Description |
|---|---|---|---|
secret_environment_variables | 6 | {} | Map of env var name → Secret Manager secret name. Resolved at runtime; never stored in state. |
environment_variables | 6 | {} | Plain-text env vars for non-sensitive LibreChat configuration (feature flags, log levels, etc.). |
secret_rotation_period | 6 | '2592000s' | Secret Manager rotation notification frequency. Default: 30 days. |
secret_propagation_delay | 6 | 30 | Seconds to wait after secret creation before dependent resources proceed. |
B. Cloud Armor WAF
When enable_cloud_armor = true, a Global HTTPS Load Balancer with a Cloud Armor WAF policy is provisioned in front of Cloud Run.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_armor | 10 | false | Provisions Global HTTPS LB + Cloud Armor WAF. Required for custom domains, CDN, and DDoS protection. |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF rules. |
application_domains | 10 | [] | Custom domain names with Google-managed SSL certificates. |
enable_cdn | 10 | false | Enables Cloud CDN on the HTTPS LB backend. |
C. Identity-Aware Proxy (IAP)
When enable_iap = true, Google identity authentication is required before requests reach LibreChat. Useful for internal AI assistant deployments.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_iap | 5 | false | Enables IAP natively on the Cloud Run service. |
iap_authorized_users | 5 | [] | Users/service accounts granted access. Format: 'user:email'. |
iap_authorized_groups | 5 | [] | Google Groups granted access. Format: 'group:name@example.com'. |
D. Binary Authorization
| Variable | Group | Default | Description |
|---|---|---|---|
enable_binary_authorization | 8 | false | Enforces image attestation. Requires a Binary Authorization policy and attestor pre-configured. |
E. VPC Service Controls
| Variable | Group | Default | Description |
|---|---|---|---|
enable_vpc_sc | 22 | false | Registers module API calls within the project's VPC-SC perimeter. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges for VPC-SC network access level. |
vpc_sc_dry_run | 22 | true | Logs violations without blocking. Set false to enforce. |
organization_id | 22 | "" | GCP Organization ID for VPC-SC. Required when the project is under a folder. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs (DATA_READ, DATA_WRITE, ADMIN_READ). |
5. Redis Integration
Redis is optional but recommended for all multi-instance deployments. Without Redis, LibreChat sessions are in-memory per instance, causing session loss when a request is routed to a different instance.
When enable_redis = true and redis_host is set, LibreChat CloudRun injects USE_REDIS = "true" and REDIS_URI into the Cloud Run environment. Setting REDIS_URI alone is not sufficient — USE_REDIS = "true" must also be set.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_redis | 21 | false | Enables Redis for LibreChat session management and message queuing. |
redis_host | 21 | "" | Redis server hostname or IP. Use a Cloud Memorystore instance for production. |
redis_port | 21 | 6379 | Redis server TCP port. |
redis_auth | 21 | "" | Redis AUTH password. Sensitive — never stored in state. |
6. CI/CD & Delivery
A. Cloud Build Triggers
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cicd_trigger | 8 | false | Provisions a Cloud Build GitHub trigger. |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 8 | "" | GitHub PAT. Required on first apply. Sensitive. |
github_app_installation_id | 8 | "" | GitHub App installation ID (preferred for org repos). |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced trigger config: branch_pattern, included_files, ignored_files, substitutions. |
B. Cloud Deploy Pipeline
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_deploy | 8 | false | Provisions a Cloud Deploy pipeline. Requires enable_cicd_trigger = true. |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Ordered promotion stages. |
7. Reliability & Observability
A. Health Probes
LibreChat does not expose a dedicated health endpoint. Both probes target / (LibreChat's root path).
| Variable | Group | Default | Description |
|---|---|---|---|
startup_probe | 14 | { enabled=true, path="/", initial_delay_seconds=30, failure_threshold=10, ... } | Startup probe. Generous failure threshold accommodates MongoDB connection time. |
liveness_probe | 14 | { enabled=true, path="/", initial_delay_seconds=60, failure_threshold=3, ... } | Liveness probe. Container restarted after consecutive failures. |
startup_probe_config | 14 | { enabled=true, path="/", initial_delay_seconds=30, failure_threshold=10, ... } | Alternative structured startup probe config. |
health_check_config | 14 | { enabled=true, path="/", initial_delay_seconds=60, ... } | Alternative structured liveness probe config. |
uptime_check_config | 14 | { enabled=true, path="/" } | Cloud Monitoring uptime check from multiple global locations. |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies. |
B. Backup & Maintenance
| Variable | Group | Default | Description |
|---|---|---|---|
backup_schedule | 7 | '0 2 * * *' | Cron expression (UTC) for automated NFS backup jobs. |
backup_retention_days | 7 | 7 | Days to retain backup files in GCS. |
enable_backup_import | 7 | false | Not applicable for LibreChat (MongoDB, not Cloud SQL). |
C. Artifact Registry Image Management
| Variable | Group | Default | Description |
|---|---|---|---|
max_images_to_retain | 10 | 7 | Maximum number of recent container images to keep in Artifact Registry. Set 0 to disable. |
delete_untagged_images | 10 | true | Automatically deletes untagged images from Artifact Registry. |
image_retention_days | 10 | 30 | Days after which images are eligible for deletion. Set 0 to disable. |
8. Platform-Managed Behaviours
The following behaviours are applied automatically regardless of variable values.
| Behaviour | Implementation | Detail |
|---|---|---|
| MongoDB only — no Cloud SQL | database_type = "NONE" fixed | No Cloud SQL instance is provisioned. Setting database_type to any SQL engine provisions an unused instance. |
| Firestore auto-provisioning | LibreChat Common creates ENTERPRISE Firestore DB | When mongodb_uri is empty and no firestore_mongodb_host is set, a Firestore ENTERPRISE DB is created automatically. |
| SCRAM user init job | Auto-injected by LibreChat Common | Creates/updates the MongoDB SCRAM user in Firestore using workload identity OIDC. No-op when an explicit mongodb_uri is supplied. |
| JWT/credential secrets auto-generated | LibreChat Common resources | CREDS_KEY, CREDS_IV, JWT_SECRET, JWT_REFRESH_SECRET generated on first apply. Rotating invalidates all active sessions. |
| MONGO_URI always present in secret refs | LibreChat Common secret_ids | The MONGO_URI secret reference is always included to prevent silent removal from Cloud Run spec during update runs. |
| USE_REDIS + REDIS_URI injection | module_env_vars in librechat.tf | When enable_redis = true and redis_host != "", both env vars are injected. Setting REDIS_URI alone via environment_variables does not activate Redis in LibreChat. |
| Trust proxy forced | TRUST_PROXY = "1" hardcoded | Required for Express.js to read X-Forwarded-For correctly behind Cloud Run's ingress and to set Secure cookies over HTTPS. |
| NODE_ENV set to production | NODE_ENV = "production" hardcoded | Ensures LibreChat runs with production optimisations. |
| GCS uploads bucket | librechat-uploads bucket provisioned by LibreChat Common | Dedicated bucket for user file uploads, separate from storage_buckets. |
| datastore.owner role | additional_cloudrun_sa_roles in main.tf | Cloud Run SA granted roles/datastore.owner for Firestore access. |
| Scripts directory | scripts_dir from LibreChat Common | Initialization scripts sourced from LibreChat Common, not the deployment directory. |
9. Variable Reference
All user-configurable variables, sorted by UI group.
| Variable | Group | Default | Description |
|---|---|---|---|
module_description | 0 | (LibreChat platform text) | Platform metadata: module description. |
module_documentation | 0 | (docs URL) | Platform metadata: documentation URL. |
module_dependency | 0 | ['Services GCP'] | Platform metadata: required modules. |
module_services | 0 | (GCP service list) | Platform metadata: GCP services consumed. |
credit_cost | 0 | 50 | Platform metadata: deployment credit cost. |
require_credit_purchases | 0 | false | Platform metadata: enforces credit balance check. |
enable_purge | 0 | true | Permits full deletion of module resources on destroy. |
public_access | 0 | false | Platform catalogue visibility. |
shared_users | 0 | [] | Users who can access regardless of public_access. Actively enforced by the platform. |
deployment_id | 0 | "" | Deployment ID suffix. Auto-generated if empty. |
resource_creator_identity | 0 | (platform SA) | Service account used by Terraform to manage resources. |
impersonation_service_account | 0 | "" | SA to impersonate for shell script API calls. |
project_id | 1 | — | GCP project ID. Required. |
region | 1 | 'us-central1' | GCP region. Auto-discovered from VPC subnets. |
firestore_mongodb_host | 1 | "" | Firestore MongoDB endpoint. Leave empty for auto-discovery. |
tenant_deployment_id | 2 | 'demo' | Short suffix appended to all resource names. |
support_users | 2 | [] | Email addresses for monitoring alerts. |
resource_labels | 2 | {} | Labels applied to all provisioned resources. |
application_name | 3 | 'librechat' | Base resource name. Do not change after initial deployment. |
application_display_name | 3 | 'LibreChat AI Chat' | Human-readable name shown in the GCP Console. |
application_description | 3 | 'LibreChat - Open-source AI Chat Interface...' | Service description. |
application_version | 3 | 'latest' | LibreChat container image tag. |
mongodb_uri | 3 | "" | MongoDB connection URI. Sensitive. Leave empty for Firestore auto-discovery. |
app_title | 3 | 'LibreChat' | Title shown in the LibreChat UI. |
allow_registration | 3 | true | Allow self-registration. Set false after creating admin account. |
allow_social_login | 3 | false | Enable OAuth social login providers. |
deploy_application | 4 | true | Set false for infrastructure-only deployment. |
container_image_source | 4 | 'prebuilt' | 'prebuilt' (GHCR) or 'custom' (Cloud Build). |
container_image | 4 | 'ghcr.io/danny-avila/librechat' | Container image URI. |
container_build_config | 4 | { enabled = false } | Cloud Build config for custom images. |
enable_image_mirroring | 4 | true | Mirrors LibreChat image to Artifact Registry. |
container_resources | 4 | { cpu_limit = "2000m", memory_limit = "2Gi" } | CPU and memory per instance. |
min_instance_count | 4 | 1 | Minimum instances. Set to 0 for scale-to-zero. |
max_instance_count | 4 | 5 | Maximum instances. |
container_port | 4 | 3080 | LibreChat's native HTTP port. |
container_protocol | 4 | 'http1' | 'http1' or 'h2c'. |
execution_environment | 4 | 'gen2' | Gen2 required for NFS mounts and GCS Fuse. |
timeout_seconds | 4 | 600 | Max request duration in seconds. Range: 0–3600. |
enable_cloudsql_volume | 4 | false | Must remain false. LibreChat does not use Cloud SQL. |
cloudsql_volume_mount_path | 4 | '/cloudsql' | Interface compatibility only. Not used. |
traffic_split | 4 | [] | Canary/blue-green traffic allocation. All entries must sum to 100. |
service_annotations | 4 | {} | Advanced Cloud Run annotations. |
service_labels | 4 | {} | Labels applied to the Cloud Run service. |
max_revisions_to_retain | 4 | 7 | Maximum Cloud Run revisions to keep. Not referenced in this module. |
ingress_settings | 5 | 'all' | 'all', 'internal', or 'internal-and-cloud-load-balancing'. |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | 'PRIVATE_RANGES_ONLY' or 'ALL_TRAFFIC'. |
enable_iap | 5 | false | Enables IAP on the Cloud Run service. |
iap_authorized_users | 5 | [] | Users/SAs granted IAP access. |
iap_authorized_groups | 5 | [] | Google Groups granted IAP access. |
environment_variables | 6 | {} | Plain-text env vars for non-sensitive configuration. |
secret_environment_variables | 6 | {} | Secret Manager references for AI provider API keys and other secrets. |
secret_rotation_period | 6 | '2592000s' | Secret Manager rotation notification frequency. |
secret_propagation_delay | 6 | 30 | Seconds to wait after secret creation. |
backup_schedule | 7 | '0 2 * * *' | Cron expression (UTC) for automated backups. |
backup_retention_days | 7 | 7 | Days to retain backup files in GCS. |
enable_backup_import | 7 | false | Not applicable for LibreChat (no Cloud SQL). |
backup_source | 7 | 'gcs' | 'gcs' or 'gdrive'. Interface compatibility only. |
backup_file | 7 | 'backup.sql' | Not referenced. Interface compatibility only. |
backup_format | 7 | 'sql' | Not referenced. Interface compatibility only. |
enable_cicd_trigger | 8 | false | Provisions a Cloud Build GitHub trigger. |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 8 | "" | GitHub PAT. Required on first apply. Sensitive. |
github_app_installation_id | 8 | "" | GitHub App installation ID. |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced Cloud Build trigger config. |
enable_cloud_deploy | 8 | false | Provisions a Cloud Deploy progressive delivery pipeline. |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Ordered Cloud Deploy promotion stages. |
enable_binary_authorization | 8 | false | Enforces image attestation on deployment. |
binauthz_evaluation_mode | 8 | 'ALWAYS_ALLOW' | Not referenced. Interface compatibility only. |
enable_custom_sql_scripts | 9 | false | Must remain false. Not applicable for LibreChat. |
custom_sql_scripts_bucket | 9 | "" | Interface compatibility only. |
custom_sql_scripts_path | 9 | "" | Interface compatibility only. |
custom_sql_scripts_use_root | 9 | false | Interface compatibility only. |
enable_cloud_armor | 10 | false | Provisions Global HTTPS LB + Cloud Armor WAF. |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF rules. |
application_domains | 10 | [] | Custom domains with Google-managed SSL certificates. |
enable_cdn | 10 | false | Enables Cloud CDN on the HTTPS LB backend. |
max_images_to_retain | 10 | 7 | Maximum recent container images to keep. Set 0 to disable. |
delete_untagged_images | 10 | true | Automatically deletes untagged images from Artifact Registry. |
image_retention_days | 10 | 30 | Days after which images are eligible for deletion. |
create_cloud_storage | 11 | true | Set false to skip additional bucket creation. |
storage_buckets | 11 | [{ name_suffix = "data" }] | Additional GCS buckets beyond the uploads bucket. |
enable_nfs | 11 | false | Provisions NFS shared storage. Requires gen2. |
nfs_mount_path | 11 | '/mnt/nfs' | Container path where NFS is mounted. |
nfs_instance_name | 9 | "" | Name of an existing NFS GCE VM. Leave empty to auto-discover. |
nfs_instance_base_name | 9 | 'app-nfs' | Base name for inline NFS VM. |
gcs_volumes | 11 | [] | GCS buckets to mount via GCS Fuse. |
manage_storage_kms_iam | 11 | false | Creates CMEK KMS key and enables CMEK on all storage buckets. |
enable_artifact_registry_cmek | 11 | false | Creates Artifact Registry KMS key for at-rest image encryption. |
database_type | 12 | 'NONE' | Must remain 'NONE'. No Cloud SQL provisioned. |
application_database_name | 12 | 'librechat_db' | Not referenced. Interface compatibility only. |
application_database_user | 12 | 'librechat_user' | Not referenced. Interface compatibility only. |
database_password_length | 12 | 32 | Not referenced. Interface compatibility only. |
firestore_mongodb_database | 12 | 'LibreChat' | Firestore database ID / MongoDB database name. |
firestore_mongodb_username | 12 | "" | SCRAM username. Defaults to 'librechat'. |
firestore_mongodb_password | 12 | "" | SCRAM password. Auto-generated when not set. Sensitive. |
enable_auto_password_rotation | 12 | false | Not applicable for LibreChat (no Cloud SQL). |
rotation_propagation_delay_sec | 12 | 90 | Not applicable for LibreChat. |
initialization_jobs | 12 | [] | One-shot Cloud Run Jobs. The Firestore SCRAM job is auto-prepended. |
cron_jobs | 13 | [] | Recurring scheduled Cloud Run Jobs. |
additional_services | 13 | [] | Additional Cloud Run services alongside LibreChat. |
startup_probe | 14 | { path="/", initial_delay_seconds=30, failure_threshold=10 } | Startup probe. |
liveness_probe | 14 | { path="/", initial_delay_seconds=60, failure_threshold=3 } | Liveness probe. |
startup_probe_config | 14 | { enabled=true, path="/", initial_delay_seconds=30 } | Alternative structured startup probe. |
health_check_config | 14 | { enabled=true, path="/", initial_delay_seconds=60 } | Alternative structured liveness probe. |
uptime_check_config | 14 | { enabled=true, path="/" } | Cloud Monitoring uptime check. |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies. |
enable_redis | 21 | false | Enables Redis for session management. Recommended for multi-instance. |
redis_host | 21 | "" | Redis hostname or IP. |
redis_port | 21 | 6379 | Redis TCP port. |
redis_auth | 21 | "" | Redis AUTH password. Sensitive. |
enable_vpc_sc | 22 | false | Registers API calls within the VPC-SC perimeter. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges for VPC-SC. Auto-discovered when empty. |
vpc_sc_dry_run | 22 | true | Logs VPC-SC violations without blocking. |
organization_id | 22 | "" | GCP Organization ID for VPC-SC. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs. |
10. Outputs
| Output | Description |
|---|---|
service_name | Name of the Cloud Run service. |
service_url | Public URL of the LibreChat Cloud Run service. |
service_location | GCP region where the Cloud Run service is deployed. |
project_id | GCP project ID. |
deployment_id | Deployment ID suffix used in resource names. |
artifact_registry_url | Artifact Registry URL for the mirrored container image. |
storage_buckets | Created GCS storage buckets. |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
CREDS_KEY (auto-generated) | Random 32-byte hex key in Secret Manager | Critical | Used for AES-GCM encryption of all saved AI provider credentials (OpenAI keys, Anthropic keys, etc.). Rotating or changing this key after credentials have been saved permanently corrupts all stored provider credentials — they cannot be decrypted and must be re-entered manually by every user. |
CREDS_IV (auto-generated) | Random 16-byte hex IV in Secret Manager | Critical | The AES-GCM initialisation vector paired with CREDS_KEY. Changing it after first use has the same effect as changing CREDS_KEY — all stored credentials are lost. |
JWT_SECRET (auto-generated) | Random secret in Secret Manager | High | Used to sign all user access and refresh tokens. Rotating it logs out every active user simultaneously. Plan key rotation during a maintenance window and notify users. |
mongodb_uri | Auto-discovered Firestore MongoDB endpoint | Critical | LibreChat requires MongoDB (or Firestore MongoDB compatibility). If neither mongodb_uri nor firestore_mongodb_host is provided and auto-discovery fails, the container crashes on startup with a MongoDB connection error and serves no traffic. |
firestore_mongodb_host | Auto-discovered | High | Manual override of the Firestore host. If set to a wrong value (typo, stale endpoint), all LibreChat data operations fail and the service is non-functional. Use auto-discovery when possible. |
enable_cloudsql_volume | false | Critical | LibreChat does not use Cloud SQL — must remain false. If set to true, the Cloud SQL Auth Proxy sidecar is injected unnecessarily. The description in variables.tf explicitly warns that this must stay false. |
database_type | "NONE" | Critical | LibreChat manages its own MongoDB connection and does not use Cloud SQL. Setting database_type to "POSTGRES" or "MYSQL" provisions an unused Cloud SQL instance and adds cost without benefiting the application. |
allow_registration | true | High | Leaving registration open on a publicly accessible deployment allows anyone to create an account. Disable after the admin account is created (allow_registration = false) or require Google OAuth (allow_social_login = true) for organisational accounts only. |
allow_social_login | false | Medium | Enabling social login without configuring the corresponding OAuth credentials (e.g., GOOGLE_CLIENT_ID) causes social login buttons to appear but fail, confusing users. Configure all required OAuth env vars before enabling. |
MEILI_MASTER_KEY (auto-generated) | Random secret in Secret Manager | High | MeiliSearch master key. If rotated, all existing search indices require a full rebuild. LibreChat also manages a separate MEILI_KEY derived from this. Treat as immutable once the search index is populated. |
min_instance_count | 1 | High | LibreChat is a stateful chat application. Scale-to-zero causes cold starts and drops in-flight SSE streaming connections. Set to 1 or more for a reliable chat experience. |
timeout_seconds | 600 | High | SSE streaming for long AI responses can exceed several minutes. Low timeouts (e.g., 60) terminate the stream mid-response. Set to at least 600; increase further for slow LLM backends. |
secret_environment_variables (AI provider keys) | {} | Critical | AI provider API keys (OPENAI_API_KEY, ANTHROPIC_API_KEY, etc.) must be injected via secret_environment_variables referencing Secret Manager. Providing them as plain environment_variables exposes them in Cloud Run revision metadata and GCP audit logs. |
ingress_settings | "all" | High | "all" exposes LibreChat to the public internet. Only the application login form protects it. Always pair with enable_iap = true for production or restrict to "internal". |
enable_iap | false | High | Without IAP, access control is application-only. A misconfigured allow_registration = true on a public deployment creates a security risk. |
USE_REDIS / enable_redis | Depends on module | Medium | Without Redis, LibreChat stores session data in memory. Multiple Cloud Run instances each have isolated session state, causing users to lose sessions when requests land on a different instance. Set USE_REDIS = "true" and provide redis_host for multi-instance deployments. |
backup_schedule | "" (disabled) | High | Without backups, all LibreChat conversation history and user data in MongoDB/Firestore are unprotected. Enable daily backups for production. |
execution_environment | "gen2" | High | NFS mounts are not supported in gen1. Always use gen2 for NFS-enabled deployments. |
gcs_volumes | Auto-provisioned | High | LibreChat stores uploaded files (images, documents shared in chat) in GCS Fuse. Without the implicit-dirs mount option, file listings fail and attachments cannot be retrieved. |
application_version | "latest" | Medium | Unplanned LibreChat upgrades can change the MongoDB schema or break existing API integrations. Pin to a specific release tag in production. |
app_title | "LibreChat" | Low | Displayed in the browser tab and login screen. Purely cosmetic but worth setting for white-label deployments. |
Destroying Resources
Known Deletion Issue: Serverless IPv4 Address Release
When destroying a Cloud Run deployment, you may encounter an error similar to:
Error: Error waiting for Subnetwork to be deleted: The following serverless IPv4 address(es) on subnet ... are still in use.
Cause: GCP holds serverless IPv4 addresses on the VPC subnet asynchronously after a Cloud Run service is deleted. These addresses are released by GCP approximately 20–30 minutes after the Cloud Run service is removed.
Resolution: Wait 20–30 minutes after the initial destroy attempt, then re-run the destroy command:
tofu destroy
