Chroma on Google Cloud Run
This document provides a comprehensive reference for the modules/Chroma_CloudRun Terraform module. It covers architecture, IAM, configuration variables, Chroma-specific behaviours, and operational patterns for deploying Chroma on Google Cloud Run (v2).

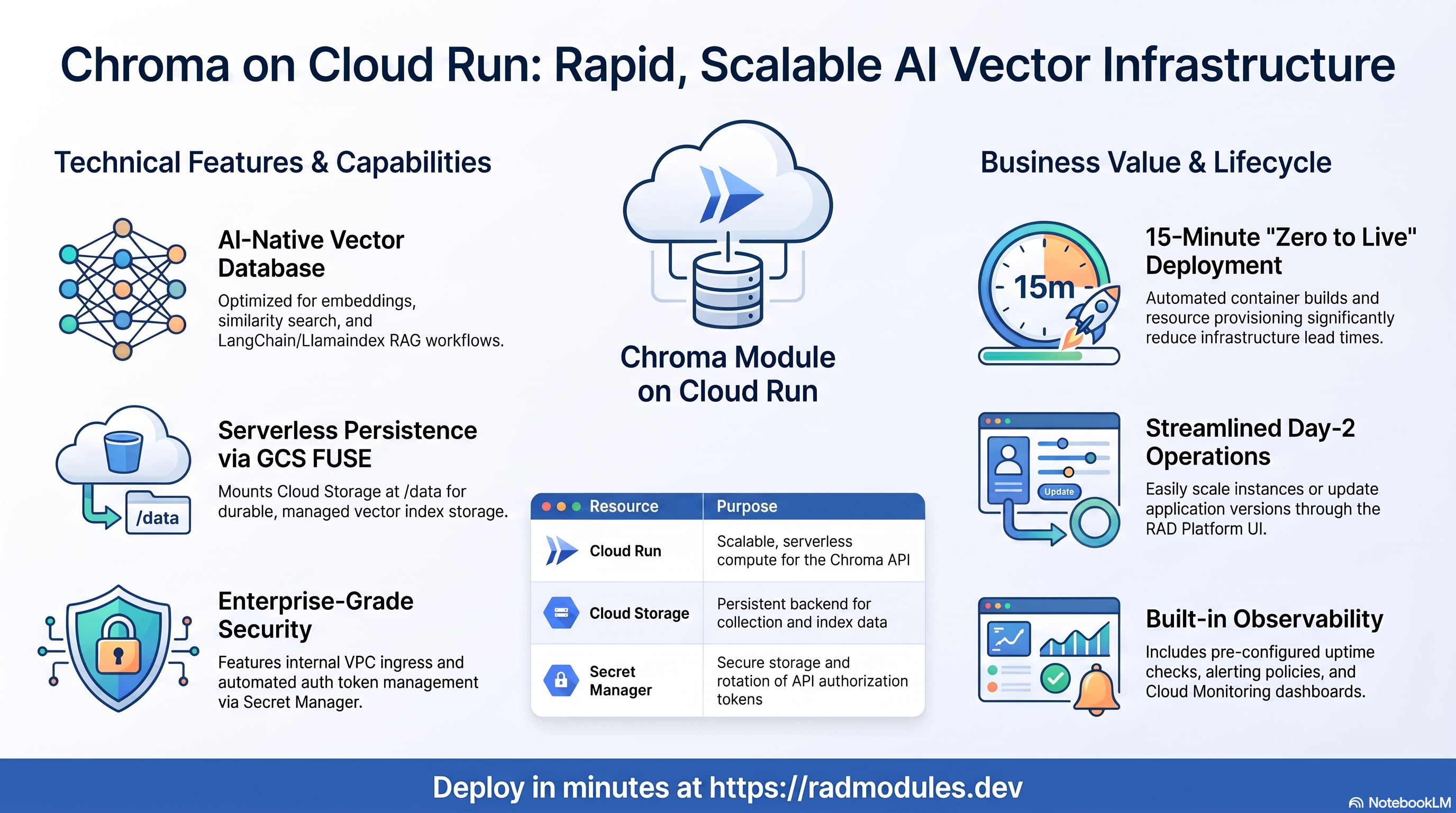

1. Module Overview
Chroma is an AI-native open-source vector database purpose-built for embeddings and similarity search. Chroma CloudRun is a wrapper module built on top of App CloudRun. It uses App CloudRun for all GCP infrastructure provisioning and injects Chroma-specific application configuration, an optional authentication token, and storage configuration via Chroma Common.
Key Capabilities:
- Compute: Cloud Run v2 (Gen2), 1 vCPU / 1 Gi by default.
min_instance_count = 1to avoid index-loading cold starts.max_instance_count = 1— Chroma is a single-writer store. - Data Persistence: Cloud Storage bucket (
<prefix>-data) mounted at/datavia GCS FUSE. No Cloud SQL, no Redis. - Security: Optional token authentication via Secret Manager. A plan-time validation blocks public ingress (
ingress_settings = "all") unlessenable_auth_token = true. Inherits Cloud Armor, IAP, Binary Authorization, and VPC-SC fromApp CloudRun. - CI/CD: Cloud Build image pipeline by default; Cloud Deploy progressive delivery optional.
- Reliability: Health probes target
/api/v2/heartbeat.
Project & Application Identity
| Variable | Group | Type | Default | Description |
|---|---|---|---|---|
project_id | 1 | string | — | GCP project ID. Required. |
region | 1 | string | 'us-central1' | GCP region fallback |
tenant_deployment_id | 2 | string | 'demo' | Short suffix appended to all resource names |
support_users | 2 | list(string) | [] | Email recipients for monitoring alerts |
resource_labels | 2 | map(string) | {} | Labels applied to all provisioned resources |
application_name | 3 | string | 'chroma' | Base resource name. Do not change after initial deployment. |
application_display_name | 3 | string | 'Chroma Vector Database' | Human-readable name in the GCP Console |
description | 3 | string | Chroma description | Cloud Run service description |
application_version | 3 | string | 'latest' | Chroma image tag |
Wrapper architecture: Chroma CloudRun calls Chroma Common to build an application_config object containing Chroma-specific environment variables, probe configuration, and the storage volume definition. module_storage_buckets carries the <prefix>-data GCS bucket. scripts_dir is resolved to abspath("${module.chroma_app.path}/scripts") at apply time.
2. IAM & Access Control
Chroma CloudRun delegates all IAM provisioning to App CloudRun. The Cloud Run SA, Cloud Build SA, and IAP service agent role sets are identical to those in App CloudRun.
Auth token: Unlike most modules, Chroma Common can auto-generate a Chroma authentication token (when enable_auth_token = true). The token is stored in Secret Manager as <prefix>-auth-token and injected as CHROMA_SERVER_AUTH_CREDENTIALS. Applications calling Chroma must include this token in the Authorization: Bearer <token> header.
For the complete role tables and IAP details, see the App CloudRun documentation.
3. Core Service Configuration
A. Compute (Cloud Run)
Chroma CloudRun exposes cpu_limit and memory_limit as dedicated top-level variables. Chroma loads embedding indexes into RAM — size memory_limit according to your collection size and index type.
Single-instance constraint: max_instance_count = 1 is strongly recommended. Chroma is a single-writer store — multiple instances against the same GCS FUSE mount will corrupt collections. Scale vertically (increase CPU and memory) rather than horizontally.
| Variable | Group | Default | Description |
|---|---|---|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment |
cpu_limit | 4 | '1000m' | CPU per instance |
memory_limit | 4 | '1Gi' | Memory per instance. Increase for large embedding collections |
min_instance_count | 4 | 1 | Keep at 1+ to avoid cold starts |
max_instance_count | 4 | 1 | Keep at 1 — Chroma is single-writer |
container_port | 4 | 8000 | Chroma REST API port |
execution_environment | 4 | 'gen2' | Gen2 required for GCS FUSE |
cpu_always_allocated | 4 | true | Keep CPU allocated to avoid index load delays between requests |
timeout_seconds | 4 | 300 | Max request duration (0–3600 s). Increase for large batch operations. |
enable_cloudsql_volume | 4 | false | Not applicable — Chroma has no SQL database |
enable_image_mirroring | 4 | true | Mirror the Chroma image into Artifact Registry |
container_protocol | 4 | 'http1' | 'http1' or 'h2c' |
traffic_split | 4 | [] | Canary/blue-green traffic allocation |
max_revisions_to_retain | 4 | 7 | Maximum Cloud Run revisions to keep |
service_annotations | 4 | {} | Cloud Run service annotations |
service_labels | 4 | {} | Cloud Run service labels |
Differences from App CloudRun defaults:
| Variable | App CloudRun | Chroma CloudRun | Reason |
|---|---|---|---|
container_port | 8080 | 8000 | Chroma's native REST API port |
ingress_settings | 'all' | 'internal' | Vector databases should not be publicly exposed by default |
enable_redis | true | false (hard-coded) | Chroma has no Redis dependency |
database_type | configurable | NONE (fixed) | Chroma manages its own embedded storage |
min_instance_count | 0 | 1 | Avoid cold start index-loading delays |
B. Storage (GCS FUSE)
Chroma requires persistent storage for its embedded SQLite database, HNSW index files, and collection metadata. Chroma Common automatically provisions a GCS bucket and mounts it at /data via GCS FUSE.
| Variable | Group | Default | Description |
|---|---|---|---|
create_cloud_storage | 11 | true | Set false to skip GCS bucket creation |
storage_buckets | 11 | [] | Additional GCS buckets beyond the auto-provisioned data bucket |
gcs_volumes | 11 | [] | Additional GCS FUSE volume mounts |
enable_nfs | 11 | false | Mount Cloud Filestore NFS (requires gen2). Chroma uses GCS for storage; enable only for custom init jobs. |
nfs_mount_path | 11 | '/mnt/nfs' | NFS container mount path |
manage_storage_kms_iam | 11 | false | Create CMEK KMS key for storage |
enable_artifact_registry_cmek | 11 | false | Enable CMEK for Artifact Registry |
The auto-provisioned bucket uses these settings: storage_class = "STANDARD", versioning_enabled = false, public_access_prevention = "enforced".
C. Networking
| Variable | Group | Default | Description |
|---|---|---|---|
ingress_settings | 5 | 'internal' | Recommended. 'all' requires enable_auth_token = true (plan-time validation). |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | 'PRIVATE_RANGES_ONLY' or 'ALL_TRAFFIC' |
4. Authentication & Access Control
A. Chroma Auth Token
The primary Chroma-specific security control. When enable_auth_token = true:
- A 32-character alphanumeric token is generated and stored in Secret Manager
- Chroma starts with
CHROMA_SERVER_AUTH_CREDENTIALSset to the token value - All API calls must include
Authorization: Bearer <token>in the request header - The Python client usage:
chromadb.HttpClient(host=..., headers={"Authorization": "Bearer <token>"})
Plan-time guard: validation.tf includes a precondition that prevents deploying with ingress_settings = "all" and enable_auth_token = false simultaneously. This blocks accidental public exposure of an unauthenticated Chroma instance.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_auth_token | 3 | false | Generate and store authentication token in Secret Manager. Recommended for all non-internal deployments. |
B. Identity-Aware Proxy (IAP)
When enable_iap = true, Cloud Run's native IAP integration is enabled. Google identity authentication is required before requests reach Chroma. Useful for web-based client access scenarios.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_iap | 5 | false | Enable IAP on the Cloud Run service |
iap_authorized_users | 5 | [] | Users/SAs granted access. Format: 'user:email' |
iap_authorized_groups | 5 | [] | Google Groups granted access |
C. Cloud Armor
When enable_cloud_armor = true, a Global HTTPS Load Balancer with Cloud Armor WAF policy is provisioned in front of Cloud Run.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_armor | 10 | false | Provision Global HTTPS LB + Cloud Armor WAF |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF rules |
application_domains | 10 | [] | Custom domains for the HTTPS LB |
enable_cdn | 10 | false | Enable Cloud CDN on the HTTPS LB |
5. Observability & Health
A. Health Probes
Chroma exposes a single health endpoint — /api/v2/heartbeat — which returns HTTP 200 when the service is fully initialized. Both the startup and liveness probes are hard-coded to this endpoint by Chroma Common.
| Variable | Group | Default | Description |
|---|---|---|---|
startup_probe | 14 | { path="/api/v2/heartbeat", initial_delay=15, period=10, threshold=10 } | Startup probe. Initial delay accounts for GCS FUSE mount and index loading. |
liveness_probe | 14 | { path="/api/v2/heartbeat", initial_delay=30, period=30, threshold=3 } | Liveness probe. Container is restarted after 3 consecutive failures. |
uptime_check_config | 14 | { enabled=true, path="/api/v2/heartbeat" } | Cloud Monitoring uptime check |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies |
B. Backup & Recovery
| Variable | Group | Default | Description |
|---|---|---|---|
backup_schedule | 7 | '0 2 * * *' | Cron expression (UTC) for automated backups |
backup_retention_days | 7 | 7 | Days to retain backup files |
enable_backup_import | 7 | false | Trigger a one-time restore on apply |
backup_source | 7 | 'gcs' | 'gcs' (full GCS URI) or 'gdrive' (file ID) |
backup_uri | 7 | "" | GCS URI or Drive file ID. Mapped to backup_file in App CloudRun. |
backup_format | 7 | 'tar' | Backup format: sql, tar, gz, tgz, tar.gz, zip |
6. CI/CD & Delivery
Identical to App CloudRun. When enable_cicd_trigger = true, a Cloud Build GitHub connection and push trigger are provisioned.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cicd_trigger | 8 | false | Provision a Cloud Build GitHub trigger |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository |
github_token | 8 | "" | GitHub PAT. Sensitive. Required on first apply. |
github_app_installation_id | 8 | "" | GitHub App installation ID |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced trigger config |
enable_cloud_deploy | 8 | false | Provision a Cloud Deploy pipeline |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Ordered promotion stages |
enable_binary_authorization | 8 | false | Enforce image attestation |
7. Platform-Managed Behaviours
| Behaviour | Implementation | Detail |
|---|---|---|
| No database | database_type = "NONE" fixed by Chroma Common | No Cloud SQL instance is created |
| No Redis | enable_redis = false hard-coded in main.tf | Chroma has no caching dependency |
| Telemetry disabled | ANONYMIZED_TELEMETRY=false always injected | Privacy by default |
| Port fixed | CHROMA_SERVER_HTTP_PORT=8000 always injected | Matches container_port = 8000 |
| Public ingress blocked | Plan-time validation in validation.tf | ingress_settings = "all" blocked unless enable_auth_token = true |
| GCS data bucket | <prefix>-data provisioned by Chroma Common | Mounted at /data via GCS FUSE |
| Health probe path | Hard-coded to /api/v2/heartbeat | Chroma provides no configurable health path |
8. Variable Reference
All user-configurable variables, sorted by UI group then order.
| Variable | Group | Default | Description |
|---|---|---|---|
module_description | 0 | Chroma platform text | Platform metadata |
module_documentation | 0 | docs URL | Documentation URL |
module_dependency | 0 | ['Services GCP'] | Required modules |
module_services | 0 | GCP service list | GCP services consumed |
credit_cost | 0 | 50 | Deployment credit cost |
require_credit_purchases | 0 | false | Enforce credit balance check |
enable_purge | 0 | true | Permit full resource deletion |
public_access | 0 | false | Platform catalogue visibility |
shared_users | 0 | [] | Users with access regardless of public_access |
deployment_id | 0 | "" | Deployment ID suffix. Auto-generated when empty |
resource_creator_identity | 0 | platform SA | Terraform service account |
project_id | 1 | — | GCP project ID. Required. |
region | 1 | 'us-central1' | GCP region fallback |
tenant_deployment_id | 2 | 'demo' | Resource name suffix |
support_users | 2 | [] | Email addresses for monitoring alerts |
resource_labels | 2 | {} | Labels applied to all resources |
application_name | 3 | 'chroma' | Base resource name. Do not change after initial deployment. |
application_display_name | 3 | 'Chroma Vector Database' | Human-readable display name |
description | 3 | Chroma description | Service description |
application_version | 3 | 'latest' | Chroma container image tag |
enable_auth_token | 3 | false | Generate auth token in Secret Manager. Recommended for public deployments. |
deploy_application | 4 | true | Set false for infrastructure-only deployment |
cpu_limit | 4 | '1000m' | CPU per instance |
memory_limit | 4 | '1Gi' | Memory per instance |
min_instance_count | 4 | 1 | Keep at 1+ to avoid cold starts |
max_instance_count | 4 | 1 | Keep at 1 — Chroma is single-writer |
container_port | 4 | 8000 | Chroma REST API port |
execution_environment | 4 | 'gen2' | Gen2 required for GCS FUSE |
cpu_always_allocated | 4 | true | Always allocate CPU |
timeout_seconds | 4 | 300 | Max request duration |
enable_image_mirroring | 4 | true | Mirror image into Artifact Registry |
container_protocol | 4 | 'http1' | 'http1' or 'h2c' |
traffic_split | 4 | [] | Canary/blue-green traffic allocation |
max_revisions_to_retain | 4 | 7 | Maximum Cloud Run revisions |
service_annotations | 4 | {} | Cloud Run service annotations |
service_labels | 4 | {} | Cloud Run service labels |
ingress_settings | 5 | 'internal' | 'internal', 'all' (requires auth token), or 'internal-and-cloud-load-balancing' |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | VPC egress mode |
enable_iap | 5 | false | Enable IAP |
iap_authorized_users | 5 | [] | IAP-authorized users |
iap_authorized_groups | 5 | [] | IAP-authorized groups |
environment_variables | 6 | {} | Plain-text env vars |
secret_environment_variables | 6 | {} | Secret Manager references |
secret_propagation_delay | 6 | 30 | Seconds to wait after secret creation |
secret_rotation_period | 6 | '2592000s' | Rotation reminder period |
backup_schedule | 7 | '0 2 * * *' | Automated backup cron schedule |
backup_retention_days | 7 | 7 | Days to retain backups |
enable_backup_import | 7 | false | Trigger one-time backup restore |
backup_source | 7 | 'gcs' | Backup source: 'gcs' or 'gdrive' |
backup_uri | 7 | "" | GCS URI or Drive file ID |
backup_format | 7 | 'tar' | Backup file format |
enable_cicd_trigger | 8 | false | Cloud Build GitHub trigger |
github_repository_url | 8 | "" | GitHub repository URL |
github_token | 8 | "" | GitHub PAT. Sensitive. |
github_app_installation_id | 8 | "" | GitHub App installation ID |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced trigger config |
enable_cloud_deploy | 8 | false | Cloud Deploy pipeline |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Promotion stages |
enable_binary_authorization | 8 | false | Enforce image attestation |
additional_cloudrun_sa_roles | 8 | [] | Extra IAM roles for Cloud Run SA |
enable_cloud_armor | 10 | false | Global HTTPS LB + Cloud Armor WAF |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF |
application_domains | 10 | [] | Custom domains |
enable_cdn | 10 | false | Cloud CDN on HTTPS LB |
max_images_to_retain | 10 | 7 | Max Artifact Registry images |
delete_untagged_images | 10 | true | Delete untagged images |
image_retention_days | 10 | 30 | Image retention period |
create_cloud_storage | 11 | true | Create GCS buckets |
storage_buckets | 11 | [] | Additional GCS buckets |
enable_nfs | 11 | false | Mount Cloud Filestore NFS |
nfs_mount_path | 11 | '/mnt/nfs' | NFS container mount path |
gcs_volumes | 11 | [] | Additional GCS FUSE volumes |
manage_storage_kms_iam | 11 | false | CMEK for storage |
enable_artifact_registry_cmek | 11 | false | CMEK for Artifact Registry |
initialization_jobs | 13 | [] | One-shot Cloud Run Jobs. No default job. |
cron_jobs | 13 | [] | Recurring scheduled jobs |
startup_probe | 14 | { path="/api/v2/heartbeat", initial_delay=15, ... } | Startup probe |
liveness_probe | 14 | { path="/api/v2/heartbeat", initial_delay=30, ... } | Liveness probe |
uptime_check_config | 14 | { enabled=true, path="/api/v2/heartbeat" } | Uptime check |
alert_policies | 14 | [] | Metric alert policies |
enable_vpc_sc | 23 | false | VPC Service Controls perimeter |
vpc_cidr_ranges | 23 | [] | VPC CIDR ranges for VPC-SC |
vpc_sc_dry_run | 23 | true | Log violations without blocking |
organization_id | 23 | "" | GCP Organization ID (required for VPC-SC) |
enable_audit_logging | 23 | false | Cloud Audit Logs |
9. Outputs
| Output | Description |
|---|---|
service_url | Cloud Run service HTTPS URL |
service_name | Cloud Run service name |
service_location | GCP region where the service is deployed |
project_id | GCP project ID |
deployment_id | Deployment ID suffix |
storage_buckets | Provisioned GCS bucket list |
container_image | Container image used for the deployment |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
enable_auth_token | false | Critical | Without an authentication token, any caller who can reach the Cloud Run service can read, write, or delete any Chroma collection. Set to true for any deployment reachable outside the VPC. The generated token is stored in Secret Manager and must be provided in the Authorization: Bearer <token> header by all clients. |
ingress_settings | "internal" | High | Default is internal (VPC-only). Changing to "all" exposes the Chroma API to the public internet with no authentication unless enable_auth_token = true. Never set to "all" without authentication enabled. |
enable_nfs | false | High | Without NFS, Chroma stores its collection data inside the container filesystem. On Cloud Run, this storage is ephemeral — a new revision deployment or instance restart erases all collections. Enable NFS (requires execution_environment = "gen2") or GCS Fuse (enable_gcs_storage_volume = true) for persistence. |
execution_environment | "gen2" | High | NFS mounts require Gen2. If enable_nfs = true is set while execution_environment = "gen1", the Cloud Run deployment fails. |
memory_limit | "1Gi" | High | Chroma loads HNSW indexes entirely into memory. Each 1M 1536-dimension float32 vectors requires approximately 6 Gi of RAM. The default 1Gi is only suitable for very small collections (< 100K vectors). Underprovisioning causes OOM kills under query load. |
cpu_always_allocated | true | Medium | Chroma must respond to health checks and background index rebuilds even with no active requests. Setting to false causes CPU throttling between requests, slowing index operations and potentially causing health check timeouts. |
min_instance_count | 1 | Medium | Scale-to-zero (0) causes cold starts during which in-memory indexes must be reloaded from GCS. For latency-sensitive applications, keep at 1. |
max_instance_count | 1 | High | Multiple Chroma Cloud Run instances do not share state. With max_instance_count > 1 and GCS Fuse storage, concurrent writes from different instances can corrupt the collection. Chroma Cloud Run is single-instance by design; use Chroma GKE with StatefulSet for multi-replica production deployments. |
container_port | 8000 | Critical | Chroma listens on port 8000 by default. Changing this requires a matching CHROMA_SERVER_HTTP_PORT environment variable to be set, otherwise the container starts but Cloud Run health checks fail and the revision is never promoted. |
vpc_egress_setting | "PRIVATE_RANGES_ONLY" | Low | PRIVATE_RANGES_ONLY is correct when all dependencies are on the VPC. Only change to ALL_TRAFFIC if Chroma must reach public endpoints directly (e.g., embedding model APIs). |
timeout_seconds | 300 | Medium | Large similarity searches over millions of vectors can take several seconds. Setting too low causes Cloud Run to return 504 to clients during expensive queries. Increase to 600 for large collection workloads. |
enable_gcs_storage_volume | true (in Common) | High | GCS Fuse is the primary persistence mechanism for Cloud Run Chroma deployments. Disabling it means collections are lost on instance restart. Leave enabled unless NFS is used instead. |
application_version | "latest" | Medium | Using latest means the deployed image can change on rebuild without an explicit version bump. Pin to a specific Chroma version tag for reproducible production deployments. |
backup_schedule | (varies by module) | Medium | Chroma data is stored in GCS/NFS; regular snapshots of the GCS bucket are the primary backup mechanism. Ensure GCS object versioning or the module's backup job is configured for disaster recovery. |
enable_iap | false | High | When ingress_settings = "all" and enable_auth_token = false, the service is fully open. Enable IAP as an additional authentication layer for user-facing deployments. |
secret_propagation_delay | 30 | Medium | If the auth token secret is created but not yet propagated when Cloud Run reads it, the container may start with an empty auth token. Increase to 60 in large projects. |
enable_cloudsql_volume | false | Low | Chroma does not use a relational database. This variable should remain false; enabling it injects a Cloud SQL Auth Proxy sidecar that serves no purpose and consumes container resources. |
resource_labels | {} | Low | Without labels, cost attribution and resource filtering in GCP Console is difficult. Add at minimum env and service labels for production. |
10. Destroying Resources
When enable_purge = true, tofu destroy removes all module-managed resources. After Cloud Run service deletion, GCP may hold serverless IPv4 addresses on the VPC subnet for 20–30 minutes before release. If the destroy attempt fails with a subnet deletion error, wait and re-run:
tofu destroy
