Dify on Google Cloud Run
This document provides a comprehensive reference for the modules/Dify_CloudRun Terraform module. It covers architecture, IAM, configuration variables, Dify-specific behaviours, and operational patterns for deploying Dify on Google Cloud Run (v2).

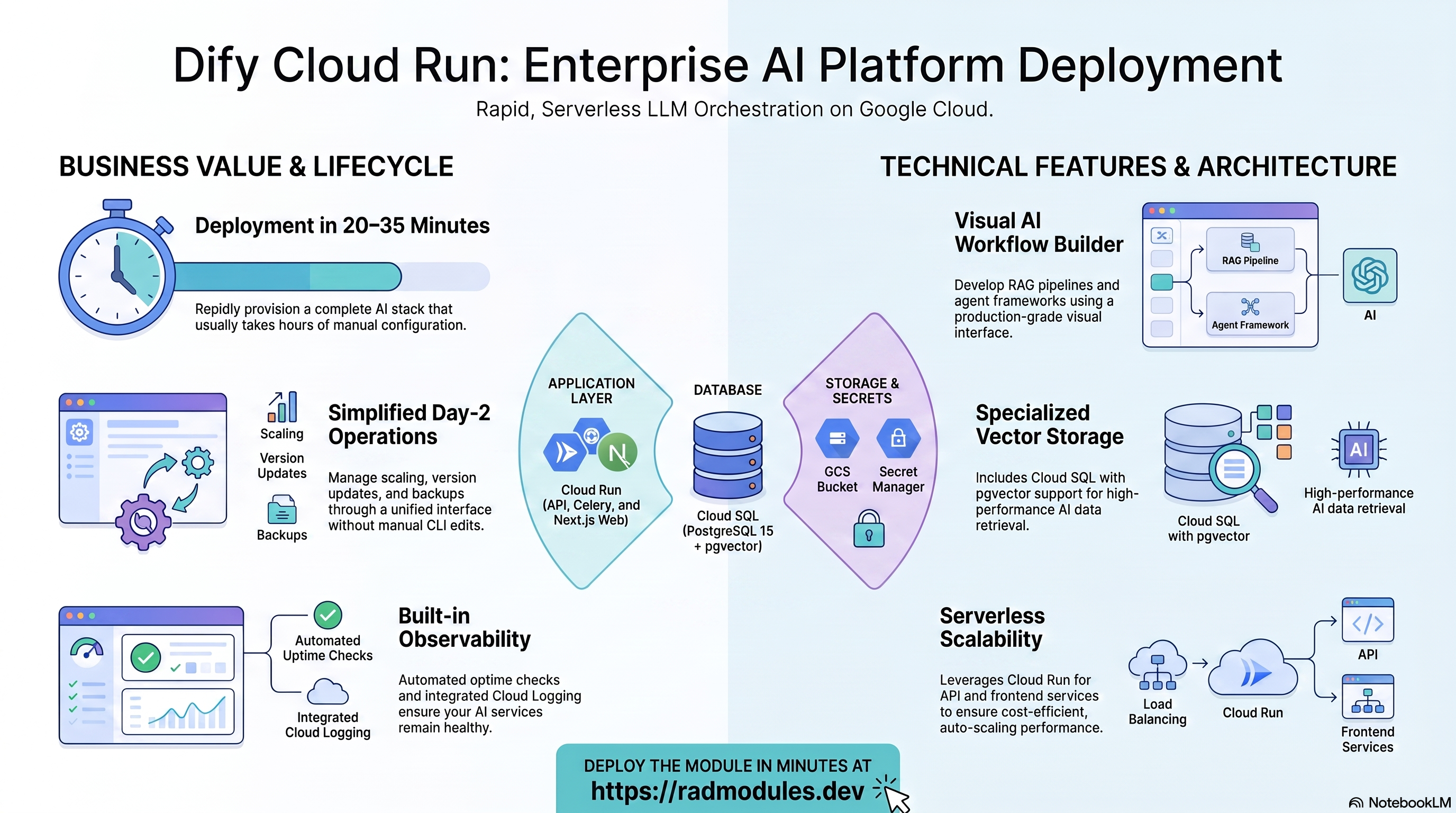

1. Module Overview
Dify is an open-source LLM application development platform with 50,000+ GitHub stars, widely adopted for building production-grade AI applications without deep ML expertise. Dify CloudRun is a wrapper module built on top of App CloudRun. It uses App CloudRun for all GCP infrastructure provisioning and injects Dify-specific application configuration, database initialisation, secrets, and storage configuration via Dify Common.
Key Capabilities:
- Compute: Cloud Run v2 (Gen2), Python/Next.js containers, 2 vCPU / 4 Gi default. Min 1 instance to maintain Celery worker availability. A web sidecar service (
langgenius/dify-web) is automatically deployed alongside the API. - Data Persistence: Cloud SQL PostgreSQL 15 with
pgvectorextension enabled for vector storage. NFS (GCE VM or Filestore) for shared Redis and task state. GCSdify-storagebucket auto-provisioned byDify Common. - AI Infrastructure: pgvector reuses the Cloud SQL PostgreSQL instance as the vector store (
VECTOR_STORE=pgvector). Redis is required for Celery task queue and event bus streaming. - Security: Inherits Cloud Armor WAF, IAP, Binary Authorization, and VPC Service Controls from
App CloudRun.Dify Commonauto-generates aSECRET_KEYsecret stored in Secret Manager. - Caching/Queue: Redis enabled by default (
enable_redis = true) — required for Celery broker, backend, and SSE/WebSocket LLM streaming. - CI/CD: Cloud Build custom image pipeline; Cloud Deploy progressive delivery optional.
- Reliability: Health probes target
/healthwith 30-second initial delay.
Project & Application Identity
| Variable | Group | Type | Default | Description |
|---|---|---|---|---|
project_id | 1 | string | — | GCP project ID. Required. |
tenant_deployment_id | 2 | string | 'demo' | Short suffix appended to all resource names. |
support_users | 2 | list(string) | [] | Email recipients for monitoring alerts. |
resource_labels | 2 | map(string) | {} | Labels applied to all provisioned resources. |
application_name | 3 | string | 'dify' | Base resource name. Do not change after initial deployment. |
display_name | 3 | string | 'Dify - LLM Application Platform' | Human-readable name shown in the GCP Console. |
description | 3 | string | 'Dify - Open-source LLM application development platform...' | Cloud Run service description. |
application_version | 3 | string | '0.15.0' | Dify image version tag. Applies to both API and web containers. |
Wrapper architecture: Dify CloudRun calls Dify Common to build an application_config object containing Dify-specific environment variables, probe configuration, pgvector settings, and the db-init job definition. Dify CloudRun hardcodes a web additional service (langgenius/dify-web) that is deployed alongside the API service. The web service consumes CLOUDRUN_SERVICE_URL at runtime via $(CLOUDRUN_SERVICE_URL) substitution. module_storage_buckets carries the dify-storage GCS bucket provisioned by Dify Common. scripts_dir is resolved to abspath("${module.dify_app.path}/scripts") at apply time.
PostgreSQL + pgvector note: Dify Common enables the vector PostgreSQL extension automatically. The pgvector integration reuses the Cloud SQL PostgreSQL instance — no separate vector database is required in the default configuration.
2. IAM & Access Control
Dify_CloudRun delegates all IAM provisioning to App_CloudRun. The Cloud Run SA, Cloud Build SA, IAP service agent, and password rotation role sets are identical to those in App_CloudRun §2.
Auto-generated application secret: Dify Common generates a 64-character random SECRET_KEY and stores it in Secret Manager as <resource_prefix>-secret-key. This secret is injected as SECRET_KEY into the Dify API container at runtime. It is used by Dify for JWT signing and session encryption — do not change it after initial deployment.
Database initialisation identity: The db-init Cloud Run Job runs under the Cloud Run SA. It connects to Cloud SQL PostgreSQL via the Auth Proxy Unix socket (since enable_cloudsql_volume = true by default), using DB_HOST (the socket path under /cloudsql), DB_USER, and ROOT_PASSWORD (from Secret Manager).
30-second secret propagation delay: Dify Common waits 30 seconds after creating the SECRET_KEY secret before proceeding. This allows Secret Manager global replication to complete before the Cloud Run service revision starts.
For the complete role tables and IAP, password rotation, and public access details, see App_CloudRun §2.
3. Core Service Configuration
A. Compute (Cloud Run)
Dify is a Python (Flask/Gunicorn) application with embedded Celery workers. The API service runs in supervisord mode — both the API gunicorn process and a Celery worker run inside the same container. A separate dify-web Next.js service is deployed as an additional service and communicates with the API via the Cloud Run service URL.
Startup CPU Boost is always enabled (hardcoded in App CloudRun).
Container image: Dify_Common sets image_source = "custom" and container_image = "langgenius/dify-api". Cloud Build compiles a custom image using Dify_Common's Dockerfile which wraps the upstream image with supervisord. The web service uses langgenius/dify-web:<version> as a prebuilt image.
| Variable | Group | Default | Description |
|---|---|---|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment (SQL, storage, secrets). |
cpu_limit | 4 | '2000m' | CPU per instance. 2 vCPU minimum; both gunicorn and Celery worker share this allocation. |
memory_limit | 4 | '4Gi' | Memory per instance. 4 Gi recommended; LLM workflow caching can be memory-intensive. |
min_instance_count | 4 | 1 | Minimum instances. At least 1 recommended — Celery workers maintain task queue connections. |
max_instance_count | 4 | 3 | Maximum instances. Acts as a cost ceiling. |
container_port | 4 | 5001 | Dify API server port. |
execution_environment | 4 | 'gen2' | Gen2 required for NFS mounts and GCS Fuse. |
timeout_seconds | 4 | 300 | Max request duration. Increase for long-running LLM inference requests. Range: 0–3600. |
enable_cloudsql_volume | 4 | true | Default true — Dify connects via Unix socket. |
traffic_split | 4 | [] | Percentage-based canary/blue-green traffic allocation. |
service_annotations | 4 | {} | Advanced Cloud Run annotations. |
service_labels | 4 | {} | Labels applied to the Cloud Run service. |
Differences from App CloudRun defaults:
| Variable | App CloudRun | Dify CloudRun | Reason |
|---|---|---|---|
container_port | 8080 | 5001 | Dify API's native port. |
cpu_limit | '1000m' | '2000m' | Gunicorn + Celery worker share CPU; 2 vCPU required. |
memory_limit | '512Mi' | '4Gi' | LLM workflow state, model caching, and RAG pipeline require significant RAM. |
min_instance_count | 0 | 1 | Celery workers maintain broker connections; scale-to-zero disrupts task queues. |
enable_nfs | false | true | NFS provides shared storage for Redis (co-located on the NFS VM). |
enable_redis | false | true | Redis is required for Celery broker, backend, and SSE event bus. |
B. Database (Cloud SQL — PostgreSQL 15)
Dify requires PostgreSQL — Dify Common fixes database_type = "POSTGRES_15" and enables the pgvector extension. The pgvector integration is used by Dify as the default vector store (VECTOR_STORE=pgvector), eliminating the need for a separate vector database.
| Variable | Group | Default | Description |
|---|---|---|---|
database_type | 12 | 'POSTGRES_15' | Cloud SQL engine. Dify requires PostgreSQL. Options: POSTGRES_15, POSTGRES_14. |
db_name | 12 | 'dify_db' | PostgreSQL database name. Do not change after initial deployment. |
db_user | 12 | 'dify_user' | PostgreSQL application user. Password auto-generated and stored in Secret Manager. |
database_password_length | 12 | 32 | Auto-generated password length. Range: 16–64. |
enable_auto_password_rotation | 12 | false | Automated zero-downtime password rotation. |
rotation_propagation_delay_sec | 12 | 90 | Seconds to wait after rotation before restarting the service. |
enable_postgres_extensionsand thevectorextension are enabled automatically byDify Commonand cannot be disabled.
C. Storage (NFS & GCS)
NFS is enabled by default (enable_nfs = true). The NFS server IP is used as the Redis host when redis_host is not explicitly set. Requires execution_environment = 'gen2'.
GCS storage bucket: Dify Common automatically provisions a dedicated <resource_prefix>-storage GCS bucket and configures Dify to use it via STORAGE_TYPE=google-storage. Workload Identity / ADC handles authentication; no service account JSON key is required.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_nfs | 11 | true | Provisions an NFS volume. Required when Redis is enabled without an external redis_host. Requires gen2. |
nfs_mount_path | 11 | '/mnt/nfs' | Container path where the NFS share is mounted. |
create_cloud_storage | 11 | true | Set false to skip additional bucket creation. The dify-storage bucket is always provisioned. |
storage_buckets | 11 | [{ name_suffix = "data" }] | Additional GCS buckets beyond the auto-provisioned storage bucket. |
gcs_volumes | 11 | [] | GCS buckets to mount via GCS Fuse (requires gen2). |
nfs_instance_name | 9 | "" | Name of an existing NFS GCE VM. Leave empty to auto-discover. |
nfs_instance_base_name | 9 | 'app-nfs' | Base name for an inline NFS GCE VM when none exists. |
manage_storage_kms_iam | 11 | false | Creates a CMEK KMS keyring/key and enables CMEK on all storage buckets. |
enable_artifact_registry_cmek | 11 | false | Creates an Artifact Registry KMS key and enables at-rest CMEK encryption of container images. |
D. Networking
Cloud Run uses Direct VPC Egress to reach Cloud SQL's internal IP. Because enable_cloudsql_volume = true is the default, the Auth Proxy sidecar handles the Cloud SQL connection via Unix socket.
| Variable | Group | Default | Description |
|---|---|---|---|
ingress_settings | 5 | 'all' | 'all' — public internet; 'internal' — VPC only; 'internal-and-cloud-load-balancing' — forces traffic through the HTTPS Load Balancer. |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | 'PRIVATE_RANGES_ONLY' routes only RFC 1918 traffic via VPC. 'ALL_TRAFFIC' routes all egress via VPC. |
E. Initialization & Bootstrap
A db-init Cloud Run Job is automatically provisioned by Dify Common when initialization_jobs is left as the default empty list ([]). It uses the postgres:15-alpine image and executes Dify_Common/scripts/db-init.sh, which performs idempotent operations to create the Dify database user and database.
Dify runs its own database migrations automatically on startup via MIGRATION_ENABLED=true — no additional migration job is required.
Additional recurring cron jobs can be defined via cron_jobs:
| Variable | Group | Default | Description |
|---|---|---|---|
initialization_jobs | 13 | [] | One-shot Cloud Run Jobs. Leave empty for Dify Common to supply the default db-init job. Non-empty list replaces it entirely. |
cron_jobs | 13 | [] | Recurring jobs triggered by Cloud Scheduler. Each entry: name, schedule (cron UTC), image, command, args, env_vars, secret_env_vars, cpu_limit, memory_limit, timeout_seconds, max_retries, task_count, parallelism, mount_nfs, mount_gcs_volumes, script_path, paused. |
4. Advanced Security
A. Cloud Armor WAF
When enable_cloud_armor = true, a Global HTTPS Load Balancer with a Cloud Armor WAF policy is provisioned in front of Cloud Run.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_armor | 10 | false | Provisions Global HTTPS LB + Cloud Armor WAF. Required for custom domains, CDN, and DDoS protection. |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF rules (e.g., office VPN, CI/CD egress IPs). |
B. Identity-Aware Proxy (IAP)
When enable_iap = true, Cloud Run's native IAP integration is enabled directly on the service. Useful for protecting the Dify console from unauthorised access.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_iap | 5 | false | Enables IAP natively on the Cloud Run service. |
iap_authorized_users | 5 | [] | Users/service accounts granted access. Format: 'user:email' or 'serviceAccount:sa@...'. |
iap_authorized_groups | 5 | [] | Google Groups granted access. Format: 'group:name@example.com'. |
C. Binary Authorization
| Variable | Group | Default | Description |
|---|---|---|---|
enable_binary_authorization | 8 | false | Enforces image attestation. Requires a Binary Authorization policy and attestor pre-configured in the project. |
D. VPC Service Controls
| Variable | Group | Default | Description |
|---|---|---|---|
enable_vpc_sc | 22 | false | Registers module API calls within the project's VPC-SC perimeter. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges for VPC-SC network access level. Auto-discovered when empty. |
vpc_sc_dry_run | 22 | true | Logs VPC-SC violations without blocking. Set false to enforce. |
organization_id | 22 | "" | GCP Organization ID for VPC-SC. Auto-discovered from project when empty. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs (DATA_READ, DATA_WRITE, ADMIN_READ). |
E. Secret Manager Integration
Dify application secrets are stored in Secret Manager and injected natively by Cloud Run at revision start.
Dify Common auto-generates one secret:
| Secret | Environment Variable | Description |
|---|---|---|
<prefix>-secret-key | SECRET_KEY | 64-character random key for JWT signing and session encryption. |
Additional secrets can be injected via secret_environment_variables:
| Variable | Group | Default | Description |
|---|---|---|---|
secret_environment_variables | 6 | {} | Map of env var name → Secret Manager secret ID. (e.g., { OPENAI_API_KEY = "my-openai-key" }) |
secret_rotation_period | 6 | '2592000s' | Frequency at which Secret Manager emits rotation notifications. Default: 30 days. |
secret_propagation_delay | 6 | 30 | Seconds to wait after secret creation before dependent resources proceed. |
5. Traffic & Ingress
A. HTTPS Load Balancer
When enable_cloud_armor = true, a Global HTTPS Load Balancer backed by a Serverless NEG is provisioned. Traffic flows: Internet → Cloud Armor → Global HTTPS LB → Serverless NEG → Cloud Run.
Setting ingress_settings = 'internal-and-cloud-load-balancing' forces all Dify traffic through the LB, preventing direct *.run.app URL access.
B. Cloud CDN
When enable_cdn = true (requires enable_cloud_armor = true), Cloud CDN is attached to the HTTPS Load Balancer backend.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cdn | 10 | false | Enables Cloud CDN on the HTTPS LB backend. Only effective when enable_cloud_armor = true. |
max_images_to_retain | 10 | 7 | Maximum number of recent container images to keep in Artifact Registry. Set 0 to disable. |
delete_untagged_images | 10 | true | Automatically deletes untagged (dangling) images from Artifact Registry. |
image_retention_days | 10 | 30 | Days after which images are eligible for deletion. Set 0 to disable age-based deletion. |
C. Custom Domains
| Variable | Group | Default | Description |
|---|---|---|---|
application_domains | 10 | [] | Custom domain names for the HTTPS LB. Google-managed SSL certificates provisioned per domain. (e.g., ['dify.example.com']) |
6. CI/CD & Delivery
A. Cloud Build Triggers
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cicd_trigger | 8 | false | Provisions a Cloud Build GitHub trigger. Requires github_repository_url and credentials. |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 8 | "" | GitHub PAT (repo, admin:repo_hook scopes). Required on first apply. Sensitive. |
github_app_installation_id | 8 | "" | GitHub App installation ID (preferred for organisation repos). |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced trigger config: branch_pattern, included_files, ignored_files, trigger_name, substitutions. |
B. Cloud Deploy Pipeline
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_deploy | 8 | false | Provisions a Cloud Deploy pipeline. Requires enable_cicd_trigger = true. |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Ordered promotion stages. Each: name, target_name, service_name, require_approval, auto_promote. |
7. Reliability & Scheduling
A. Scaling & Concurrency
min_instance_count = 1 by default. Scale-to-zero is not recommended because Celery workers maintain broker connections to Redis. The max_instance_count ceiling prevents unbounded scaling — important when running LLM inference that can consume significant external API quota.
B. Traffic Splitting
| Variable | Group | Default | Description |
|---|---|---|---|
traffic_split | 4 | [] | Percentage-based traffic allocation across named revisions. All entries must sum to 100. Empty sends 100% to the latest revision. |
C. Health Probes & Uptime Monitoring
Dify exposes a /health HTTP endpoint. Both startup and liveness probes target this endpoint.
| Variable | Group | Default | Description |
|---|---|---|---|
startup_probe | 14 | { enabled=true, type="HTTP", path="/health", initial_delay_seconds=30, timeout_seconds=10, period_seconds=10, failure_threshold=30 } | Startup readiness probe. Container receives no traffic until this succeeds. |
liveness_probe | 14 | { enabled=true, type="HTTP", path="/health", initial_delay_seconds=30, timeout_seconds=10, period_seconds=30, failure_threshold=3 } | Liveness probe. Container is restarted after failure_threshold consecutive failures. |
uptime_check_config | 14 | { enabled=true, path="/health" } | Cloud Monitoring uptime check. Alerts notify support_users if unreachable. |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies. |
D. Auto Password Rotation
| Variable | Group | Default | Description |
|---|---|---|---|
enable_auto_password_rotation | 12 | false | Enables automated password rotation. |
rotation_propagation_delay_sec | 12 | 90 | Seconds to wait after writing the new secret before restarting the service. |
secret_rotation_period | 6 | '2592000s' | Rotation frequency. Default: 30 days. |
8. Integrations
A. Redis Cache & Celery
Redis is required for Dify (enable_redis = true by default). Dify Common configures three Redis-backed features:
- Celery broker and backend — task queue for LLM inference and document indexing jobs (db 1)
- Event bus — SSE/WebSocket streaming for real-time LLM output (db 0)
- Redis cache — general caching (db 0)
When enable_redis = true and redis_host is not provided, the module defaults to using the NFS server IP as the Redis host. For production deployments, point redis_host at a dedicated Google Cloud Memorystore for Redis instance.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_redis | 21 | true | Required. Enables Redis for Celery task queue and LLM streaming. |
redis_host | 21 | "" | Redis server hostname or IP. Leave blank to use the NFS server IP. Override with a Memorystore instance for production. |
redis_port | 21 | '6379' | Redis server TCP port (string). |
redis_auth | 21 | "" | Redis AUTH password. Leave empty if the Redis instance does not require authentication. Sensitive. |
B. LLM Provider Integration
Dify connects to external LLM providers (OpenAI, Anthropic, Azure OpenAI, etc.) through its web console — API keys are configured per workspace via the Dify UI and stored in the application database, not as Terraform variables. Use secret_environment_variables only for providers that require environment-level configuration.
C. Backup Import & Recovery
| Variable | Group | Default | Description |
|---|---|---|---|
backup_schedule | 7 | '0 2 * * *' | Cron expression (UTC) for automated daily backups. |
backup_retention_days | 7 | 7 | Days to retain backup files in GCS. |
enable_backup_import | 7 | false | Triggers a one-time restore on apply. |
backup_source | 7 | 'gcs' | 'gcs' (full GCS URI) or 'gdrive' (Drive file ID). |
backup_uri | 7 | "" | Full GCS URI (e.g., 'gs://my-bucket/dify-2024-01.sql') or Google Drive file ID. |
backup_format | 7 | 'sql' | Backup file format. Options: sql, tar, gz, tgz, tar.gz, zip. |
9. Platform-Managed Behaviours
| Behaviour | Implementation | Detail |
|---|---|---|
| PostgreSQL 15 required | database_type = "POSTGRES_15" fixed by Dify Common | Dify requires PostgreSQL. MySQL is unsupported. |
| pgvector enabled | enable_postgres_extensions = true, postgres_extensions = ["vector"] | Enables the vector extension for pgvector integration. Cannot be disabled. |
| SECRET_KEY auto-generated | google_secret_manager_secret.dify_secret_key in Dify Common | A 64-character random key is created and injected as SECRET_KEY. |
| MIGRATION_ENABLED=true | Hardcoded in Dify Common environment_variables | Dify runs Flask-Migrate automatically on startup. No separate migration job is needed. |
| Web service auto-deployed | dify_additional_services in dify.tf | A langgenius/dify-web:<version> service is deployed and wired to $(CLOUDRUN_SERVICE_URL). |
| GCS storage bucket | dify-storage bucket provisioned by Dify Common via module_storage_buckets | STORAGE_TYPE=google-storage, GOOGLE_STORAGE_BUCKET_NAME=<prefix>-storage. |
| NFS enabled by default | enable_nfs = true default | NFS server provides the Redis host when no external Redis is configured. |
| Redis enabled by default | enable_redis = true default | Celery and event bus require Redis. Cannot be safely disabled. |
| Default db-init job | Supplied by Dify Common when initialization_jobs = [] | PostgreSQL database and user are created idempotently. Override with non-empty list to replace. |
| Scripts directory | scripts_dir = abspath("${module.dify_app.path}/scripts") | Initialization scripts are sourced from Dify Common. |
10. Variable Reference
All user-configurable variables exposed by Dify CloudRun, sorted by UI group then order.
| Variable | Group | Default | Description |
|---|---|---|---|
module_description | 0 | (Dify platform text) | Platform metadata: module description. |
module_documentation | 0 | 'https://docs.radmodules.dev/docs/modules/Dify_CloudRun' | Platform metadata: documentation URL. |
module_dependency | 0 | ['Services GCP'] | Platform metadata: required modules. |
module_services | 0 | (GCP service list) | Platform metadata: GCP services consumed. |
credit_cost | 0 | 50 | Platform metadata: deployment credit cost. |
require_credit_purchases | 0 | false | Platform metadata: enforces credit balance check. |
enable_purge | 0 | true | Permits full deletion of module resources on destroy. |
public_access | 0 | false | Platform catalogue visibility. |
shared_users | 0 | [] | Users who can access this module regardless of public_access. Enforced by the platform. |
deployment_id | 0 | "" | Deployment ID suffix. Auto-generated if empty. |
resource_creator_identity | 0 | (platform SA) | Service account used by Terraform to manage resources. |
impersonation_service_account | 0 | "" | SA to impersonate for shell script API calls. Leave empty to use runner credentials. |
project_id | 1 | — | GCP project ID. Required. |
region | 1 | 'us-central1' | GCP region fallback when network discovery is unavailable. |
tenant_deployment_id | 2 | 'demo' | Short suffix appended to all resource names. |
support_users | 2 | [] | Email addresses for monitoring alerts. |
resource_labels | 2 | {} | Labels applied to all provisioned resources. |
application_name | 3 | 'dify' | Base resource name. Do not change after initial deployment. |
display_name | 3 | 'Dify - LLM Application Platform' | Human-readable name. |
description | 3 | (Dify description text) | Service description. |
application_version | 3 | '0.15.0' | Dify image version tag. Applies to both API and web containers. |
deploy_application | 4 | true | Set false for infrastructure-only deployment. |
cpu_limit | 4 | '2000m' | CPU per instance. 2 vCPU minimum. |
memory_limit | 4 | '4Gi' | Memory per instance. 4 Gi recommended. |
min_instance_count | 4 | 1 | Minimum instances. Keep at 1+ for Celery availability. |
max_instance_count | 4 | 3 | Maximum instances. Acts as a cost ceiling. |
container_port | 4 | 5001 | Dify API server port. |
execution_environment | 4 | 'gen2' | Gen2 required for NFS mounts and GCS Fuse. |
timeout_seconds | 4 | 300 | Max request duration. Range: 0–3600. |
enable_cloudsql_volume | 4 | true | Mounts the Cloud SQL Auth Proxy Unix socket. |
cloudsql_volume_mount_path | 4 | '/cloudsql' | Container path for the Auth Proxy socket. |
container_protocol | 4 | 'http1' | 'http1' or 'h2c'. |
enable_image_mirroring | 4 | true | Mirrors the Dify image into Artifact Registry. |
traffic_split | 4 | [] | Canary/blue-green traffic allocation. |
max_revisions_to_retain | 4 | 7 | Maximum number of Cloud Run revisions to keep. Set 0 to disable. |
service_annotations | 4 | {} | Advanced Cloud Run annotations. |
service_labels | 4 | {} | Labels applied to the Cloud Run service. |
ingress_settings | 5 | 'all' | 'all', 'internal', or 'internal-and-cloud-load-balancing'. |
vpc_egress_setting | 5 | 'PRIVATE_RANGES_ONLY' | 'PRIVATE_RANGES_ONLY' or 'ALL_TRAFFIC'. |
enable_iap | 5 | false | Enables IAP natively on the Cloud Run service. |
iap_authorized_users | 5 | [] | Users/SAs granted IAP access. |
iap_authorized_groups | 5 | [] | Google Groups granted IAP access. |
environment_variables | 6 | {} | Plain-text env vars. Use for non-sensitive Dify config such as LOG_LEVEL. |
secret_environment_variables | 6 | {} | Secret Manager references (e.g., { OPENAI_API_KEY = "my-openai-key" }). |
secret_propagation_delay | 6 | 30 | Seconds to wait after secret creation. |
secret_rotation_period | 6 | '2592000s' | Secret Manager rotation notification frequency. |
backup_schedule | 7 | '0 2 * * *' | Cron expression (UTC) for automated backups. |
backup_retention_days | 7 | 7 | Days to retain backup files in GCS. |
enable_backup_import | 7 | false | Triggers a one-time restore on apply. |
backup_source | 7 | 'gcs' | 'gcs' (full URI) or 'gdrive' (file ID). |
backup_uri | 7 | "" | Full GCS URI or Google Drive file ID. |
backup_format | 7 | 'sql' | Backup format. Options: sql, tar, gz, tgz, tar.gz, zip. |
enable_cicd_trigger | 8 | false | Provisions a Cloud Build GitHub trigger. |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 8 | "" | GitHub PAT. Required on first apply. Sensitive. |
github_app_installation_id | 8 | "" | GitHub App installation ID. |
cicd_trigger_config | 8 | { branch_pattern = "^main$" } | Advanced Cloud Build trigger config. |
enable_cloud_deploy | 8 | false | Provisions a Cloud Deploy progressive delivery pipeline. |
cloud_deploy_stages | 8 | [dev, staging, prod(approval)] | Ordered Cloud Deploy promotion stages. |
enable_binary_authorization | 8 | false | Enforces image attestation on deployment. |
enable_custom_sql_scripts | 9 | false | Runs SQL scripts from GCS after provisioning. |
custom_sql_scripts_bucket | 9 | "" | GCS bucket containing SQL scripts. |
custom_sql_scripts_path | 9 | "" | Path prefix within the bucket. |
custom_sql_scripts_use_root | 9 | false | Run scripts as the root DB user. |
enable_cloud_armor | 10 | false | Provisions Global HTTPS LB + Cloud Armor WAF. |
admin_ip_ranges | 10 | [] | CIDR ranges exempted from WAF rules. |
application_domains | 10 | [] | Custom domains with Google-managed SSL certificates. |
enable_cdn | 10 | false | Enables Cloud CDN on the HTTPS LB backend. |
max_images_to_retain | 10 | 7 | Maximum number of recent container images to keep in Artifact Registry. |
delete_untagged_images | 10 | true | Automatically deletes untagged images from Artifact Registry. |
image_retention_days | 10 | 30 | Days after which images are eligible for deletion. |
create_cloud_storage | 11 | true | Set false to skip additional GCS bucket creation. |
storage_buckets | 11 | [{ name_suffix = "data" }] | Additional GCS buckets to provision. |
enable_nfs | 11 | true | Provisions NFS shared storage. Required for Redis without an external host. |
nfs_mount_path | 11 | '/mnt/nfs' | Container path where NFS is mounted. |
nfs_instance_name | 9 | "" | Name of an existing NFS GCE VM. Leave empty to auto-discover. |
nfs_instance_base_name | 9 | 'app-nfs' | Base name for inline NFS VM. Deployment ID is appended. |
gcs_volumes | 11 | [] | GCS buckets to mount via GCS Fuse (requires gen2). |
manage_storage_kms_iam | 11 | false | Creates CMEK KMS key and enables CMEK on all storage buckets. |
enable_artifact_registry_cmek | 11 | false | Creates Artifact Registry KMS key for at-rest image encryption. |
database_type | 12 | 'POSTGRES_15' | Cloud SQL engine. Dify requires PostgreSQL. |
db_name | 12 | 'dify_db' | PostgreSQL database name. Do not change after initial deployment. |
db_user | 12 | 'dify_user' | PostgreSQL application user. |
database_password_length | 12 | 32 | Auto-generated password length. Range: 16–64. |
enable_auto_password_rotation | 12 | false | Automated zero-downtime password rotation. |
rotation_propagation_delay_sec | 12 | 90 | Seconds to wait after rotation before restarting the service. |
initialization_jobs | 13 | [] | One-shot Cloud Run Jobs. Leave empty for Dify Common to supply the default db-init job. |
cron_jobs | 13 | [] | Recurring scheduled Cloud Run Jobs. |
startup_probe | 14 | { path="/health", initial_delay_seconds=30, failure_threshold=30, ... } | Startup probe. |
liveness_probe | 14 | { path="/health", initial_delay_seconds=30, failure_threshold=3, ... } | Liveness probe. |
startup_probe_config | 14 | { enabled=true } | Alternative startup probe. Takes precedence when both are set. |
health_check_config | 14 | { enabled=true } | Alternative liveness probe. Takes precedence when both are set. |
uptime_check_config | 14 | { enabled=true, path="/health" } | Cloud Monitoring uptime check. |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies. |
enable_redis | 21 | true | Required. Redis for Celery and LLM streaming. |
redis_host | 21 | "" | Redis hostname/IP. Defaults to NFS server IP when empty. |
redis_port | 21 | '6379' | Redis TCP port (string). |
redis_auth | 21 | "" | Redis AUTH password. Sensitive. |
enable_vpc_sc | 22 | false | Registers API calls within the project's VPC-SC perimeter. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges for VPC-SC network access level. |
vpc_sc_dry_run | 22 | true | Logs VPC-SC violations without blocking. Set false to enforce. |
organization_id | 22 | "" | GCP Organization ID for VPC-SC. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs. |
11. Outputs
| Output | Description |
|---|---|
service_name | Name of the Cloud Run service. |
service_url | Public URL of the Cloud Run service (Dify API). |
service_location | GCP region where the Cloud Run service is deployed. |
project_id | GCP project ID. |
deployment_id | Deployment ID suffix used in resource names. |
database_instance_name | Name of the Cloud SQL PostgreSQL instance. |
database_name | Name of the application database. |
database_user | Name of the application database user. |
database_password_secret | Secret Manager secret name for the database password. |
storage_buckets | Created GCS storage buckets. |
nfs_server_ip | NFS server internal IP (sensitive). |
nfs_mount_path | NFS mount path inside containers. |
container_image | Container image used for the deployment. |
cicd_enabled | Whether the CI/CD pipeline is enabled. |
github_repository_url | GitHub repository URL connected for CI/CD. |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
SECRET_KEY (auto-generated) | Random secret in Secret Manager | Critical | Used by Dify's Flask/API server to sign sessions, CSRF tokens, and encrypted fields. Rotating it after first use logs out all users and invalidates all active sessions. All Dify service containers (api, worker) must share the same SECRET_KEY — a mismatch causes authentication failures between services. Treat as immutable. |
enable_redis / redis_host | true + auto-discovered | Critical | Dify's Celery task queue (used for workflow execution, document indexing, and async LLM calls) requires Redis. Without a reachable Redis instance, all background tasks fail silently. enable_redis must be true and redis_host must be correct for any workflow or document processing to function. |
redis_host | Auto-discovered from VPC | Critical | If redis_host is not set and auto-discovery fails, the Celery worker cannot connect to Redis and all async operations (document ingestion, workflow runs) are queued indefinitely. |
VECTOR_STORE (via environment_variables) | "weaviate" (Dify default) | High | Changing the vector store after populating knowledge bases requires migrating all existing vectors to the new backend. Without migration, all knowledge base queries return empty results. Dify supports Weaviate, Qdrant, Milvus, and others. |
storage (GCS/S3 configuration) | GCS Fuse or environment-configured | High | Dify stores all uploaded files (documents, images, audio) via the configured storage backend. If STORAGE_TYPE is set to "s3" without providing S3_* credentials, or "google-storage" without a service account, all file uploads fail and knowledge base ingestion cannot proceed. |
database_type | "POSTGRES" | Critical | Dify requires PostgreSQL for application metadata, workflow definitions, API key storage, and user accounts. Without a database, the Dify API container fails to start. |
enable_cloudsql_volume | true | Critical | The Cloud SQL Auth Proxy sidecar is required for PostgreSQL connectivity. Disabling it with Cloud SQL as the backend causes all database operations to fail. |
WEB_API_CORS_ALLOW_ORIGINS (via environment_variables) | "*" (Dify default) | High | The default "*" allows cross-origin requests from any domain. In production, restrict to the specific Dify web frontend URL (e.g., "https://dify.example.com") to prevent cross-site API abuse. |
CONSOLE_WEB_URL / APP_WEB_URL (auto-set from service_url) | Derived from Cloud Run URL | High | Must match the externally reachable URL. Incorrect values break OAuth callbacks, invitation links, and the Dify web console's API URL auto-configuration. |
min_instance_count | 1 | High | Dify uses session state and maintains connections to Redis and PostgreSQL. Scale-to-zero causes 30–60 s cold starts and in-flight workflow tasks are abandoned. Set to 1 or more for production. |
timeout_seconds | 300 | High | LLM workflow execution and document indexing can take several minutes. Requests are cut off with a 504 if the timeout is insufficient. Increase to 3600 for complex multi-step workflows. |
memory_limit | 4Gi | High | Dify processes document embedding in the same container as the API in single-container configurations. Under-resourced containers OOM-kill during document ingestion, leaving knowledge bases in a partially-indexed state. |
execution_environment | "gen2" | High | Required for NFS mounts, GCS Fuse, and Direct VPC Egress. Always use gen2. |
ingress_settings | "all" | High | "all" makes the Dify console publicly accessible. The login form is the only access control. Enable IAP or restrict to "internal" for internal deployments. |
enable_iap | false | High | Without IAP, access control is application-only. An unauthenticated Dify console is a high risk in production environments. |
secret_environment_variables (LLM provider keys) | {} | Critical | Provider API keys must come from Secret Manager references. Injecting them as plain environment_variables exposes them in Cloud Run revision metadata, logs, and GCP audit trail. |
backup_schedule | "" (disabled) | High | Without automated backups, Dify's PostgreSQL database (workflow definitions, knowledge base metadata, API keys, user accounts) is unprotected. Enable daily backups for production. |
enable_nfs | false | Medium | Without NFS or shared GCS storage, uploaded files are pod-local. With max_instance_count > 1, files uploaded to one instance are not visible on others. |
application_version | "latest" | Medium | Dify updates frequently and releases may change the database schema. Pinning to a specific version (e.g., "0.14.0") prevents unplanned migrations that could break the application. |
CELERY_BROKER_URL (derived from redis config) | Auto-constructed from redis_host/redis_port | Critical | If redis_host is incorrect, the Celery broker URL is malformed and the worker process fails to connect. All asynchronous tasks (document indexing, model provider sync) queue indefinitely without error surfacing to users. |
Destroying Resources
Known Deletion Issue: Serverless IPv4 Address Release
When destroying a Cloud Run deployment, you may encounter an error similar to:
Error: Error waiting for Subnetwork to be deleted: The following serverless IPv4 address(es) on subnet ... are still in use.
Cause: GCP holds serverless IPv4 addresses on the VPC subnet asynchronously after a Cloud Run service is deleted. These addresses are released by GCP approximately 20–30 minutes after the Cloud Run service is removed.
Resolution: Wait 20–30 minutes after the initial destroy attempt, then re-run the destroy command:
tofu destroy
The second run will succeed once GCP has released the reserved addresses.
