Dify on Google Kubernetes Engine (GKE Autopilot)
This document provides a comprehensive reference for the modules/Dify_GKE Terraform module. It covers architecture, IAM, configuration variables, Dify-specific behaviours, and operational patterns for deploying Dify on GKE Autopilot.

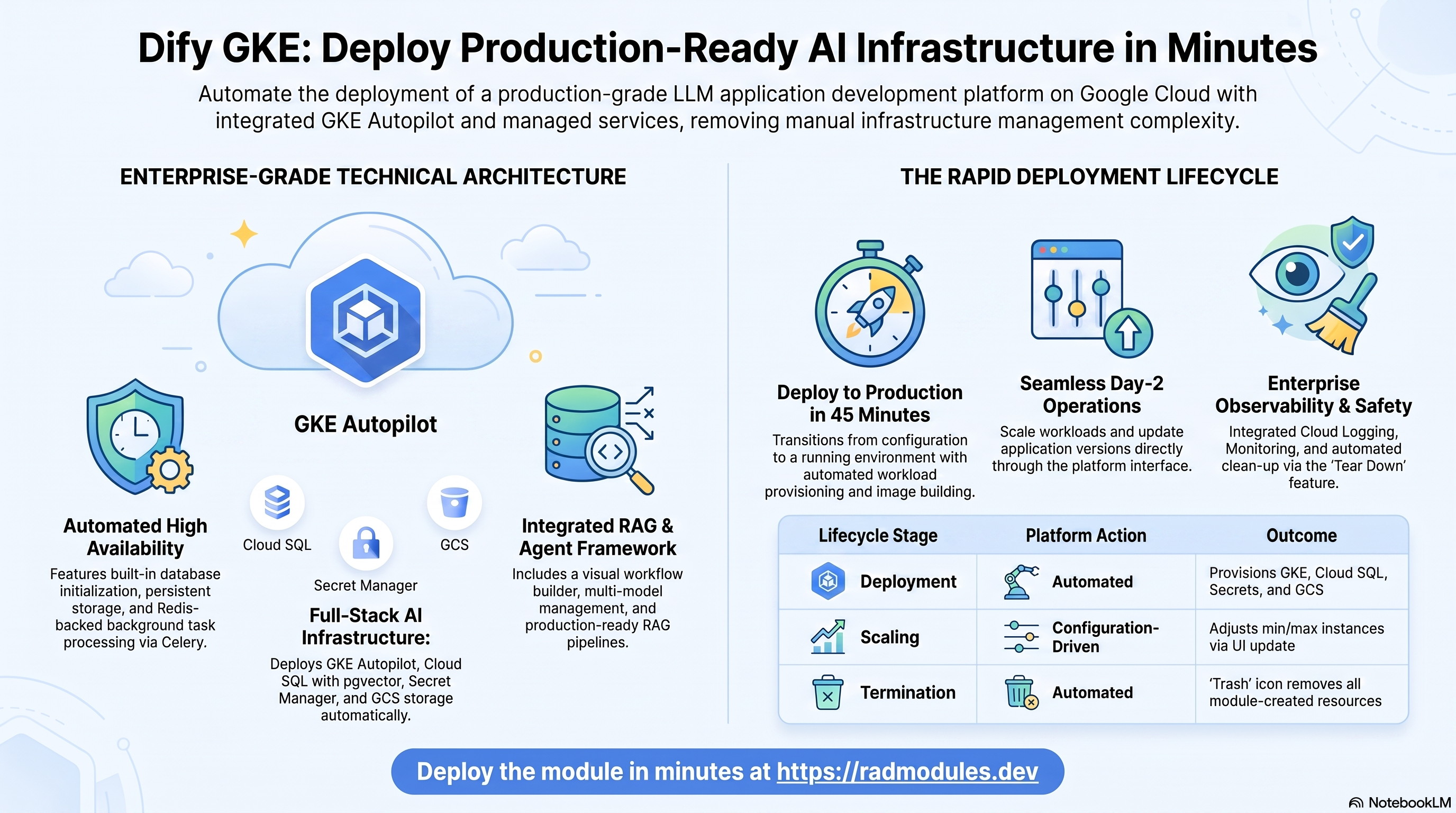

1. Module Overview
Dify is an open-source LLM application development platform with 50,000+ GitHub stars. Dify GKE is a wrapper module built on top of App GKE. It uses App GKE for all GCP infrastructure provisioning and injects Dify-specific application configuration, database initialisation, secrets, and storage configuration via Dify Common.
Key Capabilities:
- Compute: GKE Autopilot, Python/Next.js containers, 2 vCPU / 4 Gi default. Horizontal Pod Autoscaler (HPA) manages scaling. A web sidecar Deployment (
langgenius/dify-web) is automatically deployed alongside the API.
- Data Persistence: Cloud SQL PostgreSQL 15 with
pgvector extension enabled for vector storage. NFS (GCE VM or Filestore) for shared Redis and task state. GCS dify-storage bucket auto-provisioned by Dify Common.
- AI Infrastructure: pgvector reuses the Cloud SQL PostgreSQL instance as the vector store (
VECTOR_STORE=pgvector). Redis is required for Celery task queue and event bus streaming.
- Security: Inherits Workload Identity, Cloud Armor WAF, IAP, Binary Authorization, and VPC Service Controls from
App GKE. Dify Common auto-generates a SECRET_KEY secret stored in Secret Manager.
- Caching/Queue: Redis enabled by default (
enable_redis = true) — required for Celery broker, backend, and SSE/WebSocket LLM streaming.
- CI/CD: Cloud Build custom image pipeline; Cloud Deploy progressive delivery optional.
Wrapper architecture: Dify GKE calls Dify Common to build an application_config object and then calls App GKE for all Kubernetes resource provisioning. The web additional service is wired to $(GKE_SERVICE_URL) for API communication. scripts_dir resolves to abspath("${module.dify_app.path}/scripts").
2. IAM & Access Control
Dify GKE delegates all IAM provisioning to App GKE. Workload Identity is used to bind the Kubernetes service account to a GCP service account, granting the Dify pod access to Cloud SQL, Secret Manager, and GCS.
Auto-generated application secret: Dify Common generates a 64-character random SECRET_KEY and stores it in Secret Manager as <resource_prefix>-secret-key.
For the complete role tables and Workload Identity, IAP, password rotation, and public access details, see App_GKE §2.
3. Core Service Configuration
A. Compute (GKE)
Dify runs as a Kubernetes Deployment (default) or StatefulSet. The API pod runs supervisord — both the Flask/gunicorn API process and a Celery worker run inside the same container. A separate dify-web Next.js Deployment is created automatically and communicates with the API service.
| Variable | Group | Default | Description |
|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment. |
cpu_limit | 4 | '2000m' | CPU limit per container instance. 2 vCPU minimum. |
memory_limit | 4 | '4Gi' | Memory limit per container instance. 4 Gi recommended. |
min_instance_count | 4 | 1 | Minimum pod replicas. Keep at 1+ for Celery availability. |
max_instance_count | 4 | 3 | Maximum pod replicas. Acts as a cost ceiling. |
container_port | 4 | 5001 | Dify API server port. |
enable_cloudsql_volume | 4 | true | Injects Cloud SQL Auth Proxy sidecar into the pod. |
enable_image_mirroring | 4 | true | Mirrors the Dify image into Artifact Registry. |
workload_type | 6 | null | 'Deployment' (stateless) or 'StatefulSet' (stateful). Defaults to 'Deployment'. |
service_type | 6 | 'LoadBalancer' | Kubernetes Service type: 'ClusterIP', 'LoadBalancer', or 'NodePort'. |
session_affinity | 6 | 'ClientIP' | Route requests from the same client to the same pod. |
gke_cluster_name | 6 | "" | GKE cluster name. Leave empty to auto-discover. |
namespace_name | 6 | "" | Kubernetes namespace. Auto-generated when empty. |
enable_pod_disruption_budget | 4 | false | Creates a PodDisruptionBudget for minimum availability during node maintenance. |
pdb_min_available | 4 | 1 | Minimum pods available during disruptions. |
enable_vertical_pod_autoscaling | 4 | false | Enable VPA. Disables HPA based on CPU/Memory when enabled. |
termination_grace_period_seconds | 6 | 60 | Seconds Kubernetes waits for SIGTERM before force-killing. Range: 0–3600. |
service_annotations | 4 | {} | Custom annotations applied to the Kubernetes Service. |
service_labels | 4 | {} | Custom labels applied to the Kubernetes Service. |
B. Database (Cloud SQL — PostgreSQL 15)
| Variable | Group | Default | Description |
|---|
db_name | 16 | 'dify_db' | PostgreSQL database name. Do not change after initial deployment. |
db_user | 16 | 'dify_user' | PostgreSQL application user. Password auto-generated and stored in Secret Manager. |
database_password_length | 16 | 32 | Auto-generated password length. Range: 16–64. |
enable_auto_password_rotation | 16 | false | Automated zero-downtime password rotation. |
rotation_propagation_delay_sec | 16 | 90 | Seconds to wait after rotation before restarting the application. |
C. Storage (NFS & GCS)
| Variable | Group | Default | Description |
|---|
enable_nfs | 13 | true | Provisions an NFS volume. Required when Redis is enabled without an external redis_host. |
nfs_mount_path | 13 | '/mnt/nfs' | Container path where the NFS share is mounted. |
nfs_volume_name | 13 | 'nfs-data-volume' | Volume name for the NFS mount. |
nfs_instance_name | 13 | "" | Name of an existing NFS GCE VM. Leave empty to auto-discover. |
nfs_instance_base_name | 13 | 'app-nfs' | Base name for an inline NFS GCE VM when none exists. |
create_cloud_storage | 14 | true | Set false to skip additional GCS bucket creation. |
storage_buckets | 14 | [{ name_suffix = "data" }] | Additional GCS buckets to provision. |
gcs_volumes | 14 | [] | GCS FUSE volume mounts via CSI driver. |
manage_storage_kms_iam | 14 | false | Creates a CMEK KMS keyring and enables CMEK on all storage buckets. |
enable_artifact_registry_cmek | 14 | false | Enables at-rest CMEK encryption of container images in Artifact Registry. |
max_images_to_retain | 14 | 7 | Maximum number of recent container images to keep in Artifact Registry. |
delete_untagged_images | 14 | true | Automatically deletes untagged images from Artifact Registry. |
image_retention_days | 14 | 30 | Days after which images are eligible for deletion. |
D. Custom Domain & Networking
| Variable | Group | Default | Description |
|---|
enable_custom_domain | 19 | false | Enable custom domain configuration via Kubernetes Gateway API with SSL certificates. |
application_domains | 19 | [] | Custom domains for the application. (e.g., ['dify.example.com']) |
reserve_static_ip | 19 | true | Reserve a static external IP for predictable endpoint configuration. |
static_ip_name | 19 | "" | Name for the reserved static IP. Auto-generated when empty. |
network_tags | 19 | ['nfsserver'] | Network tags applied to GKE nodes. The nfsserver tag is required for NFS connectivity. |
E. Initialization & Bootstrap
A db-init Kubernetes Job is automatically provisioned by Dify Common when initialization_jobs is left as the default empty list. Dify runs its own database migrations automatically on startup via MIGRATION_ENABLED=true.
| Variable | Group | Default | Description |
|---|
initialization_jobs | 11 | [] | Kubernetes Jobs for initialization tasks. Leave empty for Dify Common to supply the default db-init job. |
cron_jobs | 11 | [] | List of CronJobs to deploy alongside Dify. |
additional_services | 11 | [] | Additional Kubernetes services to deploy alongside Dify. |
4. Advanced Security
A. Cloud Armor WAF
| Variable | Group | Default | Description |
|---|
enable_cloud_armor | 21 | false | Attaches a Cloud Armor security policy to the GKE Ingress backend. |
admin_ip_ranges | 21 | [] | CIDR ranges permitted for administrative access. |
cloud_armor_policy_name | 21 | 'default-waf-policy' | Name of the Cloud Armor security policy to apply. |
enable_cdn | 21 | false | Enables Cloud CDN on the load balancer. |
B. Identity-Aware Proxy (IAP)
| Variable | Group | Default | Description |
|---|
enable_iap | 20 | false | Enable IAP for authentication via Kubernetes Gateway. Requires enable_custom_domain = true. |
iap_authorized_users | 20 | [] | List of user emails authorized to access via IAP. |
iap_authorized_groups | 20 | [] | List of Google Groups authorized to access via IAP. |
iap_oauth_client_id | 20 | "" | OAuth client ID for IAP. Required when enable_iap = true. Sensitive. |
iap_oauth_client_secret | 20 | "" | OAuth client secret for IAP. Required when enable_iap = true. Sensitive. |
C. Binary Authorization & VPC Service Controls
| Variable | Group | Default | Description |
|---|
enable_binary_authorization | 12 | false | Enable Binary Authorization. Only signed images can be deployed. |
enable_vpc_sc | 22 | false | Enables VPC Service Controls perimeter enforcement. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges for VPC-SC network access level. |
vpc_sc_dry_run | 22 | true | When true, VPC-SC violations are logged but not blocked. |
organization_id | 22 | "" | GCP Organization ID for the VPC-SC Access Context Manager policy. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs for all supported GCP services. |
D. Secret Manager Integration
| Variable | Group | Default | Description |
|---|
secret_environment_variables | 5 | {} | Map of env var name → Secret Manager secret ID. (e.g., { OPENAI_API_KEY = "my-openai-key" }) |
secret_rotation_period | 5 | '2592000s' | Rotation period for secrets. Default: 30 days. |
secret_propagation_delay | 5 | 30 | Seconds to wait after secret creation before proceeding. |
5. StatefulSet Configuration
For deployments requiring persistent local storage (e.g., custom model caches), Dify can run as a StatefulSet with per-pod Persistent Volume Claims.
| Variable | Group | Default | Description |
|---|
stateful_pvc_enabled | 7 | null | Enable PVC for StatefulSet. Setting true without an explicit workload_type auto-selects 'StatefulSet'. |
stateful_pvc_size | 7 | '10Gi' | Storage size for each PVC. |
stateful_pvc_mount_path | 7 | '/data' | Container path where the per-pod PVC is mounted. |
stateful_pvc_storage_class | 7 | 'standard-rwo' | Kubernetes StorageClass for PVC provisioning. |
stateful_headless_service | 7 | null | Create a headless service for stable network identities. |
stateful_pod_management_policy | 7 | null | 'OrderedReady' or 'Parallel'. Defaults to 'OrderedReady'. |
stateful_update_strategy | 7 | null | 'RollingUpdate' or 'OnDelete'. Defaults to 'RollingUpdate'. |
stateful_fs_group | 7 | 0 | GID set as pod-level fsGroup. Set to 0 to leave unset. |
6. CI/CD & Delivery
| Variable | Group | Default | Description |
|---|
enable_cicd_trigger | 12 | false | Enable automated Cloud Build trigger for CI/CD. |
github_repository_url | 12 | "" | GitHub repository URL for automated CI/CD. |
github_token | 12 | "" | GitHub PAT. Required when enable_cicd_trigger = true. Sensitive. |
github_app_installation_id | 12 | "" | GitHub App installation ID. |
cicd_trigger_config | 12 | { branch_pattern = "^main$" } | Cloud Build trigger configuration. |
enable_cloud_deploy | 12 | false | Enable Google Cloud Deploy for managed promotion pipeline. Requires enable_cicd_trigger = true. |
cloud_deploy_stages | 12 | [dev, staging, prod(approval)] | Ordered list of Cloud Deploy pipeline stages. |
7. Reliability & Scheduling
A. Health Probes
| Variable | Group | Default | Description |
|---|
startup_probe | 14 | { path="/health", initial_delay_seconds=30, failure_threshold=30, ... } | Startup probe. Container receives no traffic until this succeeds. |
liveness_probe | 14 | { path="/health", initial_delay_seconds=30, failure_threshold=3, ... } | Liveness probe. Container is restarted after failure_threshold failures. |
startup_probe_config | 10 | { enabled=true } | Alternative startup probe configuration for App GKE. Takes precedence. |
health_check_config | 10 | { enabled=true } | Alternative liveness probe configuration for App GKE. Takes precedence. |
uptime_check_config | 10 | { enabled=false, path="/health" } | Cloud Monitoring uptime check. |
alert_policies | 10 | [] | Custom alert policies for monitoring Dify metrics. |
deployment_timeout | 6 | 1800 | Maximum seconds Terraform waits for the Kubernetes rollout to complete. |
B. Redis Cache & Celery
| Variable | Group | Default | Description |
|---|
enable_redis | 21 | true | Required. Enables Redis for Celery task queue and LLM streaming. |
redis_host | 21 | "" | Redis hostname or IP. Leave blank to default to the NFS server IP. |
redis_port | 21 | '6379' | Redis TCP port (string). |
redis_auth | 21 | "" | Redis AUTH password. Sensitive. |
C. Backup & Recovery
| Variable | Group | Default | Description |
|---|
backup_schedule | 17 | '0 2 * * *' | Cron schedule for automated database and NFS backups. |
backup_retention_days | 17 | 7 | Number of days to retain backup files. |
enable_backup_import | 17 | false | Enable automatic import of database backup during deployment. |
backup_source | 17 | 'gcs' | Backup source: 'gcs' or 'gdrive'. |
backup_uri | 17 | "" | Location of the backup file to import. |
backup_format | 17 | 'sql' | Backup file format. Options: sql, tar, gz, tgz, tar.gz, zip, auto. |
| Behaviour | Implementation | Detail |
|---|
| PostgreSQL 15 required | database_type = "POSTGRES_15" fixed by Dify Common | Dify requires PostgreSQL. MySQL is unsupported. |
| pgvector enabled | enable_postgres_extensions = true, postgres_extensions = ["vector"] | Enables the vector extension. Cannot be disabled. |
| SECRET_KEY auto-generated | Dify Common provisions the secret | A 64-character random key is stored in Secret Manager and injected as SECRET_KEY. |
| MIGRATION_ENABLED=true | Hardcoded in Dify Common environment_variables | Dify runs Flask-Migrate automatically on startup. |
| Web service auto-deployed | dify_additional_services in dify.tf | A langgenius/dify-web:<version> Deployment is created and wired to $(GKE_SERVICE_URL). |
| GCS storage bucket | dify-storage bucket provisioned by Dify Common | STORAGE_TYPE=google-storage, authenticated via Workload Identity. |
| NFS enabled by default | enable_nfs = true default | NFS server provides the Redis host when no external Redis is configured. |
| Redis enabled by default | enable_redis = true default | Celery and event bus require Redis. Cannot be safely disabled. |
| Default db-init job | Supplied by Dify Common when initialization_jobs = [] | PostgreSQL database and user are created idempotently. |
| Workload Identity | Managed by App GKE | The Dify pod accesses GCP APIs via Workload Identity — no service account key files. |
9. Outputs
| Output | Description |
|---|
service_name | Name of the Kubernetes Service. |
service_url | External URL of the Dify service. |
project_id | GCP project ID. |
deployment_id | Deployment ID suffix used in resource names. |
database_instance_name | Name of the Cloud SQL PostgreSQL instance. |
database_name | Name of the application database. |
database_user | Name of the application database user. |
database_password_secret | Secret Manager secret name for the database password. |
storage_buckets | Created GCS storage buckets. |
nfs_server_ip | NFS server internal IP (sensitive). |
container_image | Container image used for the deployment. |
cicd_enabled | Whether the CI/CD pipeline is enabled. |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|
SECRET_KEY (auto-generated) | Random secret in Secret Manager | Critical | All Dify service pods (api, worker) must share the same SECRET_KEY. A key mismatch between pods causes authentication failures on internal service-to-service calls. Rotating the key simultaneously redeploys all pods but logs out all users. Treat as immutable once the cluster is running. |
enable_redis / redis_host | Required for Dify | Critical | Dify's Celery worker (responsible for all workflow executions, document indexing, and background LLM calls) requires Redis as a message broker. Without a reachable Redis instance, all async operations fail silently. redis_host must be resolvable from within the pod. |
VECTOR_STORE (via environment_variables) | "weaviate" (Dify default) | High | Changing the vector store after knowledge bases are populated requires migrating all vectors. Existing knowledge base queries return empty results until migration is complete. |
STORAGE_TYPE (via environment_variables) | "local" or GCS | High | Setting STORAGE_TYPE = "s3" without providing S3_* credentials, or "google-storage" without a valid service account, causes all file uploads to fail at runtime. Dify does not validate storage configuration at startup. |
database_type | "POSTGRES" | Critical | Dify's API server and worker both require PostgreSQL for all metadata, workflow state, and user accounts. Without it, all pods fail to start. |
enable_cloudsql_volume | true | Critical | The Cloud SQL Auth Proxy sidecar injects the PostgreSQL Unix socket into the pod. Disabling it breaks all database connectivity. |
stateful_pvc_enabled | false | High | Without a PVC or NFS, all locally stored files (model assets, temporary processing files) are lost on pod eviction. Enable PVC or NFS for production deployments storing files locally. |
quota_memory_requests / quota_memory_limits | Binary unit defaults | Critical | Must use binary unit suffixes (Gi, Mi). Bare integers are treated as bytes by Kubernetes, blocking all pod scheduling in the namespace. |
enable_nfs | false | High | Required for shared document storage across multiple pod replicas. Without NFS, documents uploaded to one pod are not accessible to another replica's worker for indexing. |
nfs_mount_path | "/mnt/nfs" | High | Must match the STORAGE_PATH or equivalent environment variable. A mismatch means Dify writes files to an ephemeral local path and the NFS share is unused. |
min_instance_count | 1 | High | Dify maintains persistent connections to Redis, PostgreSQL, and the vector store. Scale-to-zero causes 30–60 s cold starts and in-flight async tasks are abandoned. Keep at least 1 replica running. |
timeout_seconds | 300 | High | Multi-step Dify workflows and RAG document indexing can exceed several minutes. Increase to 3600 for complex workflow deployments. |
WEB_API_CORS_ALLOW_ORIGINS (via environment_variables) | "*" | High | Restrict to the Dify web console URL in production to prevent cross-site requests to the API. |
iap_oauth_client_id / iap_oauth_client_secret | "" | Critical | Required when enable_iap = true. Missing values prevent IAP gateway initialisation and make the service unreachable. |
secret_environment_variables (LLM provider keys) | {} | Critical | Provider API keys must come from Secret Manager references. Plain environment_variables expose them in pod specs visible to anyone with kubectl describe pod access. |
backup_schedule | "" (disabled) | High | Dify's PostgreSQL stores all workflow definitions, knowledge base metadata, user accounts, and API keys. Without automated backups, accidental deletion or corruption is unrecoverable. |
enable_vertical_pod_autoscaling | false | Medium | Enabling VPA disables HPA (they conflict). Choose VPA for right-sizing or HPA for horizontal scaling, not both. |
application_version | "latest" | Medium | Dify releases frequently and may change the database schema. Unpinned versions risk breaking schema migrations during routine redeploys. Pin to a specific version in production. |
CELERY_BROKER_URL (derived from redis config) | Auto-constructed | Critical | Incorrect redis_host or redis_port produces a malformed Celery broker URL. The worker starts but cannot dequeue tasks, causing all background processing to stall without surfacing obvious errors to users. |
