AnythingLLM on GKE Autopilot

AnythingLLM is a private AI workspace and Retrieval-Augmented Generation (RAG) platform that lets teams chat with documents, connect to any LLM provider (OpenAI, Anthropic, Ollama, and others), and build AI-powered knowledge assistants — without sending data to third-party services. This module deploys AnythingLLM on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services AnythingLLM uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

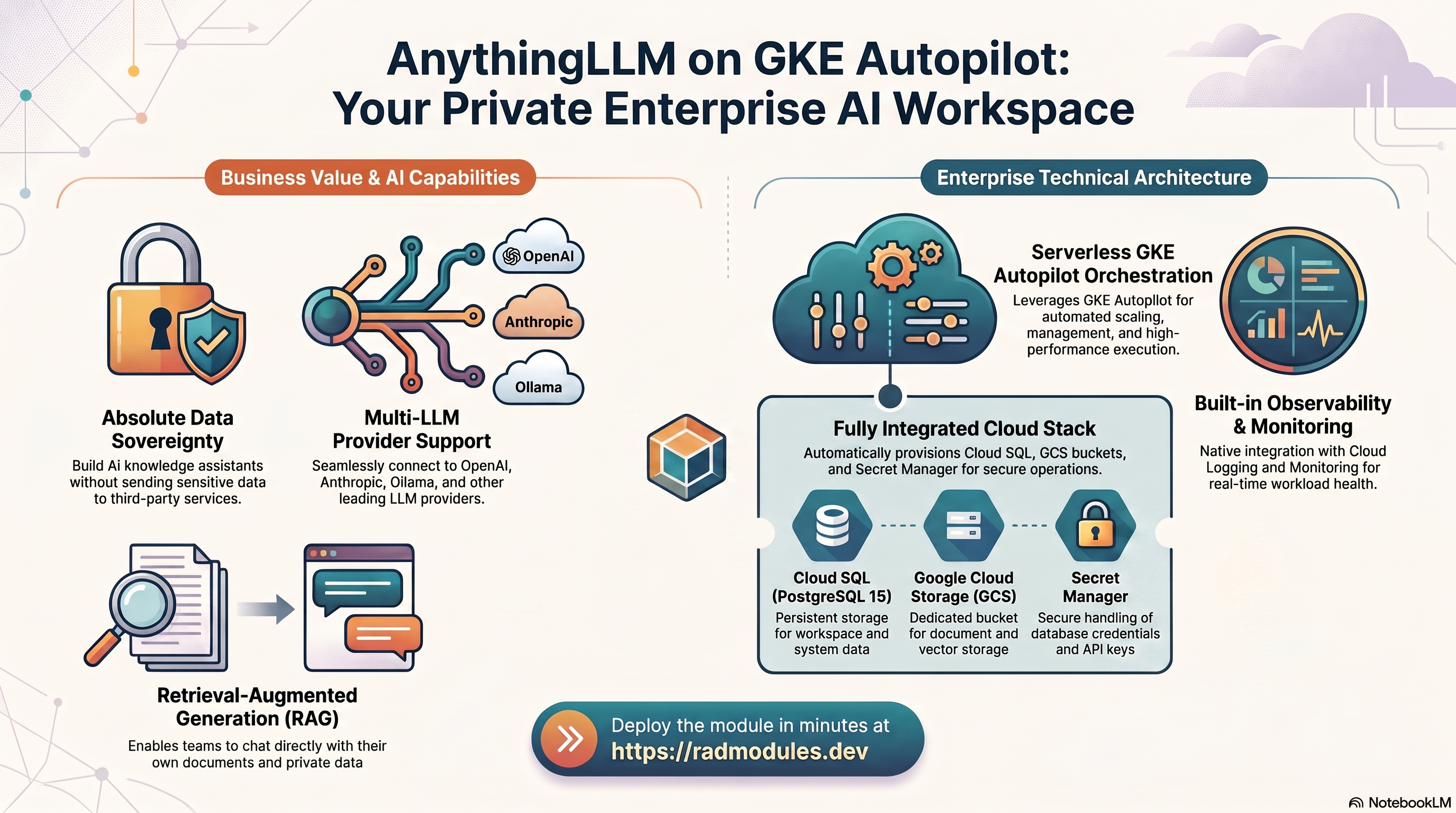

1. Overview

AnythingLLM runs as a Node.js AI workload. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Node.js pods, 2 vCPU / 4 GiB by default, horizontally autoscaled
Database	Cloud SQL for PostgreSQL 15	Required — AnythingLLM uses Prisma ORM and does not support MySQL
Object storage	Cloud Storage	Auto-provisioned anythingllm-docs document bucket; optional additional buckets
Persistent volumes	Kubernetes PVCs (StatefulSet)	Optional — per-pod 20 GiB PVC at /app/server/storage when stateful_pvc_enabled = true
Shared files	Filestore (NFS)	Enabled by default (enable_nfs = true) — STORAGE_DIR points at the NFS mount so the LanceDB vector index survives pod restarts/redeploys
Secrets	Secret Manager	Four app secrets auto-generated (JWT_SECRET, AUTH_TOKEN, SIG_KEY, SIG_SALT) plus database password
Ingress	Cloud Load Balancing	External LoadBalancer, optional custom domain + managed certificate
Cache	Redis	Disabled by default; optional for session or cache workloads

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. AnythingLLM's Prisma ORM requires PostgreSQL. Do not set database_type to a MySQL or SQL Server variant.
• Four application secrets are auto-generated. JWT_SECRET, AUTH_TOKEN, SIG_KEY, and SIG_SALT are created in Secret Manager on first deploy; you never set them in plain text.
• min_instance_count = 1 is recommended to keep AnythingLLM warm and avoid cold starts on AI document chat and embedding operations.
• Storage must be persistent. All workspace documents, vector indices, and conversation data are written under STORAGE_DIR. AnythingLLM keeps its LanceDB vector index there, which lives on the pod's ephemeral disk without NFS — so the knowledge base is silently wiped on every pod restart/redeploy. enable_nfs = true by default points STORAGE_DIR at the NFS mount so vectors survive; stateful_pvc_enabled = true (off by default) is an alternative single-pod-only persistence path at /app/server/storage.
• Redis is disabled by default. It is not required for AnythingLLM's core functionality. Enable it only if your deployment requires a shared cache layer.
• stateful_pvc_enabled = true auto-selects StatefulSet and mounts a 20 GiB PVC at /app/server/storage with fsGroup = 1000 to match the AnythingLLM container user.
• The GOOGLE_CLOUD_STORAGE_BUCKET_NAME env var is set automatically from the provisioned anythingllm-docs GCS bucket.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the AnythingLLM workload

AnythingLLM pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Horizontal Pod Autoscaling sizes the deployment between the minimum and maximum replica counts. AI embedding and inference operations require at least 2 vCPU and 4 GiB RAM.

• Console: Kubernetes Engine → Workloads → select the AnythingLLM workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc,hpa -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe hpa -n "$NAMESPACE"          # current vs target utilisation

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

AnythingLLM stores all workspace metadata, user accounts, and conversation history in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it privately through the Cloud SQL Auth Proxy sidecar over a Unix socket, so no public IP is exposed. On first deploy an initialization Job creates the application database and user.

The DATABASE_URL Prisma connection string is assembled by the AnythingLLM entrypoint script from the DB_* environment variables injected by the foundation at container start time.

• Console: SQL → select the instance for connections, backups, flags, and metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  # Open an interactive shell to inspect schema/data:
  gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database name, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Cloud Storage — document bucket

AnythingLLM_Common automatically provisions a dedicated Cloud Storage bucket (anythingllm-docs) for document and vector storage. The workload service account is granted access automatically and the bucket name is injected as GOOGLE_CLOUD_STORAGE_BUCKET_NAME. Additional buckets can be declared in storage_buckets.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<docs-bucket>/          # bucket name is in the Outputs

See App_GKE for GCS Fuse mounts and CMEK options.

D. Persistent Volumes (StatefulSet PVCs)

For single-pod or data-persistent deployments, enabling stateful_pvc_enabled = true creates a per-pod Kubernetes PersistentVolumeClaim mounted at /app/server/storage (AnythingLLM's storage directory). The fsGroup = 1000 security context ensures the container user can write to the volume.

• Console: Kubernetes Engine → Storage → PersistentVolumeClaims.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  kubectl describe pvc -n "$NAMESPACE"
  # Confirm the volume is mounted correctly:
  kubectl exec -n "$NAMESPACE" <pod-name> -- ls /app/server/storage

E. Filestore (NFS) — default persistent storage

enable_nfs = true by default. AnythingLLM's LanceDB vector index lives under STORAGE_DIR, which defaults to the pod's ephemeral disk — without NFS the knowledge base is silently wiped on every pod restart or redeploy (document metadata persists in Postgres, but the vectors are gone). With NFS enabled, STORAGE_DIR is pointed at nfs_mount_path so vectors survive, and multi-pod deployments share the same document and vector view. stateful_pvc_enabled = true (off by default) is an alternative for single-pod-only persistence at /app/server/storage.

• Console: Filestore → Instances.
• CLI:

  gcloud filestore instances list --project "$PROJECT"
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- df -h | grep -i nfs

See App_GKE for NFS provisioning details.

F. Secret Manager

Four AnythingLLM application secrets are auto-generated and stored in Secret Manager — JWT_SECRET, AUTH_TOKEN, SIG_KEY, and SIG_SALT — plus the database password. None of these appear in plain text anywhere in the deployment.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

The database password secret name is in the Outputs. See App_GKE for the Secret Store CSI integration and rotation.

G. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP. A custom domain with a Google-managed certificate can be enabled, and a static IP can be reserved so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

H. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. An uptime check targeting /api/ping is enabled by default.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. AnythingLLM Application Behaviour

• First-deploy database setup. An initialization Job (db-init) uses the postgres:15-alpine image to create the AnythingLLM database and user before the workload starts. It is idempotent and safe to re-run.
• Prisma migrations on start. The entrypoint script constructs the DATABASE_URL connection string from the platform-injected DB_* environment variables and runs Prisma migrations, so version upgrades apply schema changes automatically.
• AI model loading. AnythingLLM loads embedding models into memory on first boot. The startup probe uses a 60-second initial delay and 30 failure periods (×10 seconds = 5 minutes total) to accommodate this.
• Health path. Both readiness and liveness probes target /api/ping, which returns HTTP 200 only when the application is fully initialised. This endpoint works equally well in GKE where probe traffic reaches the container directly without any redirect.
• LLM provider configuration. Use environment_variables for non-sensitive provider settings (LLM_PROVIDER, EMBEDDING_ENGINE, VECTOR_DB) and secret_environment_variables to map env var names to Secret Manager secrets for API keys (OPENAI_API_KEY, ANTHROPIC_API_KEY, etc.).
• Embedding engine consistency. Changing EMBEDDING_ENGINE after documents have been ingested makes existing vector indices incompatible. All documents must be re-ingested after any change to the embedding engine.
• Fixed environment variables. SERVER_PORT=3001, STORAGE_DIR=/app/server/storage, UID=1000, and GID=1000 are set automatically by AnythingLLM_Common. Do not override them.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for AnythingLLM are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources for cost/ownership tracking.

Group 3 — Application Identity

Variable	Default	Description
application_name	anythingllm	Base name for resources. Do not change after first deploy.
application_display_name	AnythingLLM	Friendly name shown in the Console.
application_description	AnythingLLM Private AI Workspace on GKE	Workload description annotation.
application_version	latest	Image version tag; pin to a release tag for production.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_resources	{ cpu_limit="2000m", memory_limit="4Gi" }	CPU/Memory limits. Minimum 2 vCPU / 4 GiB for AI workloads.
min_instance_count	1	Minimum replicas. Keep ≥ 1 to avoid cold starts.
max_instance_count	1	Maximum replicas (autoscaler ceiling).
container_port	3001	AnythingLLM's native HTTP port.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar for socket connections.
timeout_seconds	300	Load balancer backend timeout. Increase for long document ingestion.
enable_vertical_pod_autoscaling	false	Let Autopilot tune resource requests automatically.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Non-secret settings, e.g. LLM_PROVIDER, EMBEDDING_ENGINE, VECTOR_DB.
secret_environment_variables	{}	Map of env var → Secret Manager secret name for API keys.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	How the Service is exposed.
session_affinity	ClientIP	Session affinity mode.
workload_type	null	Auto-resolves to StatefulSet when stateful_pvc_enabled = true.
network_tags	['nfsserver']	Node/pod tags for VPC firewall rules.

Group 7 — StatefulSet Configuration

Variable	Default	Description
stateful_pvc_enabled	null	Set true to enable per-pod PVC and auto-select StatefulSet.
stateful_pvc_size	20Gi	Per-pod PVC size. Minimum 20 GiB recommended for vector store data.
stateful_pvc_mount_path	/app/server/storage	Mount path — AnythingLLM's storage directory.
stateful_pvc_storage_class	standard-rwo	Kubernetes StorageClass for PVCs.
stateful_fs_group	1000	Pod-level fsGroup GID; matches the AnythingLLM container user.

Group 8 — Resource Quota

Variable	Default	Description
enable_resource_quota	false	Cap namespace CPU/memory/object counts.
quota_memory_requests / quota_memory_limits	""	Must use binary units (8Gi, 16Gi) — bare integers are read as bytes and block scheduling.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	false	Protect availability during node upgrades.
pdb_min_available	1	Minimum pods available during voluntary disruptions.
enable_topology_spread	false	Spread pods across zones.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe_config / startup_probe	/api/ping, 60 s initial delay, 30 failures	Extended startup window for AI model loading.
health_check_config / liveness_probe	/api/ping, 30 s initial delay	Liveness probe against AnythingLLM's health endpoint.
uptime_check_config	{ enabled=false, path="/" }	Optional Cloud Monitoring uptime check.
alert_policies	[]	Optional metric alert policies.

Group 11 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init job.
cron_jobs	[]	Scheduled Kubernetes CronJobs (e.g., maintenance tasks).
additional_services	[]	Sidecar or helper GKE services alongside AnythingLLM.

Group 12 — CI/CD & GitHub Integration

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Filestore (NFS) is mounted by default — required so AnythingLLM's LanceDB vector index (under STORAGE_DIR) survives pod restarts/redeploys instead of living on ephemeral disk.
nfs_mount_path	/mnt/nfs	Mount path inside the container.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	Provision the additional data bucket. The anythingllm-docs bucket is always created.
storage_buckets	[{ name_suffix="data" }]	Additional GCS buckets.
gcs_volumes	[]	GCS Fuse mounts via CSI.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 15 — Redis Cache

Variable	Default	Description
enable_redis	false	Not required for AnythingLLM core functionality. Enable for optional cache workloads.
redis_host	null	Redis endpoint. Required when enable_redis = true.
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Fixed for AnythingLLM — do not change.
application_database_name	anythingllmdb	PostgreSQL database name. Immutable after first deploy.
application_database_user	anythingllmuser	Application user. Immutable after first deploy.
database_password_length	32	Generated password length (16–64).
enable_postgres_extensions	false	Enable PostgreSQL extension installation.
postgres_extensions	[]	Extensions to install (e.g., ['uuid-ossp', 'vector']).
enable_auto_password_rotation	false	Zero-downtime DB password rotation.

Group 17 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise to 30–90 for production/compliance.
enable_backup_import / backup_source / backup_file	restore options	Restore from a backup on deploy.

Group 18 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_GKE.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision Ingress for custom hostnames + managed certificate.
application_domains	[]	Hostnames to serve.
reserve_static_ip	true	Stable external IP across redeploys.

Group 20 — Identity-Aware Proxy (IAP)

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of AnythingLLM. Recommended for production.
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled (sensitive).
iap_support_email	""	Shown on the OAuth consent screen.

Group 21 — Cloud Armor

Variable	Default	Description
enable_cloud_armor	false	Attach a Cloud Armor (WAF) policy to the Ingress backend.
admin_ip_ranges	[]	CIDRs allowed privileged access.
cloud_armor_policy_name	default-waf-policy	Policy name.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach AnythingLLM.
database_instance_name	Cloud SQL instance name.
database_name	Application database name.
database_user	Application database user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets (includes the anythingllm-docs bucket).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	GitHub repo details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, a gen1 runtime with NFS/GCS mounts, a database_type that does not match an enabled extension, an out-of-range redis_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15	Critical	AnythingLLM requires PostgreSQL; any other engine breaks Prisma ORM and crashes startup.
STORAGE_DIR persistence	stateful_pvc_enabled=true or NFS	Critical	Without a persistent volume, all workspace documents, vector indices, and conversation data are lost on pod eviction.
secret_environment_variables (API keys)	Use Secret Manager refs	Critical	Provider API keys as plain environment_variables are visible in Kubernetes pod specs. Use secret_environment_variables for all secrets.
application_database_name / _user	set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys data.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_file fails the import job.
quota_memory_requests / _limits	binary units (8Gi)	Critical	Bare integers are bytes and block all scheduling.
enable_cloudsql_volume	true	Critical	Disabling causes all database connections to fail at startup.
container_resources.memory_limit	4Gi	High	AnythingLLM's embedding pipeline requires 3–4 GiB RAM; OOM kills corrupt in-progress ingestion.
min_instance_count	1	High	Scale-to-zero causes 30–60 s cold starts; in-flight AI operations during scale-down are lost.
timeout_seconds	300 (raise for heavy workloads)	High	Long document ingestion or slow LLM completions exceed the backend timeout, returning 504.
EMBEDDING_ENGINE	set once	High	Changing the embedding engine after ingestion makes existing vectors incompatible; all documents must be re-ingested.
enable_iap / enable_cloud_armor	enable for production	High	Without IAP, access is controlled only by the application login screen.
enable_redis	false (or set redis_host)	Medium	If enable_redis = true and redis_host is not resolvable, the container fails to start.
enable_nfs	true (default)	Medium	Enabled by default so the LanceDB vector index survives pod restarts; disabling it also strands multi-replica pods on isolated ephemeral storage, breaking cross-pod document access.
application_version	pin to a release tag	Medium	latest risks schema-breaking upgrades in production.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. AnythingLLM-specific application configuration shared with the Cloud Run variant is described in AnythingLLM_Common.
