Hermes Agent on GKE Autopilot

Hermes Agent is Nous Research's open-source (MIT-licensed), self-hosted, self-improving personal AI agent: it learns skills from experience, persists memory across sessions, and connects to messaging platforms plus an OpenAI-compatible API from a single gateway process (documentation). This module deploys the official nousresearch/hermes-agent image on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Hermes uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

What Hermes costs on RAD, and how that compares

Running Hermes on GKE Autopilot pod in your own Google Cloud project costs about $142.62/month in Google Cloud charges, on top of a one-off 110-credit RAD module fee charged once at deploy time. Hermes Agent is a self-hosted personal AI agent with persistent memory, so this deployment carries both a database for that memory and a small file server for its working state — there is no commercial hosted version of this exact project to compare against. In a RAD-managed project the module fee drops to 99 credits (10% lower) and the running cost is metered hourly in credits instead of billed directly by Google — see Pause it for free below for the one RAD-managed advantage a self-hosted VPS cannot match — or see the Cloud Run guide for the lower-cost option.

What you pay on RAD

	Own project	RAD-managed project
Module fee (one-off)	110 credits	99 credits (10% lower)
Build time	~3-6 credits per build, either way	~3-6 credits per build, either way
Google Cloud running cost	$142.62/month, billed by Google at list price	~108 credits/day, metered at list price plus RAD's margin

Default running cost in your own project

Resource	US$/month (Google list price, us-central1)
GKE Autopilot pod, 2x vCPU / 2 GiB	$72.16
Cloud SQL for PostgreSQL, 1 vCPU / 3.75 GB, zonal, 10 GB SSD	$51.02
NFS/cache file server (small VM)	$13.43
Cloud NAT and networking	$5.00
Cloud Storage (add-ons, backups)	$1.00
GKE cluster management fee	shared across every GKE app in the project; $0 if this is your only cluster, else ~73
Total	$142.62

The GKE cluster management fee is excluded from the total above because it is shared across every GKE app in the project — $0 if this is the only one, otherwise roughly $73/month split across however many you run.

How it compares

• A self-managed comparison: Hetzner CPX22 (2 vCPU/4GB) runs about $24/mo, a DigitalOcean 2 vCPU/4GB Droplet is the same $24/mo, and a GCP Compute Engine e2-standard-2 (2 vCPU/8GB) is about $49/mo — on the Cloud Run variant's 1 vCPU/2 GiB footprint a smaller class would also do; the GKE variant's 2 vCPU matches the quoted boxes more closely.
• What a bare VPS doesn't give you here matters more than usual for an agent that persists memory across sessions: automatic Postgres backups, secret rotation for its API keys, and monitoring if the process stalls — all covered by RAD's managed stack.
• Running your own LLM API costs are unaffected either way — this comparison is only the hosting infrastructure Hermes runs on, not the model calls it makes.

Pause it for free: delete a RAD-managed project, restore it when you need it

This is the headline advantage of a RAD-managed project, and it costs nothing while paused. Deleting a RAD-managed project unlinks its billing first, then asks Google to delete the project outright — Google's own 30-day recoverable soft delete. Unlike deleting one module, this does not tear down Cloud SQL, any VM, or the compute resource one by one: the whole project simply stops, and nothing is charged while it waits, because billing is already unlinked.

Restoring, within 30 days and only by the project's owner, asks Google to undelete the project and reattaches its billing account, then asks you to run Update on each deployment to confirm everything came back. Because nothing was individually destroyed, that Update finds the same resources already there — it is a check, not a rebuild, and an Update never charges the module fee again. This costs only a handful of credits (under US$1) in total for a typical 2-3-deployment chain.

What this needs: you must own the project (not one RAD only manages billing for), you must restore it yourself within 30 days — after that Google deletes it for good — and restoring is admitted like creating a new project, so your purchased credit balance must still clear the tier's floor (100 credits for the sandbox tier most study/demo use fits). Google says most services are fully working again within 36 hours of a restore.

One real gap: nightly backups are written to a bucket inside the project, and that bucket has Cloud Storage's soft-delete explicitly turned off, so it is very likely gone as soon as you delete the project — even though the project itself is recoverable for 30 days. If you've customised Hermes and want to keep that work, copy a backup out (to Google Drive, or a bucket outside the project) before deleting. For a default install with nothing irreplaceable in it, this does not matter.

Pay only while you use it, the other way: delete and redeploy

In your own project, or once 30 days have passed on a RAD-managed one, there is no free pause — deleting removes the resources for good, and bringing Hermes back means redeploying from scratch. That costs about 113-116 credits (the 110-credit module fee plus a build).

Deleting only saves money once Hermes would otherwise sit unused long enough to clear that redeploy cost against its own running cost — for Hermes, that's about 3 days or more. Most of that running cost is usually the database (and, where this module uses one, the shared file-server VM or GKE cluster) — those stop only once nothing else in the project uses them, so deleting this app while something else shares the project saves only its own compute share.

Keep data first: nightly backups go to a bucket inside the deployment and are deleted with it, so copy the latest backup out before deleting if you want to keep it.

Lab sessions and Managed Environments

Lab sessions, for training: a trainer runs a session for a class. Each participant gets the app in their own Google Cloud project for 15 minutes to 24 hours, within an allowance the trainer sets. Either the trainer funds every place, or each participant pays for their own. Everything is deleted when the session ends and unused credits go back to the trainer.

Managed Environments, for consultancies: a partner runs the app for a client from a ring-fenced wallet it funds, and settles with the client directly. If the wallet runs low, billing pauses and the data is kept, so nobody receives an unexpected charge. At the end the partner hands the project over and the deployments become the client's own.

Credits can be bought in more than 20 currencies, including XAF, XOF, NGN, GHS, KES and ZAR, by card, bank transfer or mobile money.

Sources (8 October 2026): Google Cloud Billing Catalog API list prices; radmodules.dev/pricing for RAD's own fees and daily-credit estimates; Google's project delete/restore documentation for the pause/restore claims.

1. Overview

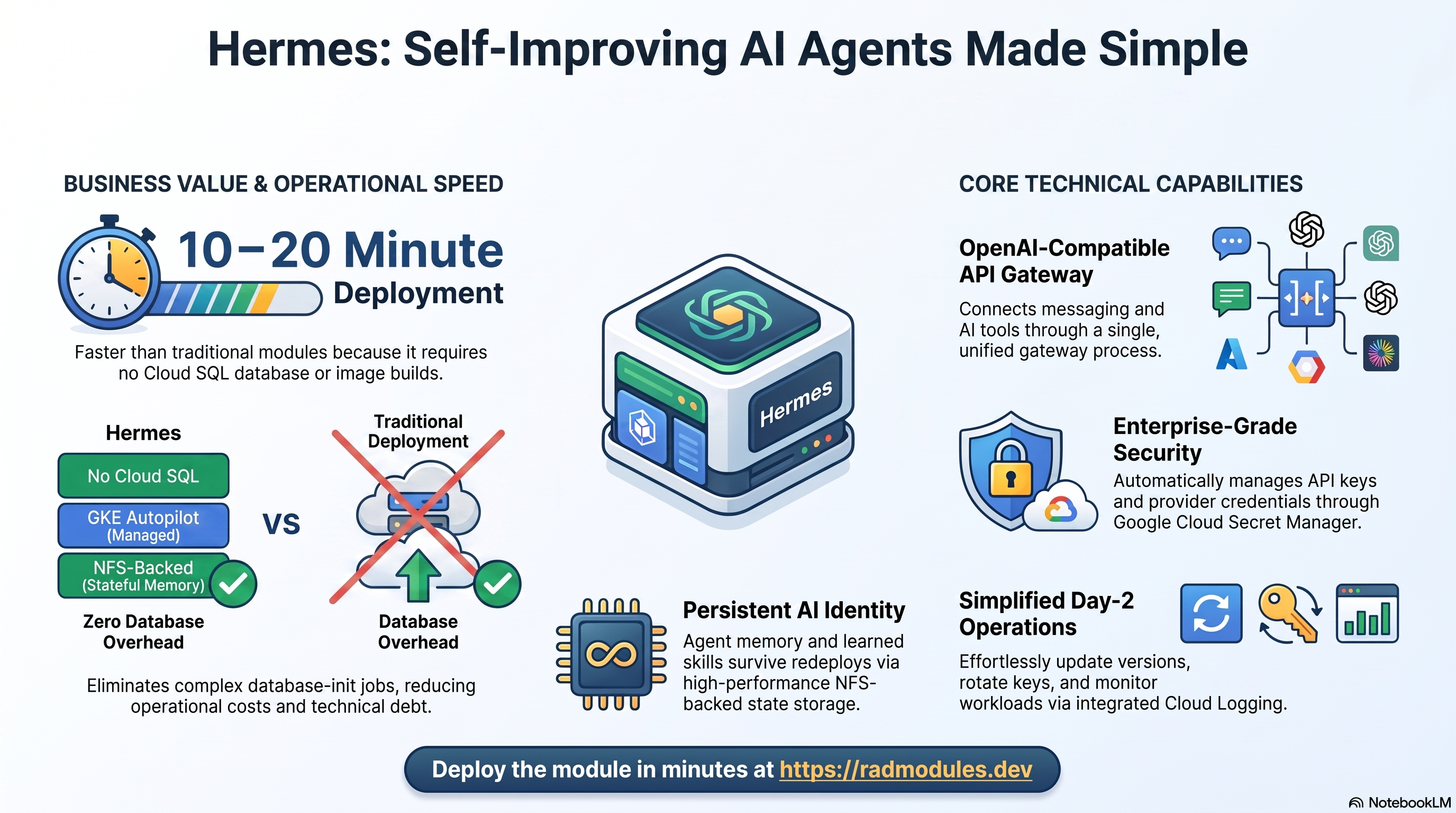

Hermes runs as a single-replica gateway pod on GKE Autopilot. The deployment wires together a deliberately small set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Gateway pod, 2 vCPU / 2 GiB by default, min=1 / max=1 replicas
Agent state	Self-managed NFS (Services_GCP)	Mounted at /opt/data — SQLite config, sessions, skills, memories. No Cloud SQL
Secrets	Secret Manager (+ SecretSync)	ANTHROPIC_API_KEY, auto-generated API_SERVER_KEY and dashboard password, optional OPENAI_API_KEY / TELEGRAM_BOT_TOKEN
Container image	Artifact Registry (mirror)	Official prebuilt image mirrored in; no custom build, no Cloud Build step
Networking	VPC + Cloud Load Balancing	External LoadBalancer Service with reserved static IP by default
Database / cache	—	No Cloud SQL, no Redis — Hermes is entirely SQLite-on-NFS

Sensible defaults worth knowing up front:

• All agent state lives at /opt/data, and that path is fixed inside the image. The shared platform NFS is mounted directly over it (enable_nfs = true, nfs_mount_path = "/opt/data", both defaulted and enforced by a plan-time validation). Without the mount, every pod restart or redeploy silently wipes the agent's accumulated identity.
• max_instance_count is validated to 1. Hermes' state is SQLite, which has a single-writer model — a second concurrent replica corrupts the database. The foundation additionally deploys NFS-backed apps with the Recreate strategy, so updates never briefly run two pods against the volume.
• The OpenAI-compatible API server listens on port 8642 and requires the auto-generated API_SERVER_KEY as a bearer token.
• Probes are TCP port-listening by default — the API server requires auth, so an HTTP probe against it would 401 and wedge the rollout.
• The web dashboard (port 9119, basic auth) is not exposed by the Service — reach it with kubectl port-forward.
• API_SERVER_KEY is injected as an explicit Kubernetes Secret rather than via SecretSync, which can materialise an empty value on first deploy before Secret Manager replication completes. All other secrets are SecretSync-backed.
• At least one model-provider key is required on the initial deployment (anthropic_api_key, or enable_openai + openai_api_key); a plan-time check warns when none is supplied.
• No init jobs, no database bootstrap — first boot only initialises /opt/data on the NFS share.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Hermes workload

The Hermes gateway pod is scheduled on Autopilot, which bills for the CPU/memory the pod actually requests. Replicas are pinned at one; the interesting signals are pod readiness, restarts, and the NFS volume mount.

• Console: Kubernetes Engine → Workloads → select the Hermes workload for pods and events; Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl describe pod -n "$NAMESPACE" <pod>            # events: probes, mounts
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100

See App_GKE for Autopilot, workload types, and the deployment lifecycle.

B. NFS shared storage — the agent's identity

The entire agent state (SQLite config database, API keys, sessions, learned skills, memories) lives on the shared self-managed NFS server provisioned by Services_GCP (create_network_filesystem = true), mounted at /opt/data in the pod. The NFS VM must be RUNNING before this module deploys — discovery finds it by label.

• Console: Compute Engine → VM instances (the NFS server VM).
• CLI:

  gcloud compute instances list --project "$PROJECT" \
    --filter="name~nfs" --format="table(name,zone,status)"
  # Confirm the mount inside the pod:
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- df -h /opt/data
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- ls /opt/data

The share and its data are owned by Services_GCP — destroying the Hermes deployment does not delete the agent's state on the NFS export.

C. Secret Manager

Five secrets can exist per deployment: ANTHROPIC_API_KEY (operator-supplied), API_SERVER_KEY (auto-generated 64-char hex — the gateway API bearer token), HERMES_DASHBOARD_BASIC_AUTH_PASSWORD (auto-generated), and optionally OPENAI_API_KEY and TELEGRAM_BOT_TOKEN. They surface in the namespace as Kubernetes Secrets (SecretSync for most; an explicit Secret for API_SERVER_KEY).

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~hermes"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
  kubectl get secrets -n "$NAMESPACE"

Blank credential variables on an update deployment preserve the stored latest version. See App_GKE for the SecretSync integration.

D. Artifact Registry — the mirrored image

The official nousresearch/hermes-agent:<version> image is mirrored into Artifact Registry before deployment (enable_image_mirroring = true) so nodes never pull from Docker Hub. There is no Cloud Build step — this is a prebuilt module. Mirrored images are pulled with imagePullPolicy: Always.

• Console: Artifact Registry → Repositories.
• CLI:

  gcloud artifacts repositories list --project "$PROJECT" --location "$REGION"
  gcloud artifacts docker images list \
    "$REGION-docker.pkg.dev/$PROJECT/<repo>" --filter="package~hermes"

E. Networking & ingress

The gateway is exposed through an external LoadBalancer Service by default, with a reserved static IP so the address survives redeploys. The API server enforces its own bearer-token auth, so the endpoint being public is by design; a custom domain with a managed certificate can be layered on via the Gateway API.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IPs.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics to Cloud Monitoring. The uptime check is disabled by default — the API server requires auth, so an unauthenticated uptime check would always fail.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Hermes Application Behaviour

• First-boot data-directory initialisation. The image's ENTRYPOINT is s6-overlay's /init, which starts as root, chowns the /opt/data volume (the fresh NFS directory) to the non-root hermes user, then drops privileges and starts the gateway (container_args = ["gateway", "run"] — the image's default CMD is the interactive CLI, so the gateway must be started explicitly).
• No database init job. Hermes creates its own SQLite config database under /opt/data on first boot; there is nothing to bootstrap and initialization_jobs is empty. database_type = "NONE" and enable_redis = false are hard-coded in the Foundation call.
• API access requires the API_SERVER_KEY. The OpenAI-compatible endpoint on port 8642 authenticates with a bearer token:

  KEY=$(gcloud secrets versions access latest --secret=<api-server-key-secret> --project "$PROJECT")
  EXTERNAL_IP=$(kubectl get svc -n "$NAMESPACE" \
    -o jsonpath='{.items[?(@.spec.type=="LoadBalancer")].status.loadBalancer.ingress[0].ip}')
  curl -s -H "Authorization: Bearer $KEY" "http://${EXTERNAL_IP}:8642/v1/models"

  (The Service maps its port to the container port; check kubectl get svc for the exposed port.)
• Dashboard via port-forward. The in-process web dashboard (API-key management, profile configuration) runs on port 9119 behind basic auth and is not exposed by the Service. Reach it locally:

  kubectl port-forward -n "$NAMESPACE" deploy/<service-name> 9119:9119
  # then open http://localhost:9119 — user `admin`, password from Secret Manager

• Connector setup (Telegram). Set enable_telegram = true and supply telegram_bot_token (from @BotFather). Hermes' Telegram connector long-polls outbound — no webhook, router, or public callback URL is needed. A plan-time validation rejects enable_telegram = true with an empty token. Other connectors (Discord, Slack, WhatsApp, Signal) are configured through the operator environment_variables map.
• Version updates use Recreate. Because the app is NFS-backed, the foundation replaces the pod stop-then-start instead of rolling — a brief gap in availability during updates is expected and protects the SQLite database from a two-writer overlap.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Hermes are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project, Identity & Credentials

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.
anthropic_api_key	""	Primary model-provider key, injected as ANTHROPIC_API_KEY. Required on the initial deployment (or use OpenAI); omit on updates to keep the stored version.
api_server_key	"" (auto)	Bearer token for the OpenAI-compatible API server. Auto-generated 64-char hex when blank.
enable_openai / openai_api_key	false / ""	Optional secondary provider, injected as OPENAI_API_KEY.
enable_dashboard	true	Run the port-9119 dashboard in-process; reach via kubectl port-forward.
dashboard_username / dashboard_password	admin / "" (auto)	Dashboard basic auth; password auto-generated into Secret Manager.

Group 3 — Application Identity

Variable	Default	Description
application_name	hermes	Base name for resources. Do not change after first deploy.
application_version	latest	nousresearch/hermes-agent image tag; pin to a release tag in production.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_resources	2000m / 2Gi	CPU and memory limits for the gateway container.
min_instance_count	1	Keep at 1 to avoid cold starts for agent sessions.
max_instance_count	1	Validated to 1 — SQLite single-writer on the shared NFS.
container_port	8642	The gateway's OpenAI-compatible API server port.
timeout_seconds	3600	Agent sessions can be long-running.
container_image_source	prebuilt	Deploys the official image with no build step.
enable_image_mirroring	true	Mirror into Artifact Registry to avoid Docker Hub rate limits.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra config; module-managed vars (API_SERVER_*, HERMES_DASHBOARD*) take precedence. Use for Discord/Slack/WhatsApp/Signal connector credentials or provider endpoints (e.g. OpenRouter).
secret_environment_variables	{}	Map of env var → existing Secret Manager secret name.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP by default; the API server enforces bearer-token auth.
session_affinity	ClientIP	Sticky routing (single replica, so mostly moot).
termination_grace_period_seconds	60	Time for active agent sessions to complete on shutdown.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	TCP, 10s delay, 36 retries	TCP port-listening — safe regardless of API-server auth; headroom for the NFS mount and first-boot init.
liveness_probe	TCP, 30s delay	TCP port-listening.
uptime_check_config	disabled	An unauthenticated uptime check would always fail against the authed API server.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Required — validated. The agent's entire identity lives under /opt/data.
nfs_mount_path	/opt/data	The image's fixed data directory; the NFS share is mounted directly over it.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
gcs_volumes	[]	Auxiliary GCSFuse mounts only — never point one at /opt/data (SQLite is unsafe on GCSFuse).
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 15 — Hermes Connectors

Variable	Default	Description
enable_telegram	false	Provision the Telegram bot token secret and inject TELEGRAM_BOT_TOKEN.
telegram_bot_token	""	Bot token from @BotFather; required (validated) when enable_telegram = true.

Group 19 — Custom Domain & Static IP

Variable	Default	Description
enable_custom_domain	true	Gateway API custom-domain configuration with managed SSL (needs application_domains).
reserve_static_ip	true	Stable external IP across redeploys.

Inert convention mirrors: the database (group 16), Redis (group 15 mirrors), custom-SQL (group 18), and enable_cloudsql_volume variables are declared for convention parity but hard-coded off in main.tf — Hermes has no database and no Redis.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
api_url	URL to reach the gateway API server.
storage_buckets	Created Cloud Storage buckets (none by default).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / cron_jobs	Setup and scheduled job names (empty by default).
statefulset_name	StatefulSet name (when a StatefulSet workload is selected).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details.
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster endpoint was readable and Kubernetes workloads deployed (false on the first apply of a new inline cluster — re-run apply).

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Plan-time validation. This module's validation.tf and the App_GKE foundation engine validate values and combinations at plan time — max_instance_count > 1, enable_nfs = false, a Telegram connector without its token, or OpenAI enabled without a key all fail the plan with a clear, named error before any resource is created.

Setting	Sensible value	Risk	Consequence if wrong
max_instance_count	1 (validated)	Critical	A second concurrent replica writes the same SQLite database on NFS — single-writer violation corrupts the agent's entire state.
enable_nfs	true (validated)	Critical	Without the NFS mount, /opt/data is ephemeral pod disk — every restart / redeploy silently wipes the agent's identity (config, sessions, skills, memories).
gcs_volumes at /opt/data	never	Critical	GCSFuse lacks POSIX locking and atomic renames; SQLite on GCSFuse corrupts. Keep state on NFS.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are bytes and block all pod scheduling in the namespace.
anthropic_api_key (or OpenAI pair)	set on first deploy	High	Without any provider key the agent cannot run a single turn.
NFS VM not RUNNING	wait before deploying	High	Discovery finds no server → the module creates an inline NFS or the mount fails; the pod sticks in ContainerCreating.
startup_probe / liveness_probe	TCP (default)	Medium	An HTTP probe against the authed API server returns 401/403 forever — the pod never becomes Ready and the rollout wedges.
min_instance_count	1	Medium	GKE has no scale-to-zero, but a manual scale-down leaves connectors offline.
application_version	pin a release tag	Medium	latest re-resolves per mirror run; behaviour can change under you on redeploy.
enable_telegram without token	blocked	Low	Plan-time validation rejects it; the connector cannot start without the bot token.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Hermes-specific application configuration shared with the Cloud Run variant is described in Hermes_Common.

Related guides

• Hands-on lab: Hermes Agent on GKE Autopilot — deploy it step by step, with the console screens and commands at each stage.
• Hermes Agent on Google Cloud Run — the same application on Cloud Run, for when you need the other deployment target.
• Hermes Common — Shared Application Configuration — the configuration shared by both deployment targets.
