NocoDB on Google Kubernetes Engine (GKE Autopilot)

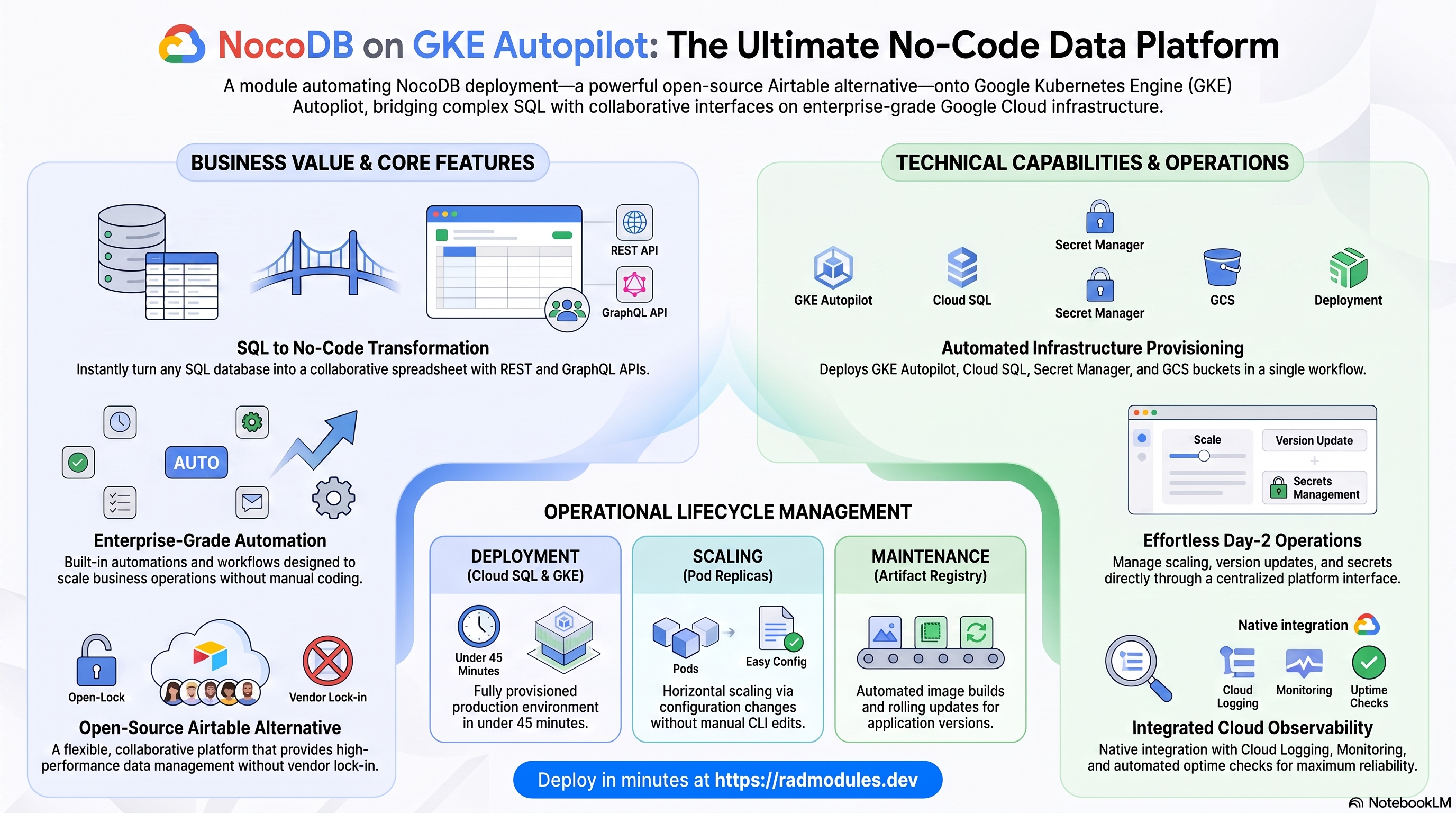

This document provides a comprehensive reference for the modules/NocoDB_GKE Terraform module. It covers architecture, IAM, configuration variables, NocoDB-specific behaviours, and operational patterns for deploying NocoDB on GKE Autopilot.
1. Module Overview
NocoDB is an open-source no-code database platform (Airtable alternative) with 45,000+ GitHub stars that transforms any database into a smart spreadsheet with a no-code interface, REST and GraphQL APIs, and built-in automations. NocoDB GKE is a wrapper module built on top of App GKE. It uses App GKE for all GCP infrastructure provisioning and injects NocoDB-specific application configuration via NocoDB Common.
Key Capabilities:
- Compute: GKE Autopilot, Kubernetes Deployment (not StatefulSet — NocoDB stores state in PostgreSQL, not on disk). 1 vCPU / 1 Gi by default. HPA scales from
min_instance_count = 1 to max_instance_count = 10.
- Data Persistence: Cloud SQL PostgreSQL 15 (default). NocoDB also supports MySQL 8.0.
- IAM: Workload Identity binds the Kubernetes service account to a GCP SA for Secret Manager and GCS access.
- Security: Inherits Cloud Armor, Binary Authorization, and VPC Service Controls from
App GKE.
- NC_DB_ mapping*: A custom Dockerfile in
NocoDB_Common maps DB_* env vars to NC_DB_* variables NocoDB expects when container_image_source = 'custom' (default).
- Health: Health probes target
/api/v1/health with 30-second initial delay.
Project & Application Identity
| Variable | Group | Type | Default | Description |
|---|
project_id | 1 | string | — | GCP project ID. Required. |
tenant_deployment_id | 2 | string | 'demo' | Short suffix appended to all resource names. |
support_users | 2 | list(string) | [] | Email recipients for monitoring alerts. |
resource_labels | 2 | map(string) | {} | Labels applied to all provisioned resources. |
application_name | 3 | string | 'nocodb' | Base resource name. Do not change after initial deployment. |
application_display_name | 3 | string | 'NocoDB' | Human-readable name shown in the GCP Console. |
application_description | 3 | string | 'NocoDB on GKE Autopilot' | Application description. |
application_version | 3 | string | 'latest' | NocoDB image version tag. |
Wrapper architecture: NocoDB GKE calls NocoDB Common to build an application_config object. The GCS uploads bucket name is computed from the resource prefix and injected as GCS_BUCKET_NAME and GCS_BASE_URL. module_secret_env_vars = module.nocodb_app.secret_ids and module_storage_buckets = module.nocodb_app.storage_buckets are forwarded to App GKE.
2. IAM & Access Control
NocoDB GKE delegates all IAM provisioning to App GKE. Workload Identity binds the Kubernetes SA to a GCP SA, granting access to Secret Manager secrets (database password, application secrets) and GCS buckets.
No application-level secrets: NocoDB Common does not auto-generate application secrets. NocoDB manages its own JWT and encryption keys at runtime. Use secret_environment_variables for custom secrets.
3. Core Service Configuration
A. Compute (GKE Autopilot)
| Variable | Group | Default | Description |
|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment. |
container_image_source | 4 | 'custom' | 'custom' builds via Cloud Build. 'prebuilt' deploys an existing image. |
container_image | 4 | "" | Container image URI. Leave empty for Cloud Build to manage. |
container_resources | 4 | { cpu_limit="1000m", memory_limit="1Gi" } | CPU/memory limits and requests. |
min_instance_count | 4 | 1 | Minimum pod replicas (HPA minReplicas). |
max_instance_count | 4 | 10 | Maximum pod replicas (HPA maxReplicas). |
container_port | 4 | 8080 | NocoDB's native HTTP port. |
container_protocol | 4 | 'http1' | HTTP protocol version. |
timeout_seconds | 4 | 300 | Load balancer backend timeout. |
container_build_config | 4 | { enabled=true, dockerfile_path="Dockerfile" } | Build configuration for Cloud Build. |
enable_vertical_pod_autoscaling | 4 | false | Enables VPA for automatic resource adjustment. |
enable_cloudsql_volume | — | true | Cloud SQL Auth Proxy sidecar (NocoDB GKE uses this for Cloud SQL access). |
B. Database (Cloud SQL)
| Variable | Group | Default | Description |
|---|
database_type | 12 | 'POSTGRES_15' | Cloud SQL engine. POSTGRES_15, MYSQL_8_0, or NONE. |
application_database_name | 12 | 'nocodb' | Database name. Do not change after initial deployment. |
application_database_user | 12 | 'nocodb' | Database application user. |
database_password_length | 12 | 32 | Auto-generated password length. Range: 16–64. |
sql_instance_name | 12 | "" | Existing Cloud SQL instance. Leave empty for auto-discovery. |
db_password_env_var_name | 12 | 'NC_DB_PASSWORD' | Additional env var name for DB password. |
db_host_env_var_name | 12 | 'NC_DB_HOST' | Additional env var name for DB host. |
db_user_env_var_name | 12 | 'NC_DB_USER' | Additional env var name for DB user. |
db_name_env_var_name | 12 | 'NC_DB_NAME' | Additional env var name for DB name. |
db_port_env_var_name | 12 | 'NC_DB_PORT' | Additional env var name for DB port. |
service_url_env_var_name | 12 | 'NC_PUBLIC_URL' | Additional env var name for service URL. |
C. Storage
NocoDB Common auto-provisions a GCS uploads bucket. The bucket name and base URL are injected as GCS_BUCKET_NAME and GCS_BASE_URL.
| Variable | Group | Default | Description |
|---|
create_cloud_storage | 11 | true | Set false to skip GCS bucket creation. |
storage_buckets | 11 | [{ name_suffix = "data" }] | Additional GCS buckets. |
enable_nfs | 11 | false | Provisions NFS shared storage. |
nfs_mount_path | 11 | '/mnt/nfs' | Container path for NFS mount. |
gcs_volumes | 11 | [] | GCS buckets to mount via GCS Fuse CSI driver. |
D. GKE Backend Configuration
| Variable | Group | Default | Description |
|---|
gke_cluster_name | — | "" | GKE cluster name. Leave empty to auto-discover. |
namespace_name | — | "" | Kubernetes namespace. Leave empty to auto-generate. |
workload_type | — | null | 'Deployment' or 'StatefulSet'. Defaults to Deployment for NocoDB. |
service_type | — | 'ClusterIP' | Kubernetes Service type. |
E. Observability
| Variable | Group | Default | Description |
|---|
startup_probe | 14 | { path="/api/v1/health", initial_delay_seconds=30, failure_threshold=30 } | Startup probe. |
health_check_config | 14 | { path="/api/v1/health", initial_delay_seconds=30, failure_threshold=3 } | Liveness probe. |
uptime_check_config | 14 | { enabled=true, path="/api/v1/health" } | Cloud Monitoring uptime check. |
alert_policies | 14 | [] | Cloud Monitoring metric alert policies. |
4. Integrations
A. Redis
| Variable | Group | Default | Description |
|---|
enable_redis | 21 | false | Enables Redis for NocoDB caching. |
redis_host | 21 | null | Redis hostname/IP. Required when enable_redis = true. |
redis_port | 21 | '6379' | Redis TCP port. |
redis_auth | 21 | "" | Redis AUTH password. Sensitive. |
B. CI/CD
| Variable | Group | Default | Description |
|---|
enable_cicd_trigger | 8 | false | Provisions a Cloud Build GitHub trigger. |
github_repository_url | 8 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 8 | "" | GitHub PAT. Sensitive. |
enable_cloud_deploy | 8 | false | Provisions a Cloud Deploy pipeline. |
5. Outputs
| Output | Description |
|---|
service_name | Name of the Kubernetes Service. |
service_url | URL of the NocoDB deployment. |
project_id | GCP project ID. |
deployment_id | Deployment ID suffix used in resource names. |
database_instance_name | Name of the Cloud SQL instance. |
database_name | Name of the application database. |
database_password_secret | Secret Manager secret name for the database password. |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|
NC_AUTH_JWT_SECRET (via Secret Manager) | Auto-generated 32-char random string | Critical | Changing or rotating this value after the first deployment immediately invalidates all existing user sessions and API tokens. All users are forcibly logged out. Treat as immutable after first deploy. |
GCS_BUCKET_NAME | Auto-set from module output | High | Do not override. An incorrect bucket name causes all NocoDB file attachments to fail silently. |
application_database_name | "nocodb" | High | Immutable after first apply. Changing orphans the NocoDB application schema. |
application_database_user | "nocodb" | High | Immutable after first apply. Renaming requires manual Cloud SQL intervention. |
container_resources.memory_limit | "1Gi" | High | Under 512Mi the NocoDB Node.js process is OOM-killed on startup. On GKE Autopilot, mem_request must also be set appropriately to avoid eviction. Minimum "1Gi". |
container_resources.mem_request | null (defaults to limit) | Medium | On GKE Autopilot, setting mem_request far below memory_limit leads to burstable scheduling and possible eviction under memory pressure. |
enable_cloudsql_volume | true | Critical | Required for the Cloud SQL Auth Proxy sidecar. Disabling with a PostgreSQL backend causes all DB connections to fail. |
enable_redis | false | Medium | Without Redis, NocoDB cannot share session/cache state across multiple pods. Required when max_instance_count > 1. Enabling without a valid redis_host raises a validation error at plan time. |
redis_host | null | High | Required when enable_redis = true. An empty host causes all Redis connections to fail on pod startup. |
min_instance_count | 1 | High | Scale-to-zero terminates background automation workers. Webhook callbacks fired during a cold-start window will time out. |
max_instance_count | 10 | Medium | Running multiple pods without Redis causes session invalidation when requests are load-balanced to different pods. Enable Redis before increasing above 1. |
quota_memory_requests / quota_memory_limits | "4Gi" / "8Gi" | High | GKE-specific: must use binary suffixes (Gi, Mi). A bare integer (e.g., "4") is treated as bytes by Kubernetes and blocks all pod scheduling. |
enable_iap | false | High | Without IAP the NocoDB interface is reachable from the load-balancer IP. Enable IAP or configure Kubernetes network policies for internal workspaces. |
pdb_min_available | "1" | Medium | Setting to "0" allows all pods to be evicted during node upgrades, causing a full NocoDB outage. |
application_version | "latest" | Medium | Pinning to a specific version prevents uncontrolled upgrades. |
backup_schedule | "0 2 * * *" | Medium | Disabling automated backups leaves all table data, views, and automations unprotected. |
stateful_pvc_enabled | false | Low | NocoDB does not require persistent volumes — state is in PostgreSQL and GCS. Enabling adds unnecessary StatefulSet complexity. |
