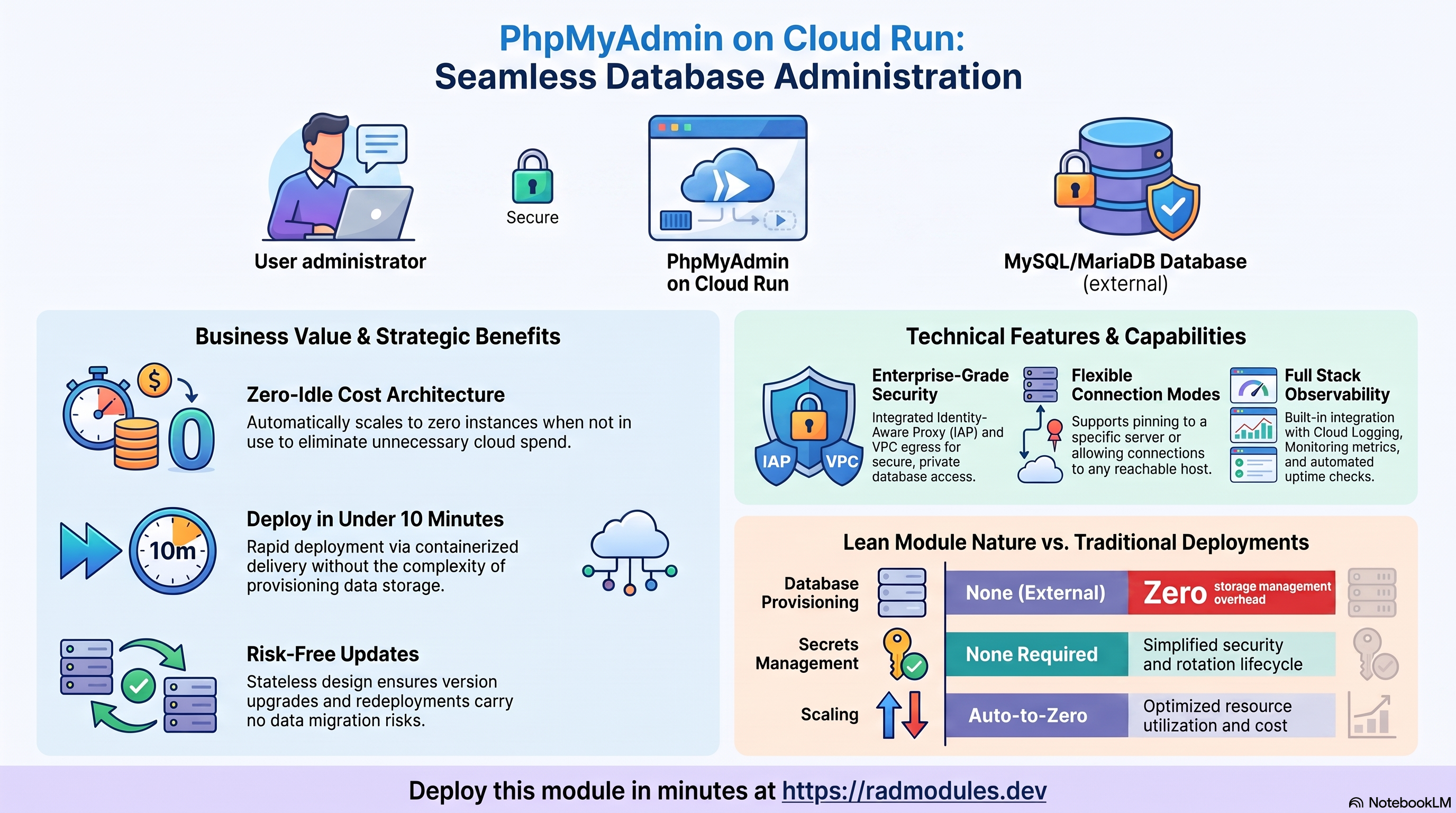

PhpMyAdmin on Google Cloud Run

phpMyAdmin is the most popular open-source (GPLv2) web tool for administering MySQL and MariaDB databases over the browser — browse and edit tables, run SQL, manage users, and import/export data. This module deploys phpMyAdmin on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services phpMyAdmin uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

1. Overview

phpMyAdmin runs as a stateless PHP + Apache container on Cloud Run v2. It is one of the lightest deployments in this repository — it wires together only the services it truly needs:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	PHP/Apache service, 1 vCPU / 512 MiB by default, serverless autoscaling; scale-to-zero
Database	None provisioned	phpMyAdmin has no database of its own; it connects to an external MySQL/MariaDB server you point it at
Object storage	None	Stateless — no GCS bucket is created
Cache	Redis (optional, off)	Only for rate-limiting/bot-detection on public deployments; not required
Secrets	None generated	phpMyAdmin holds no secret; users log in with the target MySQL server's own credentials
Container image	Artifact Registry	Thin custom build `FROM phpmyadmin/phpmyadmin`, mirrored and tag-pinned
Ingress	Cloud Run URL / Cloud Load Balancing	Default `run.app` URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

No database is provisioned for phpMyAdmin. database_type = "NONE" is fixed by the shared application layer. phpMyAdmin is a client — it administers a MySQL server that lives elsewhere (the platform Cloud SQL private IP, another Cloud SQL instance, or any reachable MySQL/MariaDB host). Nothing here creates that server.
The MySQL target is selected by env vars, not code. PMA_ARBITRARY = "1" (the default) shows a server-input box on the login page so users type any host. Set pma_host (and PMA_ARBITRARY = "0") to pin a single server.
No secrets are generated. There is no encryption key, JWT secret, or app password to protect — and therefore nothing that can corrupt on redeploy. Authentication is against the target database's own accounts (cookie auth).
Scale-to-zero is enabled (min_instance_count = 0, forced by the module). phpMyAdmin is an interactive admin console with no background work, so it should cost nothing when idle. Cold starts add a few seconds to the first request after idle.
Request-based billing (cpu_always_allocated = false). phpMyAdmin does no in-process background work, so CPU is billed only while serving a request.
Public ingress by default (ingress_settings = "all"). Because phpMyAdmin is a powerful database administration tool, seriously consider fronting it with IAP or restricting ingress before exposing it to the internet.
NFS and Redis are disabled by default. phpMyAdmin keeps no state; enable Redis only for abuse protection on a public deployment.

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the phpMyAdmin service

phpMyAdmin runs as a Cloud Run v2 service that autoscales by request load between the minimum (0) and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts. The container listens on port 80.

Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.

CLI:

gcloud run services list --project "$PROJECT" --region "$REGION" \
  --filter="metadata.name~phpmyadmin"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
# Confirm the MySQL-target env vars injected into the running revision:
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION" \
  --format='value(spec.template.spec.containers[0].env)'

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. The target MySQL/MariaDB server (external)

phpMyAdmin does not provision a database — it connects to one you already have. That target is selected via pma_host / pma_port (fixed) or PMA_ARBITRARY = "1" (user types the host at login). A common pattern is to point phpMyAdmin at the platform's shared Cloud SQL private IP:

Console: SQL → select the instance to find its private IP and connection name.

CLI:

# Find a MySQL instance's private IP to use as pma_host:
gcloud sql instances list --project "$PROJECT" \
  --filter="databaseVersion~MYSQL"
gcloud sql instances describe <instance-name> --project "$PROJECT" \
  --format='value(ipAddresses[0].ipAddress)'

For phpMyAdmin to reach a private-IP MySQL server, the service must have VPC egress to the shared VPC (handled by the foundation when vpc_egress_setting routes private ranges). Users authenticate at the phpMyAdmin login page with that database's own MySQL accounts.

C. Cloud Storage

Not used. phpMyAdmin is stateless and declares no GCS bucket. (Import/export in the phpMyAdmin UI streams files through the browser, not to GCS.)

D. Redis (optional abuse protection)

Redis is disabled by default (enable_redis = false). It is only relevant if you enable phpMyAdmin's rate-limiting/bot-detection on a public deployment. When left off, phpMyAdmin functions fully — Redis is not required for normal operation.

CLI (only if enabled):
```
redis-cli -h <redis-host> ping
```

E. Secret Manager

No secrets are generated by this module. phpMyAdmin holds no encryption key, JWT secret, or application password — login is against the target MySQL server's own credentials, entered at the phpMyAdmin login page and never stored. You may still add your own secret_environment_variables (e.g. to inject a fixed PMA_PASSWORD/PMA_USER for a single-signon target), which the foundation mounts from Secret Manager.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~phpmyadmin"

See App_CloudRun for secret injection details.

F. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"). An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; IAP can gate access with Google sign-in — strongly recommended for a database admin tool.

Console: Cloud Run (service URL); Network services → Load balancing.

CLI:

gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Apache/PHP container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

3. PhpMyAdmin Application Behaviour

No first-deploy database setup. There is no db-init job and no schema to create — phpMyAdmin has no database of its own. The service is ready as soon as Apache/PHP starts.
No migrations, no immutable keys. phpMyAdmin stores nothing between restarts, so there is no schema to migrate and no cryptographic key that can corrupt on redeploy. Redeploying or changing the image version is low-risk.
Stateless, cookie-based login. Users log in at the phpMyAdmin page with the target MySQL server's own username and password; the session lives in a short-lived cookie. phpMyAdmin never persists those credentials. There is no phpMyAdmin "admin account" to create post-deploy.
MySQL target selection. Verify the injected PMA_* env vars on the running revision:
```
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION" \
  --format='value(spec.template.spec.containers[0].env)'
```
With PMA_ARBITRARY = "1", the login page shows a server field; with a fixed pma_host, users only see username/password for that one server.
Health path. Startup, liveness, and readiness probes target / — Apache serves the login page there with a 200 once PHP is up. First boot is fast (a few seconds); no long migration window is needed.
Security posture. phpMyAdmin exposes full database administration to anyone who can reach it and holds valid MySQL credentials. Because the service is public by default, gate it with IAP or an HTTPS LB + Cloud Armor, and restrict PMA_ARBITRARY to "0" with a fixed pma_host if users should only reach one server.

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for phpMyAdmin are listed; every other input is inherited from App_CloudRun with its standard behaviour.
