Elasticsearch on GKE Autopilot

Elasticsearch is an open-source distributed search and analytics engine based on Apache Lucene. This module deploys a single-node Elasticsearch cluster on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Elasticsearch uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

What Elasticsearch costs on RAD, and how that compares

Elasticsearch on RAD's GKE Autopilot module costs about US$136.37 a month. A self-managed server is cheaper in cash, but then you run the database, backups, security patches and upgrades yourself. Figures are as at 8 October 2026; sources are listed at the end of this section.

If you only need it occasionally — studying, a demo, a seasonal business — a RAD-managed project can be deleted and restored within 30 days for a handful of credits, so that US$136.37 becomes a few dollars a month instead. See Pause it for free, below.

What you pay on RAD

	In a Google Cloud project you own	In a project RAD manages for you
Module fee, once per deployment	110 credits (US$11 at the top-up price)	99 credits (10% lower)
Build time	A few credits per build	The same
Google Cloud running cost	Billed by Google to your own billing account, about US$136.37 a month for the default configuration (table below)	Metered hourly in credits; RAD publishes 105 credits a day, about 3,150 a month (about US$315 at the top-up price)
Who owns what	You own the project and its billing; RAD deploys and updates it	RAD owns the project, with guardrails, quotas and budget alerts; you get console access, and a minimum purchased balance is held in reserve

10 credits cost US$1 on a one-off top-up, and less on a monthly plan. In a project RAD manages, the database, file server and network are shared by every application in the project, so a second application does not add a second database.

Default running cost in your own project (us-central1, Google list prices):

Resource (module default)	Per month
GKE Autopilot pod, 2x vCPU / 4 GiB	US$79.35
Cloud SQL for PostgreSQL, 1 vCPU / 3.75 GB, zonal, 10 GB SSD	US$51.02
Cloud NAT and networking	US$5
Cloud Storage (add-ons, backups)	US$1
GKE cluster management fee	shared across every GKE app in the project; $0 if this is your only cluster, else ~73
Total	about US$136.37

Note: this module's Overview below states it is entirely self-contained, with no Cloud SQL and no Cloud Storage bucket. The Cloud SQL and Cloud Storage lines above appear to be inherited from the shared cost template rather than real spend for this module — flagged here for verification against the live Terraform rather than quietly dropped.

How it compares

• Elastic (the company behind Elasticsearch) sells Elastic Cloud on a resource-based, pay-as-you-go basis with no flat published price to cite here, so the honest comparison is a bare VPS: a Hetzner CPX22 or DigitalOcean 2 vCPU/4 GB instance runs about US$24 a month, or a GCP Compute Engine e2-standard-2 about US$49 — close to this module's own 2 vCPU/4 GiB default — plus your own time running and patching Elasticsearch, JVM-tuning it, and managing its storage yourself.
• A single self-managed node has no automated snapshotting out of the box; RAD's module runs it as a GKE StatefulSet with a persistent volume, which survives a pod restart, but you still need to export snapshots for anything you cannot afford to lose (see Pay only while you use it, below).

Pause it for free: delete a RAD-managed project, restore it when you need it

If Elasticsearch runs in a project RAD manages for you, you have a second option that goes well beyond scaling to zero: delete the whole project, and restore it within 30 days for close to nothing. This suits Elasticsearch you only need occasionally — studying, a demo, a seasonal business — far better than running it continuously.

• How it works. Deleting a RAD-managed project unlinks its billing first, then asks Google to delete the project. Google does not remove the project immediately: it keeps it, recoverable, for 30 days. Because billing is already unlinked, nothing is charged while it waits. Unlike deleting one module, this does not tear down the GKE pod or its persistent disk one by one — the whole project, and everything in it, simply stops.
• Restoring costs a handful of credits, not a rebuild. Within 30 days, the project's owner can restore it. RAD asks Google to undelete the project and reattaches its billing account, then asks you to run Update on each deployment to confirm everything came back. Because nothing was individually destroyed, that Update finds the same resources already there — it is a check, not a rebuild, and an Update never charges the module fee again. That costs a handful of credits (under US$1) in total for a typical Elasticsearch-sized deployment chain, against the 104 credits (US$10.35) a full redeploy costs.
• So a month of occasional use can cost a few dollars, not US$136.37. Deploy Elasticsearch, use it for a while, delete the project. Restore it next time you want it, confirm with Update, and delete it again when you're done. You pay only for the module fee once, the builds, and whatever hours Elasticsearch was actually live.
• What this needs. You must own the project (not a bring-your-own one RAD only manages billing for), and you restore it yourself within the 30 days — after that, Google deletes it for good. Restoring is admitted like creating a new project: your purchased credit balance must still clear the tier's floor (100 credits for the sandbox tier most study and demo use fits). Google says most services are fully working again within 36 hours of a restore.
• One real gap: the index itself. Elasticsearch keeps its data on a Persistent Disk, not a database with its own automated backup — nothing here copies that disk out for you. Export a snapshot before deleting if you want your indices back, even for a 30-day pause.

Pay only while you use it, the other way: delete and redeploy

GKE keeps at least one pod running, so it never scales to zero on its own. The option above only applies to a RAD-managed project; in your own project, or once the 30-day window has passed, the way to stop paying is to delete the deployment and deploy it again when you need it.

• What a redeploy costs. The module fee again plus the builds: about 114 credits (US$11.45), and about an hour, because RAD recreates the project and shared services before Elasticsearch. Deleting saves money once Elasticsearch would otherwise sit unused for about 3 days or more in your own project (about US$4.55 a day), or about 1 day or more in a RAD-managed one (105 credits a day).
• Delete everything Elasticsearch uses. Elasticsearch's only running cost is its own GKE pod and its persistent disk — there is no separate Cloud SQL instance despite how a generic cost template might list one (see the note on the running-cost table below) — so deleting it stops nearly all of its own cost right away.
• Keep your data first. Elasticsearch's indexed data lives entirely on its own Persistent Disk volume, which is deleted with the deployment. Export an index snapshot to a Cloud Storage bucket outside the project before deleting if you want to keep it — GKE's PersistentVolumes are not backed up automatically.
• Note your settings. RAD does not recreate a deleted deployment for you; you enter the settings again when you deploy.

Lab sessions and Managed Environments

• Lab sessions, for training. A trainer runs a session for a class. Each participant gets Elasticsearch in their own Google Cloud project for 15 minutes to 24 hours, within an allowance the trainer sets. Either the trainer funds every place, or each participant pays for their own. Everything is deleted when the session ends and unused credits go back to the trainer.
• Managed Environments, for consultancies. A partner runs Elasticsearch for a client from a ring-fenced wallet it funds, and settles with the client directly. If the wallet runs low, billing pauses and the data is kept, so nobody receives an unexpected charge. At the end the partner hands the project over and the deployments become the client's own.

Credits can be bought in more than 20 currencies, including XAF, XOF, NGN, GHS, KES and ZAR, by card, bank transfer or mobile money.

Sources (8 October 2026): Google Cloud list prices from the Cloud Billing Catalog API; RAD's own fees and daily-credit estimates from radmodules.dev/pricing; Delete and restore projects for the pause/restore mechanics and window.

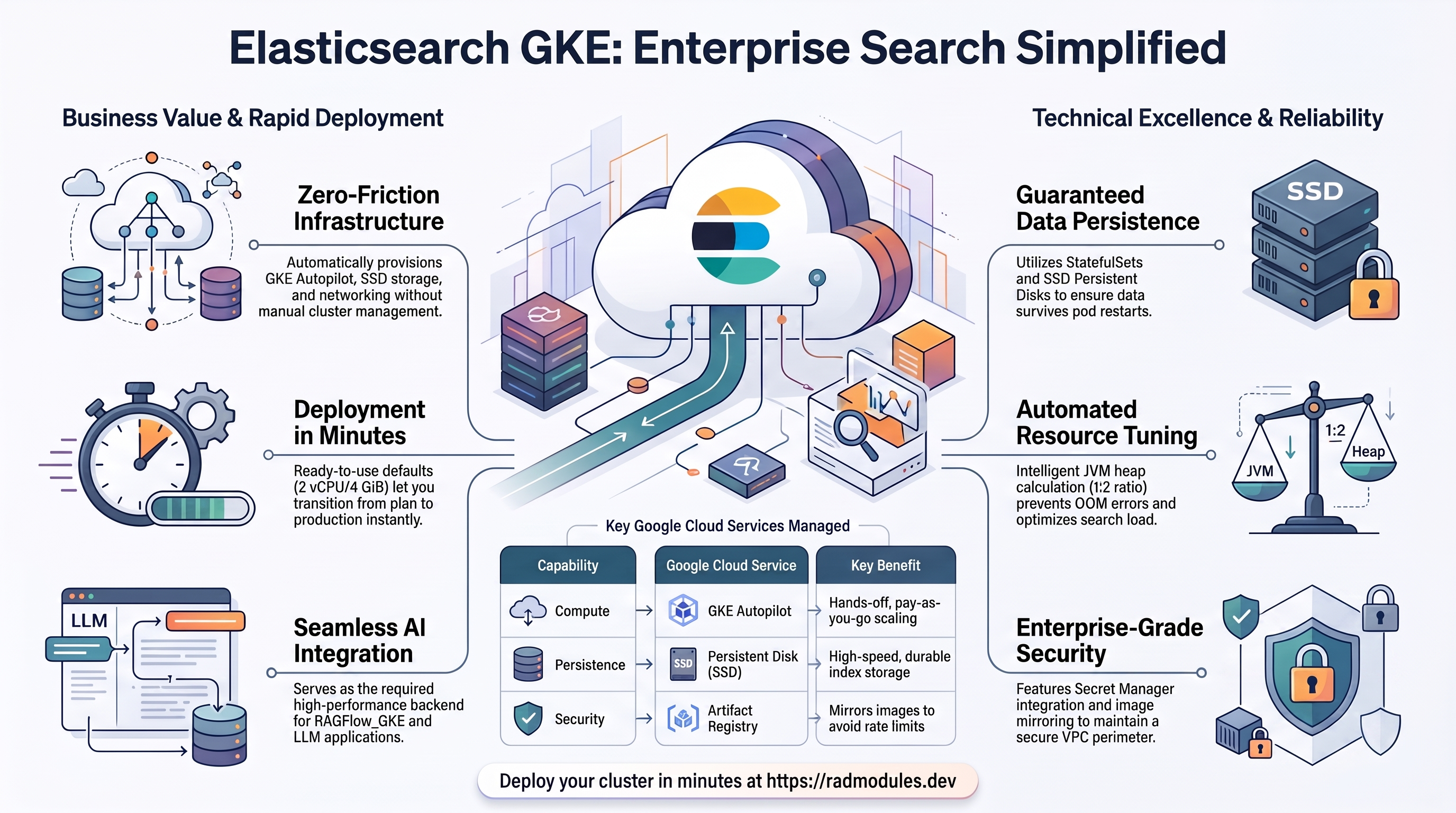

1. Overview

Elasticsearch runs as a StatefulSet workload. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Elasticsearch StatefulSet pod, 2 vCPU / 4 GiB by default
Persistent storage	Persistent Disk (SSD)	30 GiB PVC at /usr/share/elasticsearch/data, survives pod restarts
Secrets	Secret Manager	Optional secrets injected as environment variables
Ingress	Cloud Load Balancing	LoadBalancer Service on port 9200 for cross-namespace access
Image registry	Artifact Registry	Elasticsearch image mirrored from Elastic's registry

No Cloud SQL, no Redis, no GCS buckets — Elasticsearch is entirely self-contained; all data lives in its PVC.

Sensible defaults worth knowing up front:

• StatefulSet with PVC is the required workload type. Setting stateful_pvc_enabled = true (which auto-selects StatefulSet) gives each pod a dedicated SSD volume that survives restarts, rolling updates, and node evictions. Losing the PVC means losing all indexed data.
• Single-node mode (discovery.type = single-node) is enforced at plan time — max_instance_count is fixed at 1. Increasing it without changing the discovery type creates isolated single-node clusters, not a distributed cluster.
• JVM heap must be at most half of memory_limit. Elasticsearch needs the other half for OS page cache and JVM overhead. Violating this ratio triggers OOM kills under search load. A plan-time precondition enforces this rule.
• cluster_name is immutable after first index. Changing it after documents are indexed causes Elasticsearch to treat the existing PVC data as foreign and reject it. Choose a meaningful name before the first deploy.
• Termination grace period is 120 seconds to allow Elasticsearch to flush in-memory segment writes to disk cleanly before the pod is forcibly removed.
• This module is the required dependency for RAGFlow_GKE. After deployment, the elasticsearch_endpoint output (http://<external-ip>:9200) is passed to RAGFlow's elasticsearch_hosts variable.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Elasticsearch workload

Elasticsearch runs as a Kubernetes StatefulSet on GKE Autopilot. Autopilot bills for the CPU and memory the pod actually requests. A PodDisruptionBudget keeps the pod available during node upgrades.

• Console: Kubernetes Engine → Workloads → select the Elasticsearch StatefulSet to see pod status, events, and the PVC attachment. Kubernetes Engine → Services & Ingress shows the LoadBalancer external IP on port 9200.
• CLI:

  kubectl get statefulsets,pods,svc,pvc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" <pod-name> --tail=100
  kubectl describe pvc -n "$NAMESPACE"          # confirm PVC is Bound

See App_GKE for Autopilot scaling, PDB, and the StatefulSet lifecycle.

B. Persistent Disk — index storage

All Elasticsearch indexes and shard files reside on a Persistent Disk (SSD) backed PersistentVolumeClaim. The PVC is provisioned by the standard-rwo (or premium-rwo) StorageClass and mounted at /usr/share/elasticsearch/data.

• Console: Kubernetes Engine → Storage → PersistentVolumeClaims to see size and binding state. Compute Engine → Disks shows the underlying disk.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  kubectl describe pvc -n "$NAMESPACE" <pvc-name>
  # Check disk usage inside the pod:
  kubectl exec -n "$NAMESPACE" <pod-name> -- df -h /usr/share/elasticsearch/data

Monitor disk-fill watermarks — Elasticsearch switches indexes to read-only at 95% capacity by default. Plan PVC size with 50–100% headroom above expected data volume.

C. Elasticsearch service endpoint

The Elasticsearch HTTP API is exposed on port 9200 through a Kubernetes LoadBalancer Service. This external IP is the elasticsearch_endpoint output and is passed directly to RAGFlow and other consumers.

• Console: Kubernetes Engine → Services & Ingress → select the service for the external IP and port mapping.
• CLI:

  kubectl get svc -n "$NAMESPACE"
  # Verify the cluster is up and healthy:
  curl http://<elasticsearch-endpoint>/_cluster/health?pretty
  curl http://<elasticsearch-endpoint>/_cat/indices?v
  # List all indexes:
  curl http://<elasticsearch-endpoint>/_cat/indices?h=index,docs.count,store.size

D. Secret Manager

Optional secrets (such as custom credentials or API keys) are stored in Secret Manager and injected as environment variables at pod startup.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Artifact Registry — container image

The official docker.elastic.co/elasticsearch/elasticsearch:<version> image is mirrored into Artifact Registry before each deployment (when enable_image_mirroring = true). This avoids Elastic registry rate limits and keeps images within your VPC perimeter.

• Console: Artifact Registry → select the repository for tags, digests, and vulnerability scan results.
• CLI:

  gcloud artifacts repositories list --project "$PROJECT" --location "$REGION"
  gcloud artifacts docker images list "$REGION-docker.pkg.dev/$PROJECT/<repo>" --project "$PROJECT"

F. Networking & ingress

The LoadBalancer Service exposes Elasticsearch on port 9200. A static external IP can be reserved. Cloud Armor can be layered on the Ingress backend for WAF protection (though for Elasticsearch, network-level restrictions — firewall rules and enable_network_segmentation — are usually preferred over browser-facing WAF rules).

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, static IPs, and Cloud Armor details.

G. Cloud Logging & Monitoring

Pod stdout/stderr (Elasticsearch logs) flow to Cloud Logging. GKE metrics flow to Cloud Monitoring. Optional uptime checks can probe /_cluster/health.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Elasticsearch Application Behaviour

• Single-node operation. The module deploys Elasticsearch with discovery.type = single-node, which disables cluster coordination. This is the correct and supported mode for a one-pod deployment. Do not increase max_instance_count beyond 1 without also overriding discovery.type — running multiple single-node clusters in parallel results in data isolation, not distribution.
• Persistent index storage. All data lives in the PVC at /usr/share/elasticsearch/data. The path is enforced — changing stateful_pvc_mount_path without updating the path.data setting causes writes to land in the ephemeral container layer and be silently lost on the next pod restart.
• JVM heap sizing. ES_JAVA_OPTS is automatically set to -Xms<heap> -Xmx<heap> from the es_java_heap variable. Elasticsearch's heap must be no more than half of memory_limit — the rest is consumed by Lucene's off-heap segment cache, JVM metaspace, and native memory. A plan-time precondition enforces this rule.
• mmap disabled. GKE Autopilot does not allow privileged initContainers to raise vm.max_map_count. Accordingly, the module sets node.store.allow_mmap = false, which prevents mmap-based memory-mapped files and incurs a minor sequential-read penalty compared to mmap mode. This is a known GKE Autopilot constraint.
• Health probes are hardcoded to TCP, unconditionally. elasticsearch.tf sets both the startup probe and the liveness probe to type = "TCP" regardless of enable_xpack_security — a simple port-open check on 9200, not an HTTP request to /_cluster/health. The startup probe allows up to 60 attempts at a 10s period (≈10 minutes total, on top of a 30s initial delay) to accommodate cold-node provisioning, image pull, and JVM/shard-recovery boot time; the liveness probe uses a 60s initial delay, 30s period, and 3-attempt threshold. This is deliberate: an HTTP probe would return 401 Unauthorized once X-Pack security is enabled, and would fail before Elasticsearch's own bootstrap checks (implied passed once port 9200 is open) complete. The startup_probe_config and health_check_config variables have no effect on this module — App_GKE (modules.tf) always prefers the app-hardcoded probe over the value forwarded from these variables, so there is nothing for an operator to configure or override here, including when enable_xpack_security = true.
• X-Pack security is disabled by default. With enable_xpack_security = false, the HTTP endpoint accepts unauthenticated requests. Any caller who can reach port 9200 can read, write, or delete all indexes. This is acceptable for a cluster accessible only within the VPC; enable it for public or multi-tenant deployments.
• X-Pack auth is fully automated when enabled. Setting enable_xpack_security = true triggers elasticsearch_auth.tf to generate a random password, store it in Secret Manager as secret-<prefix>-<application_name>-elastic-password, and inject it into the container as ELASTIC_PASSWORD — the official image bootstraps the elastic superuser with this value on first start of an empty data directory. No operator setup is required. The username (always elastic) and the secret ID are exposed via the elasticsearch_username and elasticsearch_password_secret_id outputs (see Outputs) — retrieve the password with gcloud secrets versions access latest --secret=<elasticsearch_password_secret_id>. Consuming modules such as RAGFlow or Zammad can reference the same secret ID deterministically to authenticate against this cluster.
• Cluster name is baked into node identity. Changing cluster_name after the first index is created causes Elasticsearch to treat the existing PVC data as foreign and fail to start. A rename requires destroying the PVC and re-indexing all documents.
• No initialization jobs are required. Elasticsearch bootstraps itself on first start. There is no database or user creation step.
• Termination grace period. Kubernetes waits 120 seconds after sending SIGTERM before forcibly killing the pod. This allows Elasticsearch to flush translog entries and close shards cleanly, avoiding a potentially slow recovery from the translog on the next startup.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Elasticsearch are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources for cost/ownership tracking.

Group 3 — Application Identity

Variable	Default	Description
application_name	elasticsearch	Base name for resources. Do not change after first deploy.
application_display_name	Elasticsearch	Friendly name shown in the Console.
application_description	(set)	Workload description annotation.
application_version	8.13.4	Elasticsearch image version tag; increment to roll out a new version.
cluster_name	ragflow	Sets cluster.name inside Elasticsearch. Immutable after first index — rename requires full PVC destroy and re-index.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision the namespace and IAM without deploying the workload.
container_image_source	prebuilt	Always prebuilt — Elasticsearch uses the official Elastic image.
container_image	""	Override image URI; leave empty to use the official Elasticsearch image.
enable_image_mirroring	true	Mirror the image from Elastic's registry into Artifact Registry before deploy.
min_instance_count	1	Keep at 1 for single-node mode.
max_instance_count	1	Fixed at 1 — enforced at plan time. Increasing without overriding discovery.type creates isolated clusters.
container_port	9200	Elasticsearch HTTP API port.
cpu_limit	2000m	CPU per pod. 2 vCPU is the recommended baseline; scale to 4000m for heavy indexing.
memory_limit	4Gi	Memory per pod. Must be at least 2× es_java_heap.
es_java_heap	512m	JVM heap (-Xms and -Xmx). Must be ≤ half of memory_limit — enforced at plan time.
enable_xpack_security	false	Enable X-Pack security (authentication). When false, port 9200 is unauthenticated.
enable_vertical_pod_autoscaling	false	Let Autopilot tune resource requests automatically.
timeout_seconds	300	Load balancer backend timeout (0–3600 seconds).
termination_grace_period_seconds	120	Seconds Kubernetes waits after SIGTERM for segment flush before force-killing.
deployment_timeout	1800	Seconds Terraform waits for the StatefulSet rollout to complete.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra env vars merged into the container after the auto-injected Elasticsearch settings; can override any auto-set value (e.g., discovery.type, ES_JAVA_OPTS).
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_rotation_period	2592000s	Secret Manager rotation notification cadence.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
gke_cluster_name	""	GKE cluster name; leave empty for auto-discovery.
namespace_name	""	Kubernetes namespace; auto-generated when empty.
workload_type	null	Auto-resolves to StatefulSet when stateful_pvc_enabled = true.
service_type	LoadBalancer	LoadBalancer is required for cross-namespace access from RAGFlow. Use ClusterIP only when both workloads share the same namespace.
session_affinity	None	Session affinity. None is correct for Elasticsearch (stateless HTTP).
enable_network_segmentation	false	Create Kubernetes NetworkPolicy resources to restrict ingress/egress.
termination_grace_period_seconds	120	Also shown in Group 4; set once here.
deployment_timeout	1800	Also shown in Group 4; set once here.
network_tags	["nfsserver"]	GKE node/pod network tags for firewall rules.

Group 7 — StatefulSet & Persistence

Data persistence is critical — all Elasticsearch index data lives in the PVC.

Variable	Default	Description
stateful_pvc_enabled	null	Set true for all deployments — auto-selects StatefulSet. Without a PVC, all indexes are lost on every pod restart.
stateful_pvc_size	30Gi	PVC size. Plan with 50–100% headroom; Elasticsearch goes read-only at 95% disk use.
stateful_pvc_mount_path	/usr/share/elasticsearch/data	Do not change — must match Elasticsearch's path.data setting.
stateful_pvc_storage_class	standard-rwo	StorageClass. Use premium-rwo for high-throughput vector kNN indexing. StorageClass cannot be changed after PVC creation.
stateful_headless_service	null	Set true to create a headless Service for stable pod DNS entries.
stateful_pod_management_policy	null	OrderedReady or Parallel.
stateful_update_strategy	null	RollingUpdate or OnDelete.
stateful_fs_group	0	Inert for this module. elasticsearch.tf and main.tf hardcode stateful_fs_group = 1000 (Elasticsearch's UID/GID) unconditionally on the call into App_GKE; this variable's value is never read. Declared for App_GKE interface compatibility only — no operator action is needed.

Group 8 — Resource Quota

Variable	Default	Description
enable_resource_quota	false	Cap namespace CPU/memory/object counts.
quota_cpu_requests / quota_cpu_limits	""	CPU quota strings (e.g., "4000m").
quota_memory_requests / quota_memory_limits	""	Must use binary units (4Gi, 8192Mi) — bare integers are read as bytes by Kubernetes and block all pod scheduling.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	true	Protect availability during node upgrades.
pdb_min_available	1	For a single-node cluster, "1" prevents any voluntary disruption — scale to 2+ replicas before reducing this.
enable_topology_spread	false	Spread pods across zones.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe_config	HTTP /_cluster/health, 18 retries	Inert for this module. The module always deploys a hardcoded TCP startup probe (30s initial delay, 60-attempt threshold) regardless of this variable's value — no operator action needed, including when enable_xpack_security = true. See Application Behaviour.
health_check_config	HTTP /_cluster/health, 3 retries	Inert for this module. The module always deploys a hardcoded TCP liveness probe (60s initial delay, 3-attempt threshold) regardless of this variable's value — no operator action needed.
uptime_check_config	disabled	Optional Cloud Monitoring uptime check against /_cluster/health.
alert_policies	[]	Optional metric alert policies.

Group 11 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Kubernetes Jobs run before the Elasticsearch pod starts. Not required for Elasticsearch — it bootstraps itself.
cron_jobs	[]	Recurring Kubernetes CronJobs (e.g., index lifecycle management tasks).
additional_services	[]	Sidecar or helper GKE services deployed alongside Elasticsearch.

Group 12 — CI/CD & GitHub Integration

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization, binauthz_evaluation_mode.

Group 13 — Filesystem (NFS)

NFS is not required for Elasticsearch — all data lives in the StatefulSet PVC. The NFS variables are present for foundation-interface compatibility but default to disabled (enable_nfs = false). See App_GKE for details.

Group 14 — Cloud Storage & Artifact Registry

Cloud Storage buckets are not required for Elasticsearch (create_cloud_storage = false by default). The Artifact Registry variables control the image retention policy for the mirrored Elasticsearch image:

Variable	Default	Description
max_images_to_retain	7	Maximum recent images to keep in Artifact Registry.
delete_untagged_images	true	Automatically delete untagged images.
image_retention_days	30	Age after which images are eligible for deletion.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK encryption options.

Group 17 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Backup cron schedule (UTC). For Elasticsearch, consider native Elasticsearch Snapshots to GCS rather than OS-level backups.
backup_retention_days	7	Retention in days; raise for production/compliance.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision Ingress for custom hostname + managed certificate. Only takes effect once application_domains is non-empty.
application_domains	[]	Hostnames to serve.
reserve_static_ip	true	Stable external IP across redeploys.
network_tags	["nfsserver"]	GKE pod network tags for firewall rules.

Group 20 — Identity-Aware Proxy (IAP)

IAP is not recommended for Elasticsearch — use network-level controls (enable_network_segmentation, firewall rules) instead. IAP variables are present for completeness.

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of Elasticsearch.
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled.
iap_support_email	""	Shown on the OAuth consent screen.

Group 21 — Cloud Armor

Variable	Default	Description
enable_cloud_armor	false	Attach a Cloud Armor (WAF) policy to the Ingress backend.
admin_ip_ranges	[]	CIDRs allowed privileged access.
cloud_armor_policy_name	default-waf-policy	Policy name.
enable_cdn	false	Not applicable for Elasticsearch.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
elasticsearch_endpoint	Primary output for RAGFlow. http://<service_external_ip>:9200. Pass this to RAGFlow_GKE's elasticsearch_hosts variable. Returns null until the external IP is assigned.
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services (Cloud Deploy).
service_external_ip	External LoadBalancer IP.
api_url	Service URL.
statefulset_name	Name of the StatefulSet resource.
storage_buckets	Created Cloud Storage buckets (empty list — no buckets are provisioned).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs	Names of any setup jobs run before the workload.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	Connected GitHub repository details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	true when the cluster endpoint is available and all workload resources are deployed. false on the first apply of a new cluster — the CI/CD pipeline must re-run apply to complete the deployment.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.
elasticsearch_username	Elasticsearch superuser username. Always "elastic". Only meaningful when enable_xpack_security = true.
elasticsearch_password_secret_id	Secret Manager secret ID holding the auto-generated elastic superuser password. Empty string when enable_xpack_security = false.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
stateful_pvc_enabled	true	Critical	Without a PVC all indexes are stored in the ephemeral pod filesystem and permanently lost on every restart, rolling update, or node eviction.
stateful_pvc_mount_path	/usr/share/elasticsearch/data	Critical	Must match path.data. A mismatch silently writes indexes to the ephemeral layer — data is lost on each restart.
cluster_name	set once	Critical	Immutable after first index. Renaming causes Elasticsearch to reject all PVC data as foreign; a full re-index is required.
es_java_heap vs memory_limit	heap ≤ memory_limit / 2	Critical	Heap exceeding half the container memory competes with Lucene's page cache; OOM kills occur under search load. Plan-time precondition enforces this.
stateful_fs_group	n/a — hardcoded	n/a	The module always passes stateful_fs_group = 1000 (Elasticsearch's UID/GID) to App_GKE, regardless of this variable. Not an operator concern; listed here only because the variable exists on the interface.
max_instance_count	1	Critical	Increasing without overriding discovery.type creates isolated single-node clusters. Enforced at plan time.
quota_memory_requests / _limits	binary units (4Gi)	Critical	Bare integers are bytes and block all scheduling immediately.
enable_xpack_security	true for production	High	With false, any caller who can reach port 9200 can read, write, or delete all indexes without credentials.
stateful_pvc_size	size with 50–100% headroom	High	An undersized PVC triggers flood-stage watermark protection at 95% full; the index becomes read-only.
stateful_pvc_storage_class	standard-rwo (or premium-rwo for production)	Medium	standard-rwo is adequate for typical search workloads; high-throughput vector kNN indexing benefits from premium-rwo. StorageClass cannot be changed after PVC creation.
memory_limit	≥ 2 × es_java_heap	Critical	Insufficient memory headroom triggers OOM kills during search/indexing.
startup_probe_config / health_check_config	n/a — hardcoded to TCP	n/a	The module always deploys hardcoded TCP probes regardless of these variables' values, so an HTTP-vs-X-Pack mismatch cannot occur; there is nothing to override. Listed here only because the variables exist on the interface.
enable_image_mirroring	true	Low	Disabling mirroring pulls directly from Elastic's registry; rate limits can cause intermittent deployment failures.
application_version	8.13.4 (or locked version)	Medium	Major version upgrades (7.x → 8.x) may require index compatibility checks; do not upgrade without reviewing the Elasticsearch migration guide.
pdb_min_available vs min_instance_count	headroom	Medium	pdb_min_available = "1" with a single-pod cluster prevents any voluntary disruption (e.g., node upgrades) from proceeding. Scale to 2+ pods or accept the constraint.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE.

Related guides

• Hands-on lab: Elasticsearch on GKE Autopilot — deploy it step by step, with the console screens and commands at each stage.
• Deployed alongside MongoDB on GKE Autopilot, Meilisearch on GKE Autopilot, Qdrant on Google Cloud Run in the Shared Data Services solution.
