Coder on GKE Autopilot

Coder is an open-source, self-hosted platform for provisioning remote development environments ("workspaces") defined as code with Terraform. It ships as a single Go binary (coder server) that serves the control-plane web UI/API and proxies WebSocket connections for browser IDEs and terminal sessions to running workspaces. This module deploys the Coder control plane on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure. Provisioning actual workspaces additionally requires a configured provisioner and a compute target (for example a Kubernetes cluster or a cloud VM template) set up post-deploy — this module only stands up the control plane.

This guide focuses on the cloud services Coder uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

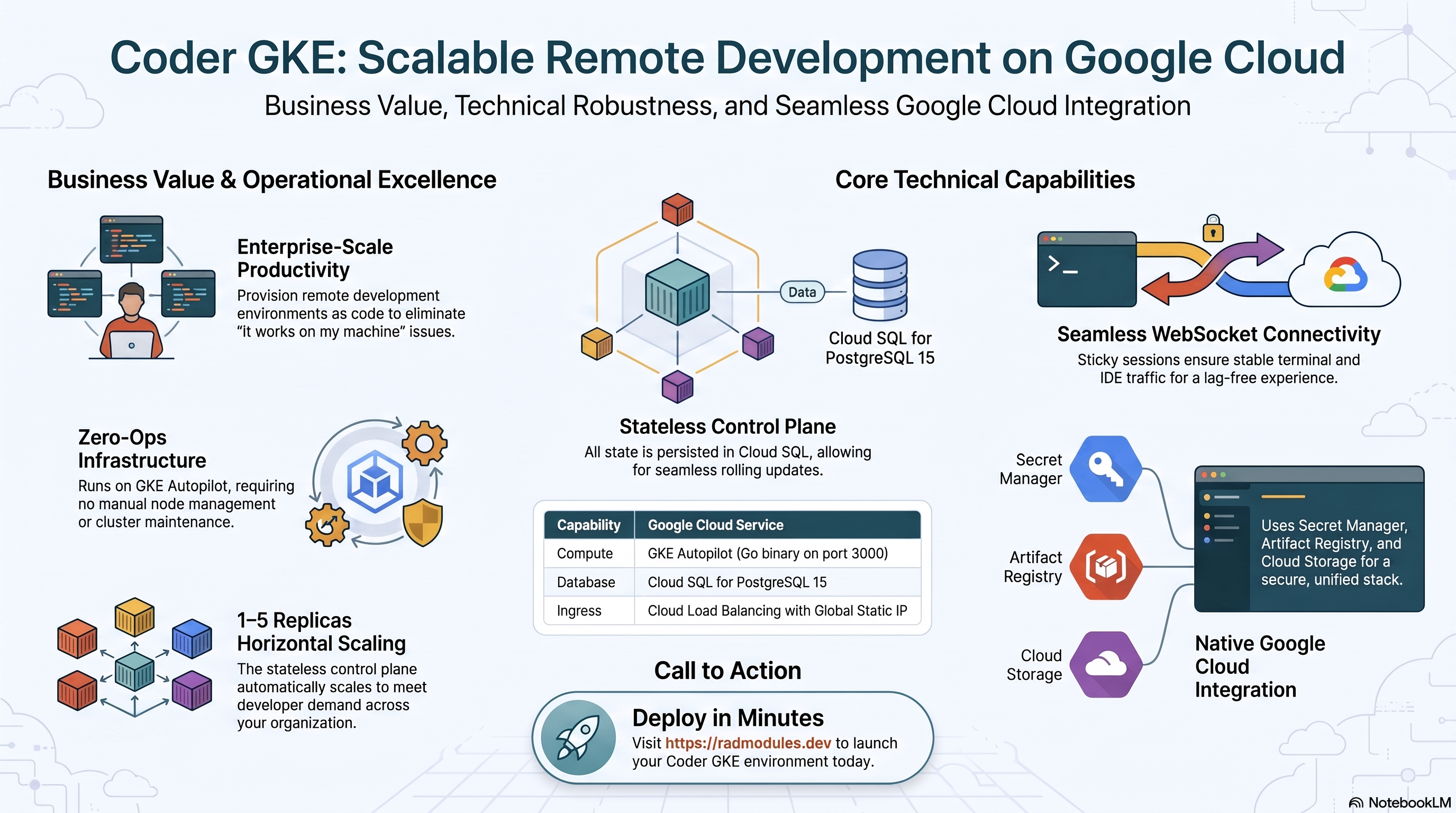

1. Overview

Coder's control plane is stateless — all state, including its self-generated signing keys, lives in PostgreSQL — so the deployment wires together a small, focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Go binary on port 3000, 2 vCPU / 4 GiB by default, HPA-scaled 1–5 replicas
Database	Cloud SQL for PostgreSQL 15	Required — MySQL is rejected at plan time
Object storage	Cloud Storage	A storage bucket provisioned automatically by Coder_Common
Secrets	Secret Manager	Only the Foundation-managed database password — Coder has no application secret of its own
Ingress	Cloud Load Balancing	Kubernetes Ingress with a reserved global static IP; optional custom domain
Container build	Cloud Build + Artifact Registry	Wraps the upstream ghcr.io/coder/coder image with a cloud entrypoint

Sensible defaults worth knowing up front:

• PostgreSQL 15 is required. database_type defaults to POSTGRES_15; a plan-time validation in validation.tf rejects anything that isn't POSTGRES_13/14/15/NONE — MySQL is not supported.
• container_image_source = "custom" is required, not optional. The upstream ghcr.io/coder/coder image cannot parse the Foundation's DB wiring on its own; Cloud Build wraps it with a cloud entrypoint that assembles CODER_PG_CONNECTION_URL and CODER_ACCESS_URL at container start.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. GKE injects DB_HOST = 127.0.0.1; the entrypoint builds a postgres:// DSN with sslmode=disable (the proxy already TLS-terminates the connection) and URL-encodes the password.
• No NFS, no Redis, and no application secret. All Coder state — workspaces, templates, users, sessions, build queue, and self-generated signing keys — lives in PostgreSQL. enable_nfs and enable_redis both default false and are not needed for normal operation.
• No separate migration job. Coder runs its own schema migrations on boot; the only initialization job is db-init, which creates the empty database and role.
• Horizontally scalable by default. min_instance_count = 1, max_instance_count = 5 — the stateless control plane can run multiple replicas against the shared database, unlike single-instance stateful apps.
• session_affinity = ClientIP keeps a browser's WebSocket-heavy terminal/IDE traffic pinned to the same pod across the session.
• Ingress and a static IP are provisioned out of the box (enable_custom_domain = true, reserve_static_ip = true).

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Coder control-plane workload

Coder pods run on Autopilot, billed for the CPU/memory the pods actually request. Because the control plane is stateless, the workload runs as a standard Deployment with a RollingUpdate strategy (no NFS-backed Recreate constraint) and is safe to scale horizontally.

• Console: Kubernetes Engine → Workloads → select the Coder workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl get hpa -n "$NAMESPACE"

See App_GKE for how Autopilot, HPA scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

Coder stores everything — workspaces, templates, users, audit logs, sessions, and its own signing keys — in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:5432; no public IP is exposed. On first deploy the db-init job creates the application database and role; Coder's own migration engine then creates the schema on server boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Cloud Storage

A dedicated Cloud Storage bucket (suffix storage) is provisioned automatically by Coder_Common and the workload service account is granted access. It is not currently mounted into the Coder container by default — Coder does not require a shared filesystem, since state lives in PostgreSQL.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~storage"

See App_GKE for CMEK options and GCS Fuse mounts (gcs_volumes) if you need to attach one for a custom workflow.

D. Secret Manager

Coder is unusual among stateful applications in that it creates no application secret of its own — it self-generates its signing keys and persists them in the coder PostgreSQL database on first boot. The only credential Secret Manager holds is the Foundation-managed database password. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~coder"
  gcloud secrets versions access latest --secret=<db-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through a Kubernetes Ingress backed by a global static IP (reserve_static_ip = true so the address survives redeploys). A custom domain with a Google-managed certificate can be enabled via application_domains. Because Coder proxies long-lived WebSocket connections for the web terminal and workspace app traffic, keep session_affinity = ClientIP so a client's requests land on the same pod for the life of a session.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime_check_config is disabled by default).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Coder Application Behaviour

• First-deploy database setup, no separate migration job. The db-init job runs db-init.sh using postgres:15-alpine. It waits for the Cloud SQL Auth Proxy sidecar, idempotently creates the coder role and database, grants privileges, and reassigns the public schema owner, then signals the proxy sidecar to shut down (--quitquitquit) so the Job pod completes. Coder then runs its own schema migrations on server boot — there is no dedicated migrate job, unlike apps with a separate db-migrate step.
• No admin account is pre-provisioned. The first user to reach the web UI after a successful boot completes Coder's interactive first-run setup (creating the initial admin account). There is no auto-generated admin password secret to retrieve.
• DSN assembly at container start, not baked into the image. entrypoint.sh (in Coder_Common/scripts/) builds CODER_PG_CONNECTION_URL from the Foundation-injected DB_* values, because Coder's Go driver expects a postgres:// URL and cannot parse the libpq keyword form. On GKE, DB_HOST=127.0.0.1 (the Auth Proxy sidecar) resolves to sslmode=disable; the password is RFC-3986 percent-encoded so special characters don't break the URL. CODER_ACCESS_URL defaults to the Foundation-injected GKE_SERVICE_URL.
• WebSocket-heavy traffic needs sticky routing. The web terminal, workspace app proxying, and the CLI's coder ssh/port-forward all ride long-lived WebSocket connections through the control plane. Keep session_affinity = ClientIP (the default) so a client's connection persists against one pod; scaling max_instance_count above 1 is safe for the stateless control plane itself, but an in-flight WebSocket session does not migrate between pods if one is drained mid-session.
• Health probe paths. Startup and liveness probes both target HTTP GET /health with a 60-second initial delay; the startup probe allows up to 30 failures at a 15-second period to absorb Coder's first-boot schema migration. The Common-supplied readiness probe (used by the Foundation's additional_services/readiness wiring) targets GET /healthz separately.
• Telemetry is disabled by default (CODER_TELEMETRY_ENABLE = "false"), and CODER_VERBOSE = "false".
• Control plane only — workspaces need a provisioner + target. This module deploys coder server; running actual workspaces additionally requires configuring a provisioner and a compute target (for example another Kubernetes cluster/namespace, or cloud VM templates) through Coder's template system after first login.
• Verify the deployment:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep CODER_
  curl -s https://<service-url>/healthz

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Coder are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	coder	Base name for resources. Do not change after first deploy.
application_version	latest	Coder release tag; latest maps to a pinned tag (v2.24.1) via the app-specific CODER_VERSION build ARG so it never resolves against a non-existent ghcr.io/coder/coder:latest.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	custom	Required — the upstream image cannot be deployed prebuilt; Cloud Build wraps it with the DSN-assembling entrypoint.
container_port	3000	Coder's CODER_HTTP_ADDRESS bind port.
container_resources	cpu_limit=2000m, memory_limit=4Gi	2 vCPU / 4 GiB default for the control plane.
min_instance_count / max_instance_count	1 / 5	HPA replica bounds — the stateless control plane scales horizontally against the shared database.
enable_cloudsql_volume	true	Auth Proxy sidecar (loopback) — required on GKE; a plan-time guard rejects it when database_type = "NONE".
enable_image_mirroring	true	Always on for Coder — the GHCR-sourced base image is mirrored into Artifact Registry.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Coder UI/API.
workload_type	null → Deployment	Deployment (stateless, standard RollingUpdate).
session_affinity	ClientIP	Sticky routing so a client's WebSocket session reaches the same pod.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	Not required — all state is in PostgreSQL. If enabled, nfs_mount_path must be a real directory, never a subpath of /opt/coder (the coder binary, a file).
nfs_mount_path	/home/coder/data	Only used when enable_nfs = true.

Group 15 — Redis

Variable	Default	Description
enable_redis	false	Not required — sessions and the build queue live in PostgreSQL, unlike apps that need an external cache/queue.
redis_host	""	Only relevant if enable_redis = true; a plan-time guard requires either redis_host or enable_nfs = true.

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Coder requires PostgreSQL 13+; MySQL is rejected at plan time (validation.tf).
application_database_name	coder	Database name. Immutable after first deploy — renaming recreates the DB and orphans all Coder state.
application_database_user	coder	Application database user; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	A Kubernetes Ingress is provisioned out of the box.
reserve_static_ip	true	Stable external IP across redeploys.
application_domains	[]	Custom hostnames + managed certificate.

All other inputs follow standard App_GKE behaviour. Note: elasticsearch_url, elasticsearch_username, and elasticsearch_password_secret are declared in variables.tf for catalogue parity but are not forwarded to the Foundation call in main.tf — Coder has no Elasticsearch integration in this module, so setting them has no effect.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Coder.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — an out-of-range instance count, IAP enabled with no OAuth credentials, quota_memory_* given as bare integers. Coder_GKE additionally layers its own guards in validation.tf (PostgreSQL-only database_type, the Redis host/NFS precondition, the Cloud SQL volume vs database_type = "NONE" conflict). Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15 (or 13/14)	Critical	Any non-PostgreSQL engine is rejected at plan time; forcing one around the guard breaks every query Coder issues.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all workspaces, templates, users, and self-generated signing keys.
container_image_source	custom	Critical	Switching to prebuilt points GKE at the raw ghcr.io/coder/coder image, which cannot assemble CODER_PG_CONNECTION_URL from the Foundation's DB vars and fails to boot.
enable_cloudsql_volume	true	Critical	Required for DB connectivity on GKE; a plan-time guard also blocks it when database_type = "NONE" to avoid a proxy sidecar with nothing to connect to.
nfs_mount_path (if enable_nfs=true)	A real directory, e.g. /home/coder/data	Critical	Mounting over /opt/coder — the coder binary itself — hides the executable and the container fails to start.
session_affinity	ClientIP	High	Without stickiness, an in-flight WebSocket terminal/IDE session can be routed to a different pod mid-session and drop.
enable_redis	false	Medium	Not needed — enabling it without redis_host set or enable_nfs=true fails plan-time validation; even correctly configured it adds an unused dependency since Coder keeps all state in PostgreSQL.
max_instance_count	5 (adjust to load)	Medium	Safe to raise for a stateless control plane, but each replica still opens its own DB connection pool — watch Cloud SQL max_connections at high replica counts.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS, CODER_ACCESS_URL, and any registered OAuth/OIDC redirect.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention of workspace/template history.
elasticsearch_url / elasticsearch_username / elasticsearch_password_secret	Leave unset	Low	Inert in this module (not forwarded to the Foundation call) — setting them has no effect and does not enable search integration.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Coder-specific application configuration shared with the Cloud Run variant is described in Coder_Common.
