code-server on Google Cloud Run

code-server is Coder's open-source (MIT) build of Visual Studio Code that runs on a remote server and is accessed entirely through the browser — a full IDE with the VS Code extension marketplace, integrated terminal, and language servers, backed by a persistent workspace. This module deploys code-server on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services code-server uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

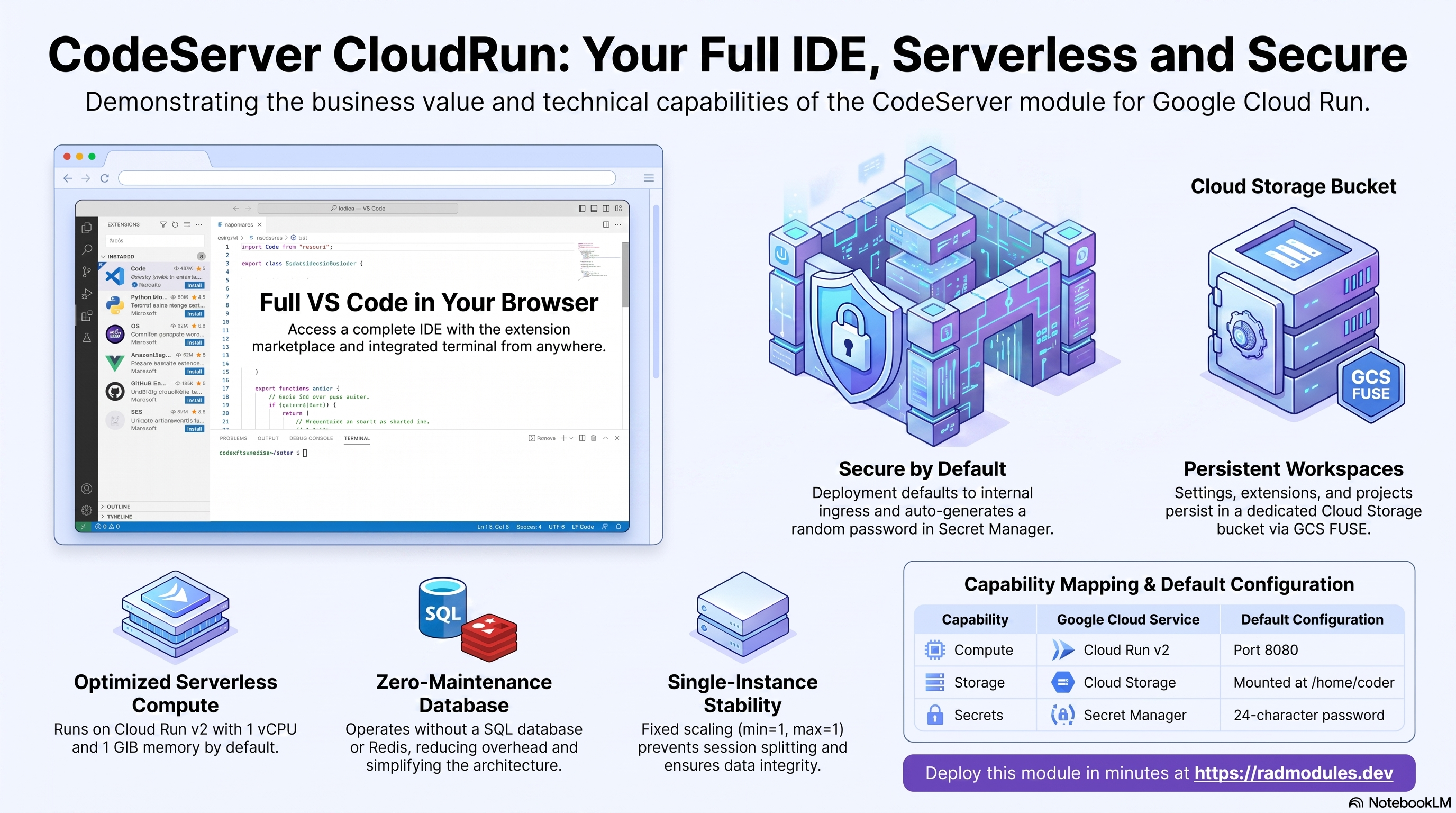

1. Overview

code-server runs as a single self-contained container on Cloud Run v2. Unlike database-backed apps, it wires together a deliberately minimal set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Single container listening on port 8080; 1 vCPU / 1 GiB by default
Persistent workspace	Cloud Storage (GCS FUSE)	Workspace bucket mounted at /home/coder; provisioned automatically
Database	None	database_type = NONE — code-server has no SQL database
Cache & queue	None	Redis is explicitly disabled (enable_redis = false)
Secrets	Secret Manager	Auto-generated editor PASSWORD (when enable_password = true)
Ingress	Cloud Run URL / Cloud Load Balancing	Default ingress is internal — private by default; opt into public access

Sensible defaults worth knowing up front:

• No database and no Redis. code-server is a single container; all state lives in the workspace volume. database_type is fixed to NONE by the shared application layer and Redis is disabled.
• Ingress is internal by default. The service is reachable only from inside the VPC out of the box. Set ingress_settings = "all" (and keep enable_password = true) to expose the editor publicly, or front it with an HTTPS load balancer.
• A random editor PASSWORD is generated automatically and stored in Secret Manager. It gates the login page. Disabling enable_password serves the editor with no authentication — only safe behind internal ingress.
• The workspace is on GCS FUSE at /home/coder. Settings, extensions, and open projects persist there. Requires the gen2 execution environment (the default).
• Single instance by design. min_instance_count = max_instance_count = 1. code-server holds per-session editor state in memory and owns one workspace volume; scaling beyond one instance would split sessions and risk concurrent writes to the same volume.
• Health probes hit /healthz, not /health. /healthz is unauthenticated and returns 200 once the server is listening; /health returns 401 when a password is set and would fail the probe.
• The image is a thin wrapper over codercom/code-server, built and mirrored into Artifact Registry via Cloud Build; latest pins to 4.99.1 at build time.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the code-server service

code-server runs as a Cloud Run v2 service listening on port 8080. Each deployment creates an immutable revision; because the app is single-instance and stateful, keep min = max = 1 and avoid traffic splitting across concurrent revisions.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION" --filter="metadata.name~codeserver"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — the workspace volume

The single stateful resource. A dedicated Cloud Storage bucket is provisioned automatically and mounted as a GCS FUSE volume at /home/coder, holding the user's workspace, VS Code settings, and installed extensions. It survives revision redeploys and scale events.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~codeserver"
  gcloud storage ls gs://<workspace-bucket>/          # bucket name is in the Outputs

GCS FUSE requires the gen2 execution environment (the default). See App_CloudRun for GCS FUSE and CMEK options.

C. Secret Manager — the editor password

When enable_password = true (default), a 24-character random PASSWORD is generated and stored in Secret Manager, then injected as the container's PASSWORD env var to gate the login page. There is no database password (no database).

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~codeserver AND name~password"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for secret injection and rotation details.

D. Networking & ingress

The service defaults to internal ingress — reachable only from within the VPC. To make the editor usable from a browser on the public internet, set ingress_settings = "all" (keep the password enabled), or layer an external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies. A public endpoint is required for an uptime check to reach the service.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. code-server Application Behaviour

• No first-deploy database setup. code-server has no SQL database and no initialization job. The service comes up as soon as the container starts and binds to 0.0.0.0:8080 (set via BIND_ADDR).
• No migrations. Upgrading the application_version simply rolls a new revision on the newer image; there is no schema to migrate.
• The workspace is the only durable state. Everything under /home/coder — open folders, settings.json, keybindings, and every installed extension — persists in the GCS FUSE bucket. Deleting the bucket wipes the workspace.
• Login is gated by the PASSWORD secret. With enable_password = true, the editor prompts for the generated password. Retrieve it from Secret Manager (§2C). With it disabled, anyone reaching the URL gets an unauthenticated IDE — only run that way behind internal ingress.
• Health path. Startup and liveness probes target the unauthenticated /healthz endpoint (returns 200 once the HTTP server is listening). Do not point probes at /health when a password is set — it returns 401 and the revision never becomes Ready. Verify the running revision's env and port:

  gcloud run services describe <service-name> \
    --region "$REGION" --project "$PROJECT" \
    --format='value(spec.template.spec.containers[0].env)'

• Single-instance scaling. Keep min = max = 1. Editor sessions are held in memory and the workspace volume has a single writer.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for code-server are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	codeserver	Base name for resources. Do not change after first deploy.
application_display_name	code-server	Human-readable name shown in the Console.
application_version	latest	code-server image tag; latest pins to 4.99.1 at build time. Pin to a specific release in production.
enable_password	true	Generate a random editor PASSWORD and require it at login. Leave enabled for any publicly reachable deployment.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per instance; raise for heavy language servers.
memory_limit	1Gi	Memory per instance; size to the workspaces and extensions you run.
min_instance_count	1	Keep at 1 — single-instance editor; avoids cold-start delays during index loading.
max_instance_count	1	Keep at 1 — one workspace volume, in-memory session.
container_port	8080	code-server listens on 8080.
execution_environment	gen2	Required for GCS FUSE (workspace mount) and NFS.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	code-server has no Cloud SQL — keep false.
enable_image_mirroring	true	Mirror the code-server image into Artifact Registry.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	internal	Private by default. Set all for public browser access (keep the password on).
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in in front of the editor.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings (e.g. { TZ = "UTC" }). BIND_ADDR is set automatically.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.

Group 11 — Storage & Filesystem

Variable	Default	Description
enable_nfs	false	NFS is off by default; the workspace uses GCS FUSE, not NFS.
nfs_mount_path	/mnt/nfs	Mount path if NFS is enabled.
gcs_volumes	[]	Additional GCS FUSE mounts; the workspace bucket is added automatically at /home/coder.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Not referenced — code-server has no SQL database; fixed to NONE by CodeServer_Common.
database_password_length	32	Not referenced — forwarded to the foundation for compatibility.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /healthz 15s delay	Startup probe; uses the unauthenticated endpoint.
liveness_probe	HTTP /healthz 30s delay	Liveness probe; uses the unauthenticated endpoint.
health_check_config	HTTP /health	Alternative structured probe (authed endpoint).
uptime_check_config	{ enabled=false, path="/health" }	Optional Cloud Monitoring uptime check (needs a public endpoint).
alert_policies	[]	Metric alert policies.

Group 23 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

All other inputs follow standard App_CloudRun behaviour.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
codeserver_url	URL of the code-server editor (port 8080). Reachable only within the VPC when ingress is internal.
service_location	Region the service runs in.
stage_services	Stage-specific service details (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets (the workspace bucket).
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any user-supplied init jobs (none by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a gen1 runtime with GCS FUSE/NFS mounts, IAP with no authorized identities, an out-of-range timeout_seconds, and so on. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
enable_password	true (keep on for public ingress)	Critical	Disabling with ingress_settings = "all" exposes a fully unauthenticated IDE — including a terminal — to the internet.
Workspace bucket	Never delete	Critical	The GCS FUSE bucket at /home/coder is the only persistent state; deleting it wipes all settings, extensions, and files.
startup_probe / liveness_probe path	/healthz	High	Pointing probes at /health while a password is set returns 401; the revision never becomes Ready.
max_instance_count	1	High	Scaling beyond 1 splits editor sessions across instances and risks concurrent writes to the single workspace volume.
min_instance_count	1	Medium	Scale-to-zero (0) adds cold-start latency and re-mounts the workspace on the next request.
execution_environment	gen2	High	gen1 cannot mount GCS FUSE — the workspace volume fails and state is lost on restart.
ingress_settings	internal (or all + password)	High	all without a password publishes an open IDE; internal blocks all browser access from outside the VPC.
enable_cloudsql_volume	false	Low	code-server has no database; enabling adds an unused Auth Proxy sidecar.
memory_limit	1Gi+	Medium	Heavy language servers/extensions can OOM below 1 GiB.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. code-server-specific application configuration shared with the GKE variant is described in CodeServer_Common.
