Budibase on Google Cloud Run

Budibase is an open-source low-code platform for building internal tools, business apps, and workflows on top of your data. This module deploys Budibase on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Budibase uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

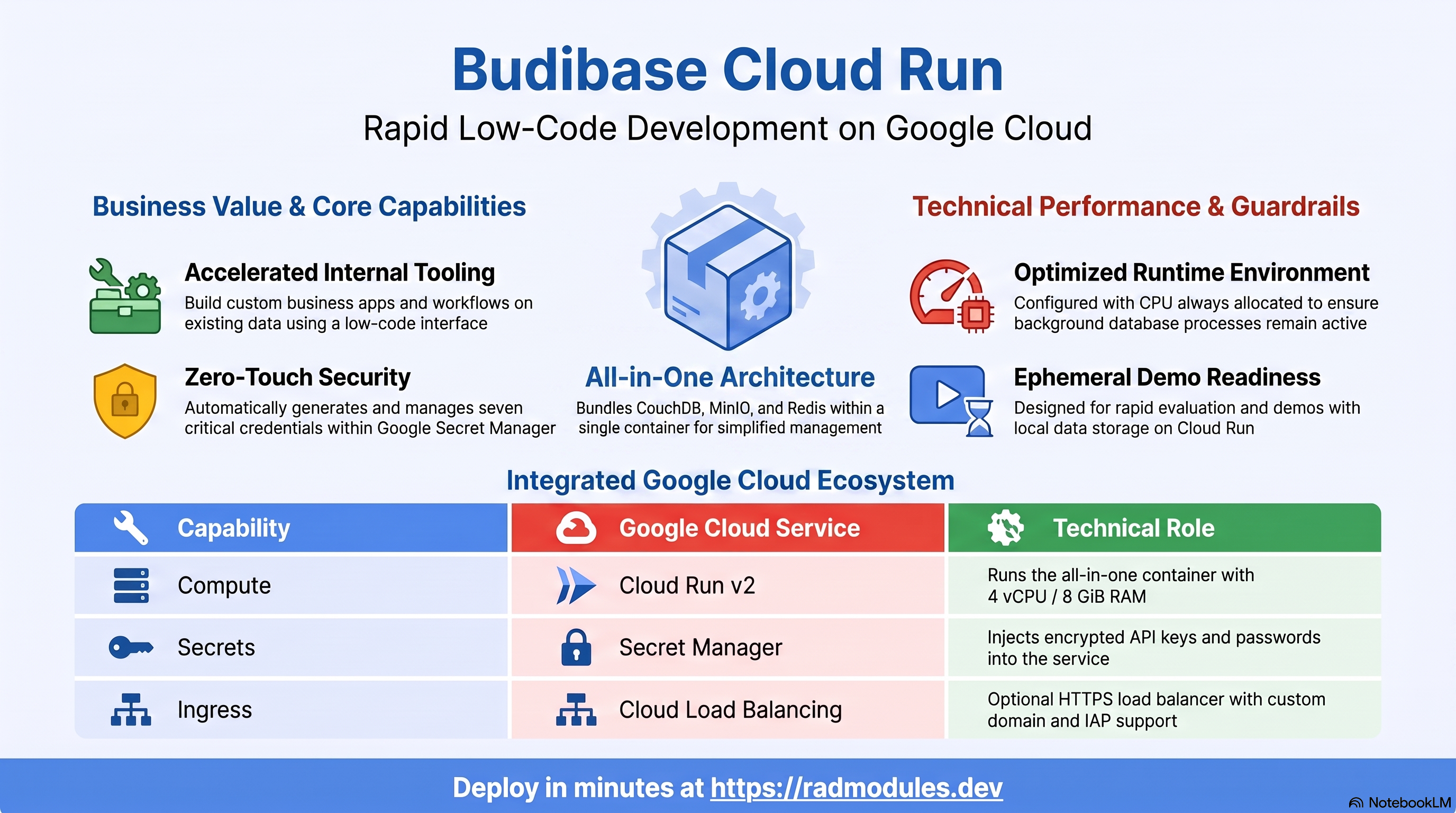

1. Overview

Budibase runs as a single all-in-one container on Cloud Run v2. The official budibase/budibase image bundles CouchDB + MinIO + Redis and the Budibase apps/worker/proxy together and serves HTTP on port 80 — there is no external managed database. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Single all-in-one container, 4 vCPU / 8 GiB by default; runs as one instance (min = max = 1)
Database	None (bundled CouchDB)	`database_type = "NONE"` — CouchDB, MinIO, and Redis all run inside the container
Object storage	Cloud Storage	One data bucket provisioned automatically; Budibase's own asset store is the bundled MinIO
Cache & queue	Bundled Redis	Runs inside the container on loopback; `enable_redis` is off by default
Secrets	Secret Manager	Seven auto-generated internal credentials injected as service secret env vars
Ingress	Cloud Run URL / Cloud Load Balancing	Default `run.app` URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

Cloud Run is ephemeral / demo-only for Budibase. All state (CouchDB documents
- MinIO objects) lives on the container path /data, and Cloud Run has no durable local disk — a restart or new revision loses the data store. For a persistent deployment use the GKE variant, which mounts a block PVC at /data.
Runs as a single instance. min_instance_count = 1 and max_instance_count = 1. The all-in-one container holds all state locally, so multiple replicas would not share data (split-brain). Scale-to-zero would drop the running data store, so min is 1.
cpu_always_allocated = true. CPU is allocated at all times so the bundled CouchDB/MinIO/Redis background processes keep running between requests; keep it true with min_instance_count >= 1.
Seven internal credentials are generated automatically and stored in Secret Manager (INTERNAL_API_KEY, JWT_SECRET, MINIO_ACCESS_KEY, MINIO_SECRET_KEY, API_ENCRYPTION_KEY, REDIS_PASSWORD, COUCH_DB_PASSWORD). These must never be rotated after first boot — the data on /data is keyed with them and becomes unreadable if they change.
Port 80 is fixed. The all-in-one image's nginx proxy serves the whole app on port 80, so container_port and the probes are pinned to 80.
No external database or db-init job. Budibase self-provisions CouchDB and MinIO on first boot; enable_cloudsql_volume and database_type default to off/NONE.
Public ingress by default. ingress_settings = "all" so the app is reachable at its run.app URL; enabling IAP puts Google sign-in in front of it.

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Budibase service

Budibase runs as a Cloud Run v2 service. Because it holds all state locally it runs as a single instance (min = max = 1); each deployment creates an immutable revision.

Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.

CLI:

gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Data store (bundled CouchDB + MinIO)

There is no Cloud SQL instance — database_type = "NONE". Budibase's CouchDB document store and MinIO object store both run inside the container and persist to /data. On Cloud Run that directory is on the container's ephemeral filesystem, so it does not survive a restart. Inspect the bundled services through the container env and logs rather than a managed DB console:

CLI:

# Confirm database_type=NONE and the bundled-service env in the running revision:
gcloud run services describe <service-name> --region "$REGION" \
  --format='value(spec.template.spec.containers[0].env)'

For a durable data store, use the GKE variant (block PVC on /data).

C. Cloud Storage

A dedicated Cloud Storage bucket (name suffix storage) is provisioned automatically. Budibase's own asset/attachment store is the bundled MinIO; this GCS bucket is available for foundation-level storage integration.

Console: Cloud Storage → Buckets.

CLI:

gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<data-bucket>/        # bucket name is in the Outputs

See App_CloudRun for GCS Fuse and CMEK options.

D. Redis (bundled)

Redis runs inside the all-in-one container on loopback and is authenticated with the auto-generated REDIS_PASSWORD. enable_redis is off by default — do not enable an external Redis unless you are deliberately externalising the cache.

CLI:

# Verify the bundled Redis password secret is wired into the revision:
gcloud run services describe <service-name> --region "$REGION" \
  --format='value(spec.template.spec.containers[0].env)' | tr ',' '\n' | grep -i redis

E. Secret Manager

Seven internal credentials are generated automatically and stored in Secret Manager, then injected as service secret env vars: INTERNAL_API_KEY, JWT_SECRET, MINIO_ACCESS_KEY, MINIO_SECRET_KEY, API_ENCRYPTION_KEY, REDIS_PASSWORD, and COUCH_DB_PASSWORD. They must never be rotated after first boot.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~budibase"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection details and Budibase_Common for what each secret protects.

F. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

Console: Cloud Run (service URL); Network services → Load balancing.

CLI:

gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

3. Budibase Application Behaviour

No external database bootstrap. With database_type = "NONE" there is no db-init job. Budibase self-provisions its bundled CouchDB and MinIO on first boot inside the container. Only user-supplied initialization_jobs are honoured.
State lives on /data — and Cloud Run does not persist it. CouchDB documents and MinIO objects are written to /data on the container's ephemeral filesystem. Any restart or new revision starts from an empty store, so treat a Cloud Run Budibase deployment as ephemeral/demo-only and use the GKE variant for anything you need to keep.
Internal credentials are immutable after first boot. The seven generated secrets key the data on /data. Changing API_ENCRYPTION_KEY corrupts all encrypted stored data; changing JWT_SECRET invalidates all sessions; changing the MinIO or CouchDB credentials breaks access to the object/document stores. Only rotate during a planned reset.
First-run setup. Budibase self-hosted ships with no default admin account. Open the service URL after deploy and create the initial administrator (email + password) through the setup screen before use.
Health path. The startup probe is TCP on port 80 (not HTTP): nginx binds the port within seconds but returns 502 until the bundled CouchDB/MinIO/app upstreams finish booting, so an HTTP check on / would fail for the whole upstream-boot window — TCP passes as soon as nginx binds the port, letting the revision go Ready while the upstreams finish in the background (30-second initial delay, 40-retry window at a 15-second period, ~10 minutes total). The liveness and readiness probes are HTTP on the unauthenticated root /; liveness uses a 240-second initial delay to clear the post-startup window where / still 502s.
Single-instance only. Keep min_instance_count = max_instance_count = 1; the data store is local to the container and cannot be shared across replicas.

Verify the running revision:

gcloud run services describe <service-name> --region "$REGION" --project "$PROJECT" \
  --format='value(status.url)'
gcloud run jobs list --project "$PROJECT" --region "$REGION"   # only user-supplied init jobs

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Budibase are listed; every other input is inherited from App_CloudRun with its standard behaviour.
