Budibase on GKE Autopilot

Budibase is an open-source low-code platform for building internal tools, business apps, and workflows on top of your data. This module deploys Budibase on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Budibase uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

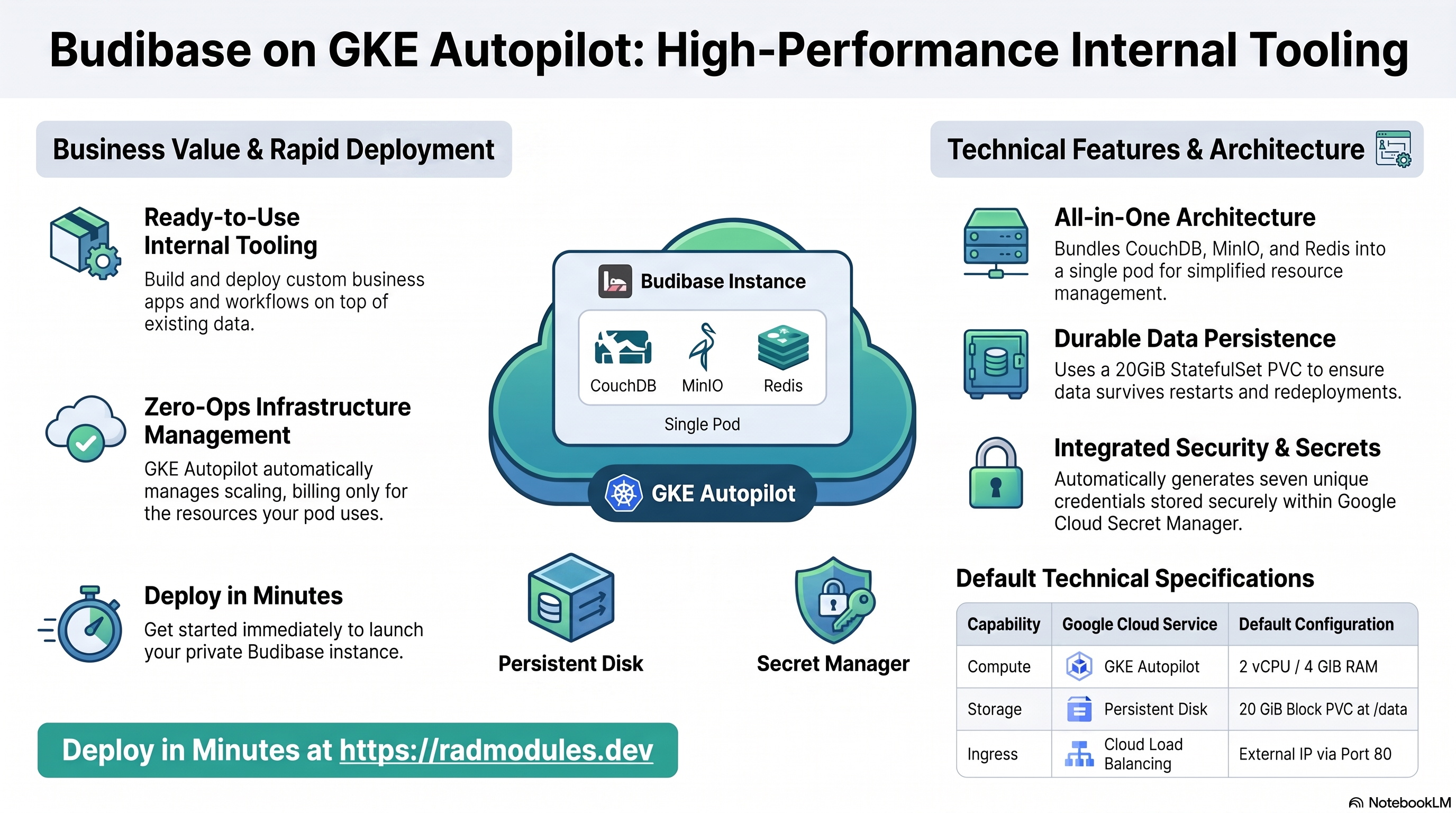

1. Overview

Budibase runs as a single all-in-one pod. The official budibase/budibase image bundles CouchDB + MinIO + Redis and the Budibase apps/worker/proxy together and serves HTTP on port 80 — there is no external managed database. Because all state lives on /data, the GKE variant runs as a StatefulSet with a block PVC mounted at /data. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Single all-in-one pod, 2 vCPU / 4 GiB by default; runs as one replica (min = max = 1)
Persistent state	Persistent Disk (block PVC)	`stateful_pvc_enabled = true` → StatefulSet with a 20 GiB PVC mounted at `/data`
Database	None (bundled CouchDB)	`database_type = "NONE"` — CouchDB, MinIO, and Redis all run inside the pod
Object storage	Cloud Storage	One data bucket provisioned automatically; Budibase's own asset store is the bundled MinIO
Cache & queue	Bundled Redis	Runs inside the pod on loopback; `enable_redis` is off by default
Secrets	Secret Manager	Seven auto-generated internal credentials injected as service secret env vars
Ingress	Cloud Load Balancing	External LoadBalancer Service by default; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

StatefulSet with a block PVC on /data. stateful_pvc_enabled = true (default), which auto-resolves workload_type to StatefulSet. All CouchDB documents and MinIO objects persist to a 20 GiB standard-rwo PVC mounted at /data, so the data survives pod restarts and redeploys.
Runs as a single replica. min_instance_count = 1 and max_instance_count = 1. The all-in-one pod holds all state on its own PVC, so multiple replicas would not share data (split-brain).
Seven internal credentials are generated automatically and stored in Secret Manager (INTERNAL_API_KEY, JWT_SECRET, MINIO_ACCESS_KEY, MINIO_SECRET_KEY, API_ENCRYPTION_KEY, REDIS_PASSWORD, COUCH_DB_PASSWORD). These must never be rotated after first boot — the data on /data is keyed with them and becomes unreadable if they change.
Port 80 is fixed. The all-in-one image's nginx proxy serves the whole app on port 80, so container_port and the pod probes are pinned to 80.
No external database or db-init job. Budibase self-provisions CouchDB and MinIO on first boot; database_type defaults to NONE.
External LoadBalancer by default. service_type = "LoadBalancer" exposes an external IP; a static IP and custom domain can be layered on.

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Budibase workload

Budibase runs as a StatefulSet pod on Autopilot, which bills for the CPU/memory the pod requests. Because it holds all state on its PVC it runs as a single replica.

Console: Kubernetes Engine → Workloads → select the Budibase workload to see the pod, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.

CLI:

kubectl get statefulset,pods,svc,pvc -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100
kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Persistent state (block PVC on `/data`)

All Budibase state — the bundled CouchDB document store and MinIO object store — persists to a block Persistent Disk provisioned via the StatefulSet PVC template (stateful_pvc_size = 20Gi, stateful_pvc_storage_class = standard-rwo) and mounted at /data. This is what makes GKE the durable Budibase platform.

Console: Kubernetes Engine → Storage → Persistent Volume Claims; Compute Engine → Disks.

CLI:

kubectl get pvc -n "$NAMESPACE"
kubectl describe pvc -n "$NAMESPACE" <pvc-name>
# Confirm the /data mount inside the pod:
kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- df -h /data

C. Data store (bundled CouchDB + MinIO)

There is no Cloud SQL instance — database_type = "NONE". CouchDB and MinIO run inside the pod and persist to the /data PVC. Inspect them via the pod rather than a managed DB console:

CLI:

# Confirm database_type=NONE and the bundled-service env in the running pod:
kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- env | grep -Ei 'couch|minio|redis'

D. Cloud Storage

A dedicated Cloud Storage bucket (name suffix storage) is provisioned automatically. Budibase's own asset/attachment store is the bundled MinIO on /data; this GCS bucket is available for foundation-level storage integration.

Console: Cloud Storage → Buckets.

CLI:

gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<data-bucket>/          # bucket name is in the Outputs

See App_GKE for CMEK options and GCS Fuse mounts.

E. Redis (bundled)

Redis runs inside the pod on loopback, authenticated with the auto-generated REDIS_PASSWORD. enable_redis is off by default — do not enable an external Redis unless deliberately externalising the cache.

CLI:

kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- env | grep -i redis

F. Secret Manager

Seven internal credentials are generated automatically and stored in Secret Manager, then injected as service secret env vars: INTERNAL_API_KEY, JWT_SECRET, MINIO_ACCESS_KEY, MINIO_SECRET_KEY, API_ENCRYPTION_KEY, REDIS_PASSWORD, and COUCH_DB_PASSWORD. They must never be rotated after first boot.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~budibase"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and Budibase_Common for what each secret protects.

G. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = "LoadBalancer"). A custom domain with a Google-managed certificate can be enabled, and a static IP can be reserved so the address survives redeploys.

Console: Network services → Load balancing; VPC network → IP addresses.

CLI:

kubectl get svc,ingress -n "$NAMESPACE"
gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

H. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
  --project "$PROJECT" --limit 50

3. Budibase Application Behaviour

No external database bootstrap. With database_type = "NONE" there is no db-init job. Budibase self-provisions its bundled CouchDB and MinIO on first boot inside the pod. Only user-supplied initialization_jobs are honoured.
State persists on the /data PVC. CouchDB documents and MinIO objects are written to the block PVC mounted at /data, so data survives pod restarts, reschedules, and version upgrades. Size the PVC generously (stateful_pvc_size = 20Gi default) — it grows with app data and attachments.
Internal credentials are immutable after first boot. The seven generated secrets key the data on /data. Changing API_ENCRYPTION_KEY corrupts all encrypted stored data; changing JWT_SECRET invalidates all sessions; changing the MinIO or CouchDB credentials breaks access to the object/document stores on the PVC. Only rotate during a planned reset.
First-run setup. Budibase self-hosted ships with no default admin account. Reach the LoadBalancer URL after deploy and create the initial administrator (email + password) through the setup screen before use.
Health path. Startup and liveness probes target the unauthenticated root /, which returns 200 once the bundled services are up. Allow up to ~8-9 minutes on first boot (the startup probe uses a 60-second initial delay plus a 30-retry window at a 15-second period) — the pod must start CouchDB, MinIO, Redis, and the app tier.
Single-replica StatefulSet. Keep min_instance_count = max_instance_count = 1; the data store is bound to one PVC and cannot be shared across replicas.

Verify the running workload:

kubectl get statefulset,pods,pvc -n "$NAMESPACE"
kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- curl -s -o /dev/null -w '%{http_code}' localhost:80/

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Budibase are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.
