NetBox on GKE Autopilot

NetBox is the industry-standard open-source "source of truth" for network engineering teams — IP address management (IPAM), device and rack inventory, cabling, and network topology, all modeled as structured data behind a full REST/GraphQL API. This module deploys NetBox on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services NetBox uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

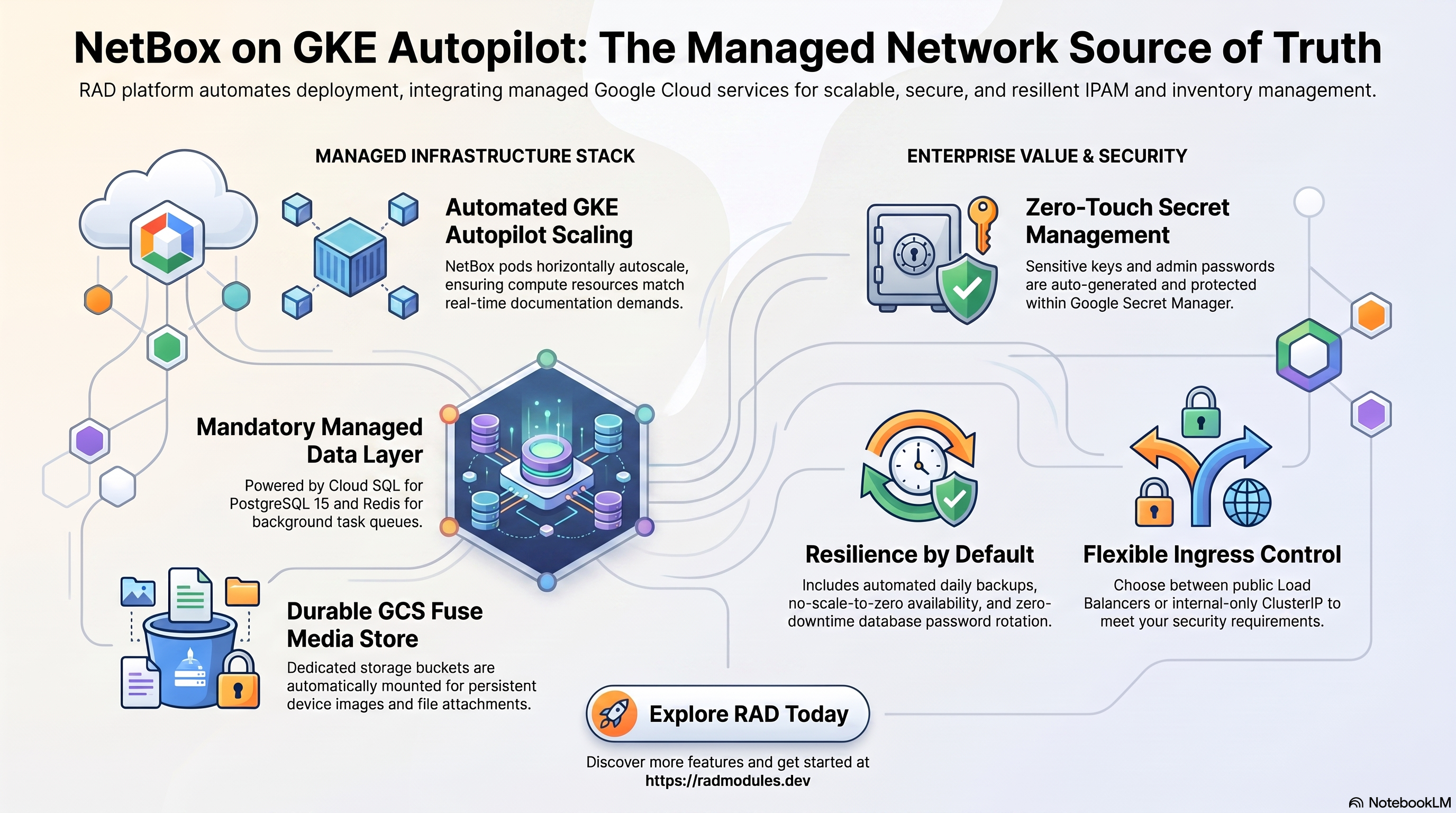

1. Overview

NetBox runs as a custom-built Python/Django pod on GKE Autopilot, wrapping the official netboxcommunity/netbox image with a co-located background rqworker --with-scheduler process. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Custom-built image pods, 2 vCPU / 2 GiB by default, horizontally autoscaled
Database	Cloud SQL for PostgreSQL 15	Required — NetBox does not support MySQL or SQLite in production
Object storage	Cloud Storage (GCS Fuse CSI)	A `media` bucket mounted at `/etc/netbox/media`, NetBox's real `MEDIA_ROOT`
Cache & queue	Redis (mandatory)	Task queue (`REDIS_DATABASE=0`) and cache (`REDIS_CACHE_DATABASE=1`) on separate logical databases; defaults to the NFS server IP
Secrets	Secret Manager	Auto-generated `SECRET_KEY` and `SUPERUSER_PASSWORD`; database password
Ingress	Cloud Load Balancing	External LoadBalancer by default; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

PostgreSQL 15 is mandatory. The database engine is fixed by the shared application layer; NetBox does not support MySQL or SQLite for production use.
Redis is mandatory, not optional. NetBox uses Redis as the broker for its RQ (Redis Queue) background task system — webhooks, custom scripts, reports, and scheduled/system jobs — and as its cache backend, on two separate logical databases (REDIS_DATABASE=0, REDIS_CACHE_DATABASE=1).
A background worker is co-located in the same pod. manage.py rqworker --with-scheduler runs as a backgrounded process alongside the Granian web server. Without it, background tasks queue silently and never execute.
Media uploads are mounted at NetBox's actual MEDIA_ROOT. /etc/netbox/media, confirmed live via manage.py shell. See §3 for the full story of how this path was found and why an earlier, plausible-looking path was wrong.
The GCS Fuse mount's uid=0/gid=0 options are load-bearing on GKE. Cloud Run's own GCS Fuse integration always applies a default uid:1000/gid:1000 regardless of what's configured (root can write into it anyway); GKE's GCS Fuse CSI driver has no such default, so the explicit uid=0/gid=0 pin — matching NetBox's root-running container — is what actually makes the mount writable.
No scale-to-zero. GKE Autopilot always runs at least min_instance_count (default 1) replicas, keeping the RQ worker continuously active.
The container runs as root (uid 0 / gid 0) — the official netboxcommunity/netbox image sets no USER.
SECRET_KEY and SUPERUSER_PASSWORD are generated automatically and stored in Secret Manager.
Health checks use /login/, not /api/status/. The login page is public and unauthenticated; the status API requires auth and would fail every probe.
service_type = "LoadBalancer" and reserve_static_ip = true are the defaults — public by default. Switch to service_type = "ClusterIP" and reserve_static_ip = false for an internal-only deployment reachable via kubectl port-forward (useful when the project's static-IP quota is tight).

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the NetBox workload

NetBox pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Horizontal Pod Autoscaling sizes the deployment between the minimum and maximum replica counts.

Console: Kubernetes Engine → Workloads → select the NetBox workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.

CLI:

kubectl get pods,svc,hpa -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
kubectl describe hpa -n "$NAMESPACE"          # current vs target utilisation

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

NetBox stores all inventory and IPAM data (devices, racks, IP addresses, prefixes, VLANs, circuits, users) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it privately through the Cloud SQL Auth Proxy sidecar over a Unix socket (surfaced to the container as loopback 127.0.0.1); no public IP is exposed. On first deploy an initialization Job creates the application database and user.

Console: SQL → select the instance for connections, backups, flags, and metrics.

CLI:

gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database name, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Cloud Storage (GCS Fuse media store)

A dedicated media bucket is provisioned automatically and mounted via the GCS Fuse CSI driver at /etc/netbox/media — NetBox's real MEDIA_ROOT — for uploaded device/rack images and file attachments. The mount is pinned to uid=0/gid=0 to match the container's root user; without this, the GKE CSI driver's default mount ownership blocks writes.

Console: Cloud Storage → Buckets.

CLI:

gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<media-bucket>/          # bucket name is in the Outputs
# Verify a real upload landed in GCS (not just the pod's local filesystem):
kubectl exec -n "$NAMESPACE" deploy/<service-name> -- ls -la /etc/netbox/media

See App_GKE for CMEK options and GCS Fuse mount tuning.

D. Redis (task queue and cache)

Redis is required (enable_redis = true by default). When redis_host is left empty and enable_nfs is true, the NFS server VM's IP is used as the Redis endpoint. NetBox splits its usage across two logical databases — REDIS_DATABASE=0 for the RQ task queue, REDIS_CACHE_DATABASE=1 for the cache.

Console: Memorystore → Redis (if using a managed instance).

CLI:

redis-cli -h <redis-host> ping
redis-cli -h <redis-host> -n 0 llen rq:queue:default   # inspect the RQ default queue depth
# Confirm the resolved Redis host injected into the running pod:
kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep REDIS_

E. Secret Manager

Two cryptographic secrets are generated automatically and stored in Secret Manager: SECRET_KEY (Django cryptographic secret used for sessions, CSRF, and signed cookies) and SUPERUSER_PASSWORD (the initial admin account password). The database password is managed separately by the foundation.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

The database password secret name is in the Outputs. See App_GKE for the Secret Store CSI integration and rotation.

F. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP. A custom domain with a Google-managed certificate can be enabled, and a static IP can be reserved so the address survives redeploys. For an internal-only deployment (e.g. when static-IP quota is constrained), switch service_type = "ClusterIP" and reserve_static_ip = false, then reach the service with kubectl port-forward.

Console: Network services → Load balancing; VPC network → IP addresses.

CLI:

kubectl get svc,ingress -n "$NAMESPACE"
gcloud compute addresses list --project "$PROJECT"
# Internal-only access:
kubectl port-forward -n "$NAMESPACE" svc/<service-name> 18080:8080

See App_GKE for custom domains, Cloud CDN, and static IP details.

G. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime checks require a publicly reachable endpoint).

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
  --project "$PROJECT" --limit 50

3. NetBox Application Behaviour

First-deploy database setup. An initialization Job runs db-init.sh using postgres:15-alpine. It connects through the Cloud SQL Auth Proxy and idempotently creates the application database and user and grants privileges. The job is safe to re-run.
Database migrations on start. docker-entrypoint.sh true runs NetBox's own first-boot sequence synchronously on every container start — DB-readiness wait, migrate --no-input, stale-contenttype cleanup, session cleanup, and a lazy search-index reindex — before the web server and RQ worker start.
Superuser bootstrap is idempotent. The initial admin account is created from SUPERUSER_* env vars on first boot; creation is skipped — not an error — if a user with that name already exists.
Media uploads persist to the real MEDIA_ROOT — and this is where kubectl exec earned its keep. NetBox's actual MEDIA_ROOT is /etc/netbox/media (confirmed via manage.py shell on a live pod), which is where the GCS Fuse media volume is mounted. Before this was traced, uploads on both platforms looked like they worked — a 201, and the file was even readable back through the app immediately — but gcloud storage ls against the backing bucket showed zero objects, even 50+ minutes after upload. A control test ruled out gcsfuse write-latency and multi-worker contention. Getting real shell access into the running pod (kubectl exec ... manage.py shell to print NetBox's own resolved MEDIA_ROOT setting) is what actually cracked it: the module was mounting the GCS bucket at a different, plausible-looking path (/opt/netbox/netbox/media) than the one NetBox's own configuration.py actually writes to. Every upload was silently landing on the pod's ephemeral local filesystem — readable back immediately because reader and writer were the same local disk, but never durable, and gone on the next restart. Fixed by correcting the mount path; re-verified live with gcloud storage ls showing the uploaded test file with correct byte size, content type, and timestamp within 5 seconds. This is not a Cloud Run/GKE platform gap — the identical bug existed on both platforms, and Cloud Run offers no shell access to diagnose it the way GKE's kubectl exec does; had this only been tested on Cloud Run, it would have looked exactly like an unfixable platform limitation.
```
kubectl exec -n "$NAMESPACE" deploy/<service-name> -- \
  /opt/netbox/venv/bin/python /opt/netbox/netbox/manage.py shell \
  -c "from django.conf import settings; print(settings.MEDIA_ROOT)"
```
The RQ worker processes background tasks. Webhooks, custom scripts, reports, and scheduled/system jobs are executed by manage.py rqworker --with-scheduler, co-located in the same pod as the web server. Unlike Cloud Run, GKE keeps at least min_instance_count pods running continuously (no scale-to-zero), so the worker is always active by default.
Health path. Startup and liveness probes target /login/ — NetBox's public, unauthenticated login page. /api/status/ requires authentication and would fail every probe.

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for NetBox are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
`project_id`	(required)	Target Google Cloud project.
`region`	`us-central1`	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
`tenant_deployment_id`	`demo`	Short suffix that makes resource names unique per environment.
`support_users`	`[]`	Emails granted project access and monitoring alerts.
`resource_labels`	`{}`	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
`application_name`	`netbox`	Base name for resources. Do not change after first deploy.
`display_name`	`NetBox - Network Documentation & IPAM`	Human-readable name shown in the Console.
`application_version`	`latest`	Container image version tag, passed through to the Dockerfile's `APPLICATION_VERSION` build ARG.

Group 4 — Runtime & Scaling

Variable	Default	Description
`deploy_application`	`true`	Set `false` to provision infrastructure only.
`cpu_limit`	`2000m`	CPU per pod; shared by the web server and the RQ worker.
`memory_limit`	`2Gi`	Memory per pod.
`container_port`	`8080`	NetBox's Granian (WSGI) server listens on port 8080.
`min_instance_count`	`1`	Minimum replicas; GKE has no scale-to-zero.
`max_instance_count`	`3`	Maximum replicas.
`enable_vertical_pod_autoscaling`	`false`	Disables HPA when enabled to avoid conflicts.
`enable_pod_disruption_budget` / `pdb_min_available`	`false` / `1`	Availability protection during node maintenance.
`enable_cloudsql_volume`	`true`	Cloud SQL Auth Proxy sidecar.
`enable_image_mirroring`	`true`	Mirror the built image into Artifact Registry.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
`environment_variables`	`{}`	Extra non-secret settings. Do not set `SECRET_KEY`, `SUPERUSER_PASSWORD`, or `DB_*` here.
`secret_environment_variables`	`{}`	Map of env var → Secret Manager secret name.
`secret_propagation_delay`	`30`	Seconds to wait after secret creation before proceeding.
`secret_rotation_period`	`2592000s`	Secret Manager rotation notification frequency.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
`service_type`	`LoadBalancer`	How the Kubernetes Service is exposed. Use `ClusterIP` for internal-only.
`workload_type`	`Deployment` (auto)	`Deployment` (default stateless) or `StatefulSet`.
`session_affinity`	`ClientIP`	Sticky routing for UI sessions.
`network_tags`	`["nfsserver"]`	Required when `enable_nfs = true`.
`termination_grace_period_seconds`	`60`	Seconds to wait after SIGTERM before SIGKILL.
`enable_network_segmentation`	`false`	Create Kubernetes NetworkPolicy resources.
`gke_cluster_name` / `namespace_name`	auto-discover	Leave empty to auto-discover / auto-generate.
`deployment_timeout`	`1800`	Max seconds Terraform waits for the rollout.

Group 7 — StatefulSet

Variable	Default	Description
`stateful_pvc_enabled`	`false`	Enable per-pod PVC templates. Not needed — NetBox's persistent state is Cloud SQL + GCS.
`stateful_pvc_size` / `stateful_pvc_mount_path` / `stateful_pvc_storage_class`	(defaults)	PVC sizing, mount path, StorageClass.
`stateful_headless_service`	`true`	Stable pod DNS names.
`stateful_pod_management_policy`	`OrderedReady`	`OrderedReady` or `Parallel`.
`stateful_update_strategy`	`RollingUpdate`	`RollingUpdate` or `OnDelete`.

Group 8 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_GKE.

Group 11 — Jobs & Services

Variable	Default	Description
`initialization_jobs`	`[]`	Leave empty to use the built-in `db-init` job.
`cron_jobs`	`[]`	Scheduled Kubernetes CronJobs.
`additional_services`	`[]`	Additional Kubernetes Services deployed alongside NetBox.

Group 12 — CI/CD & GitHub Integration

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy.

Group 13 — Filesystem (NFS)

Variable	Default	Description
`enable_nfs`	`true`	Provisions Filestore; used as the Redis host when `redis_host` is blank.
`nfs_mount_path`	`/mnt/nfs`	Mount path inside the container.
`nfs_volume_name`	`nfs-data-volume`	Kubernetes volume name for the NFS mount.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
`create_cloud_storage`	`true`	Create additional GCS buckets beyond the auto-provisioned media bucket.
`storage_buckets`	`[]`	Additional buckets to provision.
`gcs_volumes`	`[]`	GCS Fuse CSI mounts. When empty, a default media volume is auto-mounted at `/etc/netbox/media` with explicit `uid=0`/`gid=0` options — load-bearing on GKE, unlike Cloud Run.
`manage_storage_kms_iam` / `enable_artifact_registry_cmek`	`false`	CMEK options.
`max_images_to_retain` / `delete_untagged_images` / `image_retention_days`	`7` / `true` / `30`	Artifact Registry cleanup policy.

Group 15 — NetBox Application Settings

Variable	Default	Description
`time_zone`	`UTC`	Timezone for NetBox timestamps and scheduled tasks.
`admin_user`	`admin`	Username for the auto-created superuser. Creation is idempotent.
`admin_email`	`admin@example.com`	Email for the auto-created superuser.

Group 16 — Database Backend

Variable	Default	Description
`db_name`	`netbox`	PostgreSQL database name. Immutable after first deploy.
`db_user`	`netbox`	Application database user.
`database_password_length`	`32`	Generated password length (16–64).
`enable_auto_password_rotation` / `rotation_propagation_delay_sec`	off / `90`	Zero-downtime DB password rotation.
`enable_mysql_plugins` / `mysql_plugins`	`false` / `[]`	Not applicable — NetBox uses PostgreSQL.

Group 17 — Backup & Maintenance

Variable	Default	Description
`backup_schedule`	`0 2 * * *`	Automated backup cron (UTC).
`backup_retention_days`	`7`	Retention; raise to 30–90 for production/compliance.
`enable_backup_import` / `backup_source` / `backup_uri` / `backup_format`	restore options	Restore from a backup on deploy.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
`enable_custom_domain`	`true`	Gateway API routing + managed SSL certificate for custom hostnames.
`application_domains`	`[]`	Hostnames to serve.
`reserve_static_ip`	`true`	Stable external IP across redeploys. Set `false` (with `service_type = "ClusterIP"`) for an internal-only, no-external-IP deployment.
`static_ip_name`	`""`	Leave empty to auto-generate.

Group 20 — Identity-Aware Proxy (IAP)

Variable	Default	Description
`enable_iap`	`false`	Require Google sign-in in front of NetBox. Requires `enable_custom_domain = true`.
`iap_authorized_users` / `iap_authorized_groups`	`[]`	Who may access.
`iap_oauth_client_id` / `iap_oauth_client_secret`	`""`	Required when IAP is enabled (sensitive).

Group 21 — Cloud Armor & Redis Cache

Variable	Default	Description
`enable_cloud_armor`	`false`	Attach a Cloud Armor (WAF) policy to the Ingress backend.
`admin_ip_ranges`	`[]`	CIDRs allowed privileged access.
`cloud_armor_policy_name`	`default-waf-policy`	Policy name.
`enable_cdn`	`false`	Enable Cloud CDN on the GKE Ingress backend.
`enable_redis`	`true`	Required. Backs NetBox's RQ task queue and cache layer.
`redis_host`	`""`	Redis endpoint. Leave empty to use the NFS server IP (requires `enable_nfs = true`).
`redis_port`	`6379`	Redis port.
`redis_auth`	`""`	Optional Redis auth password (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
`enable_vpc_sc`	`false`	Enforce a VPC-SC perimeter (requires `organization_id`).
`vpc_cidr_ranges` / `vpc_sc_dry_run`	(set)	Access level CIDRs / dry-run mode.
`enable_audit_logging`	`false`	Detailed Cloud Audit Logs.

Observability & Health (NetBox-specific, superseding the generic App_GKE probes)

Variable	Default	Description
`startup_probe`	HTTP `/login/`, 60s delay, 60 failure threshold	NetBox-specific startup probe.
`liveness_probe`	HTTP `/login/`, 30s failure window	NetBox-specific liveness probe.
`uptime_check_config`	(set)	Optional Cloud Monitoring uptime check — only meaningful when the service is publicly reachable.
`alert_policies`	`[]`	Optional metric alert policies.

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
`service_name`	Kubernetes Service name.
`namespace`	Namespace the workload runs in.
`service_cluster_ip`	In-cluster ClusterIP.
`service_external_ip`	External LoadBalancer IP (when a static IP is reserved).
`database_instance_name`	Cloud SQL instance name.
`database_name` / `database_user`	Application database name / user.
`database_password_secret`	Secret Manager secret holding the DB password.
`database_host` / `database_port`	DB endpoint (`127.0.0.1` via the Auth Proxy) / port.
`storage_buckets`	Created Cloud Storage buckets.
`network_name` / `network_exists` / `regions`	VPC network, presence, available regions.
`container_image` / `container_registry`	Deployed image and Artifact Registry repo.
`monitoring_enabled` / `monitoring_notification_channels`	Monitoring status and channels.
`initialization_jobs` / `db_import_job`	Names of the setup and (optional) import jobs.
`deployment_id` / `tenant_id` / `resource_prefix`	Naming identifiers.
`project_id` / `project_number`	Project identifiers.
`cicd_enabled` / `cicd_configuration`	CI/CD status and details (repo, trigger, registry).
`github_repository_url` / `github_repository_owner` / `github_repository_name`	CI/CD GitHub details.
`artifact_registry_repository` / `cloudbuild_trigger_name` / `cloudbuild_trigger_id`	Registry and build trigger.
`kubernetes_ready`	Whether the cluster/workload is ready.
`vpc_sc_enabled` / `vpc_sc_perimeter_name` / `vpc_sc_dry_run_mode`	VPC-SC status.
`audit_logging_enabled` / `artifact_registry_cmek_enabled`	Audit logging and CMEK status.

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, an out-of-range redis_port/backup_retention_days, bare-integer quota_memory_* values. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
`gcs_volumes` mount path (auto-set to `/etc/netbox/media`)	Never override to a different path unless you've confirmed NetBox's real `MEDIA_ROOT`	Critical	A wrong mount path leaves uploads on the ephemeral pod filesystem — readable back immediately, but silently lost on every restart. Confirmed and fixed on this exact module.
GCS Fuse mount `uid`/`gid` (auto-set to `0`/`0`)	Match the container's actual runtime UID	Critical	On GKE (unlike Cloud Run), an unpinned mount is root-owned by default; a non-root process would get `EACCES` on every write. NetBox's container already runs as root, so this is applied defensively.
`SECRET_KEY` (auto-generated)	Never rotate after first boot	Critical	Invalidates all active sessions and signed cookies; NetBox also enforces a minimum 50-character length.
`db_name` / `db_user`	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all data.
`enable_backup_import`	`false` unless restoring	Critical	Enabling without a valid `backup_uri` fails the import job.
`enable_redis`	`true` (mandatory)	Critical	NetBox's background task system and cache layer do not function without Redis.
`redis_host`	`""` (NFS) or explicit	High	When Redis is on but NFS is off and no host is set, background processing silently never runs.
`REDIS_DATABASE` / `REDIS_CACHE_DATABASE`	Keep separate (`0` / `1`)	High	Sharing one logical Redis database risks losing queued background tasks during a cache flush.
`memory_limit`	`2Gi`	High	Values below 1Gi risk OOM kills, especially with the RQ worker co-located in the same pod.
`min_instance_count`	`1`	High	GKE requires min ≥ 1; keeping it at 1 ensures NetBox and the RQ worker are always available.
`enable_cloudsql_volume`	`true`	High	The Auth Proxy sidecar is required for PostgreSQL connectivity.
`service_type` / `reserve_static_ip`	Public by default; `ClusterIP`/`false` for internal-only	Medium	Switching to internal-only trades public reachability for lower static-IP quota consumption — verify which is actually needed before deploy.
`session_affinity`	`ClientIP`	Medium	Without stickiness, in-flight UI sessions can route to a different pod mid-request.
`backup_retention_days`	`7` (raise for prod)	Medium	Too short for compliance retention.
`enable_pod_disruption_budget`	`true` for production	Medium	Disabled by default; without it, GKE can evict all pods simultaneously during node maintenance.

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. NetBox-specific application configuration shared with the Cloud Run variant is described in Netbox_Common.

By Dr Shiyghan Emmanuel Navti · Google Cloud certified: ACE · PCA · PCD · PDE · PSE · CDL

1. Overview​

2. Google Cloud Services & How to Explore Them​

A. GKE Autopilot — the NetBox workload​

B. Cloud SQL for PostgreSQL 15​

C. Cloud Storage (GCS Fuse media store)​

D. Redis (task queue and cache)​

E. Secret Manager​

F. Networking & ingress​

G. Cloud Logging & Monitoring​

3. NetBox Application Behaviour​

4. Configuration Variables​

Group 1 — Project & Identity​

Group 2 — Deployment Environment​

Group 3 — Application Identity​

Group 4 — Runtime & Scaling​

Group 5 — Environment Variables & Secrets​

Group 6 — GKE Backend & Cluster​

Group 7 — StatefulSet​

Group 8 — Custom SQL Scripts​

Group 11 — Jobs & Services​

Group 12 — CI/CD & GitHub Integration​

Group 13 — Filesystem (NFS)​

Group 14 — Cloud Storage & Artifact Registry​

Group 15 — NetBox Application Settings​

Group 16 — Database Backend​

Group 17 — Backup & Maintenance​

Group 19 — Custom Domain, Static IP & Networking​

Group 20 — Identity-Aware Proxy (IAP)​

Group 21 — Cloud Armor & Redis Cache​

Group 22 — VPC Service Controls & Audit Logging​

Observability & Health (NetBox-specific, superseding the generic App_GKE probes)​

5. Outputs​

6. Configuration Pitfalls & Sensible Defaults​

1. Overview

2. Google Cloud Services & How to Explore Them

A. GKE Autopilot — the NetBox workload

B. Cloud SQL for PostgreSQL 15

C. Cloud Storage (GCS Fuse media store)

D. Redis (task queue and cache)

E. Secret Manager

F. Networking & ingress

G. Cloud Logging & Monitoring

3. NetBox Application Behaviour

4. Configuration Variables

Group 1 — Project & Identity

Group 2 — Deployment Environment

Group 3 — Application Identity

Group 4 — Runtime & Scaling

Group 5 — Environment Variables & Secrets

Group 6 — GKE Backend & Cluster

Group 7 — StatefulSet

Group 8 — Custom SQL Scripts

Group 11 — Jobs & Services

Group 12 — CI/CD & GitHub Integration

Group 13 — Filesystem (NFS)

Group 14 — Cloud Storage & Artifact Registry

Group 15 — NetBox Application Settings

Group 16 — Database Backend

Group 17 — Backup & Maintenance

Group 19 — Custom Domain, Static IP & Networking

Group 20 — Identity-Aware Proxy (IAP)

Group 21 — Cloud Armor & Redis Cache

Group 22 — VPC Service Controls & Audit Logging

Observability & Health (NetBox-specific, superseding the generic App_GKE probes)

5. Outputs

6. Configuration Pitfalls & Sensible Defaults
