Meilisearch on GKE Autopilot

Meilisearch is a fast, open-source search engine — a single Rust binary that delivers instant, typo-tolerant, faceted search behind a simple REST API. It is widely used as a self-hostable alternative to Algolia. This module deploys Meilisearch on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Meilisearch uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

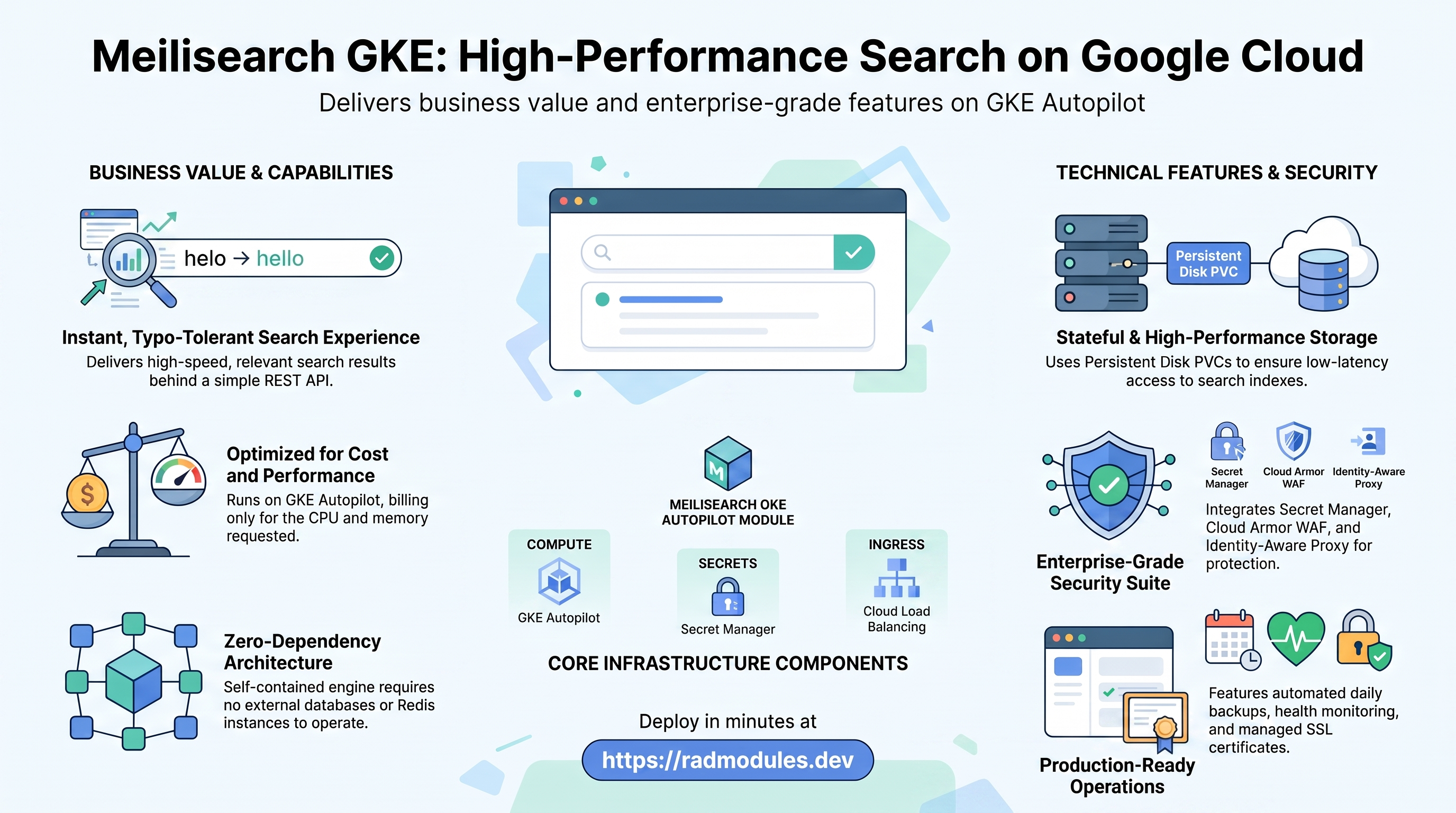

1. Overview

Meilisearch runs as a single-binary Rust workload, ideally as a StatefulSet with a Persistent Disk PVC. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Rust binary, 1 vCPU / 1 GiB by default, single replica (single-writer)
Persistent storage	Persistent Disk PVC or Cloud Storage (GCS FUSE)	MEILI_DB_PATH is fixed at /meili_data, and GCS FUSE mounts there automatically; the StatefulSet PVC's stateful_pvc_mount_path defaults to a different path (/meilisearch/storage) — override it to /meili_data to align the two
Database	None	Meilisearch is self-contained — no Cloud SQL, no external database
Cache & queue	None	Meilisearch has no Redis or queue dependency
Secrets	Secret Manager → native K8s Secret	Auto-generated MEILI_MASTER_KEY (the search admin credential)
Ingress	Cloud Load Balancing (optional)	ClusterIP by default; optional external Gateway + managed certificate

Sensible defaults worth knowing up front:

• No database, no Redis. Meilisearch persists everything — indexes, documents, settings, tasks — to the /meili_data directory. There is no Cloud SQL instance and no Redis to operate.
• The master key is mandatory. Meilisearch runs in production mode (MEILI_ENV = production), which refuses to start without a ≥16-byte MEILI_MASTER_KEY. The module generates a 32-character key, stores it in Secret Manager, and injects it as a native Kubernetes Secret (explicit_secret_values).
• StatefulSet PVC recommended. Set stateful_pvc_enabled = true for a Persistent Disk PVC (stateful_pvc_size = "20Gi" default) — the lower-latency, production-grade storage option. Its mount path defaults to /meilisearch/storage, which does not match the fixed MEILI_DB_PATH (/meili_data) — set stateful_pvc_mount_path = "/meili_data" explicitly so the PVC actually backs Meilisearch's data directory. Without the PVC, the storage bucket is mounted via GCS FUSE at /meili_data. Setting the PVC skips the FUSE mount to avoid a double-mount.
• ClusterIP by default. service_type = "ClusterIP" keeps the search API inside the cluster. Expose it externally via the Gateway (enable_custom_domain) only when needed.
• Single replica. max_instance_count = 1. Meilisearch is single-writer; multiple pods sharing one PVC (RWO) or bucket corrupt the index. Scale vertically.
• Image is pinned to v1.11. The application_version = "latest" default maps to the getmeili/meilisearch:v1.11 build; pin a specific release in production.
• Health at /health. Startup and liveness probes both target /health, which returns {"status":"available"} once the engine is ready.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Meilisearch workload

Meilisearch runs as a single-replica StatefulSet (or Deployment) on Autopilot, which bills for the CPU/memory the pod actually requests. Because Meilisearch is single-writer, the workload is pinned to one replica.

• Console: Kubernetes Engine → Workloads → select the Meilisearch workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the Service.
• CLI:

  kubectl get pods,svc,pvc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100
  kubectl describe pvc -n "$NAMESPACE"          # PVC capacity and binding

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Persistent storage — PVC or Cloud Storage

Meilisearch data lives at /meili_data (MEILI_DB_PATH, fixed). With stateful_pvc_enabled = true this is a Persistent Disk PVC (standard-rwo by default) — but only if stateful_pvc_mount_path is set to /meili_data; its default (/meilisearch/storage) does not match, so override it explicitly. Otherwise it is the storage Cloud Storage bucket mounted via GCS FUSE, which does use /meili_data automatically. Either way, this volume is the source of truth for all indexes and documents — there is no separate database.

• Console: Kubernetes Engine → Storage (PVCs); Cloud Storage → Buckets.
• CLI:

  kubectl get pvc -n "$NAMESPACE"
  gcloud storage buckets list --project "$PROJECT"     # when GCS FUSE is used

See App_GKE for StatefulSet PVCs, CMEK options, and GCS FUSE mounts.

C. Secret Manager — the master key

A single cryptographic secret is generated automatically and stored in Secret Manager: MEILI_MASTER_KEY, the search admin credential. On GKE it is materialised as a native Kubernetes Secret and injected as an environment variable. The master key can create/delete indexes and mint scoped API keys, so treat it as a root credential and issue scoped keys (POST /keys) to applications.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~api-key"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
  kubectl get secret -n "$NAMESPACE"       # the synced native K8s Secret

The master key secret ID is in the Outputs (meilisearch_api_key_secret_id). See App_GKE for the secret injection model and rotation.

D. Networking & ingress

By default the workload is exposed as a ClusterIP Service, reachable only inside the cluster. A custom domain with a Google-managed certificate can be enabled through the Gateway API, and a static IP can be reserved so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get gateway,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

E. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available against /health.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Meilisearch Application Behaviour

• No initialization job. Meilisearch manages its own storage and needs no database bootstrap, so no db-init job runs. The first request that creates an index lazily initialises the /meili_data directory.
• Production mode requires the master key. With MEILI_ENV = production, Meilisearch will not start unless MEILI_MASTER_KEY is at least 16 bytes. Production mode also disables the built-in web mini-dashboard — interact via the REST API.
• Everything is an API call. From inside the cluster (or through a port-forward), create an index, add documents, and search with the master key as a Bearer token:

  kubectl port-forward -n "$NAMESPACE" svc/<service-name> 7700:7700 &
  KEY=$(gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT")

  # Add documents (creates the index on first write):
  curl -X POST "http://localhost:7700/indexes/movies/documents" \
    -H "Authorization: Bearer $KEY" -H 'Content-Type: application/json' \
    --data '[{"id":1,"title":"Interstellar"},{"id":2,"title":"Inception"}]'

  # Search (note the deliberate typo — Meilisearch is typo-tolerant):
  curl "http://localhost:7700/indexes/movies/search" \
    -H "Authorization: Bearer $KEY" -H 'Content-Type: application/json' \
    --data '{"q":"interstellr"}'

• Scoped API keys. Do not ship the master key to browsers or apps. Mint scoped, expiring keys with POST /keys (using the master key) limited to specific indexes and actions (e.g. search-only), and distribute those.
• PVC path must match MEILI_DB_PATH. stateful_pvc_mount_path defaults to /meilisearch/storage, which does not match the fixed MEILI_DB_PATH (/meili_data). Set stateful_pvc_mount_path = "/meili_data" explicitly when enabling the PVC, or writes land on a volume Meilisearch never reads from.
• Health path. Startup and liveness probes target /health, which returns {"status":"available"} when the engine is ready:

  kubectl exec -n "$NAMESPACE" statefulset/<service-name> -- \
    wget -qO- http://localhost:7700/health

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Meilisearch are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources for cost/ownership tracking.

Group 3 — Application Identity

Variable	Default	Description
application_name	meilisearch	Base name for resources. Do not change after first deploy.
application_version	latest	Meilisearch image tag; latest maps to the pinned v1.11 build. Pin a release in production.
enable_api_key	true	Generate the MEILI_MASTER_KEY in Secret Manager and inject it as a native K8s Secret.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit	1000m	CPU per pod.
memory_limit	1Gi	Memory per pod; Meilisearch holds hot index structures in memory — raise for large indexes.
min_instance_count	1	GKE keeps at least one replica warm.
max_instance_count	1	Keep at 1. Meilisearch is single-writer; multiple pods corrupt the index.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_vertical_pod_autoscaling	false	Enable VPA to right-size CPU/memory.
enable_image_mirroring	true	Mirror the Meilisearch image into Artifact Registry.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra MEILI_* settings. Core values are set automatically.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
gke_cluster_name	""	Cluster name; empty auto-discovers.
service_type	ClusterIP	How the Kubernetes Service is exposed.
workload_type	null	Auto-resolves to StatefulSet when stateful_pvc_enabled = true.
session_affinity	None	Session affinity mode.
termination_grace_period_seconds	60	Seconds after SIGTERM before SIGKILL — lets Meilisearch flush pending writes.
enable_network_segmentation	false	Create Kubernetes NetworkPolicy resources.

Group 7 — StatefulSet

Variable	Default	Description
stateful_pvc_enabled	null	Set true for a Persistent Disk PVC (recommended). Auto-selects StatefulSet.
stateful_pvc_size	20Gi	Per-pod PVC size; cannot be decreased after creation.
stateful_pvc_mount_path	/meilisearch/storage	Container mount path. Default does not match the fixed MEILI_DB_PATH (/meili_data) — set this to /meili_data explicitly when using the PVC.
stateful_pvc_storage_class	standard-rwo	standard-rwo (Balanced PD) or premium-rwo (higher IOPS).
stateful_fs_group	3000	fsGroup GID for PVC write access.
stateful_headless_service / stateful_pod_management_policy / stateful_update_strategy	null	Foundation defaults for stable identities, ordered restarts, rolling updates.

Group 8 — Resource Quota

Variable	Default	Description
enable_resource_quota	false	Create a namespace ResourceQuota.
quota_memory_requests / quota_memory_limits	""	Must use binary suffixes (4Gi, 8192Mi); bare integers are bytes and block scheduling.
quota_cpu_requests / quota_cpu_limits / quota_max_pods / quota_max_services / quota_max_pvcs	""	Namespace resource caps.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	true	Protect availability during node upgrades.
pdb_min_available	1	Minimum pods available during voluntary disruptions.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /health 15s delay	Startup probe; returns {"status":"available"} when ready.
liveness_probe	HTTP /health 30s delay	Liveness probe (same endpoint).
startup_probe_config	HTTP /health	App_GKE-level structured startup probe.
health_check_config	HTTP /health	App_GKE-level structured liveness probe.
uptime_check_config	disabled	Optional Cloud Monitoring uptime check against /health.
alert_policies	[]	Optional metric alert policies.

Group 11 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Meilisearch requires no default init job; provide jobs only for custom data loading.
cron_jobs	[]	Scheduled Kubernetes CronJobs (e.g., dump snapshots).
additional_services	[]	Sidecar or helper services deployed alongside Meilisearch.

Group 12 — CI/CD & Binary Authorization

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	Meilisearch uses GCS or a PVC for storage; NFS is off by default.
nfs_mount_path	/mnt/nfs	Mount path inside the container.
network_tags	["nfsserver"]	Node/pod network tags; nfsserver is required when enable_nfs = true.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	The <prefix>-storage bucket is always created (used at /meili_data when no PVC).
storage_buckets	[]	Additional buckets to provision.
gcs_volumes	[]	Additional GCS FUSE mounts (the storage bucket is added automatically when PVC is not used).
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 17 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise to 30–90 for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup/dump on deploy (backup_format defaults to tar).

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision the Gateway for custom hostnames + managed certificate. Only takes effect once application_domains is non-empty.
application_domains	[]	Hostnames to serve.
reserve_static_ip / static_ip_name	true / ""	Stable external IP across redeploys.

Group 20 — Identity-Aware Proxy (IAP)

Warning: IAP requires Google identity authentication for all inbound requests, including calls from applications querying the search API. Enable it for a locked-down, human-facing endpoint; mint scoped API keys for programmatic access.

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of Meilisearch (requires enable_custom_domain).
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled (sensitive).

Group 21 — Cloud Armor

Variable	Default	Description
enable_cloud_armor	false	Attach a Cloud Armor (WAF) policy to the Ingress backend.
admin_ip_ranges	[]	CIDRs allowed privileged access.
cloud_armor_policy_name	default-waf-policy	Policy name.
enable_cdn	false	Enable Cloud CDN on the GKE Ingress backend.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach the Meilisearch REST API.
meilisearch_api_key_secret_id	Secret Manager secret ID for the master key. Empty when enable_api_key = false.
statefulset_name	Name of the StatefulSet (when workload type is StatefulSet).
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs	Names of any custom setup jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a Deployment workload with a PVC enabled, IAP with no authorized identities or OAuth client, memory quotas without binary suffixes, an out-of-range backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
enable_api_key	true	Critical	Disabling it removes the master key; in production mode Meilisearch refuses to start, and if it did run, anyone reaching the Service could read or delete every index.
max_instance_count	1	Critical	More than one pod sharing the RWO PVC or GCS bucket corrupts the index.
stateful_pvc_mount_path	set to /meili_data	Critical	Defaults to /meilisearch/storage, which does not match the fixed MEILI_DB_PATH; left at the default, the PVC never receives the index data and it appears empty.
stateful_pvc_size	size to dataset	Critical	Cannot be decreased after creation; too small and the PVC fills, halting writes.
workload_type vs stateful_pvc_enabled	let stateful_pvc_enabled drive it	Critical	workload_type = "Deployment" with stateful_pvc_enabled = true is rejected at plan time; the PVC needs a StatefulSet.
MEILI_MASTER_KEY (auto-generated)	Rotate only with client updates	High	Rotating the key without updating clients breaks all authenticated search and admin calls.
stateful_pvc_enabled	true for production	High	GCS FUSE has higher latency than a PD PVC; a busy index performs noticeably better on a PVC.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are bytes and block all pod scheduling in the namespace.
memory_limit	1Gi+	High	Too little memory for a large index causes OOM kills under query load.
enable_iap	for a private, human-facing endpoint	Medium	IAP requires Google identity for every request; it also blocks unauthenticated app/service calls — use scoped API keys for those.
enable_pod_disruption_budget	true	Medium	Disabling allows GKE to evict the single pod during maintenance, causing a search outage.
backup_retention_days	7 (raise for prod)	Medium	Too short to recover from an accidental index deletion discovered late.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Meilisearch-specific application configuration shared with the Cloud Run variant is described in Meilisearch_Common.
