Hoppscotch on GKE Autopilot

Hoppscotch is an open-source, Postman-style API development platform for designing, sending, and inspecting HTTP, GraphQL, and WebSocket requests from the browser. This module deploys the self-hosted Hoppscotch frontend as a stateless single-page app on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Hoppscotch uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

1. Overview

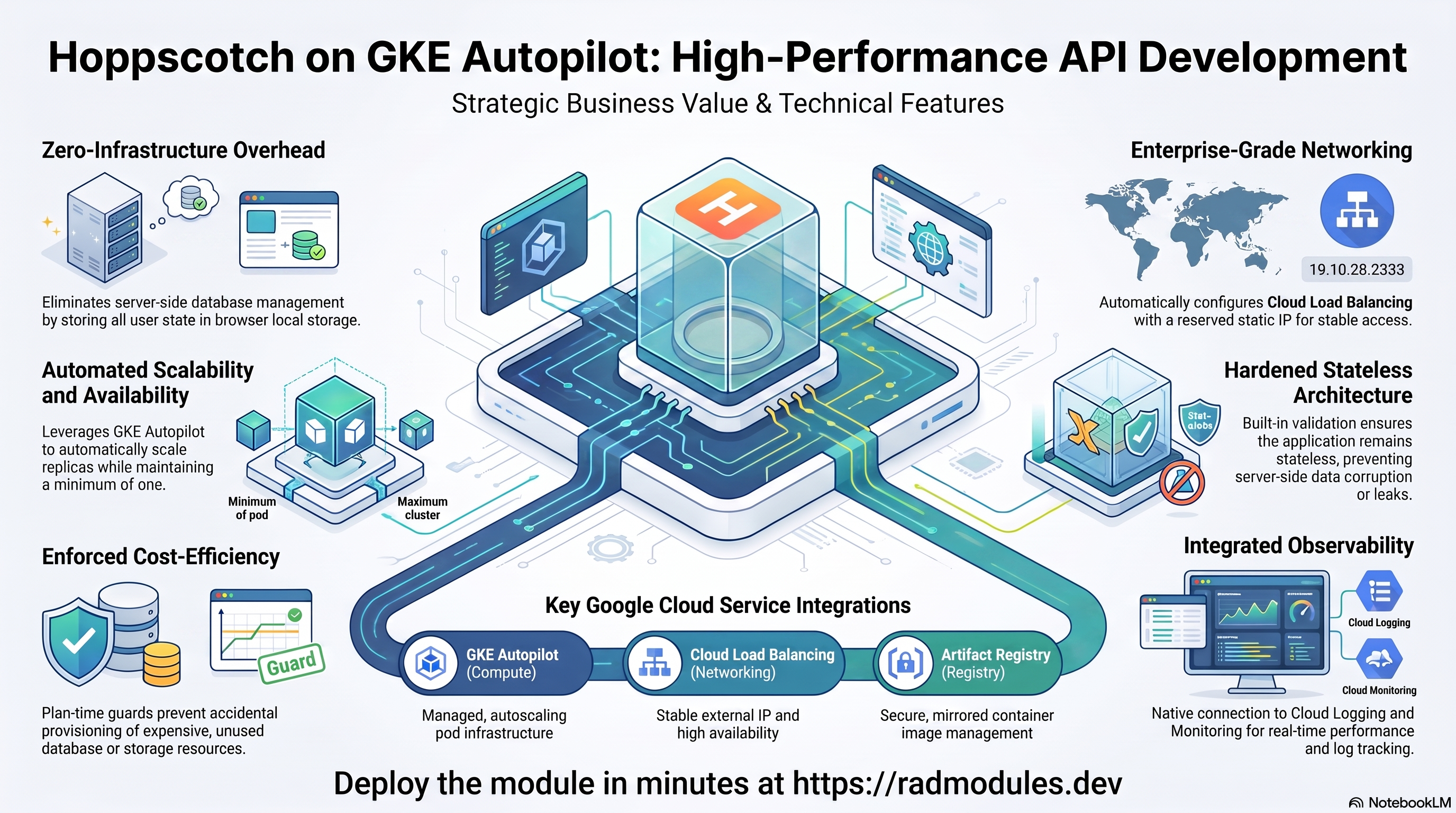

Hoppscotch runs as a static single-page web app (served by Caddy) in a Deployment on GKE Autopilot. It is deliberately stateless — no database, no cache, no persistent storage — so the deployment wires together a small set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Static SPA pods on port 3000; horizontally autoscaled; min 1 replica
Container image	Artifact Registry + Cloud Build	Thin custom build `FROM hoppscotch/hoppscotch-frontend`, mirrored into Artifact Registry
Ingress	Cloud Load Balancing	External LoadBalancer Service with a reserved static IP by default
Secrets	Secret Manager	None app-specific — Hoppscotch requires no secrets
Observability	Cloud Logging & Monitoring	Pod logs, GKE metrics, optional uptime check and alerts

Services that are deliberately not used: Cloud SQL (database_type = "NONE", enforced by a plan-time guard), Cloud Storage (no buckets), and Redis (off by default; the static frontend has no server-side rate-limiting or queue to back).

Sensible defaults worth knowing up front:

No database, ever — and it is enforced. database_type = "NONE" and enable_cloudsql_volume = false. A plan-time precondition (validation.tf) fails the plan if database_type is set to anything other than NONE, so an operator cannot accidentally provision an unused Cloud SQL instance. Hoppscotch keeps all state in browser local storage.
The frontend-only image is used on purpose. The all-in-one hoppscotch/hoppscotch image bundles a NestJS backend that exit(1)s without a DATABASE_URL. This module uses hoppscotch/hoppscotch-frontend, which serves the SPA on port 3000 with no backend requirement.
HOPPSCOTCH_VERSION, not APP_VERSION, pins the image. A custom build sets an app-specific HOPPSCOTCH_VERSION ARG so the Foundation's injected APP_VERSION does not overwrite the tag; application_version = "latest" resolves to a pinned, known-good tag at build time.
A LoadBalancer with a reserved static IP is the default. service_type = "LoadBalancer" and reserve_static_ip = true, so the external address survives redeploys.
Minimum 1 replica is maintained (min_instance_count = 1; GKE does not support scale-to-zero), keeping the SPA always reachable. max_instance_count = 3 by default and is safe to raise — there is no shared state to coordinate.
A stateless Deployment, not a StatefulSet. workload_type is unset (resolves to Deployment) and stateful_pvc_enabled is unset; the SPA needs no per-pod volume.
session_affinity = "None". The static bundle is identical on every pod, so sticky routing is unnecessary.
No secrets and no storage buckets are provisioned by this module.

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Hoppscotch workload

Hoppscotch pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Horizontal Pod Autoscaling sizes the Deployment between the minimum (1) and maximum replica counts. The container listens on port 3000 and answers GET / with the app UI (HTTP 200).

Console: Kubernetes Engine → Workloads → select the Hoppscotch workload to see pods and events. Kubernetes Engine → Services & Ingress shows the external IP.

CLI:

kubectl get pods,svc,hpa -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
kubectl describe hpa -n "$NAMESPACE"          # current vs target utilisation

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Container image — Artifact Registry & Cloud Build

Because container_image_source = "custom", the image is built by Cloud Build from the thin Dockerfile (FROM hoppscotch/hoppscotch-frontend:${HOPPSCOTCH_VERSION}) and pushed to Artifact Registry (image mirroring is on by default). Custom/mirrored images are pulled with imagePullPolicy=Always on GKE so a rebuilt tag is never served stale from a node cache.

Console: Artifact Registry → Repositories; Cloud Build → History.

CLI:

gcloud builds list --project "$PROJECT" --region "$REGION" --limit 5
gcloud artifacts docker images list \
  "$REGION-docker.pkg.dev/$PROJECT/<repo>" --project "$PROJECT" \
  --include-tags --filter="package~hoppscotch"
# Confirm the image the running pod actually pulled:
kubectl get deploy -n "$NAMESPACE" -o jsonpath='{.items[0].spec.template.spec.containers[0].image}'

C. Secret Manager

Hoppscotch provisions no application secrets — secret_ids is empty, so no Secret Store CSI volumes are mounted for this module. You can still map your own env-var-to-secret references through secret_environment_variables if you extend the deployment, but nothing is required.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT" --filter="name~hoppscotch"

See App_GKE for the Secret Store CSI integration and rotation.

D. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = "LoadBalancer"), and a static IP is reserved (reserve_static_ip = true) so the address survives redeploys. A custom domain with a Google-managed certificate can be enabled.

Console: Network services → Load balancing; VPC network → IP addresses.

CLI:

kubectl get svc -n "$NAMESPACE"                       # EXTERNAL-IP of the LoadBalancer
gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

E. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE metrics flow to Cloud Monitoring. Optional uptime checks (against the LoadBalancer host) and alert policies are available.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
  --project "$PROJECT" --limit 50

3. Hoppscotch Application Behaviour

No first-deploy database setup. There is no db-init job, no Cloud SQL instance, and no schema. Pods serve a static bundle immediately.
No server-side persistence. Collections, environments, request history, and settings live in browser local storage on each user's machine. Rolling pods, scaling, or redeploying loses no user data — there is none on the server to lose. Because the SPA is stateless, the default RollingUpdate strategy is safe (no shared NFS/DB lock to deadlock on).
No immutable keys. With no secrets and no database, there is no cryptographic material that could corrupt stored data if changed.
Health path. Startup and liveness probes target the root /, which returns the app UI (HTTP 200) as soon as Caddy binds port 3000 — typically within seconds. A failing probe almost always means the image tag is invalid, not that a backend is unreachable.
No first-run admin account. The self-hosted frontend has no login or user management of its own; browse to the LoadBalancer IP and start building requests. (Team workspaces, which require the backend + database, are intentionally out of scope for this module.)
Scaling is unconstrained. With no shared queue or database, any number of pods run independently — raise max_instance_count freely as a throughput ceiling.

Verify the running workload:

kubectl get deploy,pods -n "$NAMESPACE"
EXTERNAL_IP=$(kubectl get svc -n "$NAMESPACE" -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')
curl -sS -o /dev/null -w '%{http_code}\n' "http://$EXTERNAL_IP/"

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Hoppscotch are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
`project_id`	(required)	Target Google Cloud project.
`region`	`us-central1`	Region for the workload and regional resources.
