Headscale on Google Cloud Run

Headscale is an open-source, self-hosted implementation of the Tailscale coordination server — a control plane for a private WireGuard mesh VPN, compatible with the official Tailscale clients. Headscale is not a VPN gateway or relay itself: it authenticates nodes, distributes each peer's public key and IP allocation, and keeps the mesh's network map in sync. Actual encrypted traffic between devices flows directly, peer-to-peer, over WireGuard (or via Tailscale's own public DERP relay infrastructure when a direct connection isn't possible) — it never passes through Headscale. This module deploys Headscale on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Headscale uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

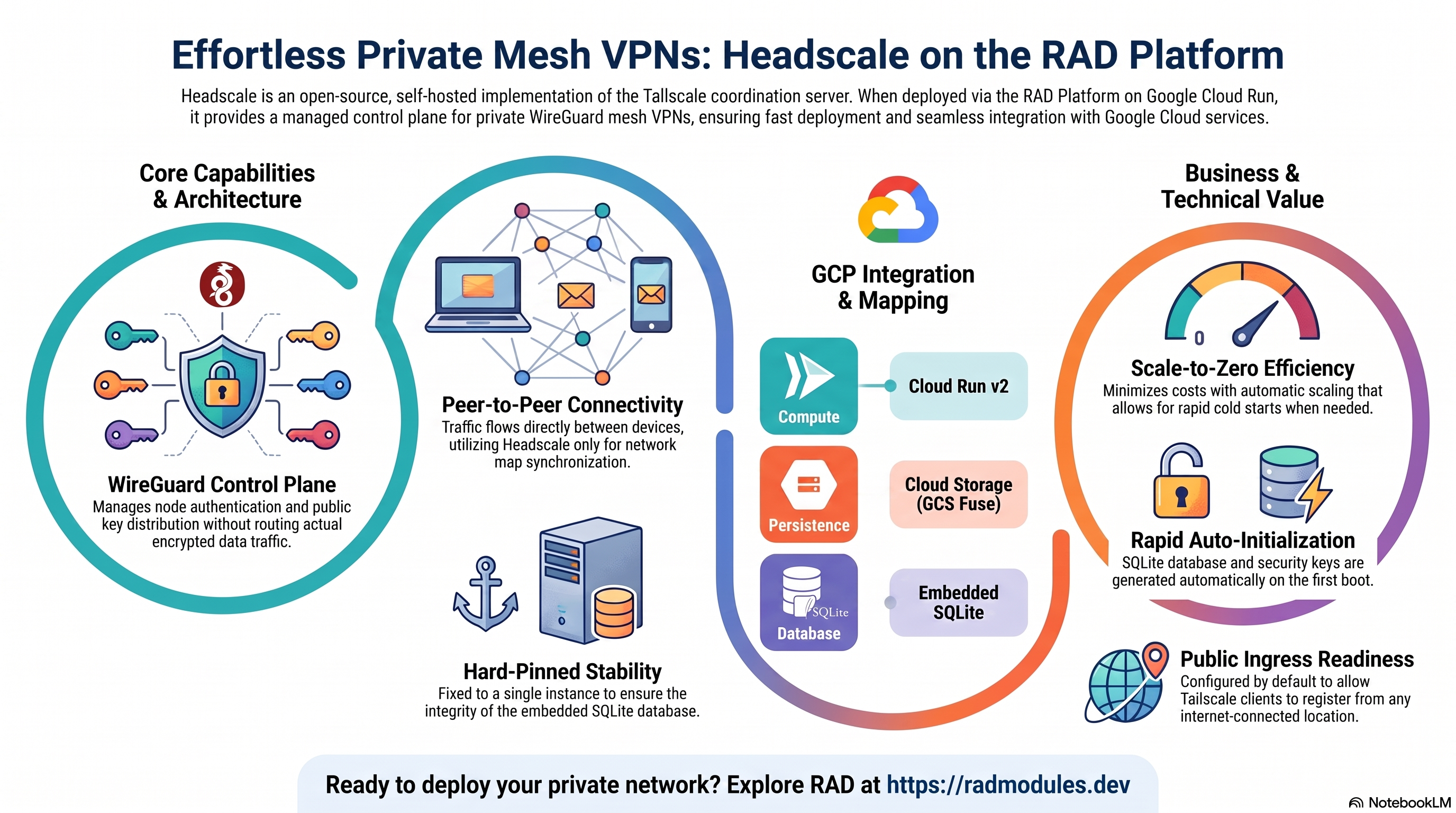

1. Overview

Headscale runs as a single Go binary on Cloud Run v2, built from a custom, ko-based upstream image. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Go service, 1 vCPU / 1 GiB by default; hard-pinned to a single instance
Database	Embedded SQLite	No Cloud SQL instance — database_type = "NONE"
Persistence	Cloud Storage (GCS Fuse)	The SQLite file, WAL sidecars, and WireGuard/Noise keys live at /var/lib/headscale
Secrets	Secret Manager	None — Headscale has no application-level secrets in this module
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; needs to stay public for real Tailscale clients to register

Sensible defaults worth knowing up front:

• SQLite is the only supported database. There is no external Cloud SQL instance; all state (node registry, pre-auth keys, the Noise-protocol private key) lives in a single SQLite file under /var/lib/headscale.
• max_instance_count is hardcoded to 1 downstream, not just defaulted. Headscale_Common sets config.max_instance_count = 1 as a literal value — the Application Module's max_instance_count variable is never actually read. Headscale has no active-active support, and two writers against the same SQLite file would corrupt it.
• Scale-to-zero is enabled by default (min_instance_count = 0). Unlike apps with a database or search index to warm, Headscale's SQLite file and WireGuard key make cold starts fast.
• Storage is GCS-Fuse-backed on Cloud Run — a real, documented trade-off. SQLite's WAL mode needs genuine POSIX file locking, which gcsfuse does not reliably provide. This is acceptable only because concurrent writers are structurally impossible (max_instance_count pinned to 1). See Pitfalls below.
• Public ingress is required for Tailscale clients to register. ingress_settings = "all" is the default so devices anywhere on the internet can reach the coordination server. Enabling IAP would block client registration entirely — the tailscale CLI cannot present a Google identity.
• MagicDNS is off by default. It requires dns.base_domain set and genuinely different from server_url's domain — a constraint a single baked default can't reliably satisfy per deployment.
• No default initialization job. Unlike apps backed by an external database, Headscale's SQLite file is created automatically on first boot.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Headscale service

Headscale runs as a single Cloud Run v2 service. Because max_instance_count is hardcoded to 1, there is no horizontal autoscaling to observe — only scale-to-zero and cold starts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — the SQLite storage volume

A dedicated storage GCS bucket is provisioned automatically and mounted at /var/lib/headscale via GCS Fuse. It holds db.sqlite (+ -wal/-shm sidecars in WAL mode), noise_private.key, and the legacy WireGuard key.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<storage-bucket>/          # bucket name is in the Outputs

See App_CloudRun for GCS Fuse mount mechanics and CMEK options.

C. Networking & ingress

The service is reachable at its run.app URL by default, allowing public access — required for real Tailscale clients on arbitrary devices/networks to reach the coordination server and register. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

D. Cloud Logging & Monitoring

Container logs flow to Cloud Logging. On boot, a healthy instance logs private-key generation, "database opened successfully", and "listening and serving HTTP". Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Headscale Application Behaviour

• SQLite auto-initializes on boot. There is no separate database-setup job — on first start, Headscale creates db.sqlite under /var/lib/headscale and applies its own internal schema migrations automatically.
• Private key auto-generation. On first boot Headscale generates its Noise-protocol private key at noise_private.key (the path configured via noise.private_key_path in the baked config) if it does not already exist. Losing this key (or the storage volume) forces every previously-registered client node to re-register.
• Health endpoint. /health is a real, unauthenticated endpoint — confirmed live returning HTTP 200 alongside "listening and serving HTTP" in the application logs. Both the startup and liveness probes target it by default.
• First-run setup is a manual, post-deploy step. Headscale ships with no web-based signup flow. Creating the first "user" (namespace) and issuing a pre-auth key for registering client nodes both happen via the headscale CLI, run against the same /ko-app/headscale binary the service uses. On Cloud Run, the practical way to run these one-off commands is a Cloud Run Job execution against the deployed image:

  # Create the first user/namespace:
  gcloud run jobs execute <job-name> --project "$PROJECT" --region "$REGION" \
    --container <service-name> --command="/ko-app/headscale" \
    --args="users,create,myuser" --wait

  # Issue a pre-auth key for that user (valid 1 hour, reusable):
  gcloud run jobs execute <job-name> --project "$PROJECT" --region "$REGION" \
    --container <service-name> --command="/ko-app/headscale" \
    --args="preauthkeys,create,--user,myuser,--reusable,--expiration,1h" --wait

  See the hands-on lab for the full, concrete walkthrough — the exact job/exec mechanics depend on how the platform names its one-off execution resources.
• Connecting a real Tailscale client. Once a pre-auth key exists:

  tailscale up --login-server=<server_url> --authkey=<preauthkey>

  The device then appears as a node in Headscale's registry.
• Inspecting registered nodes:

  # Run against the deployed binary the same way as user/key creation above:
  # headscale nodes list

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Headscale are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	headscale	Base name for resources. Do not change after first deploy.
application_version	latest	"latest" resolves to the pinned upstream build HEADSCALE_VERSION=0.26.1 — a Dockerfile build ARG, not a generic version pass-through.
server_url	""	Public URL of the control plane, baked into every client's registration. Defaults to this service's own deterministic Cloud Run URL when left empty. Changing it later requires re-registering every node.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
cpu_limit / memory_limit	1000m / 1Gi	Per-instance resource limits.
min_instance_count	0	Scale-to-zero; cold starts are fast (no DB/index to warm).
max_instance_count	1	Hardcoded to 1 downstream regardless of this value — see Pitfalls.
container_port	8080	Headscale's native listen port.
execution_environment	gen2	Required for the GCS Fuse storage mount.
enable_cloudsql_volume	false	Not applicable — no Cloud SQL.
enable_image_mirroring	true	Mirror the built image into Artifact Registry.

Group 5 — Access & Networking

Variable	Default	Description
ingress_settings	all	Required for real Tailscale clients on arbitrary networks to reach and register.
enable_iap	false	Never enable for normal use — IAP requires a Google identity, which the tailscale CLI cannot present, blocking every client registration.

Group 11 — Cloud Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Creates the storage bucket backing /var/lib/headscale.
gcs_volumes	[]	Additional GCS Fuse mounts. The storage bucket is added automatically.
enable_redis	true (declared)	Not referenced — hardcoded false in main.tf; Headscale has no use for Redis.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed by Headscale_Common — Headscale is entirely SQLite-based, there is no Cloud SQL instance.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	No default job — SQLite initializes itself on first boot.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /health, 15s delay, threshold 10	Real, unauthenticated Headscale endpoint.
liveness_probe	HTTP /health, 30s delay, threshold 3	Same endpoint.
uptime_check_config	disabled	Optional Cloud Monitoring uptime check on /health.

---

5. GCP Service Exploration Reference

See §2 above — Cloud Run, Cloud Storage, networking, and logging/monitoring are the full set of services this module touches directly (beyond the shared VPC/IAM/Artifact Registry infrastructure common to every App_CloudRun deployment).

---

6. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service — this is what server_url predicts and what clients register against.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
storage_buckets	Created Cloud Storage buckets (the storage bucket backing /var/lib/headscale).
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of any custom setup jobs (empty by default).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

7. Pitfalls & Gotchas

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. See App_CloudRun for the general validation behaviour.

Setting	Sensible value	Risk	Consequence if wrong
SQLite on GCS Fuse	Accept the trade-off, or use Headscale_GKE for production	Critical	SQLite's WAL/journal files need real POSIX file locking, which gcsfuse does not reliably provide — confirmed live via repeated BufferedWriteHandler.OutOfOrderError log entries for db.sqlite/db.sqlite-wal/db.sqlite-shm. gcsfuse falls back to a slower legacy write path; the app kept working in observed testing, but this is a known SQLite-corruption risk class documented elsewhere in this catalog. There is no fix available on Cloud Run — no block-volume alternative exists, only gcsfuse or ephemeral storage. For a production deployment, use Headscale_GKE with stateful_pvc_enabled = true (its default) instead.
max_instance_count	Leave at 1 (it's hardcoded anyway)	High	The variable is declared but never actually read by Headscale_Common — config.max_instance_count is a literal 1. Setting it higher gives a false impression that horizontal scaling is available; it is not, and would corrupt the SQLite file if it were.
server_url	Set once, before registering clients	Critical	Baked into every client's registration. Changing it after clients have registered requires re-registering every node against the new URL.
ingress_settings	all	Critical	Setting internal makes the coordination server unreachable to real Tailscale clients on the public internet — the entire point of the deployment breaks.
enable_iap	false	Critical	IAP requires a Google identity for every request. The tailscale CLI cannot present one, so enabling IAP blocks all client registration and mesh sync traffic.
Losing the storage volume/bucket	Never manually delete the storage bucket while nodes are registered	Critical	The Noise-protocol private key and the entire node registry live there. Losing it forces every client to re-register from scratch.
MagicDNS (dns.magic_dns)	Leave false unless you also set a genuine dns.base_domain	Medium	Enabling MagicDNS without a valid, distinct base_domain from server_url's domain produces broken DNS resolution for clients; the module ships it off by design.
-debug image assumption	Don't assume a shell is available	Low (build-time)	The -debug tag bundles busybox but has no /bin/sh on PATH — a naive Dockerfile change using #!/bin/sh or RUN shell steps against this base will fail. Already handled correctly in the shipped Dockerfile/entrypoint; relevant if you fork it.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Headscale-specific application configuration shared with the GKE variant is described in Headscale_Common.
