Element on Google Cloud Run
Element is the leading open-source (AGPLv3) Matrix web client — a self-hosted, end-to-end-encrypted messaging and collaboration app. This module deploys Element on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
Element is a static nginx single-page application (SPA): the browser talks directly to a Matrix homeserver (such as Synapse or Dendrite) over HTTPS, so the container itself holds no server-side state — no database, no Redis, no persistent storage, and no secrets.
This guide focuses on the cloud services Element uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

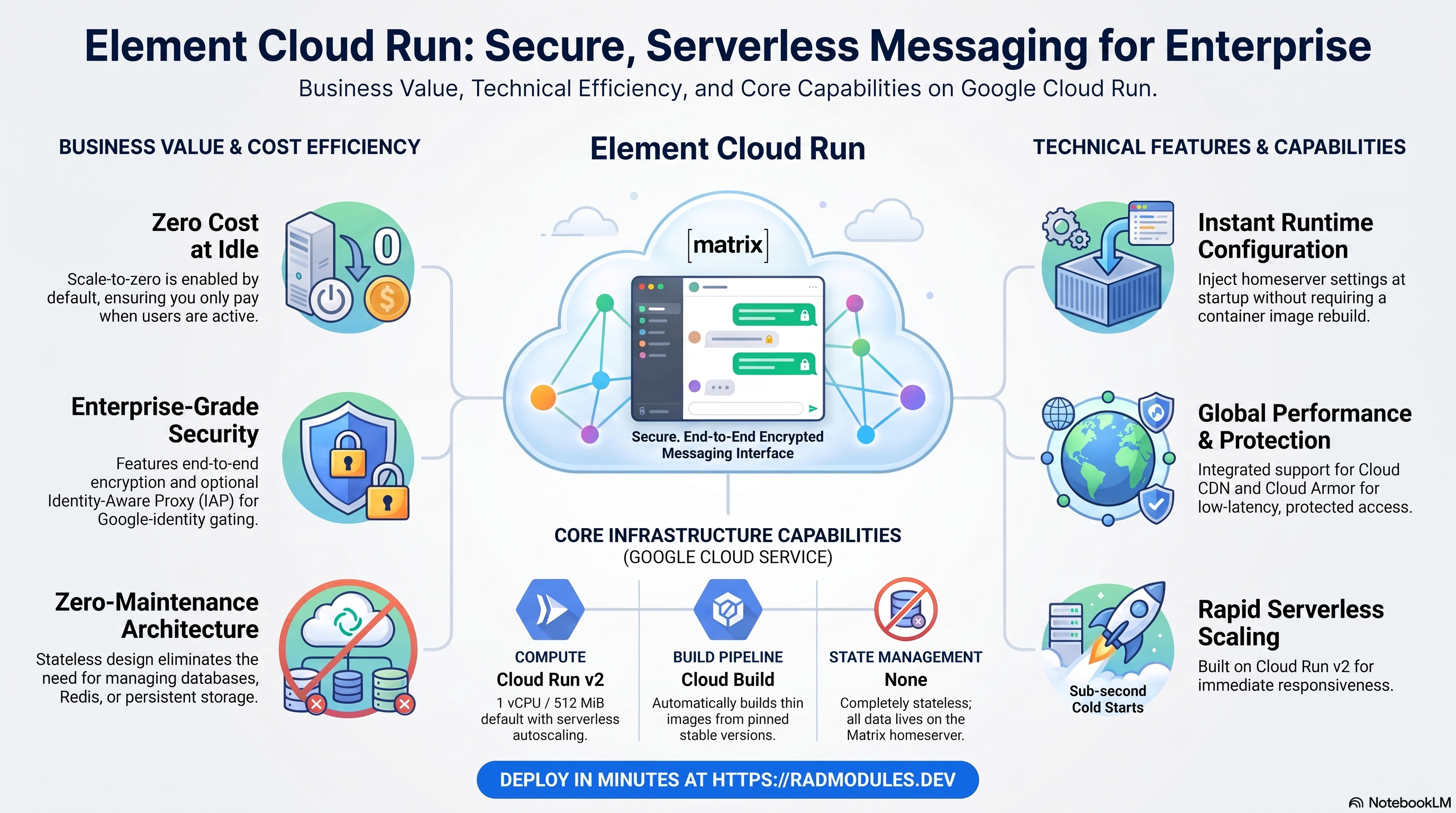

1. Overview
Element runs as a static nginx container on Cloud Run v2. The deployment wires together a deliberately small set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | nginx static SPA, 1 vCPU / 512 MiB by default, serverless autoscaling; scale-to-zero enabled |
| Container build | Cloud Build + Artifact Registry | Thin custom image FROM vectorim/element-web with a runtime config.json entrypoint |
| Ingress | Cloud Run URL / Cloud Load Balancing | Default run.app URL; optional external HTTPS load balancer + custom domain |
| Secrets | — | None. Element requires no secrets |
| Database | — | None. The Matrix homeserver holds all state, not Element |
| Object storage | — | None. Element is stateless |
Sensible defaults worth knowing up front:
- Element is stateless. All chat state, encryption keys, and media live on the Matrix homeserver and in the user's browser. Element itself stores nothing server-side, so there is no database, Redis, GCS bucket, or Secret Manager secret.
- The homeserver is runtime configuration.
homeserver_url/homeserver_nameare written into/app/config.jsonby the container entrypoint on every start, so one image can point at any homeserver without a rebuild. Leaving them blank defaults to the publicmatrix.org. - Custom build with a pinned version.
container_image_source = "custom"builds a thin image overvectorim/element-web.application_version = "latest"resolves to the pinned known-good tagv1.11.86via an app-specificELEMENT_VERSIONbuild ARG. - Scale-to-zero is enabled by default (
min_instance_count = 0,cpu_always_allocated = false). A static asset server costs nothing at idle and cold-starts in well under a second — cold starts are a non-issue for Element. - Public ingress by default.
ingress_settings = "all"makes the client UI reachable; Element performs its own login against the homeserver. Add IAP if you want a Google-identity gate in front of the UI. - Port 80. nginx serves the SPA on port 80; probes target
/.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names are
reported in the deployment Outputs.
A. Cloud Run — the Element service
Element runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Container image — Cloud Build & Artifact Registry
The Element image is built by Cloud Build from a thin Dockerfile that layers a
config.json-generating entrypoint on top of vectorim/element-web, then pushed to
Artifact Registry. application_version = "latest" builds the pinned v1.11.86.
- Console: Cloud Build → History; Artifact Registry → Repositories.
- CLI:
gcloud builds list --project "$PROJECT" --limit 5
gcloud artifacts docker images list <region>-docker.pkg.dev/<project>/<repo> --project "$PROJECT"
See App_CloudRun for the build pipeline, image mirroring, and retention policy.
C. Networking & ingress
The service is reachable at its run.app URL by default. An external HTTPS load
balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress
settings and VPC egress control connectivity. Because Element is a static asset
server, it is a strong candidate for Cloud CDN.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
D. Identity-Aware Proxy (optional)
Element ships open by default so users can log in against the homeserver. To restrict
who can even load the client UI to your Google identities, enable IAP (enable_iap = true).
- Console: Security → Identity-Aware Proxy.
- CLI:
gcloud iap web get-iam-policy --resource-type=backend-services --project "$PROJECT"
See App_CloudRun for IAP setup and the OAuth consent screen.
E. Cloud Logging & Monitoring
Container (nginx access/error) logs flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with an uptime check and check-failure alert provisioned when the endpoint is publicly reachable.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting / Uptime checks.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Element Application Behaviour
- Runtime config generation. The container entrypoint writes
/app/config.jsonon every start fromHOMESERVER_URL/HOMESERVER_NAME, then hands off to nginx. Changing the homeserver is a redeploy with new env values — no image rebuild. - No database, no migrations. Element serves static assets; there is no schema, no init job, and no first-boot migration window. The service is Ready as soon as nginx binds port 80.
- Login is a browser-to-homeserver flow. Element authenticates the user directly against the configured Matrix homeserver; there is no server-side session in the Cloud Run container and nothing to seed in Secret Manager.
- Verify the injected homeserver. Confirm the running revision's env matches your
intended homeserver:
Then open
gcloud run services describe <service-name> \
--region "$REGION" --project "$PROJECT" \
--format='value(spec.template.spec.containers[0].env)'$SERVICE_URL— the login screen should show your homeserver, andcurl -s "$SERVICE_URL/config.json"should return the JSON with yourbase_url. - Health path. Startup and liveness probes target
/, which nginx answers immediately and unauthenticated. - Upgrading Element. Bump
application_version(or pin a newerelement-webtag) and redeploy; a new image builds and a new revision rolls out. Because Element reuses a version tag across rebuilds, the build's content-hash trigger drives the new image; verify the deployed revision's digest if a change seems stale.
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Element are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the service and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|---|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | element | Base name for resources. Do not change after first deploy. |
application_display_name | App_CloudRun Application | Human-readable name shown in the Console. Not customised for Element in variables.tf — override with e.g. "Element" for a clearer display name. |
application_version | latest | Element image tag; latest builds the pinned v1.11.86. Pin a specific element-web tag in production. |
homeserver_url | "" | Matrix homeserver base URL written into config.json. Blank → matrix.org. |
homeserver_name | "" | Matrix server name (delegation identity) advertised by Element. Blank → matrix.org. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
container_image_source | custom | Builds the thin Element image via Cloud Build. |
container_image | "" | Override with a prebuilt/mirrored image URI. |
cpu_limit | 1000m | CPU per instance. |
memory_limit | 512Mi | Memory per instance (gen2 floor is 512 MiB). |
container_port | 80 | nginx listens on port 80. |
min_instance_count | 0 | Scale-to-zero — a static server is free at idle. |
max_instance_count | 3 | Autoscaling upper bound. |
cpu_always_allocated | false | Request-based billing (cheaper) — Element does no background work. |
execution_environment | gen2 | Cloud Run execution environment. |
enable_cloudsql_volume | false | No database — Auth Proxy not mounted. |
enable_image_mirroring | true | Mirror the image into Artifact Registry. |
Group 5 — Access & Ingress Control
| Variable | Default | Description |
|---|---|---|
ingress_settings | all | Public UI. Set internal to restrict to the VPC. |
vpc_egress_setting | PRIVATE_RANGES_ONLY | Route only RFC 1918 traffic via VPC. |
enable_iap | false | Require Google sign-in to load the client UI. |
iap_authorized_users / iap_authorized_groups | [] | Who may access through IAP. |
Group 6 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Extra settings merged with the injected HOMESERVER_URL / HOMESERVER_NAME. |
secret_environment_variables | {} | Secret Manager references. Element needs none. |
secret_propagation_delay | 30 | Seconds to wait after secret creation. |
secret_rotation_period | 2592000s | Rotation notification frequency. |
Group 7 — Backup & Restore
Inherited from App_CloudRun and no-ops for Element (nothing to
back up). backup_schedule, backup_retention_days, enable_backup_import,
backup_source, backup_uri, backup_format.
Group 8 — CI/CD & Binary Authorization
Standard App_CloudRun Cloud Build / Cloud Deploy integration — see
App_CloudRun. Key inputs: enable_cicd_trigger,
github_repository_url, github_token, enable_cloud_deploy,
enable_binary_authorization.
Group 9 — Load Balancer, CDN & Image Retention
| Variable | Default | Description |
|---|---|---|
enable_cloud_armor | false | Provision Global HTTPS LB + Cloud Armor WAF. |
admin_ip_ranges | [] | CIDR ranges exempted from WAF rules. |
application_domains | [] | Custom domain names for the HTTPS LB. |
enable_cdn | false | Enable Cloud CDN — worthwhile for Element's static assets. |
max_images_to_retain / delete_untagged_images / image_retention_days | (set) | Artifact Registry cleanup policy. |
Group 11 — Storage & Filesystem
Inherited and not used by Element (stateless). create_cloud_storage,
storage_buckets (empty), enable_nfs (false), gcs_volumes (empty),
manage_storage_kms_iam, enable_artifact_registry_cmek.
Group 12 — Database
Inherited from App_CloudRun and inert — Element_Common sets
database_type = "NONE". No Cloud SQL instance, user, or password is created.
Group 13 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | Element declares no init jobs. |
cron_jobs | [] | No platform-scheduled recurring tasks. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP / 10 s delay, 6 failures | Startup probe. |
liveness_probe | HTTP / 15 s delay | Liveness probe. |
uptime_check_config | { enabled = false, path = "/" } | Optional Cloud Monitoring uptime check (endpoint is public). |
alert_policies | [] | Metric alert policies. |
Group 21 — Redis Cache & Queue
Inherited from App_CloudRun and inert — a static SPA has no
server-side cache or queue. enable_redis, redis_host, redis_port, redis_auth.
Group 22 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|---|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
Returned on a successful deployment — the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
service_url | Default run.app URL of the service. |
service_location | Region the service runs in. |
stage_services | Stage-specific service URLs (Cloud Deploy). |
load_balancer_ip / load_balancer_url | External HTTPS load balancer IP / URL (when enabled). |
storage_buckets | Created Cloud Storage buckets (empty for Element). |
network_name / network_exists / regions | VPC network, presence, regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels / uptime_check_names | Monitoring status, channels, uptime checks. |
initialization_jobs | Names of setup jobs (none for Element). |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration | CI/CD status and details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — IAP with no authorized identities, a
gen1runtime with NFS/GCS mounts, an out-of-rangetimeout_seconds. Invalid configuration fails the plan with a clear, named error before any resource is created.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
homeserver_url / homeserver_name | Your real homeserver, or blank for matrix.org | High | A wrong or unreachable homeserver leaves users unable to log in — the UI loads but authentication fails. |
application_version | Pin a real element-web tag | High | latest is not a valid element-web tag; the module pins v1.11.86, but a hand-set latest in a raw build ARG would fail with MANIFEST_UNKNOWN. |
ingress_settings | all for public UI | High | internal makes the client UI unreachable from browsers outside the VPC. |
container_image_source | custom | High | Switching to prebuilt with an image that lacks the config.json entrypoint ships Element pointed at the wrong homeserver (or none). |
memory_limit | 512Mi | Medium | The gen2 execution environment rejects anything below 512 MiB at plan time, regardless of billing mode. |
enable_iap | Enable to gate the UI | Medium | Without IAP anyone with the URL can load the client (they still need homeserver credentials to log in). |
enable_cdn | Enable for public deployments | Low | Serving static assets straight from Cloud Run misses an easy latency/egress win. |
| Database / Redis / Backup inputs | Leave default | Low | Inert for Element; setting them has no effect. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, and image mirroring — see App_CloudRun. Element-specific application configuration shared with the GKE variant is described in Element_Common.
