SimpleRisk on Google Cloud Run

SimpleRisk is a free, open-source governance, risk and compliance (GRC) platform. Security and compliance teams use it to keep a risk register, score risks, plan and track mitigations, run management reviews and keep an auditable history for assessors. This module deploys SimpleRisk on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services SimpleRisk uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

1. Overview

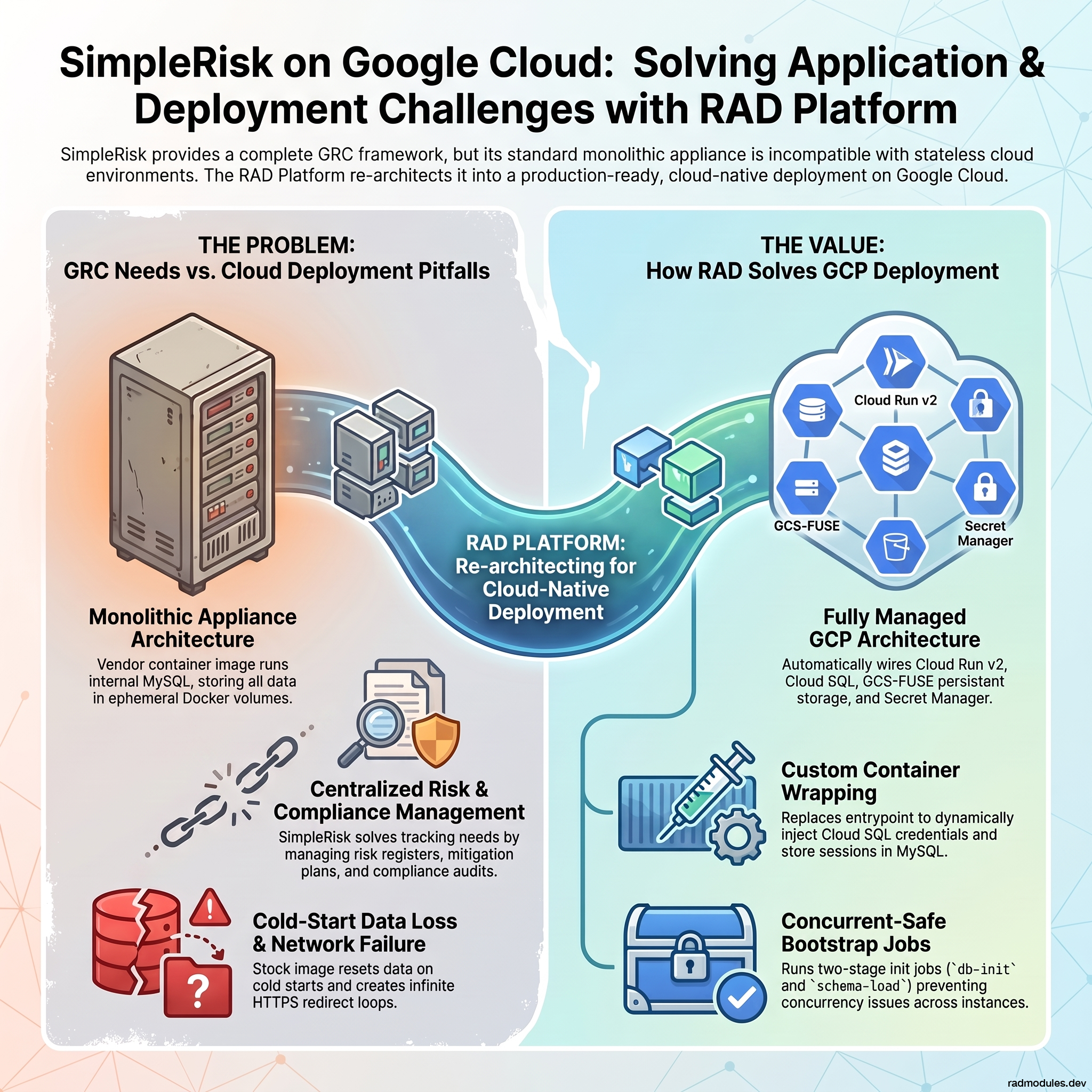

SimpleRisk runs as a PHP application under Apache on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Apache + PHP, 1 vCPU / 2 GiB by default; scale-to-zero by default
Database	Cloud SQL for MySQL 8.0	Required — SimpleRisk_Common fixes the engine; holds the risk register, users and sessions
Object storage	Cloud Storage (GCS FUSE)	A storage bucket mounted at /var/www/simplerisk/files for uploaded files; a generic data bucket is also created but unused
Secrets	Secret Manager	The database password only — SimpleRisk needs no other generated secret
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• The vendor image is not used as shipped. simplerisk/simplerisk is an all-in-one appliance that runs its own MySQL server inside the container and keeps every piece of state in Docker volumes — ephemeral on Cloud Run, so the stock image would come back with an empty risk register after every cold start, with no error. SimpleRisk_Common builds a wrapper image whose entrypoint points SimpleRisk at Cloud SQL instead (see SimpleRisk_Common).
• MySQL 8.0 is mandatory, reached over the instance's private IP (DB_IP) — enable_cloudsql_volume = false, no Auth Proxy socket.
• There are no default credentials. On first access SimpleRisk shows a Default Admin Account Creation form, and whoever submits it becomes the administrator. The service is public by default, so create the account as soon as the deployment finishes (see §6).
• Scale-to-zero is enabled by default (min_instance_count = 0, max_instance_count = 1). Sessions are stored in the database, so raising max_instance_count does not log users out when requests land on different instances.
• Pin an exact image tag. SimpleRisk tags are dated build ids (20260909-001, the default), not semver.
• NFS is not used (enable_nfs = false); uploaded files go to the GCS FUSE volume.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the SimpleRisk service

SimpleRisk runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for MySQL 8.0

All SimpleRisk data — risks, assessments, mitigations, users, and PHP sessions — lives in a managed Cloud SQL for MySQL 8.0 instance. The service connects to the instance's private IP over TCP. On first deploy two jobs run in order: db-init creates the application database and user, then schema-load loads SimpleRisk's schema (/simplerisk.sql, shipped inside the vendor image).

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Cloud Storage

SimpleRisk_Common declares a storage bucket (public access prevention enforced) and, with enable_gcs_storage_volume = true, mounts it with GCS FUSE at /var/www/simplerisk/files, where SimpleRisk keeps uploaded files. The Foundation's generic data bucket (storage_buckets) is also created but SimpleRisk does not use it. Both are created only when create_cloud_storage = true.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<storage-bucket-name>/

D. Secret Manager

SimpleRisk itself mints no secrets. The only generated credential is the database password, which the Foundation creates and injects as DB_PASSWORD; its secret name is the database_password_secret output. Data-at-rest encryption (a SimpleRisk Extra) is deliberately not enabled: it would introduce a key file on the container filesystem, which is ephemeral on Cloud Run.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~simplerisk"

E. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all", allUsers invoker). An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on with enable_cloud_armor.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring. An uptime check is created only when uptime_check_config is enabled and min_instance_count >= 1 — a scale-to-zero service is not probed.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. SimpleRisk Application Behaviour

• What the wrapper entrypoint does on every boot. It renders /var/www/simplerisk/includes/config.php from the vendor's config.sample.php, substituting the Foundation-injected DB_IP, DB_PORT, DB_NAME, DB_USER and DB_PASSWORD with PHP str_replace (a generated password containing /, & or \ would break a sed substitution), and sets USE_DATABASE_FOR_SESSIONS to true. It then starts Apache. If DB_IP, DB_NAME, DB_USER or DB_PASSWORD is missing, the container exits rather than starting against nothing.
• Port 80 serves the application. The vendor image serves SimpleRisk only on 443 and turns port 80 into an HTTP-to-HTTPS redirect, which behind Cloud Run's TLS termination is an infinite redirect loop. The wrapper rewrites the port-80 virtual host to serve /var/www/simplerisk directly (keeping the vendor's security headers, deliberately dropping HSTS) and removes the 443 virtual host.
• Two-stage init chain. db-init (mysql:8.0-debian, up to 3 retries) creates the user and database, grants privileges and verifies the app user can connect. schema-load (app image, depends on db-init, up to 2 retries) counts the tables in the database and loads /simplerisk.sql only if there are none, then counts again to confirm the load landed. Both jobs are created with execute_on_apply = true and are safe to re-run. A fresh load produces about 154 tables.
• Health check behaviour. Startup and liveness probes are HTTP GET / (startup: 30s initial delay, 15s period, 20 failures allowed). Note that the page renders before SimpleRisk needs the database, so a passing probe does not prove the database connection works — use the first-run form or a login to check that.

  curl -s -o /dev/null -w "%{http_code}\n" "$SERVICE_URL/"

• First-run administrator. On first access SimpleRisk renders a Default Admin Account Creation form; submitting it creates the administrator. Seeing that form is also the proof that the app is talking to the (empty-of-users) Cloud SQL database.
• Scheduled tasks. The wrapper runs Apache only — the vendor's supervisord-managed cron is not started — so SimpleRisk's scheduled reports and notifications do not run inside the container. Use cron_jobs if you need them; an entry without image runs the app image.
• Inspect job execution:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for SimpleRisk are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
tenant_id	demo	Short suffix (1–7 lowercase alphanumerics) that makes resource names unique per environment.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources. A module key is reserved by the foundation and is overwritten.

Group 3 — Application Identity

Variable	Default	Description
application_name	simplerisk	Base name for resources. Do not change after first deploy.
display_name	SimpleRisk	Human-readable name shown in the Console.
description	SimpleRisk IT asset management on Cloud Run	Cloud Run service description; the shipped wording is a leftover and purely cosmetic.
application_version	20260909-001	simplerisk/simplerisk tag, passed to the build as SIMPLERISK_VERSION. Dated build ids, not semver.
php_memory_limit	512M	Injected as the lowercase memory_limit env var. The vendor entrypoint that read it is replaced by the module's own, which does not.
admin_email	admin@example.com	Not used — the administrator is created through SimpleRisk's first-run form.
enable_gcs_storage_volume	true	GCS-FUSE-mount the storage bucket at /var/www/simplerisk/files.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	custom	Builds the wrapper image via Cloud Build. prebuilt skips the wrapper — the stock image cannot use Cloud SQL.
cpu_limit	1000m	CPU per instance.
memory_limit	2Gi	Memory per instance.
min_instance_count	0	0 enables scale-to-zero.
max_instance_count	1	Autoscaling upper bound.
container_port	80	Apache serves SimpleRisk on port 80.
execution_environment	gen2	Required for the GCS FUSE mount.
timeout_seconds	300	Max request duration (0–3600).
enable_cloudsql_volume	false	Keep false — the app connects to DB_IP over TCP.
enable_image_mirroring	true	Mirror the image into Artifact Registry.
container_protocol	http1	HTTP/1.1.
service_annotations	{}	Custom-namespace keys only; run.googleapis.com/* keys are rejected by the Cloud Run v2 API at apply time.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	internal-and-cloud-load-balancing closes the public run.app URL.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Uppercase values (ALL_TRAFFIC), unlike ingress_settings.
enable_iap	false	Require Google sign-in; also removes the allUsers invoker binding.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Merged over the module defaults (DB_PORT = "3306", memory_limit); the Foundation's DB_* variables are kept.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
protect_sensitive_environment_variables	true	Moves credential-looking environment_variables into Secret Manager.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated database backup cron (UTC), run by Cloud Scheduler.
backup_retention_days	7	Retention, enforced as a lifecycle rule on the backups bucket.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts & NFS Instance

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. Do not use them to alter SimpleRisk's own tables. nfs_instance_name and nfs_instance_base_name apply only when enable_nfs = true. See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges allowed for privileged access.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Apply only to an inline-created Artifact Registry repository — no effect when images go to the Services_GCP shared repository.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Create the storage bucket and the generic data bucket.
enable_nfs	false	Not needed by SimpleRisk.
nfs_mount_path	/var/lib/simplerisk	Only used when enable_nfs = true; SimpleRisk does not write there.
gcs_volumes	[]	Extra GCS FUSE mounts (the storage mount is added automatically).
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	MYSQL_8_0	Fixed by SimpleRisk_Common.
db_name / db_user	simplerisk	Passed to SimpleRisk_Common. Do not change after first deploy.
database_password_length	32	Generated password length (16–64). Changing it on a running deployment breaks authentication (see §6).
enable_auto_password_rotation	false	Automated password rotation.
db_host_env_var_name	DB_IP	Keep DB_IP — the entrypoint and schema-load read it.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init → schema-load chain; a non-empty list replaces both.
cron_jobs	[]	No scheduled tasks by default. An entry without image runs the app image.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP GET /, 30s delay, 15s period, 20 retries	The vendor image's own health path.
liveness_probe	HTTP GET /, 60s delay, 30s period, 3 retries	Same path.
uptime_check_config	{ enabled = false, path = "/" }	Created only when enabled and min_instance_count >= 1.
alert_policies	[]	Metric alert policies.

Group 21 — Redis

Variable	Default	Description
enable_redis	false	SimpleRisk has no Redis integration.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires an organization).
vpc_sc_dry_run	true	Log violations without blocking.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (sensitive) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs (db-init, schema-load).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
First-run administrator form	Create the admin account immediately after deploy, or restrict access first	Critical	SimpleRisk has no default credentials; whoever submits the Default Admin Account Creation form first becomes administrator. With ingress_settings = "all" and the allUsers invoker binding, that can be anyone who finds the URL. ingress_settings = "internal-and-cloud-load-balancing" or enable_iap = true closes the public URL.
container_image_source	custom	Critical	prebuilt deploys an image without the wrapper entrypoint; the stock image ignores Cloud SQL, runs its own MySQL in the container and loses all data on every cold start, silently.
db_name / db_user	Set once	Critical	Changing them points SimpleRisk at a new, empty database.
database_password_length	Leave unchanged after first deploy	High	Changing it writes a new password to Secret Manager without updating the Cloud SQL user, so the service and both jobs fail to authenticate. The HTTP probes stay green because / renders without the database. Re-run the db-init job (it runs ALTER USER) to resync.
application_version	An exact dated tag	High	A rebuild under an unchanged tag produces no Terraform diff and no new revision — the running service keeps the old image.
initialization_jobs	[]	High	Any non-empty list replaces db-init and schema-load; the schema is then never loaded into a fresh database.
db_host_env_var_name	DB_IP	High	The entrypoint requires DB_IP; without it the container exits at start.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
min_instance_count	1 for production	Medium	Scale-to-zero adds cold-start latency, and no uptime check is created while it is 0.
enable_cloud_armor	enable for production	Medium	The service is publicly reachable without WAF protection by default.
service_annotations	custom-namespace keys only	Low	run.googleapis.com/* keys pass the plan and fail at apply ("system annotations are not supported").

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. The SimpleRisk-specific application layer is described in SimpleRisk_Common.

Related guides

• Hands-on lab: SimpleRisk on Cloud Run — deploy it step by step, with the console screens and commands at each stage.
• SimpleRisk Common — Shared Application Configuration — the application layer this module builds on.
