Wordpress GKE Module — Configuration Guide
This guide describes the configuration variables that are unique to the Wordpress_GKE module. Because Wordpress_GKE is a wrapper around App_GKE, the vast majority of its variables are passed directly to that base module and are fully documented in the App_GKE Configuration Guide. This guide explains the WordPress-specific additions, the differences in default values, and what the Wordpress_Common sub-module provisions automatically.
Where to look: If a variable you are configuring is not described here, consult the App_GKE Configuration Guide. All
App_GKEfeatures — GKE cluster selection, session affinity, network policies, Cloud Armor, IAP, CI/CD, Cloud Deploy, Binary Authorization, StatefulSets, resource quotas, and VPC Service Controls — are available inWordpress_GKEwith identical behaviour and configuration.

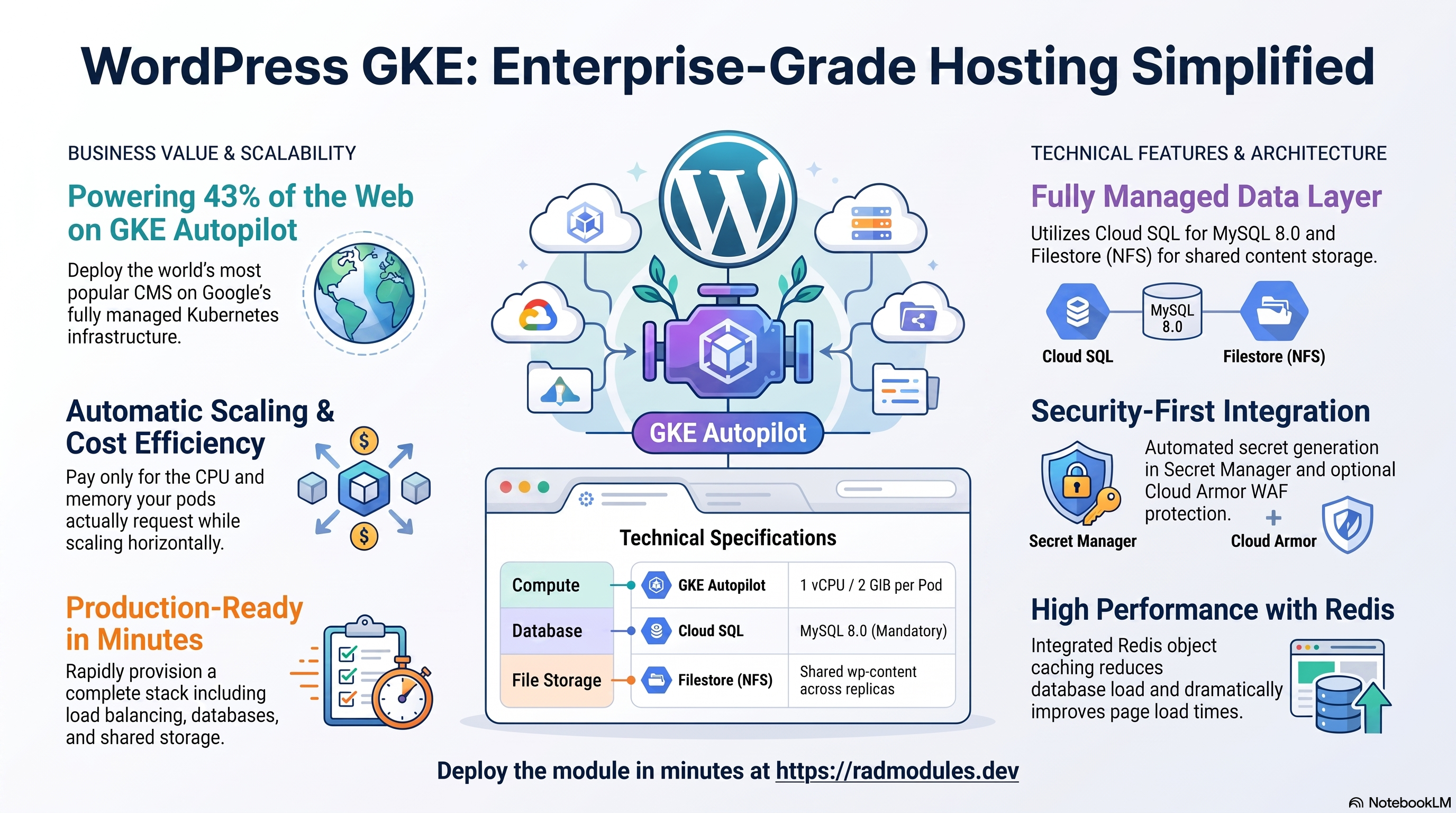

WordPress Application Architecture
Wordpress GKE composes two modules:
Wordpress_GKE
├── Wordpress_Common (generates WordPress-specific configuration)
│ ├── Custom PHP 8.4 + Apache container image
│ │ └── Extensions: gd, mysqli, imagick, bcmath, intl, zip
│ ├── MySQL 8.0 database type and defaults
│ ├── GCS uploads bucket definition
│ ├── 8 WordPress security keys/salts (auto-generated in Secret Manager)
│ └── db-init initialization job (creates database and user on every apply)
└── App_GKE (GKE Autopilot platform)
├── Provisions Cloud SQL MySQL 8.0 (or discovers shared Services_GCP instance)
├── Mounts GCS wp-uploads bucket via GCS Fuse CSI Driver
├── Injects WordPress secrets into pods via Secret Manager
└── Runs db-init job (execute_on_apply = true — idempotent)
On first deployment the db-init job (using mysql:8.0-debian) runs a script that creates the application database and user in the Cloud SQL instance. It runs on every terraform apply because it is idempotent — it safely skips steps that are already complete.
Platform-Inherited Configuration
The groups below are fully inherited from App_GKE and behave identically. Refer to the linked sections of the App_GKE Configuration Guide for complete documentation, including all option values, validation commands, and Console navigation paths.
WordPress-Specific Configuration
The sections below document variables that are unique to this module or that carry WordPress-specific defaults which differ from the App GKE base.
Application Identity
The variables in this group work identically to App_GKE §1 Module Overview, but Wordpress_GKE provides WordPress-appropriate defaults. The three PHP configuration variables (php_memory_limit, upload_max_filesize, post_max_size) are unique to this module and control the container's PHP runtime behaviour.
| Variable | Default | Options / Format | Description & Implications |
|---|---|---|---|
application_name | "wordpress" | [a-z][a-z0-9-]{0,19} | Internal identifier for this WordPress deployment. Used as the base name for the Kubernetes namespace, Cloud SQL database/user, Artifact Registry repository, GCS buckets, and Secret Manager secrets. Do not change after initial deployment. |
application_display_name | "Wordpress" | Any string | Human-readable name shown in the platform UI and monitoring dashboards. May be updated freely at any time without affecting resource names. |
application_description | "Wordpress CMS on GKE" | Any string | Description used in resource annotations and platform documentation. |
application_version | "latest" | Any string (e.g. "6.5.3", "6.6") | Version tag passed to Cloud Build as the APP_VERSION build argument and baked into the container image. Incrementing this value triggers a new build and rolling update. Avoid "latest" in production — use a pinned WordPress version to ensure reproducible deployments and reliable rollbacks. |
php_memory_limit | "512M" | String with unit suffix (e.g. "256M", "1G") | PHP memory_limit directive applied inside the WordPress container. WordPress loads all active plugins into memory on each request — sites with many or memory-intensive plugins may exhaust the default limit. Symptoms of an insufficient value: "Allowed memory size exhausted" fatal errors, blank pages (white screen of death), or silent failures during plugin activation or data imports. Common production values: "512M" (default), "1G" (heavy plugin workloads). |
upload_max_filesize | "64M" | String with unit suffix (e.g. "64M", "256M") | PHP upload_max_filesize directive. Sets the maximum size of a single file that can be uploaded via the WordPress media library, plugin installer, or theme installer. Must be equal to or less than post_max_size — if it exceeds post_max_size, PHP silently limits it to post_max_size. Increase for sites that manage large video, audio, or high-resolution image uploads. |
post_max_size | "64M" | String with unit suffix (e.g. "64M", "256M") | PHP post_max_size directive. Sets the maximum size of all POST data submitted in a single HTTP request, including file upload payloads. Must be greater than or equal to upload_max_filesize. If a client exceeds this limit, PHP discards all $_POST variables in the request — in WordPress this manifests as failed uploads, empty form submissions, or silent post-save failures. |
Validating PHP Limits
# Confirm PHP limits are active in a running WordPress pod
kubectl exec -n NAMESPACE POD_NAME -- php -r "
echo 'memory_limit: ' . ini_get('memory_limit') . PHP_EOL;
echo 'upload_max_filesize: ' . ini_get('upload_max_filesize') . PHP_EOL;
echo 'post_max_size: ' . ini_get('post_max_size') . PHP_EOL;
"
Runtime & Scaling
All variables in this group behave as documented in App_GKE §3.A Compute (GKE Autopilot). The table below highlights the defaults that Wordpress_GKE changes from the base module values.
| Variable | WordPress Default | App GKE Default | Note |
|---|---|---|---|
container_image_source | "custom" | "custom" | WordPress always builds a custom PHP 8.4 + Apache image via Cloud Build. Override with "prebuilt" only when supplying your own pre-built WordPress image via container_image. |
container_port | 80 | 8080 | Apache in the WordPress container listens on port 80. Do not change unless you have modified the Apache configuration inside the container. |
cpu_limit | "1000m" | (set via container_resources) | Exposed as a top-level variable alongside memory_limit for convenience. Equivalent to setting container_resources.cpu_limit. |
memory_limit | "2Gi" | "512Mi" (via container_resources) | WordPress with PHP 8.x and a typical plugin set requires substantially more memory than a generic application. The 2Gi default accommodates WordPress core, WooCommerce, Yoast SEO, and moderate media library usage. Increase to 4Gi for sites with many concurrent users or heavy plugin workloads. |
min_instance_count | 1 | 1 | One pod is always running to avoid cold-start latency for WordPress visitors. |
max_instance_count | 1 | 3 | WordPress stores uploaded media in a GCS Fuse–mounted bucket, which supports concurrent writers. However, PHP session state and certain plugin caches may not be multi-replica–safe. Increase this value only after verifying that all installed plugins handle concurrent access correctly, and ensure session_affinity = "ClientIP" (the default) is set to pin sessions to individual pods. |
container_resources | null (uses cpu_limit/memory_limit) | null | When container_resources is set explicitly it overrides the separate cpu_limit and memory_limit variables. Use container_resources when you also need to specify CPU/memory requests or ephemeral storage limits. |
container_build_config | { enabled = true } | N/A | Advanced Cloud Build configuration (Dockerfile path, build args, artifact repo). Exposed in Wordpress GKE but not in Wordpress CloudRun. Defaults to the Wordpress Common-managed build config; override only when supplying a custom Dockerfile. |
Environment Variables & Secrets
Refer to App_GKE §3.A Compute (GKE Autopilot) for documentation on environment_variables, secret_environment_variables, secret_rotation_period, and secret_propagation_delay.
WordPress Auto-Generated Security Keys & Salts
Wordpress Common automatically provisions eight WordPress cryptographic secrets in Secret Manager and injects them into the application pods. You do not need to supply values — they are generated as random 64-character strings on the first deployment and persist across subsequent applies.
| Secret | WordPress Constant | Purpose |
|---|---|---|
*-auth-key | WORDPRESS_AUTH_KEY | Signs authentication cookies |
*-secure-auth-key | WORDPRESS_SECURE_AUTH_KEY | Signs authentication cookies over HTTPS |
*-logged-in-key | WORDPRESS_LOGGED_IN_KEY | Identifies logged-in cookies |
*-nonce-key | WORDPRESS_NONCE_KEY | Provides nonce uniqueness |
*-auth-salt | WORDPRESS_AUTH_SALT | Salts the auth key |
*-secure-auth-salt | WORDPRESS_SECURE_AUTH_SALT | Salts the secure auth key |
*-logged-in-salt | WORDPRESS_LOGGED_IN_SALT | Salts the logged-in key |
*-nonce-salt | WORDPRESS_NONCE_SALT | Salts the nonce key |
Important: Rotating these secrets (by deleting and recreating them) invalidates all existing browser cookies. Every logged-in WordPress user — including administrators — will be immediately signed out. Rotate only if a secret is believed to have been compromised.
# Confirm all WordPress secrets are present in Secret Manager
gcloud secrets list --project=PROJECT_ID \
--filter="name:RESOURCE_PREFIX" \
--format="table(name,createTime)"
WordPress Pre-Set Environment Variables
Wordpress Common injects the following environment variables into all pods automatically. You do not need to configure them; override via environment_variables only when customising beyond the defaults.
| Variable | Pre-Set Value | Description |
|---|---|---|
WORDPRESS_TABLE_PREFIX | wp_ | Standard WordPress table prefix. Override only when migrating an existing database with a non-standard prefix. |
WORDPRESS_DEBUG | false | Disables debug mode. Set to true in development environments only — debug mode may expose sensitive information in HTTP responses. |
ENABLE_REDIS | true / false | Controlled by enable_redis. See the Redis section below. |
WP_REDIS_HOST | value of redis_host | Injected only when enable_redis = true. |
WP_REDIS_PORT | value of redis_port | Injected only when enable_redis = true. |
Database Configuration
The WordPress database is always MySQL 8.0 (MYSQL_8_0), locked in by Wordpress_Common. Refer to App_GKE §3.B Database (Cloud SQL) for documentation on Cloud SQL instance discovery (sql_instance_name, sql_instance_base_name), database_password_length, enable_auto_password_rotation, and rotation_propagation_delay_sec.
The variables below behave identically to their App GKE counterparts but carry WordPress-appropriate defaults.
| Variable | WordPress Default | App GKE Default | Description |
|---|---|---|---|
database_type | null (defaults to "MYSQL_8_0" from Wordpress Common) | "POSTGRES" | WordPress requires MySQL. The Wordpress Common config provides "MYSQL_8_0" as the base default, but the caller can override this via var.database_type (the GKE wrapper merges a non-null value). Setting this to a non-MySQL type will prevent WordPress from connecting to the database and should only be done with a corresponding custom wp-config.php. |
application_database_name | "wp" | "gkeappdb" | Name of the MySQL database created inside the Cloud SQL instance. Injected into pods as DB_NAME. Do not change after initial deployment without first migrating the database contents. |
application_database_user | "wp" | "gkeappuser" | MySQL username created for the WordPress application. Injected into pods as DB_USER. The auto-generated password is stored in Secret Manager and injected as DB_PASSWORD. |
Note: The variables
enable_postgres_extensions,postgres_extensions,enable_mysql_plugins, andmysql_pluginsare available but have no effect in the default WordPress configuration.Wordpress Commondoes not enable any MySQL plugins. They are available for advanced use cases where custom MySQL behaviour is needed alongside WordPress.
Jobs & Scheduled Tasks
Refer to App_GKE §3.E Initialization Jobs & CronJobs for documentation on initialization_jobs, cron_jobs, and additional_services. Unlike Wordpress_CloudRun, this module does expose the additional_services variable.
Pre-Configured db-init Job
Wordpress Common automatically defines a db-init initialization job. This job runs the db-init.sh script using the mysql:8.0-debian image and creates the WordPress MySQL database and database user within the Cloud SQL instance if they do not already exist. Key properties:
execute_on_apply = true— runs on everyterraform apply, not only on first deployment.- Idempotent — checks for existing objects before creating them; safe to run repeatedly.
- Timing — runs before the WordPress pod is scheduled, ensuring the database and user exist before WordPress attempts to connect.
If you supply custom entries in initialization_jobs, they replace the default db-init job entirely. If your custom jobs still require database setup, include a database initialisation step in your list.
# List initialization jobs in the namespace
kubectl get jobs -n NAMESPACE -o wide
# View db-init job logs to confirm database creation succeeded
kubectl logs -n NAMESPACE -l job-name=JOB_NAME
Redis Object Cache
WordPress uses Redis as a persistent object cache to store the results of expensive database queries in memory, dramatically reducing page load time and database load on high-traffic sites. This module integrates with the Redis Object Cache WordPress plugin. The Redis integration is provided by App_GKE — see §8.A Redis / Memorystore for the full integration reference.
| Variable | Default | Options / Format | Description & Implications |
|---|---|---|---|
enable_redis | true | true / false | When true, injects the ENABLE_REDIS, WP_REDIS_HOST, and WP_REDIS_PORT environment variables into the WordPress pods. The container entrypoint script reads these and configures the Redis Object Cache plugin automatically. Enabling this variable does not provision a Redis server — the server must exist independently. Leave redis_host empty to automatically use the Redis-compatible service co-located on the Services GCP-managed NFS server (the default shared deployment model). Set to false to disable object caching entirely; this increases database load on busy sites but removes the Redis dependency. |
redis_host | "" (defaults to NFS server IP) | IP address or hostname | The hostname or IP address of the Redis server, injected as WP_REDIS_HOST. Leave blank to fall back to the IP of the Services GCP-managed NFS server (where a Redis-compatible service is typically co-located). Set explicitly when connecting to a dedicated Redis instance such as Cloud Memorystore — use the instance's private IP (found in Memorystore → Redis → instance → Primary endpoint). The GKE pods reach this address over the VPC — ensure firewall rules permit TCP traffic on redis_port from the cluster node subnet. |
redis_port | "6379" | Port number as string (e.g. "6379") | TCP port of the Redis server, injected as WP_REDIS_PORT. The default 6379 is correct for standard Redis and Cloud Memorystore. Change only if your Redis instance is configured on a non-standard port. |
redis_auth | "" | Password string (sensitive) | Authentication password for the Redis server, injected securely via Secret Manager. Leave empty if the Redis instance does not require authentication. For Cloud Memorystore with AUTH enabled, set this to the auth string shown in Memorystore → Redis → instance → AUTH string. This value is stored in Secret Manager and never exposed in plaintext in Terraform state or pod environment variable listings. |
Validating Redis Configuration
# Confirm Redis environment variables are injected into a WordPress pod
kubectl exec -n NAMESPACE POD_NAME -- env | grep -E "^(ENABLE_REDIS|WP_REDIS)"
# Test TCP connectivity to the Redis server from within the pod
kubectl exec -n NAMESPACE POD_NAME -- sh -c 'redis-cli -h $WP_REDIS_HOST -p $WP_REDIS_PORT ping'
# Check Redis Object Cache status in WordPress (requires WP-CLI in the container)
kubectl exec -n NAMESPACE POD_NAME -- wp redis status --allow-root
Health Checks
Refer to App_GKE §5 Traffic & Ingress for documentation on startup_probe_config, health_check_config, uptime_check_config, and alert_policies.
Wordpress GKE exposes two additional internal probe variables (startup_probe and liveness_probe) that are passed to Wordpress Common and control the probe configuration embedded in the WordPress application configuration object. These have WordPress-specific defaults that are tuned for WordPress's startup behaviour:
| Variable | WordPress Default | App GKE Default | Rationale |
|---|---|---|---|
startup_probe | type = "TCP", initial_delay_seconds = 30, period_seconds = 15, failure_threshold = 20 | N/A (internal to Wordpress Common) | Uses TCP rather than HTTP because WordPress may not yet respond to HTTP requests while the database connection is being established on first boot. The high failure_threshold (20 × 15s = 300 seconds of grace) accommodates the db-init job and WordPress's initialisation phase. Do not reduce failure_threshold below 10 for production deployments — premature startup probe failures cause pod restarts during database initialisation, leading to a restart loop. |
liveness_probe | type = "HTTP", path = "/wp-admin/install.php", initial_delay_seconds = 300, timeout_seconds = 60, failure_threshold = 3 | N/A (internal to Wordpress Common) | Uses /wp-admin/install.php as the health endpoint. This WordPress-managed page returns HTTP 200 whether WordPress is freshly installed or already configured, making it a reliable liveness indicator that does not depend on an application-specific /healthz route. The 300-second initial delay ensures liveness checks do not begin until after the database initialisation job has had time to complete. |
Deployment Prerequisites
Refer to App_GKE — Deployment Prerequisites & Dependency Analysis for the complete list of hard prerequisites, silent failure modes, and soft prerequisites.
WordPress-specific notes:
- The
db-initjob creates the MySQL database and user automatically on first apply — no manual database setup is required before deployment. - The eight WordPress security keys and salts are generated and stored in Secret Manager automatically — no pre-existing secrets are needed.
- The GCS uploads bucket (
wp-uploads) is defined byWordpress Commonand provisioned byApp GKE— it does not need to be created manually before deployment. - Because
execute_on_apply = trueon thedb-initjob, everyterraform applywill run the database initialisation script. This is intentional and safe; the script is idempotent. - The backup import variable is named
backup_file(notbackup_urias inWordpress CloudRun), with a default value of"backup.sql". - The
container_build_configvariable is exposed in this module (unlikeWordpress_CloudRun) and can be used to customise the Cloud Build configuration whencontainer_image_source = "custom". - On a first apply that creates a new inline GKE cluster,
kubernetes_readyoutputsfalseand all Kubernetes workloads are skipped. A second apply completes the deployment. Refer to thekubernetes_readyoutput for details.
Dependency on Services GCP
Refer to App_GKE — Dependency on Services_GCP for Shared Resources for a full comparison of standalone versus Services_GCP-backed deployments.
WordPress-specific benefit: when Services GCP provides a shared Cloud SQL instance, the db-init job connects to it and creates only the WordPress database and user within the shared instance — eliminating the cost of a dedicated Cloud SQL instance per WordPress site. This is the recommended model for multi-tenant platforms where many independent WordPress deployments share the same GCP project.
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
project_id | (required) | Critical | No default — deployment fails immediately. |
database_type | "MYSQL_8_0" | Critical | WordPress requires MySQL. Setting to POSTGRES or NONE breaks the application — WordPress's wpdb class is not compatible with PostgreSQL. |
enable_nfs | true | Critical | WordPress wp-content must be on a shared volume. Without NFS, plugins, themes, and media are isolated per pod and lost on pod restart. With multiple replicas and no NFS, each pod serves a different version of the site. |
nfs_mount_path | "/mnt/nfs" | High | The container startup script symlinks wp-content to this path. If the path changes after initial deployment, the symlink breaks and WordPress cannot find plugins or media. |
container_image_source | "custom" | High | The custom WordPress image wires the NFS symlink and Cloud SQL socket. Using "prebuilt" with the vanilla WordPress image breaks Cloud SQL socket connectivity. |
enable_redis | false | Medium | WordPress without Redis object cache hits MySQL for every cached value. With multiple pods and no Redis, there is no shared cache — each pod has an isolated in-memory cache, resulting in redundant database queries. Enabling Redis with a shared host dramatically improves response times. |
redis_host | "" | High | Required when enable_redis = true. Without an explicit host and NFS not configured, Redis connection silently fails and WordPress falls back to no caching. |
session_affinity | "ClientIP" | High | WordPress uses PHP sessions for the admin panel. Without "ClientIP" affinity, admin users are logged out on every request that lands on a different pod. Keep session affinity enabled for any multi-replica deployment. |
container_resources.memory_limit | "512Mi" (GKE default) | High | WordPress with WooCommerce or Elementor requires at least 2Gi. The default GKE container_resources memory is 512Mi which will cause PHP OOM errors under plugin-heavy workloads. Override to 2Gi or more. |
php_memory_limit | "512M" | Medium | Must be within the container memory limit. Setting php_memory_limit higher than container_resources.memory_limit means PHP will hit the container limit first with an OOM kill. |
application_database_name | "wordpress" | Critical | Immutable after first deployment — changing this recreates the database and destroys all WordPress data. |
application_database_user | "wordpress" | Critical | Immutable after first deployment — changing this recreates the user and breaks the existing database connection. |
workload_type | null | Medium | Setting stateful_pvc_enabled = true auto-selects StatefulSet. Setting workload_type = "Deployment" alongside stateful_pvc_enabled = true fails at plan time. |
quota_memory_requests / quota_memory_limits | "" | Critical (GKE-specific) | Must use binary suffixes (Gi, Mi) when set. Bare integers prevent all pods from being scheduled (treated as bytes by Kubernetes). |
enable_cloud_armor | false | High | WordPress is the most-attacked CMS on the internet. Without Cloud Armor, /wp-login.php and xmlrpc.php are exposed to brute-force attacks. Strongly recommended for any public WordPress GKE deployment. |
min_instance_count | 1 | Medium | Setting to 0 permits scale-to-zero. WordPress cold starts on GKE (image pull + WordPress init) can take 30–60 seconds, resulting in visible 504 errors for the first visitor after idle. |
enable_pod_disruption_budget | true | Medium | Already enabled. Disabling allows all pods to be terminated simultaneously during node upgrades, causing a complete outage. |
backup_retention_days | 7 | Medium | Insufficient for e-commerce or content sites. Increase to 30+ days for production. |
stateful_pvc_size | "10Gi" | Medium | WordPress media libraries grow quickly. 10Gi is a minimum starting point. A site with large video uploads or many years of media can exhaust this quickly. Plan for 50–200Gi for active sites. |
enable_network_segmentation | false | Medium | Without NetworkPolicy, any pod in the cluster can reach WordPress pods directly. Enable for multi-tenant clusters. |
