Speedtest Tracker on GKE Autopilot
Speedtest Tracker is a free, open-source, self-hosted internet speed test
monitoring tool built on Laravel (PHP). It runs Ookla speed tests on a recurring
schedule, stores results in a database, and presents them as historical charts

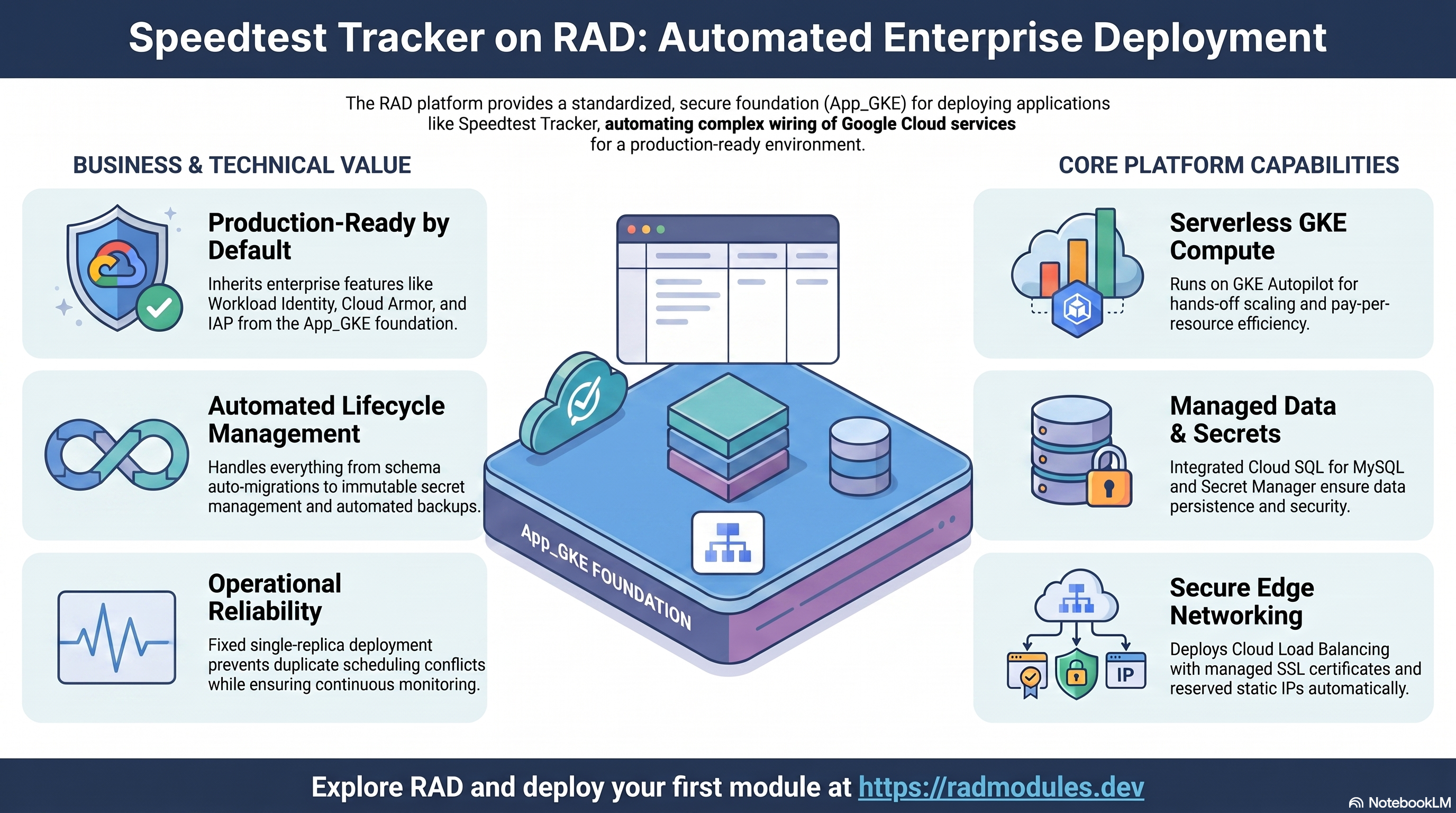

through a web dashboard and REST API. This module deploys Speedtest Tracker on
GKE Autopilot on top of the App_GKE foundation, which provisions
and manages the shared Google Cloud and Kubernetes infrastructure.
This guide focuses on the cloud services Speedtest Tracker uses and how to explore
and operate them from the Google Cloud Console and the command line. For the
mechanics that are common to every GKE application — Workload Identity, ingress,
autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls,
backups, and the deployment lifecycle — refer to the
App_GKE foundation guide rather than repeating them here.
1. Overview
Speedtest Tracker runs as a PHP web workload on GKE Autopilot. The deployment wires
together a focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|
| Compute | GKE Autopilot | PHP (LinuxServer) pod, 1 vCPU / 1 GiB by default, single replica |
| Database | Cloud SQL for MySQL 8.0 | Required — this module fixes MySQL; the upstream image's SQLite default is bypassed |
| Cache & sessions | Redis (optional) | Disabled by default; Speedtest Tracker uses the local file/sync cache driver |
| Secrets | Secret Manager | Auto-generated Laravel APP_KEY; database password |
| Ingress | Cloud Load Balancing | External LoadBalancer, custom domain + managed certificate + static IP by default |
Sensible defaults worth knowing up front:
- MySQL 8.0 is mandatory. The database engine is fixed by the shared application
layer (
database_type resolves to MYSQL_8_0); PostgreSQL is not supported.
- The prebuilt
linuxserver/speedtest-tracker image is used directly. There is
no custom Cloud Build; the official LinuxServer.io image is mirrored into
Artifact Registry (enable_image_mirroring = true) and deployed as-is. Fallback:
ghcr.io/alexjustesen/speedtest-tracker (Alpine-based) if a specific runtime is
ever found incompatible with the LinuxServer s6-overlay image.
- The container listens on port 80 (
container_port = 80, container_protocol = "http1").
- A single replica is maintained (
min_instance_count = 1, max_instance_count = 1;
GKE has no scale-to-zero). This is load-bearing, not just a cost default — the
SPEEDTEST_SCHEDULE Laravel scheduler has no cross-pod locking, so more than one
replica risks firing duplicate scheduled speed tests.
APP_KEY is immutable after first boot. The Laravel app key is generated once
and stored in Secret Manager; rotating it makes all encrypted DB values
undecryptable.- The image runs
php artisan migrate --force automatically on start, so the
schema is created on first boot after db-init provisions the database and user —
there is no separate migration job.
- No storage by default. Speedtest Tracker stores all results and configuration
in Cloud SQL —
create_cloud_storage and enable_nfs default off.
- GKE connects to Cloud SQL through the Auth Proxy sidecar on
127.0.0.1:3306
(enable_cloudsql_volume = true), and the GKE wiring overrides DB_HOST = "127.0.0.1".
- A custom domain, managed certificate, and reserved static IP are enabled by
default (
enable_custom_domain = true, reserve_static_ip = true), with
session_affinity = "ClientIP".
2. Google Cloud Services & How to Explore Them
All commands assume you have run
gcloud container clusters get-credentials <cluster> --region <region> --project <project>
and that PROJECT, REGION, and NAMESPACE are set. The namespace and other
identifiers are reported in the deployment Outputs.
A. GKE Autopilot — the Speedtest Tracker workload
Speedtest Tracker's pod is scheduled on Autopilot, which bills for the CPU/memory
the pod actually requests. The workload runs as a single-replica Deployment so the
in-process cron scheduler never runs concurrently across pods.
- Console: Kubernetes Engine → Workloads → select the Speedtest Tracker workload
to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows
the external IP.
- CLI:
kubectl get pods,svc -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
kubectl describe deploy/<service-name> -n "$NAMESPACE" # strategy, events
See App_GKE for how Autopilot, scaling, and the workload
type (Deployment vs StatefulSet) are managed.
B. Cloud SQL for MySQL 8.0
Speedtest Tracker stores all speed test results and application configuration in a
managed Cloud SQL for MySQL 8.0 instance. Pods reach it privately through the
Cloud SQL Auth Proxy sidecar on 127.0.0.1:3306 (enable_cloudsql_volume = true);
no public IP is exposed. On first deploy an initialization Job creates the
application database and user.
- Console: SQL → select the instance for connections, backups, flags, and
metrics.
- CLI:
gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
# Open an interactive shell to inspect schema/data:
gcloud sql connect <instance-name> --user=speedtesttracker --database=<db-name> --project "$PROJECT"
The instance name, database name, user, and the Secret Manager secret holding the
password are all surfaced in the Outputs. For the connection model,
automated backups, and password rotation, see
App_GKE.
C. Redis (optional cache & sessions)
Redis is disabled by default (enable_redis = false); Speedtest Tracker uses
its local file/sync cache and session drivers, which is fine for a single-replica
deployment. When enable_redis = true is set, the shared layer injects
REDIS_HOST and REDIS_PORT.
- Console: Memorystore → Redis (if using a managed instance).
- CLI:
redis-cli -h <redis-host> ping
# Confirm the DB/schedule wiring injected into the running pod:
kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E 'DB_|REDIS_|SPEEDTEST_'
D. Secret Manager
One cryptographic secret is generated automatically and stored in Secret Manager: the
Laravel APP_KEY (base64:<44-char base64>), used to encrypt all application
data that Speedtest Tracker stores encrypted. The database password is managed
separately by the foundation.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
The database password secret name is in the Outputs. See
App_GKE for the Secret Store CSI integration and rotation.
E. Networking & ingress
By default the workload is exposed through an external Cloud Load Balancing IP with a
custom domain and Google-managed certificate (enable_custom_domain = true), and a
static IP is reserved (reserve_static_ip = true) so the address survives redeploys.
- Console: Network services → Load balancing; VPC network → IP addresses.
- CLI:
kubectl get ingress,svc -n "$NAMESPACE"
gcloud compute addresses list --project "$PROJECT"
See App_GKE for custom domains, Cloud CDN, and
static IP details.
F. Cloud Logging & Monitoring
Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud
Monitoring. Optional uptime checks and alert policies are available.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
--project "$PROJECT" --limit 50
3. Speedtest Tracker Application Behaviour
- First-deploy database setup. An initialization Job runs
db-init.sh using
mysql:8.0-debian. It detects the Cloud SQL socket or TCP endpoint, waits for MySQL
to be reachable, creates the application database and user, grants privileges,
verifies the app user can connect, and gracefully shuts down the Cloud SQL Auth
Proxy sidecar. The job is idempotent and safe to re-run (max_retries = 3).
- Schema auto-migration on start. The LinuxServer Speedtest Tracker image runs
php artisan migrate --force automatically on every container start, so the schema
is created on first boot and upgraded on later boots — there is no separate
migration job.
APP_KEY is immutable after first boot. The Laravel app key is generated once
and written to Secret Manager. Rotating it makes all encrypted DB values
permanently undecryptable. Only rotate during a planned maintenance window with a
re-encryption plan.- In-process cron scheduler.
SPEEDTEST_SCHEDULE (default "0 * * * *", hourly)
drives Speedtest Tracker's own Laravel scheduler to run automated speed tests.
Unlike Cloud Run, GKE pods run continuously (no scale-to-zero concern), so this
fires reliably as long as the single pod is running.
- Result pruning.
PRUNE_RESULTS_OLDER_THAN (default "0", disabled)
automatically deletes speed test results older than the configured number of days.
- Health path. The liveness probe targets
/api/healthcheck by default —
Speedtest Tracker's unauthenticated JSON health endpoint. The startup probe is a
TCP check. Allow a generous first-boot window (30-second initial delay, high
failure threshold) for the automatic migrations.
- First-run setup. Speedtest Tracker's web UI walks through account creation on
first visit — there is no seeded default admin account to change.
- Inspect job execution:
kubectl get jobs -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" job/<job-name>
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only
settings specific to or notable for Speedtest Tracker are listed; every other input
is inherited from App_GKE with its standard behaviour and defaults.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the workload and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources for cost/ownership tracking. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|
application_name | speedtesttracker | Base name for resources. Do not change after first deploy. |
application_display_name | Speedtest Tracker | Human-readable name shown in the Console. |
application_description | Speedtest Tracker — automated internet speed test monitoring and history on GKE Autopilot | Workload description. |
application_version | latest | linuxserver/speedtest-tracker image tag; pin (e.g. version-v1.6.3) in production. |
speedtest_schedule | 0 * * * * | Cron expression for the automated speed test schedule. |
prune_results_older_than | 0 | Days after which old results are pruned; 0 disables pruning. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|
deploy_application | true | Set false to provision infrastructure only. |
container_image_source | prebuilt | Deploy the mirrored LinuxServer image directly — no custom build. |
container_image | "" | Override image reference; leave empty to use the mirrored default. |
enable_image_mirroring | true | Mirror the LinuxServer image into Artifact Registry before deployment. |
min_instance_count | 1 | Minimum replicas; keep at 1. |
max_instance_count | 1 | Maximum replicas. Do not raise while speedtest_schedule is set — risks duplicate scheduled speed tests. |
container_port | 80 | Speedtest Tracker listens on port 80. |
container_protocol | http1 | HTTP/1.1. |
cpu_limit | 1000m | CPU per pod; 1 vCPU by default. |
memory_limit | 1Gi | Memory per pod. |
timeout_seconds | 300 | Maximum request duration (0–3600 seconds). |
enable_cloudsql_volume | true | Cloud SQL Auth Proxy sidecar (127.0.0.1:3306); required on GKE. |
Group 5 — Environment Variables & Secrets
| Variable | Default | Description |
|---|
environment_variables | {} | Extra non-secret settings (e.g. DISPLAY_TIMEZONE, SPEEDTEST_SERVERS). Do not set APP_KEY or DB_* here. |
secret_environment_variables | {} | Map of env var → Secret Manager secret name. |
secret_propagation_delay | 30 | Seconds to wait after secret creation before proceeding. |
secret_rotation_period | 2592000s | Secret Manager rotation notification frequency. |
Group 6 — GKE Backend & Cluster
| Variable | Default | Description |
|---|
service_type | LoadBalancer | How the Kubernetes Service is exposed. |
workload_type | null | Resolves to Deployment (default). |
session_affinity | ClientIP | Sticky routing keeps a client's UI session on one pod. |
enable_network_segmentation | false | Create Kubernetes NetworkPolicy resources. |
termination_grace_period_seconds | 30 | Seconds to wait after SIGTERM before SIGKILL. |
Group 7 — StatefulSet
| Variable | Default | Description |
|---|
stateful_pvc_enabled | null | Not needed — Speedtest Tracker has no per-pod block storage requirement. |
stateful_pvc_size | 10Gi | Per-pod PVC storage size (if enabled). |
stateful_pvc_mount_path | /data | Container mount path for the PVC. |
stateful_pvc_storage_class | standard-rwo | Kubernetes StorageClass for PVCs. |
Group 8 — Resource Quota
| Variable | Default | Description |
|---|
enable_resource_quota | false | Enforce a namespace ResourceQuota. |
quota_cpu_requests / quota_cpu_limits | "" | CPU quota. |
quota_memory_requests / quota_memory_limits | "" | Memory quota — use binary units (4Gi, 8192Mi). |
quota_max_pods / quota_max_services / quota_max_pvcs | "" | Object-count quotas. |
Group 9 — Reliability
| Variable | Default | Description |
|---|
enable_pod_disruption_budget | false | Protect availability during node upgrades. |
pdb_min_available | 1 | Minimum pods available during voluntary disruptions. |
enable_topology_spread / topology_spread_strict | false | Spread pods across zones. |
Group 10 — Observability & Health
| Variable | Default | Description |
|---|
startup_probe | TCP, path /api/healthcheck, 30s | Startup probe (port-listening check). |
liveness_probe | HTTP /api/healthcheck, 300s delay | Liveness probe against Speedtest Tracker's unauthenticated health endpoint. |
startup_probe_config / health_check_config | App_GKE-level probes | Infrastructure-level probes. |
uptime_check_config | disabled | Optional Cloud Monitoring uptime check. |
alert_policies | [] | Optional metric alert policies. |
Group 11 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|
initialization_jobs | [] | Leave empty to use the built-in db-init job. |
cron_jobs | [] | For unrelated maintenance tasks — Speedtest Tracker's own speed-test schedule runs in-process via SPEEDTEST_SCHEDULE. |
additional_services | [] | Sidecar or helper services deployed alongside Speedtest Tracker. |
Group 12 — CI/CD & Binary Authorization
Standard App_GKE Cloud Build / Cloud Deploy integration — see
App_GKE. Key inputs: enable_cicd_trigger,
github_repository_url, github_token, enable_cloud_deploy,
enable_binary_authorization.
Group 13 — Filesystem (NFS)
| Variable | Default | Description |
|---|
enable_nfs | false | Not required by default — all state lives in Cloud SQL. |
nfs_mount_path | /config | Mount path if NFS is enabled (e.g. for custom certs). |
nfs_volume_name | nfs-data-volume | Kubernetes volume name for the NFS mount. |
nfs_instance_name / nfs_instance_base_name | "" / app-nfs | NFS server discovery/naming. |
Group 14 — Cloud Storage & Artifact Registry
| Variable | Default | Description |
|---|
create_cloud_storage | true | Create any buckets declared in storage_buckets (empty by default). |
storage_buckets | [] | GCS buckets to provision. Not needed by default. |
gcs_volumes | [] | GCS Fuse volume mounts via the CSI driver. |
manage_storage_kms_iam / enable_artifact_registry_cmek | false | CMEK options. |
max_images_to_retain | 7 | Maximum recent Artifact Registry images to keep. |
delete_untagged_images | true | Automatically delete untagged images. |
image_retention_days | 30 | Days after which images are eligible for deletion. |
Group 15 — Redis Cache & Sessions
| Variable | Default | Description |
|---|
enable_redis | false | Inject REDIS_HOST/REDIS_PORT so Speedtest Tracker can use Redis for cache/sessions. Not required by default. |
redis_host | "" | Redis endpoint. Leave empty to use the NFS server IP (requires enable_nfs = true). |
redis_port | 6379 | Redis port. |
redis_auth | "" | Optional Redis auth password (sensitive). |
Group 16 — Database Backend
| Variable | Default | Description |
|---|
database_type | null → MYSQL_8_0 | Fixed — Speedtest Tracker requires MySQL 8.0 in this module. |
application_database_name | speedtesttracker | MySQL database name (tenant-prefixed). Immutable after first deploy. |
application_database_user | speedtesttracker | Application database user (tenant-prefixed). Immutable after first deploy. |
database_password_length | 32 | Generated password length. |
enable_auto_password_rotation | false | Zero-downtime DB password rotation. |
rotation_propagation_delay_sec | 90 | Seconds to wait after rotation before rolling-restarting pods. |
Group 17 — Backup & Maintenance
| Variable | Default | Description |
|---|
backup_schedule | 0 2 * * * | Automated backup cron (UTC). |
backup_retention_days | 7 | Retention; raise to 30–90 for production/compliance. |
enable_backup_import / backup_source / backup_file / backup_format | restore options | Restore from a backup on deploy. |
Group 18 — Custom SQL Scripts
enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path,
custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See
App_GKE.
Group 19 — Custom Domain, Static IP & Networking
| Variable | Default | Description |
|---|
enable_custom_domain | true | Provision Ingress for custom hostnames + managed certificate. |
application_domains | [] | Hostnames to serve. |
reserve_static_ip | true | Stable external IP across redeploys. |
network_tags | ["nfsserver"] | Node/pod network tags (relevant only if enable_nfs = true). |
Group 20 — Identity-Aware Proxy (IAP)
| Variable | Default | Description |
|---|
enable_iap | false | Require Google sign-in in front of Speedtest Tracker. |
iap_authorized_users / iap_authorized_groups | [] | Who may access. |
iap_oauth_client_id / iap_oauth_client_secret | "" | Required when IAP is enabled (sensitive). |
Group 21 — Cloud Armor
| Variable | Default | Description |
|---|
enable_cloud_armor | false | Attach a Cloud Armor (WAF) policy to the Ingress backend. |
admin_ip_ranges | [] | CIDRs allowed privileged access. |
cloud_armor_policy_name | default-waf-policy | Policy name. |
enable_cdn | false | Enable Cloud CDN on the GKE Ingress backend. |
Group 22 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
These values are returned on a successful deployment and are the quickest way to
locate and explore the running resources.
| Output | Description |
|---|
service_name | Kubernetes Service name. |
namespace | Namespace the workload runs in. |
service_cluster_ip | In-cluster ClusterIP. |
stage_service_cluster_ips | Map of ClusterIPs for stage-specific services. |
service_external_ip | External LoadBalancer IP (when a static IP is reserved). |
service_url | URL to reach Speedtest Tracker. |
database_instance_name | Cloud SQL instance name. |
database_name | Application database name. |
database_user | Application database user. |
database_password_secret | Secret Manager secret holding the DB password. |
database_host / database_port | DB endpoint (127.0.0.1 via the Auth Proxy) / port. |
storage_buckets | Created Cloud Storage buckets (empty by default). |
network_name / network_exists / regions | VPC network, presence, available regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels | Monitoring status and channels. |
initialization_jobs / db_import_job | Names of the setup and (optional) import jobs. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / cicd_configuration | CI/CD status and details (repo, trigger, registry). |
github_repository_url / github_repository_owner / github_repository_name | CI/CD GitHub details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
kubernetes_ready | Whether the cluster/workload is ready. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) —
Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, a gen1 runtime with NFS/GCS mounts, a database_type that does not match the engine Speedtest Tracker requires, an out-of-range redis_port/backup_retention_days. This module additionally validates that max_instance_count <= 1 whenever speedtest_schedule is set. Invalid configuration fails the plan with a clear, named error before any resource is created.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|
APP_KEY (auto-generated) | Never rotate after first boot | Critical | Rotating it makes all encrypted DB values permanently undecryptable. |
application_database_name / application_database_user | Set once | Critical | Immutable after first deploy; renaming recreates the DB/user and destroys all data. |
enable_backup_import | false unless restoring | Critical | Enabling without a valid backup_uri fails the import job. |
database_type | MYSQL_8_0 | Critical | Speedtest Tracker requires MySQL in this module; any other engine breaks startup. |
quota_memory_requests / _limits | binary units (4Gi, 8192Mi) | Critical | Bare integers are bytes and block all pod scheduling in the namespace. |
max_instance_count | 1 | High | Scaling beyond 1 with an active speedtest_schedule risks duplicate speed tests firing on the same schedule tick — the Laravel scheduler has no cross-pod locking. |
memory_limit | 1Gi | High | Lower values risk OOM kills during migrations or concurrent dashboard use. |
enable_cloudsql_volume | true | High | The Auth Proxy sidecar is required for MySQL connectivity on GKE; disabling it is blocked by a plan-time validation guard. |
min_instance_count | 1 | High | GKE requires min ≥ 1; keeping 1 also keeps the cron scheduler running continuously. |
liveness_probe path | /api/healthcheck (default) | Medium | Pointing the probe at any other path never returns healthy — /api/healthcheck is Speedtest Tracker's unauthenticated JSON health endpoint. |
enable_iap | only when readers must authenticate | High | IAP blocks all anonymous access. |
backup_retention_days | 7 (raise for prod) | Medium | Too short for compliance retention. |
For the foundation behaviour referenced throughout — IAM and Workload Identity,
autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary
Authorization, VPC-SC, backups, and image mirroring — see
App_GKE. Speedtest Tracker-specific application configuration
shared with the Cloud Run variant is described in
SpeedtestTracker_Common.
